USER MANUAL 63/522 NUVO

LED UNDER CABINET FIXTURE

Models: 63-500, 63-501, 63-502, 63-503, 63-504, 63-505, 63-520, 63-521, 63-522, 63-523, 63-524, 63-525

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing fixture. Retain for future reference.

WARNING: Risk of Fire or Electric Shock

• LED Under Cabinet Fixture installation requires knowledge of luminaries' electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
• To reduce risk of fire and over-heating, secure all connections.
  • TURN OFF the electrical power before proceeding.
  • The electrical rating of this product is 120V/60Hz.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during installation.
  • Not rated for wet locations.
• This product must be installed in accordance with the owner's manual, current electrical codes and/or the current National Electric Code (NEC).

WARRANTY: This product is guaranteed for a 5-year warranty. Any quality issue in normal use within the warranty period, will be repaired or replaced according to the situation and under the condition specifications can be provided. Visit www.Satco.com for full warranty details and dimmer compatibility information.

Technical line drawing of a rectangular metal bracket (no text or symbols)

Model # (Color) Dimensions

63-500 (Wht), 63-520 (Dk Brz)	8"L x 3 1/2"W (203mm x 90mm)
63-501 (Wht), 63-521 (Dk Brz)	11"L x 3 1/2"W (280mm x 90mm)
63-502 (Wht), 63-522 (Dk Brz)	14"L x 3 1/2"W (355mm x 90mm)
63-503 (Wht), 63-523 (Dk Brz)	22"L x 3 1/2"W (559mm x 90mm)
63-504 (Wht), 63-524 (Dk Brz)	28"L x 3 1/2"W (711mm x 90mm)
63-505 (Wht), 63-525 (Dk Brz)	34"L x 3 1/2"W (863mm x 90mm)

WIRING DIAGRAM

(+) Black/BrownLine	FIXTURE
(-) White/BlueNeutralGreenGround

INSTALLATION: Mounting – Direct

STEP 1: Open the two mounting screw covers located on the front edge of the fixture (A).

STEP 2: Place the fixture in desired position and mount with included screws (B).

STEP 3: Close the mounting screw cover.

Mounting Screw Cover Mounting Screw

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Mounting - Keyhole

STEP 1: Place the fixture in the desired location, open the front panel using a flat tool to pry it open, and mark the locations of the keyholes through the wiring area (C).

STEP 2: Install (2) screws into the marked locations.

STEP 3: Mount fixture through 2 keyholes on back of device. Tighten screws if required (D).

Diagram of a hand using a tool to cut a rectangular object on a ruler, labeled (C) and (D), with no text or symbols present.

Technical line drawing of a mechanical assembly with a ruler and base plate (no text or symbols)

WIRING: Option 1 – Power Cord

STEP 1: Mount the fixture.

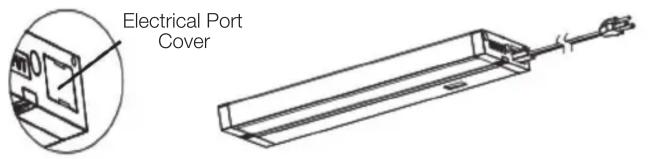

STEP 2: Remove the electrical port cover on the INPUT side.

STEP 3: Connect the power cable to the female port on the fixture.

STEP 4: Plug the power cable into a 120 Volt outlet.

STEP 5: Bundle the excess power cord with zip ties or twist ties.

Electrical Port Cover

End-to-End Connector

Technical line drawings of three mechanical components (no text or symbols)

Option 2 – Hardwire to a Junction Box

(sold separately)

STEP 1: Disconnect power from the breaker or fuse box.

STEP 2: Remove the electrical port cover from the INPUT end.

STEP 3: Use the provided end-to-end connector or link cable accessory to link the junction box to the INPUT side of the fixture.

STEP 4: Connect the OUTPUT end of the end-to-end connector to the junction box.

STEP 5: Open the junction box and remove the most convenient of the three knockouts.

STEP 6: Mount the junction box and the fixture to the cabinet.

STEP 7: Attach the 3/8" die-cast connector to the junction box and pull wiring through it.

STEP 8: Connect wiring using above wiring diagram.

STEP 9: Close the junction box.

(continued)

WIRING: Option 3 – Hardwire Direct to Fixture

STEP 1: Disconnect power from the breaker or fuse box.

STEP 2: Remove the most convenient of 3 knockouts and attach the provided 3/8" die-cast connector.

STEP 3: Mount the fixture.

Wiring using FRONT COVER, follow steps 4 – 7 below

STEP 4: Open the front panel of the fixture to access the wiring by using a flat tool to pry open the compartment (A).

STEP 5: Insert the wiring from the power source through the connector and connect them to the corresponding wiring inside the fixture (B). BLACK = Hot, WHITE = Neutral, GREEN = Ground.

STEP 6: Ensure excess wires are settled inside the fixture.

STEP 7: Close the front cover.

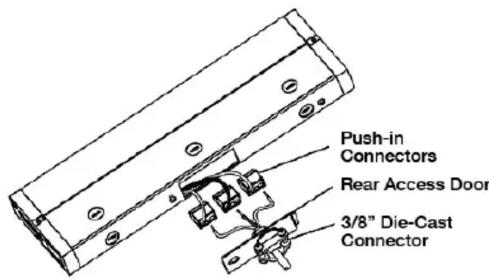

Wiring using REAR ACCESS, follow steps 4 – 7 below (only for 63-503, 63-504, 63-523 and 63-524)

STEP 4: Remove the rear access panel (C) by loosening the rear screw.

STEP 5: Insert the wiring from the power source through the connector and connect them to the corresponding wiring inside the fixture (B). BLACK = Hot, WHITE = Neutral, GREEN = Ground.

STEP 6: Ensure excess wires are settled inside the fixture.

STEP 7: Close the rear access panel.

(A)

Simple line drawing of a rectangular device with a diagonal tool and a small screen on top (no text or symbols)

(B)

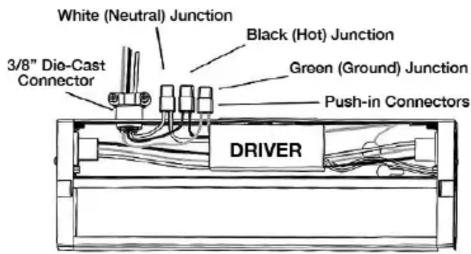

White (Neutral) Junction Black (Hot) Junction Green (Ground) Junction Push-in Connectors 3/8" Die-Cast Connector DRIVER

(C)

Push-in Connectors Rear Access Door 3/8" Die-Cast Connector

CONNECTING MULTIPLE FIXTURES

Cable (sold separately)

End-to-End Connector (provided)

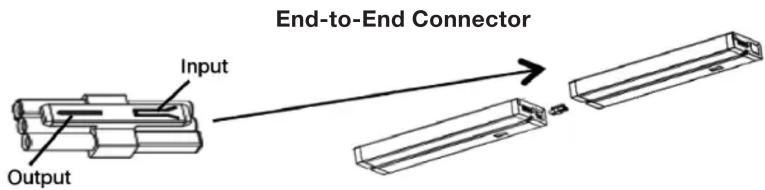

STEP 1: Remove electrical port covers on the facing ends.

STEP 2: Connect the cable to the OUTPUT of the first fixture and the INPUT of the next fixture.

Model # Finish Cable Connector/Length
63-511 — End-to-End
63-515 White	6 inches
63-516 White	12 inches
63-517 White	24 inches
63-518 White	Male to Female	Extender
63-533 Black	6 inches
63-534 Black	12 inches
63-535 Black	24 inches
63-536 Black	Male to Female	Extender

NOTE: Maximum number of connected fixtures is 24 units.

Diagram of two rectangular electronic components connected by a cable, labeled 'Cable' (no other text or symbols)

End-to-End Connector Input Output

OPERATION

Upon completing the mounting and wiring of this fixture, power can be restored. This fixture includes a Color Selection feature and HI / LOW / OFF Dimming.

These fixtures can also be wired directly to an in-wall dimmer or switch.

For compatibility information, visit www.Satco.com.

High Off Low 3000K 4000K 5000K
