65/718 - Lighting NUVO - Free user manual and instructions

Product type	Outdoor LED projector
Brand	NUVO
Model	65/718
Category	Outdoor lighting
Power supply	Mains 120-277 V~, 50/60 Hz
Rated power	20 W
Luminous flux	2000 lm
Color temperature	3000 K (warm white)
Protection rating	IP65
Materials	Die-cast aluminum, tempered glass
Dimensions (L x W x H)	250 x 180 x 120 mm
Weight	1.5 kg
Mounting type	Wall or ceiling
Motion sensor	Optional (models 65/711, 713, 715, 717, 719, 721)
Lifespan	50,000 hours
Beam angle	120°
Color rendering index	80
Insulation class	Class I (grounded)
Intended use	Exterior, driveways, gardens, facades
Maintenance	Clean the lens with a non-abrasive product
Safety	Installation by a qualified electrician; disconnect before servicing
Repairability	LED non-replaceable; sealed unit
Warranty	2 years

Frequently Asked Questions - 65/718 NUVO

How to install the 65/718 luminaire?

Installation must be carried out by a qualified electrician. Disconnect power at the circuit breaker. Follow the steps in the manual: fix the mounting plate, connect wires (black to black, white to white), attach the luminaire, then restore power.

Can I use a dimmer with this spotlight?

No, this luminaire is not compatible with dimmers. Use only a standard switch.

What if the motion sensor doesn't work?

Check that the sensor is not obstructed and that the photosensitive cell is not covered. Make sure the power supply is correct and the electrical connections are good. Refer to the troubleshooting section of the manual.

How to clean the luminaire?

Use a non-abrasive glass cleaning solution and a soft cloth. Do not touch the LED and do not open the luminaire. Disconnect the power before cleaning.

Is the spotlight waterproof?

Yes, it has a IP65 protection rating, making it resistant to water jets and dust. Suitable for outdoor use.

What is the power of the 65/718?

The power is approximately 20 W. Check the label on the luminaire for the exact value.

Can I replace the LED if it is defective?

No, the LED is integrated and non-replaceable. If it fails, the luminaire must be replaced.

How to adjust the heads of the spotlight?

Loosen the adjustment knob, orient the head at least 20° below horizontal to avoid water accumulation, then tighten. You can add an optional visor.

What tools are needed for installation?

You will need a screwdriver, wire connectors, silicone sealant, and possibly a drill for wall mounting. Refer to the manual.

What is the warranty period?

The warranty is 2 years against manufacturing defects. Keep the proof of purchase.

USER MANUAL 65/718 NUVO

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing fixture. Retain for future reference.

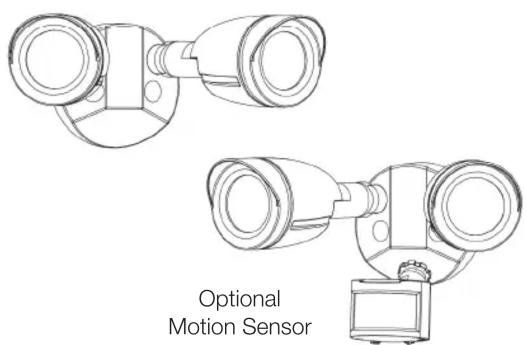

WARNING: Risk of Fire or Electric Shock

• Commercial installation, service and maintenance of luminaries should be performed by a qualified licensed electrician. If you are unsure about the installation or maintenance of the luminaries, consult a qualified licensed electrician and check your local electrical code.
• Turn OFF power at fuse or circuit breaker before wiring fixture to power supply.
• Turn OFF power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label.
• Risk of Burn. Disconnect power and allow fixture to cool before handling.
• Clean glass lens with non-abrasive glass cleaning solution.
• Do not open fixture to clean the LED. Do not touch the LED.

WIRING: If wiring does not include a ground wire, consult your local electrical code for approved grounding methods. For proper connection, place wire nut over wires and twist clockwise until tight.

1. Connect supply wires. Use wire nut to connect the black fixture wire to the black power supply wire and the white fixture wire to the white (neutral) supply wire. NOTE: Lamp heads must be positioned above motion sensor head and controls on motion sensor must face the ground.
2. Aim lamp heads and install optional visors. Loosen knobs and aim lamp heads. CAUTION: Risk of Shock: Aim lamp heads at least 20^ down below horizontal in order to prevent water from accumulating inside lens. After lamp heads are positioned as desired, align the optional visor over the front of the lamp head and secure by tightening set screw on visor.
3. Weatherproof gaskets and junction box with silicone sealant, tighten all screws.

WIRING DIAGRAM

INSTALLATION: Wall Mount (External Junction Box)

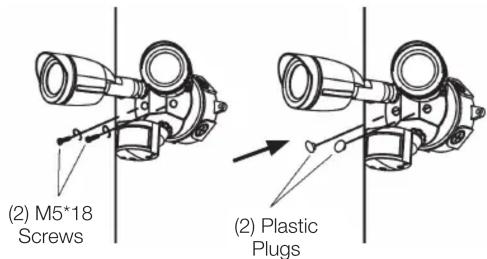

STEP 1: Disconnect power supply. Remove (2) plastic plugs. Remove inserted screws and mounting plate.

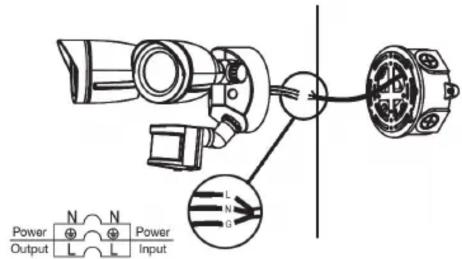

STEP 4: Connect the wires, refer to the Wiring Diagram.

STEP 2: Attach junction box on the wall (not supplied).

STEP 5: Secure fixture onto mounting plate with screws, replace plastic plugs.

STEP 3: Fix mounting plate and gasket onto junction box.

STEP 6: Check fixture and connect power supply.

Technical line drawing of a mechanical assembly with no visible text or symbols

Satco Products, Inc.
Brent wood, NY 11717© Copyright 2020 S:

INSTALLATION: Wall Mount (Built-in Junction Box)

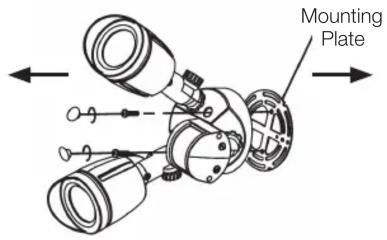

STEP 1: Disconnect power supply. Remove (2) plastic plugs. Remove inserted screws and mounting plate.

STEP 4: Secure fixture onto mounting plate with screws.

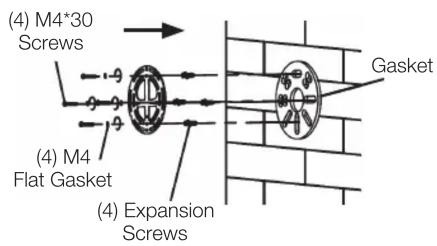

STEP 2: Drill (4) holes on the wall and insert expansion screws. Attach gasket and fix mounting plate with screws.

STEP 5: Replace plastic plugs.

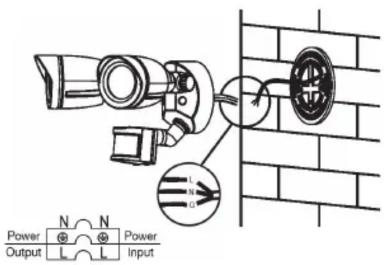

STEP 3: Connect the wires, refer to the Wiring Diagram.

STEP 6: Check fixture and connect power supply.

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

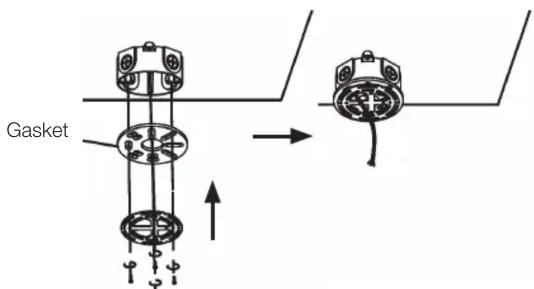

INSTALLATION: Ceiling Mount

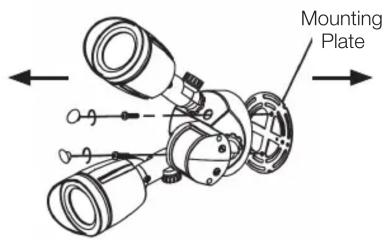

STEP 1: Disconnect power supply. Remove (2) plastic plugs. Remove inserted screws and mounting plate.

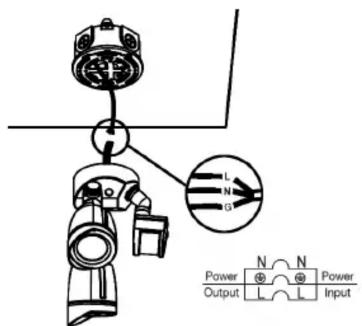

STEP 4: Connect the wires, refer to the Wiring Diagram.

STEP 2: Attach junction box on the wall (not supplied).

Simple line drawing of a mechanical component with arrows indicating motion (no text or symbols)

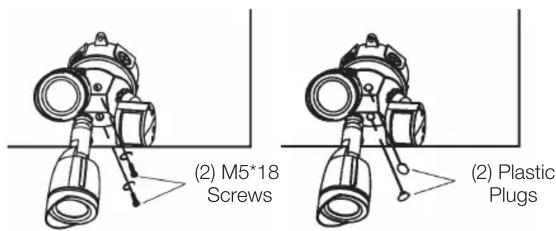

STEP 5: Secure fixture onto mounting plate with screws, replace plastic plugs.

STEP 3: Fix mounting plate and gasket onto junction box.

STEP 6: Check fixture and connect power supply.

Technical line drawing of a mechanical device with no visible text or symbols

TROUBLESHOOTING

1. Check your power source.

2. Check electrical connections.

3. Check that the photocell or motion sensor is working properly (if so equipped).
