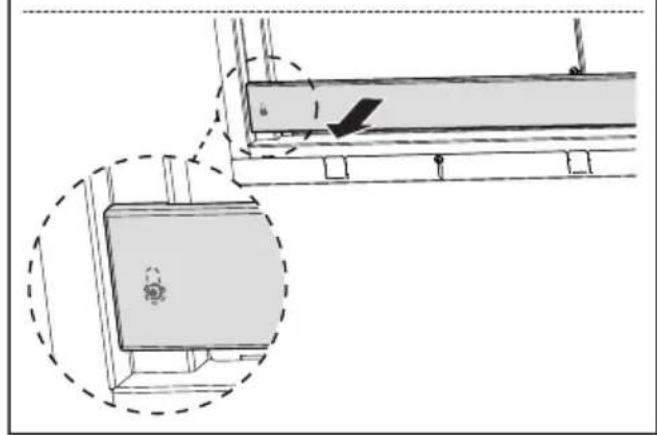

Technical diagram showing a mechanical assembly with a dashed circle highlighting a component (no text or symbols present)4. STEUERBEFEHLE
For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.
The cables must be connected by a trained technician.
- The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
- The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
- If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
- Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
-
The cut-out devices must be installed in the fixed system according to wiring system regulations.
-
For Class I appliances, check that the domestic power supply is adequately earthed.
- Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
- All the air venting regulations must be complied with.
- Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
- If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
- The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
- If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
- Connect the plug to a socket that complies with current regulations and is in an accessible position.
- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.
CAUTION: remove the protective films before installing the hood.
- Only use screws and hardware of a sort suitable for the hood.
CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.
- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- Do not flambé food under the hood: you might cause a fire.
- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.
- Supervise children, to make sure they do not play with the appliance.
- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.
Accessible parts may become extremely hot during the use of cooking appliances
- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.
- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).
- The symbol 📁 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-
formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.
2. USE
- The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
- Never use the hood for purposes other than those for which it was designed.
- Never leave high flames under the hood when it is in operation.
- Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
-
Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.
-
The ZERO DRIP SYSTEM offers the best performance when the hood is used at maximum suction power (third speed with hood in suction mode, Intensive speed with hood in filtering mode, see CONTROLS paragraph).
- It is advisable to leave the hood on for a few minutes after the end of cooking.
- It is advisable not to remove the grease filters as soon as cooking is finished to allow time for any condensate that has collected in the grease filter to settle in the tray.
• Always open the flap as far as it will go.
- If the hood is installed in filtering mode, it is advisable to carry out the following procedure: by holding button B pressed for approximately two seconds, when all the loads are off (motor+lights), the activated carbon filters alarm is activated and the Intensive speed is no longer timed to 6
minutes but has an infinite duration (like the other speeds).
3. CLEANING AND MAINTENANCE
- For maintenance of the activated carbon filter, refer to the instruction sheet inside the kit.

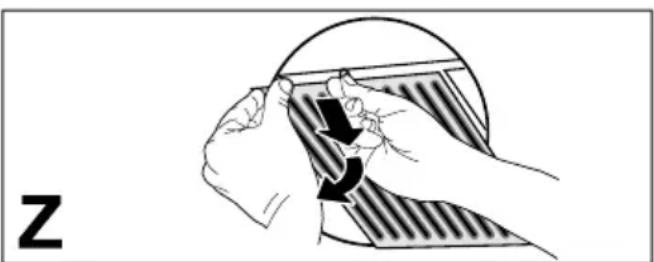

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).
- When washing in the dishwasher, the metal mesh of the grease filter may darken but its filtering characteristics do not change.
- Be careful not to compress the metal filters.
- For external and internal cleaning of the hood avoid alcoholic or silicone products.
If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

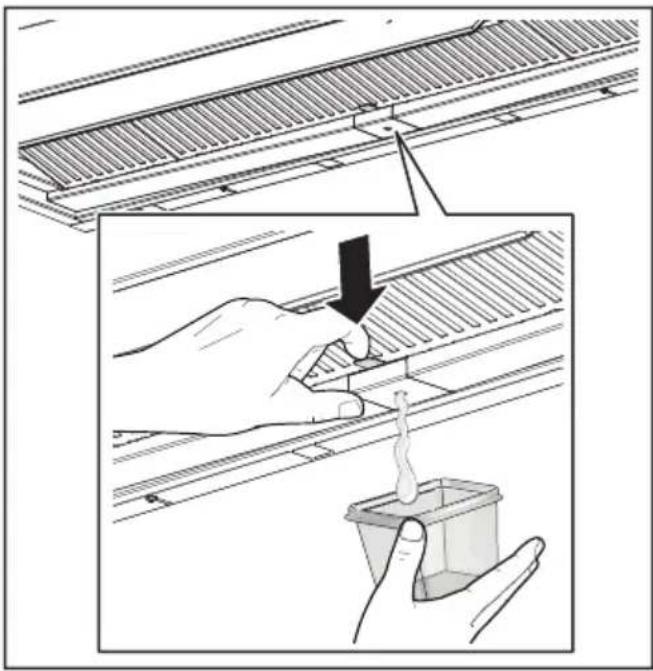

Maintenance of the condensate tray
- The tray should be emptied and cleaned AT LEAST once a week or more frequently depending on the use of the hood.
- Attention! Residual condensate may remain inside the tray even after performing the emptying operation.

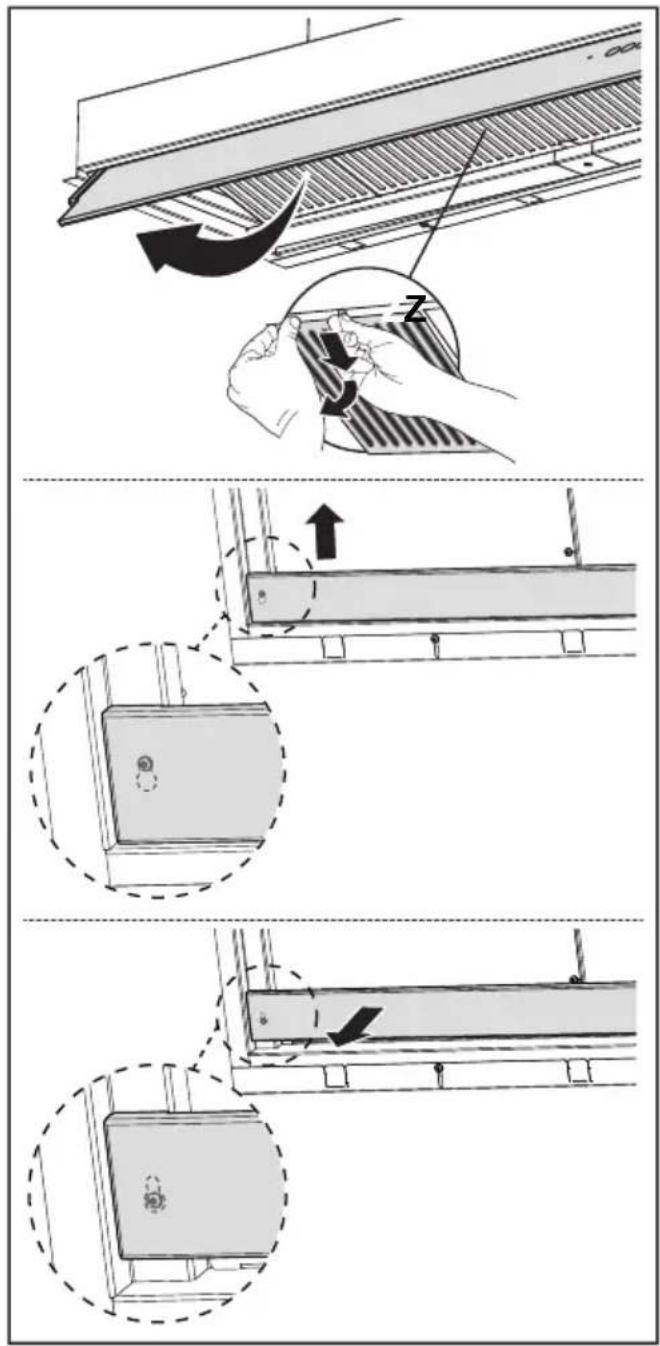

- ATTENTION: Once the tray has been removed, it is possible to use a cloth to remove any residual condensate but be careful with the springs.
| 123i | ||
| A | B | C |
| Key Function LED | ||
| A | Turns the motor on/off at the first speed. Fixed | |
| Turns the hood off at any speed. - | ||
| Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation. | ||
| Signals the Activated Charcoal Odour Filter saturation alarm. The alarm is ac- tivated after 200 hours of effective hood operation. | ||
| B | Turns the motor on/off at the second speed. Fixed | |
| Long press when all loads are off (Motor+Light): Activates/Deactivates the Activated Carbon Filters alarm. | ||
| When the carbon filters alarm is activated, the Intensive speed is no longer timed to 6 minutes but has an infinite duration. | ||
| C | Turns the motor on at the third speed. Fixed | |
| Long press when all loads are off (Motor+Light): The Filter saturation alarm is reset. | ||
| D Turns | the motor on at the Intensive speed. This speed is timed for 6 minutes. At the end of this time, the system automatic- ally returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode. It is deactivated by pressing the same key or by switching off the motor. | |
| When the carbon filters alarm is activated, the Intensive speed is no longer timed to 6 minutes but has an infinite duration. | ||
| Long press when all loads are off (Motor+Light): Activates/Deactivates the remote control. | ||
| E | Turns the lights on/off at maximum intensity. Fixed | |
5. REMOTE CONTROL (OPTIONAL)
6. LIGHTING
- Please contact the Service Department to change it ("Please contact the service department to purchase it").
• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and
