USER MANUAL Yentl DUUX

Abstract geometric logo with white triangular and cross-like shapes on teal background (no text or symbols)

Yentl

heated overblanket

Instruction manual | Gebruiksaanwijzing | Manuel d'instructions | Gebrauchsanweisung

Table of contents

1. Product overview 4
2. Important safety instructions 5
3. Installation & use 6
4. Maintenance 8
   5 Technical specifications 9

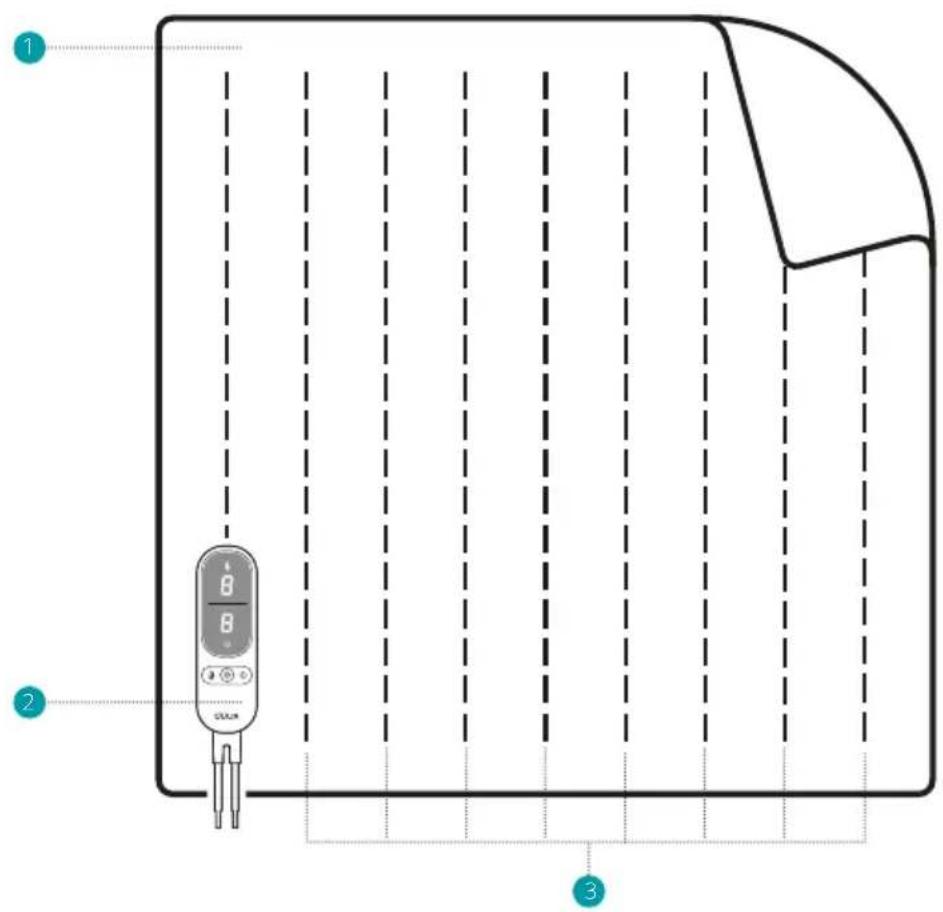

1. Product overview

Diagram showing a digital thermometer device with labeled parts and measurement lines, likely illustrating a blood glucose meter setup.

Parts

1 Overblanket
2 Controller
3 Heating wires

2. Important safety instructions

Read the instruction manual carefully before using this blanket, especially the safety instructions. Keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

IMPORTANT INFORMATION, RETAIN FOR FUTURE USE

Not suitable for children under 3 years

Do not puncture

Do not use folded or rucked

Tumble dry low temperature

Do not dry-clean

Do not iron Do not bleach Machine-wash, max. temp. 30°C

• The blanket is only to be used with the control unit SS25EN that is marked on the blanket.
• Before connecting the blanket to the power supply, please ensure that the supply voltage stated on the rating label is compatible with your main supply.
• Never operate the blanket while it is folded or creased.
• When the blanket is likely to be used for an extended period, for instance by the user falling asleep, controls should be adjusted to position 1.
• Prolonged use of the blankets at a high setting could lead to skin burns or heat stroke.
  • Children shall not play with the blanket.
• Do not use the blankets when wet and only use it in dry environments (not in the bathroom or similar environments).

• This blanket is not intended for medical use in hospitals.

• Children under the age of three are not to use this blanket due to their inability to react to overheating.

• The blanket is not to be used by young children over the age of three unless the controls have been pre-set by a parent or guardian, and unless the child has been adequately instructed on how to operate the controls safely.
• This blanket can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the blanket in a safe way and understand the hazards involved.
• The blanket can be used by children older than 3 years and younger than 8 years under supervision and with the control always set to minimum temperature value.
• The blanket must not to be used by persons insensitive to heat and other very vulnerable persons who are unable to react to overheating.
• If the power supply cable is damaged, contact the store where you purchased the blanket before switching it on again. Do not attempt to repair the device yourself.
• Examine the blanket frequently for signs of wear or damage. If there are such signs or if the blanket has been misused, contact the store where you purchased the blanket before switching it on again. Do not attempt to repair the device yourself
• The cable and control unit of the blanket can give rise to risks of entanglement, strangulation, tripping or treading if not correctly arranged. The user shall make sure that excess ties and electric cords shall be arranged in a safe way.
• Cleaning and user maintenance shall not be done by children without supervision.
• When storing the blanket, please make sure it's dry before folding.
• Store the blanket in a clean and dry place.
• Never place any object on the blanket.
• Neither pierce the blankets with, nor attach safety pins or other spiky or sharp objects to the blankets.

3. Installation & use

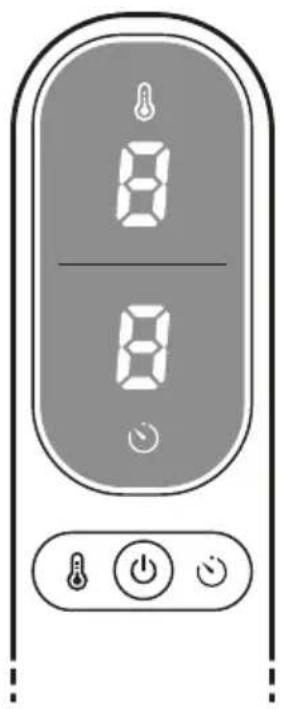

Digital display panel with two 8-segment displays and control buttons (no text or symbols)

1. Insert the controller into the input port located on the back of the blanket, the LED screen display "I" for 1 second, and the blanket get a self-test before working.
2. Press and hold the On/Off button " 🔊" to turn on the blanket. It will start with heat setting 5 and a timer set for 1 hour.
3. The electric blanket will begin heating up within a few minutes. If you want a higher heat level, press the temperature button "to cycle through the settings. The temperature cycles through 9 levels in this sequence: 5-6-7-8-9-8-7-6-5-4-3-2-1-2-3-4-5. You can also use this button to lower the temperature for less heat.
4. To adjust the timer, press the " 🔍" button to select your desired duration between 1 and 9 hours (1-2-3-4-5-6-7-8-9). The maximum timer setting is 9 hours. You can also press and hold the button to adjust the timer more quickly.
5. To turn off the blanket, press and hold the On/Off button " 🔊" until the screen goes blank and the device powers down.

Overheat protection system

For safety during extended use, the electric blanket automatically lowers the heat to level 5 if levels 6–9 are used continuously for more than 3 hours. To increase the temperature again, you must manually adjust the setting back to levels 6–9.

Reminder: Changing the temperature level does not affect the timer settings.

If the heating level automatically drops to 1, it means the blanket has detected high temperatures in folded or wrinkled areas. To ensure safety, the blanket reduces the heat. Please unfold and straighten the blanket as much as possible, then reset the temperature to your desired level. The blanket will then resume normal operation.

4. Maintenance

Cleaning

• Before cleaning the blanket, unplug it from the mains outlet and let it cool down completely.
• The blanket is equipped with a detachable controller cable. Disconnect the plug and remove the cable from the blanket.
• Do not use a hair dryer to dry this product. Allow it to air dry naturally by laying the blanket flat on a smooth surface
• Rinse the blanket several times to remove all the detergent.
• Store the blanket in a clean and dry place, laid out flat with nothing covering or resting on top of it.
• Only use the blanket once it is completely dry.
• You may also wash the blanket in a washing machine at a maximum temperature of 30^ with low mechanical action and spin. It's advisable to wash it by hand in order to prolong the life of the product.
• The controller cable must not be washed! Untach it before washing the blanket.

Storage

• Let the blanket cool down completely before folding and storing it.
• Store the blanket in its original packaging and keep it in a clean, dry place.
• Fold the power cable carefully to avoid cable breaks.
• Do not crease the blanket by placing items on top of it during storage.
• The cable and control unit of the appliance can give rise to risks of entanglement, strangulation, tripping or treading if not correctly arranged. The user shall make sure that excess ties and electric cords shall be arranged in a safe way.

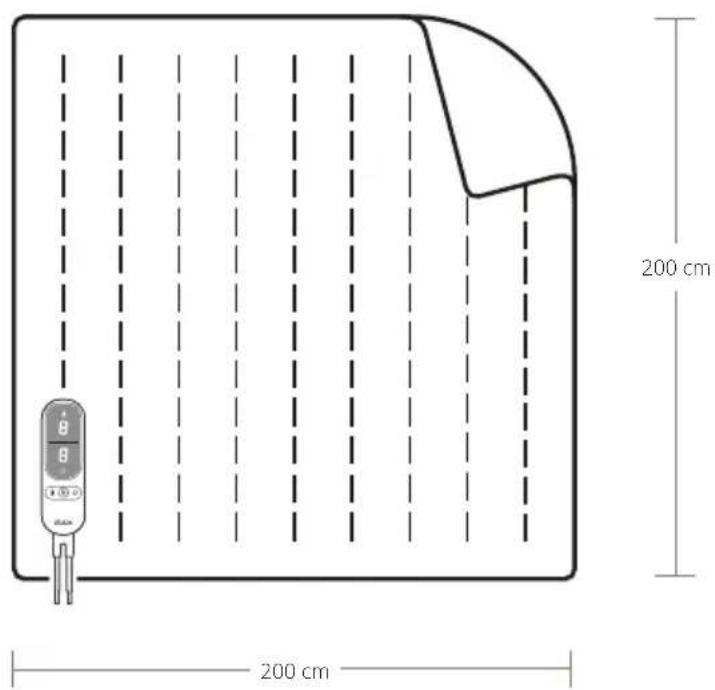

5. Technical specifications

Z

200 cm 8 8 200 cm

Weight:

0.7 kg

Power consumption:

200W

Off mode power consumption:

0.47W

Voltage:

220-240V

Temperature levels:

9 heat levels

Material:

100% polyester

Model no.:

DXOB01/02/11/12

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Simplified EU declaration of conformity

Hereby, Duux declares that this equipment is in compliance with relevant EU directives. The full text of the EU Declaration of Conformity is available at the following internet address: www.duux.com/doc

Notes

ZE

Inhoudsopgave

Diagram showing a digital blood glucose meter connected to a paper sheet with labeled parts 1, 2, and 3.

Onderdelen

1 Bovendeken
2 Controller
3 Verwarmingsdraden

Diagram showing a digital blood glucose meter connected to a paper sheet with labeled parts 1, 2, and 3.

Pièces

Diagram showing a digital thermometer device with labeled parts and measurement lines, likely illustrating a blood glucose meter setup.

Teile

Designed in The Netherlands bij Duux BV. Made in P.R.C. Duux BV, P.O. Box 145, 5400 AC Uden Netherlands, www.duux.com

© 2025 Duux. All rights reserved. DUUX® is a trademark of Duux BV, registered in the EU and other countries. The brand cited belongs exclusively to the respective owners.

Specifications are subject to modification without notice.
