USER MANUAL MGC20100B1 BEKO

Simple icon of a microwave oven with a steaming bowl (no text or symbols)

MGC 20100 B1

EN - IT - CS - PL - FR - RO

CONTENTS

ENGLISH	03-18
ITALIANO	19-36
ČESKY 37-54
POLSKI 55-74
FRANÇAIS	75-91
ROMANIAN	92-112

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for hot surfaces.

Warning for electric shock.

1 Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference

1.1 Safety warnings

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

•Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments; - Farm houses - By clients in hotels, motels and other residential type environments; - Bed and Breakfast type environments.

- Microwave oven is intended used freestanding. - It is not intended for industrial or laboratory use. - Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.

• The microwave oven is intended for heating food and beverages. Drying of food or clothing and

1 Important safety and environmental instructions

heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.

- Any service works involving removal of the cover that provides protection against exposure to microwave energy must be performed by authorized persons/service. Any other approach is dangerous.

- Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes.

- Your oven is not designed to dry any living being.

- Do not use your appliance

to dry clothes or kitchen towels.

- Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet.

- No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.

- Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.

- Only use the original parts or parts recommended by the manufacturer.

- Do not leave this appliance unattended while it is in use.

• Always use the appliance on a stable, flat, clean dry, and non-slip surface.

• The appliance should not be operated with an exter-

1 Important safety and environmental instructions

nal clock timer or separate remote control system.

• Before using the appliance for the first time, clean all parts. Please see the details given in the “Cleaning and Care” section.
• Operate the appliance for its intended purpose only as described in this manual.
  •Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.
• Do not operate the oven empty.
  • Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.
• Utensils shall be checked to ensure that they are suitable for use in microwave ovens.
• Do not place the oven on stoves or other heat gen-

erating appliances. Otherwise, it may be damaged and the warranty becomes void.

- Steam may come out while opening the covers or the foil after cooking the food.

• The appliance and its accessible surfaces may be very hot when the appliance is in use.

- Door and outer glass may be very hot when the appliance is in use.

• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.

• The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.

- Use the appliance with a grounded outlet only.

- Never use the appliance if the power cable or the ap-

1 Important safety and environmental instructions

pliance itself is damaged.

- Do not use this appliance with an extension cord.

- Never touch the appliance or its plug with damp or wet hands.

- Place the appliance in a way so that the plug is always accessible.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.

- Unplug the appliance before each cleaning and when the appliance is not in use.

- Do not pull the power cable of the appliance to disconnect it from its power

supply and never wrap its power cable around the appliance.

- Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.

- If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.

- Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being

1 Important safety and environmental instructions

used.

• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• This appliance is a Group 2 Class B ISM equipment. Group 2 contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

- Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.

- Do not use cooking oil in the oven. Hot oil may damage the components

and materials of the oven, and it may even cause skin burns.

- Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.

• Appliance must be placed so that the rear side is facing the wall.

- Before moving the appliance, please secure the turntable to prevent damage.

• Eggs in their shell and whole hard-boiled eggs must not be heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

1 Important safety and environmental instructions

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned regularly and any food deposits removed.
• There should be min 20 cm free space above the top surface of the oven.
- Do not over-cook foods; otherwise, you may cause a fire.
- Do not use chemicals and steam assisted cleaners to clean the appliance.
• Extreme caution is ad-

vised when being used near children and persons who are restricted in their physical, sensory or mental abilities.

• This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Danger of choking! Keep all the packaging materials away from children.
• Keep the product and its power cable so that they

1 Important safety and environmental instructions

are inaccessible by children under 8 years old.

• Do not cook food directly on the glass tray. Put the food in / on appropriate kitchen utensils before placing them in the oven.
  • Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.

- This product is not designed to be built-in. Do not place the product in a cabinet or box while it is in use.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

• The appliance shall not be cleaned with a steam cleaner.

- Microwave heating of

beveranges can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

- Cleaning: Do not place the appliance in water or other liquids. Clean the housing only with a sponge/cloth moistened in warm, soapy water. Do not use harsh, abrasive cleaners. See for the Cleaning and care and Storage detailed cleaning instructions.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

1 Important safety and environmental instructions

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

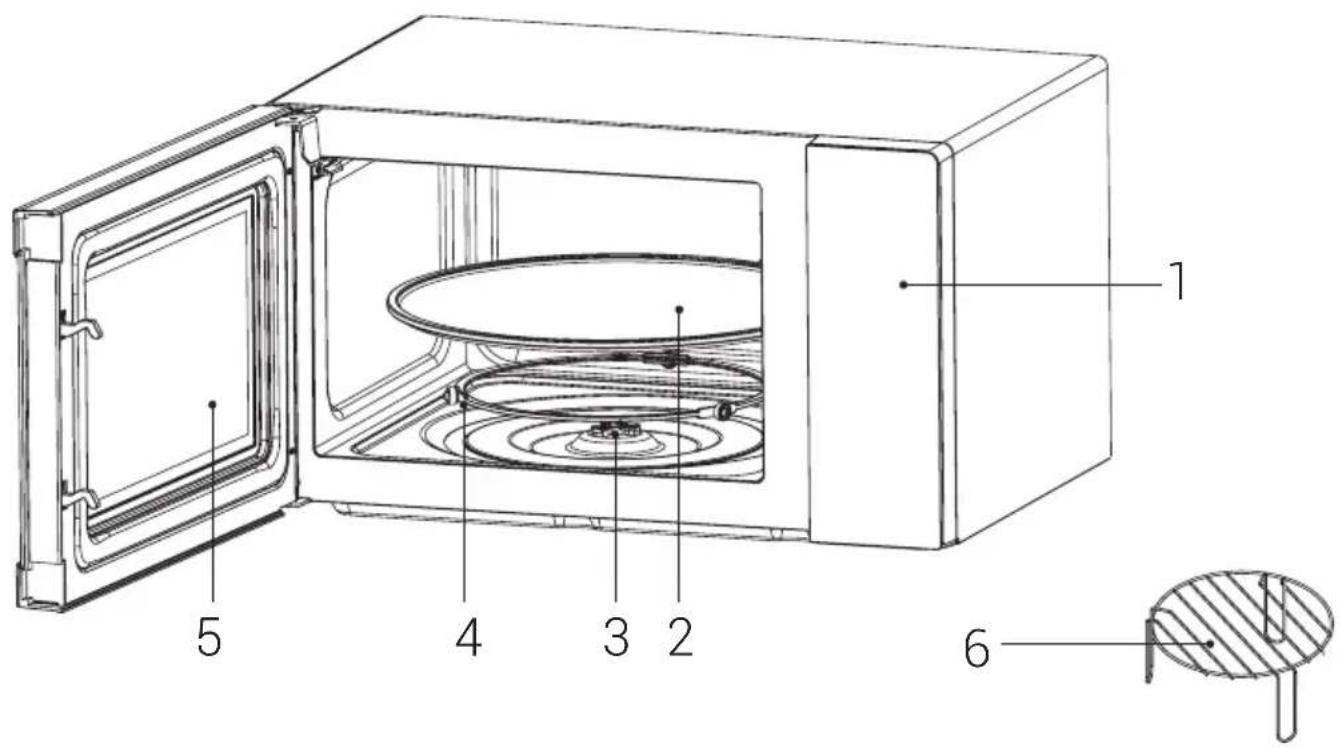

2.1 Overview

Technical diagram of a microwave oven with labeled components and cross-sectional view

Control and parts

1. Control panel
2. Glass plate
3. Rotating axis
4. Rotating ring
5. Microwave door
6. Grill rack

2.2 Technical data

Model	MGC 20100 B1
Voltage / Frequency	230V~, 50Hz
Input	1100W
Output	700W
Grill	800W
Microwave frequency	2450MHz
Oven capacity	20 L
Turntable diameter	255 mm
External dimensions	456*353*264 mm
Net weight	11.6 kg

Technical and design modification rights are reserved.

Markings on the appliance or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your microwave oven

2.3 Installing the turntable

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable support must always be used during cooking.
• All food and containers of food must always place on the glass tray for co-oking.
• If glass tray or turntable support crack or break, contact your nearest authorized service center.

Hub (underside) Glass table Turntable shaft Turntable support

3 Your microwave oven

• Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
- Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
- To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
- The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur. The distance should be more than 5m.

• The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
• The microwave oven must be operated with the door closed.
• The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
• As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

4 Operation

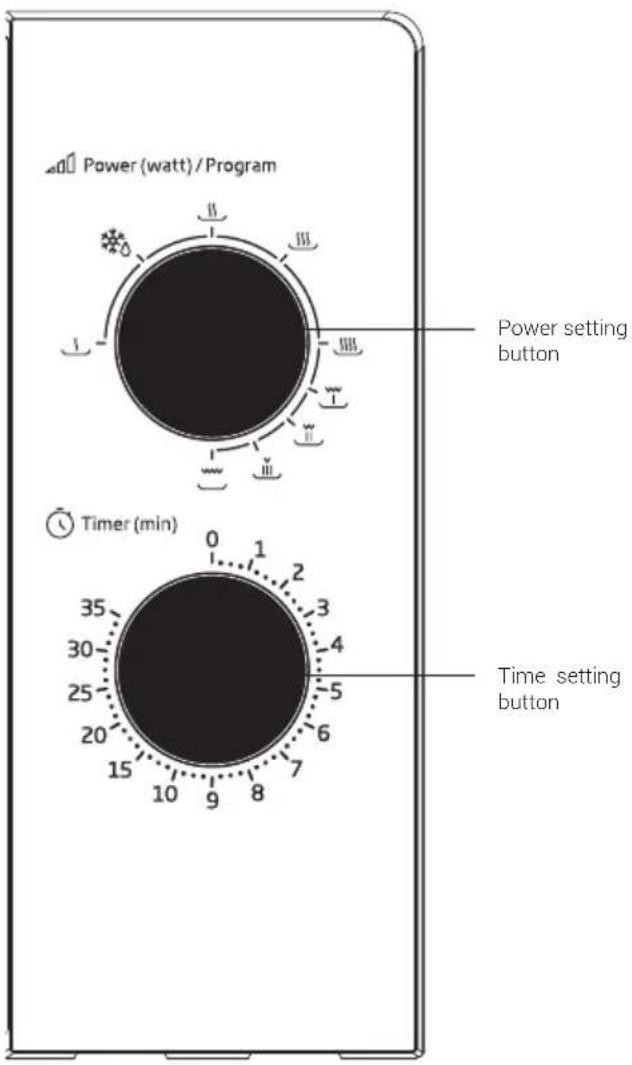

4.1 Control panel

Power (watt) / Program Power setting button Timer (min) Time setting button

4.2 Clock setting

The maximum setting is 35 minutes, there is a ringtone at the end, and the knob returns to the "0" position.

4.3 Microwave and grill combination function

2 30%	po	output	/
3 55%	po	output	/
4 80%	po	output	/
5 100%	po	output	/
6 20%	po	output	80% power output
7 30%	po	output	70% power output
8 40%	po	output	60% power output
9 / 100%			power output

Below is some food defrosting time advice:

No. Weight (g) Defrost time
1 200	About 3 minutes
2 400	About 6 minutes
3 600	About 10 minutes

4.4 Operation

1. Connect the cord. Before connecting the cord, make sure the timer is set to "0" position. Do not block the ventilation.
2. Place the food on the glass turntable and close the door. Food must be contained in a utensil. Do not operate the microwave oven without load, otherwise it will cause damage to the microwave oven.
3. Select the desired microwave power level.
4. Set the timer. If the desired time is less than 2 minutes, turn the microwave power knob to over 3 minutes position and then turn back to the desired time setting.

4 Operation

1. Once the desired time is set, the cooking begins. If pausing in midway is needed, just open the door at any time, and close it to resume operation.
2. When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off. If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave oven from operating in empty load.
3. It is recommended to wear gloves when removing the cooked food from oven and be careful do not touch the inner surface of the cavity.

CAUTION:

• Heating food fast, generally only 2 to 3 minutes, please control in 5 minutes. Please pay attention to the cooking condition of the food at any time and adjust it according to your taste preference. Avoid overheating. When heating porridge, congee, should first stir evenly, and then covered with plastic film (leave corners for ventilation) or with a perforated lid heating.
• At mid-point to defrosting time, please open the door to turn the food, so that the defrosting effect is more uniform.

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave Grill	Combi	Notes
Heat-resistant ceramic	Yes Yes Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	No	No	Can not be used for long time microwave cooking
Heat-resistant glass	Yes Yes Yes
Plastic film	Yes	No	No	It should not be used when cooking meat or chops as the over temperature may do damage to the film
Grill rack	No	Yes	Yes	The grill rack can only be used in grill and combination mode.
Metal container	No	No	No	It should not be used in microwave oven. Microwave can not penetrate through metal.
Lacquer	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking

4 Operation

Bamboo wood and paper

No No No Poor heat-resistant. Can not be used for High-temperature cooking

4.16 Cooking tips

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner. Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded

5 Cleaning and care

5.1 Cleaning and care

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside thea oven, water should not be allowed to seep into the ventilation openings.
5. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
6. A steam cleaner is not be used.
7. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
8. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the

microwave oven is operated under high humidity condition. And it is normal.

1. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dish-washer.

2. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

3. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

4. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

5. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

6. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

5 Cleaning and care

5.2 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

Technical diagram of a microwave oven with labeled components and cross-sectional view

Comandi e parti

Technical diagram of a microwave oven with labeled components and cross-sectional view

Ovládání a díly

Technical diagram of a microwave oven with labeled components and cross-sectional view

Commandes et pièces

Technical diagram of a microwave oven with labeled components and cross-sectional view
