USER MANUAL V1200G Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
STEEL GARDEN CARTS
MODEL: V1200/V1200G/V1400
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
STEEL GARDEN CARTS
MODEL: V1200/V1200G/V1400

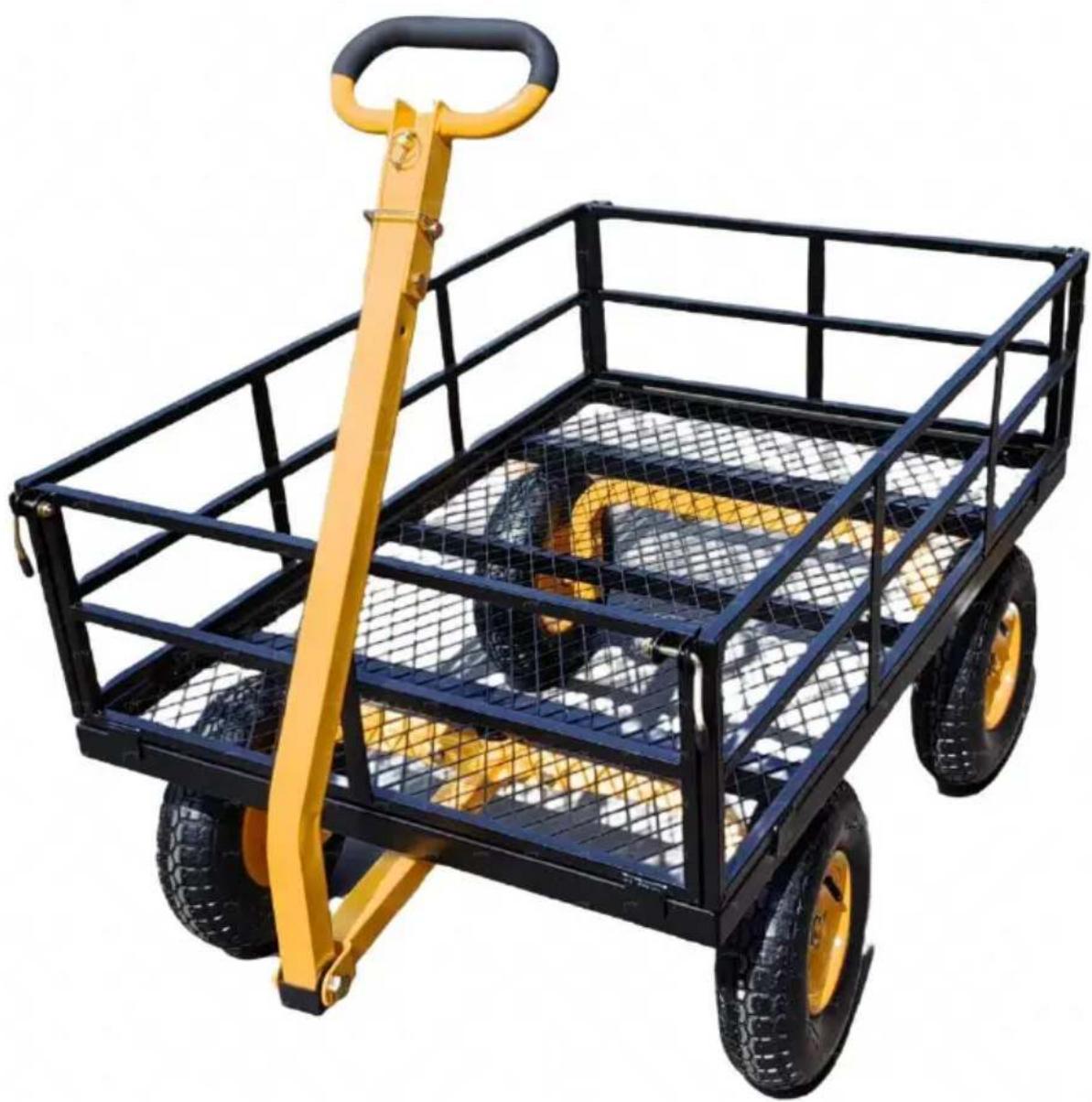

WARNING:
Read this material before using this product. Failure to do so can result in serious injury.
Assembly precautions
- Assemble only according to these instructions. Improper assembly can create hazards.
- Do not assemble if tired or when under the influence of alcohol, drugs or medication.
- The product capabilities apply to properly and completely assembled products only.
- Assemble on a flat, level, hard and smooth surface capable of safely supporting the Wooden Hall Tree.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.
Use precautions
- Do not exceed the overall maximum load capacity. The weight rating is b on an evenly distributed load.
- Do not load items on the top edges of the panels. Remove panels before loading oversized items.
- Distribute the load evenly over the surface of the bed.
- Do not allow children to use the cart without supervision. This cart is not
- Do not use this cart for transporting passengers.
- This cart is not intended for highway use.
- Do not exceed 5 mph.
- If any parts become damaged, broken or misplaced, do not use the cart replacement parts have been obtained.
- Do not use the cart on surfaces or for transporting objects that can cause damage to the pneumatic tires or tubes. DO NOT INFLATE TIRES TO MOR THAN 30 PSI (2.07 BAR).
SAVE THIS MANUAL

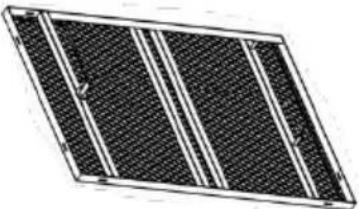

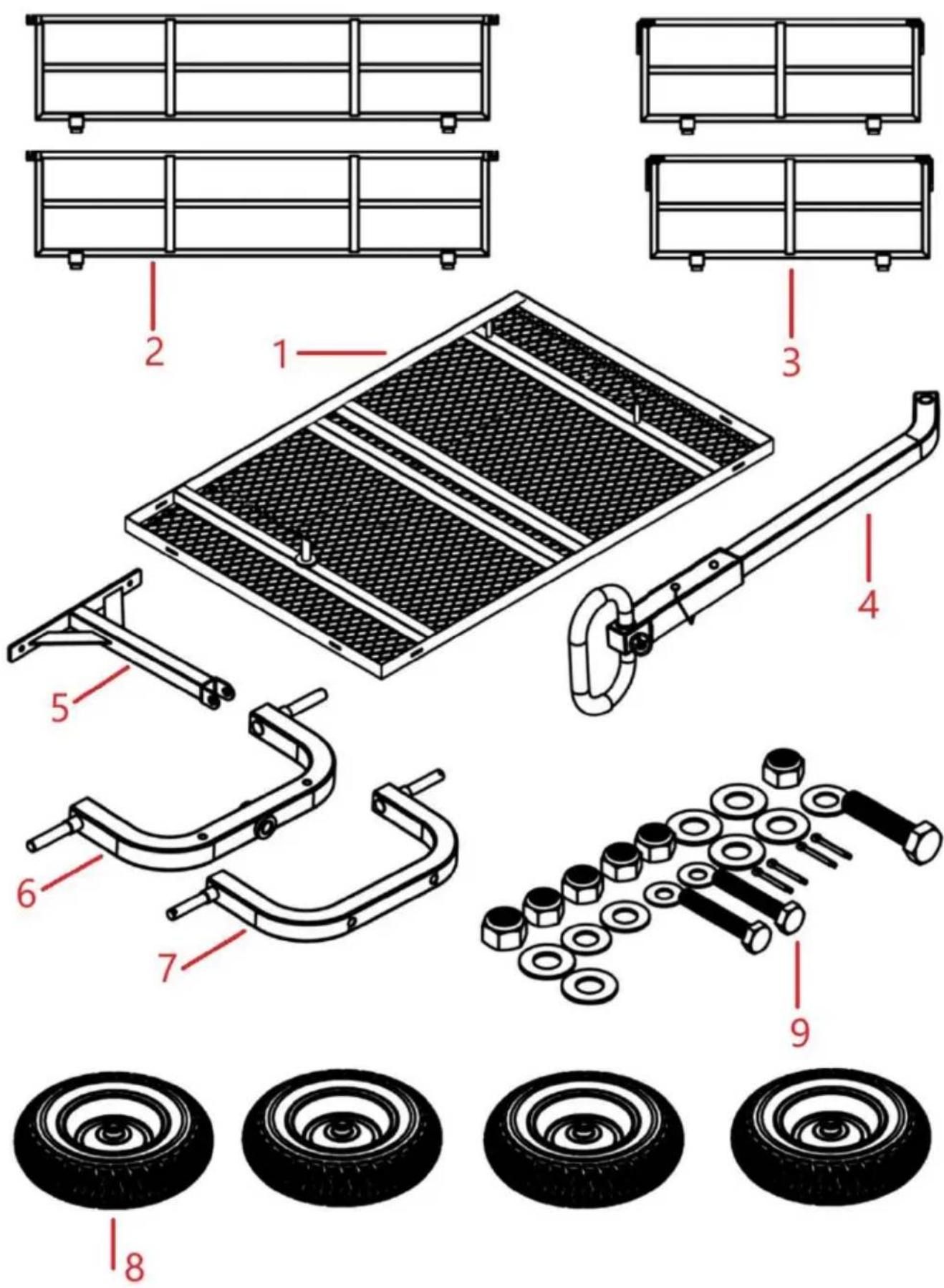

PARTS LIST
| No. | Part | Qty. | Name |
| 1 |  | 1 | Bottom frame |
| 2 |  | 2 | Left and right guardrails |
| 3 |  | 2 | Front and rear guardrails |
| 4 |  | 1 | Handle |
| 5 |  | 1 | Connecting rod |
| 6 |  | 1 | Front wheel bracket |
| 7 |  | 1 | Rear wheel bracket |
| 8 |  | 4 | Tire |
| 9 |  | 1 | Screw pack |


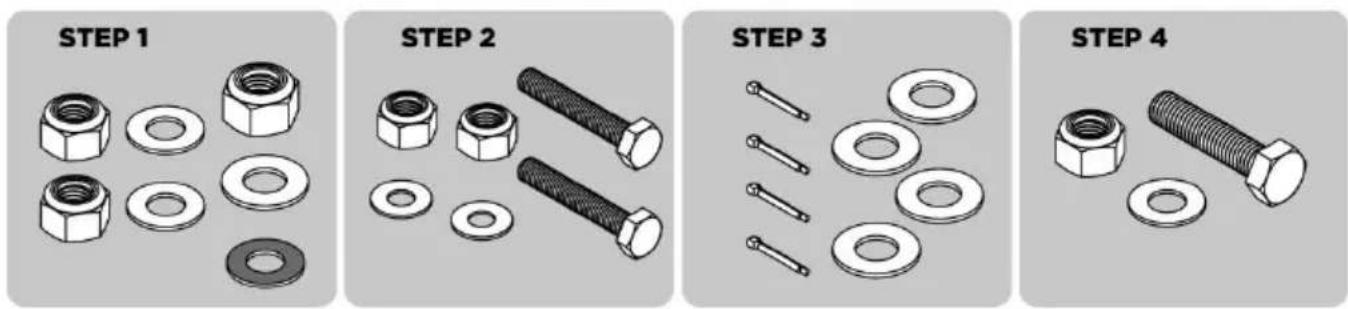

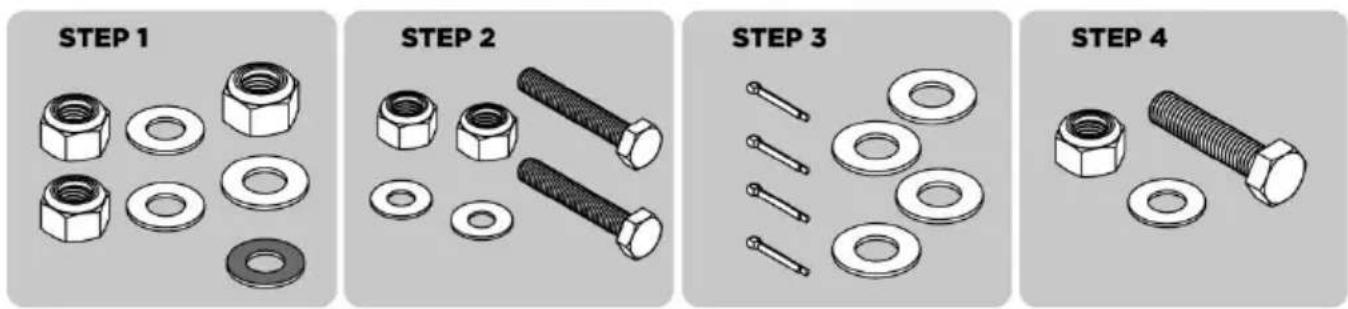

HARDWARE
TOOLS REQUIRED


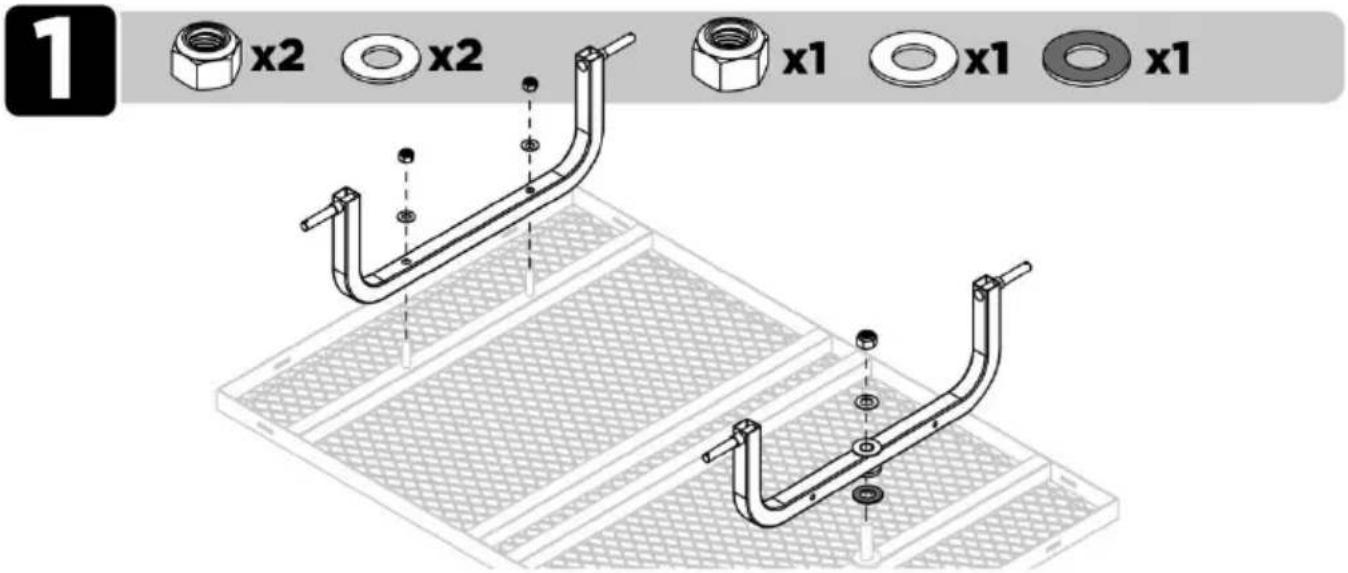

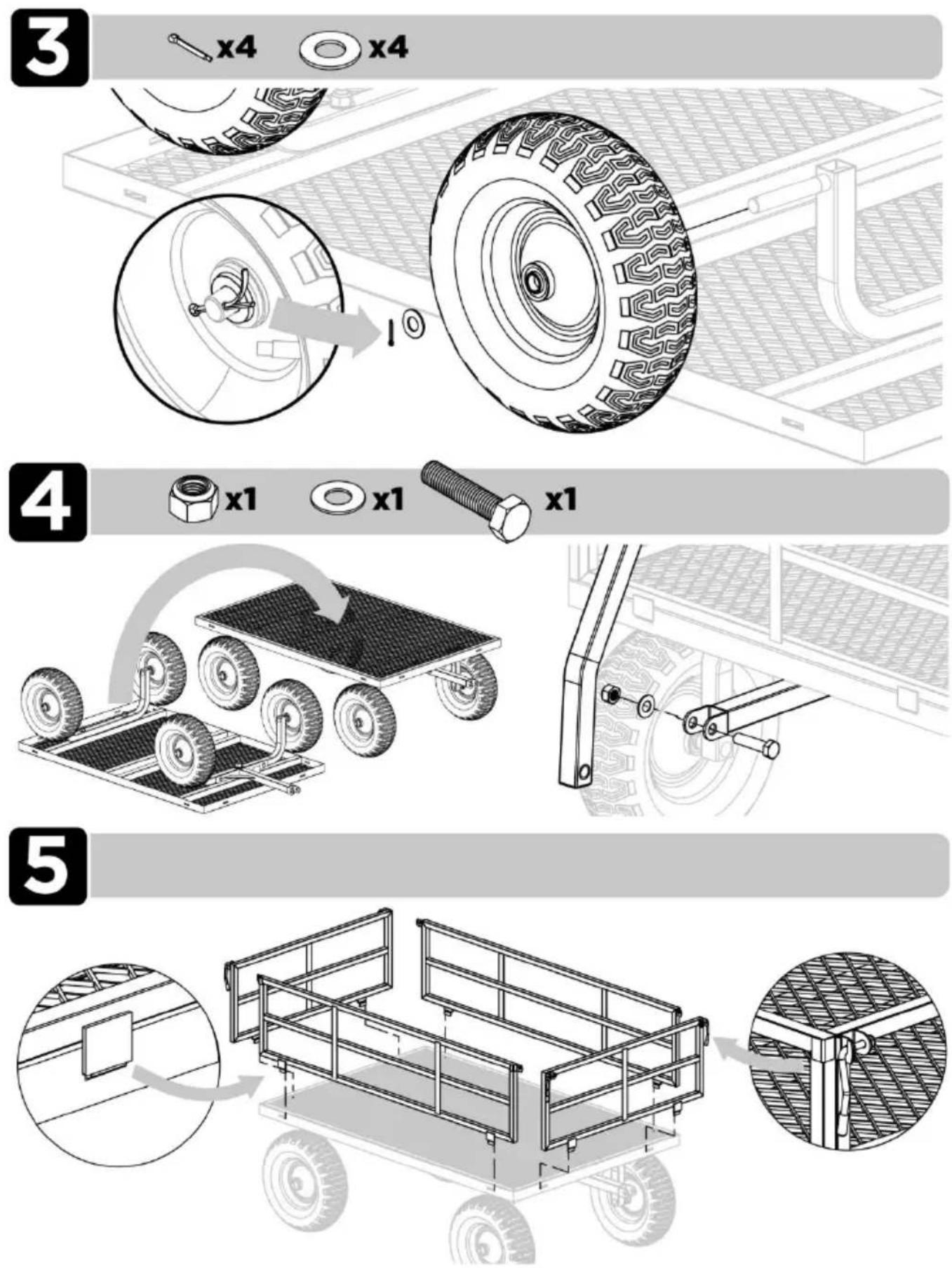

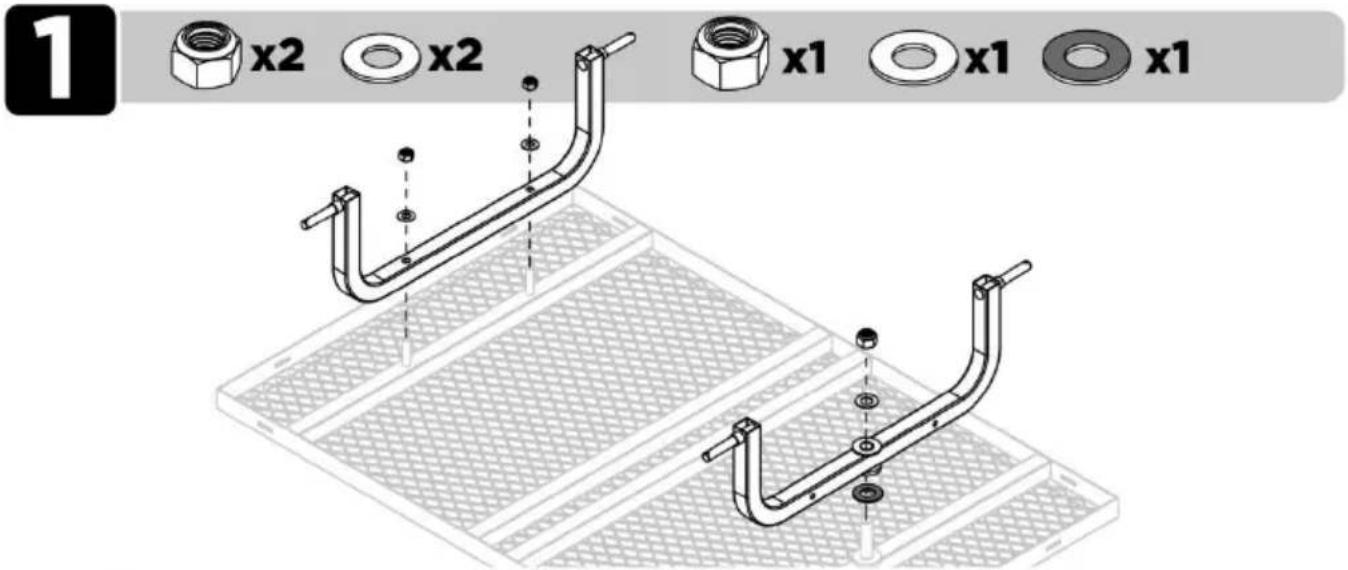

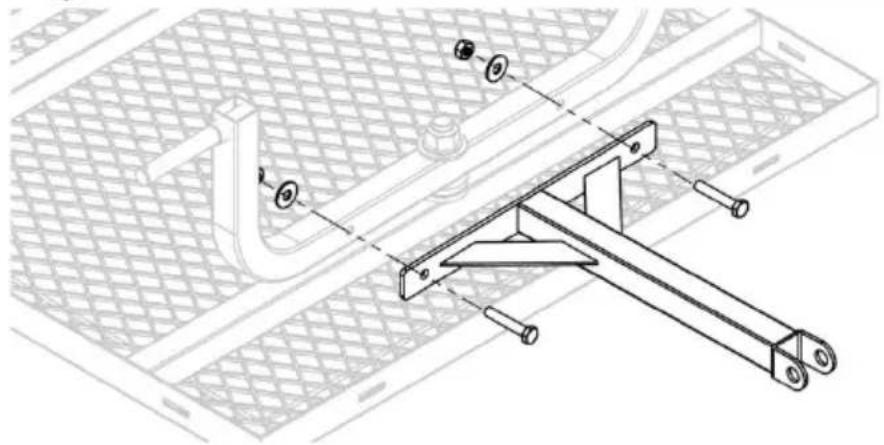

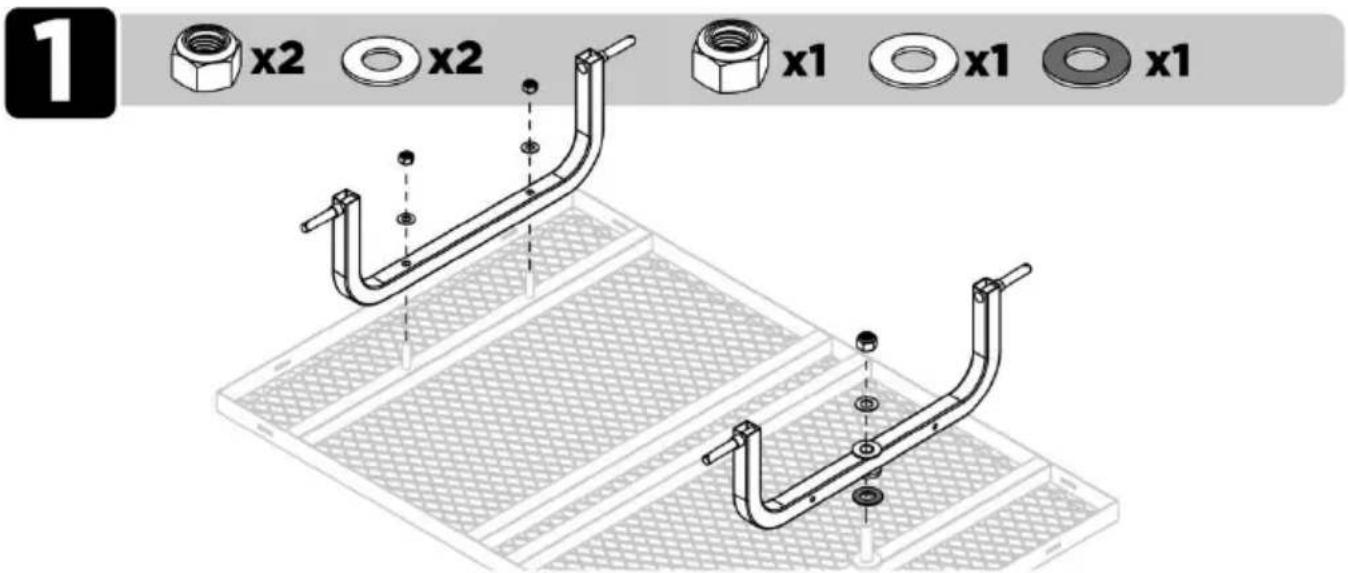

Three black wrench illustrations on a gray background (no text or symbols)ASSEMBLY INSTRUCTIONS


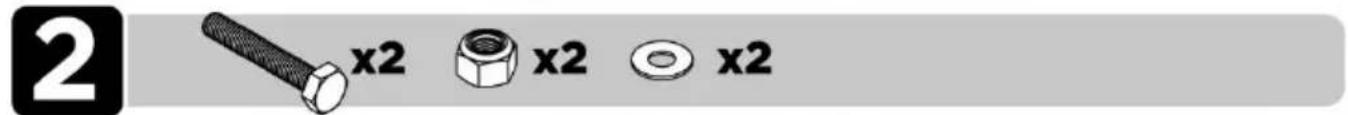

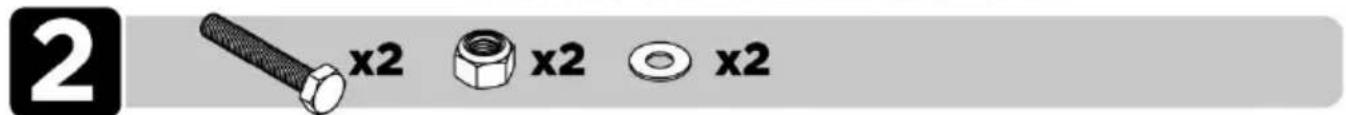

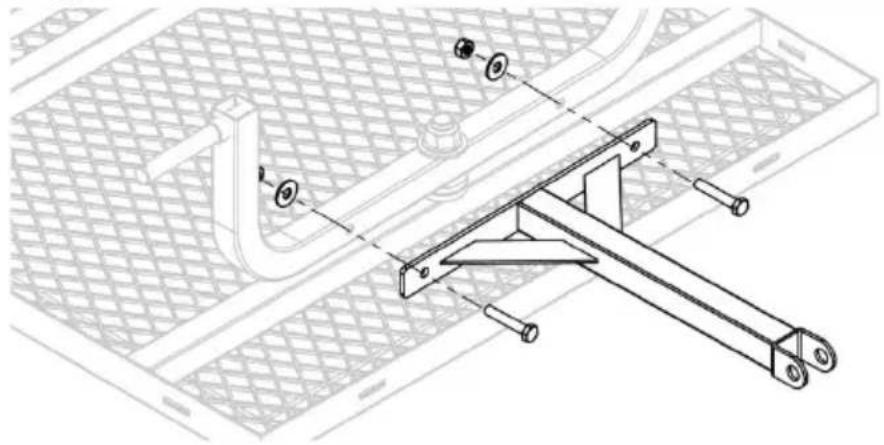

2 x2 x2 x2


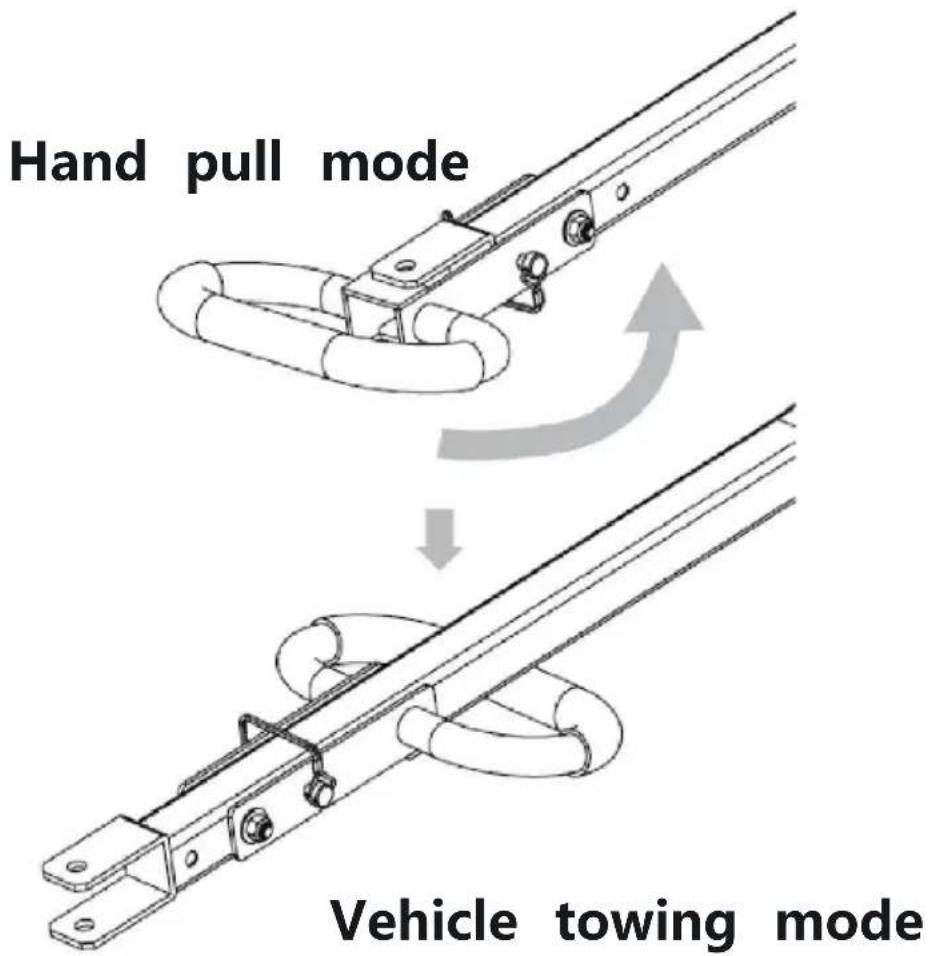

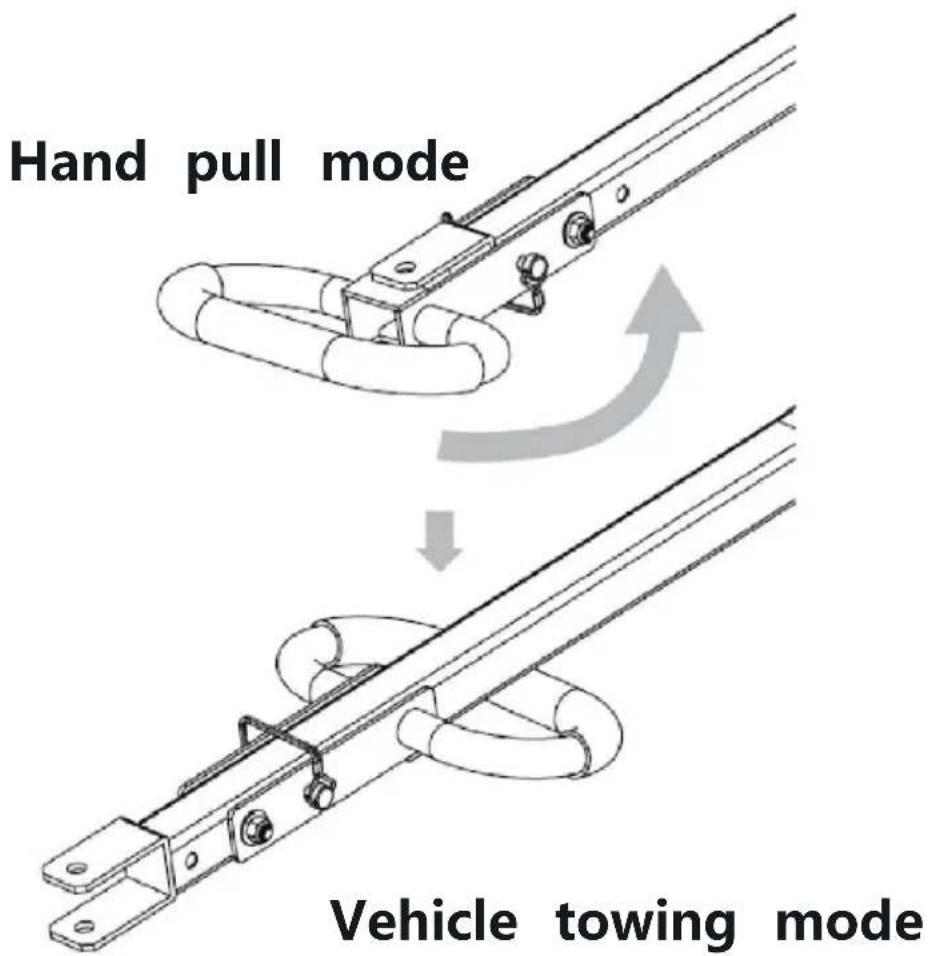

Dual-mode switching
| Model | V1200 | V1200G | V1400 |
| Safe Loading Weight | 1200 LBS 544kg | 1200 LBS 544kg | 1400 LBS 635kg |
| Colour | Body:Black ; Other: Yellow | Body:Green ; Other:Black | Body:Black ; Other: Yellow |
| Body Size | 43.3*29.5*12.2in 1100*750*310mm | 43.3*29.5*12.2in 1100*750*310mm | 46*30*19in 1168*760*430mm |
Do not exceed the overall safe loading weigh
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London
Road, Staines-upon-Thames, Surrey, TW18 4AX
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
