USER MANUAL OWS-01 Gembird

Open-ear TWS headphones

Słuchawki open-ear TWS

• BT open-ear TWS headphones
- Open-ear design with hook for optimal comfort
- Up to 3 hours of listening time on a single charge
- Battery in the storage case adds up to 9 hours of listening time
• Automatically mutes your music in case of incoming calls
• LED status indicator

Specifications

• Interface: BT v.5
  • BT frequency range: 2402 \~ 2480 MHz
  • RF output power: 4 dBm
  • Supported profiles: HSP, HFP, A2DP and AVRCP
  • Recharging time: up to 1 hour
• Input power: 5.0 V, 300 mA (1.5 W)

• Operation distance: up to 10 m in the open air
- Speaker frequency response: 20 Hz - 20000 Hz
- Battery: case 300 mAh; earbuds internal 30 mAh x 2 pcs, Li-Polymer
• Net weight (whole set): 45 g

EN: The power delivered by the charger must be between min 2 Watts required by the radio equipment, and max 5 Watts in order to achieve the maximum charging speed.

CE RoHS 22 PAP

1 ⏻/〇

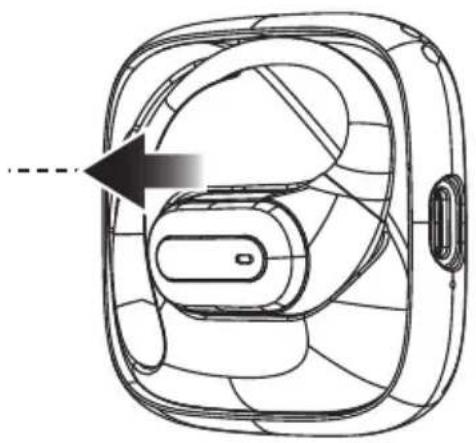

Technical line drawing of a mechanical component with no visible text or symbols

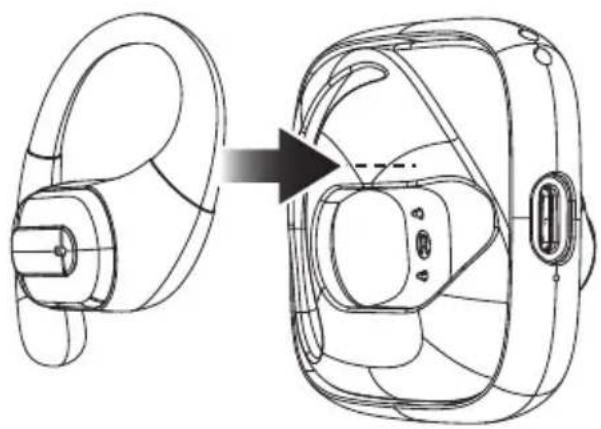

Technical line drawing of a device with ear and grip components, showing a transformation from external to internal layout (no text or symbols)

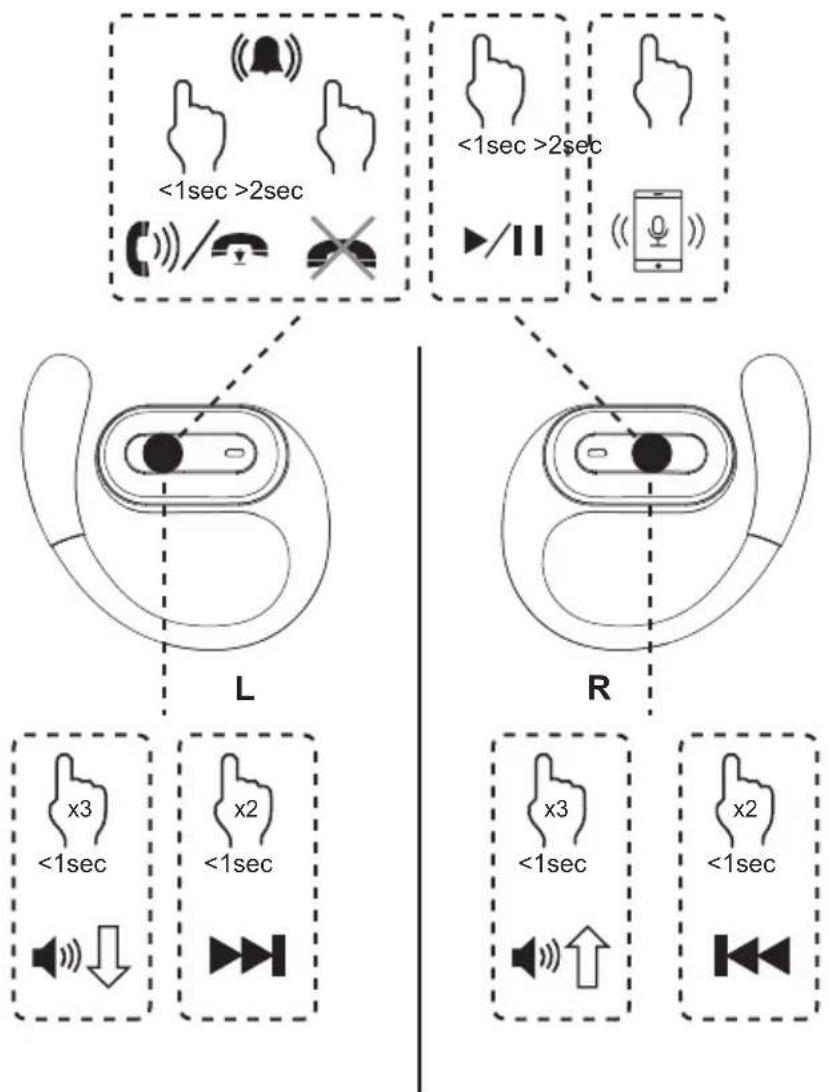

2
    subgraph_L["Left"]
        A1["Hand icon: <1sec >2sec"] --> B1["Phone icon"]
        A2["Hand icon"] --> B2["Head icon"]
        A3["Hand icon"] --> B3["Head icon"]
        A4["Hand icon"] --> B4["Head icon"]
        A5["Hand icon"] --> B5["Head icon"]
        A6["Hand icon"] --> B6["Head icon"]
        A7["Hand icon"] --> B7["Head icon"]
        A8["Hand icon"] --> B8["Head icon"]
        A9["Hand icon"] --> B9["Head icon"]
        A10["Hand icon"] --> B10["Head icon"]
        A11["Hand icon"] --> B11["Head icon"]
        A12["Hand icon"] --> B12["Head icon"]
        A13["Hand icon"] --> B13["Head icon"]
        A14["Hand icon"] --> B14["Head icon"]
        A15["Hand icon"] --> B15["Head icon"]
        A16["Hand icon"] --> B16["Head icon"]
        A17["Hand icon"] --> B17["Head icon"]
        A18["Hand icon"] --> B18["Head icon"]
        A19["Hand icon"] --> B19["Head icon"]
        A20["Hand icon"] --> B20["Head icon"]
    end
    subgraph_R["Right"]
        R1["x3 <1sec"] --> R2["x2 <1sec"]
        R3["x3 <1sec"] --> R4["x2 <1sec"]
        R5["x3 <1sec"] --> R6["x2 <1sec"]
        R7["x3 <1sec"] --> R8["x2 <1sec"]
        R9["x3 <1sec"] --> R10["x2 <1sec"]
        R11["x3 <1sec"] --> R12["x2 <1sec"]
        R13["x3 <1sec"] --> R14["x2 <1sec"]
        R15["x3 <1sec"] --> R16["x2 <1sec"]
        R17["x3 <1sec"] --> R18["x2 <1sec"]
        R19["x3 <1sec"] --> R20["x2 <1sec"]
        R22["x3 <1sec"] --> R24["x2 <1sec"]
        R26["x3 <1sec"] --> R28["x2 <1sec"]
        R29["x3 <1sec"] --> R30["x2 <1sec"]
        R32["x3 <1sec"] --> R34["x2 <1sec"]
        R36["x3 <1sec"] --> R38["x2 <1sec"]
        R39["x3 <1sec"] --> R40["x2 <1sec"]
        R42["x3 <1sec"] --> R44["x2 <1sec"]
        R46["x3 <1sec"] --> R48["x2 <1sec"]
        R49["x3 <1sec"] --> R50["x2 <1sec"]

3

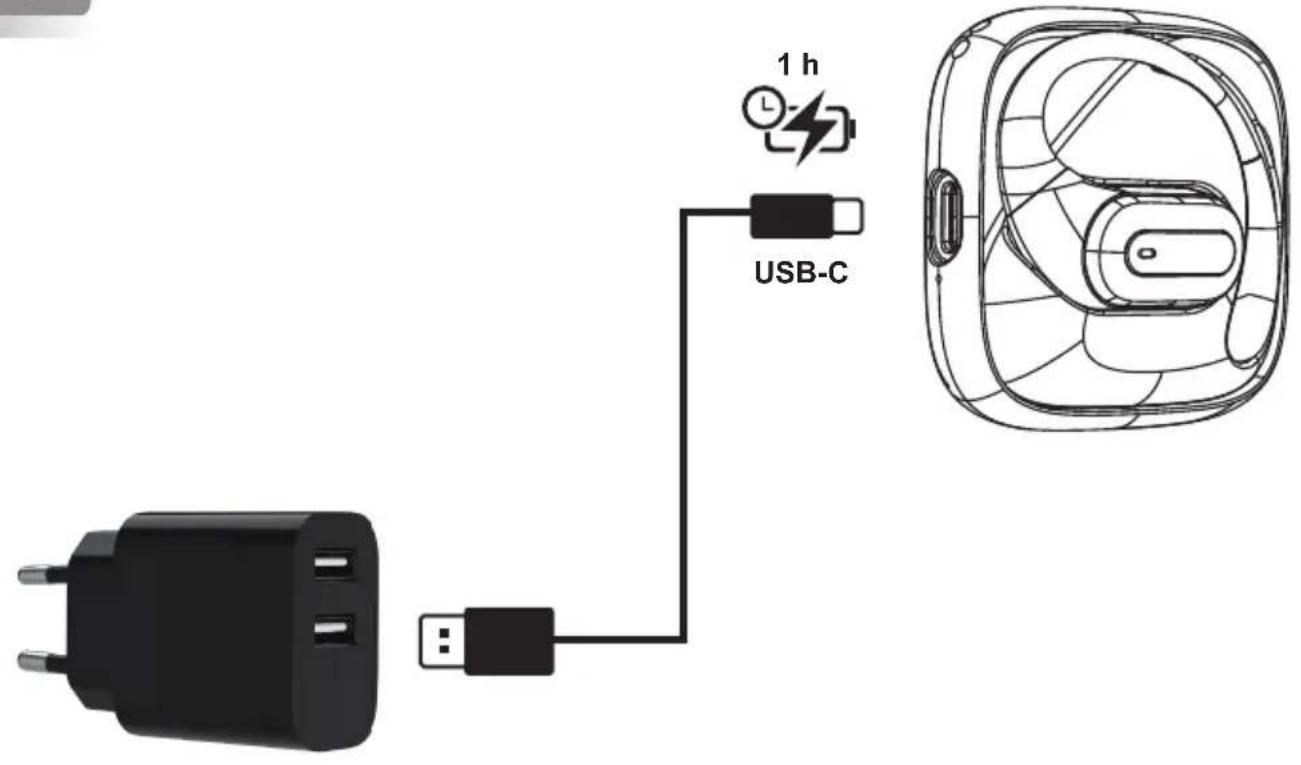

1 h USB-C

GENERAL INFORMATION

This product has been manufactured by or on behalf of Gembird Europe B.V.. Inquiries to the EU Importer or related to product compliance in Europe should be sent to: Gembird Europe B.V., Wittevrouwen 56, 1358 CD, Almere, The Netherlands. www.gmb.nl

Warranty conditions: www.gmb.nl/warranty

Product support: www.gmb.nl/service and/or [e-mail]

Safety warning symbols including warning triangle, hand holding a device, sun and fire, and crossed-out signs with incorrect actions.

SAFETY

(ENG) To ensure safe handling of the product, follow the safety advice on: (DE/AT) Hinweise zum sicheren Gebrauch der Produkte finden Sie auf: (NL/BE) Voor een veilig gebruik van het product volgt u deze algemene veiligheidsaanwijzingen op: (ES) Para garantizar una manipulación segura de los dispositivos, siga las advertencias de seguridad disponibles en: (CZ) Abyste zajistili bezpečnou manipulaci s výrobkem, dodržujte bezpečnostní pokyny na: (FR/BE) Pour garantir une manipulation sûre des appareils, suivez les consignes de sécurité sur: (IT) Per garantire una manipolazione sicura del prodotto, seguire i consigli di sicurezza su: (PT) Para garantir o manuseio seguro do produto, siga as recomendações de segurança em: (PL) Aby obchodzić się bezpiecznie z produktami, należy przestrzegać wskazówek dotyczących bezpieczeństwa: (RO) Pentru asigurarea unei manipulári în condiții de siguranță a produsului, urmati recomandările de securitate de pe: (SK) Na zaistenie bezpečnej manipulácie so zariadeniami sa riadte bezpečnostnými pokynmi na: (SL) Za zagotavljanje varnega ravnanja z napravami, upoštevajte varnostna navodila, ki jih najdete na: (HR) Da biste osigurali sigurno rukovanje uređajima, pratite sigurnosne savjete na web-mjestu: (HU) A készülékek biztonságos kezelésének érdekében kövesse a biztonsági tanácsokat (BG) За да осигурите безопасна работа на устройствата, следвайте съветите за безопасност по-долу: www.gmb.nl/safety

DECLARATION OF CONFORMITY

(ENG) Hereby, Gembird Europe B.V., declares that this equipment is in compliance with Directive 2014/53/EU (RED). The full text of the EU declaration of conformity is available at the following internet address: www.gmb.nl/certificates
