Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 22

Installation 24

Control Panel 27

Key Functions 27

Device Control by Smartphone 29

Bulb and Lamp Replacement 31

Troubleshooting 32

Product Data Sheet 33

Notes on Environmental Protection 35

Disposal Considerations 36

Declaration of Conformity 36

TECHNICAL DATA

Item number	10040234, 10040235, 10040236, 10040237
Power supply 220-240 V ~ 50/60 Hz
WiFi standard	802.11 b/g/n
WiFi frequency	2,4 GHz
WiFi radio-frequency power (max.)	< 20 dBm

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open fl ue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction fl ue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Preparation

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150mm)

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).

1

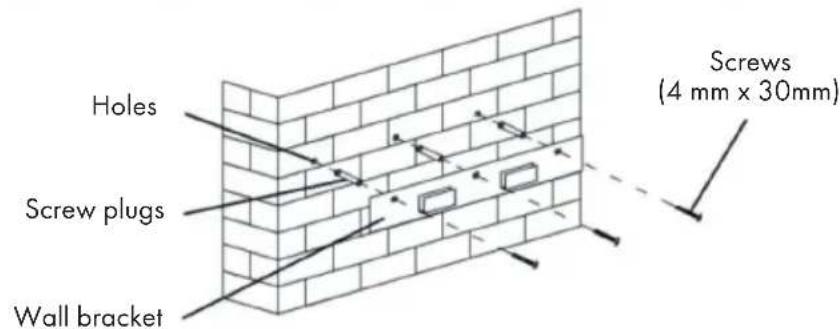

Holes Screw plugs Wall bracket Screws (4 mm x 30mm)

Drill 3 x 8 mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws & screw plugs provided.

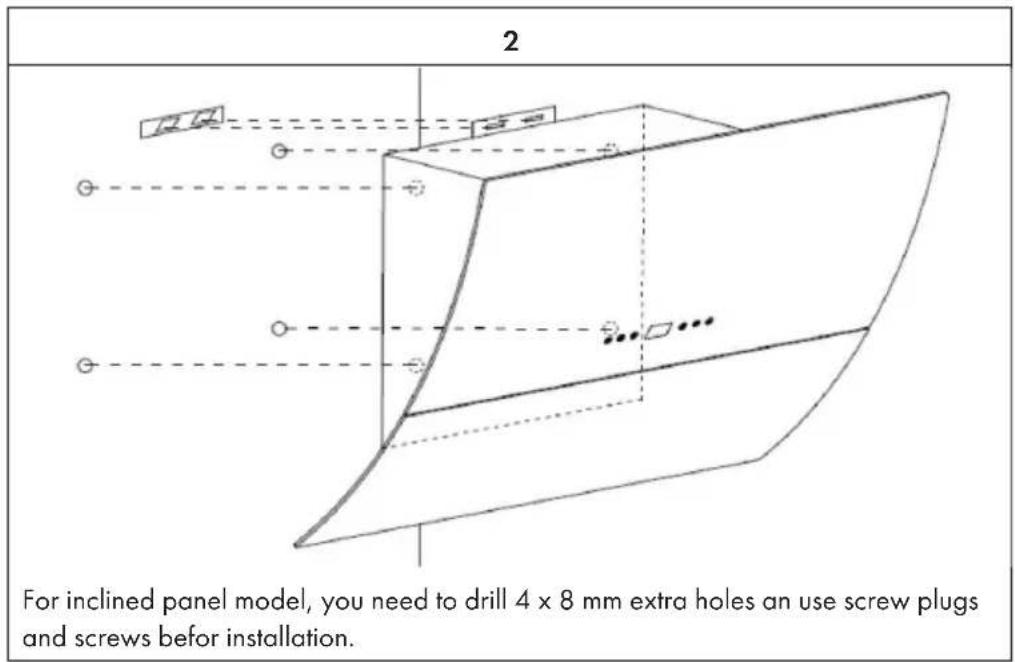

2 For inclined panel model, you need to drill 4 x 8 mm extra holes an use screw plugs and screws before installation.

Chimney Installation

1	2
Put the upper chimney into lower chimney .Then pulling out the upper chimney upwards. Adjust to reach the height required.	Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in picture.

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Installing the Carbon Filter

Note: Carbon Filter is not standard accessory, these can be purchased as an accessory.

1	2
Activated carbon filter can be used to trap odours.	In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

3	4
Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.	Remove all blue protective film on chimney and cooker hood, the installation is now finished.

CONTROL PANEL

1	2	3	4	5
1 POWER button (switch on/off the device)
2 Speed
3 Display
4 Light (on /off)
5 WiFi (WLAN icon)

KEY FUNCTIONS

On/Off

Press the ON/OFF button briefly to switch on the cooker hood. When you switch on the unit for the first time, the fan runs at speed 1. When you switch off the unit, it remembers the last speed set.

Setting the speed

Briefly press the SPEED button several times to set the desired speed: Level 1 (low) > Level 2 (medium) > Level 3 (high).

Press the SPEED key once for a long time to set the highest speed. In the display, [b] flashes for the Booster function. After 5 minutes, the speed automatically changes to level 3.

Setting the switch-off delay

When the unit is in standby mode, press and hold the SPEED + LIGHT keys simultaneously to set the fan to turn off with a 5 minute delay. The current speed flashes in the display and the time is counted down. After the time has elapsed, all keys will dim down while the display continues to flash and a signal sounds. Press any key or wait 5 seconds to switch to standby mode. To cancel the delay, press and hold the SPEED + LIGHT keys simultaneously during the countdown.

Light on/off

Briefly press the LIGHT key to switch the light on. Press the key again to switch the light off.

Setting the light color

Press and hold the light key to set the light color. The display shows [0]. Now briefly press the speed key several times to adjust the light color from [L1] to [L9]:

L1 = white L2 = red L3 = green
L4 = blue L5 = yellow L6 = purple
L7 = orange L8 = cyan L9 = green-yellow

After setting the desired color, long press the LIGHT button again to complete the setting.

Enable WiFi

In standby mode, long press the WiFi button to activate the WiFi function. The WiFi icon will start flashing. Set up the connection as described in the chapter "Device Control by Smartphone". As soon as the connection is successful, the WiFi symbol lights up continuously. If no connection is established within 3 minutes, the WiFi icon stops flashing and the device automatically switches to standby mode.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

1 The device is not plugged in. Make sure that your device is plugged into an electric socket.
2 The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).
3 The WiFi access point does not operate on 2.4 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

4 Firewall settings of your WiFi network; the firewall setting of your WiFi network may not allow the Klarstein app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g. airports, dormitories, companies, etc.

5 Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Klarstein app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: [e-mail]

BULB AND LAMP REPLACEMENT

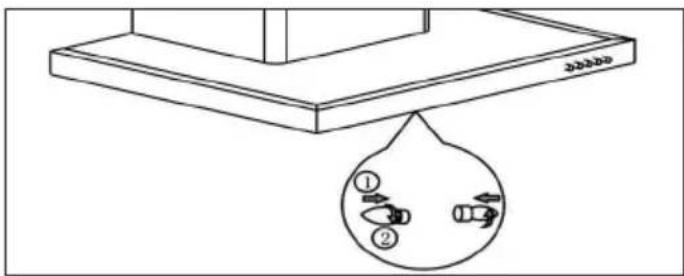

Replacing Bulbs

• Switch the unit off and unplug the appliance. Remove the lamp cover by unscrewing the 2 screws.
• Unscrew the incandescent bulb. Replace with the same type and rated bulb:

Diagram showing a device with labeled parts and an inset showing two labeled components with arrows, likely illustrating a mechanical or optical setup.

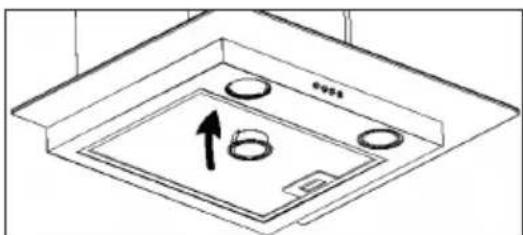

Replacing LED Lamps

• Disconnect the light wiring point which is located within the hood, (behind the grease filer).
• Then use a screw driver remove the bulb holders and wiring from the hood. Replace with the same type and rated lamp:

LED Lamp: max 1.5 W

Pure electrical circuit lines without any symbols

Isometric line drawing of a ceiling-mounted appliance with circular components and an upward arrow indicating direction (no text or symbols)

TROUBLESHOOTING

Fault Cause Solution
Light on, but fan does not work	The fan blade is jammed. Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn. Replace the bulb with correct rating.
	Power cord looses. Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged. Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10040234, 10040235, 10040236, 10040237
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	12.1 kWh/Year
Energy Efficiency class A++
Fluid Dynamic Efficiency FDE	hood	31.7
Fluid Dynamic Efficiency class A
Lighting Efficiency LE	hood	34	Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFEhood	57.1	%
Grease Filtering Efficiency class		E
air flow at minimum and maximum speed in normal use, intensive or boost excluded		320.9 / 514.9	m^3/h
air flow at intensive or boost setting		552.6 m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		48 / 59	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		60	dB
power consumption in off mode	Po	0.44	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10040234, 10040235, 10040236, 10040237
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	12.1 kWh/Year
Time increase factor f 0.9
Fluid Dynamic Efficiency FDE	hood	31.7
Energy Efficiency Index EEI	hood	36
Measured air flow rate at best efficiency point	QBEP	205.4 m3/h
Measured air pressure at best efficiency point	PBEP	168 Pa
Maximum air flow Q	max	514.9 m3/h
Measured electric power input at best efficiency point	WBEP	30.2	W
Nominal power of the lighting system	WL	3	W
Average illumination of the lighting system on the cooking surface	Emiddle	101	Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0.44	W
Sound power level	LWA	59	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Aurora Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10040234

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Aurora Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use. berlin/10040234

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram showing a device with labeled parts and an inset showing two labeled components with arrows, likely illustrating a mechanical or optical setup.

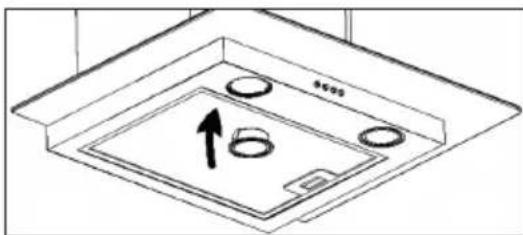

Sustituir lámparas LED

Pure electrical circuit lines without any symbols

Isometric line drawing of a ceiling-mounted appliance with circular components and an upward arrow indicating direction (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Diagram showing a device with labeled components and an inset showing three labeled parts, likely illustrating a physical or engineering concept.

Pure electrical circuit lines without any symbols

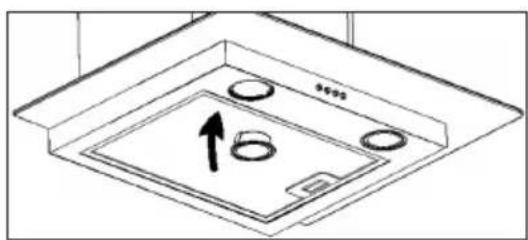

Isometric diagram of a ceiling-mounted appliance with circular components and an upward arrow indicating direction (no text or symbols)

RÉSOLUTION DES PROBLÈMES

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

CE UK CA

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

QR code image containing encoded data, no visible human-readable text

INDICE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and a magnified inset showing two numbered parts.

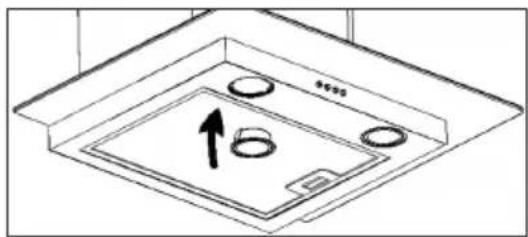

Sostituire le lampade LED

Pure electrical circuit lines without any symbols

Isometric line drawing of a kitchen sink with circular fixtures and an upward arrow indicating direction (no text or symbols)

RICERCA E RISOLUZIONE DEI PROBLEMI

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
