WanderVent - Basket Klarstein - Free user manual and instructions

Product type	Portable hood / Mobile extractor fan
Brand	Klarstein
Model	WanderVent
Article numbers	10046689, 10046691, 10046692
Dimensions (L x W x H)	145 x 150 x 366 mm
Weight	1,5 kg
Power supply	AC adapter 100-240 V~ 50/60 Hz, output 12 V= 2 A; built-in rechargeable battery
Power	24 W
Noise level	67 dB(A)
Battery life	Approx. 2 hours continuous
Charging time	Approx. 4 to 5 hours
Speeds	2 speeds + Boost function (2 minutes)
Lighting	Built-in lamp (switchable separately, depending on model)
Usage modes	Upright or inverted head
Usage	Indoor only, no open flames
Care and cleaning	Unplug before cleaning; use a damp cloth; do not immerse
Safety	Do not use near heat sources or flames; do not insert objects into openings; keep out of reach of children
Battery	Not user-replaceable
Spare parts	AC adapter included (specific model)
Repairability	Repair by professional only
General information	Manufactured by Chal-Tec GmbH, Germany; suitable for domestic use

Frequently Asked Questions - WanderVent Klarstein

How to turn the device on and off?

Press the ON/OFF button once to turn on (speed 1), a second time to turn off.

How to change the speed?

Use the Speed/Light button. A short press switches between speeds: 2 speeds with a 2-minute Boost function, then returns to speed 1.

How to turn on the light?

Press and hold the Speed/Light button for 2 to 3 seconds to turn the light on or off (on models with light). The light operates independently of the fan.

What is the battery life and how to charge it?

The battery life is approx. 2 hours continuous. Charging time is 4 to 5 hours. The red indicator means the battery needs charging; the white indicator is on during normal use.

How to clean the device?

Before cleaning, unplug the device. Use a damp cloth to wipe the exterior. Never immerse the device in water.

Can I use the device near a flame?

No, it is prohibited to use this device near open flames or heat sources. Do not use it with open-flame cooking utensils.

Is the device suitable for outdoor use?

No, the device is designed for indoor use only. Avoid very humid places like bathrooms.

What to do in case of abnormal noise or smoke?

Immediately stop the device, unplug it, and contact customer service. Do not continue to use it.

Can I replace the battery myself?

No, the battery is not user-replaceable. For any issues, contact a professional.

How to recycle the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for recycling electrical and electronic equipment, in accordance with local regulations.

USER MANUAL WanderVent Klarstein

Mobile Extractor Fan

INHALT

Tischlüfter: 12,0 V=

Line drawing of a simple toilet or shower unit with no text or symbols

Simple line drawing of a mechanical device with a base and top component (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 10

Product Description 12

Disposal Considerations 14

Manufacturer & Importer (UK) 14

TECHNICAL DATA

Article number 10046689,	10046691, 10046692
Power supply	100 - 204 V~12 V= 50/60 Hz
Power 24 W
Noise 67 dB(A)
Product size 145×150×366 mm
Weight 1.5 kg

SAFETY INSTRUCTIONS

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

This product is only suitable for home use. The manufacturer does not assume any responsibility if it is used for other purposes than home.- It is forbidden to use this product with open flame cooking utensils, and do not place this product near a fire source- It is prohibited to store flammable and explosive gases in places where this product is used.- It is forbidden to use in places with heavy humidity and easy to be exposed to water, such as bathrooms- Do not place the machine on an inclined or other unstable place- Avoid long-term direct sunlight.

• It is prohibited to use this product with open flame cooking utensils, and it is prohibited to place this product near fire sources.
• To avoid electric shock and fire, please use the power cord provided and plug it into a suitable power outlet. Do not modify the plug itself in any way. If the power cord is damaged, to avoid danger, please notify professional maintenance personnel to replace it.
• It is prohibited to excessively bend, bundle, drag, or use heavy objects to compress the power cord. Do not place the power cord close to high temperatures or sources of fire. Do not use wires to clamp into cracks or change the power cord by yourself.
• It is forbidden to directly unplug and plug in the power supply with wet hands. When the machine is not used for a long time, please unplug it to prevent the insulation layer from aging and causing electric shock.
• Do not move the machine or disassemble or assemble parts during operation. This may cause personal injury or machine failure. When cleaning, maintaining and replacing filter components, be sure to cut off the power supply first. If there are abnormal sounds, excessive heat, smoke, etc. during use, please stop using it immediately, cut off the power supply, and contact the customer service center.
• Please make sure that children are not allowed to play or use this machine to prevent accidents.
• Do not subject the product to severe impacts or drops.
• Do not put cotton swabs, iron wire, toothpicks, paper scraps and other small objects into the openings.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The appliance is only to be used with the power supply unit provided with the appliance.

• The instructions shall give information regarding charging. This appliance contains batteries that are non-replaceable.
• Do not operate with wet hands.
• Do not place objects on top of the machine.
• Do not insert other objects into the air inlet and outlet.
• Please ensure that children are not allowed to play or use this machine to prevent accidents.
• Suitable for indoor use, no open flames, indoor air circulation.
• The product must be repaired by professional person.
• When moving, cleaning or disassembling this product, operation must be stopped and the power supply disconnected.
• After the power cord is damaged, it needs to be replaced directly and cannot be repaired.
• Suitable for indoor use, no open flames, indoor air circulation.

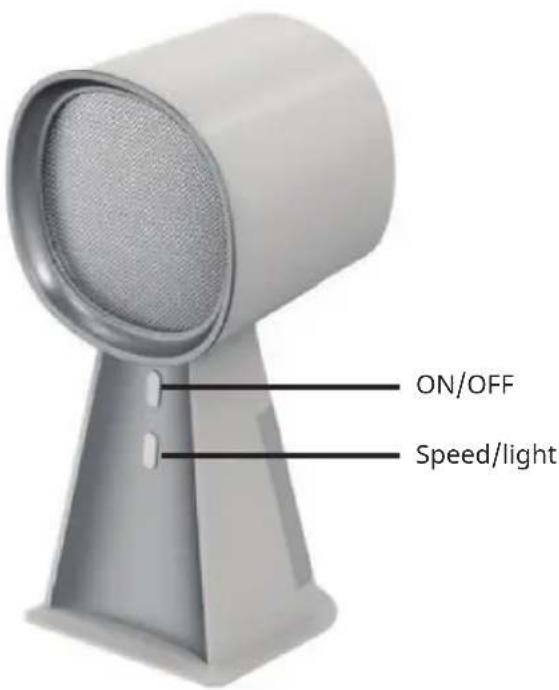

PRODUCT DESCRIPTION

Adaptor:

Input: 100-240V\~, 50/60Hz, 0.8A

Output: 12.0 V=, 2.0 A, 24.0 W;

Desk fan: 12.0 V=

• ON/OFF: Press once to turn on, the fan is 1 Speed. Press the second time to power off.
  • Speed/Light: 2 Speed-Boost 2 minutes -1 Speed.
• Product usage press and hold for 2\~3S to turn on and off the lights (for models with light function).

Tip: The lamp function can be controlled individually.

• The battery Continuous operation is about 2 hours.
- Charging time is approximately 4-5 hours.
- The red indicator light indicates the need for charging, while the white light is used normally.

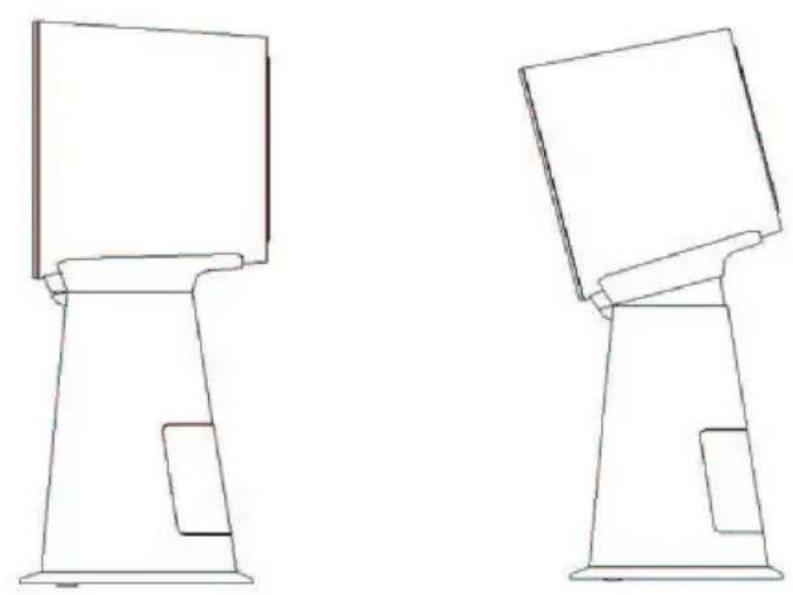

Two modes of use

Mode 1: head straight Mode 2: head down

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

[e-mail]

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

SOMMAIRE

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

INDICE

Uscita: 12,0 V=, 2,0 A, 24,0 W;

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

Londra, W8 6ND

United Kingdom

Estimado cliente:

ÍNDICE

Salida: 12,0 V=, 2,0 A, 24,0 W;

Campana extractora de sobremesa: 12,0 V=

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
