USER MANUAL YX-K450-100 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

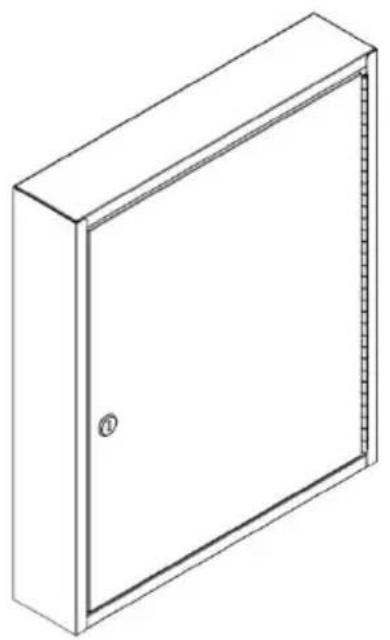

KEY CABINET
MODEL:YX-K450-100
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
MODEL:YX-K450-100
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
Thank you very much for choosing this product. Please read all of the instructions before using it. The information will help you achieve the possible results.
1. ASSEMBLY SAFETY
PLEASE NOTE! Drawings in this manual are for illustration purposes and in some details may differ from the actual product.
. Assemble only should be according to these instructions. Improper assembly can result in hazards.
. Wear ANSI-approved safety goggles and heavy-duty work gloves dur assembly.
. Keep the assembly area clean and well-lit.
. Keep bystanders out of the area during assembly.
. Do not assemble when tired or when under the influence of alcohol or medication.
. The product capabilities apply to properly and completely assembled products only.
. Assemble on a flat, level, hard and smooth surface capable of safe supporting the key cabinet.
. For additional information regarding the parts listed in the following please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.
2. USAGE SAFETY
ATTENTION! Read all safety warnings and all instructions. Failure to the warnings and instructions may result in serious injury or even death. The terms "device" or product" are used in the warning sand instructions to refer to KEY CABINET.
If you are unsure about whether the product is operating correctly or find damage, please contact the manufacturer's service centre. Only the
manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself! Keep the device away from sources and heat.
3. USE GUIDELINES
The product is intended for storing keys out of reach of unwanted people, it has a key lock. For better organization it has key hangers and an organizer. CAUTION: Do not store a spare lock key inside the box!
SAVE THESE INSTRUCTIONS
TECHNICAL PARAMETERS
| Model | YX-K450-100 |
| Colour | Black |
| Max number of key hangers | 100 |
| Size | 450*380*84 mm |
| N.W. | 4.08 kg |
| G.W. | 4.95 kg |
| Material | Cold Rolled Steel DC03, 0.7mm |
| Lock | Key lock with 2 keys |
PARTS LIST
| English Manual*1 |  |
| Key*2 |  |
| Hangers segment*10 |  |
| Key Hanger*100 |  |
| Expansion screw set*4(M3.5*30) |  |
STEP1

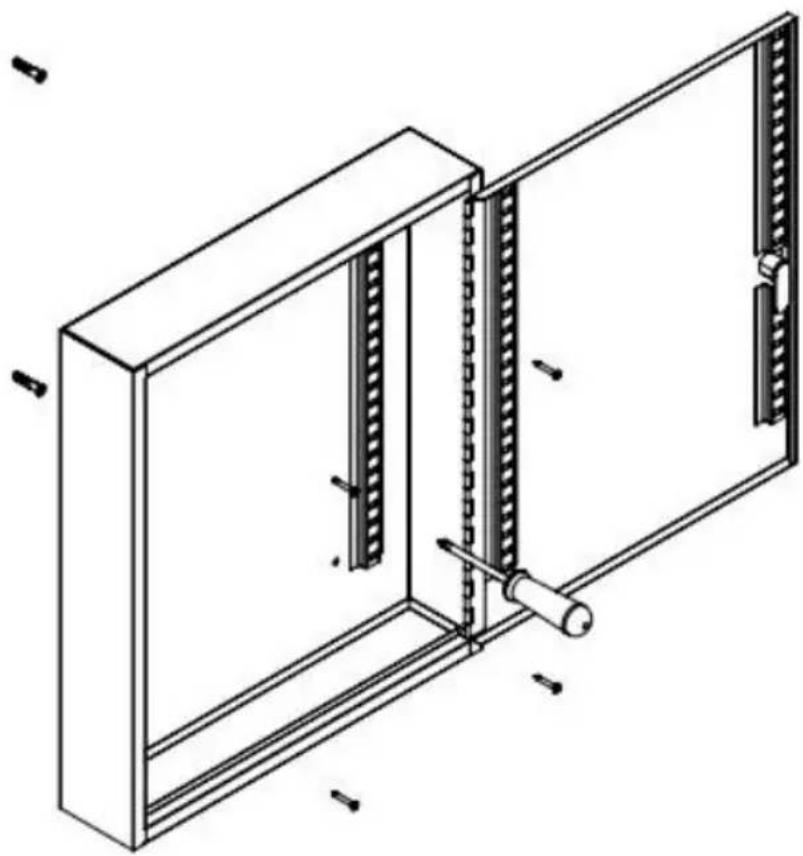

Mount the key cabinet to the wall with the expansion screw sets and the holes drilled in the wall.


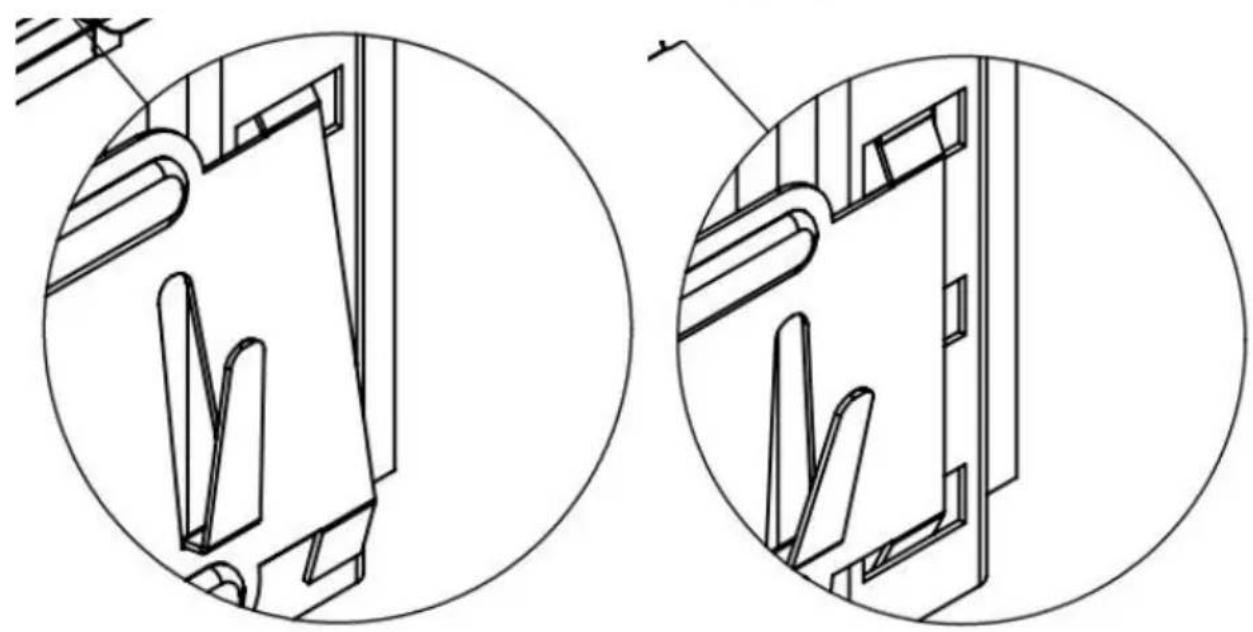

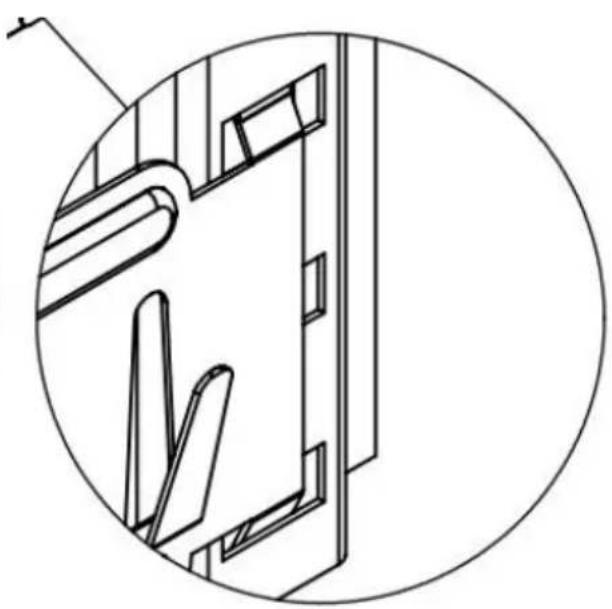

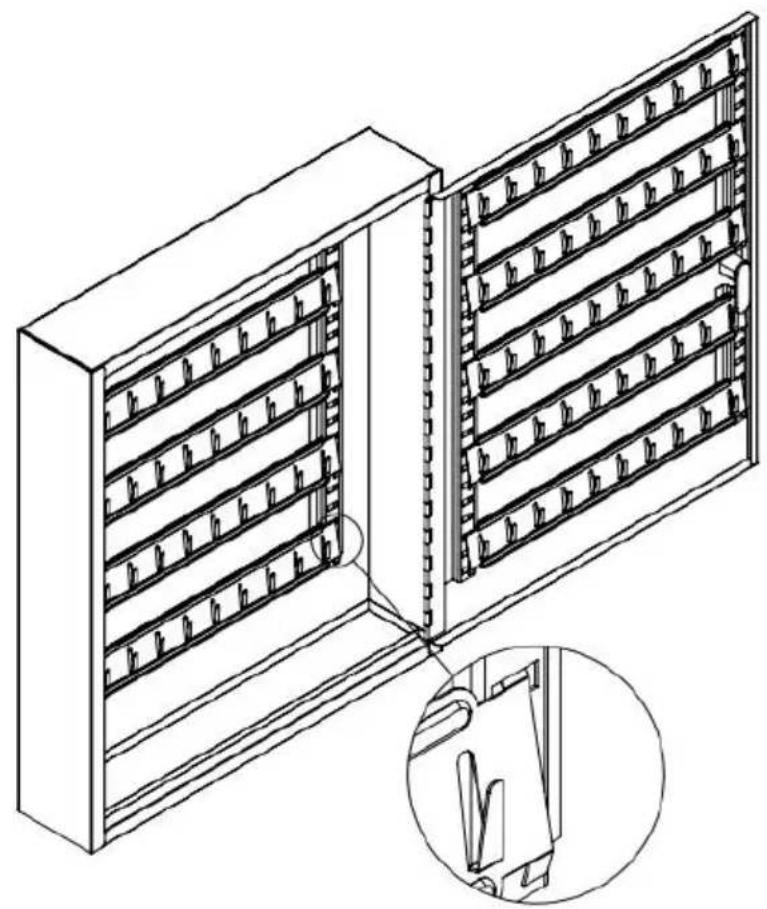

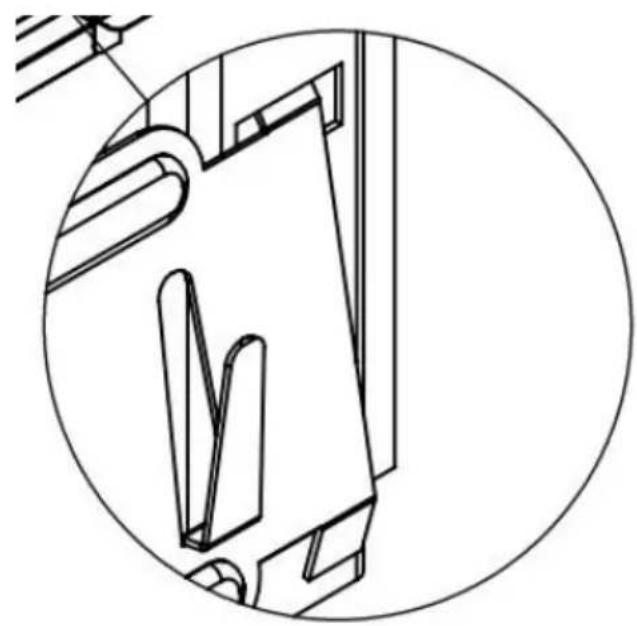

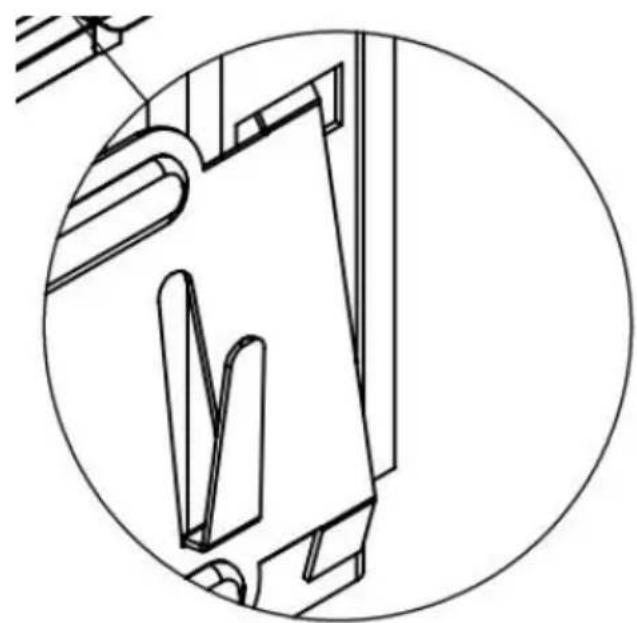

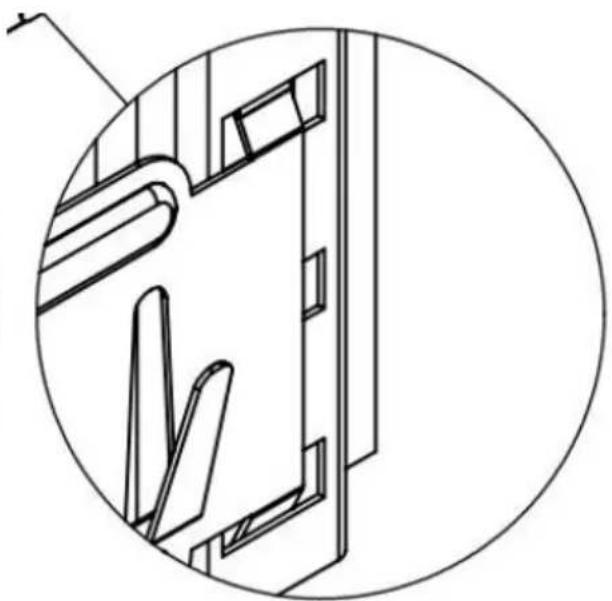

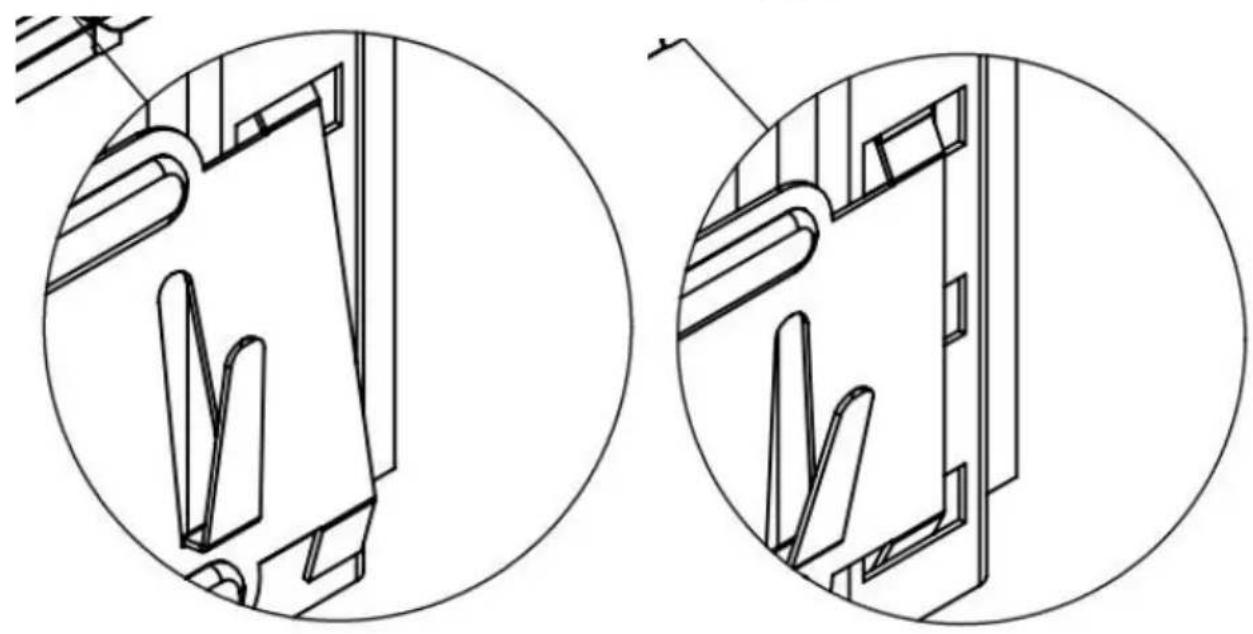

Install the Hangers segment on the cabinet.First the long side then th


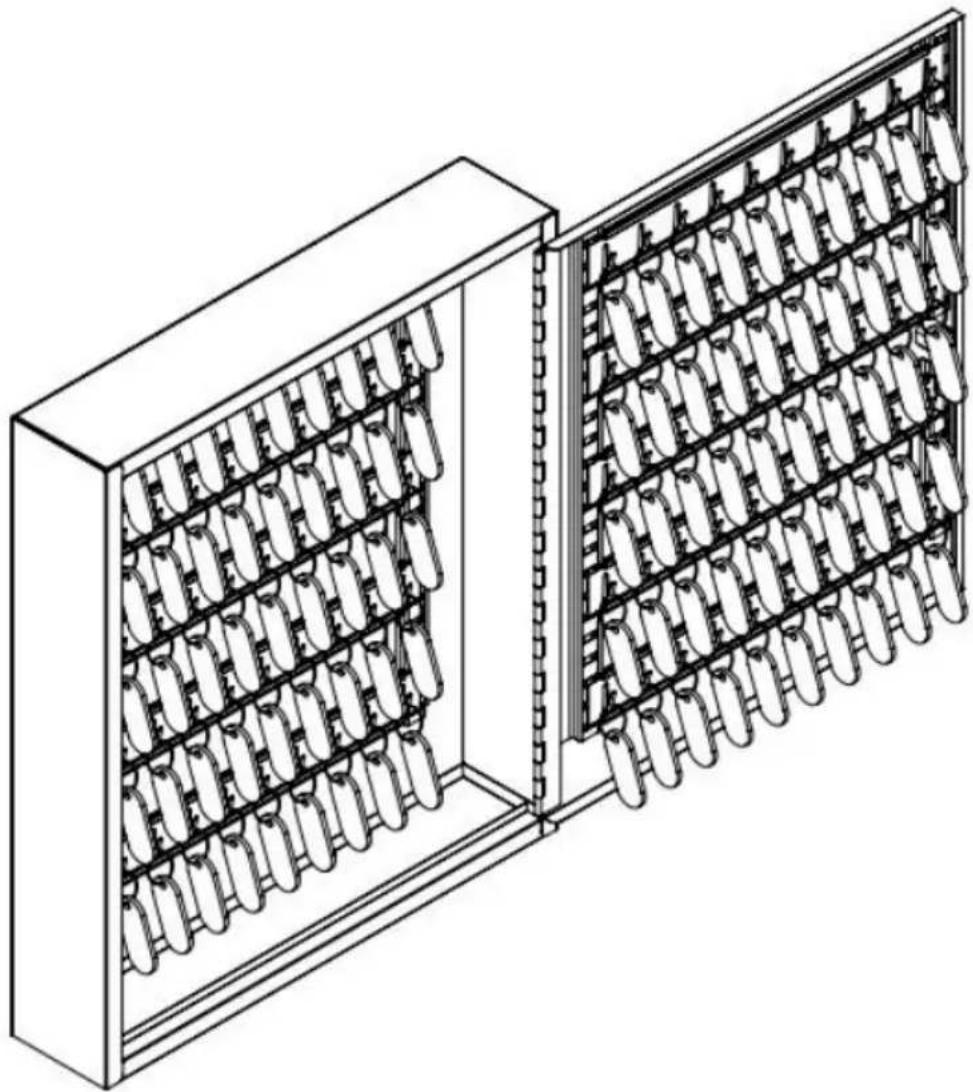

Then you can use the cabinet to hang on the keys as below.

