USER MANUAL YX-K370-48 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

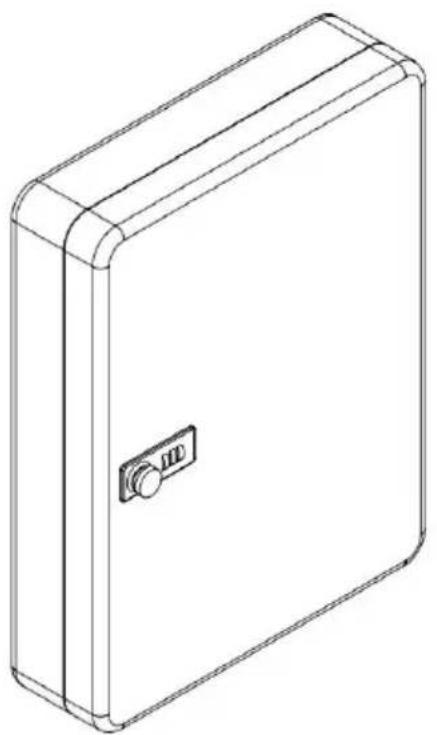

KEY CABINET

MODEL:YX-K370-48

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

KEY CABINET

MODEL:YX-K370-48

Line drawing of a rectangular electronic enclosure with a central door (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Thank you very much for choosing this product. Please read all of the instructions before using it. The information will help you achieve the possible results.

1. ASSEMBLY SAFETY

PLEASE NOTE! Drawings in this manual are for illustration purposes and in some details may differ from the actual product.

. Assemble only should be according to these instructions. Improper assembly can result in hazards.
. Wear ANSI-approved safety goggles and heavy-duty work gloves dur assembly.
. Keep the assembly area clean and well-lit.
. Keep bystanders out of the area during assembly.
. Do not assemble when tired or when under the influence of alcohol or medication.
. The product capabilities apply to properly and completely assembled products only.
. Assemble on a flat, level, hard and smooth surface capable of safe supporting the key cabinet.
. For additional information regarding the parts listed in the following please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

2. USAGE SAFETY

ATTENTION! Read all safety warnings and all instructions. Failure to the warnings and instructions may result in serious injury or even death. The terms "device" or product" are used in the warning sand instructions to refer to KEY CABINET.

If you are unsure about whether the product is operating correctly or find damage, please contact the manufacturer's service centre. Only the

manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself! Keep the device away from sources and heat.

3. USE GUIDELINES

The product is intended for storing keys out of reach of unwanted people, it has a key lock. For better organization it has key hangers and an organizer. CAUTION: Do not store a spare lock key inside the box!

SAVE THESE INSTRUCTIONS

TECHNICAL PARAMETERS

Model	YX-K370-48
Colour	Black
Max number of key hangers	48
Size	370*285*80 mm
N.W.	2.46 kg
G.W.	3 kg
Material	Cold Rolled Steel DC03, 0.7mm
Lock	Three digit combination lock

PARTS LIST

English Manual*1
Hangers segment*6
Key Hanger*48
Expansion screw set*4(M3.5*30)

ASSEMBLY STEP

STEP1

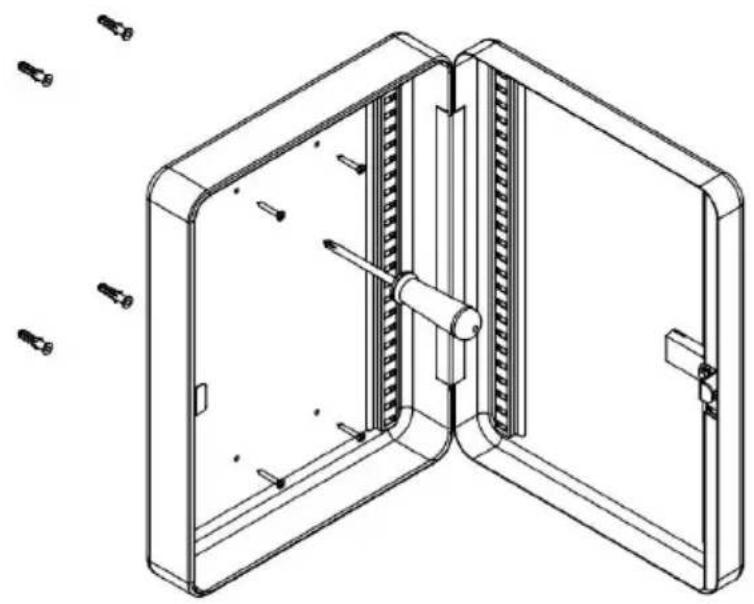

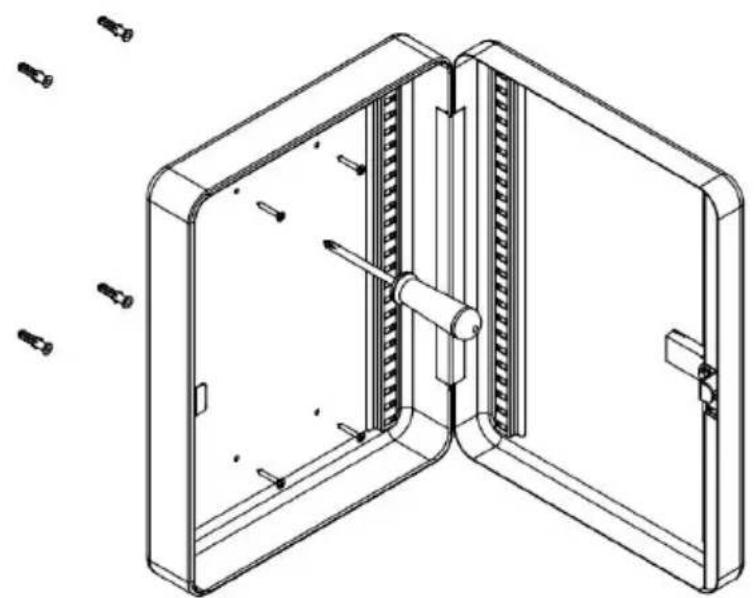

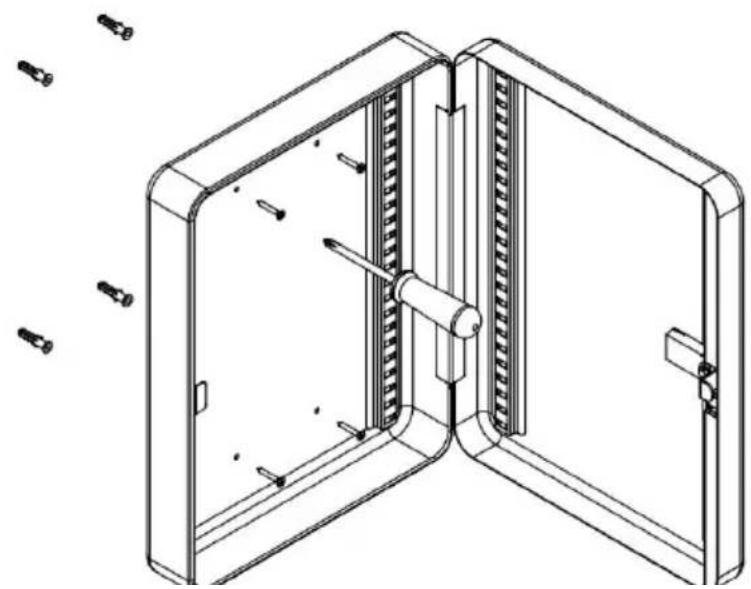

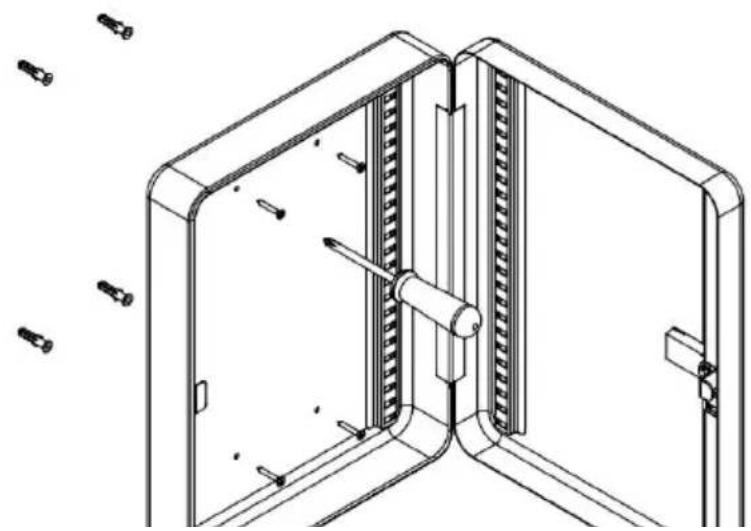

Mount the key cabinet to the wall with the expansion screw s according to the holes drilled in the wall.

Technical line drawing of a door with internal components and screw holes (no text or symbols)

STEP2

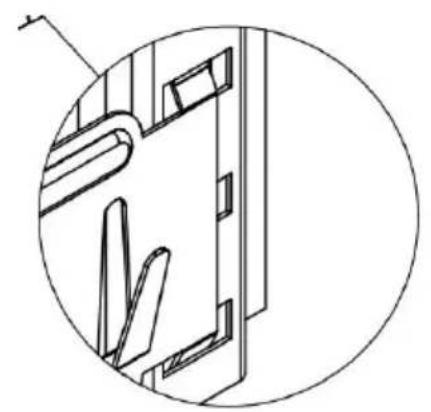

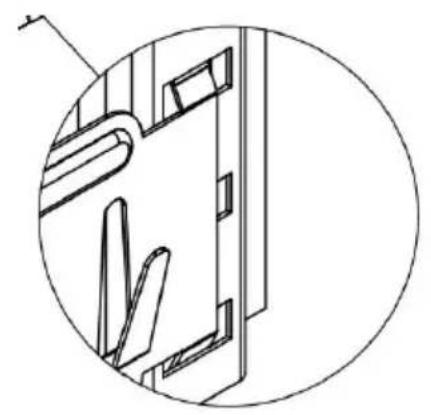

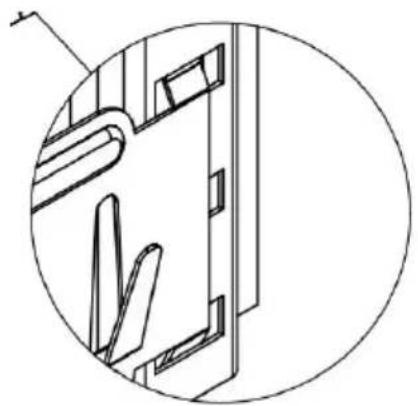

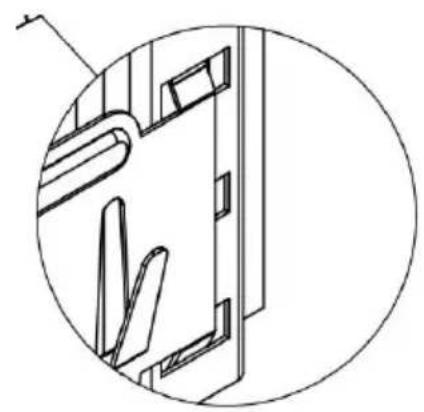

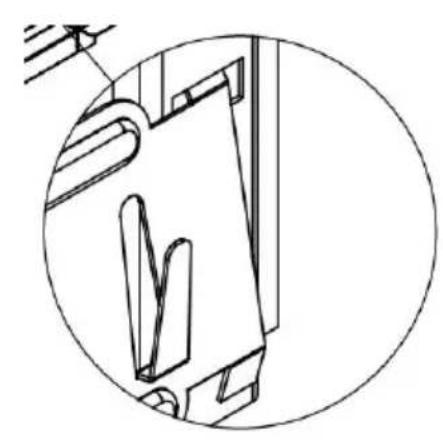

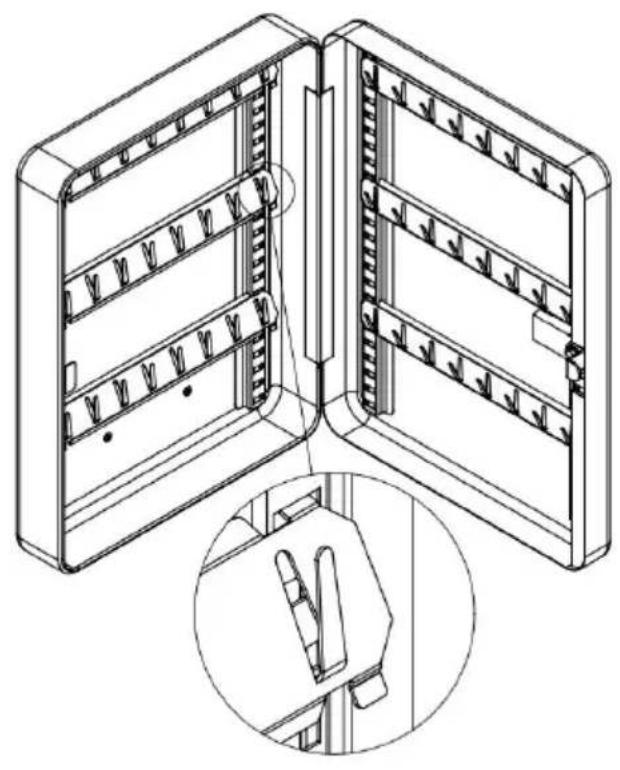

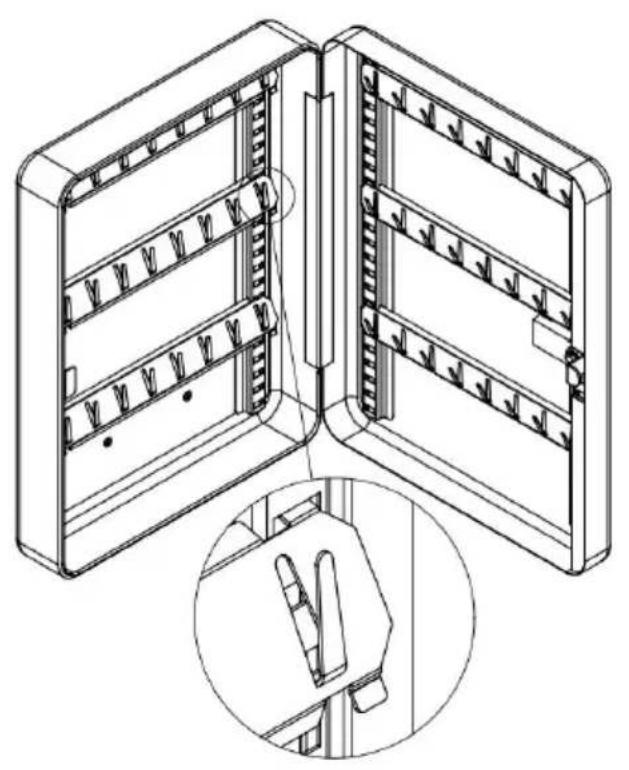

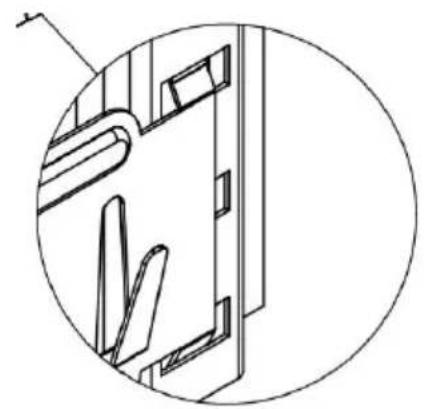

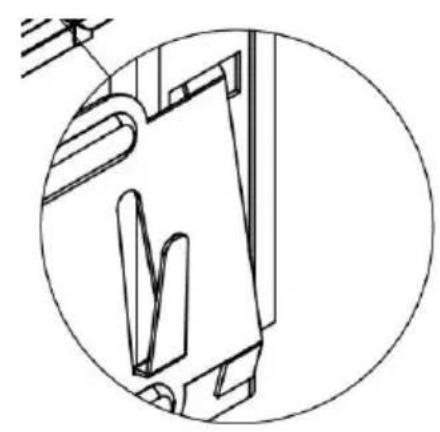

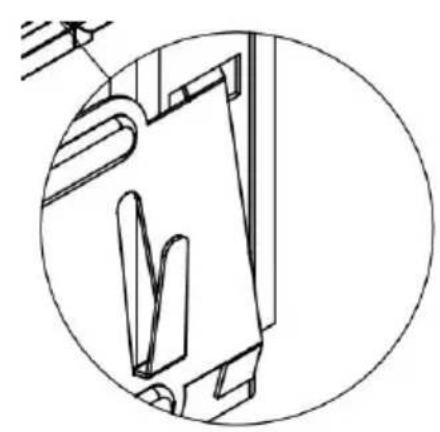

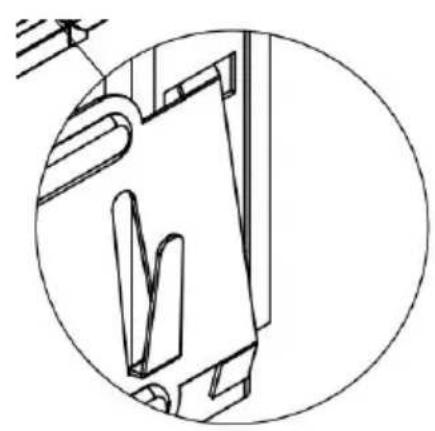

Install the Hangers segment on the cabinet. First the long side short.

Technical line drawing of an open electrical panel with internal wiring and a magnified inset showing the close-up of the component (no text or symbols present)

Technical line drawing of a mechanical component inside a circular frame (no text or symbols)

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

STEP3

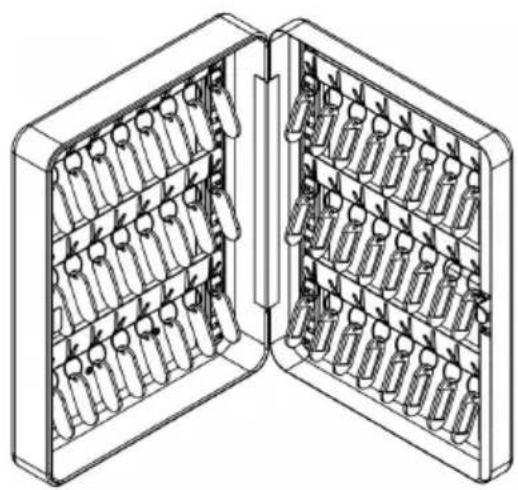

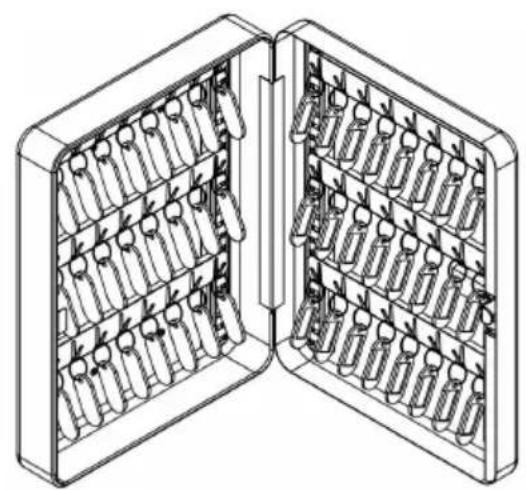

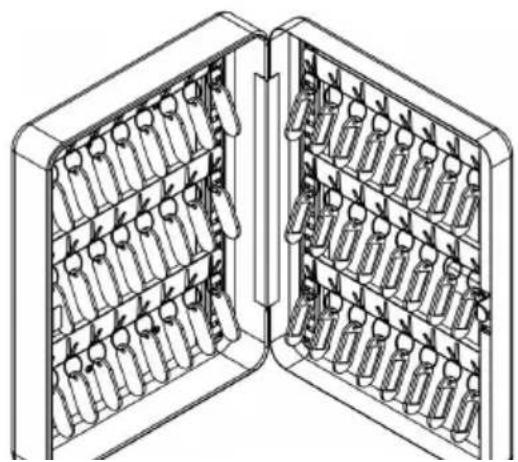

Then you can use the cabinet to hang on the keys as below

Technical line drawing of a multi-compartment mechanical device with internal compartments (no text or symbols)

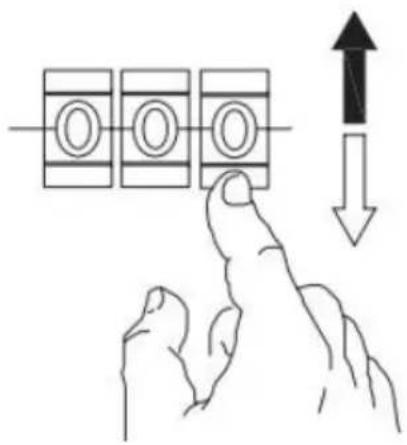

1. Initial password: 000

Pure electrical circuit lines without any symbols

Diagram showing finger pressing a button with three circular indicators and an upward arrow, indicating action or movement.

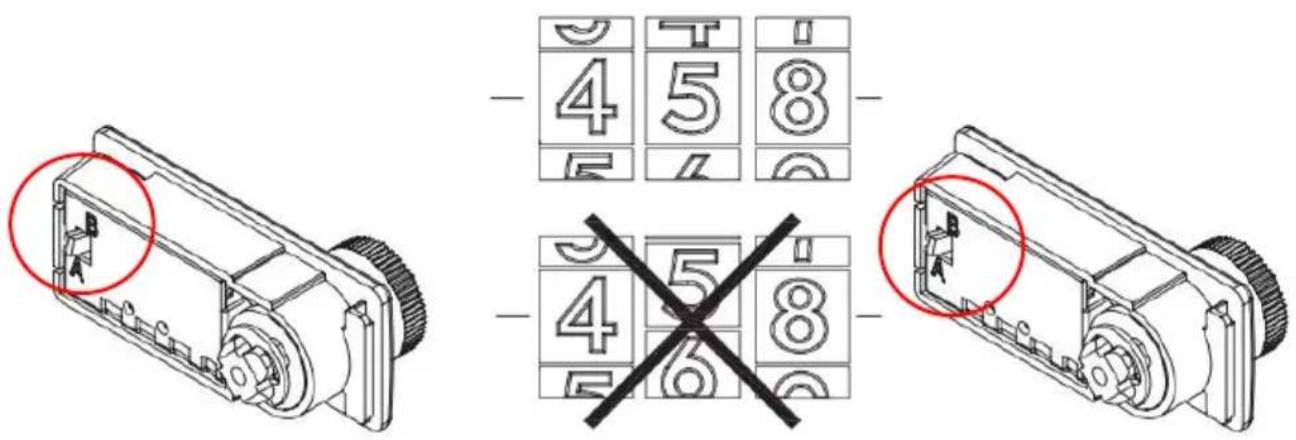

2.How to setup password

Technical diagram showing three views of a mechanical device with numbered blocks and a red circle highlighting a component, plus a crossed-out black rectangle.

Set the above key 1 "B"

Change the figures t set your password

Set the above key 1 "A"then it is over.

Please record the password to avoid forgetting the password.
