TD0501A36 - Hand tool Vevor - Free user manual and instructions

Product Type	Pipe Wrench
Brand	Vevor
Model	TD0501A36
Overall Length	36 inches (914 mm)
Maximum Jaw Opening	150 mm
Jaw Hardness	≥ 52 HRC
Head Material	Forged Chrome Vanadium Steel
Handle	Ergonomic, I-beam profile
Coating	Rust and anti-aging powder coating
Main Application	Pipeline installation (oil, water, gas)
Working Principle	Clamping force converted to torque, self-tightening jaws
Required Protective Equipment	Safety goggles, gloves, hearing protection, dust mask
Usage Precautions	Do not use on electrical objects; do not strike handle with hammer; do not extend the handle
Maintenance	Grease the jaws regularly; store in a dry place
Repairability	Non-specified parts; contact manufacturer for assistance
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi

Frequently Asked Questions - TD0501A36 Vevor

What is the length of the TD0501A36 pipe wrench?

The total length is 36 inches (914 mm).

What is the maximum jaw opening?

The maximum opening is 150 mm, suitable for large diameter pipes.

Is the pipe wrench suitable for electrical work?

No, this product is not intended for use with electrically charged objects. It is designed for mechanical piping.

What protective equipment should I wear when using it?

It is mandatory to wear safety goggles, gloves, hearing protection, and a dust mask.

Can I use a hammer on the handle to loosen a pipe?

No, it is forbidden to strike the handle with a hammer or to extend it, as this could damage the tool and cause accidents.

How do I maintain the pipe wrench to prevent rust?

It is recommended to grease the jaws regularly and store the tool in a clean, dry, well-ventilated place.

Is the pipe wrench suitable for use at heights?

Yes, but be especially cautious due to the weight and sharp teeth. Always use appropriate safety equipment.

What is the hardness of the jaws?

The jaws have a hardness of at least 52 HRC, ensuring good wear resistance.

Where can I find after-sales service or warranty?

Visit www.vevor.com/support for technical assistance and your electronic warranty certificate.

Can I use a winch or tractor to pull on the wrench under overload?

No, this is strictly prohibited because overload can damage the tool and cause serious accidents. Always use the wrench within its torque limits.

USER MANUAL TD0501A36 Vevor

PIPE WRENCH USER MANUAL

MODEL: TD0501A36, TD0501A48

We continue to be committed to providing you with tools at competitive prices.

"Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to other brands, and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half compared to the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

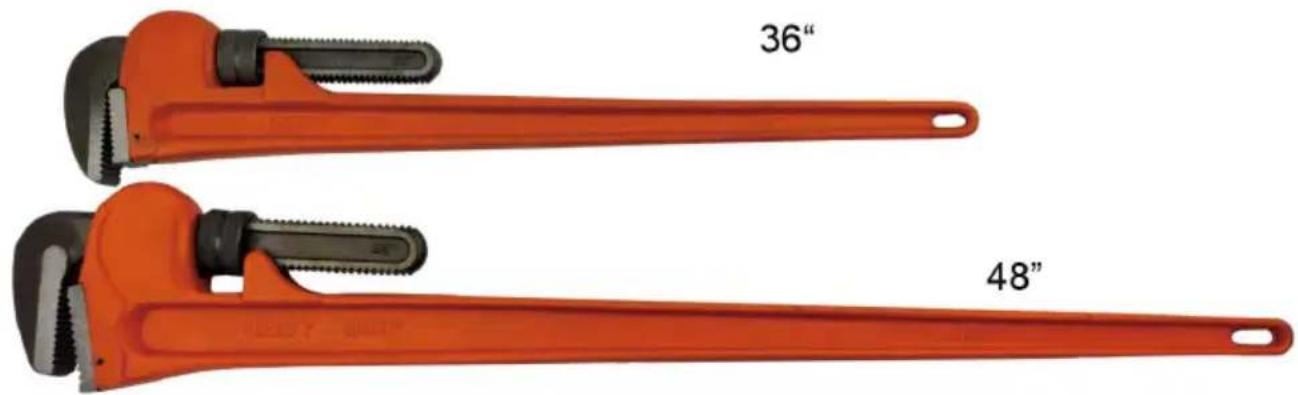

PIPE WRENCH

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate at www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, user must read instru manual carefully.
	Warning- Be sure to wear ear protectors when using this pro
	Warning- Be sure to wear eye protectors when using this pro
	Warning- Be sure to wear dust masks when using this produ
	Warning- Be sure to wear gloves when using this product.

WARNING!

1. Use the product only after receiving professional metalworking training.
2. Wear necessary personal protective equipment such as safety goggles, earplugs, and protective gloves during use.
3. Ensure that the workspace remains clean, dry, and well-ventilated during operation.
4. Keep away from children.

2. Product Introduction

The clamp head is forged with high quality chromium vanadium steel, overall quenching treatment, the clamp hardness reaches HRC55-60, the numerical control machine tool production knurled large nut, easy to a the upper and lower bite clamp tooth design, the clamping force is s Precision casting clamp body, large torque, save effort, use high quali

explosive powder, rust and anti-aging. The handle is ergonomic, comfortable and not easy to slip.

This product is widely used in oil pipeline and civil pipeline installation use of pipe pliers can make the pipe rotation to complete the conne works by converting the clamp force into torque force, which is more applied in the direction of torsion, which means that the jaws are cl a tighter.

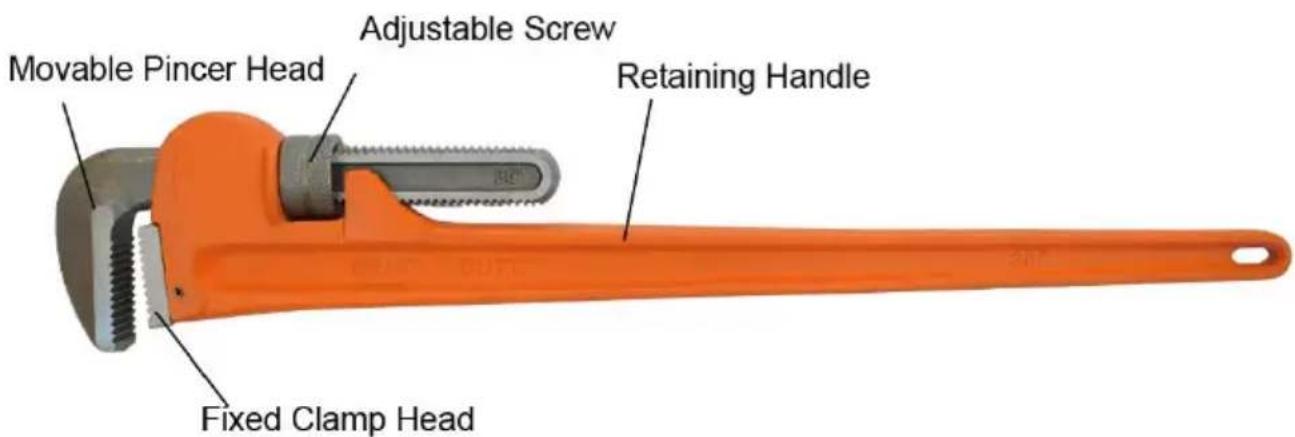

3. Product Structure

4. Notes for use:

1. This product is not intended for use with electrically charged objects.
2. Always wear protective tools when using.
3. This product has sharp teeth and heavy weight, please pay attention to safety when using at high altitude.
4. Please grease the jaws for a long time to prevent rust.
5. When using a pipe wrench, it is not allowed to hit the handle with hammer, sleeve or extend the handle.

It is not allowed to be used when overloaded, and it is not allowed to use tractors, winches, or other machinery to drag it overloaded.

To avoid unsafe accidents.

1. When using, it is not allowed to beat with a hammer, so as not to damage the parts and affect the use.

5. Parameters

Items	Model	TD0501A48	TD0501A36
1	Overall Length	46.4inch	36inch
2	Max opening Size	150mm	150mm
3	Plier Jaws Hardness	52HRC	52HRC
4	I-Beam Handle	√	√

6. Maintenance

Pay attention to storage and maintenance, and do not place it in an environment that may easily cause rust.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support
