USER MANUAL AH483-EU Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRONIC SCORING - AIR HOCKEY TABLE

MODEL: AH483-US ; AH483-EU

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: AH483-US ; AH483-EU

Technical line drawing of a three-tiered football table with clubs and structural supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this Air Hockey Table . Please re of the instructions before using it.The information will help you achieve best possible results.

SAFETY ADVICE

SAFE WORKING PRACTICE

▶ Always inspect the goal post and net for defects before use and replace damaged parts.
▶ Do not use the goal with faulty parts.
▶ The goal must always be secured to the ground. Weights to be on hard surfaces.
▶ Never climb onto the table. Please always follow the safety instructions.
▶ We recommend that adults supervise the assembly and use process. Do not drop any heavy objects on the desktop.
▶ When dismantling the goal ensure that all fittings are packed away and none are left on the playing surface.

WARNING:

Loose pegs may cause injury. Care should be taken when using a r as misuse may cause injury.

Choking Hazard--Toy contains small balls andor small parts.Not for children under 3 years

SPECIFICATIONS

Model	AH483-US
Product size L x W x H	1371* 686 *972mm
Materials	medium density fiberboard
Scoring Model	Electronic scoring
Assembly Required	Yes
Sports	Hockey, table tennis, foosball
Rating	DC24V 2.0A (Via AC100~240V 50/60H Max.50W adapter)

Model	AH483-EU
Product size L x W x H	1371* 686 *972mm
Materials	medium density fiberboard
Scoring Model	Electronic scoring
Assembly Required	Yes
Sports	Hockey, table tennis, foosball
Rating	DC24V 2.0A (Via AC100~240V 50/60H Max.50W adapter)

PART LIST

Note: Refer to part numbers and be sure all parts are in

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	F3 Player rod4pcs
R2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5Home man13pcs	R6[07NH]Away man13pcs	R7Rod bushing16pcs
R8[G28Z]Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

WARNING: TWO ADULTS NEEDED TO ASSEMBLE SOCCER TABLE

Figure 1

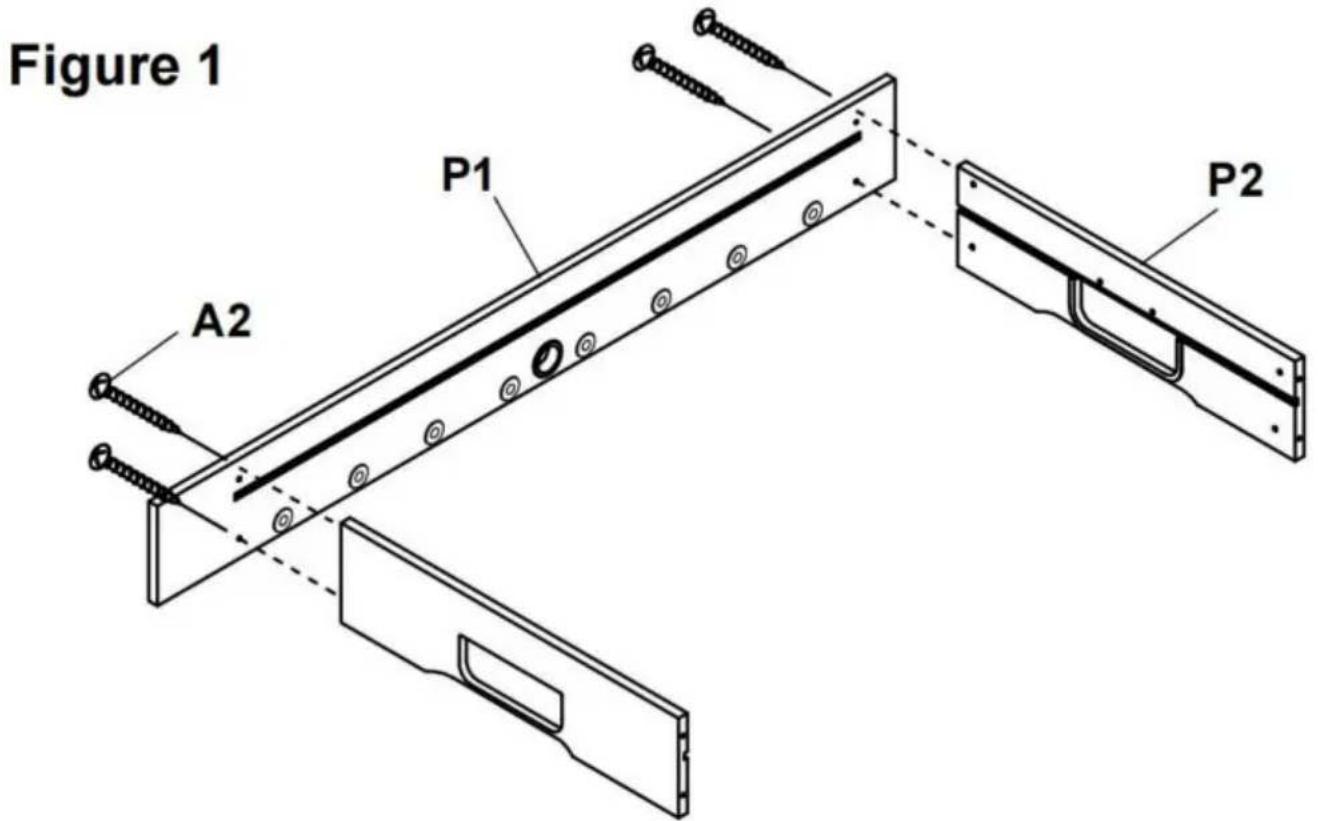

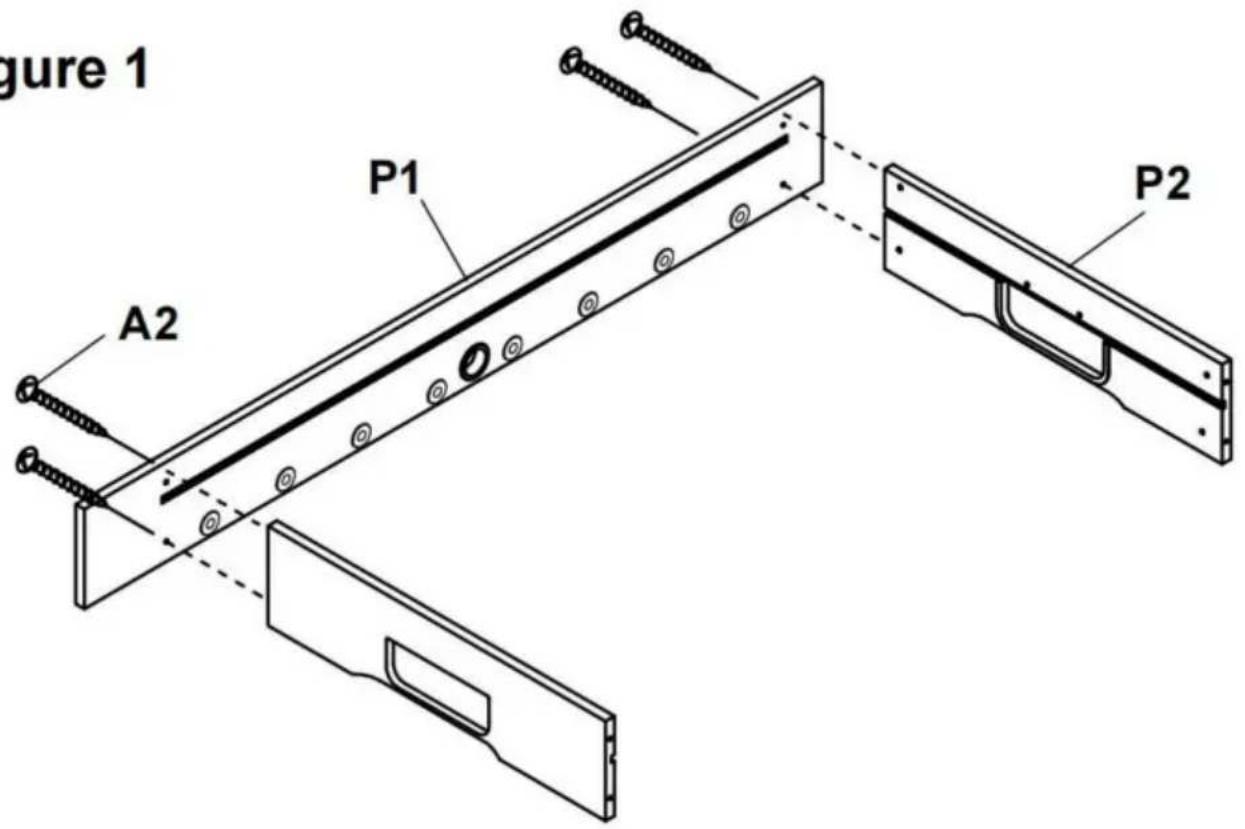

Figure 1 P1 A2 P2

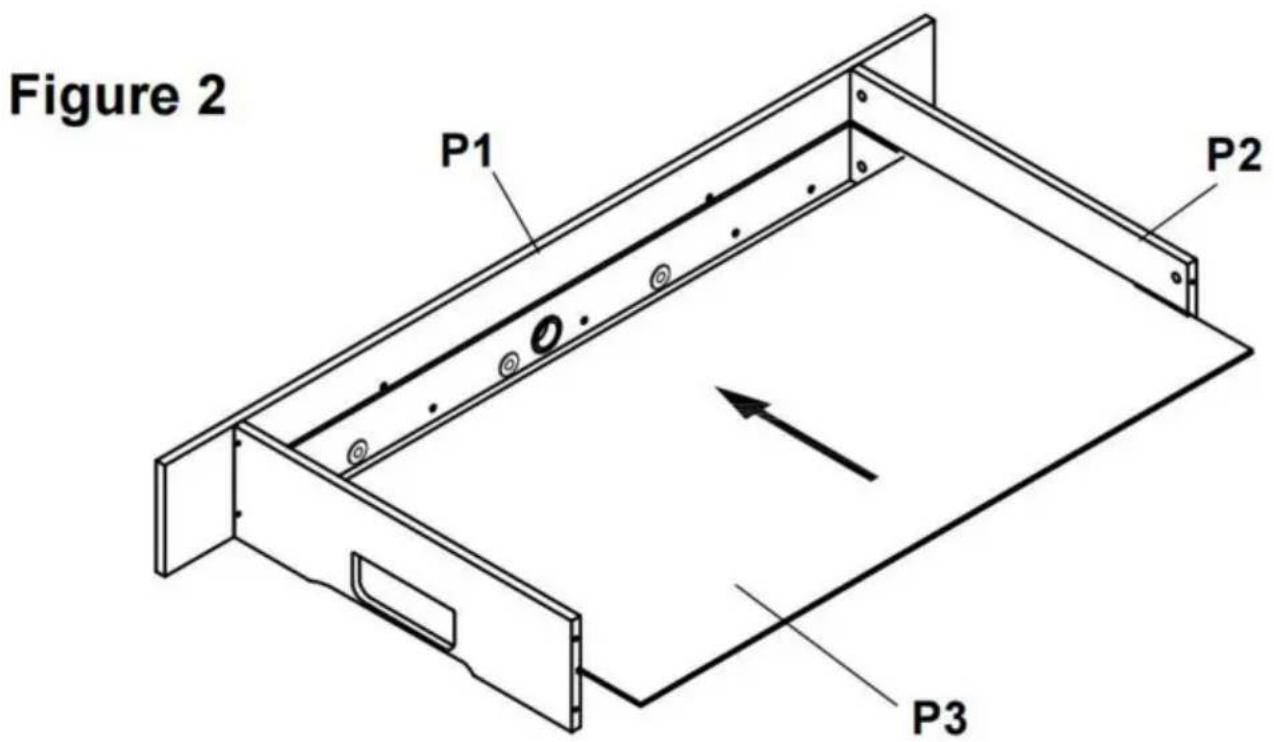

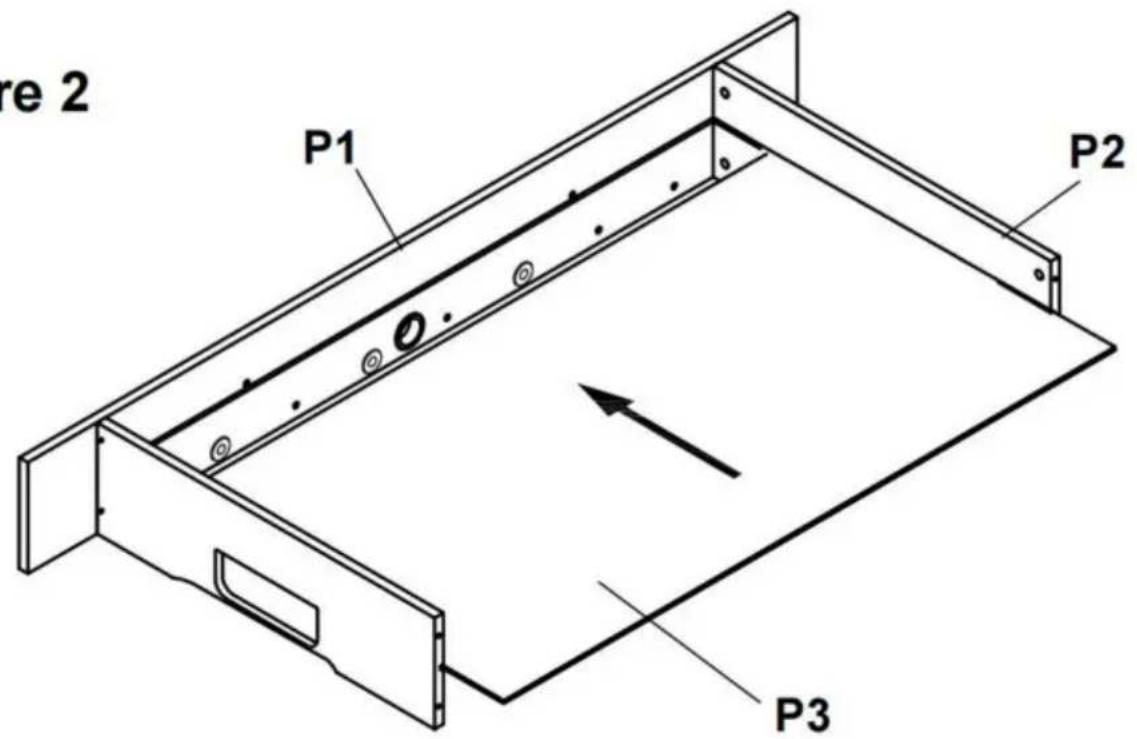

Figure 2

re 2 P1 P2 P3

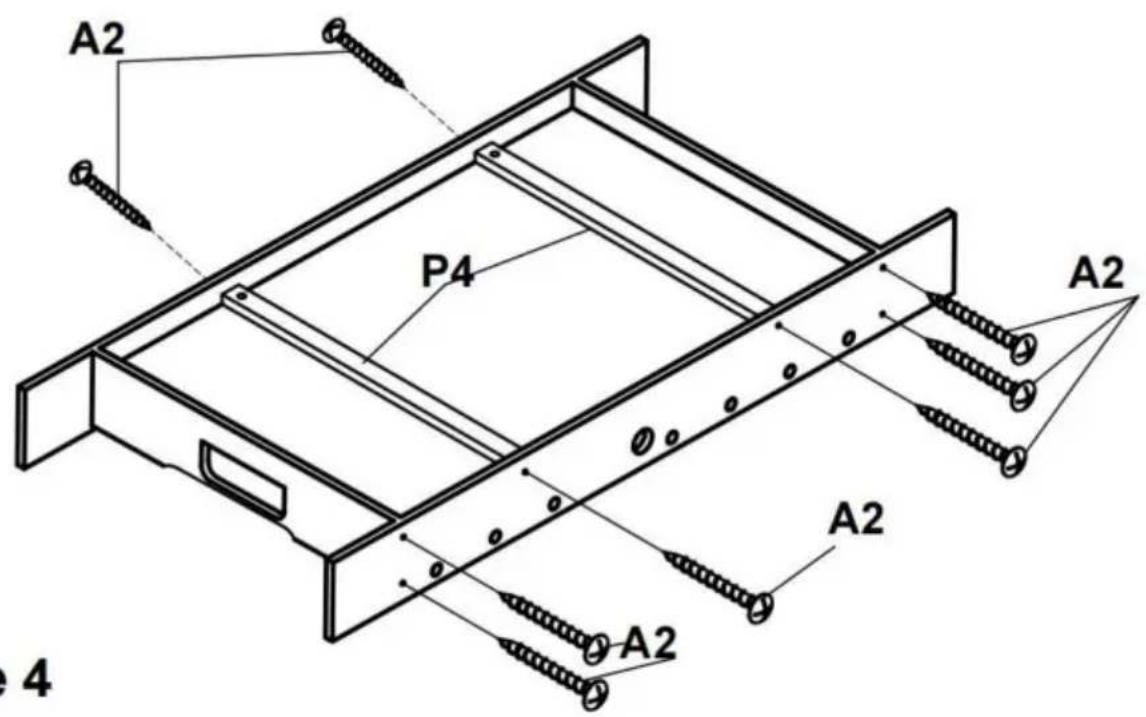

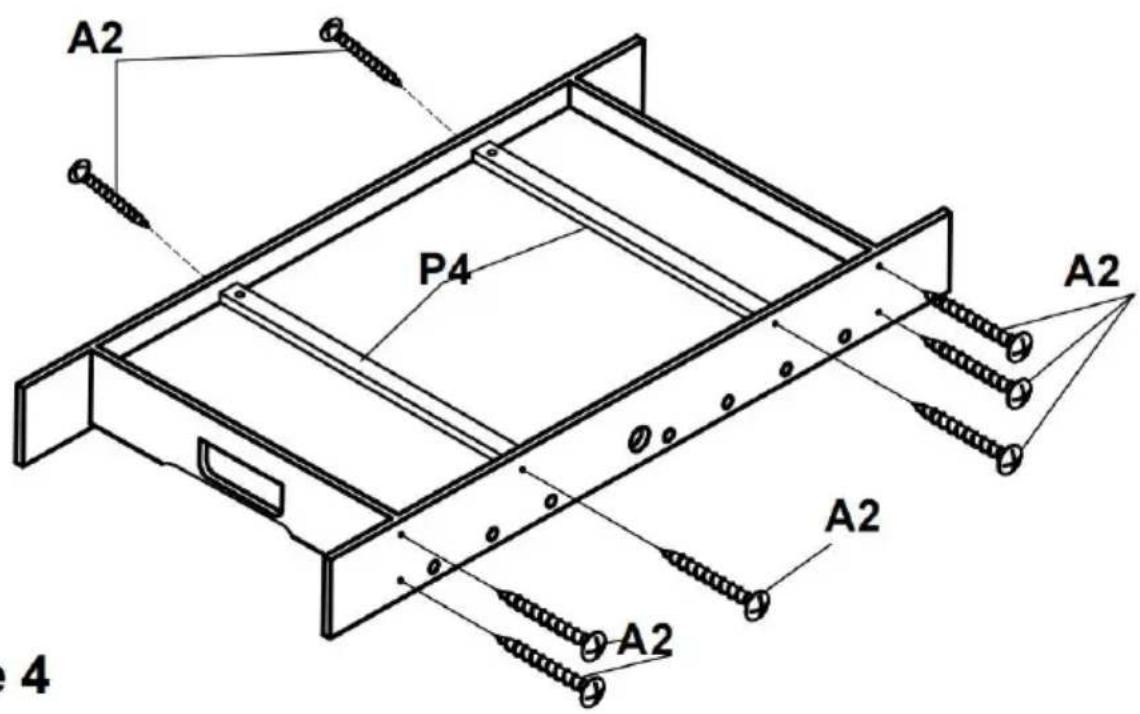

Figure 3

A2 P4 A2 A2 A2 4

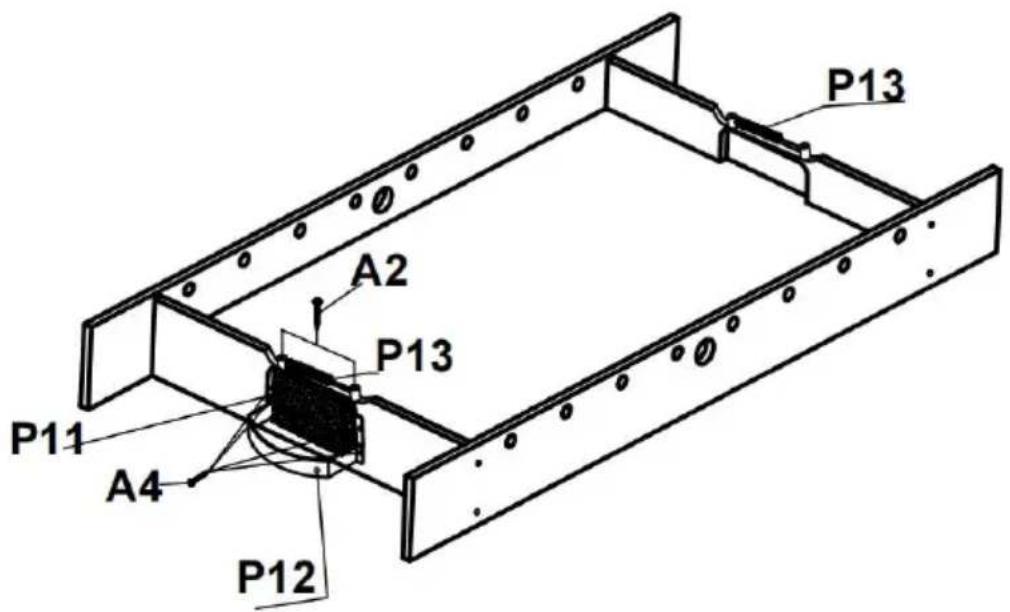

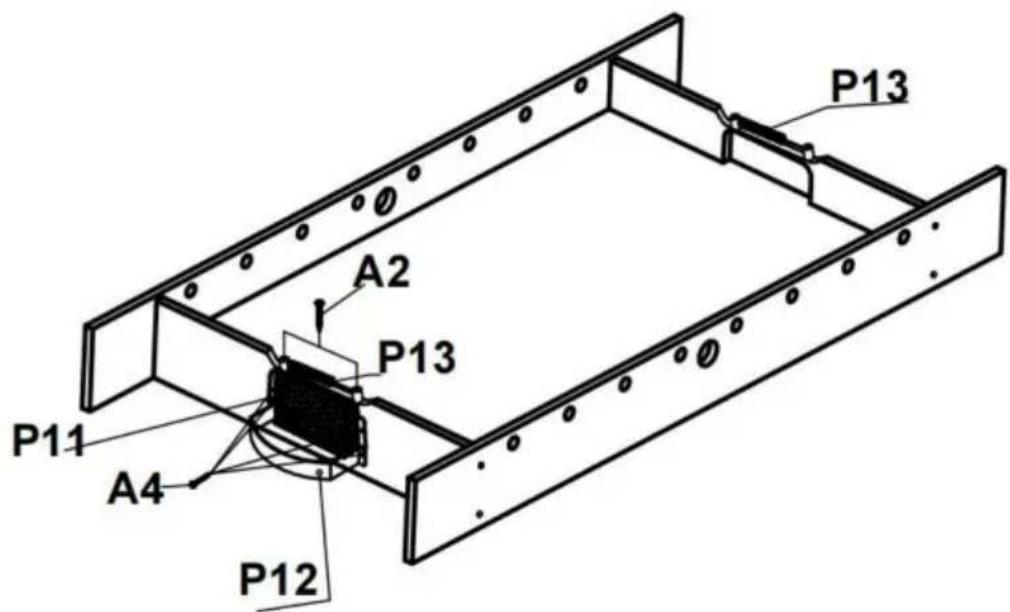

Figure 4

P13 A2 P13 P11 A4 P12

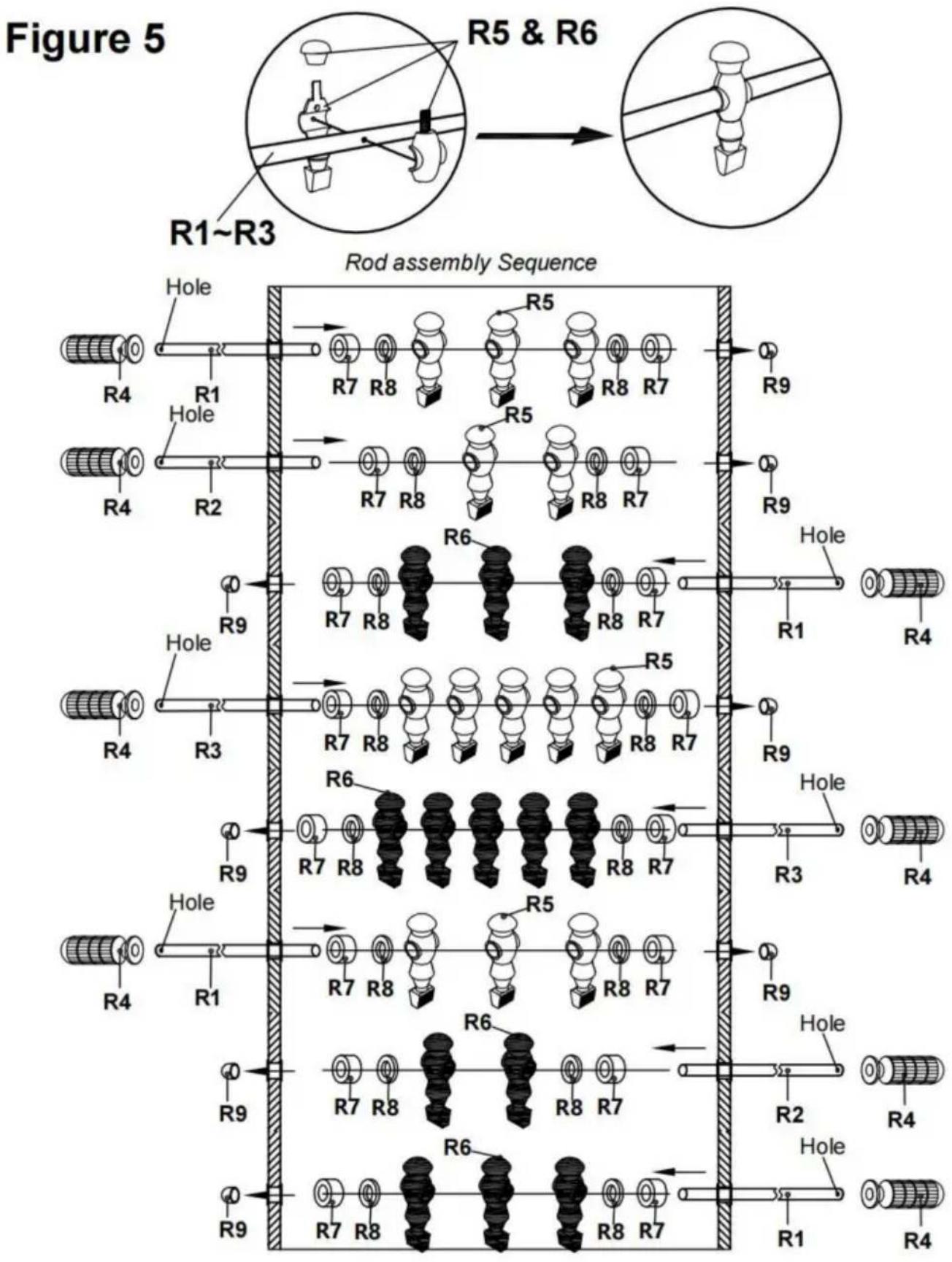

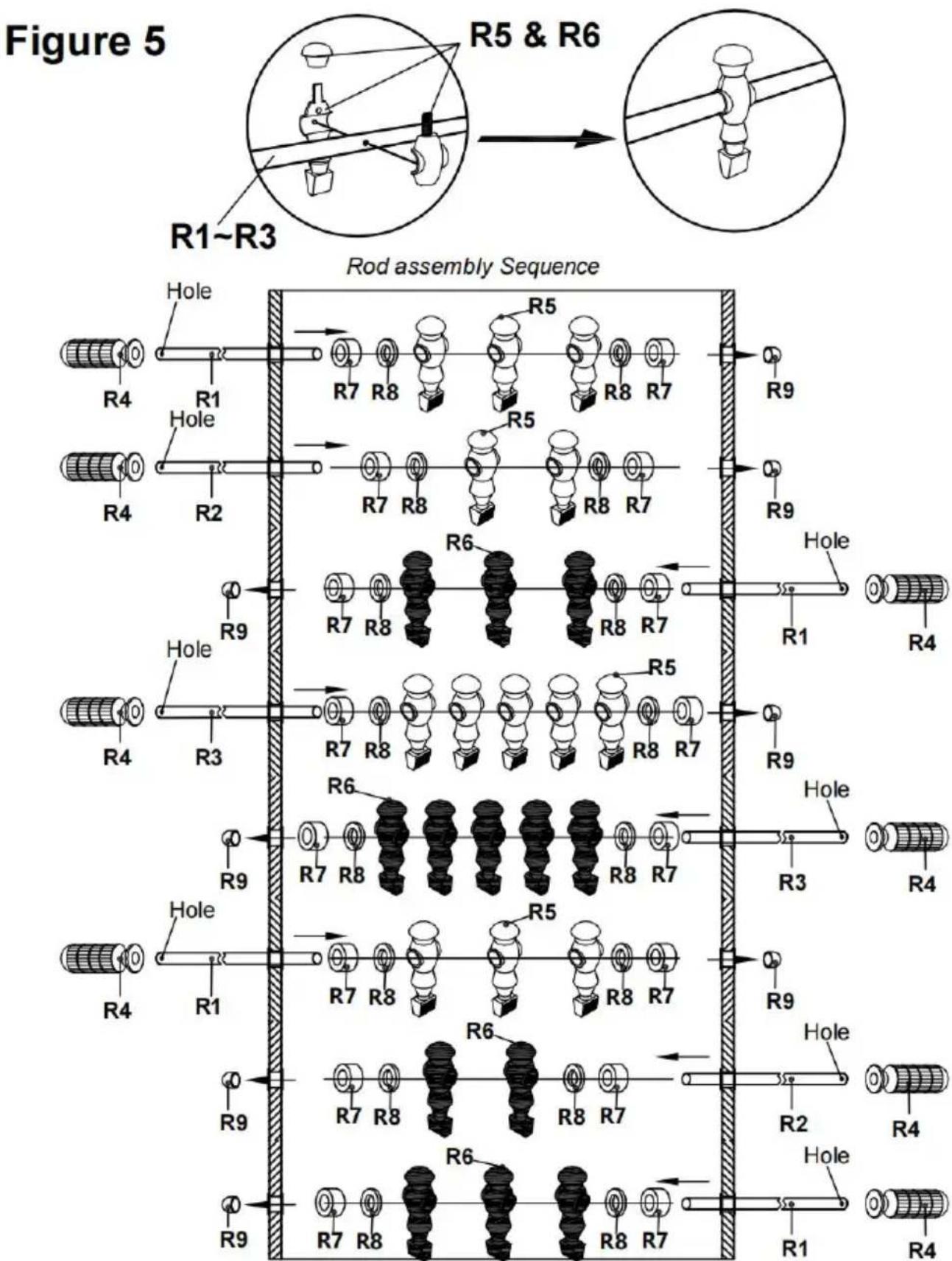

Figure 5 R1~R3 R5 & R6 Rod assembly Sequence Hole R4 R1 Hole R4 R2 R7 R8 R5 R8 R7 R7 R8 R8 R7 R9 Hole R9 R4 Hole R4 R3 R7 R8 R6 R8 R7 R5 R8 R7 R9 Hole R1 R4 Hole R9 R7 R8 R6 R8 R7 R3 R4 Hole R4 Hole R4 R1 R7 R8 R5 R8 R7 R9 Hole R9 R7 R8 R6 R8 R7 R2 Hole R2 Hole R4 R6 R8 R7 R1 R4

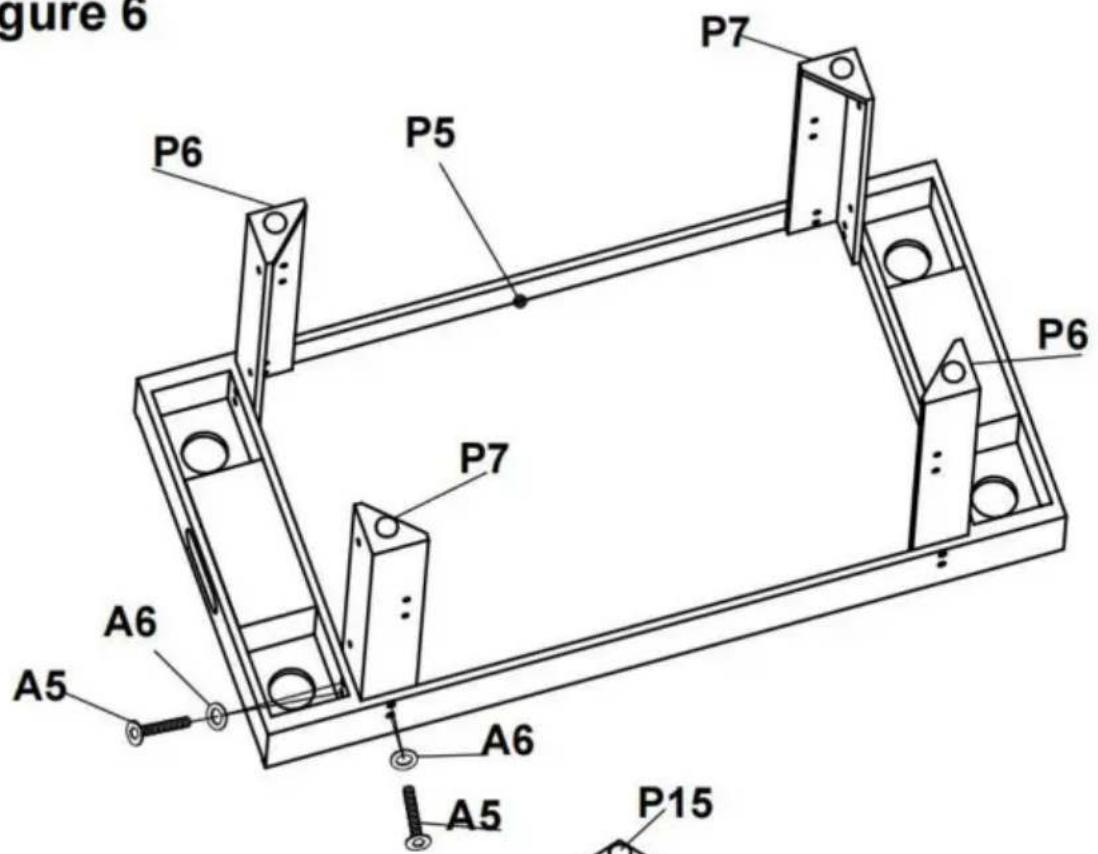

Figure 6

Figure 6 P6 P5 P7 P6 P7 A6 A5 A6 A5 P15

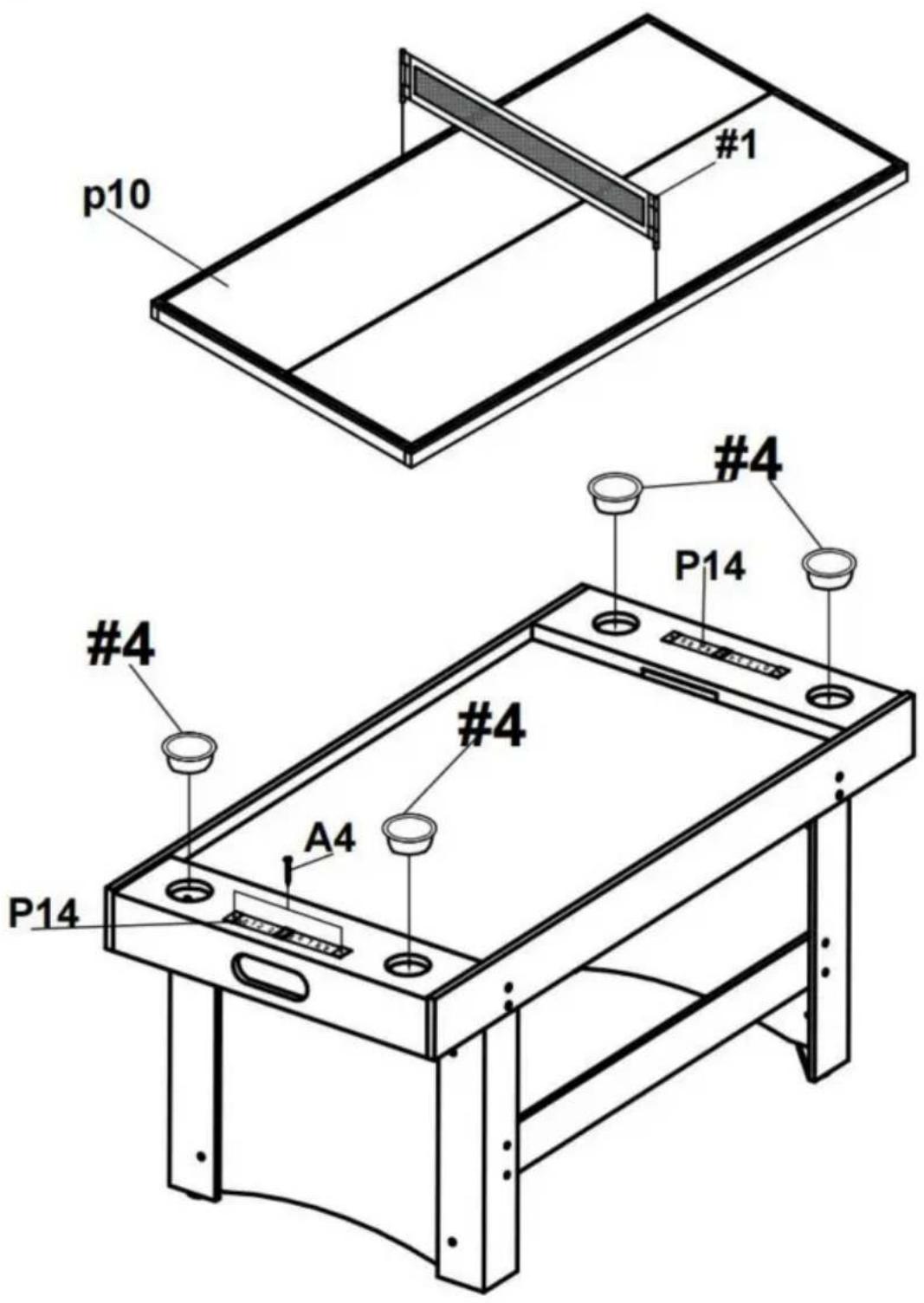

p10 #1 #4 P14 #4 #4 A4 P14

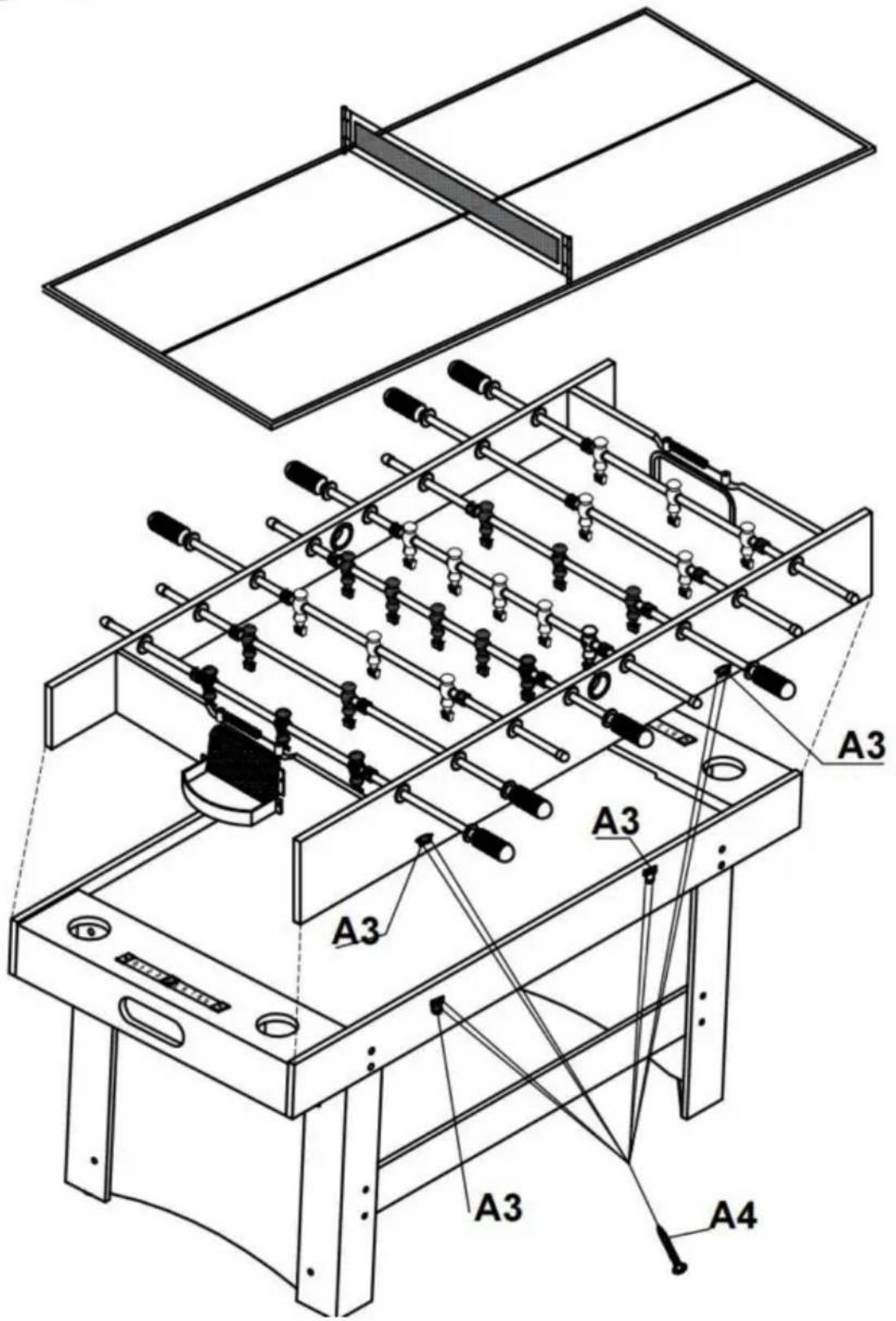

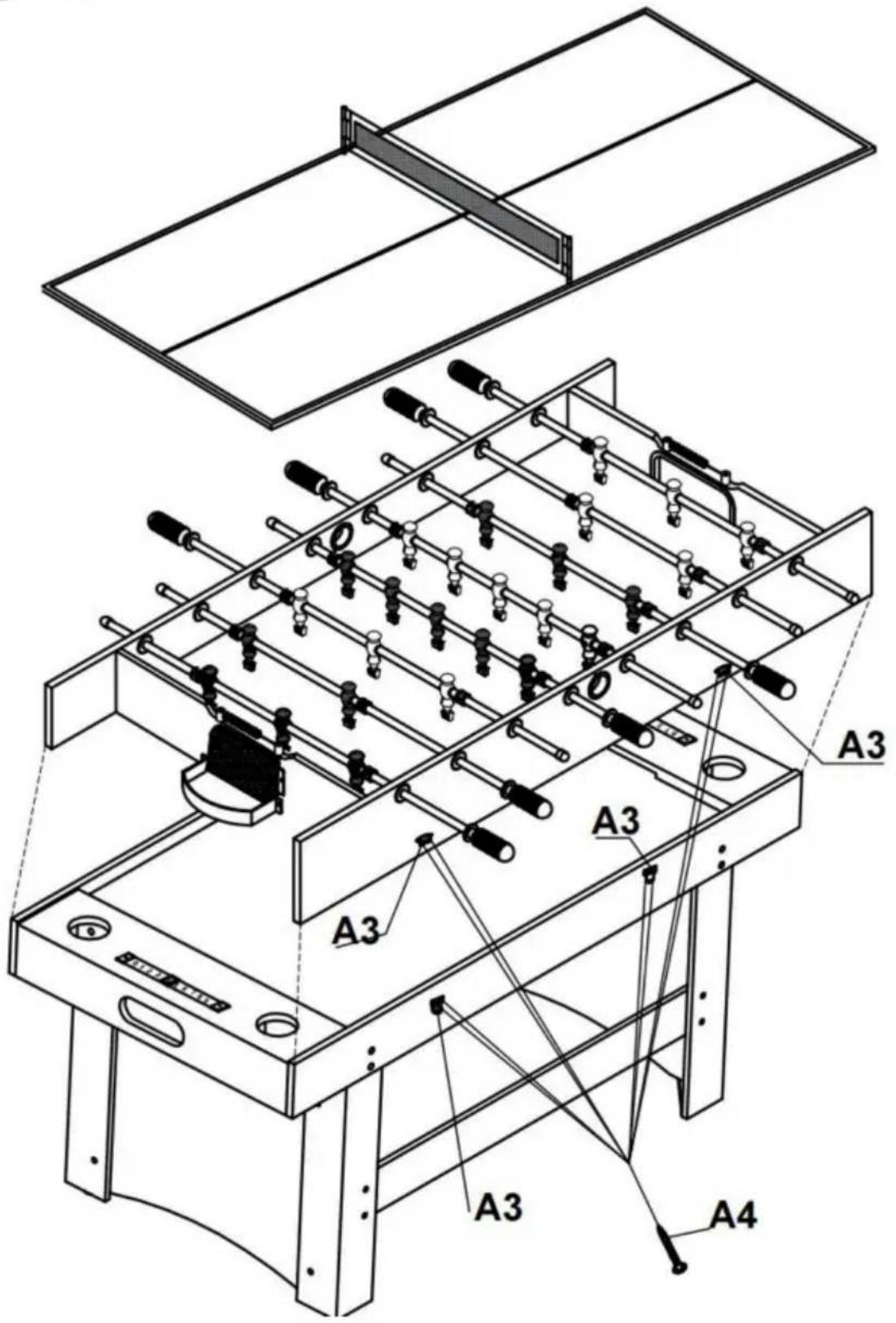

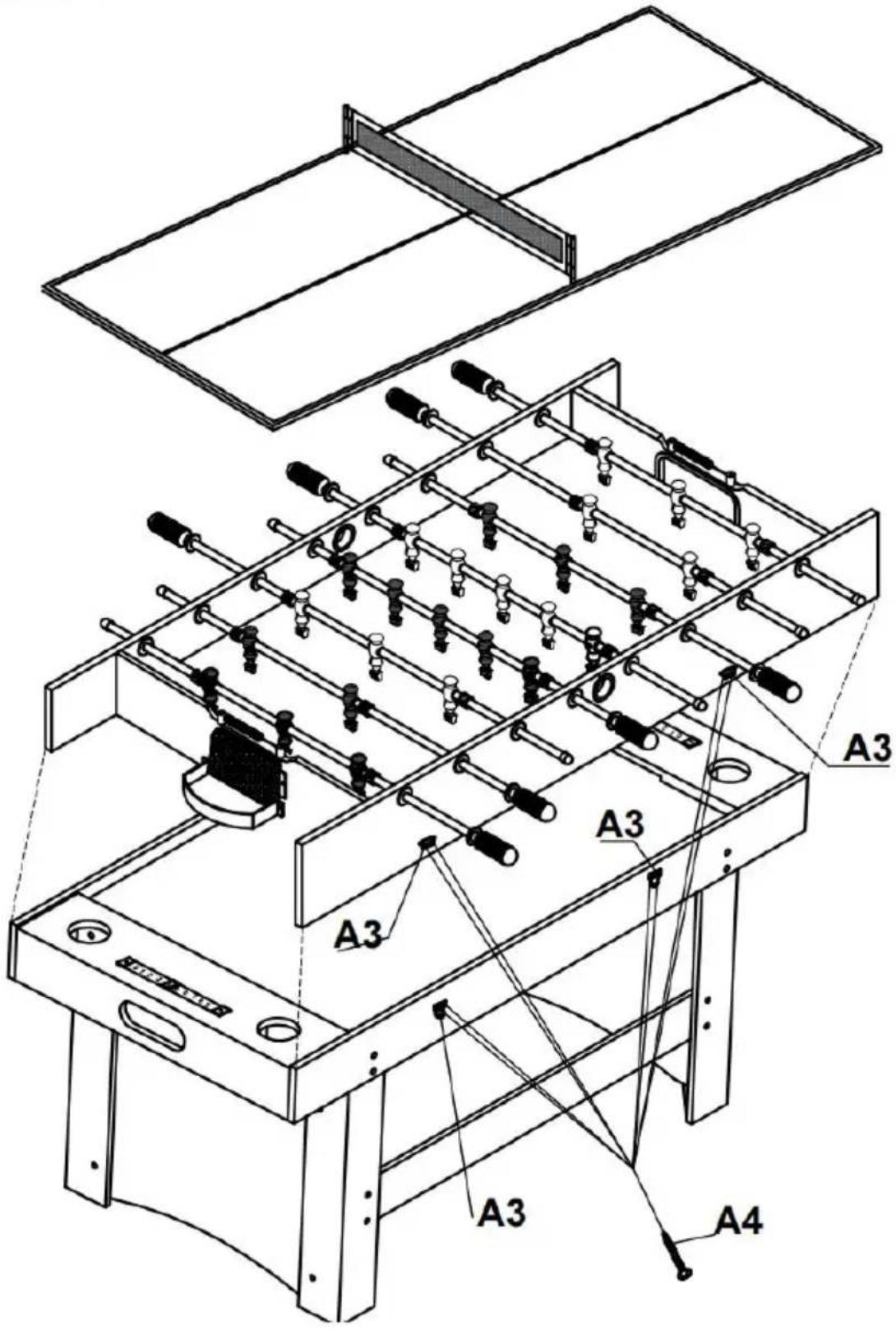

Figure 9

Technical diagram of a three-tier football table with labeled components A3 and A4, showing structural layout and mounting points.

Installation:

1. Choose a relatively flat lawn or ground.
2. Check for any missing or damaged accessories according to the a diagram.
3. Connect the product and lock the screws according to the splicing method shown in Figure.

WARNING!

Read and understand all instructions before using this Air Hockey Tab. The operator must follow basic precautions to reduce the risk of pers injury and/or damage to the equipment.

Keep this manual for safety warnings, precautions, operating or inspect and maintenance instructions.

Please familiarize yourself with the hazard notices found in this manual notice is an alert that there is a possibility of property damage, injury death if certain instructions are not followed.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated replace strict adherence to the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves duri assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safe supporting a fully loaded Wine Cabinet.

MAINTENANCE/ Service

Have your air hockey table repaired by qualified personnel using only same replacement parts. This will ensure the safety of the air hockey is maintained. A dusty, humid, or corrosive environment can cause data to an air hockey table. To prevent malfunctions in the air hockey tab regularly clean the dust with a clean dry cleaning cloth. Please note

lack of maintenance may result in the cancellation of the warranty pe the air hockey table has been modified, or if you attempt to open the hockey table without the consent of the manufacturer's authorized representative, the warranty of this wine cabinet will be invalid.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

● Reorient or relocate the receiving antenna.
- Increase the distance between the product and receiver.
- Connect the product to an outlet on a circuit different from that 1 the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assistance.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as suc may not be discarded with normal domestic waste, but must be taker acollection point for recycling electrical and electronic devices.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a four-legged football table with clubs and equipment (no text or symbols)

BESOIN D'AIDE ? CONTACTEZ-NOUS !

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	I3 Player rod4pcs
R:2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5Home man13pcs	R6[6CCS]Away man13pcs	R7Rod bushing16pcs
R8[yzBK]Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3[x7ZT]Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

ASSEMBLÉE

AVERTISSEMENT : DEUX ADULTES NÉCESSAIRES POUR ASSEMBLER LA TABLE DE FOOTBALL

Figure 1 P1 A2 P2

Figure 2 P1 P2 P3

Figure 3

A2 P4 A2 A2 A2 4

Figure 4

P13 A2 P13 P11 A4 P12

AVERTISSEMENT : DEUX ADULTES NÉCESSAIRES POUR ASSEMBLER LA TABLE DE FOOTBALL
AVERTISSEMENT : DEUX ADULTES NÉCESSAIRES POUR ASSEMBLER LA TABLE DE FOOTBALL

Figure 6

Figure 6 P6 P5 P7 P6 P7 A6 A5 A6 A5 P15

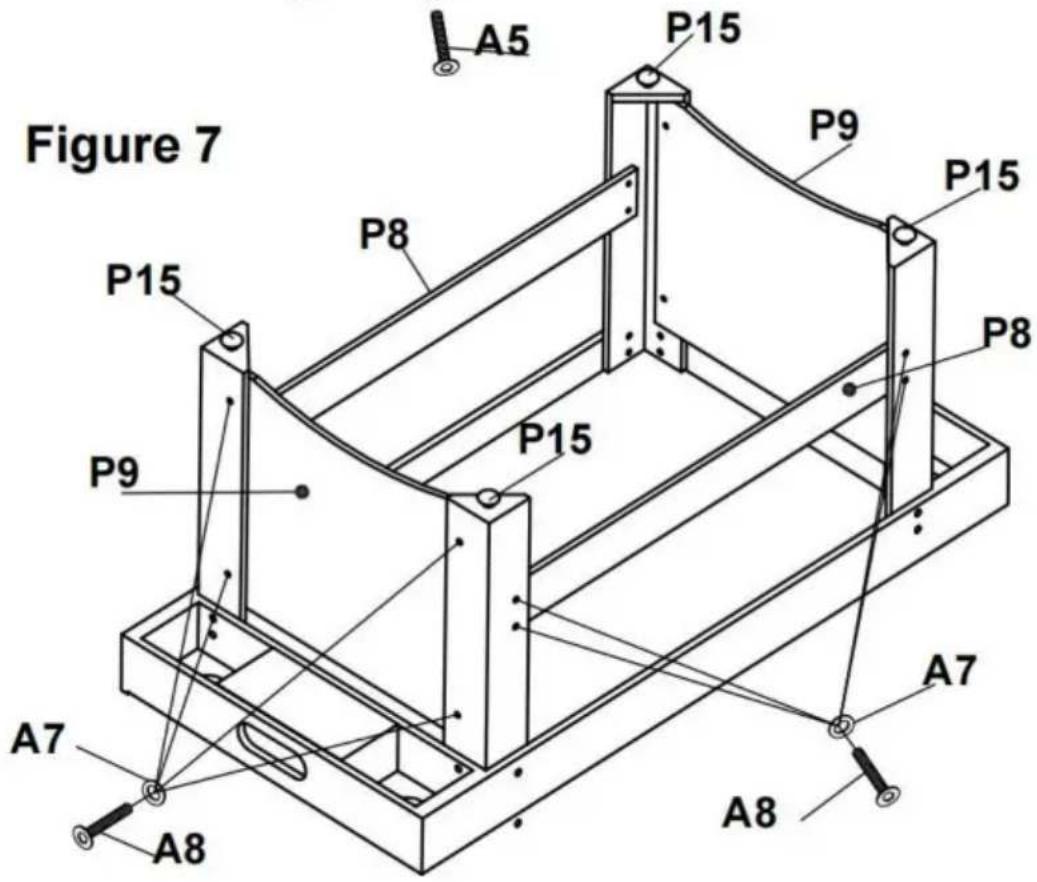

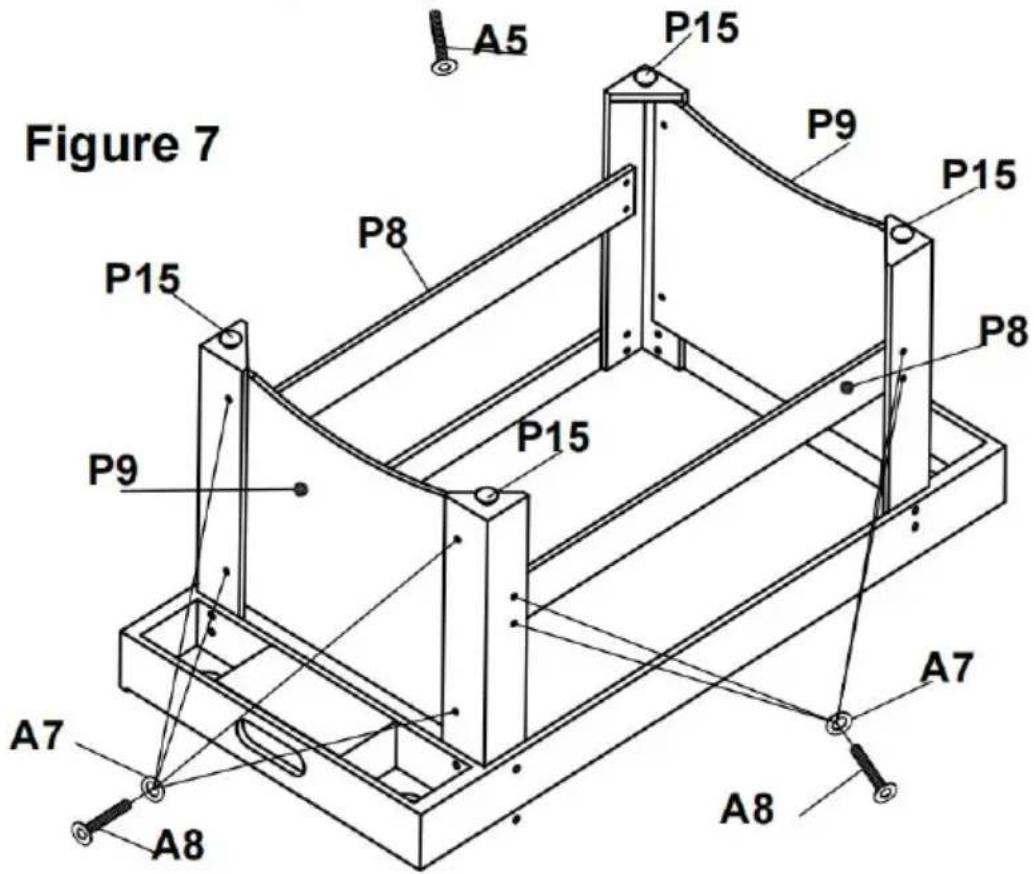

Figure 7 P15 P8 P9 P15 P15 P8 P9 A5 A7 A8 A7 A8

AVERTISSEMENT : DEUX ADULTES NÉCESSAIRES POUR ASSEMBLER LA TABLE DE FOOTBALL

Figure 8

p10 #1 #4 P14 #4 #4 A4 P14

AVERTISSEMENT : DEUX ADULTES NÉCESSAIRES POUR ASSEMBLER LA TABLE DE FOOTBALL

Figure 9

Technical diagram of a four-fog iron mixing machine with labeled components A3 and A4

Installation:

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

ÉLIMINATION CORRECTE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Technical line drawing of a four-legged football table with clubs and equipment (no text or symbols)

BRAUCHEN SIE HILFE? KONTAKTIEREN SIE UNS!

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	I3 Player rod4pcs
R2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5Home man13pcs	R6[AZZX]Away man13pcs	R7Rod bushing16pcs
R8[H550]Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3[C304]Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

MONTAGE

Figure 1 P1 A2 P2

Figure 2 P1 P2 P3
p10 #1 #4 P14 #4 #4 A4 P14

A3 A3 A3 A3 A4

Installation:

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

RICHTIGE ENTSORGUNG

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

PUNTEGGIO ELETTRONICO - TABELLA AIR HOCKEY

MODELLO: AH483-USA;

Technical line drawing of a four-legged football table with clubs and equipment (no text or symbols)

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	I3 Player rod4pcs
R2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5Home man13pcs	R6Away man13pcs	R7[8XX3]Rod bushing16pcs
R8[DZZ6]Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

ASSEMBLEA

ATTENZIONE: SERVONO DUE ADULTI PER ASSEMBLARE IL CALCIOBALL

Figure 1

Figure 1 P1 A2 P2

Figure 2

re 2 P1 P2 P3

ATTENZIONE: SERVONO DUE ADULTI PER ASSEMBLARE IL CALCIOBALL

Figure 3

A2 P4 A2 A2 A2 4

Figure 4

P13 A2 P13 P11 A4 P12

ATTENZIONE: SERVONO DUE ADULTI PER ASSEMBLARE IL CALCIOBALL
        AI["Rod assembly Sequence"]
    end
    subgraph Section_4
        AJ["Hole"] --> AK["R1"]
        AJ --> AL["R4"]
        AM["Hole"] --> AN["R3"]
        AO["Hole"] --> AP["R4"]
        AQ["Hole"] --> AR["R4"]
        AS["Hole"] --> AT["R1"]
        AU["Hole"] --> AV["R4"]
    end

ATTENZIONE: SERVONO DUE ADULTI PER ASSEMBLARE IL CALCIOBALL

Figure 6

Figure 6 P6 P5 P7 P6 P7 A6 A5 A6 A5 P15

Figure 7 P15 P8 P9 P15 P15 P8 P9 A5 A7 A8 A7 A8

ATTENZIONE: SERVONO DUE ADULTI PER ASSEMBLARE IL CALCIOBALL

Figure 8

p10 #1 #4 P14 #4 #4 A4 P14

ATTENZIONE: SERVONO DUE ADULTI PER ASSEMBLARE IL CALCIOBALL

Figure 9

Technical diagram of a three-position football table with labeled components A3, A4, and A3

Installazione:

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a four-legged football table with clubs and equipment (no text or symbols)

¿NECESITAS AYUDA?

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	I3 Player rod4pcs
R:2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5[SDCW]Home man13pcs	R6[2825]Away man13pcs	R7Rod bushing16pcs
R8[D4Y6]Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3[C40D]Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

ASAMBLEA

ADVERTENCIA: SE NECESITAN DOS ADULTOS PARA MONTAR LA MESA DE FÚTBOL

Figure 1 P1 A2 P2

Figure 2 P1 P2 P3

ADVERTENCIA: SE NECESITAN DOS ADULTOS PARA MONTAR LA MESA DE FÚTBOL

Figure 3

A2 P4 A2 A2 A2 4

Figure 4

P13 A2 P13 P11 A4 P12

ADVERTENCIA: SE NECESITAN DOS ADULTOS PARA MONTAR LA MESA DE FÚTBOL
ADVERTENCIA: SE NECESITAN DOS ADULTOS PARA MONTAR LA MESA DE FÚTBOL

Figure 6

Figure 6 P6 P5 P7 P6 P7 A6 A5 A6 A5 P15

Figure 7 P15 P8 P9 P15 P15 P8 P9 A5 A7 A8 A7 A8

ADVERTENCIA: SE NECESITAN DOS ADULTOS PARA MONTAR LA MESA DE FÚTBOL

Figure 8

p10 #1 #4 P14 #4 #4 A4 P14

ADVERTENCIA: SE NECESITAN DOS ADULTOS PARA MONTAR LA MESA DE FÚTBOL

Figure 9

Technical diagram of a four-fog iron mixing machine with labeled components A3 and A4

Instalación:

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a four-legged football table with clubs and equipment (no text or symbols)

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	I3 Player rod4pcs
R2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5Home man13pcs	R6[342K]Away man13pcs	R7Rod bushing16pcs
R8Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3[sxkz]Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

MONTAŻ

UWAGA: DO MONTAŻU STOŁU DO PIŁKI NOŻNEJ POTRZEBNE SĄ DWIE OSOBY DOROSŁE

Figure 1 P1 A2 P2

Figure 2 P1 P2 P3

UWAGA: DO MONTAŻU STOŁU DO PIŁKI NOŻNEJ POTRZEBNE SĄ DWIE OSÓB DOROSŁYCH

Figure 3

A2 P4 A2 A2 A2 4

Figure 4

P13 A2 P13 P11 A4 P12

UWAGA: DO MONTAŻU STOŁU DO PIŁKI NOŻNEJ POTRZEBNE SĄ DWIE OSÓB DOROSŁYCH
UWAGA: DO MONTAŻU STOŁU DO PIŁKI NOŻNEJ POTRZEBNE SĄ DWIE OSÓB DOROSŁYCH

Figure 6

Figure 6 P6 P5 P7 P6 P7 A6 A5 A6 A5 P15

p10 #1 #4 P14 #4 #4 A4 P14

UWAGA: DO MONTAŻU STOŁU DO PIŁKI NOŻNEJ POTRZEBNE SĄ DWIE OSÓB DOROSŁYCH

Figure 9

Technical diagram of a four-fog football table with labeled components A3 and A4, showing structural layout and mounting bracket.

Instalacja:

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

PRAWIDŁOWA UTYLIZACJA

Technical line drawing of a four-legged football table with clubs and equipment (no text or symbols)

HULP NODIG?

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	I3 Player rod4pcs
R2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5Home man13pcs	R6[ytwa]Away man13pcs	R7Rod bushing16pcs
R8[czws]Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3[BHYG]Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

MONTAGE

WAARSCHUWING: TWEE VOLWASSENEN NODIG OM DE VOETBALTAFEL TE MONTEREN

Figure 1 P1 A2 P2

Figure 2 P1 P2 P3

WAARSCHUWING: TWEE VOLWASSENEN NODIG OM DE VOETBALTAFEL TE MONTEREN

Figure 3

A2 P4 A2 A2 A2 4

Figure 4

P13 A2 P13 P11 A4 P12

WAARSCHUWING: TWEE VOLWASSENEN NODIG OM DE VOETBALTAFEL TE MONTEREN
WAARSCHUWING: TWEE VOLWASSENEN NODIG OM DE VOETBALTAFEL TE MONTEREN

Figure 6

Figure 6 P6 P5 P7 P6 P7 A6 A5 A6 A5 P15

WAARSCHUWING: TWEE VOLWASSENEN NODIG OM DE VOETBALTAFEL TE MONTEREN

Figure 8

p10 #1 #4 P14 #4 #4 A4 P14

WAARSCHUWING: TWEE VOLWASSENEN NODIG OM DE VOETBALTAFEL TE MONTEREN

Figure 9

Technical diagram of a four-fog iron mixing machine with labeled components A3 and A4

Installatie:

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

CORRECTE VERWIJDERING

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ELEKTRONISK POÄNING - LUFTHOCKKEYBORD

MODELL: AH483-US;

Technical line drawing of a four-legged football table with clubs and equipment (no text or symbols)

BEHÖVER HJÄLP?

P1Side panel2pcs	P2End panel2pcs	P3Play field1pc
P4Support brace2pcs	P5Billiard table1set	P6Leg(Right)2pcs
P7Leg(Left)2pcs	P8Leg panel2pcs	P9Ball catcher2pcs
P10Ping Pong Board1pc	P11Goal cove2pcs	P12Goal2pcs
P13Scoring system A2pcs	P14Scoring system B2pcs	P15Leg leveler4pcs
A1Tool1pc	A245mm Screw16pcs	A3Fixed buckle4set
A414mm Screw28pcs	A55/16x1-1/4" Bolt16pcs	A65/16"Washer16pcs
A71/4"Washer16pcs	A85/16x1" Bolt16pcs	I3 Player rod4pcs
R:2 Player rod2pcs	F5 Player rod2pcs	R4Rod handle8pcs
R5Home man13pcs	R6Away man13pcs	R7[H7BH]Rod bushing16pcs
R8Washer16pcs	R9Rod end cup8pcs
#1Table tennis net1set	#2Hockey striker2pcs	#3[7CSK]Hockey punk2pcs
#4Coke rack4pcs	#5Soccer ball2pcs	#6Table tennis paddle2pcs
#7Table tennis ball2pcs

MONTERING

VARNING: TVÅ VUXNA BEHÖVS FÖR ATT MONTERA FOTBOLLSBORD

Figure 1 P1 A2 P2

Figure 2 P1 P2 P3

WARNING: TVÅ VUXNA BEHÖVS FÖR ATT MONTERA FOTBOLLSBORD

Figure 3

A2 P4 A2 A2 A2 4

Figure 4

P13 A2 P13 P11 A4 P12

VARNING: TVÅ VUXNA BEHÖVS FÖR ATT MONTERA FOTBOLLSBORD

Figure 5 R1~R3 Rod assembly Sequence R5 & R6 Hole R4 R1 Hole R4 R2 R7 R8 R5 R8 R7 R9 Hole R9 R7 R8 R6 R8 R7 R1 R4 Hole R4 R3 R7 R8 R5 R8 R7 R9 Hole R9 R7 R8 R6 R8 R7 R3 R4 Hole R4 R1 Hole R4 R7 R8 R5 R8 R7 R9 Hole R9 R7 R8 R6 R8 R7 R2 Hole R2 R4 Hole R4 R6 R8 R7 R1 R4

VARNING: TVÅ VUXNA BEHÖVS FÖR ATT MONTERA FOTBOLLSBORD

Figure 6

Figure 6 P6 P5 P7 P6 P7 A6 A5 A6 A5 P15

Figure 7 P15 P8 P9 P15 P15 P8 P9 A5 A7 A8 A7 A8

WARNING: TVÅ VUXNA BEHÖVS FÖR ATT MONTERA FOTBOLLSBORD

Figure 8

p10 #1 #4 P14 #4 #4 A4 P14

WARNING: TVÅ VUXNA BEHÖVS FÖR ATT MONTERA FOTBOLLSBORD

Figure 9

Technical diagram of a three-tier football fobby with labeled components A3, A4, and A3

Installation:

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

KORREKT AVFALLSHANTERING

www.vevor.com/support
