YFB1005W - Safety gate Vevor - Free user manual and instructions

Product type	Safety barrier
Brand	Vevor
Model	YFB1005W (white), YFB1005B (black)
Color	White (YFB1005W) / Black (YFB1005B)
Main material	Steel and plastic
Dimensions (adjustable width)	76.2 to 109.2 cm (30 to 43 inches)
Height	71.1 cm (28 inches)
Weight	Approximately 4 kg
Usage	Indoor only
Recommended age range	8 to 24 months
Opening type	Swing door with double lock
Installation	Wall mounting with brackets and screws provided; requires wall cups
Safety features	Auto-locking, safety latch, anti-climb system
Maintenance	Clean with a damp cloth; do not use abrasive products
Spare parts	Available on request from Vevor customer service
Warranty	Electronic warranty (certificate included)
Technical support	www.vevor.com/support

Frequently Asked Questions - YFB1005W Vevor

How to install the Vevor YFB1005W safety barrier?

Ensure the wall is vertical and the floor is level. Open the adjustment levers, adjust the width of the barrier between 75 and 109 cm, then close the levers. Attach the four mounting brackets to the wall using the provided screws. The height of the first bracket should be flush with the floor; the others at 650 mm and 100 mm from the floor. Insert the barrier into the brackets and lock it.

What is the maximum width of the barrier?

The Vevor YFB1005W barrier fits openings from 75 to 109.2 cm (29.5 to 43 inches).

Is the barrier suitable for outdoor use?

No, this barrier is designed for indoor use only. Exposed to weather, it could deteriorate and lose reliability.

How to open the barrier?

Press and hold the switch, pull it backward while lifting the locking lever. This retracts the bolt and unlocks the lower latch, allowing the door to open by pushing or pulling.

From what age can this barrier be used?

The barrier is recommended for children aged 8 to 24 months. Beyond that, the child may be able to climb or dislodge it.

Do I need to drill holes to install the barrier?

Yes, installation requires screwing the wall brackets. Use the provided screws and drill holes suitable for the wall material (concrete, wood, etc.). Wall cups are mandatory to prevent the child from pushing the barrier.

How to clean the Vevor barrier?

Clean it with a soft, damp cloth. Do not use abrasive products or solvents that could damage the paint or plastic.

What to do if a part is missing or damaged?

Immediately stop using the barrier. Contact Vevor customer service at www.vevor.com/support for spare parts or replacement.

Is the barrier safe for a pool?

No, this barrier is not designed to secure a pool. Never use it near a pool, as it does not guarantee sufficient protection against drowning risks.

Where to find the full manual?

The manual is available for free download on notice-facile.com for the Vevor YFB1005W model. You can also request it translated into other languages via the form on the page.

USER MANUAL YFB1005W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Safety gate

YFB1005W、YFB1005B

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually sa half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this dog gate.

Please read all of the instructions before using it.

The information will help you achieve the best possible results.

Model and Parameters

Model	YFB1005W	YFB1005B
Width	29.5-43in (75-109.2cm)
Height	28in (71.1cm)
Colour	White	Black

ASSEMBLY AND USE

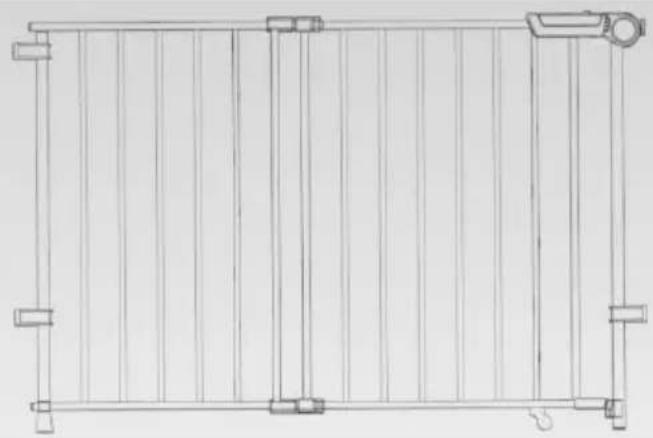

1. Component Diagram Please check to make sure you have the following parts

A: door*1	B: 1” screw *8

Installation Steps

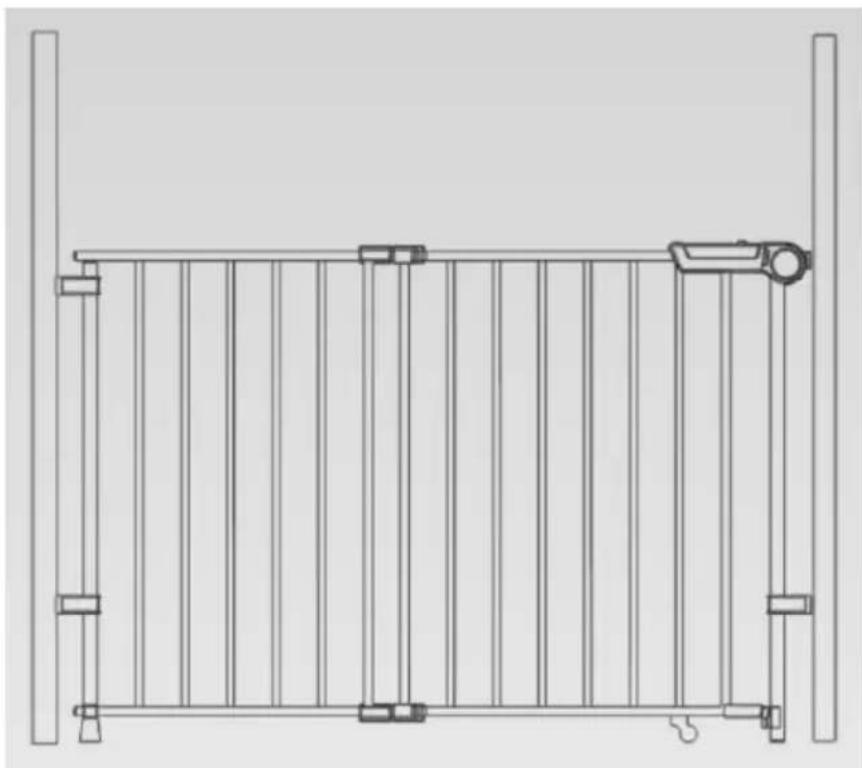

1. Please ensure that the wall or column is perpendicular to the ground, and that the ground is level.

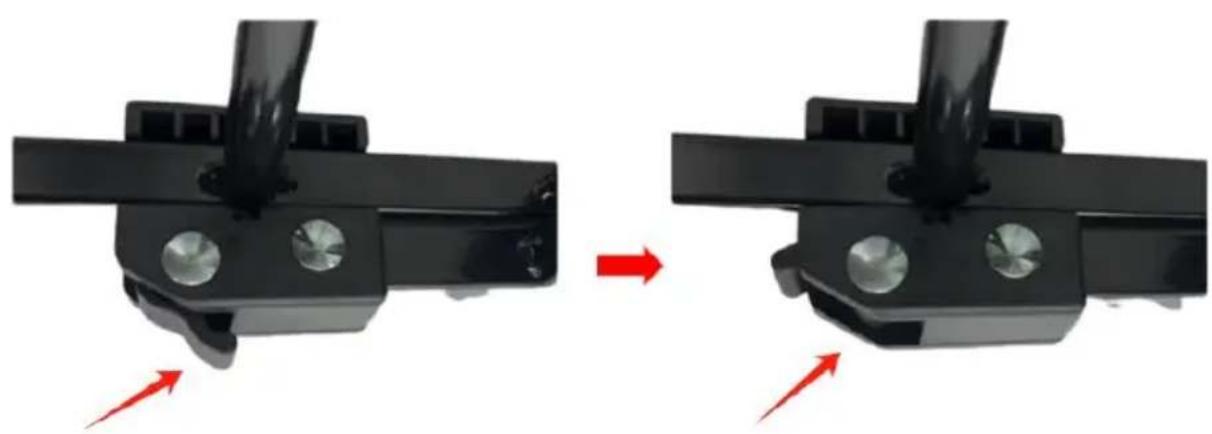

2. Open the operating levers, adjust the width of the door barrier to the appropriate size, and then close the operating levers (a total of 4, both upper and lower).

Open Close

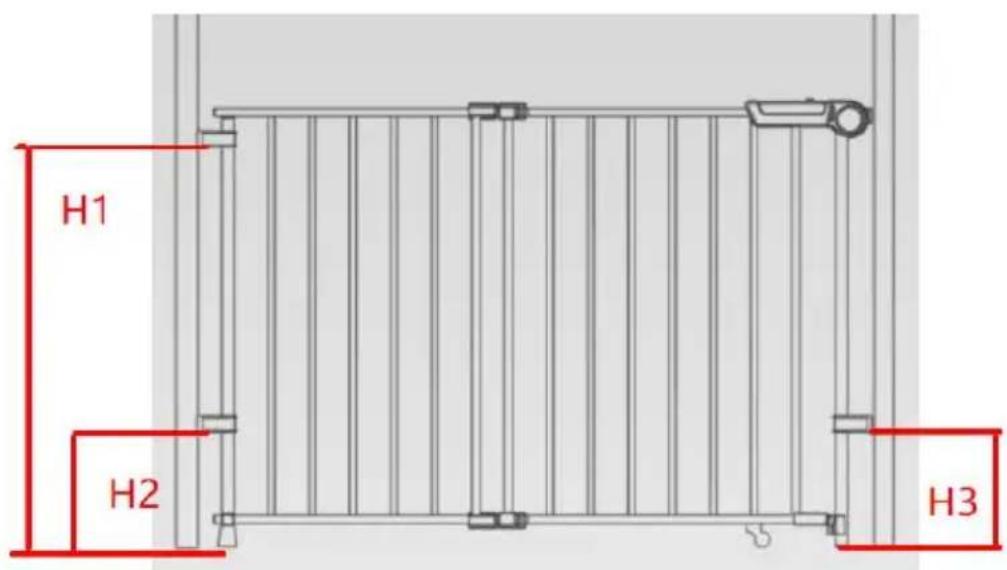

1. Secure the four plastic mounting brackets to the wall or column with screws, ensuring the surface is at least 2in (50.8mm)wide. The height of bracket A should be such that the tube is level with the ground. For the installation height of the other three brackets, the following recommendations are suggested:

H1≈25.6in (650mm) H2=H3≈3.9in(100mm)

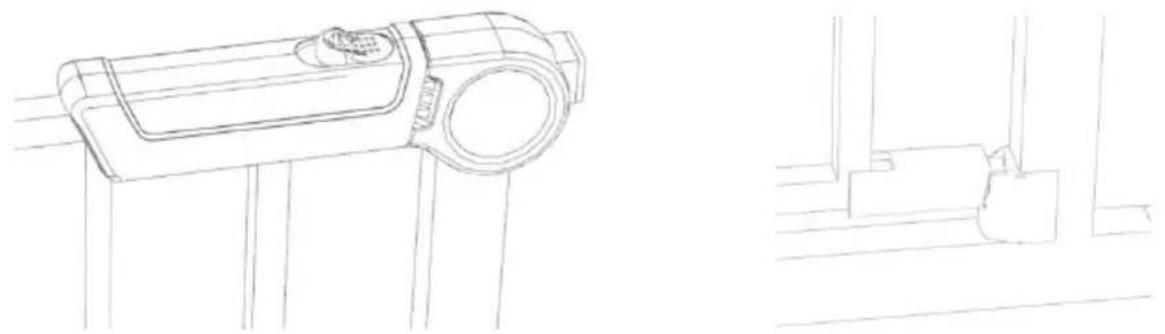

Door Lock Operation

1. Press and hold the switch while pulling it backwards, simultaneously lifting the locking lever upwards. This action will retract the latch bolt from the frame of the security door and simultaneously unlock the latch at the bottom of the door, allowing the door to be pushed or pulled open.

WARNING

- To prevent serious injury or death, securely install the gate or enclosure and u it according to the manufacturer's instructions.

- Never use with a child able to climb over or dislodge the gate or enclo-sure.

- This product will not necessarily prevent all accidents.

- Never leave children unattended.

- Use only with the locking mechanism securely engaged

- Intended for use with children from 8 months through 24 months of age.

- Stop using the gate if any parts are missing or become damaged.

- Children may die or been seriously injured when gates are not securely installed

- ALWAYS install and use gates as directed using all required parts.

- Periodically check all fasteners to be sure they are tight and secure.

- Adult Assembly Required.

- The surfaces that the gate is to be fixed to must be suitable for the purpose must be structurally sound.

- Indoor use only. It is not to be exposed to outdoor elements.

- Install this gate away from heaters and other sources of heat.

- STOP using it when a child can climb over or dislodge the gate.

- You MUST install [wall cups] to keep the gate in place. Without [wall cups], the child can push out and escape.

- NEVER use it to keep the child away from a pool.
