USER MANUAL BY-300XTD-S Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ICE SHAVER

INSTRUCTION MANUAL

MODEL:BY-300XTD-S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE CRUSHER

MODEL:BY-300XTD-S

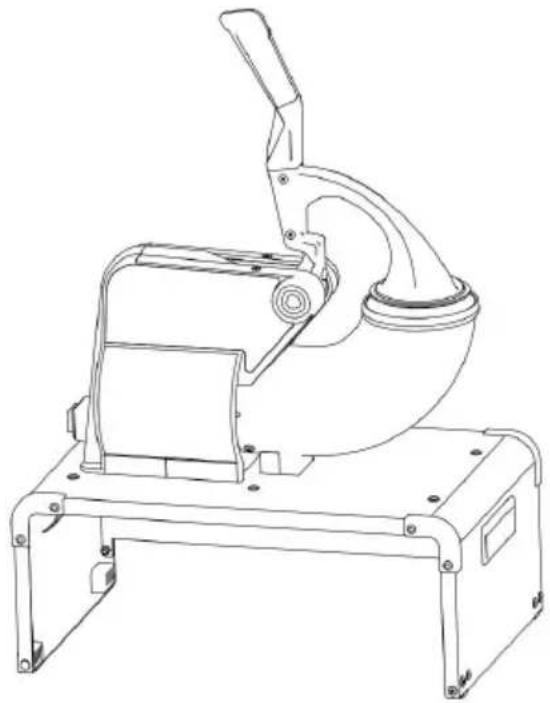

Line drawing of a mechanical device with handle and base plate (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning - To reduce the risk of injury, user must read in manual carefully.
	This symbol, placed before a safety comment, indicates a precaution, warning, or danger. Ignoring this warning may I an accident. To reduce the risk of injury, fire, or electrocu please always follow the recommendation shown below.
	Statement:This device complies with Part 15 of the FCC Rules. Ope subject to the following two conditions:(1)This device may r cause harmful interference, and (2)this device must accept interference received, including interference that may cause undesired operation.
	Correct Disposal:This product is subject to the provision of European Direct 2012/19/EC. The symbol showing a wheelie bin crossed th indicates that the product requires separate refuse collection the European Union. This applies to the product and all accessories marked with this symbol. Products marked as t may not be discarded with normal domestic waste, but mu taken to a collection point for recycling electrical and elect devices.

Important Assurance

WARNING: Before operating this device, please read this instruction manual completely and keep it handy for future reference.

Always follow basic safety precautions when using these devices. These inclu

1. READ ALL OPERATING INSTRUCTIONS AND PRODUCT SAFETY LABELS! FAILURE TO FOLLOW ALL INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE!
2. CHECK FOR DAMAGED PARTS: Before using the machine, check whether all parts work normally and perform the expected functions. Check for alignment, binding, and installation of moving parts. And any other condition that may affect the operation. Call the Customer Service number in this manual if any parts are damaged.
3. Always unplug the power cord from the outlet when not in use before removing parts or accessories and cleaning.
4. This appliance can be used by children aged from 8 years and above an persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructi concerning use of the appliance in a safe way and understand the haze involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
5. NEVER LEAVE THE MACHINE UNATTENDED WHILE IT IS RUNNING!
6. Wait until all moving parts have stopped and turned off power before removing any part from the machine.
7. DO NOT operate any other electrical equipment with a damaged cord or or after the unit malfunctions. DO NOT ATTEMPT TO REPLACE THE C Call Customer Service to arrange to return the machine for examination, repair, or adjustment.
8. DO NOT use outdoors. This product is intended for INDOOR USE ONLY.
9. DO NOT pull the power cord to disconnect.

10. Keep the appliance and power cable away from heat sources and hot surfaces. The extension cord is not recommended to avoid overheating or Always plug directly into a grounded wall receptacle.

11. Place the machine on a firm and stable surface. Ensure that the machine is not placed near the edge of the worktop, where it can be easily pushed off or fall.

12. Always protect the power cable from undue flexing and wearing – do no the cable to hang off edge of the counter or table.
13. To reduce the risk of unintentional starting, check that the control is OFF before plugging the cord into wall outlet. Turn the controller off to disconnect, then remove the plug from the wall outlet.
14. NEVER plug the machine in where water may flood the area.
15. The ice shaver must be installed correctly before use.
16. The ice tray must be installed well before operating the machine.
17. The use of attachments or parts not specifically recommended or sold by the manufacturer for this grinder will void the warranty and may cause fire, electric shock or injury.
18. DO NOT use the machine for other than intended use. This ice shaver is intended to be used for commercial and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; bed breakfast type environments.
19. The Manufacturer disclaims any responsibility in the case of improper use of the machine. Improper use of the machine voids the warranty.
20. DO NOT REMOVE WARNING LABELS FROM THE MACHINE. Doing so will void the product warranty and may result in serious personal injury.
21. This appliance must be grounded to protect the operator from electrical s. This machine uses a grounded, three prong plug that should be connected directly to a grounded 120V(US)/230V(EC), three prong grounded wall outl receptacle. Grounded plugs are used on metal-encased electric appliances protect from an electric shock. DO NOT change or alter the plugin anyway NEVER break off a grounding prong from a 3-conductor plug. Doing so the warranty and may result in electric shock.
22. Type Y attachment: If the supply cord is damaged, it must be replaced manufacturer, its service agent or similarly qualified persons in order to a hazard.

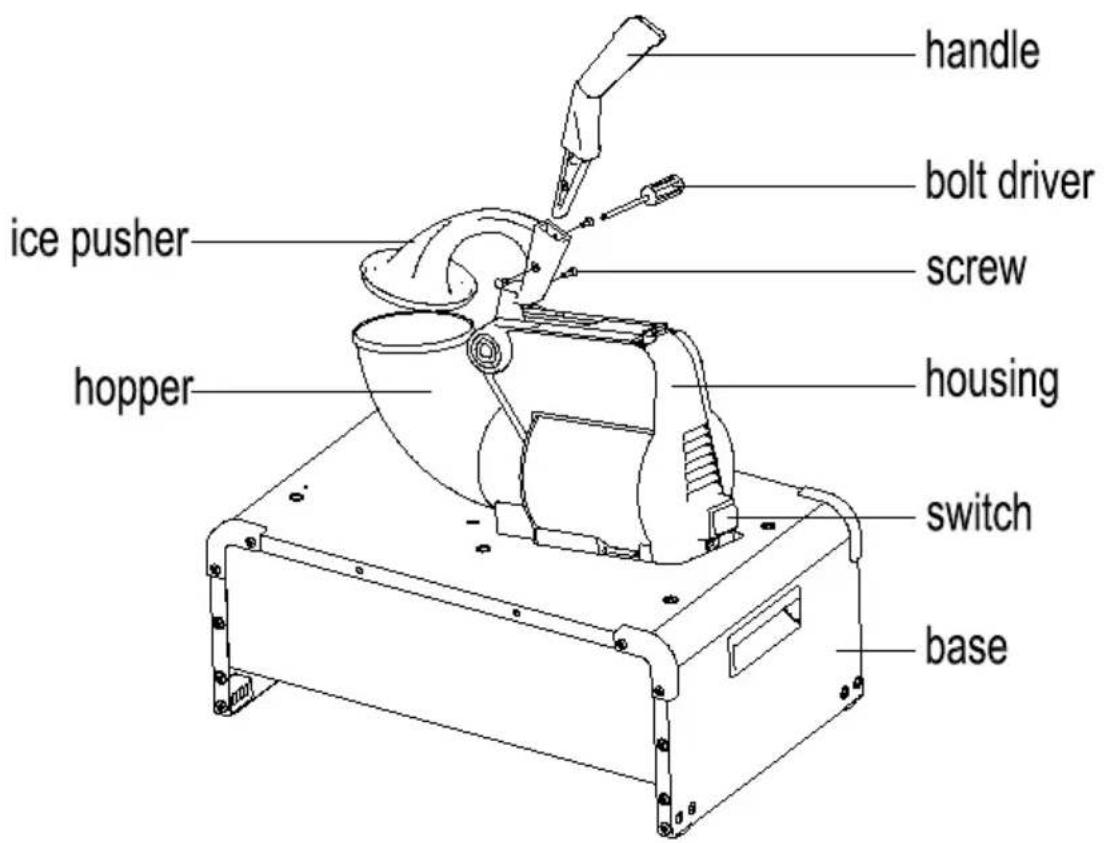

Rough Diagram

handle bolt driver screw ice pusher housing hopper switch base

Handle assembly

1. Place the handle on the top.
2. Screw them together.

Accessories

Handle*1 Screw*4 Screw drive*1 Ice shovel*1 basin*1

Technical Parameter

Ratings	Capacity	Size
AC120V/60Hz 300W 2.6A	≥250KG/H	L*W*H:575x310x480mm
AC220-240V 50/60Hz 350W

Operation Instructions

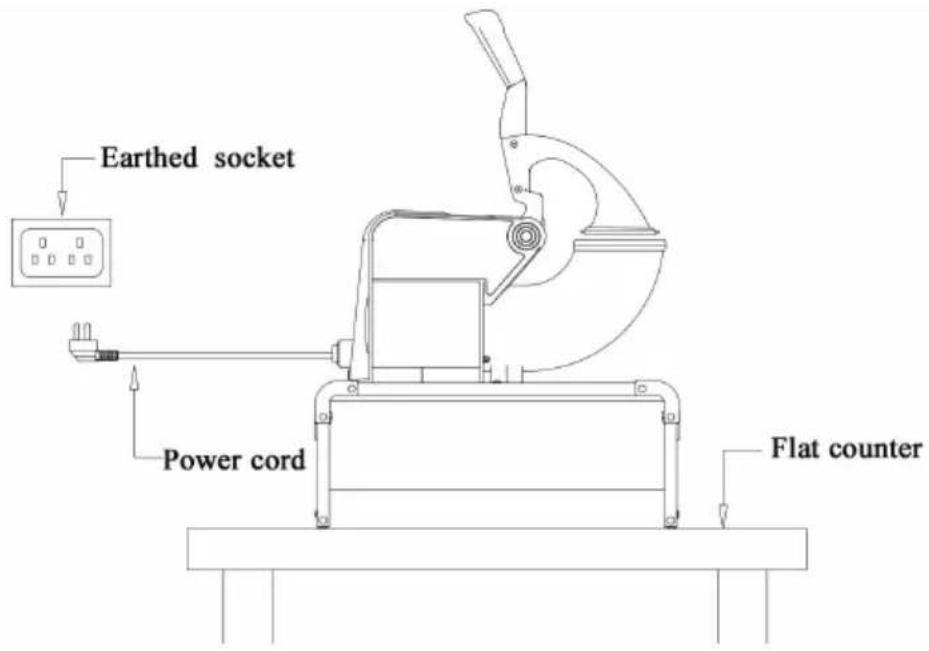

1. Install the ice shaver like as below

Earthed socket Power cord Flat counter

1. Find a flat location for the appliance where it's protected from direct sunli and other heat sources (i.e., stove, furnace, radiator). Place the appliance on level surface. Ensure at least 15 ~cm of space between the back and sides of appliance and the wall. Don't place anything on the appliance.
2. The appliance must be positioned where the plug is accessible.
3. Operate the machine follow the steps as below:

Line drawing of a manual milling machine with a bowl of grain being processed, no text or symbols present

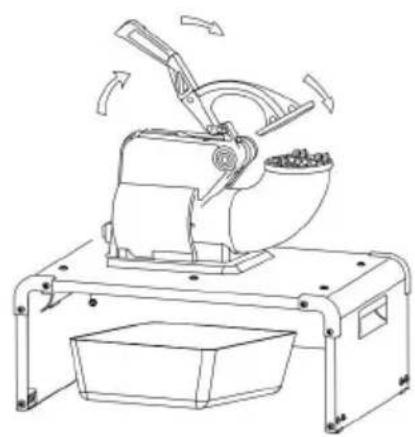

1. Pour suitable ice cubes in the hopper

Line drawing of a manual milling machine with a bucket filled with granular material, no text or symbols present

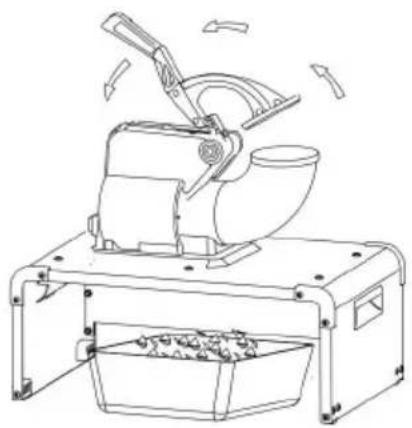

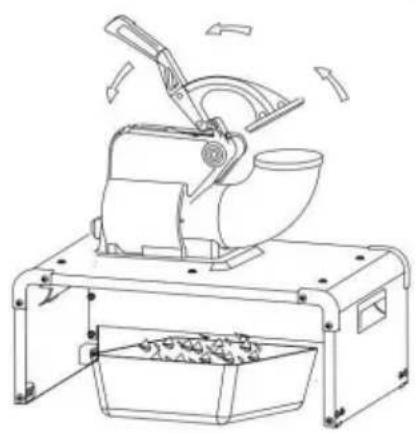

1. Power on, press the handle down to make the machine starts to crush ice

Line drawing of a manual manual shaver machine with a bucket open, showing mechanical components and motion arrows (no text or symbols)

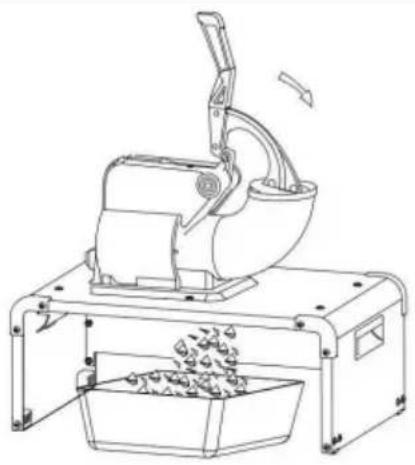

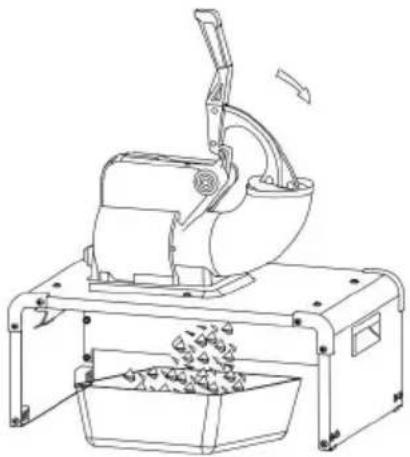

1. Power off, lift the handle up.

This machine can only be used to shave ice. This machine is suitable shaving small ice cubes with a side length of no more than 2-3CM. Large i cubes may cause the machine to jam or even burn out the motor.

WARNING:

The blade is very SHARP and operates with care.

Don't pour water directly into the hopper and the feed to clean, which will c electrical short circuit and increase the risk of a short circuit or electric shoc Unplug the ice shaver before cleaning.

The use of any appliance must follow basic guidelines, in particular:

A high-humidity environment will increase the risk of short circuits or electric. If in doubt, cut off the power of the ice shaver.

Turn off the machine by the switch, then pull the plug from the outlet.

Children or disabilities cannot use the ice shaver without adult supervision.

Clean and Maintenance

1. Before cleaning or maintenance operations, ensure the mains switch is off, and the supply plug is disconnected from the mains. Accurately clean the equipment and the discs daily for the correct operation and life of the equipment.
2. After each use, it is necessary to ensure the blade is clean. The clean was be washed so the blade remains clean and is not corrupted. The service life blade is prolonged.
3. Cleaning of internal and external parts

Note: Unplug the power plug before performing any cleaning or maintenance procedures. Do not use alcohol to clean the ice shaver, as this may cause parts to crack.

1. Exterior

Use a clean, soft cloth to wipe the outside of the ice shaver after each use then use a damp cloth moistened with a neutral detergent to remove grease other impurities.

1. Crushed Ice container cleaning (after each use)

Immerse the container in a mixture of neutral detergent and water for at least minutes, then rinse with water and dry.

1. The blade belongs to the natural wear part of the equipment. After cutting certain time and quantity of ingredients, the blade will be worn. It is necessary timely purchase the blade with the corresponding specification for replacement (Improper operation or cutting too hard ingredients will also damage the blade 7. Periodically check whether there is a loose set screw, timely tighten the sole and maintain the machine.

2. Should the machine be idle for a long time, disconnect the main wall switch clean the machine and its accessories accurately.

Common Malfunction Analysis

Issues	Check items	Possible causes	solutions
Don't work	Power cord	Don't plug in or damaged	Plug in or replace the power cord
	Socket	Socket is out of shaj	Change another socket
	Motor	Motor burnt	Replace the motor
	Power supply	Power switch damaged	Replace the switch
		Low voltage or no power	Contact power supply department
	Micro switch	Micro switch damaged	Replace the micro swit
