Product Type	External Aquarium Water Filter with UV Lamp
Brand	Vevor
Model	AQ-903F-UV 11W
Power Supply	AC 110-120 V / AC 220-240 V, 50/60 Hz
Pump Power	11 W
UV Lamp Power	11 W
Maximum Flow Rate	1000 L/h
Noise Level	< 50 dB
Number of Filtration Stages	3
Recommended Aquarium Capacity	75 gallons (approx. 284 L)
Water Inlet Pressure	0.01 - 0.03 MPa
UV Timer Setting	4 modes: 24h on, 8h on/8h off, 4h on/20h off, off
Impeller Maintenance	Clean the impeller once a month
UV Lamp Replacement	Every 6 months
Impeller Replacement	Once a year
Filter Cleaning	Every 15 to 20 days
Electric Shock Protection	U-shaped power cord to avoid water, use below water line
Materials	Plastic, quartz (UV tube)

Frequently Asked Questions - AQ-903F-UV 11W Vevor

What to do if the device does not start?

Check that the power is plugged in. If the pump head is damaged, replace it. Clean the impeller if it is blocked by foreign objects, or make sure it is properly secured.

How to resolve a water leak?

Check the water valve taps: replace if damaged. Check the O-rings (valve, motor head, impeller cover); clean or replace if worn. Ensure fittings are tight.

Why is my filter making abnormal noise?

This may be due to a damaged or improperly secured impeller, or foreign objects. Also check that the inlet valves are open and there is no air in the cartridge. Purge the air by shaking the filter body.

Water flow is low, what to do?

Fully open the inlet and outlet valves. Clean the inlet and outlet hoses and the PVC tube if dirty.

How to replace the UV lamp?

Unplug the device. Unscrew the fixing nut, remove the quartz sleeve, then replace the UV lamp. Do not touch the tube with your fingers and make sure the sleeve is dry before reassembling.

How often should I clean the filter?

It is recommended to clean the filter material every 15 to 20 days to avoid clogging and maintain good flow.

Can I use the filter with seawater?

Yes, but you need to periodically remove deposits on the product and the power cord to avoid electrical leakage.

The device starts abnormally, what to check?

Make sure the canister is filled with water, the water level in the aquarium is sufficient (above minimum), and all water valves are open.

How to properly install the power cord?

Form a U-shaped loop with the cord to prevent water from flowing along the cable to the outlet. Do not pull directly on the cord.

What are the operating modes of the UV lamp?

Press the UV button to switch between 4 modes: 24h on, 8h on/8h off (16h cycle), 4h on/20h off (20h cycle), and off.

USER MANUAL AQ-903F-UV 11W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SERIES: AQ-A F-UV_B W

TIPS: A IS 901 / 903 / 905 / 907 / 911 / 913 B IS 10 / 11 / 12 / 15 / 20 / 25

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

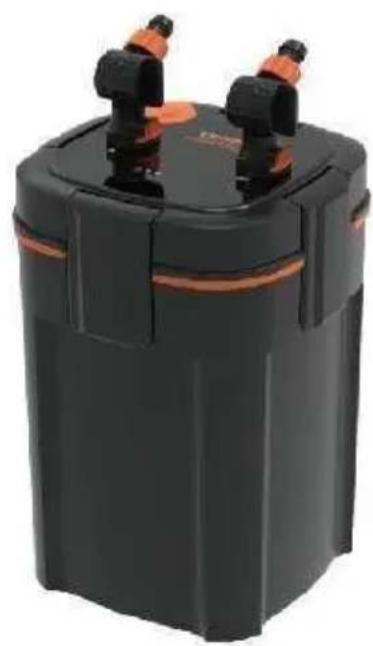

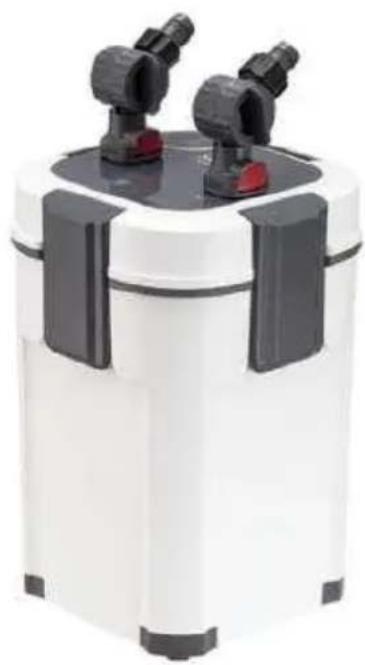

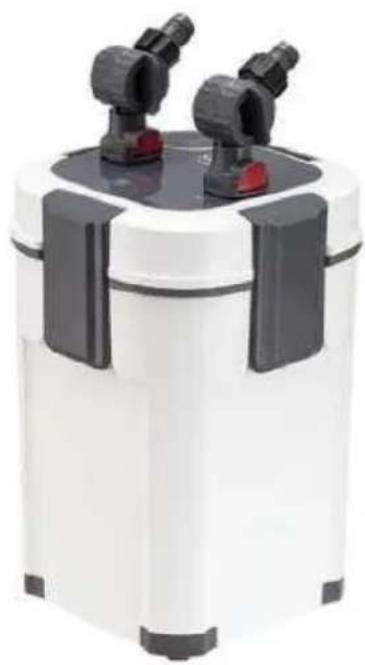

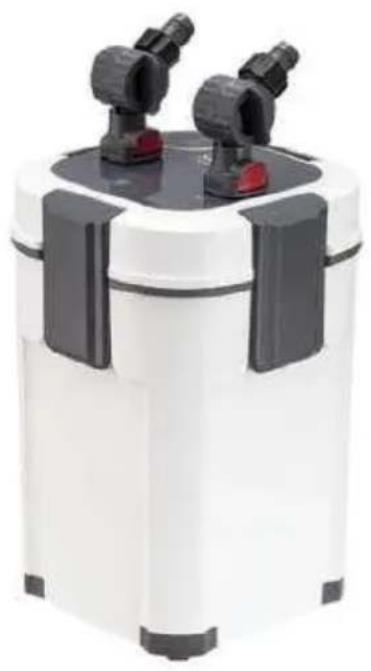

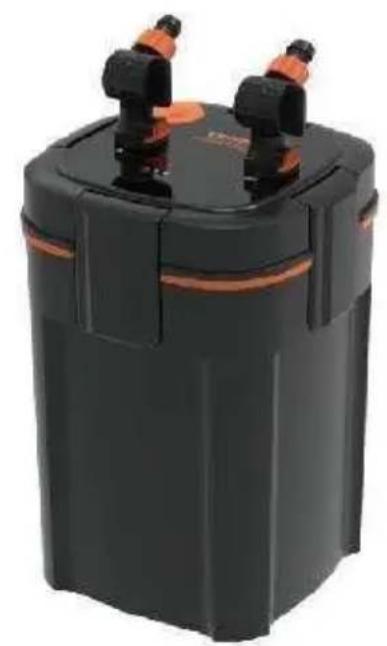

AQUARIUM FILTER

SERIES: AQ-A F-UV_B W

White

Black

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

DANGER - To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized Service facility for service or discard the appliance.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.
3. The maximum inlet water pressure, in pascals: 0.03 MPa
4. The minimum inlet water pressure, in pascals: 0.01 MPa, if this is necessary for the correct operation of the appliance.
5. The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.

WARNING - This appliance contains a UV emitter. Do not stare at the source.

Hereby we sincerely thank you for purchasing our product. To operate the product safely, please read this manual carefully.

Warning:

1. Before using the product, please check if there is any damage on the power cord. If yes, please do not use the product.
2. To avoid default, please use the product under the regulated voltage frequency.
3. Please do not plug or pull the power cord if your hands are wet.
4. When maintaining or moving the product or when there is any abnormal situation, please turn off the power first.
5. Please make sure the plug and socket are protected away from water.
6. Please do not pull the power cord straightly when using. Please keep

Arrange the power cord in a "U" shape (see picture below) to prevent water from entering the socket along the power cord.

1. Please do not use the product near flammable materials.
2. Please have maintenance performed by a professional technician.
3. Please do not disassemble the product to avoid any damage.

Notice:

1. After purchasing, please check if there is any damage or missing parts to the product.
2. Please operate the product with the water level above the product's waterline.
3. Please install the product on a flat surface.
4. When moving the product, do not carry it by holding the valve, as this may cause breakage of the valve and lead to water leakage.
5. It is suggested to clean the impeller and propeller once per month; dirt will affect the lifespan of the impeller.
6. The impeller is an easily worn-out item; it is suggested to replace it once per year.
7. To achieve the best UV effect, it is suggested to replace the UV light every half year.
8. This product should be used with water.
9. Please periodically (every 15-20 days) clean the filter material to remove the

dirt, which will result in low water flow.

1. If used in marine water, periodically remove salt from the product or power cord to avoid electric leakage.

SAVE THESE INSTRUCTIONS

Model	AQ-901F-UV10W	AQ-903F-UV11W	AQ-905F-UV12W	AQ-907F-UV15W	AQ-911F-UV20W	AQ-913F-UV25W
Voltage	AC110-120 V 60 Hz or AC220-240V 50/60Hz
Pump Power	10 W	11 W	12 W	15 W	20 W	25 W
UV Power	11 W
Flow Max	850 L/H	1000L/H	1200L/H	1500L/H	2000L/H	2500L/H
Noise	<50dB	<50dB	<50dB	<50dB	<50dB	<50dB
Filter Number	2	3	4	4	5	5
Use To Water Tank	55 gal	75 gal	100 gal	120 gal	200 gal	235 gal

INSTRUCTIONS

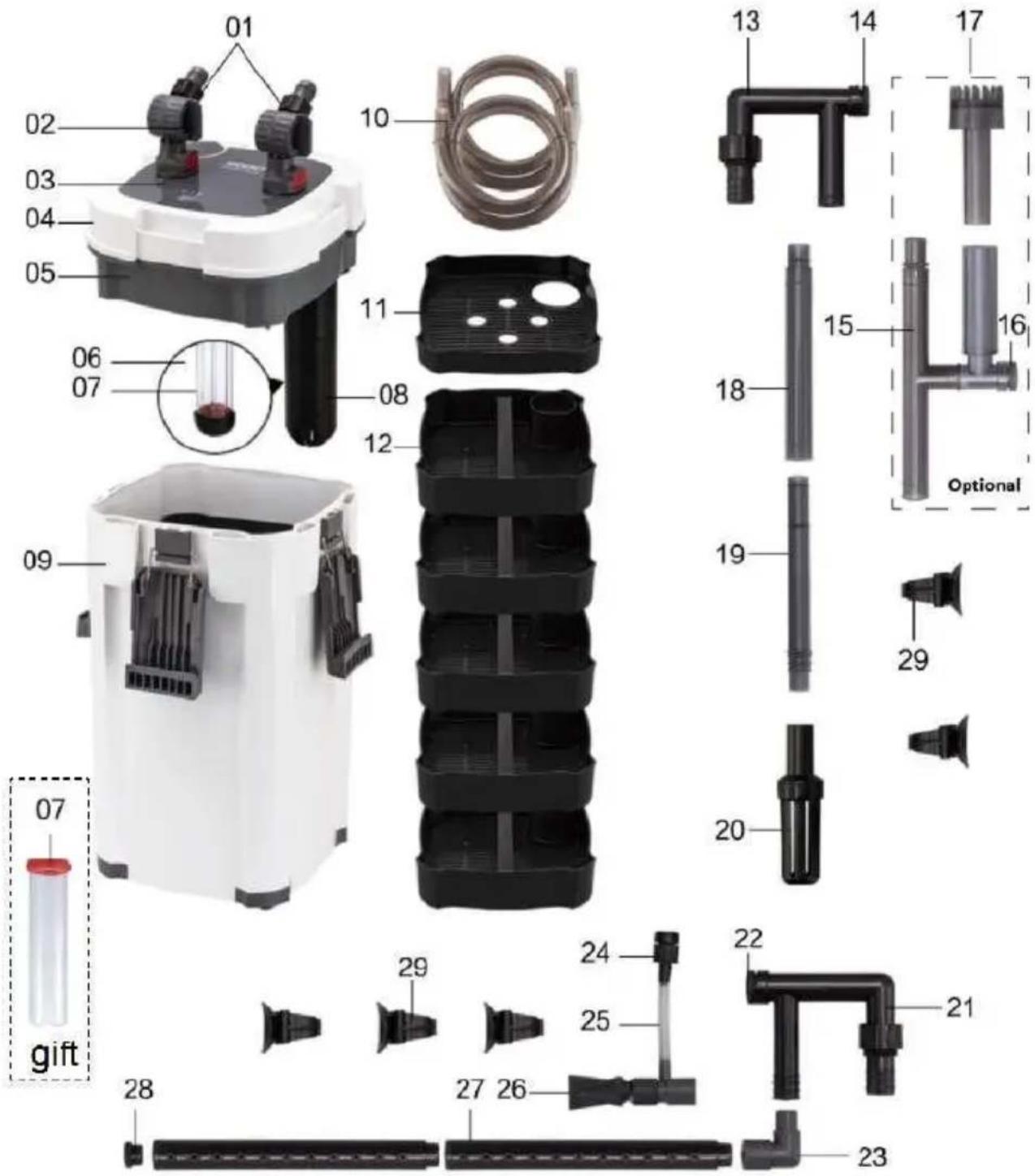

01	Input & output discreteness	08	UV light sleeve	15	Surface clear	22	Water outlet adjustment switch
02	Pumping handle	09	Barrel body	16	Degreasing film adjustment switch	23	Bend pipe
03	UV timer switch	10	PVC Water pipe	17	Floating head	24	Air volume regulator
04	Barrel head	11	Basket head	18	Extension tube	25	Air tube
05	Water pump	12	Filter basket	19	Flexible tube	26	Outlet
06	Quartz glass tube	13	Water inlet tube	20	Fleur bouquet	27	Rain pipe
07	UV light	14	Water inlet adjustment switch	21	discharging tube	28	Spray bar cover
						29	Sucker

INSTALLATION INSTRUCTIONS

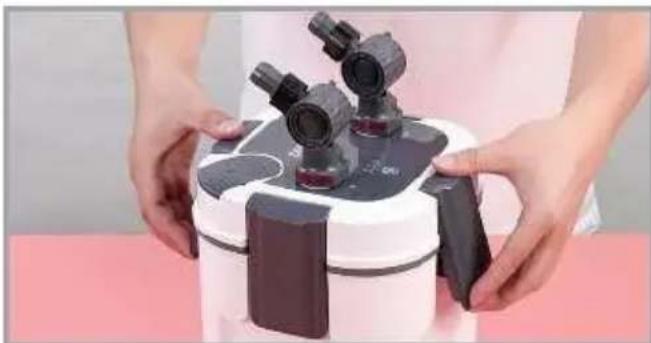

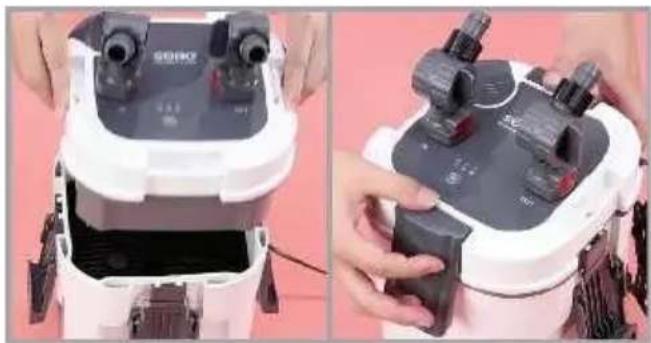

1. Open the fixing buckle of the bucket cover and pick up the filter basket, then add the cleaned filter.

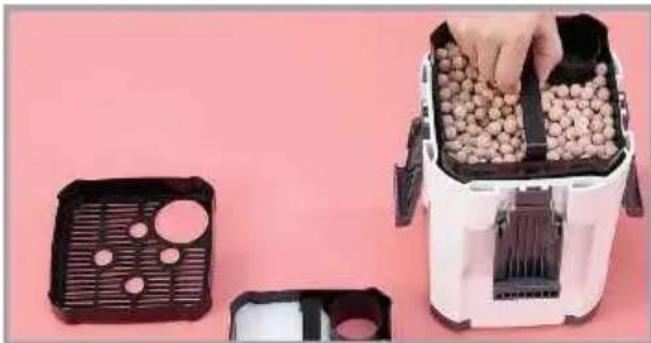

1. Put back the filter basket.
2. Close the lid and fasten the fixing buckle.

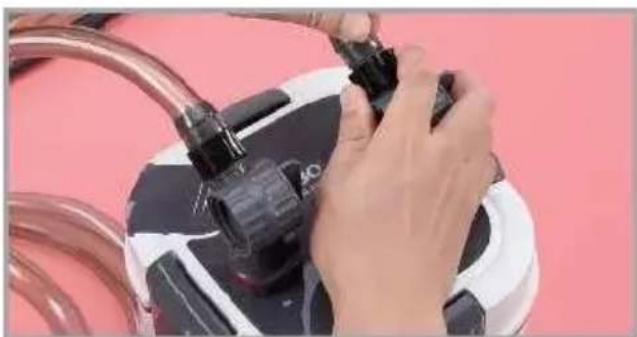

1. Connect the water inlet pipe hose and fix it in the fish tank.
2. Connect the outlet pipe and hose and fix it in the fish tank.

1. The other end of the hose is connected to the water inlet and water outlet on the barrel respectively, and the nut is screwed to fix it.

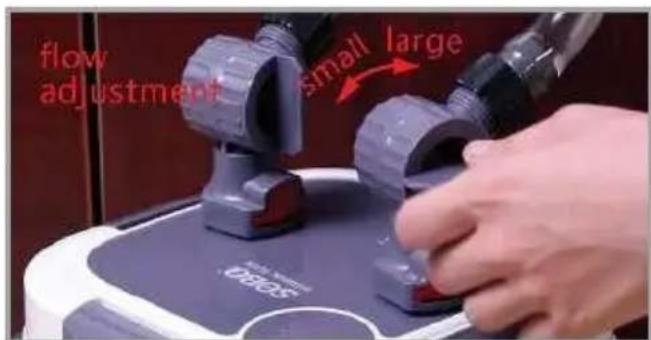

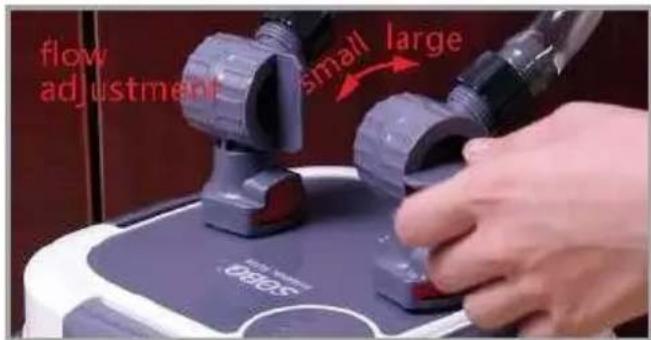

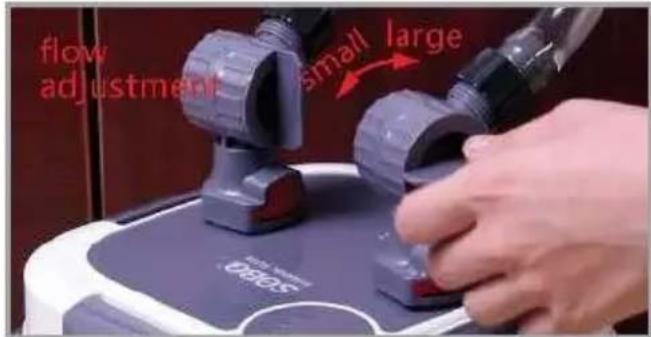

2. Make sure that the flow adjustment is turned on to the maximum. Fill the fish tank with water, and ensure the water surface is more than 12 cm from the edge of the tank.

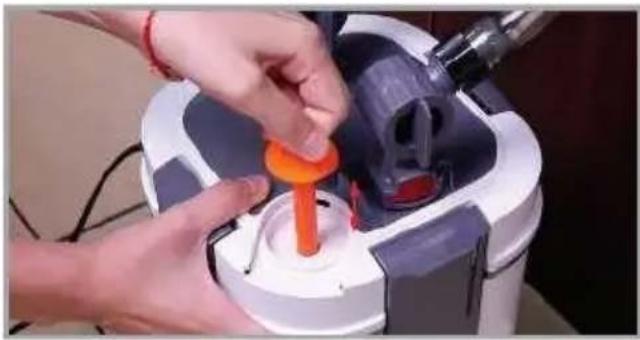

1. Pull the pump handle up and down 2 to 4 times to suck the water into the bucket.

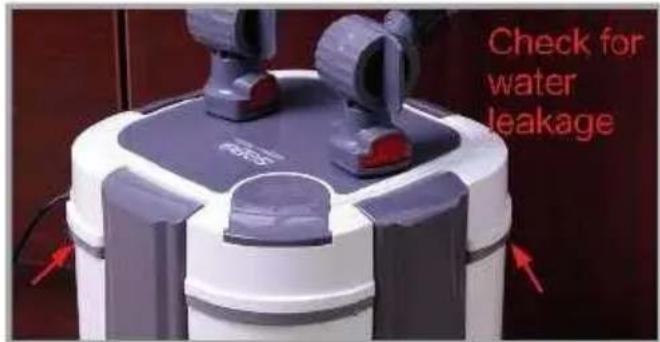

2. After connecting to the power supply, check whether there is water leakage around the filter barrel. After 30 to 60 minutes of normal startup, check again for water leakage. If there is no problem, it can be used normally.

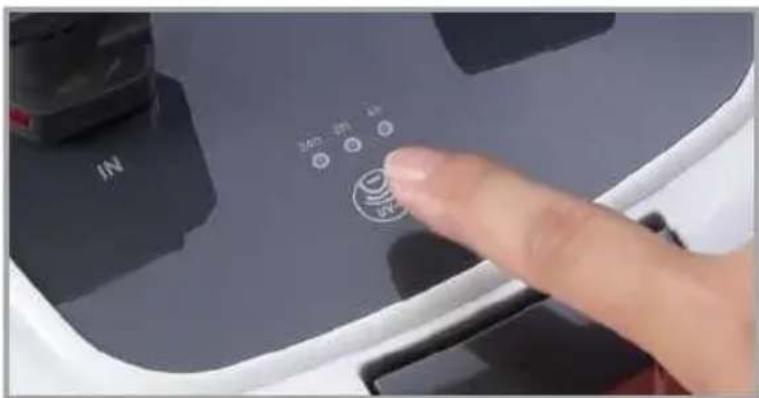

3. Touch the UV button to turn on the UV germicidal lamp, and touch it again to set the timer to turn on the germicidal lamp.

1st gear: 24h light on, normally open but not close. 2nd gear: 8h light on, 8 on and off 16 hours cycle. 3rd gear: 4h light on, 4 hours on and off 20 hours cycle. 4th gear: the light is off, normal off.

TIP:

When connecting PVC tubing, please make sure

the flexible tube is not twisted.

Position canister filter on flat place, do not slope or upside down.

When assembling the inlet pipe, please make sure the water in the tank is

above the minimum water level.

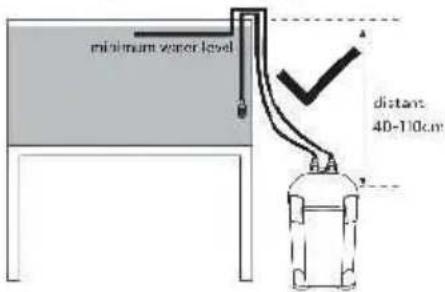

Canister filter must be placed on flat ground,

40~110cm below the water level.

CLEANING AND REPLACEMENT INSTRUCTION

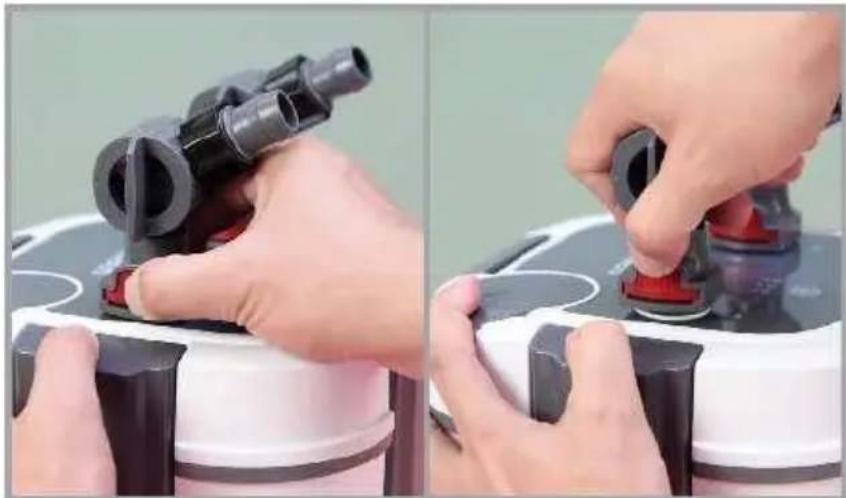

1. Press the buttons on both ends of the water inlet and outlet to pull out the water inlet and outlet for cleaning.

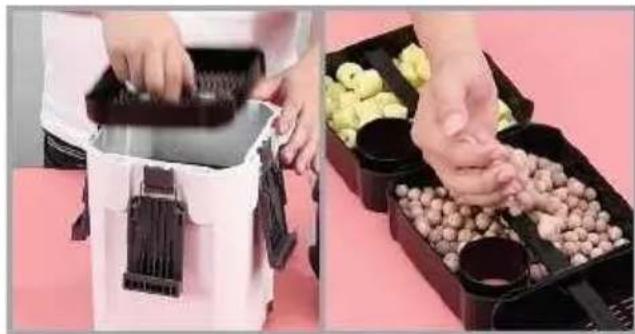

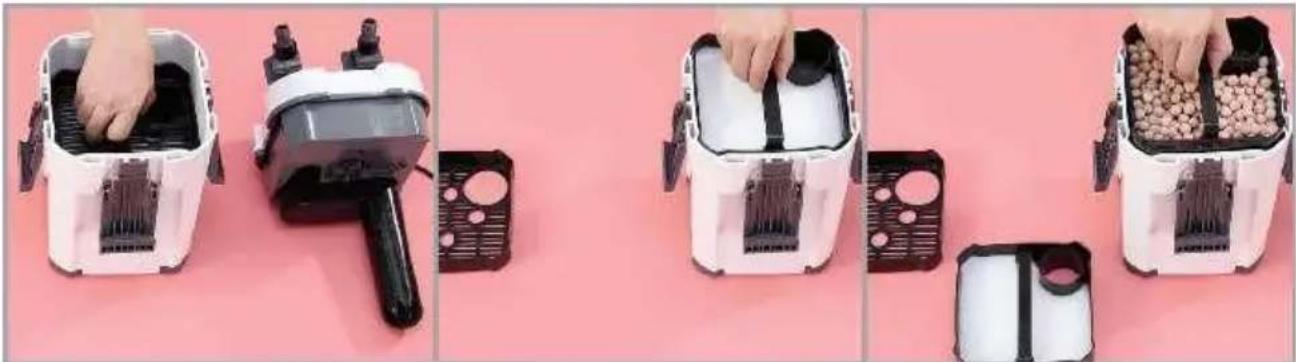

1. Open the barrel cover and take out the filter material for cleaning or replacement.

1. Rotate the water drum cover to open the buckle, take out the clean or replace the new rotor as required. The rotor holes can be cleaned with a brush.

1. Unscrew the screw with a Phillips screwdriver and remove the cover for cleaning. After removing the germicidal lamp cover, wipe the quartz tube with a damp towel or clean water. Do not immerse the quartz tube when cleaning, to prevent water from flowing into the head line and causing a short circuit.

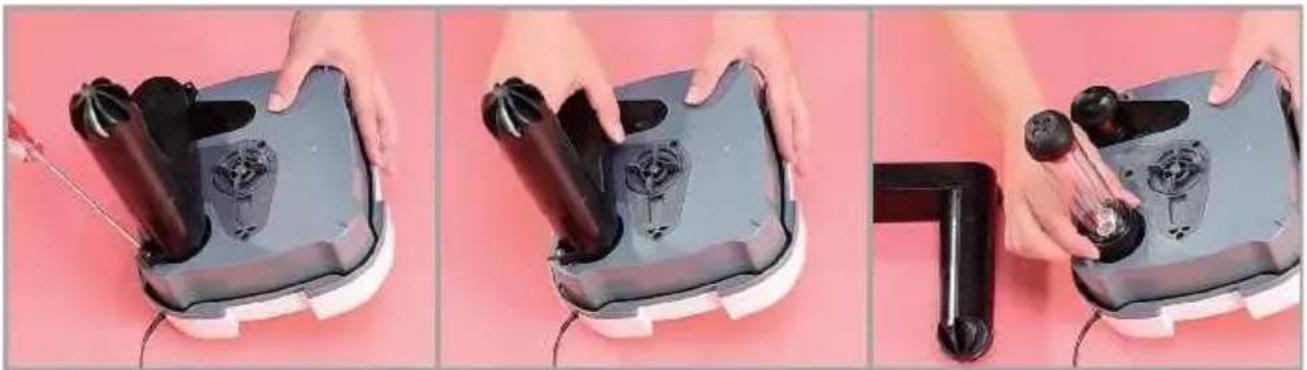

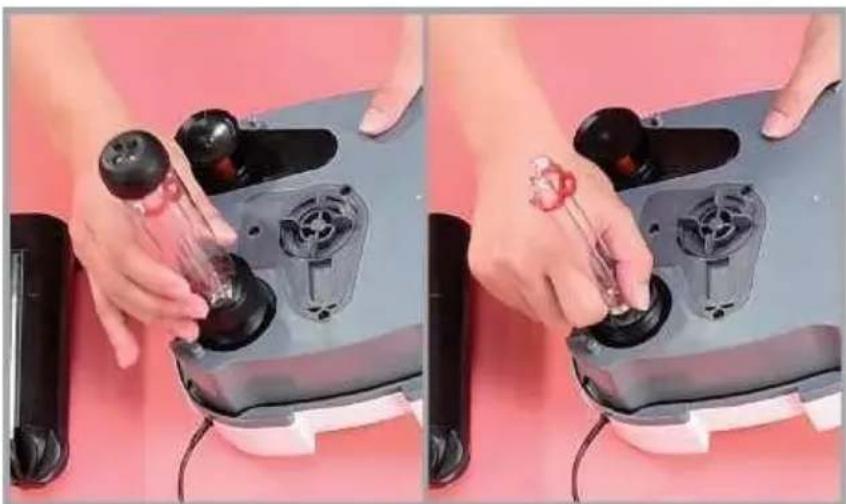

1. If you need to replace the UV lamp, you can twist off the fastening nut, remove the quartz sleeve, and remove the UV lamp for replacement.

TROUBLESHOOTING

Probable Situations	Reasons	Treatment method
Cannot start	Power supply is unplugPump head damage.The impeller stuck by foreign matters.The impeller is not fixe well.	Connect to power supplyChange a new pump hTake out the foreign matters.Fix impeller well.
Water leaking	Water valve tap is damaged.Water valve o-ring is damaged or with foreign matter.Power head o-ring is damaged or with foreign matters.Power head and caniste not locked well.PVC tubing and water valve is not connected weImpeller cover o-ring is damaged or with foreign matters.	Change new water valve tapsChange a new water va o-ring or remove foreign matters.Change a new power ho-ring or remove foreign matters.Re-fix well.Re-fix well.Change a new impeller cover o-ring or remove foreign matters.
Noisy	Impeller is damaged.The impeller stuck by foreign matters or not fixe correctly.Inlet tap is closed.Air exists in canister filt	Change a new impeller.Remove foreign matters re-fix impeller.Open inlet valve taps.Shake canister filter bod and let air out completely.
Abnormal start	The canister is not fille with water.The water in aquarium too low.Water valve taps are n open.	Fully fill canister filter casing with water.The water in aquarium must be above the min. water level.Open water valve taps.
Little water output	Inlet and outlet valve a notfully open.Inlet and outlet pipes a too dirty.PVC tubing is too dirty.	Open Inlet and outlet va fully.Clean the inlet and outl pipes.Clean the PVC tubing.
