Product Type	Furniture Moving Kit (Machine Mover)
Brand	Vevor
Model	XY-10
Total Load Capacity (per set)	661 lb (approx. 300 kg)
Number of moving units	4
Number of wheels per unit	5
Wheel type	PP (polypropylene)
Main material	Carbon steel
Included components	4 furniture movers, 1 crowbar, 4 lifting blocks, 4 non-slip mats, 1 pair of gloves, 1 storage bag, 1 user manual
Recommended use	Flat, hard indoor floor
Unsuitable surface	Uneven floor, soft surfaces (cement, carpet), slopes, stairs
Safety instructions	Do not exceed load, move slowly, avoid collisions, do not use alone for heavy or tall furniture
Maintenance	Clean after use, store in a dry place, regularly check wheels and replace if damaged
Technical support	www.vevor.com/support
Warranty	Electronic warranty certificate available on the Vevor website

Frequently Asked Questions - XY-10 Vevor

What is the load capacity of the XY-10 set?

The total load capacity of the XY-10 set is 661 lb (approx. 300 kg), distributed across the 4 moving units.

How many moving units are included in the kit?

The XY-10 kit contains 4 moving units, along with a crowbar, 4 lifting blocks, 4 non-slip mats, a pair of gloves, and a storage bag.

Can I use this product on carpet or concrete floor?

No, this product is designed for use on flat, hard floors. It should not be used on uneven surfaces, soft surfaces (like concrete or carpet), or slopes.

How to install the furniture movers under a piece of furniture?

Use the crowbar to slightly lift the furniture, then slide a moving unit under each corner. For furniture with legs, ensure the leg is centered on the unit. For flat-bottomed furniture, place the unit completely under the furniture.

What to do if the floor is uneven?

Do not use the product on an uneven floor. This could damage the wheels or cause accidents. Use only on a flat, hard floor.

How to maintain the PP wheels?

After use, clean the wheels to remove debris (metal filings, sand, oil). Store the kit in a dry place. Regularly check the condition of the wheels and replace them if damaged.

Can I use this product outdoors or on a slope?

No, this product is intended for indoor use on flat floors. It is not suitable for slopes, stairs, or outdoor use.

How to turn with the mover?

Move slowly and turn gently. If turning is difficult, slightly lift the furniture using the crowbar to facilitate rotation of the swivel wheels.

Is the XY-10 suitable for furniture with legs?

Yes, for furniture with legs, place each leg at the center of a moving unit. Ensure the unit is properly positioned to avoid tipping.

Where to find technical support for this product?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support.

USER MANUAL XY-10 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MACHINERY MOVER USER MANUAL

Model: XY-7, XY-8, XY-9, XY-10, XY-11, XY-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

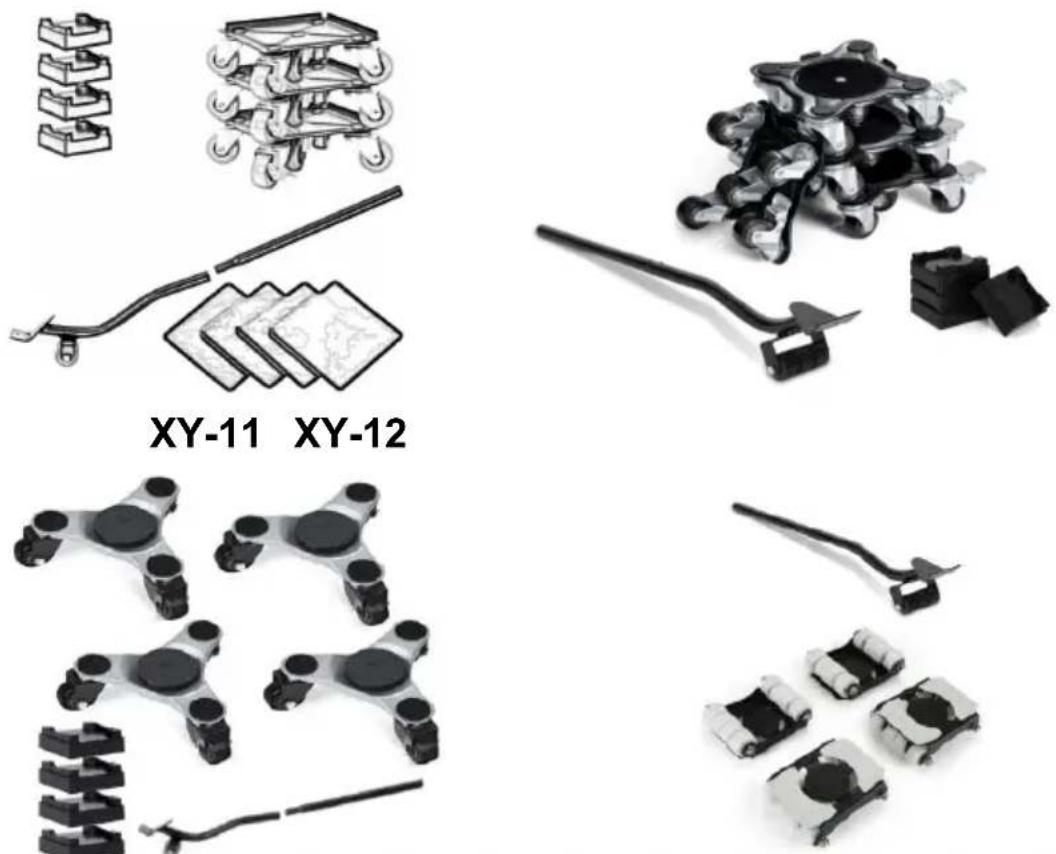

XY-7 & XY-8 & XY-9 XY-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

1. It is recommended to use this product on flat, hard ground.
2. It is strictly prohibited to use this product on uneven or soft ground, which is liable to cause property damage and personal injury.
3. This product is not suitable for use on sloping ground, otherwise accidents will occur easily.
4. Do not exceed the product's load capacity.
5. Because the ground is not smooth, the wheels of each mover may not all be involved in the work; it is recommended to use under the normal load.
6. When using this product, it should be moved slowly at a low speed. Excessive speed can easily cause the mover to slide out, and accidents can happen easily.
7. When the load is lighter, the steering performance of the mover is relatively good; conversely, the steering performance of the mover is not good. Do not swerve when the operator is struggling to turn. It is recommended to use a crowbar to lift and assist the mover in steering.
8. In the use of this product, avoid collision, otherwise the product can be damaged and become unusable.
9. It is not recommended to use a single or two movers together for large furniture, as such use is not safe. For heavy furniture, three or four movers are usually used together.
10. For high and narrow furniture, due to the high center of gravity, take mover handling measures to prevent possible overturning.
11. When multiple movers are used together, non-slip mats are added

to ensure consistency in height. When handling, control the direction of each mover to be consistent, otherwise it is difficult or impossible to move. When turning, it is suggested to lift the weight slightly with a crowbar or other tools to facilitate the mover turning.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Total Load Capacit	440 lbs	440 lbs	661 lbs	661 lbs	440 lbs	330 lbs
Package	4pcs	4pcs	4pcs	4pcs	4pcs	4pcs
Number of Wheels	5	5	5	5	3	8
Wheel Type	PP	PP	PP	PP	PP	PP
Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

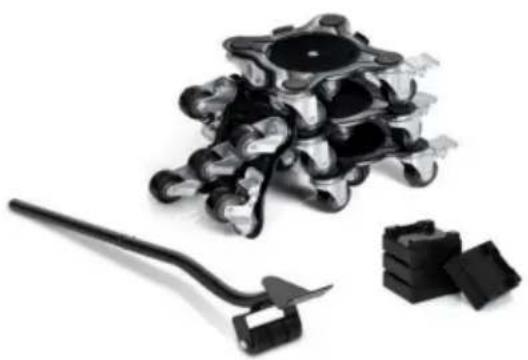

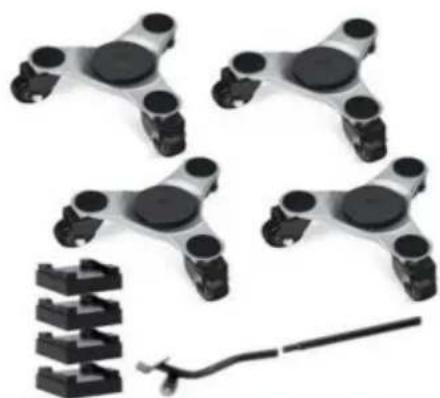

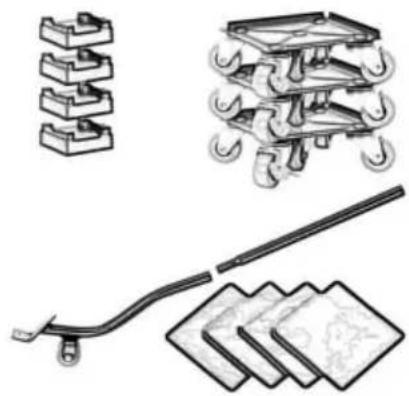

COMPONENTS

Name	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Machinery Mover	4	4	4	4	4	4
Crowbar	1	1	1	1	1	1
Raising Block	4	4	4	4	4	/
Non-slip Mat	4	4	4	4	4	/
Glove	1	1	1	1	/	/
Storage Bag	1	1	1	1	/	/
Crowbar Non-slip Mat	4	4	4	4	/	/
elastic rope	/	1	1	/	/	/
User manual	1	1	1	1	1	1

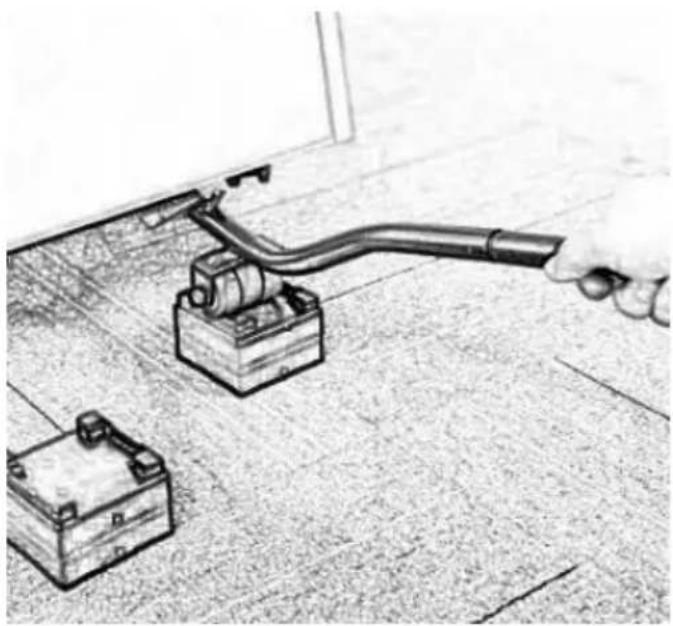

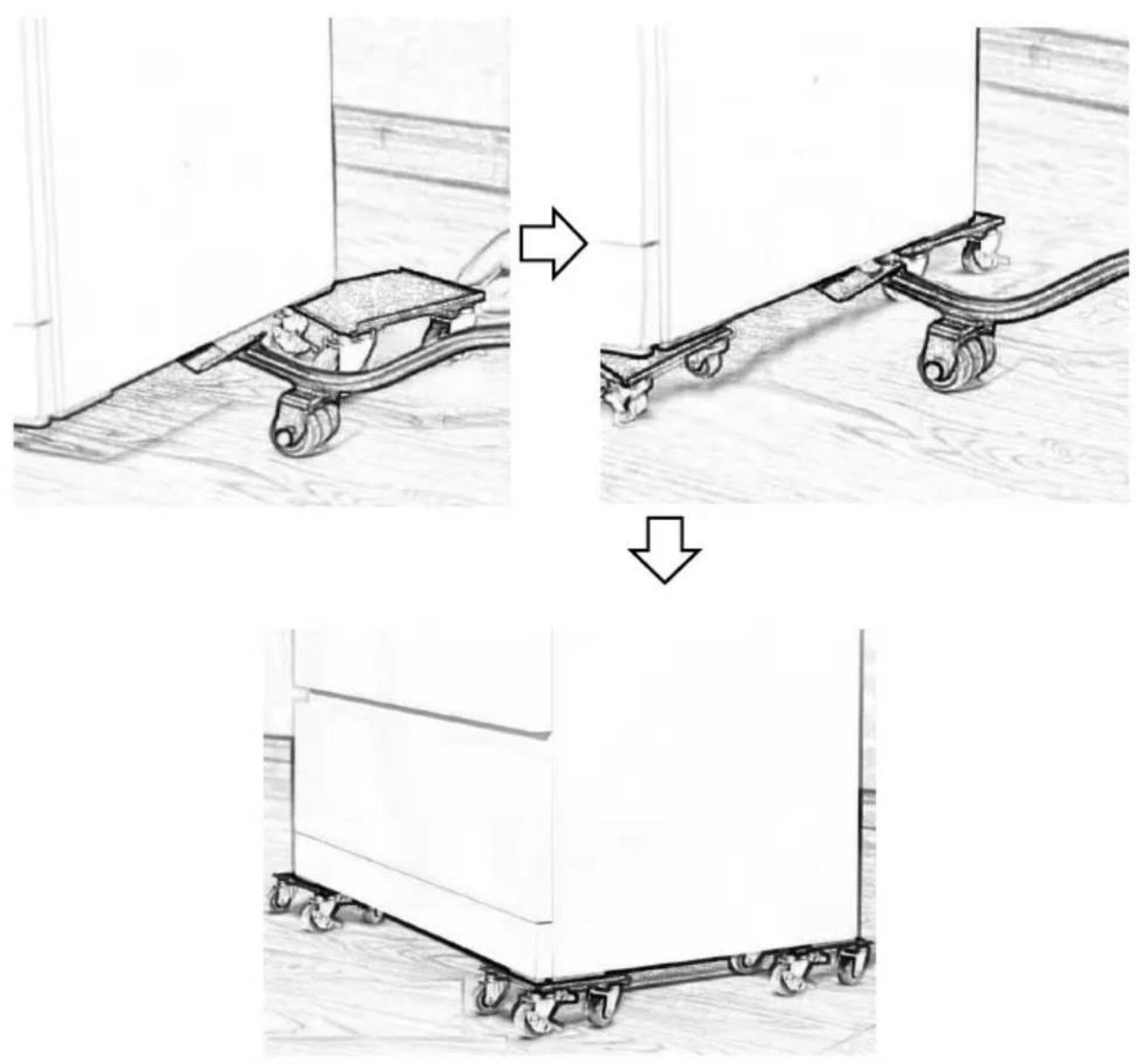

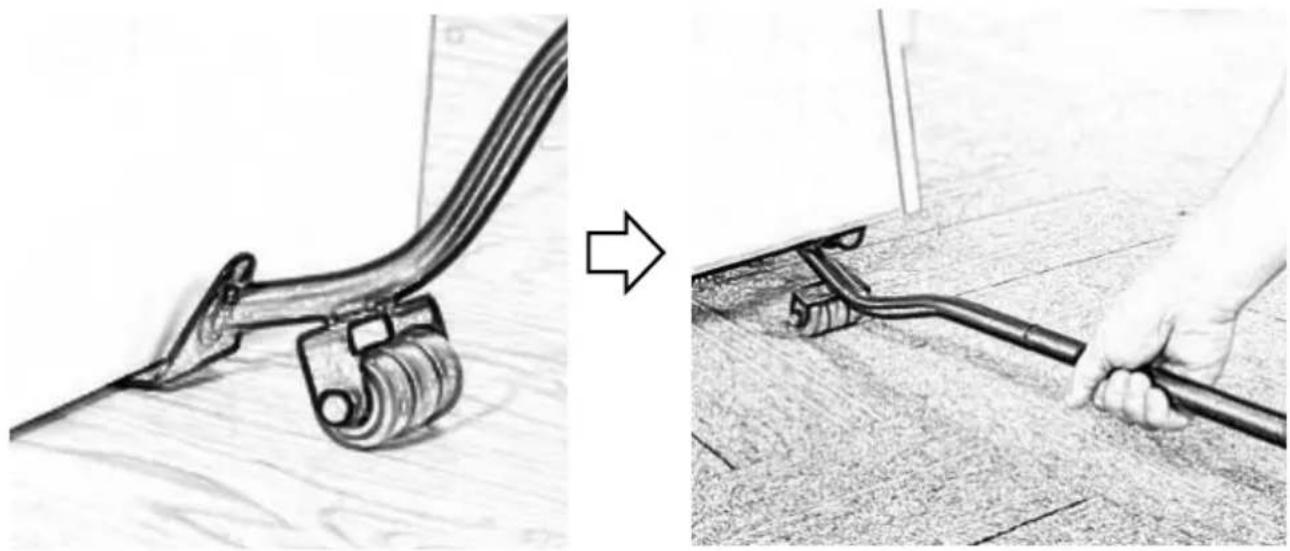

Step 1: Push the crowbar into the bottom of the furniture, hold the handle and press down.

NOTE: The crowbar is equipped with heightening pads to fit furniture of different heights.

Step 2: Push household machinery movers into the bottom of the furniture, pull out the crowbar.

Step 3: Push 4 household machinery movers into the bottom four corners of the furniture.

Make sure the installation is secure and you can move the furniture.

NOTE:

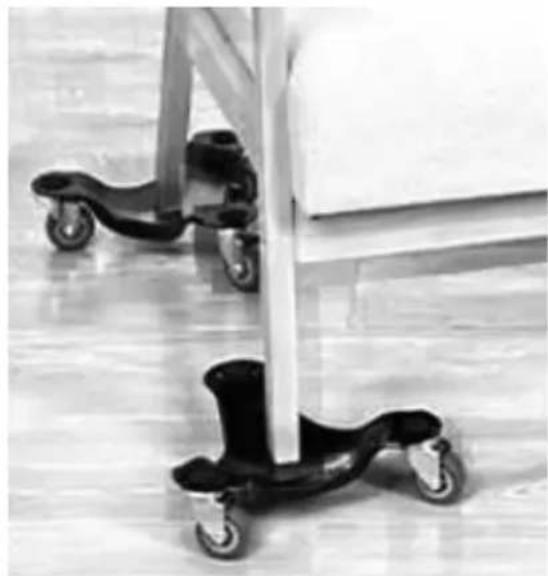

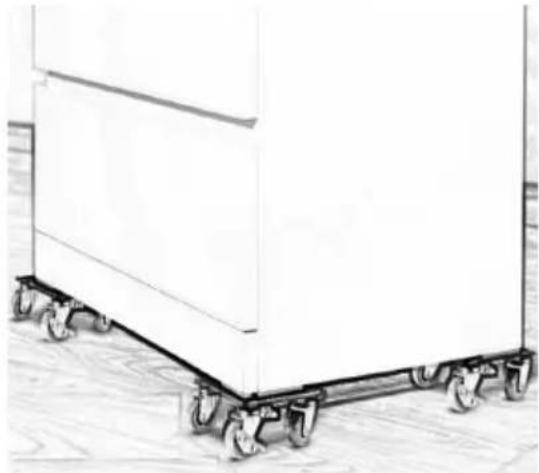

1) This product is suitable for moving furniture indoors on a flat floor. It cannot be used on uneven, soft ground, such as cement, similar cement, carpets, and so on. 2) This product is not suitable for sloping ground or ground with steps. 3) For furniture with legs, make sure the legs of the furniture are placed on the mover. The correct usage is shown below in Fig 1 and Fig 2.

Fig 1 Fig 2

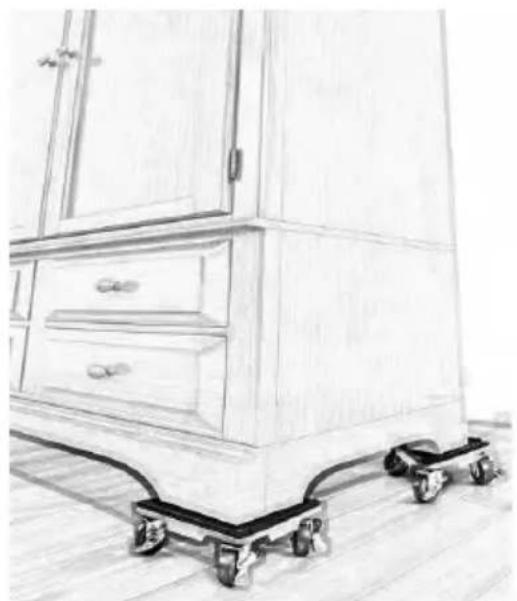

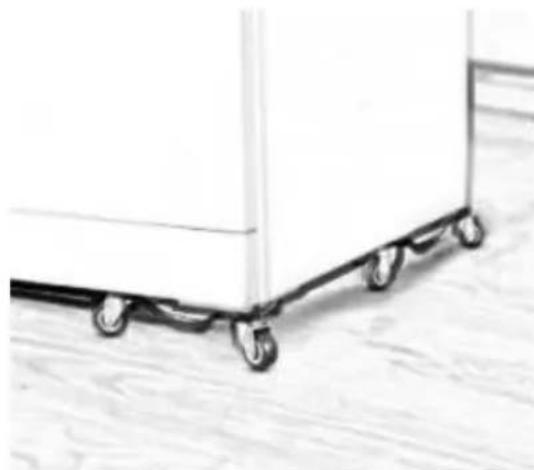

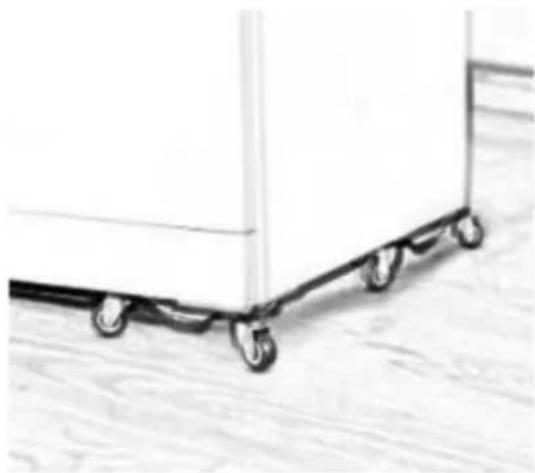

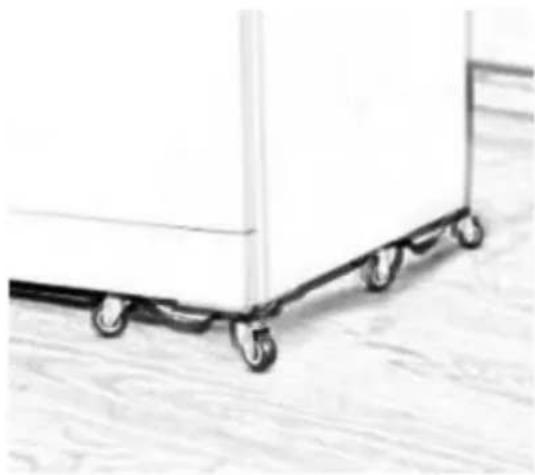

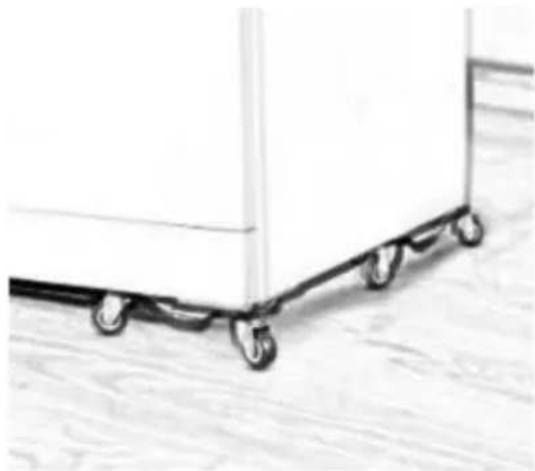

4) For bottom flat furniture, make sure the top side of the tool is placed completely on the bottom of the furniture, as shown below in Fig 3 and Fig 4.

Fig 3 Fig 4 (JYS-135)

5) When using this product, it should be moved slowly at a low speed; excessive speed can easily cause the mover to slide out. 6) A mover equipped with universal wheels has good steering performance and requires slow rotation when turning. 7) A mover (JYD-114) equipped with directional wheels requires manual assistance when turning. 8) A mover equipped with brakes can be used when needed to prevent the mover from moving.

MAINTENANCE

1. After the mover is used, please clean it first and keep it in a dry environment.
2. Regularly inspect the mover. Replace the wheel or mover if the wheel is damaged.
3. After use, PP wheel movers should be cleaned in time, because the wheel can easily be hurt by sharp objects such as iron filings, sand, etc.
