Product Type	Handling dolly (machine mover)
Model	XY-8
Brand	Vevor
Total load capacity (per kit of 4)	200 kg (440 lb)
Number of wheels per dolly	5
Wheel type	PP (polypropylene)
Material	Carbon steel
Number of dollies supplied	4
Included accessories	Crowbar, raising pads, non-slip mats, gloves, storage bag, elastic rope, user manual
Recommended use	Moving heavy furniture on flat, hard indoor floors
Prohibited use	Uneven floor, furniture, slope, stairs, or for loads exceeding capacity
Recommended number of users	3 or 4 dollies for heavy furniture
Main functions	Lift and move heavy loads using the crowbar and roller dollies
Maintenance	Clean after use, store dry, inspect wheels regularly, replace if damaged
Safety	Use slowly, avoid collisions, do not use alone for large furniture, center feet on the dolly for furniture with legs
Spare parts and repairability	Replaceable wheels; contact Vevor support for parts
General information	Technical support and warranty: www.vevor.com/support

Frequently Asked Questions - XY-8 Vevor

What is the load capacity of the XY-8 model?

The total load capacity per kit of 4 dollies is 200 kg (440 lb).

On what types of floor can I use this dolly?

Use only on flat and hard floors (tile, smooth concrete). Avoid uneven floors, furniture, slopes, or stairs.

Can I use a single dolly to move a heavy piece of furniture?

No, for heavy furniture, use 3 or 4 dollies together. A single dolly is reserved for light loads and only on flat floors.

How to install the dollies under the furniture?

Use the crowbar to lift the furniture, place the crowbar under the base, lower the handle to lift, then slide a dolly under each corner. Remove the crowbar.

How to turn with the dollies?

Turn slowly. If steering is difficult, slightly lift the load with a crowbar to facilitate the turn. The swivel wheels turn better than directional wheels.

Are there precautions for furniture with legs?

Yes, make sure the furniture legs are centered on the dolly to avoid tipping. See figures 1 and 2 in the manual.

How to maintain the dolly after use?

Clean the wheels to remove sharp objects (metal filings, sand). Store in a dry place. Inspect wheels regularly and replace if damaged.

Can I use it on a slope?

No, use on a slope is prohibited as it may cause serious accidents.

What to do if a wheel is damaged?

Replace the defective wheel. Contact Vevor support (www.vevor.com/support) to get spare parts.

Does the kit include a user manual?

Yes, a user manual is included in the kit. It contains safety, assembly, and usage instructions.

USER MANUAL XY-8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MACHINERY MOVER USER MANUAL

Model: XY-7, XY-8, XY-9, XY-10, XY-11, XY-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

XY-7 & XY-8 & XY-9 XY-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

1. It is recommended to use this product on flat, hard ground.
2. It is strictly prohibited to use this product on uneven or soft ground, which is liable to cause property damage and personal injury.
3. This product is not suitable for use on sloping ground, otherwise accidents will occur easily.
4. Do not exceed the product's load capacity.
5. Because the ground is not smooth, the wheels of each mover may not all be involved in the work; it is recommended to use under the normal load.
6. When using this product, it should be moved slowly at a low speed. Excessive speed can easily cause the mover to slide out, and accidents can happen easily.
7. When the load is lighter, the steering performance of the mover is good; conversely, the steering performance is not good. Do not swerve when the operator is struggling to turn. It is recommended to use a crowbar to lift and assist the mover in steering.
8. In the use of this product, avoid collision, otherwise the product can be damaged and become unusable.
9. It is not recommended to use a single or two movers together for large furniture, as such use is not safe. For heavy furniture, three or four movers are usually used together.
10. For high and narrow furniture, due to the high center of gravity, take measures to prevent possible overturning.
11. When multiple movers are used together, non-slip mats are added

to ensure consistency in height. When handling, control the direction of each mover to be consistent, otherwise it is difficult or impossible to move. When turning, it is suggested to lift the weight slightly with a crowbar or other tools to facilitate the mover turning.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Total Load Capacit	440 lbs	440 lbs	661 lbs	661 lbs	440 lbs	330 lbs
Package	4pcs	4pcs	4pcs	4pcs	4pcs	4pcs
Number of Wheels	5	5	5	5	3	8
Wheel Type	PP	PP	PP	PP	PP	PP
Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

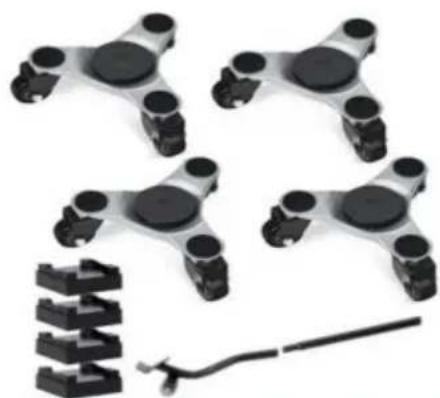

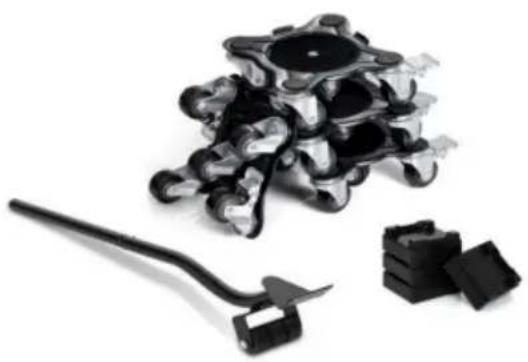

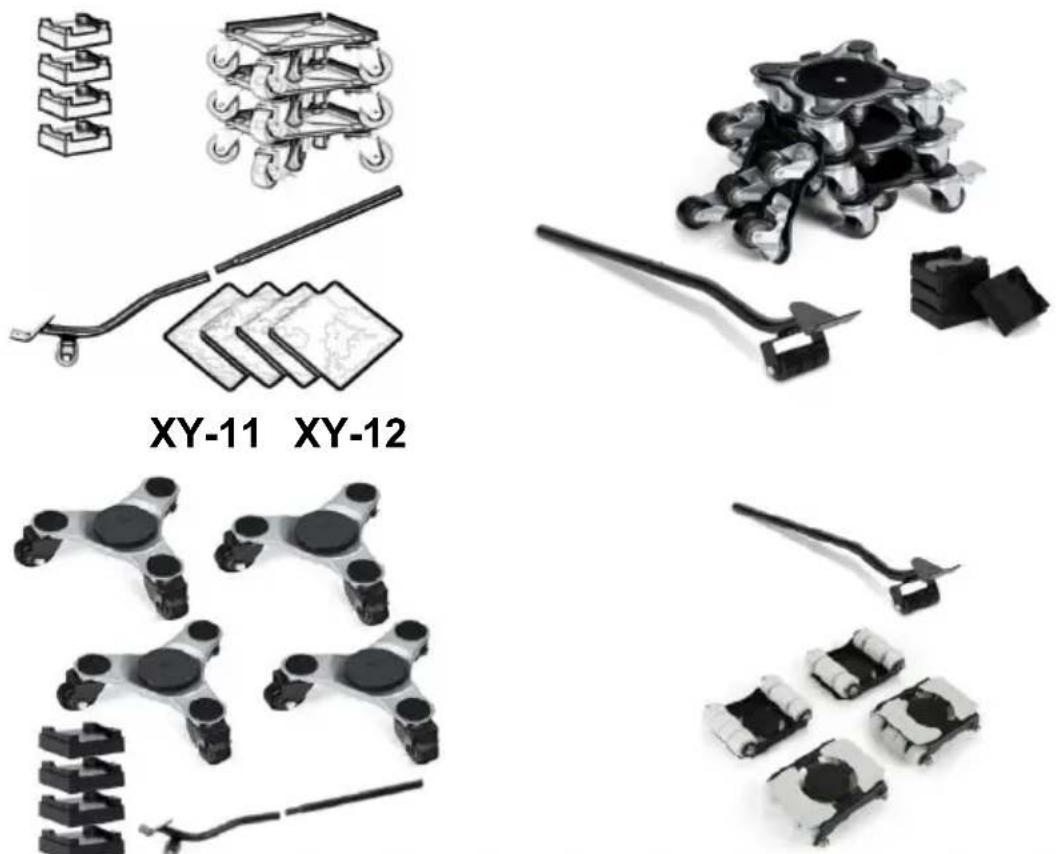

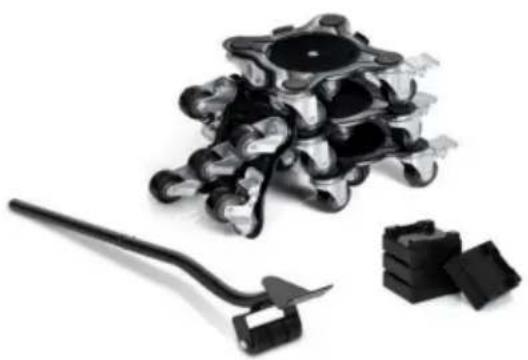

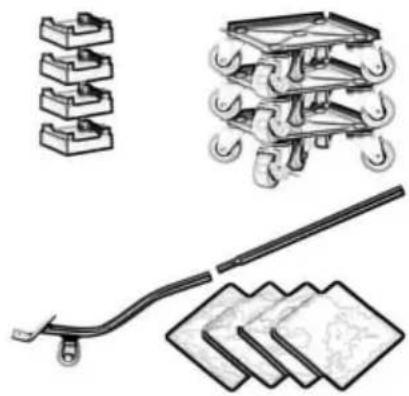

COMPONENTS

Name	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Machinery Mover	4	4	4	4	4	4
Crowbar	1	1	1	1	1	1
Raising Block	4	4	4	4	4	/
Non-slip Mat	4	4	4	4	4	/
Glove	1	1	1	1	/	/
Storage Bag	1	1	1	1	/	/
Crowbar Non-slip Mat	4	4	4	4	/	/
elastic rope	/	1	1	/	/	/
User manual	1	1	1	1	1	1

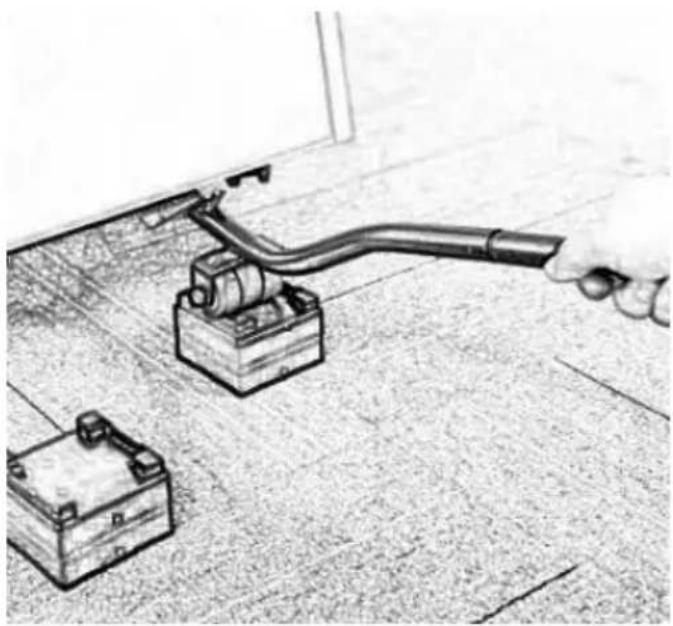

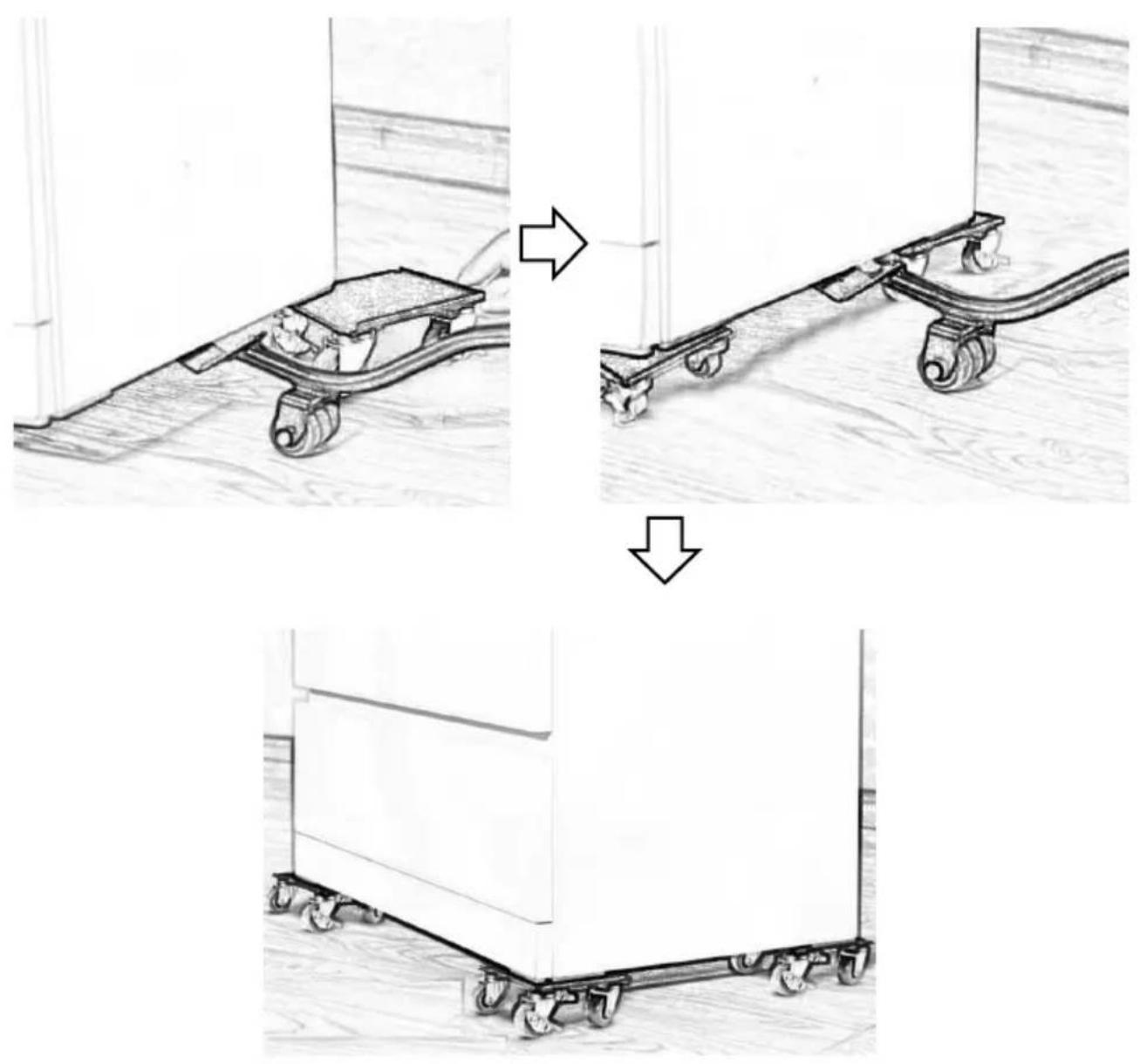

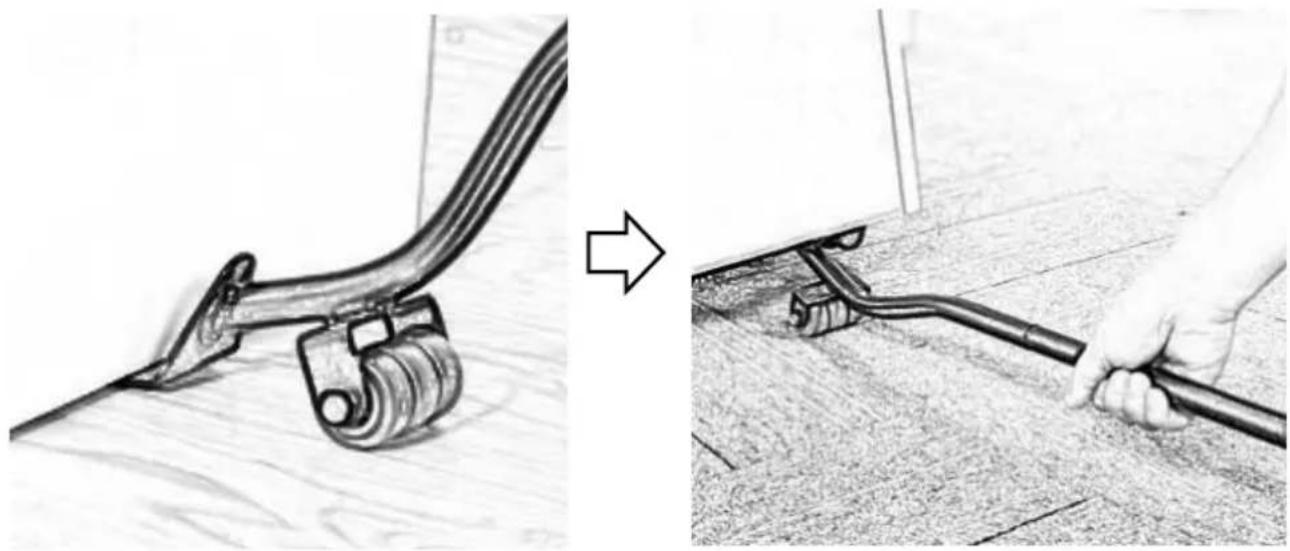

Step 1: Insert the crowbar under the bottom of the furniture, hold the handle, and press down.

NOTE: The crowbar is equipped with height-adjusting pads to accommodate furniture of different heights.

Step 2: Slide the furniture movers under the bottom of the furniture, then remove the crowbar.

Step 3: Position the 4 furniture movers under the four corners of the furniture.

Ensure that the installation is secure and that you can move the furniture.

NOTE:

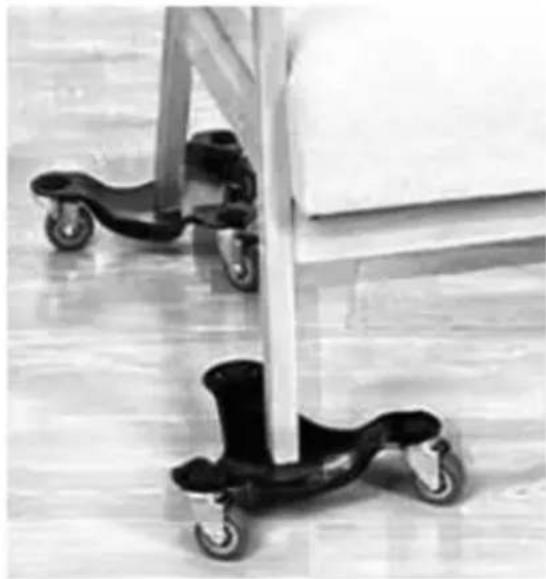

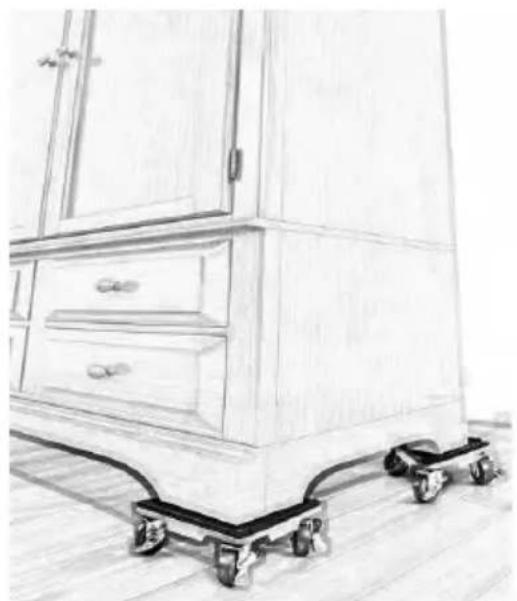

1) This product is intended for moving furniture indoors on flat floors. It cannot be used on uneven or soft surfaces such as cement, similar materials, or carpets. 2) This product is not suitable for sloping ground or surfaces with steps. 3) For furniture with legs, make sure the legs are centered on the mover. The correct usage is shown in Fig. 1 and Fig. 2.

Fig. 1 Fig. 2

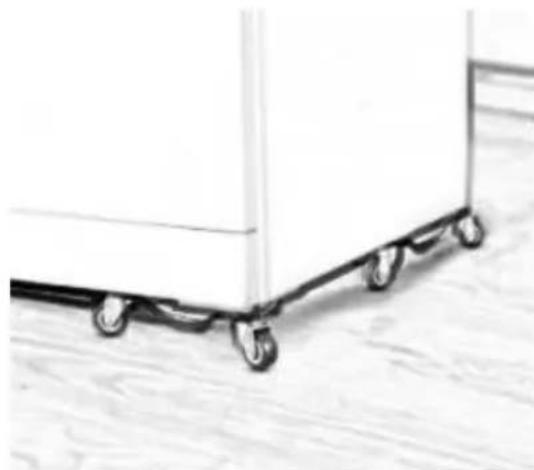

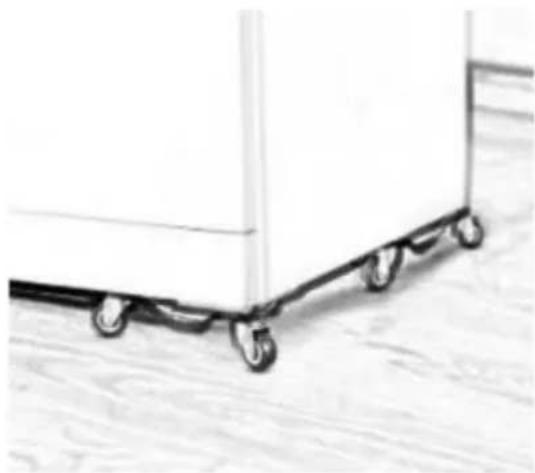

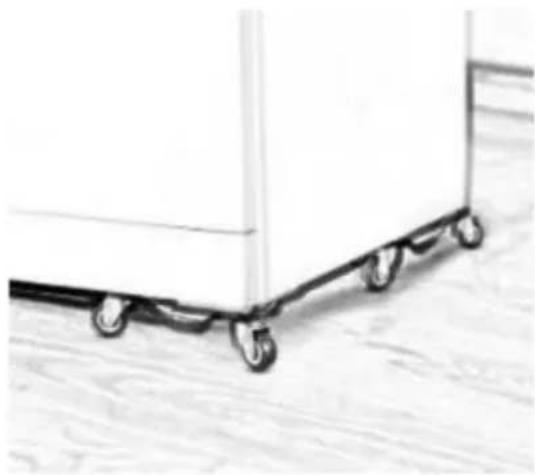

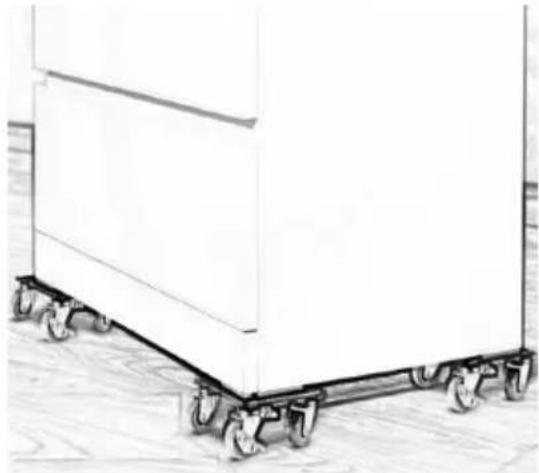

4) For furniture with a flat bottom, ensure that the top surface of the mover is fully in contact with the bottom of the furniture, as shown in Fig. 3 and Fig. 4.

Fig. 3 Fig. 4 (JYS-135)

5) When using this product, move it slowly at a low speed; excessive speed can easily cause the mover to slide out. 6) A mover equipped with swivel casters offers good steering performance and requires slow rotation when turning. 7) A mover (JYD-114) equipped with fixed wheels requires manual assistance when turning. 8) A mover equipped with brakes can be used when needed to prevent the mover from moving.

MAINTENANCE

1. After using the mover, clean it first and store it in a dry environment.
2. Inspect the mover regularly. Replace the wheel or the mover if the wheel is damaged.
3. After use, clean the mover with PP wheels promptly, as the wheels can be easily damaged by sharp objects such as iron filings, sand, etc.
