Product Type	Hand Truck (Furniture Moving Set)
Brand	Vevor
Model	XY-11
Total Load Capacity	661 lb (300 kg)
Number of Dollies Included	4
Number of Wheels per Dolly	3
Wheel Type	PP (Polypropylene)
Chassis Material	Carbon Steel
Included Components	4 Dollies, 1 Pry Bar, 4 Lifting Blocks, 4 Non-Slip Mats
Recommended Use	Flat, hard floor, indoor
Main Functions	Lift and move heavy furniture
Maintenance	Clean after use, inspect wheels regularly
Safety Instructions	Do not exceed maximum load; do not use on slopes or uneven surfaces; move slowly
Spare Parts Available	Replacement wheels (PP type)
Repairability	Possible replacement of wheels and components
General Information	User manual included; warranty via Vevor

Frequently Asked Questions - XY-11 Vevor

How to use the Vevor XY-11 hand truck?

Use the provided pry bar to lift the furniture, then slide the dollies under the corners. Make sure the furniture is stable. Move slowly.

What is the maximum load capacity?

The total load capacity is 661 lb (300 kg), distributed among the 4 dollies. Do not exceed this limit.

Can I use this product on a carpet?

No, this product is designed for flat, hard floors. The carpet may damage the wheels or make movement difficult.

How many dollies are needed for a heavy piece of furniture?

It is recommended to use 3 to 4 dollies for heavy or large furniture to ensure stability.

How to maintain the dollies?

Clean the wheels after use to remove metal shavings, sand, or oil. Inspect regularly and replace damaged wheels.

Are the wheels replaceable?

Yes, the PP wheels can be replaced if worn or damaged. Contact Vevor for spare parts.

Can the product be used outdoors?

No, it is designed for indoor use on flat floors. Outdoors may damage the wheels.

What if the dolly doesn't turn easily?

Slightly lift the load with a pry bar to ease turning. Do not force the dolly.

Are there additional accessories included?

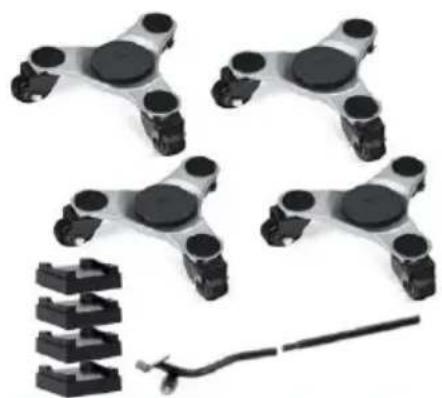

The kit includes 4 dollies, 1 pry bar, 4 lifting blocks, and 4 non-slip mats.

Where can I find the manual?

The PDF manual is available on notice-facile.com or on the Vevor website (www.vevor.com/support).

USER MANUAL XY-11 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

MACHINERY MOVER

USER MANUAL

Model: XY-7, XY-8, XY-9, XY-10, XY-11, XY-12

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

XY-7 & XY-8 & XY-9 XY-10

XY-11 XY-12

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

1. It is recommended to use this product on flat, hard ground.
2. It is strictly prohibited to use this product on uneven or soft ground which is liable to cause property and personal injury.
3. This product is not suitable for use on sloping ground, otherwise accidents will occur easily.
4. Do not use more than the product load capacity.
5. Because the ground is not smooth, the wheels of each mover may be all involved in the work; it is recommended to use under the non-load.
6. When using this product, it should be moved slowly at a low speed. Excessive speed can easily cause the mover to slide out, and accidents can happen easily.
7. When the load is lighter, the steering performance of the mover is good; conversely, when the load is heavier, the steering performance is not good. Do not swerve when the operator is struggling to turn. It is recommended to use a crowbar to lift and assist the mover in steering.
8. During use, avoid collisions; otherwise, the product may be damaged and become unusable.
9. It is not recommended to use a single mover or two movers together for large furniture, as this is unsafe. For heavy furniture, 3 or 4 movers are usually used together.
10. For tall and narrow furniture, due to the high center of gravity, take measures to prevent possible overturning when handling.

11. When multiple movers are used together, add non-slip mats.

Ensure consistency in height; when handling, control the direction of each mover so they are consistent, otherwise it will be difficult or impossible to move. When turning, it is suggested to slightly lift the weight with a crowbar or other tools to facilitate the mover's turning.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Total Load Capacit	440 lbs	440 lbs	661 lbs	661 lbs	440 lbs	330 lbs
Package	4pcs	4pcs	4pcs	4pcs	4pcs	4pcs
Number of Wheels	5	5	5	5	3	8
Wheel Type	PP	PP	PP	PP	PP	PP
Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

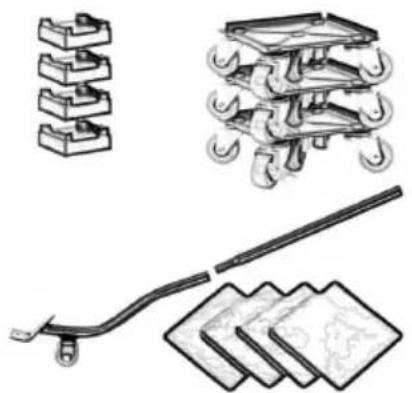

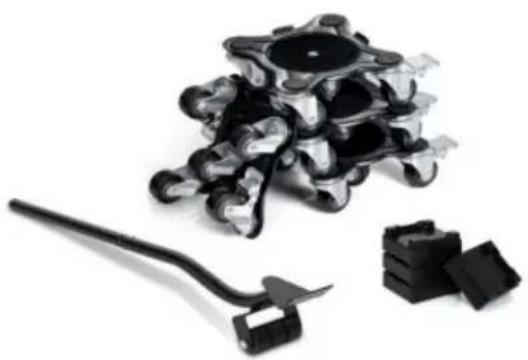

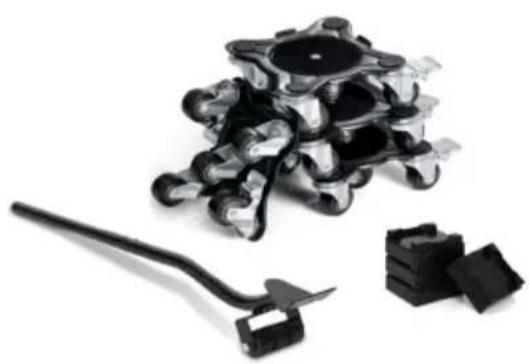

COMPONENTS

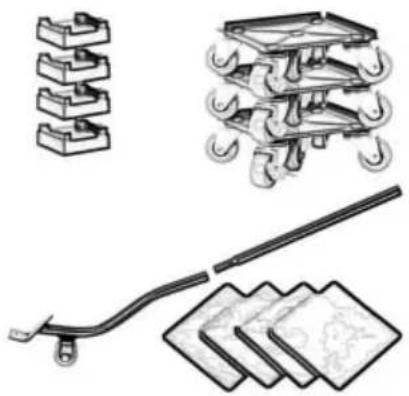

Name	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Machinery Mover	4	4	4	4	4	4
Crowbar	1	1	1	1	1	1
Raising Block	4	4	4	4	4	/
Non-slip Mat	4	4	4	4	4	/
Glove	1	1	1	1	/	/
Storage Bag	1	1	1	1	/	/
Crowbar Non-slip Mat	4	4	4	4	/	/
elastic rope	/	1	1	/	/	/
User manual	1	1	1	1	1	1

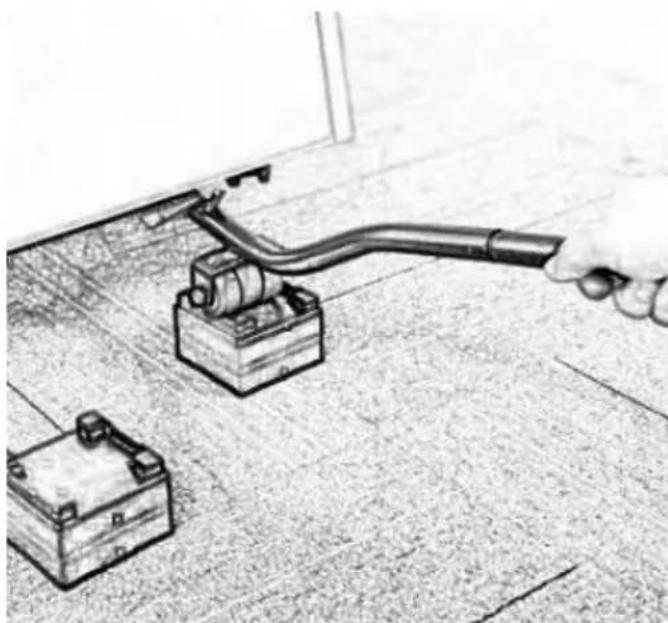

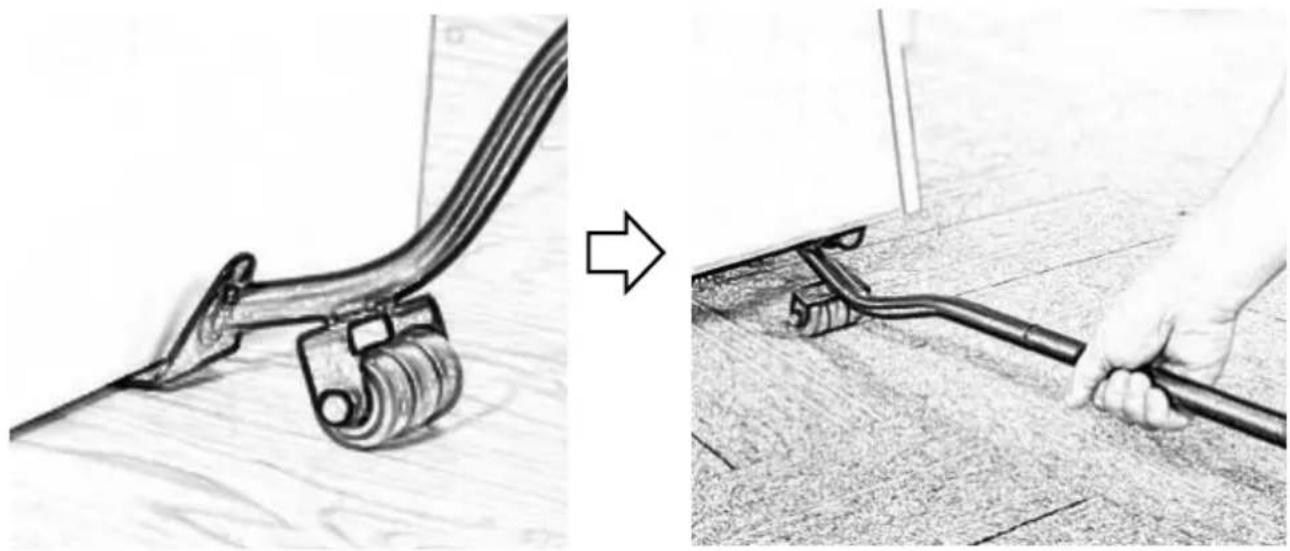

Step 1: Push the crowbar into the bottom of the furniture, hold the handle, and press down.

NOTE: The crowbar is equipped with heightening pads to fit furniture of different heights.

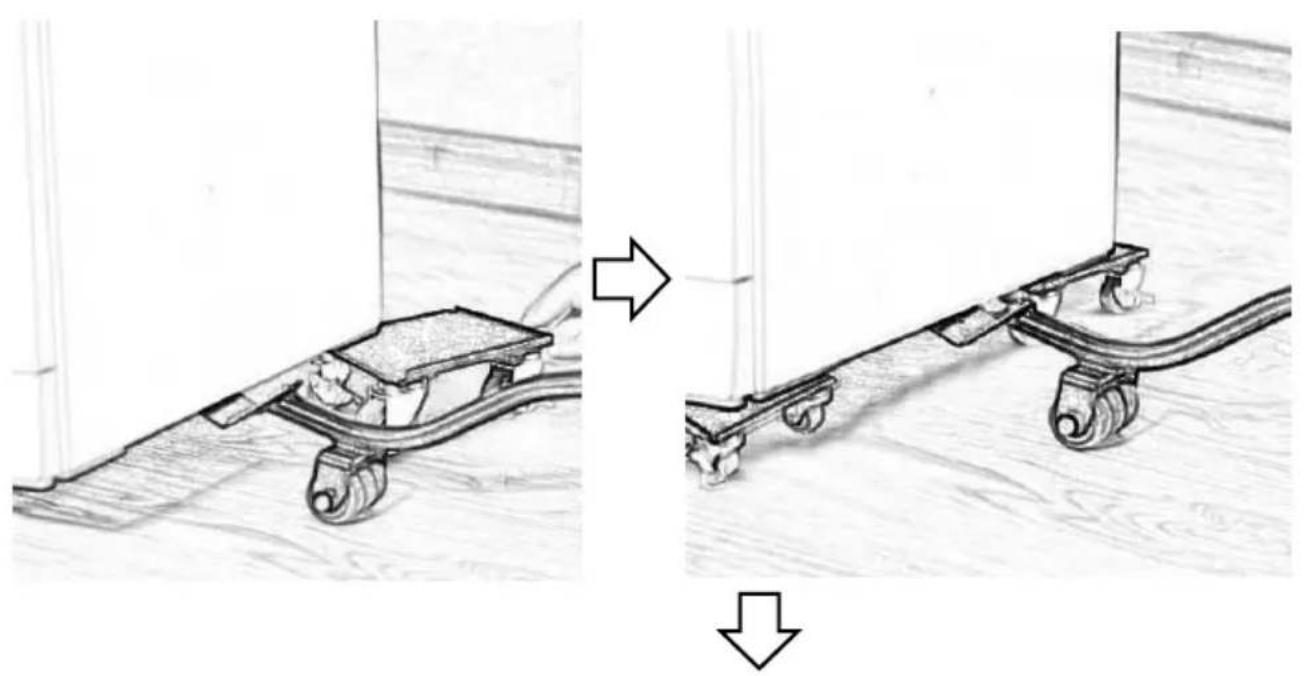

Step 2: Push the furniture movers under the bottom of the furniture, then pull out the crowbar.

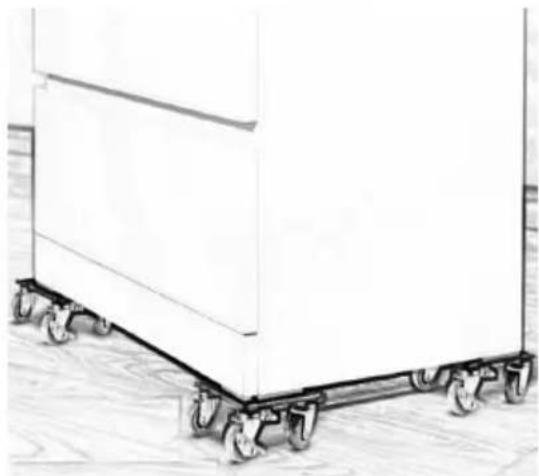

Step 3: Push 4 furniture movers under the four bottom corners of the furniture.

Make sure the installation is secure and you can move the furniture.

NOTE:

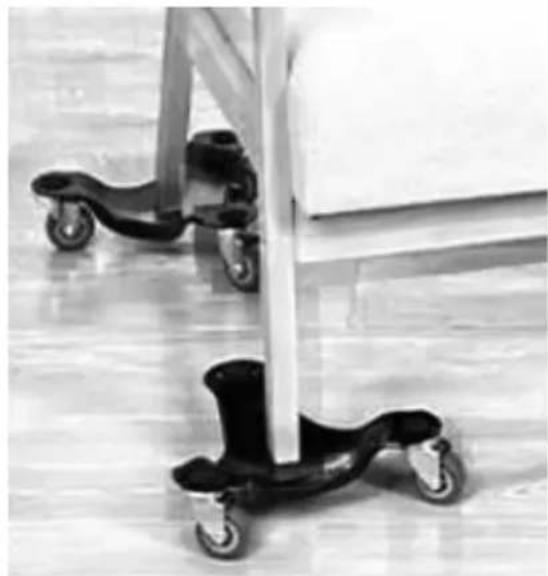

1) This product is suitable for moving furniture indoors on a flat floor. It cannot be used on uneven or soft ground, such as cement, similar surfaces, carpets, and so on. 2) This product is not suitable for sloping ground or ground with steps. 3) For furniture with legs, make sure the legs of the furniture are centered on the mover. The correct usage is shown below in Fig 1 and Fig 2.

Fig 1 Fig 2

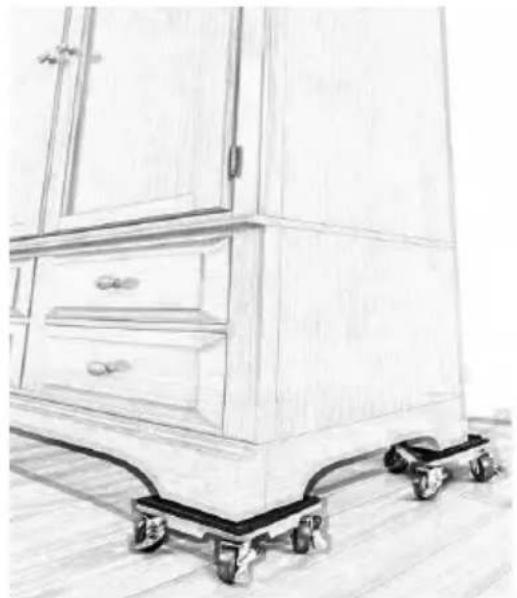

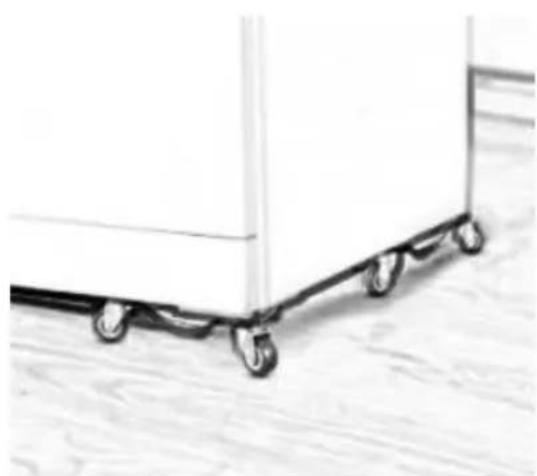

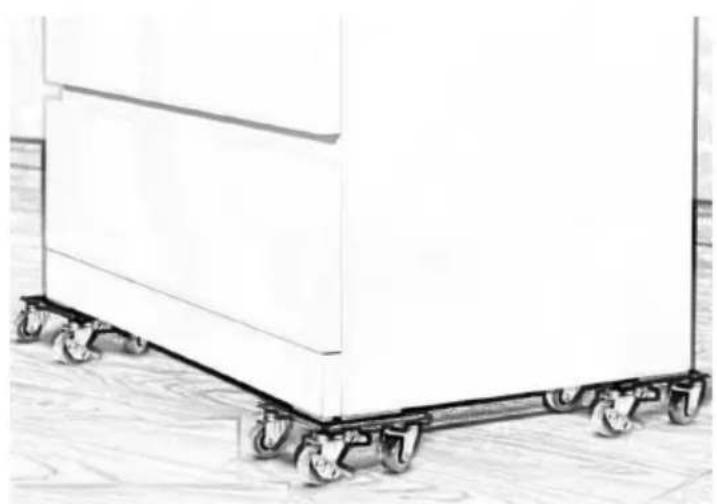

4) For furniture with a flat bottom, make sure the top side of the tool is placed completely on the bottom of the furniture, as shown below in Fig 3 and Fig 4.

Fig 3 Fig 4 (JYS-135)

5) When using this product, it should be moved slowly at a low speed. Excessive speed can easily cause the mover to slide out. 6) A mover equipped with universal wheels has good steering performance and requires slow rotation when turning. 7) A mover (JYD-114) equipped with directional wheels requires manual assistance when turning. 8) A mover equipped with brakes can be used when needed to prevent the mover from moving.

MAINTENANCE

1. After the mover is used, please clean it first and keep it in a dry environment.
2. Regularly inspect the mover. Replace the wheel or the mover if the wheel is damaged.
3. After use, PP wheel movers should be cleaned in time, because the wheels can easily be hurt by sharp objects such as iron filings, sand, etc.
