Brand	Vevor
Model	XY-9
Product Type	Hand truck (machine transporter)
Total load capacity (per set of 4)	661 lb (300 kg)
Number of wheels per mover	5
Wheel Type	PP (polypropylene)
Material	Carbon steel
Included Components	4 movers, 1 crowbar, 4 lifting blocks, 4 anti-slip mats, 1 pair of gloves, 1 storage bag, 4 anti-slip pads for crowbar, 1 elastic cord, 1 user manual
Usage Conditions	Flat and hard indoor floor, do not use on uneven, soft, sloping ground or stairs
Maintenance	Clean after use, store in dry place, inspect regularly and replace damaged wheels
Safety	Do not exceed capacity, move slowly, avoid collisions, use 3-4 movers for heavy furniture, do not use on slopes

Frequently Asked Questions - XY-9 Vevor

What is the maximum weight supported by the set of 4 XY-9 movers?

The set of 4 XY-9 movers supports a total load of 661 lb (300 kg).

Can I use this hand truck on carpet?

No, it is not recommended to use this product on soft or carpeted floors. Use only on a flat, hard surface such as tiles or smooth concrete.

How many movers should be used for a heavy piece of furniture?

For heavy furniture, it is recommended to use 3 or 4 movers together to ensure stability and safety.

How to install the movers under furniture?

Use the provided crowbar to slightly lift the furniture, then slide the movers under the corners. Position the furniture legs in the center of the movers, or for flat furniture, ensure the top of the mover is in full contact with the furniture.

Can this product be used on slopes or stairs?

No, it is strictly forbidden to use this product on sloping ground or stairs, as it may cause accidents and injuries.

How to maintain the XY-9 movers?

After each use, clean the movers and store them in a dry place. Regularly inspect the wheels and replace them if damaged. Avoid contact with sharp objects, iron filings, sand, or oil.

Are the wheels swivel or directional?

The XY-9 model is equipped with universal swivel wheels that provide good maneuverability. When turning, go slowly.

What to do if a mover does not turn well?

If steering performance is poor, slightly lift the load using a crowbar to facilitate turning of the mover.

Can I use a single mover to move furniture?

It is not recommended to use one or two movers for large furniture. For safety reasons, use 3 or 4 movers depending on the size and weight of the furniture.

Where can I find spare parts or technical support?

For any technical assistance or spare parts, visit www.vevor.com/support to contact customer service and view the electronic warranty.

USER MANUAL XY-9 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

MACHINERY MOVER

USER MANUAL

Model: XY-7, XY-8, XY-9, XY-10, XY-11, XY-12

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

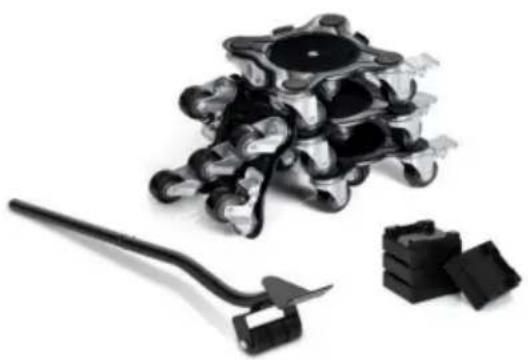

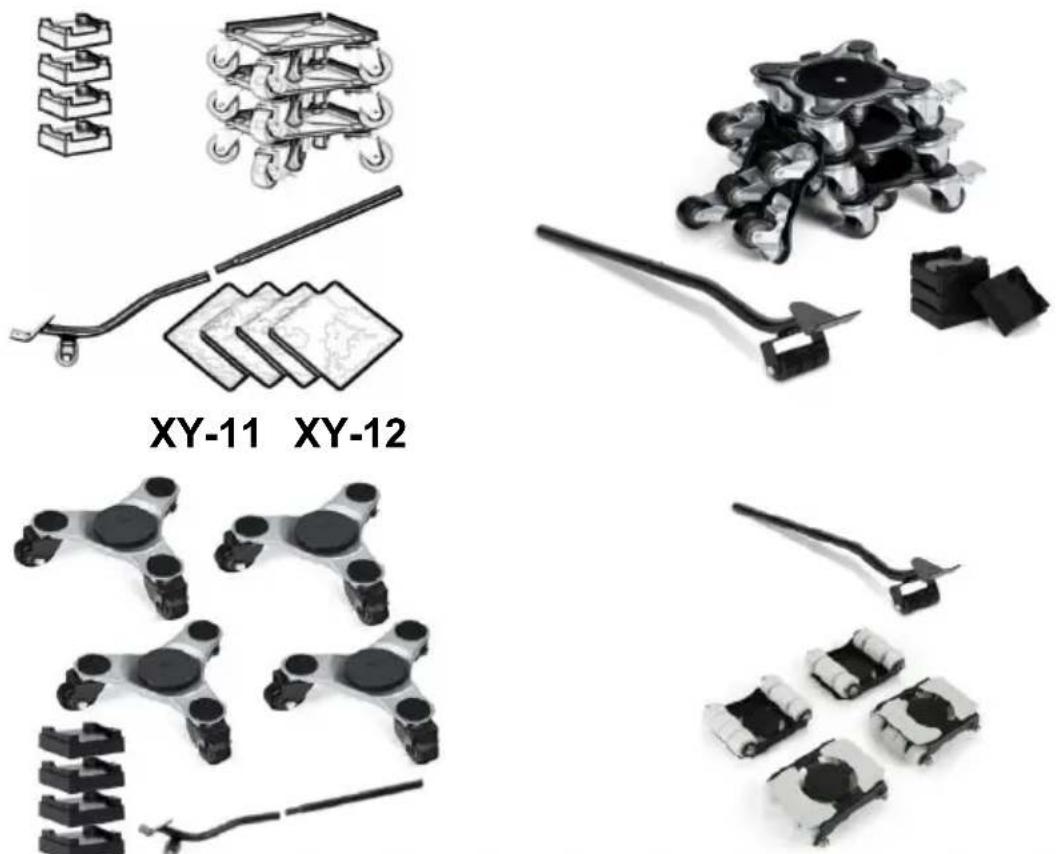

XY-7 & XY-8 & XY-9 XY-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

1. It is recommended to use this product on flat, hard ground.
2. It is strictly prohibited to use this product on uneven or soft ground, which is liable to cause property damage and personal injury.
3. This product is not suitable for use on sloping ground, otherwise accidents will occur easily.
4. Do not exceed the product's load capacity.
5. Because the ground is not smooth, the wheels of each mover may not all be involved in the work; it is recommended to use under the normal load.
6. When using this product, it should be moved slowly at a low speed. Excessive speed can easily cause the mover to slide out, and accidents can happen easily.
7. When the load is lighter, the steering performance of the mover is good; conversely, the steering performance of the mover is not good. Do not swerve when the operator is struggling to turn. It is recommended to use a crowbar to lift and assist the mover in steering.
8. In the use of this product, avoid collision, otherwise the product can be damaged and become unusable.
9. It is not recommended to use a single or two movers together for large furniture, as such use is not safe. For heavy furniture, three or four movers are usually used together.
10. For high and narrow furniture, due to the high center of gravity, take mover handling measures to prevent possible overturning.
11. When multiple movers are used together, non-slip mats are added

to ensure consistency in height. When handling, control the direction of each mover so that they are consistent, otherwise it is difficult or impossible to move. When turning, it is suggested to lift the weight slightly with a crowbar or other tools to facilitate the mover to turn.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Total Load Capacit	440 lbs	440 lbs	661 lbs	661 lbs	440 lbs	330 lbs
Package	4pcs	4pcs	4pcs	4pcs	4pcs	4pcs
Number of Wheels	5	5	5	5	3	8
Wheel Type	PP	PP	PP	PP	PP	PP
Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

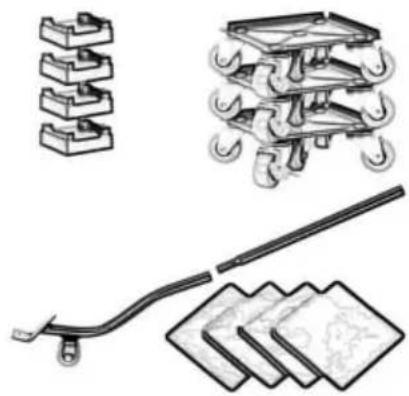

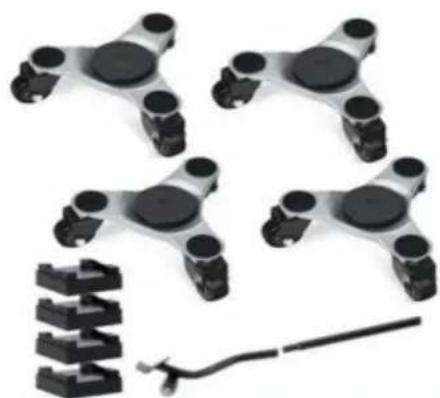

COMPONENTS

Name	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Machinery Mover	4	4	4	4	4	4
Crowbar	1	1	1	1	1	1
Raising Block	4	4	4	4	4	/
Non-slip Mat	4	4	4	4	4	/
Glove	1	1	1	1	/	/
Storage Bag	1	1	1	1	/	/
Crowbar Non-slip Mat	4	4	4	4	/	/
elastic rope	/	1	1	/	/	/
User manual	1	1	1	1	1	1

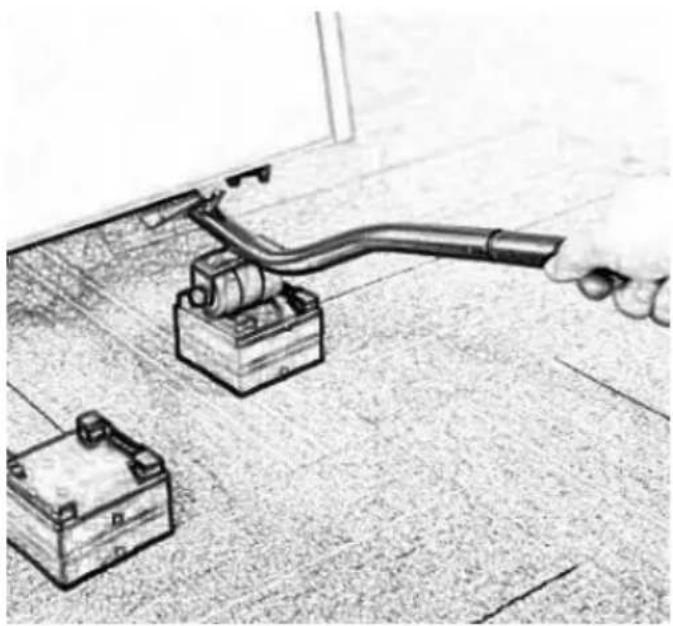

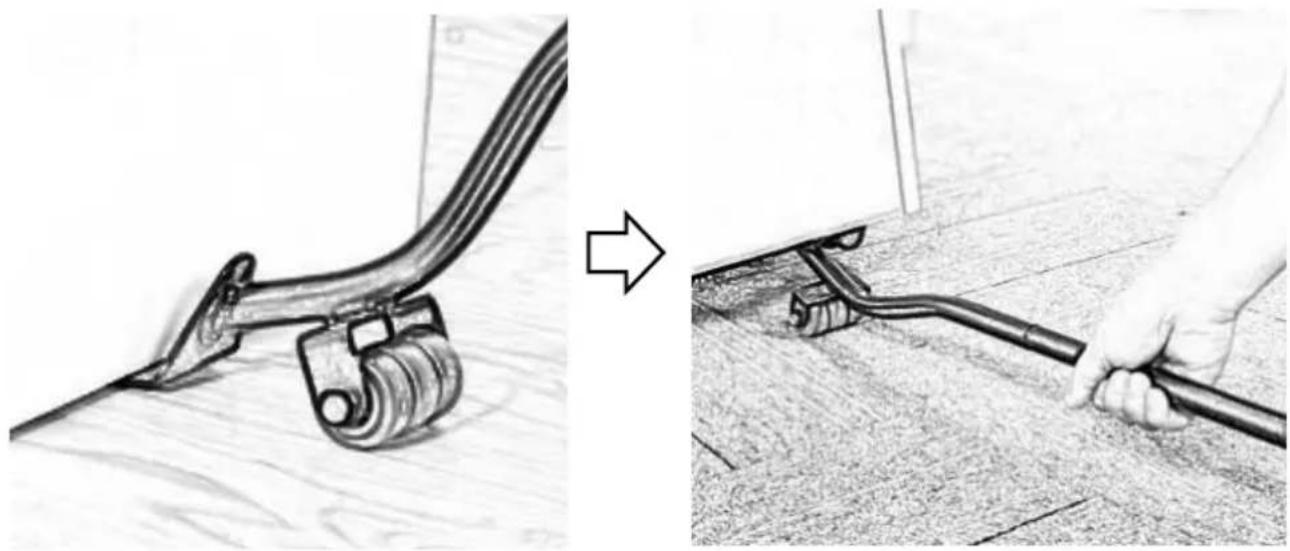

Step 1: Push the crowbar into the bottom of the furniture, hold the handle and press down.

NOTE: The crowbar is equipped with heightening pads to fit furniture of different heights.

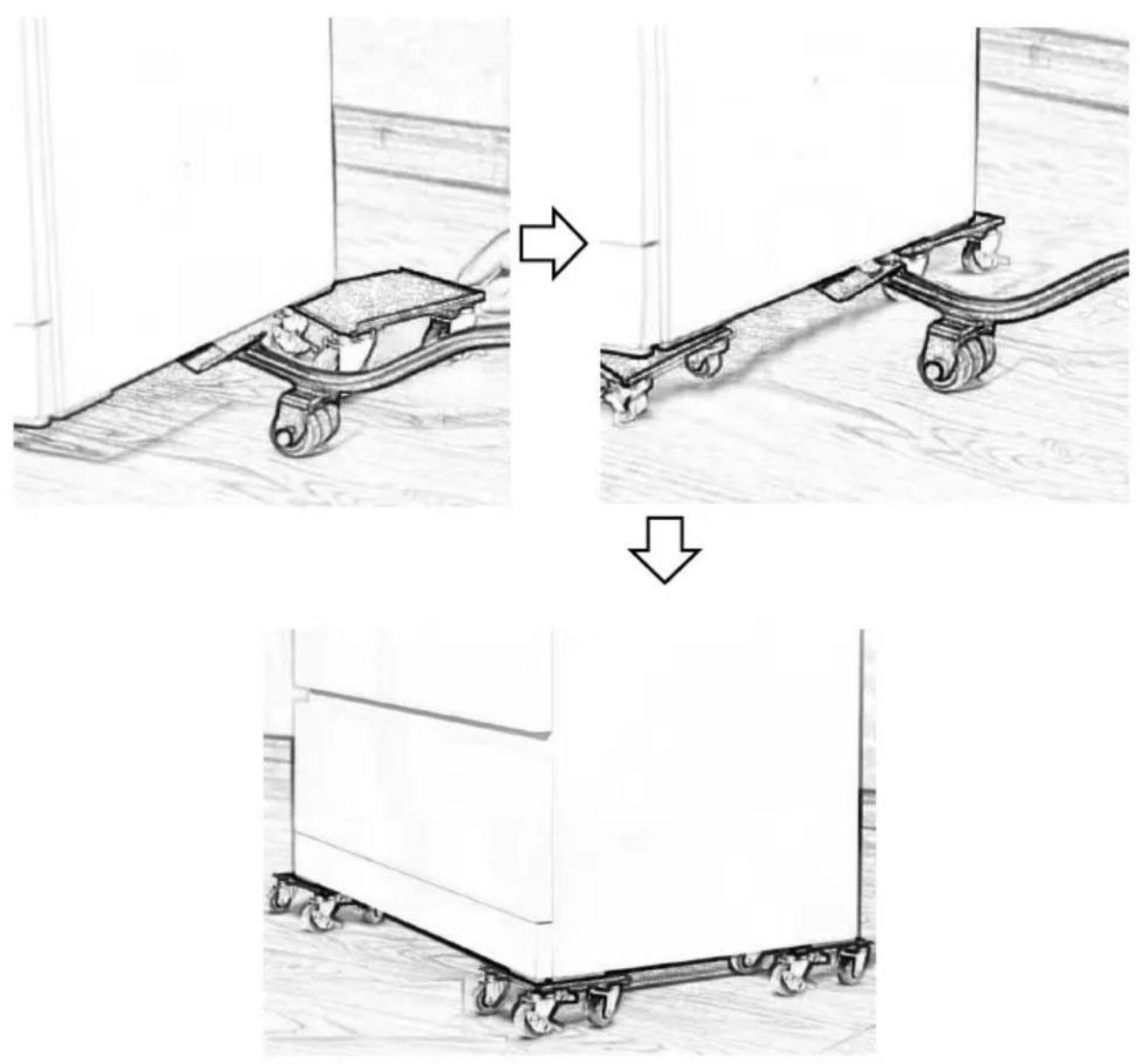

Step 2: Push household machinery movers into the bottom of the furniture, pull out the crowbar.

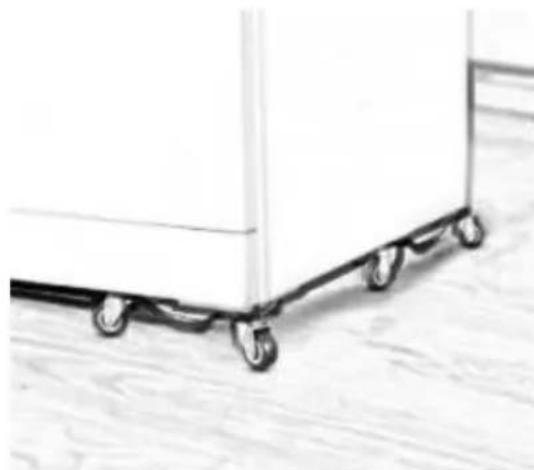

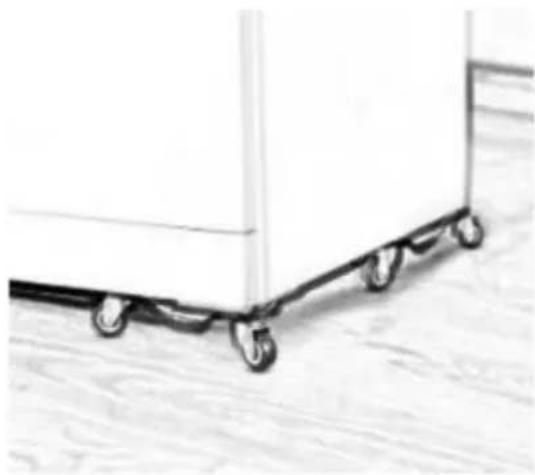

Step 3: Push 4 household machinery movers into the bottom four corners of the furniture.

Make sure the installation is secure and you can move the furniture.

NOTE:

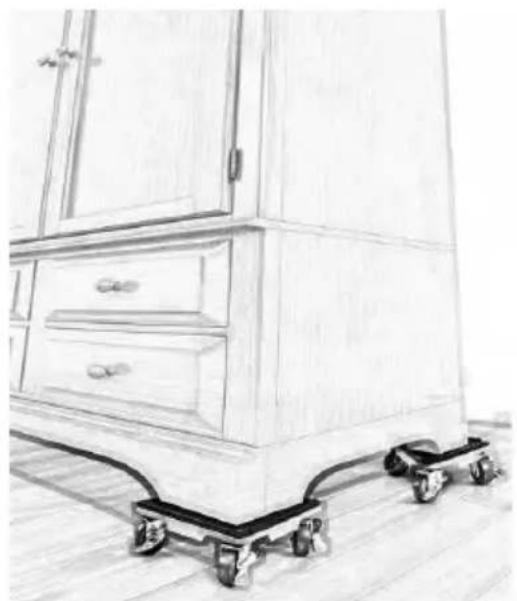

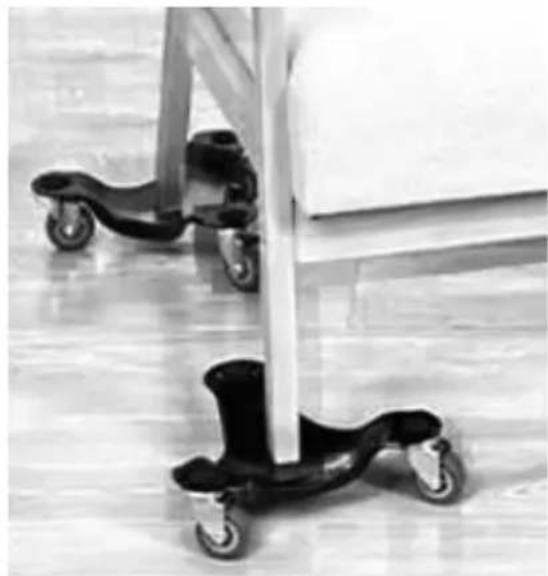

1) This product is suitable for moving furniture indoors on a flat floor. It cannot be used on uneven, soft ground, such as cement, similar cement, carpets, and so on. 2) This product is not suitable for sloping ground or ground with steps. 3) For furniture with legs, make sure the legs of the furniture are placed on the mover. The correct usage is shown below in Fig 1 and Fig 2.

Fig 1 Fig 2

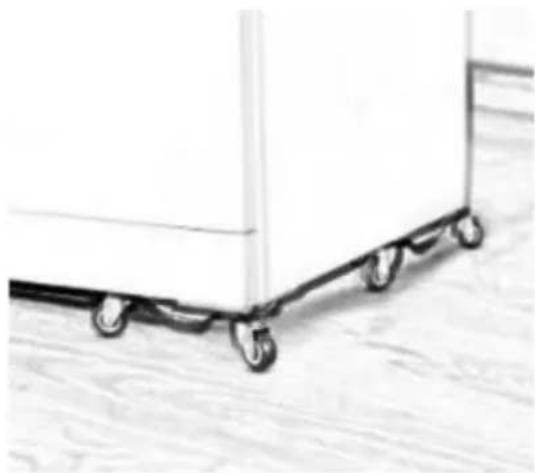

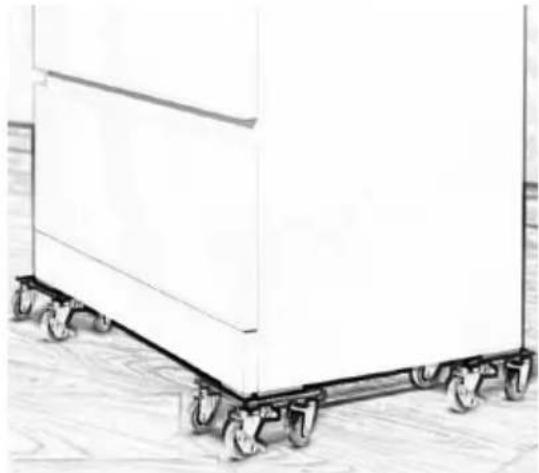

4) For bottom flat furniture, make sure the top side of the tool is placed completely on the bottom of the furniture, as shown below in Fig 3 and Fig 4.

Fig 3 Fig 4 (JYS-135)

5) When using this product, it should be moved slowly at a low speed. Excessive speed can easily cause the mover to slide out. 6) A mover equipped with universal wheels has good steering performance and requires slow rotation when turning. 7) A mover (JYD-114) equipped with directional wheels requires manual assistance when turning. 8) A mover equipped with brakes can be used when needed to prevent the mover from moving.

MAINTENANCE

1. After the mover is used, please clean it first and keep it in a dry environment.
2. Regular inspection of the mover. Replace the wheel or mover if the wheel is damaged.
3. After use, the mover with PP wheels should be cleaned in time, because the wheels can easily be damaged by sharp objects such as iron filings, sand, etc.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to Australia: Sihao Pty Ltd, 1 Rokeva Street, Eastwood NSW 2122, Australia.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730.
