Instructions

Thank you very much for choosing this slush machine.Slush machine kind of machine and equipment widely used in the food industry and catering industry,it is mainly through the frozen juice,milk or yogurt and other beverages frozen into a sorbet,and will be cut into fine particles through the scraper,made of soft taste snow ice!Please read all of the instructions before using it.The information will help you achieve the possible results.

Contents

1. Introduction
   1.1 Manufacturer
   1.2 Operator
   1.3 Manual distribution
   1.3.1 Function and content
   1.3.2 Who must read the manual
   1.3.3 How to keep the manual
2. Machine description
   2.1 Usage
   2.2 Main components
   2.3 Technical data
   2.4 Control panel
3. Safety manual
4. Transportation and storage

4.1 Packing
4.2 Transportation
4.3 Storage
5. Installation
5.1 Parts list
5.2 Position to install
5.3 Handling package material
5.4 Connecting power
6. Operation
6.1 Preparing material
6.2 Starting a 1-bowl slushmachine.
6.3 Starting a 2-bowl slush machine.
6.4 Starting· a-3-bowl.slush·machine
6.5 Dispensing the slush
6.6 Adjusting slush consistency.
6.7 Emergency.
7. Cleaning and maintenance
7.1 Empty the bowl.
7.2 Disassembling the dispensing tap
7.3 Moving out bowl and cover
7.4 Cleaning and disinfecting parts.
7.5 Resetting cleaned parts
7.6 Cleaning steps
7.7 Cleaning drip trays
7.8 Replacing the bulb

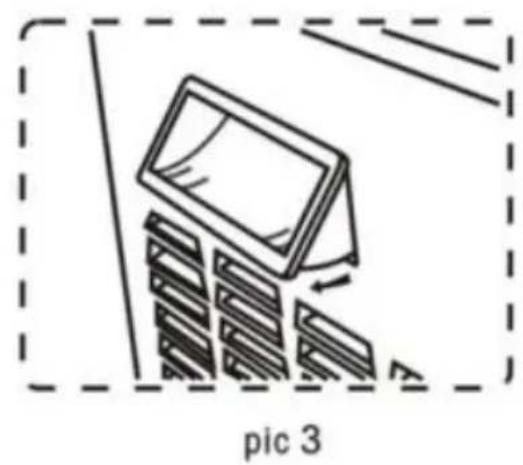

7.9 Cleaning condenser
7.9.1 Cleaning the condenser of one-bowl slush machine

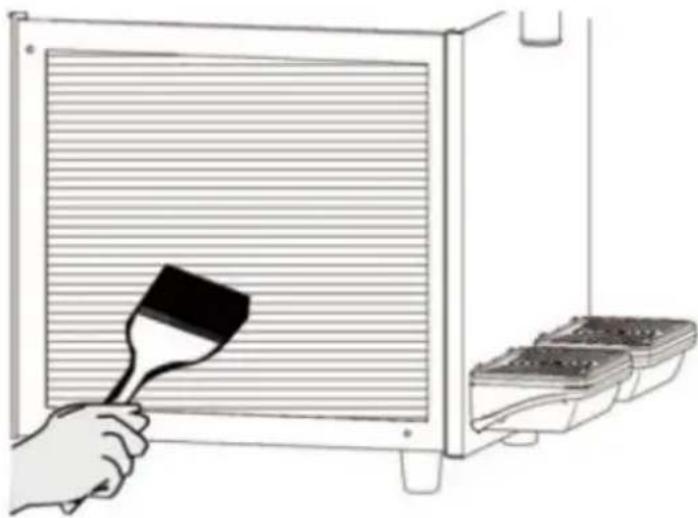

7.9.2 Cleaning the condenser of two-bowl slush machine
7.10 Scheduled maintenance
8. Waste treatment
9. Troubleshooting
10. Intelligent electrical valves system.
11. Slush machine explosive diagram.

1. Introduction

1.1 Manufacturer

The manufacturer's details are shown on the identification plate

1.2 Operator

Based on different applications. there are two types of persons.

User

In accord with Health standard people trained compel techniques,

Know all to distribute slush have below ability after reading this manu

Place and change slush machine Properly dispensing the products

Cleaning the slush machine

Specialized technical people

Studied this manual and trained how to install, use and maintain this machine;

When serious fault, can repair the slush machine and know this manual well

Master all information of the manual and can explain the diagrams and graphs correctly;

Know important hygienic knowledge well, prevent accident concurring, know technical and safety standard

Have experience to serve this kind of slush machine.

Master treatment measure to emergency. ind separated safety device a use the machine correctly

People are banned to use the machine who do not accord w above requirement

1.3 Manual distribution

Users have to read this manual carefully before using.

1.3.1 Function and content

Offer vital information of using and installing

1.3.2 Who to read manual

Users and specialized technical people.

This manual is an inseparable part of the machine.

So it needs to be delivered to the purchaser when sold.

1.3.3 How to keep manual

Manual has to be placed nearby the machine and keep intact and c

2. Machine description

2.1 Usage

This machine is specially used for making slush. If used to make da other foods, bowl material temperature needs to be tested and abide b machine's current regulation and standard

2.2 Main Component

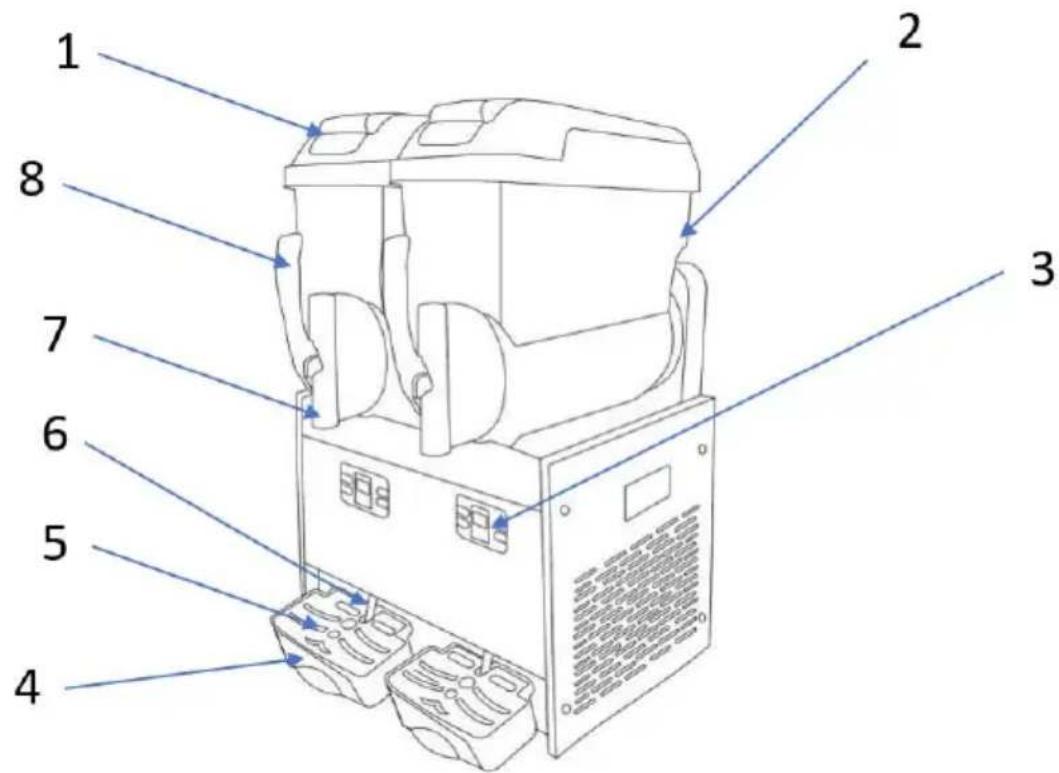

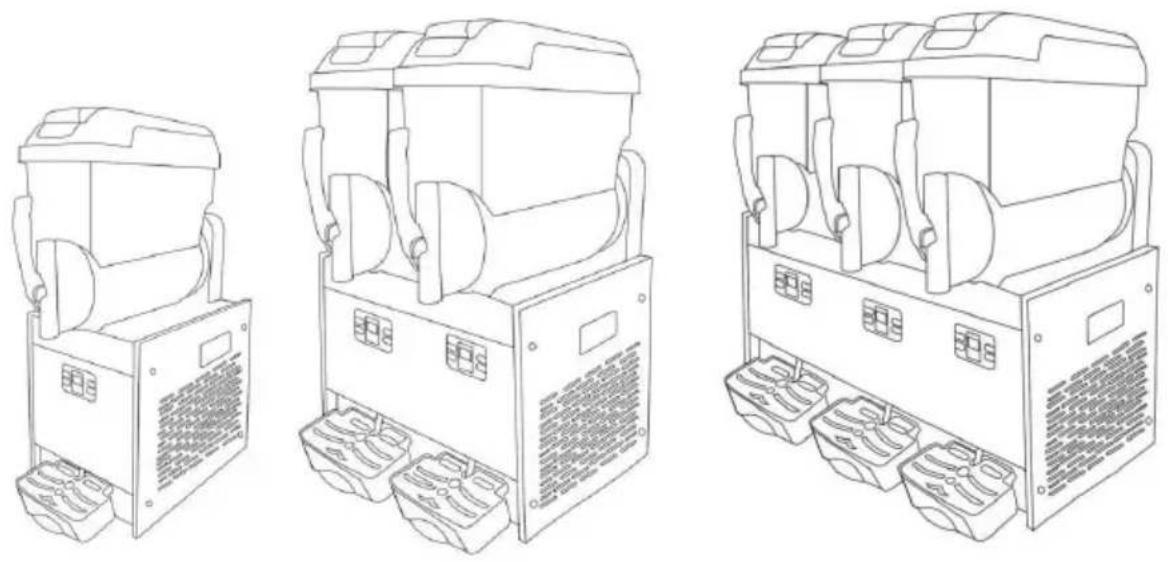

1.Bowl roof2.Bowl3.Control panel

4.Drip tray5.Drip tray cover6.Drain hose

7.Tap8.Handle

1 2 3 4 5 6 7 8

Fig.1

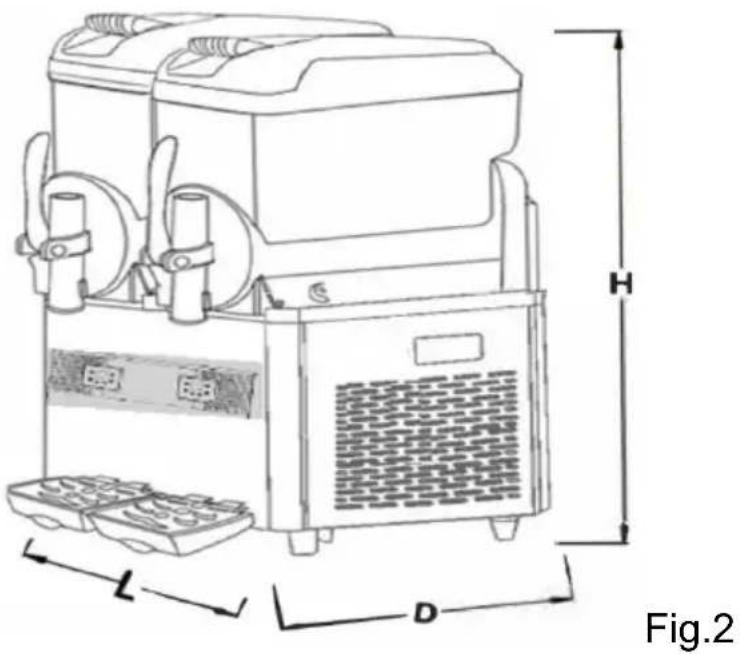

2.3 Technical data

Remarks:

Capacity and weight are approximate number

Mode	XRJ12LX1	XRJ12LX2	XRJ12LX3
Size LxDxH-(cm)	28.5x52.5x74.5	43x54x74	63x53.5x74.5
Net weight (kg) (Bow empty)	See nameplate
Power (w)	See nameplate
Liquid Temperature	Min:20°C/68°F Max:32°C/89°F
Bow	1	2	3
Bowl volume (L)	12	24	36
Noise	<65 decibel
Climate type	N

Capacity and weight are approximate number

Manufacturer has right to change and will not notice specially.

Any change and increase has to be approved and executed by manufactory.

Fig.2

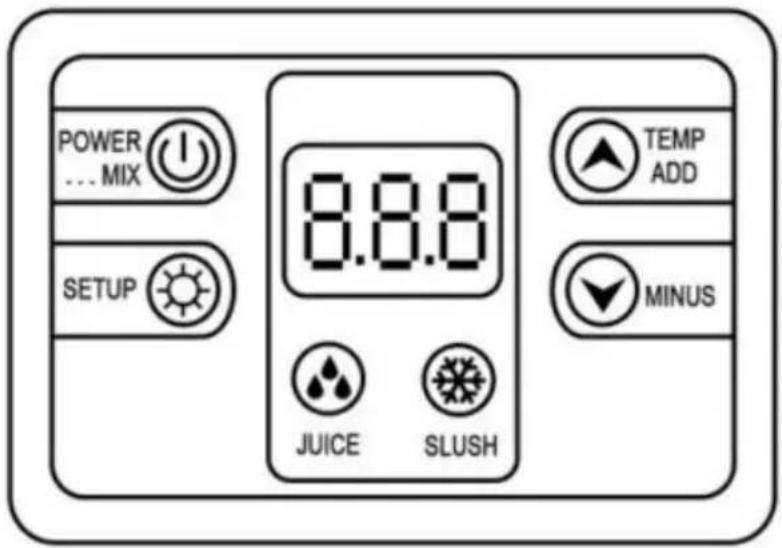

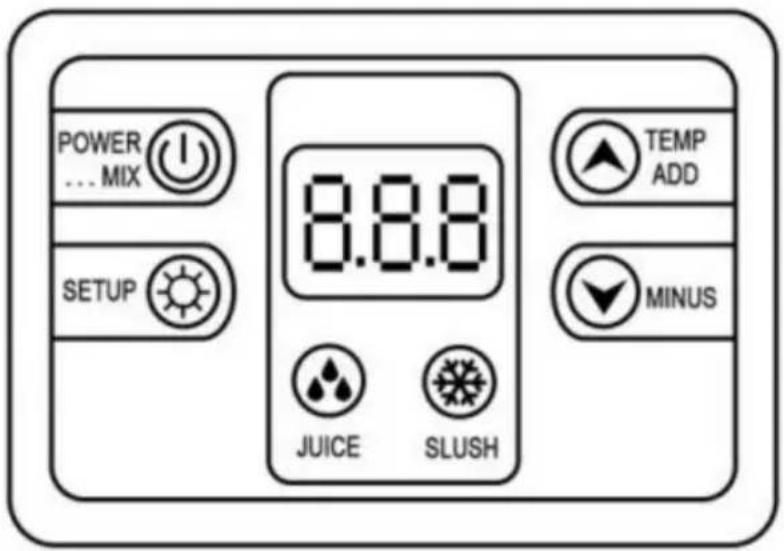

2.4 Control panel

POWER ... MIX SETUP 8.8.8 TEMP ADD MINUS JUICE SLUSH

Adjustment of slush temperature

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15℃" → "1℃" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Fig.3

3. Safety manual

Slush machine parts and condenser's installation, slush machine trouble shooting ,exclusion and maintenance have to be operated by manufacture professionals or people who have related experience.

Without experienced people monitoring or guiding, slush machine can be used by disabled, sense disable, mental disable people, lack of experience and knowledge;

Children need to be taken care of when playing nearby the machine. When machine's wire is broken, they have to be replaced by manufacture professionals or people who have related experience

When machine is scraped, it has to be delivered and handled by rela authority institutions

4. Transportation and storage

4.1 Packing

Wooden box,contoured foam&collect.

Packing size (approximate)

	Width (L)	Depth (D)	Height (H)
XRJ12LX1	385mm	585mm	910mm
XRJ12LX2	518mm	585mm	915mm
XRJ12LX3	690mm	570mm	860mm

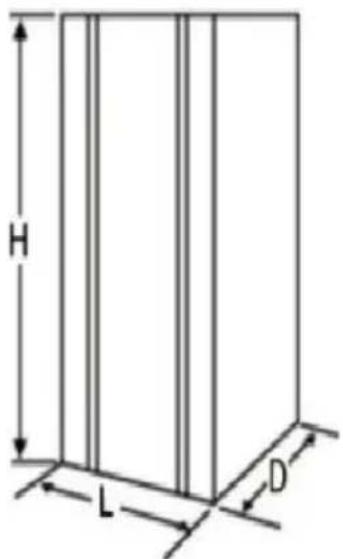

H L D

Fig.4

4.2 Transportation

Keep up ward and carried by two people at least.

4.3 Storage

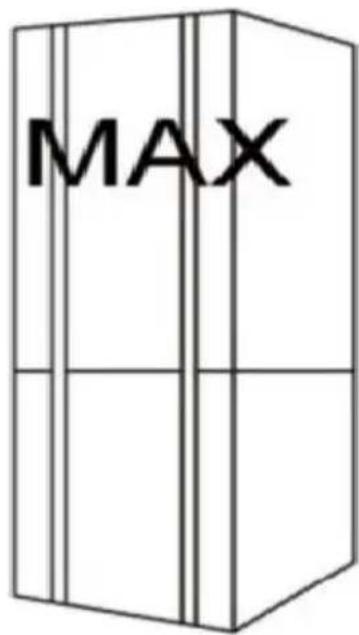

Notice please do not exceed three layers. See fig.5

MAX

Fig.5

5. Installation

The slush machine has to be installed indoor with hard and plain ground under enough light and ventilation(Ground inclination can't be more than degree)

5.1 Parts list

After cleaning and disinfecting all indicated parts in manual have to be coated with lubricating oil.

5.2 Position to install

Installation position have to be planned in advance;

Installation place have to be hard and plain

Installation condition is enough light and ventilation and clean; Power socket is also needed;

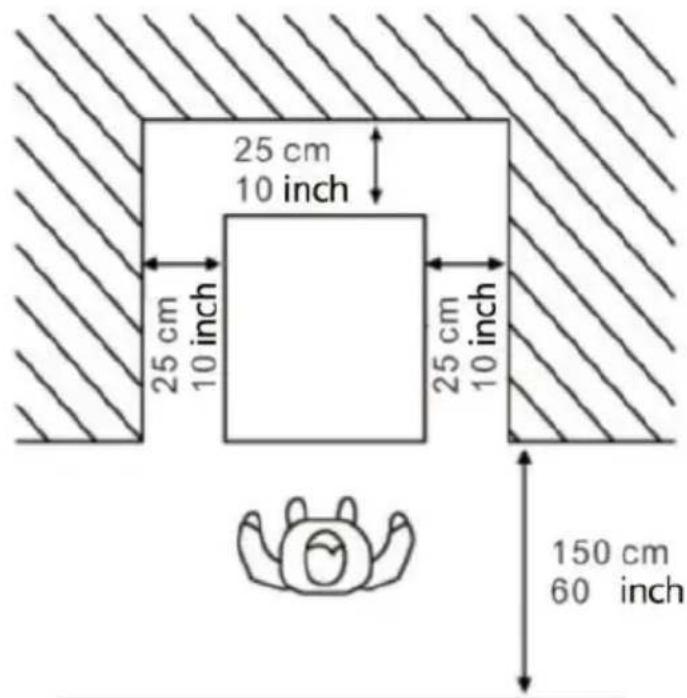

Installation distance from other objects see below fig.6

25 cm 10 inch 25 cm 10 inch 25 cm 10 inch 150 cm 60 inch

Fig.6

5.3 Handling package material

Handling packing material separately under local rules and we suggest keep it to repack and ship in future.

5.4 Electrical connection

This job may be performed only by specialized technical personnel.

Before plugging in the machine, make sure that the main switch is sw off.

The Purchaser is responsible for making the electrical connection.

The machine must be connected to the electricity mains by means of plug fitted on the power cord. Be sure to comply with:

The technical regulations and standards in force at the time of install:

The data shown on the rating plate on the side of the machine

6. Operation

Slushy(Percentage of sugar: ≥15%)	If you need to adjust the consistency of slush or ice cream you can adjust knob I: to adjust the hardness temperature of slush /margarita wine/ ice cream."+" : means thicker consistency more Lower temperature."-" : means Low consistency / higher temperature.
Margarita Wine Slush(Percentage of liquor. 10%-60%
Ice Cream(Percentage of ice cream pow≥33%)

Note: When the temperature inside bowls is very low, there will be 1 on the outside of the bowls, which is normal.

Checking the functions before the machine is working

6.1 Preparing material and stirring evenly

Only water is prohibited

Water

Fig.7

Attention:

Operate under manufacturer's direction;

Dilute and stir concentrated liquor with water in a container Mixture's content should be more than 15%. Lower content will damage the au and gear motors

If you need to make margarita wine slush, pour the

appropriate percentage of margarita into the container

according to your needs

If you want to make ice cream, the ratio of ice cream powder to water is usually 1:2.5 or 1:3, which is often recommended on the ice cream powder package.

Remove the lid as below direction:

1. Lift the top lid;

2. Pour the material into bowls

Attention: Do not open the cover by force.

Hot liquid can not be put in(hot liquid means degree exceed 40 °C

3.Close the top lid after pouring the material

1. Warning: Before connecting power or starting maoput material into bowl
2. Material can not just be water.
3. Warning: Banning petting hand in bowl machine i working

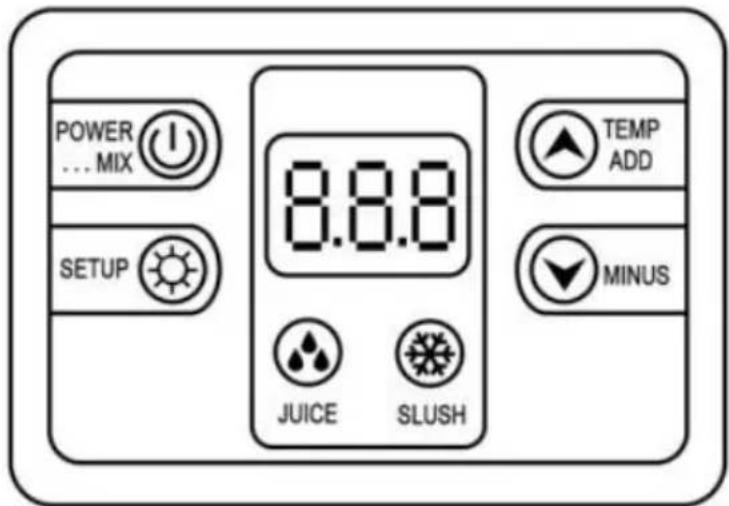

POWER ... MIX SETUP 8.8.8 TEMP ADD MINUS JUICE SLUSH

8.8.8	Display screen
	Cleaning/standby system
	Juice system
	Slush system
	Temperature Increase
	Temperature Decrease
	Settings button

6.2 Starting a 1-BOWL SLUSH MACHINE Model: XRJ12LX1

Function1 Clean System: Press "POWER MIX KEY", turn on mixing

function. Press"POWER MIX KEY" again to turn off the mixing functio Function 2 Make juice: Press the "JUICE KEY", turn on the cold drir function, and the compressor is powered on. then press the "POWER KEY" to close the juice function.

Function3 Make slush/margarita wine/ice cream: Press the "SLUSH KEY" turn on the slush/margarita wine/ice cream function, and the compressor powered on. then press the "POWER MIX KEY" to close the slush/margarita wine/ice cream function.

Function4 Light: When plugged in, the light will automatically light up you need to turn it off, just unplug the light cord connector on the machine.

6.3 Starting a 2-BOWL SLUSH MACHINEModel: XRJ12L X2

There is a control panel under each bowl to control this bowl.

Function1 Clean System: Press "POWER MIX KEY", each on mixin function. Press"POWER MIX KEY" again to turn off the mixing functio Function 2 Make juice: Press the "JUICE KEY", turn on the cold drir function, and the compressor is powered on. then press the "POWER KEY" to close the juice function.

Function3 Make slush/margarita wine/ice cream: Press the "SLUSH KEY" turn on the slush/margarita wine/ice cream function, and the compressor powered on. then press the "POWER MIX KEY" to close the slush/margarita wine/ice cream function.

Function4 Light: When plugged in, the light will automatically light up you need to turn it off, just unplug the light cord connector on the machine.

6.4 Starting a 3-BOWL SLUSH MACHINE Model: XRJ12L .X3

There is a control panel under each bowl to control each bowl.

Function1 Clean System: Press "POWER MIX KEY", turn on mixing function. Press"POWER MIX KEY" again to turn off the mixing functio Function 2 Make juice: Press the "JUICE KEY", turn on the cold drir function, and the compressor is powered on. then press the "POWER

KEY"to close the juice function.

Function3 Make slush/margarita wine/ice cream: Press the "SLUSH KEY" turn on the slush/margarita wine/ice cream function, and the compressor powered on. then press the "POWER MIX KEY" to close the slush/margarita wine/ice cream function.

Function4 Light: When plugged in, the light will automatically light up you need to turn it off, just unplug the light cord connector on the machine.

6.5 Dispensing slush

Pulling down the handle and slush will outflow from

Attention: if dispense slush first time or after

a long stop, please extrude and waste a little and then distribute customers.

7. Cleaning and maintenance

Before cleaning or maintaining external parts, please ensure main switch off and unplugged.

Any cleaning or maintaining protection supplies needs to wear (gloves. glasses an so on) based on local safety standard

When cleaning or maintaining, operate as below.

Wear protective gloves against an accident.

Do not use solvent or flammable substance

Do not use tough or metal sponge to clean machine or its parts

Do not spray liquid to nearby area.

Do not wash parts in the bowl

Do not dry parts in furnace or microwave oven.

Do not immerse the machine in water

Do not spray the water to the machine directly.

Warm water and approximate cleaner can be used (abiding by local

and rules)

After finishing, make sure that all protective covers and guards that have been removed or opened and sent back in place and properly secure. Cleanliness and hygiene have to be taken carefully and forcibly based on local standard to ensure qualified slush

Bowl needs to be cleaned everyday at least and abiding by local law regulations

And cleaning times may be added based on different products. More information, please consult the manufacturer if machine will not be used one day continuously please clean dispensing taps with clean rag.

Even though machine's components of stainless steel, plastic and rub are easy to clean as well as its shape, it is still necessary to prevent and fungi reproduction due to halfway cleaning. When the plug is not out or the total switch is in the open state, do not clean or maintain a machine.

7.1 Empty the bowl

Before cleaning bowl , empty the bowl

If it is the first time to use, no need to make it empty .

This manual just explains one bowl as sample

Other bowls' operations are the same based on their related button. Pl click the power key and the key"STRIR", then pour material out from

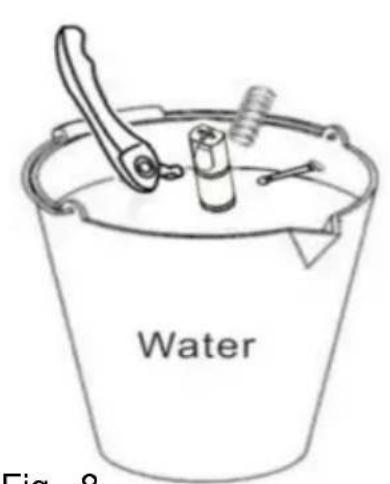

7.2 Disassembling the dispensing tap

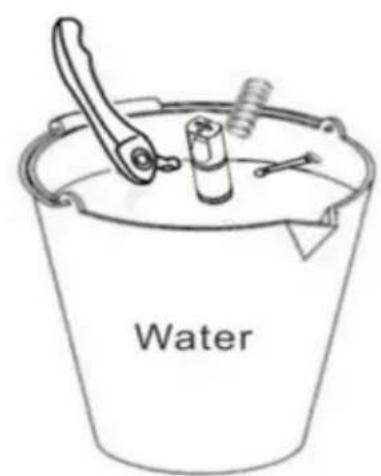

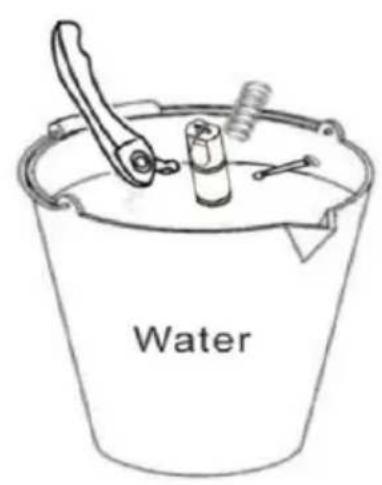

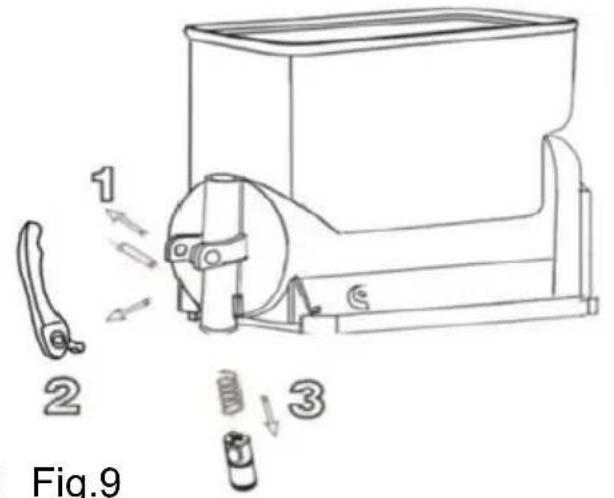

Before removing the bowl, it is recommended to disassemble the tap. cleaning ,the tap must not be reapplied until the bowl has been composed in its seat. Remove fastener by hand , then disconnect the dispensing handle by pushing upward, then push the piston and spring downward, remove the 0-ring. Put all spare parts in lukewarm water(temperature around 50"C)and clean as shown in. fig.9

1 2 3 Fig.9

Water

Fig.8 Fig.9

Do not disassemble taps when there are products or liquid in bowls

7.3 Moving out the bowl and cover

Move out every bowl to clean the machine.

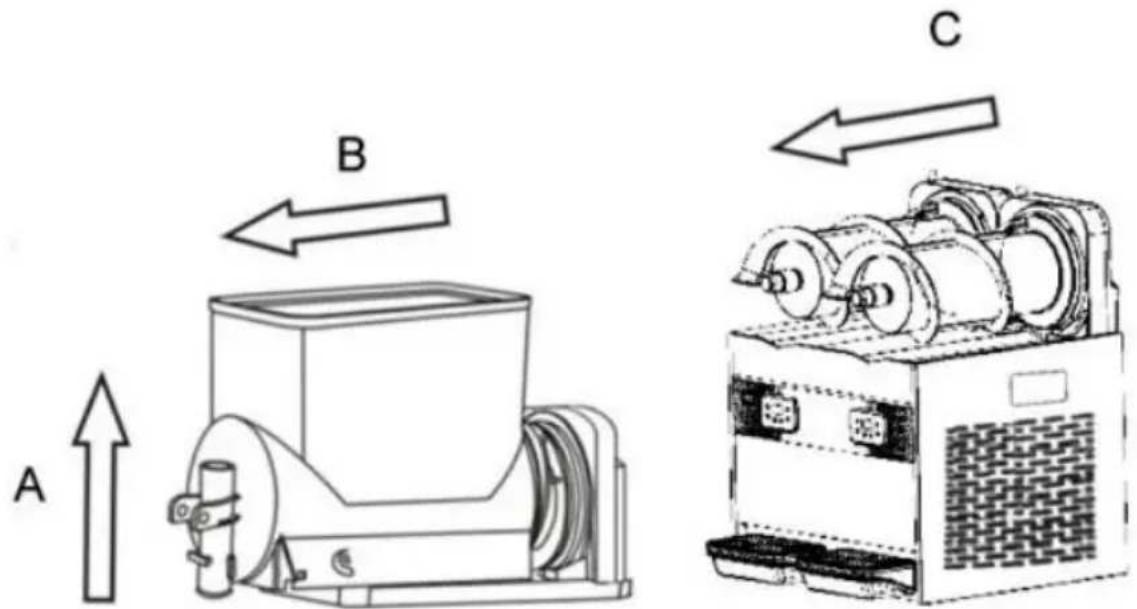

Move out the bowl as below steps:

1. Lift the top cover upward and take it out.

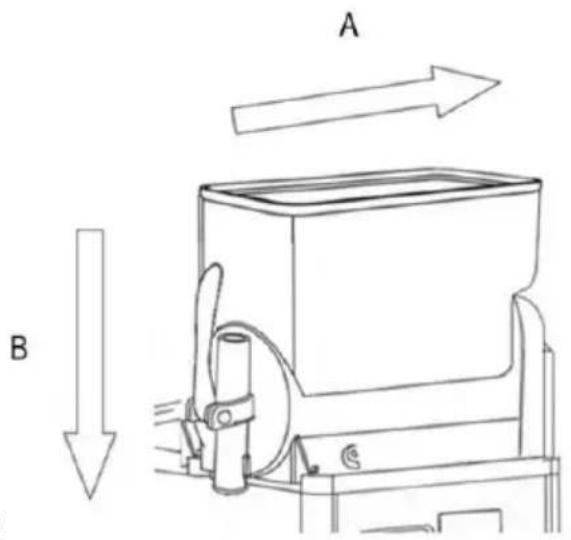

pull the tank upward and outward to completely remove it from its se

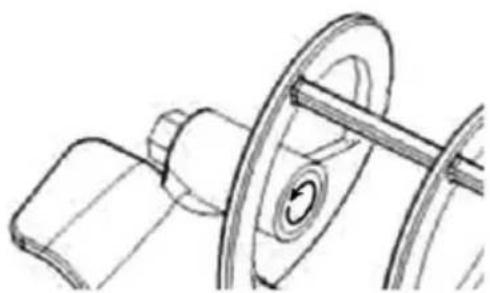

1. Take out the stirrer and the seal of stirrer. See fig.10.

A B C

Fig.10

7.4 Clean and disinfect parts

All dismantled parts should be cleaned thoroughly

Importance: Cleaning way has abide by local current hygiene standard.

Please operate as below instructions:

Pour water in the container. And then mix sanitizer with water (Add sodium hypochlorite to water)

Using a sponge with sanitizer to clean bowls, covers and evaporators thoroughly, cleaning with water thoroughly

Add sanitizer to another container.

Put dismantled parts in sanitizer for 30 minutes.

Repeat cleaning with water thoroughly .

Make the parts dry.

Assemble machine under 7.5instruction.

Using a sponge with sanitizer clean the roof and the parts touching material.

Line drawing of a mechanical component with threaded end (no text or symbols)

Fig.11

Remain for 30 minutes

Clean bottom surface with water 2-3 times by the sponge.

Put the cover at clean area and dry it by rag

Ban cleaning by water or disinfecting before taking away the cover

7.5 Reset cleaned parts

All disinfected parts have to be reassembled carefully.

Some parts need to be lubricated to work normally

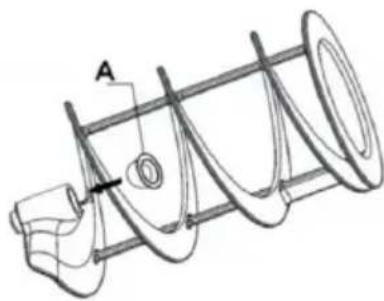

Put gasket (A) on stirrer.see Fig.12

Technical line drawing of a mechanical component with helical grooves and a labeled section A (no text or symbols beyond label)

Fig.12

Importance: Check gasket in regular if broken. Please replace a new one. Replace gasket(A) once at least one year Using the grease provided, lubricate the seal A) see Fig.13

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Fig.13

Install the gasket (B), lubricate it with grease as circle arrow n See Fig 14

Line drawing of a mechanical device with spools and a control panel, no text or symbols present

Fig.14

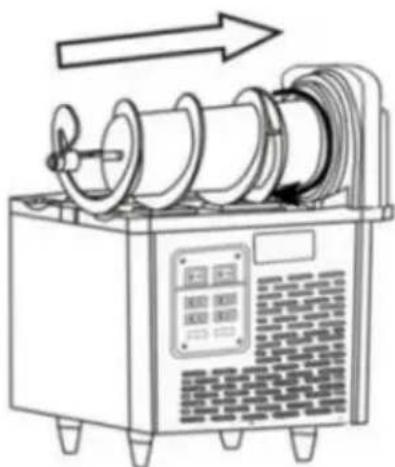

Put stirrer on to the stainless steel cylinder as straight arrow,

Fig.14. Attention: Adjust the stirrer to appropriate location.

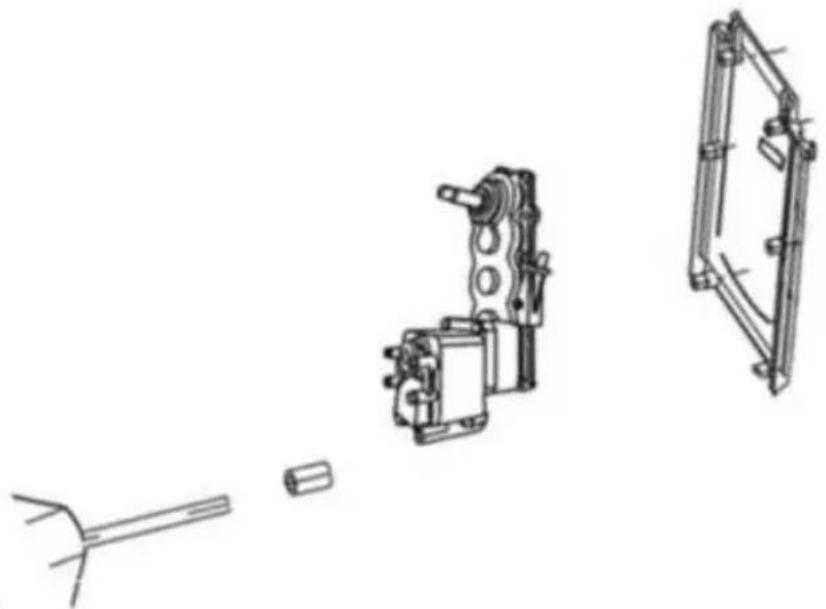

Replace the seal ring. When the motor part leaks, you need to replace the seal ring

Take out the motor bracket connected to the motor and then replace head seal ring(washer of axis, seal of axis).

When replacing. You need to add some grease. Then install the motor bracket connected to the motor.

See fig.15

Technical line drawing of mechanical components including a shaft, housing, and frame (no text or symbols)

Fig.15

Assemble the bowl and install the cover as Fig.16

A B

Fig.16

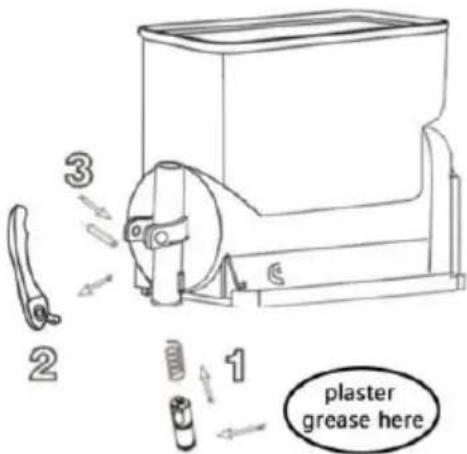

Install taps as below instructions as Fig.17

1. Lubricate bolt totally with grease.

2. Insert screw, when taps steady.

2 3 1 plaster grease here

Fig.17

Attention: install all parts under figures instructions.

Please apply grease well to prevent liquid leakage.

7.6 Cleaning step

Before using this machine, below cleaning steps are needed

1. Fill bowl with water fully

2.Start machine only in cleaning mode and stir for 5 minutes

1. Stop machine and open tap to clear container.

7.7 Cleaning drip trays

Drip tray should be emptied and cleaned everyday

Attention: All machine drip trays should be cleaned.

Drip trays need to be emptied and cleaned. Take out water tray by upward and then outward.

Washing the tray and grid. Separately with lukewarm water.

Dry all of the components. Fit the tray back in place and press down to secure it to the machine. Reposition the grid on top of the tray.

When machines stopped, cleaning by wet rag and dry the parts.

7.8 Replace bulb

Only when machine power is off and unplugged, the bulb can replaced According to below figure, open the inner cover, replace the LED bulb, after assembly put the inner cover back, confirm being cl well.

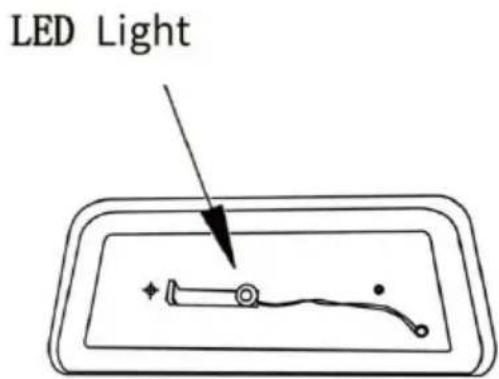

LED Light

Fig.18

7.9 Cleaning the condenser

Only professionals can clean the condenser. They know all operating well, using approximate device and abide by local law and regulation strictly

Condensers needs to be cleaned in regular.

Warning: Machine sharp surface may reveal after dismantling safety protection parts.

Dirty condenser will weaken machine function.

Condensers can be seen after taking out safety protection parts.

Even though only one plate (front or back or side) is not installed the machine is also banned to use.

Operators are banned to clean condensers

Protection parts need to be positioned by Screwdrivers

Fig:19

Panel Dismounting Method

Simple line drawing of a rectangular object with internal features, enclosed in a dashed border, and two separate rectangular blocks below labeled 'pic1' (no text or symbols on the objects themselves)

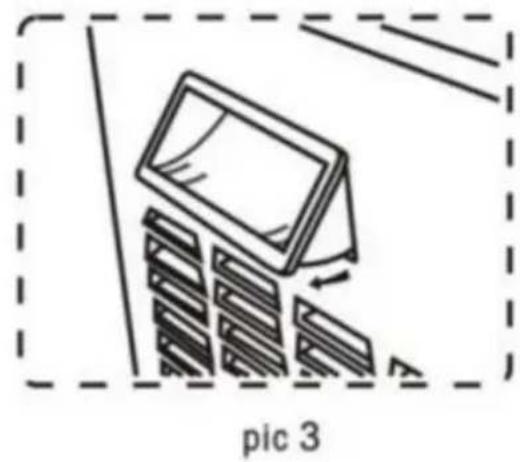

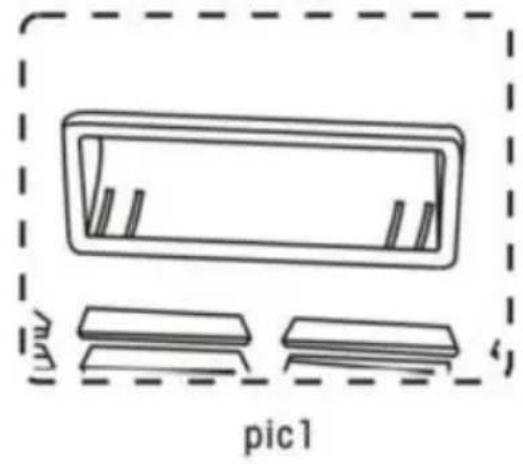

In order to take off the panel, we have to take off the handle first (see pic 1)

Diagram of a mechanical assembly with labeled components, showing a tool interacting with a component inside a dashed boundary (no text or symbols on the diagram itself)

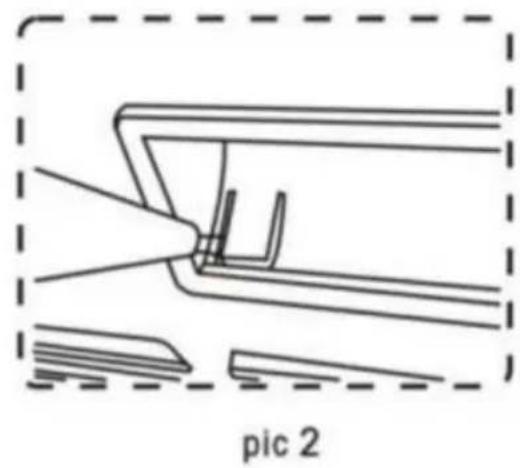

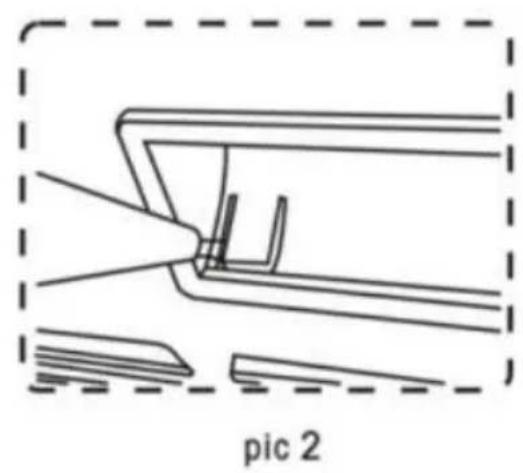

Using slot type screwdriver pry up the panel side (see pic 2)

Illustration of a monitor with stacked books, enclosed in a dashed border (no text or symbols)

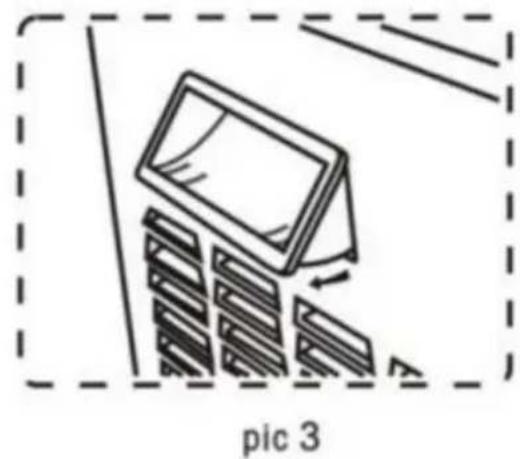

Pry up both side of the handle, then take off the handle from panel

7.9.1 Cleaning the condenser of one-bowl slush machine

Safety protection parts need screwdrivers to fasten and dismantle.

1. Loose side panel screw.
2. Take out side panel

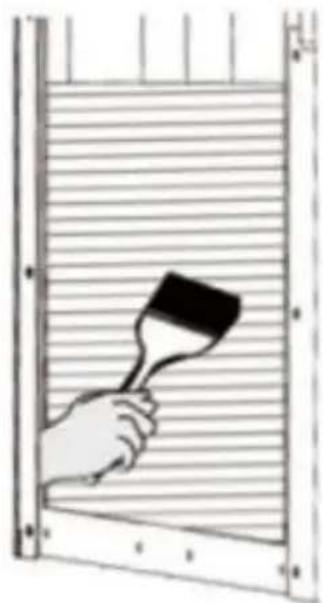

3. Dismantle safety protection parts. Brush dust from condenser surfac with dry brush as Fig20

Illustration of a hand holding a paintbrush over a window frame (no text or symbols)

Fig.20

After cleaning condenser, reposition safety protection parts

7.9.2 Cleaning the condenser of two-bowl slush machine According to the following instructions

1. Loose the crews of the back plate.
2. Loose the screws of the side plate.
3. Take out the side panel.

Dismantle safety protection parts.

Brush dust from the condenser surface with dry brush as below.

Illustration of a hand using a paintbrush to clean or store air quality inside a microwave oven (no text or symbols)

Fig.21

7.10 Scheduled maintenance

This machine needs to be maintained by professionals in regular(at le year).

Regular maintenance can ensure machine and its parts in good safety state

Any broken parts need to be replaced with original manufacturer

When any parts of machine are malfunctioned or broken machine is banned to use.

The user can not maintain the machine himself

8. Waste treatment

Electronic waste need to be handled according to2002/96/EC

But wastes need to be dismantled and classified and useful parts should be recycled

Above rubbish bin reminds people classifying. rubbish. Treating wastes correctly protectorate our environment.

9. Troubleshooting

Trouble	Potential reasons	Solution
Can not turn on the machine	No input power	Insert the plug into the appropriate socket
	Not pressed the switch	Press the switch
Outlet leaking	Outlet without Vaseline	Add Vaseline on outlet
	Outlet broken	Change the outlet
Bowl leaking	The bowl not be installable suitable position	Check the bowl position
	No Vaseline on bowl's ring	Add Vaseline on seal ring
	Bad seal ring	Change the seal ring
The stirrer n working	Not turn on the main sv	Turn on the main swit
	Bowl inside freezing	Turn off the main switch and let the ice melting
The machine not making slush	Not turn on the main sv	Turn on the main swit
	Not turn on the Freeze b	Turn on the Freeze butt
	The slush thickness is r suitable	Adjust the slush thickness
	Condenser too dirty/poor ventilation	Clean the condenser
	Slush machine approach the hot position	Put the machine in a o position
The stirrer makes noisy	The sugar level of water too low	Increase the sugar leve
	The back of stainless st cylinder is too dry	Add some concentrated water on it

10. Intelligent electronic valve system

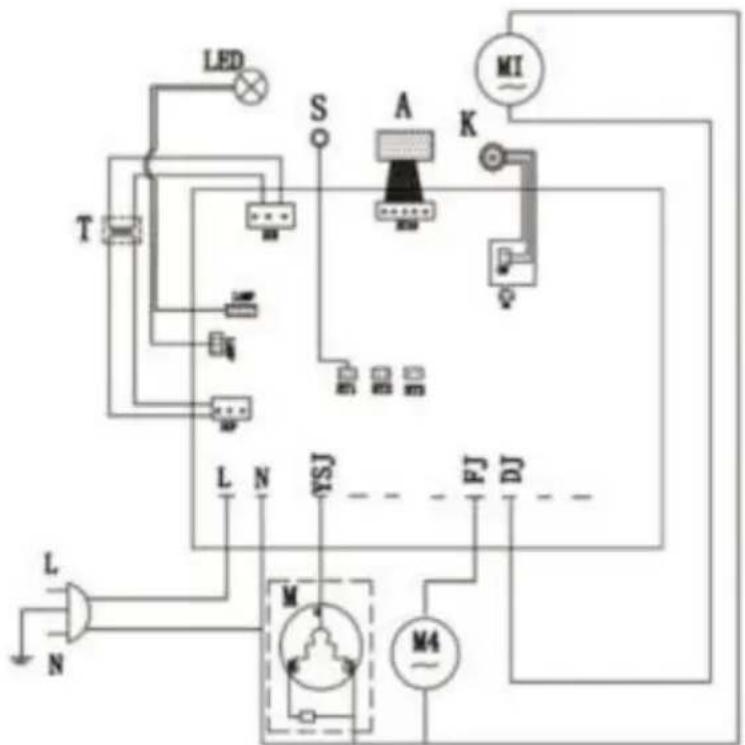

Electrical diagram-XRJ12LX1

LED T S A K MI L N FSJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

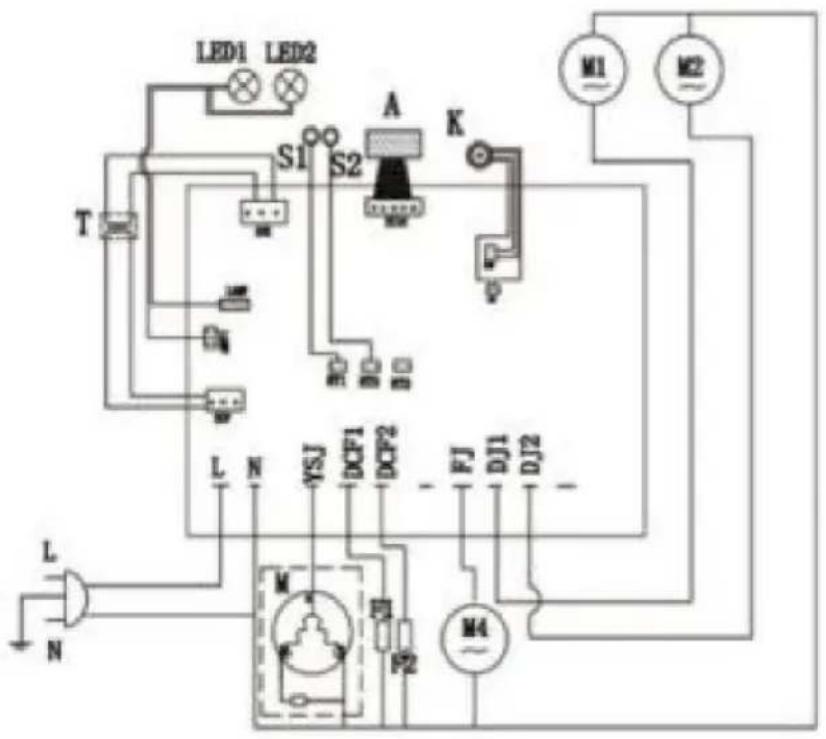

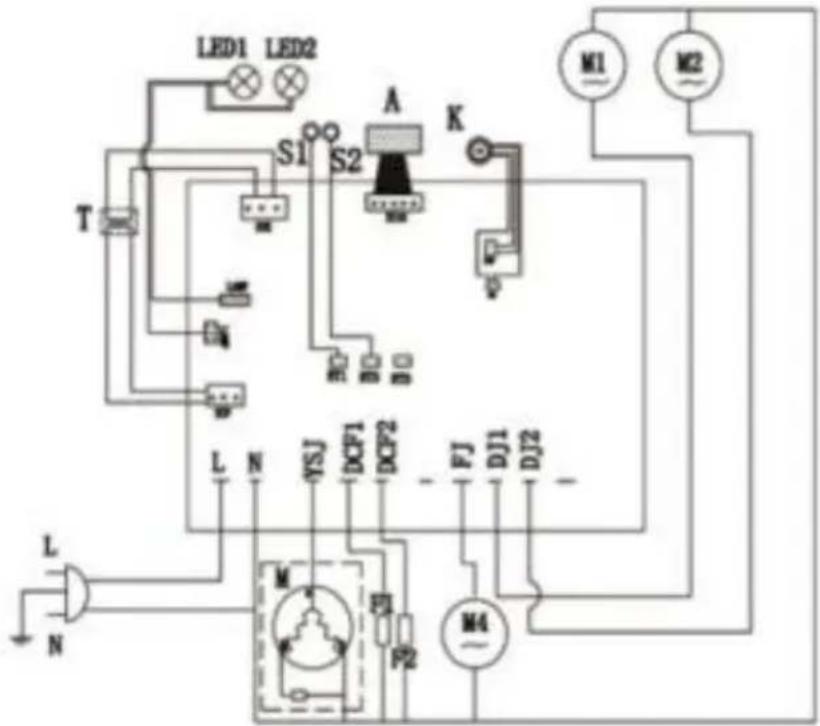

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T M1 M2 L N YSJ DCF1 DCF2 FJ DJ1 DJ2 L N M M4 N

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

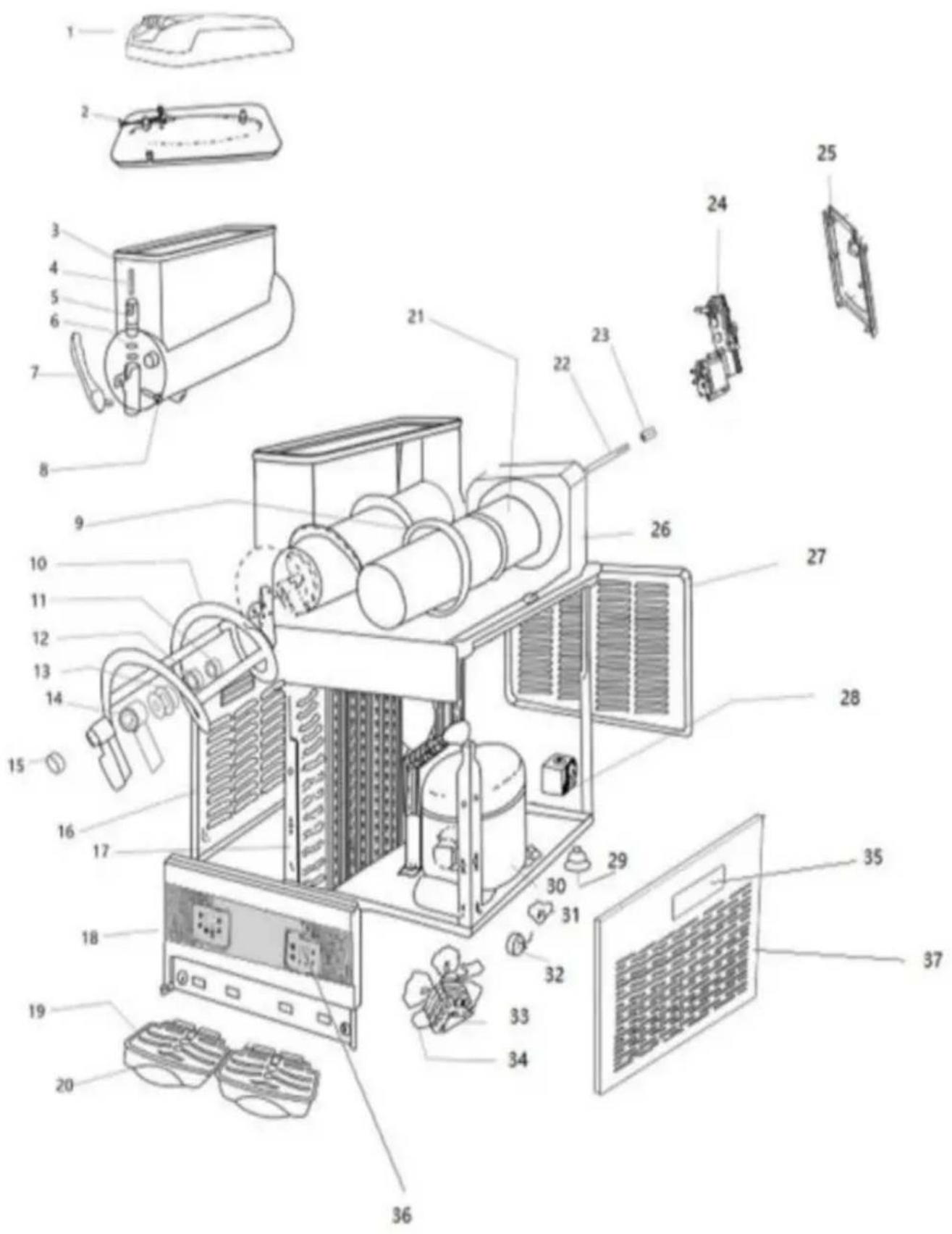

11.Slush machine explosive diagram

Exploded view diagram of an air conditioner unit with numbered parts for identification

Code	Parts Name
1	Roof
2	Inner cover
3	Tank
4	Spring
5	Plunger
6	Small seal ring
7	Handle
8	Pin of handle
9	Tank seal ring
10	Stirrer
11	Washer of axis
12	Seal of axis
13	Seal of stirrer
14	Connect of stirrer
15	Plug
16	Left side panel
17	Condenser
18	Front panel
19	Grid
20	Water tray
21	Evaporator
22	Stir rod

Code	Parts Name
23	Copper bush
24	Mix motor
25	Back panel of motor fram
26	Fixed board
27	Back panel
28	Solenoid valve assembly
29	Foot
30	Compressor
31	Regenerator of compressor
32	Tutamen
33	Fan motor
34	Fan
35	Side panel handle
36	Control board
37	Right side panel

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawings of three industrial equipment units with heat sinks and ventilation grilles (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical line drawing of a portable air purifier with labeled dimensions H, D, and L

Fig.2

Adjustment of slush temperature

"TEMP ADD" → "MINUS" "0°C" → "-15°C" (32°F) (5°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15℃" → "1℃" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Fig.3

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

Water

Fig.9Fig.8

Line drawing of a mechanical component with threaded end (no text or symbols)

Fig.11

Rester 30 minutes

Technical line drawing of a mechanical component with helical grooves and a labeled section A (no text or symbols beyond label)

Fig.12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Fig.13

Line drawing of a mechanical device with coiled components and an arrow indicating direction (no text or symbols)

Fig.14

Technical line drawings of mechanical components including a rod, cylindrical part, and frame assembly (no text or labels)

Fig.15

2 3 1 plaster grease here

Fig.17

LED Light

Fig.18

Simple line drawing of a rectangular object with internal vertical bars, and two separate rectangular blocks below, labeled 'pic1' (no text or symbols on the objects themselves)

In order to take off the panel, we have to take off the handle first (see pic 1)

Pure technical line drawing of a mechanical component with no text or symbols

Using slot type screwdriver pry up the panel side (see pic 2)

Illustration of a monitor with a stack of books, no text or symbols present

Pry up both side of the handle, then take off the handle from panel

Illustration of a hand holding a paintbrush near a window frame (no text or symbols)

Fig.20

Illustration of a hand using a paintbrush to clean or store air quality near a microwave oven (no text or symbols)

Fig.21

LED T S A K MI L N SJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T EN L N VSJ DCP1 DCP2 FJ DJ1 DJ2 M N L M4 M1 M2

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

Exploded view diagram of an air conditioner unit with numbered parts for identification

www.vevor.com/support

Slush-Maschine

MODELL: XRJ12LX1 XRJ12LX2 XRJ12LX3

Line drawings of three industrial cooling unit designs with heat sinks and fan bases (no text or symbols)

H L D Abb.2

2.4 Bedienfeld

POWER ... MIX SETUP 8.8.8 TEMP ADD MINUS JUICE SLUSH

Adjustment of slush temperature

"TEMP ADD" → "MINUS" "0°C" → "-15°C" (32°F) (5°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15°C" → "1°C" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Abb.3

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

Water

Abb.9Abb.8

Line drawing of a mechanical component with threaded end (no text or symbols)

Abb.11

Technical line drawing of a coiled spring or helical component with labeled section A (no text or symbols beyond label)

Abb.12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Abb.13

Line drawing of a mechanical device with coiled components and an arrow indicating direction (no text or symbols)

Abb.14

Technical line drawings of mechanical components including a rod, cylindrical part, and frame assembly (no text or labels)

Abb.15

LED Light

Abb.18

7.9 Kondensator reinigen

Simple line drawing of a rectangular object with internal vertical bars, and two separate rectangular blocks below, labeled 'pic1' (no text or symbols on the objects themselves)

In order to take off the panel, we have to take off the handle first (see pic 1)

Pure technical line drawing of a mechanical component with no text or symbols

Using slot type screwdriver pry up the panel side (see pic 2)

Illustration of a monitor with stacked books and a stack of books, enclosed in a dashed border (no text or symbols)

Pry up both side of the handle, then take off the handle from panel

Illustration of a hand holding a paintbrush near a window frame (no text or symbols)

Abb.20

Illustration of a hand using a paintbrush to clean or store air from a microwave oven (no text or symbols)

Abb.21

LED T S A K MI L N SJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T EN L N VSJ DCP1 DCP2 FJ DJ1 DJ2 M N L M4 M1 M2

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

Exploded view diagram of an air conditioner unit with numbered parts for identification

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

MACCHINA PER GRANITO

MODELLO: XRJ12LX1 XRJ12LX2 XRJ12LX3

Line drawings of three different industrial equipment units with heat sinks and ventilation grilles (no text or symbols)

Technical line drawing of a mechanical device with labeled dimensions H, D, and L

Figura 2

Adjustment of slush temperature

"TEMP ADD" → "MINUS" "0°C" → "-15°C" (32°F) (5°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15℃" → "1℃" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Figura 3

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

Water Figure 8

Figura 9 Figura 8

Line drawing of a mechanical component with threaded end (no text or symbols)

Figura 11

Technical line drawing of a coiled spring or helical component with labeled section A (no text or symbols beyond label)

Figura 12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Figura 13

Line drawing of a mechanical device with coiled components and an arrow indicating direction (no text or symbols)

Figura 14

Technical line drawings of mechanical components including a rod, cylindrical part, and frame assembly (no text or labels)

Figura 15

2 3 1 plaster grease here

Figura 17

LED Light

Figura 18

Simple line drawing of a rectangular object with internal vertical bars, and two separate rectangular blocks below, labeled 'pic1' (no text or symbols on the objects themselves)

In order to take off the panel, we have to take off the handle first (see pic 1)

Pure technical line drawing of a mechanical component with no text or symbols

Using slot type screwdriver pry up the panel side (see pic 2)

Illustration of a monitor with a stack of books, no text or symbols present

Pry up both side of the handle, then take off the handle from panel

Illustration of a hand holding a paintbrush near a window frame (no text or symbols)

Figura 20

Illustration of a hand using a paintbrush to clean or store air from a microwave oven (no text or symbols)

Figura 21

LED T S A K MI L N SJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T EN L N VSJ DCP1 DCP2 FJ DJ1 DJ2 M N L N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

Exploded view diagram of an air conditioner unit with numbered parts for identification

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawings of three different industrial cooling unit designs (no text or symbols)

Technical line drawing of a portable air purifier with labeled dimensions H, D, and L

Figura 2

2.4 Panel de control

POWER ... MIX SETUP 8.8.8 TEMP ADD MINUS JUICE SLUSH

Adjustment of slush temperature

"TEMP ADD" → "MINUS" "0°C" → "-15°C" (32°F) (5°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15℃" → "1℃" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Figura 3

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

Figura 8

Water

Figura 9

Line drawing of a mechanical component with threaded end (no text or symbols)

Figura 11

Technical line drawing of a coiled spring or helical component with labeled section A (no text or symbols beyond label)

Figura 12

Technical line drawing of a mechanical assembly with pulley and housing (no text or symbols)

Figura 13

Line drawing of a mechanical device with coiled components and an arrow indicating direction (no text or symbols)

Figura 14

Technical line drawings of mechanical components including a shaft, housing, and frame (no text or symbols)

Figura 15

2 3 1 plaster grease here

Figura 17

LED Light

Figura 18

Simple line drawing of a rectangular object with internal vertical bars, and two separate rectangular blocks below, labeled 'pic1' (no text or symbols on the objects themselves)

In order to take off the panel, we have to take off the handle first (see pic 1)

Pure technical line drawing of a mechanical component with no text or symbols

Using slot type screwdriver pry up the panel side (see pic 2)

Illustration of a monitor with a stack of books, no text or symbols present

Pry up both side of the handle, then take off the handle from panel

Illustration of a hand holding a paintbrush near a window frame (no text or symbols)

Figura 20

Illustration of a hand using a paintbrush to clean or store air from a microwave oven (no text or symbols)

Figura 21

LED T S A K MI L N SJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T EN L N VSJ DCP1 DCP2 FJ DJ1 DJ2 M N L N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

Exploded view diagram of an air conditioner unit with numbered parts for identification

Technical line drawing of a portable air purifier with labeled dimensions H, D, and L

Rys.2

Adjustment of slush temperature

"TEMP ADD" → "MINUS" "0°C" → "-15°C" (32°F) (5°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15°C" → "1°C" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Ryc.3

Line drawing of a mechanical component with threaded end (no text or symbols)

Ryc.11

Technical line drawing of a mechanical component with helical grooves and a labeled section A (no text or symbols beyond label)

Ryc.12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Ryc.13

Line drawing of a mechanical device with coiled components and an arrow indicating direction (no text or symbols)

Ryc.14

Technical line drawing of mechanical components including a rod, cylindrical part, and frame assembly (no text or symbols)

Ryc.15

2 3 1 plaster grease here

Ryc.17

LED Light

Ryc.18

Simple line drawing of a rectangular object with internal vertical bars, and two separate rectangular blocks below, labeled 'pic1' (no text or symbols on the objects themselves)

In order to take off the panel, we have to take off the handle first (see pic 1)

Pure technical line drawing of a mechanical component with no text or symbols

Using slot type screwdriver pry up the panel side (see pic 2)

Diagram of a monitor with a slide and a stack of books, labeled 'pic 3' (no text or symbols on the diagram itself)

Pry up both side of the handle, then take off the handle from panel

Illustration of a hand holding a paintbrush near a window frame (no text or symbols)

Ryc.20

Line drawing of a hand holding a paintbrush near a window with a tray (no text or symbols)

Ryc.21

LED T S A K MI L N SJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T EN L N VSJ DCF1 DCF2 FJ DJ1 DJ2 M N L N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

Exploded view diagram of an air conditioner unit with numbered parts for identification

Line drawings of three industrial cooling unit designs with heat sinks and fan compartments (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical line drawing of a portable air purifier with labeled dimensions H, D, and L

Afbeelding 2

Adjustment of slush temperature

"TEMP ADD" → "MINUS" "0°C" → "-15°C" (32°F) (5°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15℃" → "1℃" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Figuur 3

Line drawing of a mechanical component with threaded end (no text or symbols)

Afbeelding 11

Blijf 30 minuten

Technical line drawing of a coiled spring or helical component with labeled section A (no text or symbols beyond label)

Afbeelding 12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Afbeelding 13

Line drawing of a mechanical device with coiled components and an arrow indicating direction (no text or symbols)

Afbeelding 14

Technical line drawings of mechanical components including a rod, cylindrical part, and frame assembly (no text or labels)

Afbeelding 15

2 3 1 plaster grease here

Afbeelding 17

LED Light

Afbeelding 18

7.9 Condensor reinigen

Simple line drawing of a rectangular object with internal vertical bars, and two separate rectangular blocks below, labeled 'pic1' (no text or symbols on the objects themselves)

In order to take off the panel, we have to take off the handle first (see pic 1)

Pure technical line drawing of a mechanical component with no text or symbols

Using slot type screwdriver pry up the panel side (see pic 2)

Illustration of a monitor with a stack of books, no text or symbols present

Pry up both side of the handle, then take off the handle from panel

Illustration of a hand holding a paintbrush near a window frame (no text or symbols)

Afbeelding 20

Illustration of a hand using a paintbrush to clean or store air quality near a microwave oven (no text or symbols)

Afbeelding 21

LED T S A K MI L N SJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T EN L N VSJ DCP1 DCP2 FJ DJ1 DJ2 M N L N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

Exploded view diagram of an air conditioner unit with numbered parts for identification

www.vevor.com/support

SLUSH MASKIN

MODELL: XRJ12LX1 XRJ12LX2 XRJ12LX3

Line drawings of three different industrial equipment units with heat sinks and ventilation grilles (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

1.3 Manuell distribution

Technical line drawing of a portable industrial machine with labeled dimensions H, D, and L

Fig.2

2.4 Kontrollpanel

POWER ... MIX SETUP 8.8.8 TEMP ADD MINUS JUICE SLUSH

Adjustment of slush temperature

"TEMP ADD" → "MINUS" "0°C" → "-15°C" (32°F) (5°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Adjustment of juice temperature

"TEMP ADD" → "MINUS" "15℃" → "1℃" (59°F) (33.8°F)

Press the button "MINUS", it would turn colder, Press"TEMP ADD", it would get warmer.

Fig.3

3. Säkerhetsmanual

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

Water Fig. 8

Fig. 9Fig. 8

Line drawing of a mechanical component with threaded end (no text or symbols)

Fig. 11

Stanna i 30 minuter

Technical line drawing of a mechanical component with helical grooves and a labeled section A (no text or symbols beyond label)

Fig. 12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Fig. 13

Line drawing of a mechanical device with coiled components and an arrow indicating direction (no text or symbols)

Fig. 14

Technical line drawings of mechanical components including a rod, cylindrical part, and frame assembly (no text or labels)

Fig. 15

2 3 1 plaster grease here

Fig. 17

LED Light

Fig. 18

Simple line drawing of a rectangular object with internal vertical bars, and two separate rectangular blocks below, labeled 'pic1' (no text or symbols on the objects themselves)

In order to take off the panel, we have to take off the handle first (see pic 1)

Pure technical line drawing of a mechanical component with no text or symbols

Using slot type screwdriver pry up the panel side (see pic 2)

Illustration of a monitor with stacked books and a stack of books, enclosed in a dashed border (no text or symbols)

Pry up both side of the handle, then take off the handle from panel

Illustration of a hand holding a paintbrush near a window frame (no text or symbols)

Fig.20

Illustration of a hand using a paintbrush to clean or store air from a microwave oven (no text or symbols)

Fig. 21

LED T S A K MI L N SJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ12LX2

LED1 LED2 S1 S2 A K T EN L N VSJ DCP1 DCP2 FJ DJ1 DJ2 M N L M4 M1 M2

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

LED1/LED2/LED3 LED light board

S1/S2/S3 Temperature sensor

F1/F2/F3 Electromagnetic valve

1. Slammaskinens explosiva diagram


Exploded view diagram of an air conditioner unit with numbered parts for identification

www.vevor.com/support
