USER MANUAL XY-7 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MACHINERY MOVER USER MANUAL

Model: XY-7, XY-8, XY-9, XY-10, XY-11, XY-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

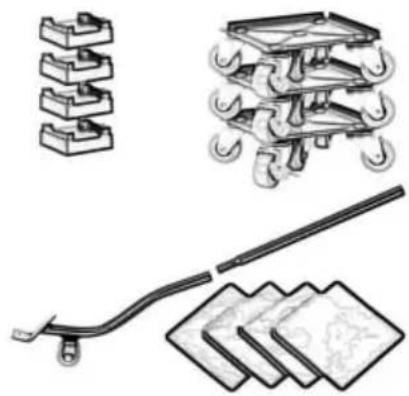

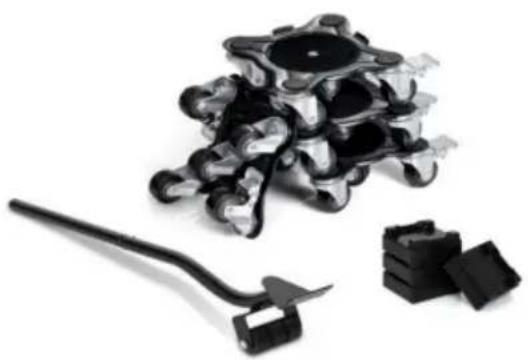

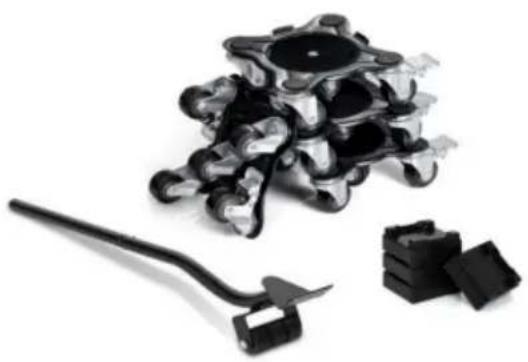

XY-7 & XY-8 & XY-9 XY-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

1. It is recommended to use this product on flat, hard ground.
2. It is strictly prohibited to use this product on uneven or soft groups which is liable to cause property and personal injury.
3. This product is not suitable for use on sloping ground, otherwise accidents will occur easily.
4. Do not use more than the product load capacity.
5. Because the ground is not smooth, the wheels of each mover may be all involved in the work; it is recommended to use under the nor load.
6. When using this product, it should be moved slowly at a low speed excessive speed can easily cause the mover to slide out, and accide happen easily.
7. When the load is lighter, the steering performance of the mover is about good; conversely, the steering performance of the mover is not good. Do not swerve when the operator is struggling to turn. it is recommended to use crowbar lifting to assist the mover steering.
8. In the use of this product, avoid collision, otherwise the product can be used due to damage
9. Do not recommend the use of a single or 2 movers together to large Furniture, such use is not safe; For heavy Furniture, 3 or 4 moves are usually used together.
10. For high and narrow Furniture, due to the high center of gravity, of mover handling measures to prevent possible overturning.
11. When multiple movers are used together, non-slip mats are added

ensure consistency in height; When handling, control the direction of each mover should be consistent, otherwise it is difficult or impossible to move. When turning, it is suggested to lift the weight slightly with the crowbar and other tools to facilitate the mover to turn.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Total Load Capacit	440 lbs	440 lbs	661 lbs	661 lbs	440 lbs	330 lbs
Package	4pcs	4pcs	4pcs	4pcs	4pcs	4pcs
Number of Wheels	5	5	5	5	3	8
Wheel Type	PP	PP	PP	PP	PP	PP
Material	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

COMPONENTS

Name	XY-7	XY-8	XY-9	XY-10	XY-11	XY-12
Machinery Mover	4	4	4	4	4	4
Crowbar	1	1	1	1	1	1
Raising Block	4	4	4	4	4	/
Non-slip Mat	4	4	4	4	4	/
Glove	1	1	1	1	/	/
Storage Bag	1	1	1	1	/	/
Crowbar Non-slip Mat	4	4	4	4	/	/
elastic rope	/	1	1	/	/	/
User manual	1	1	1	1	1	1

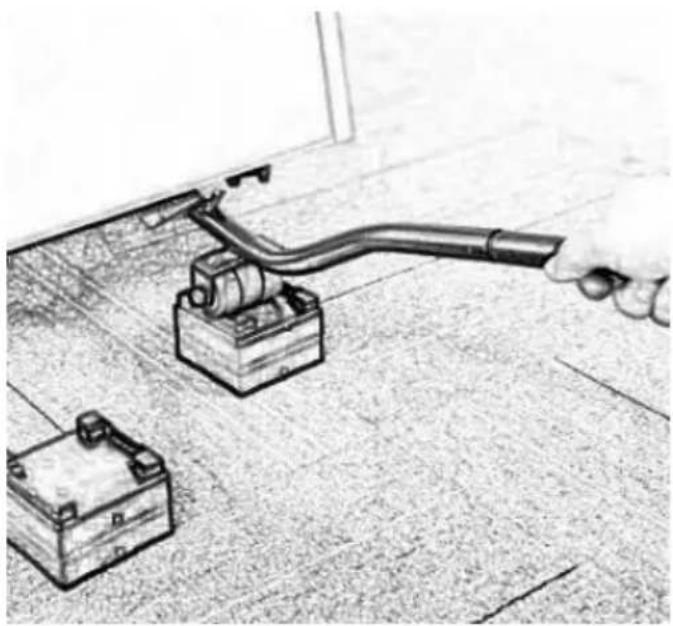

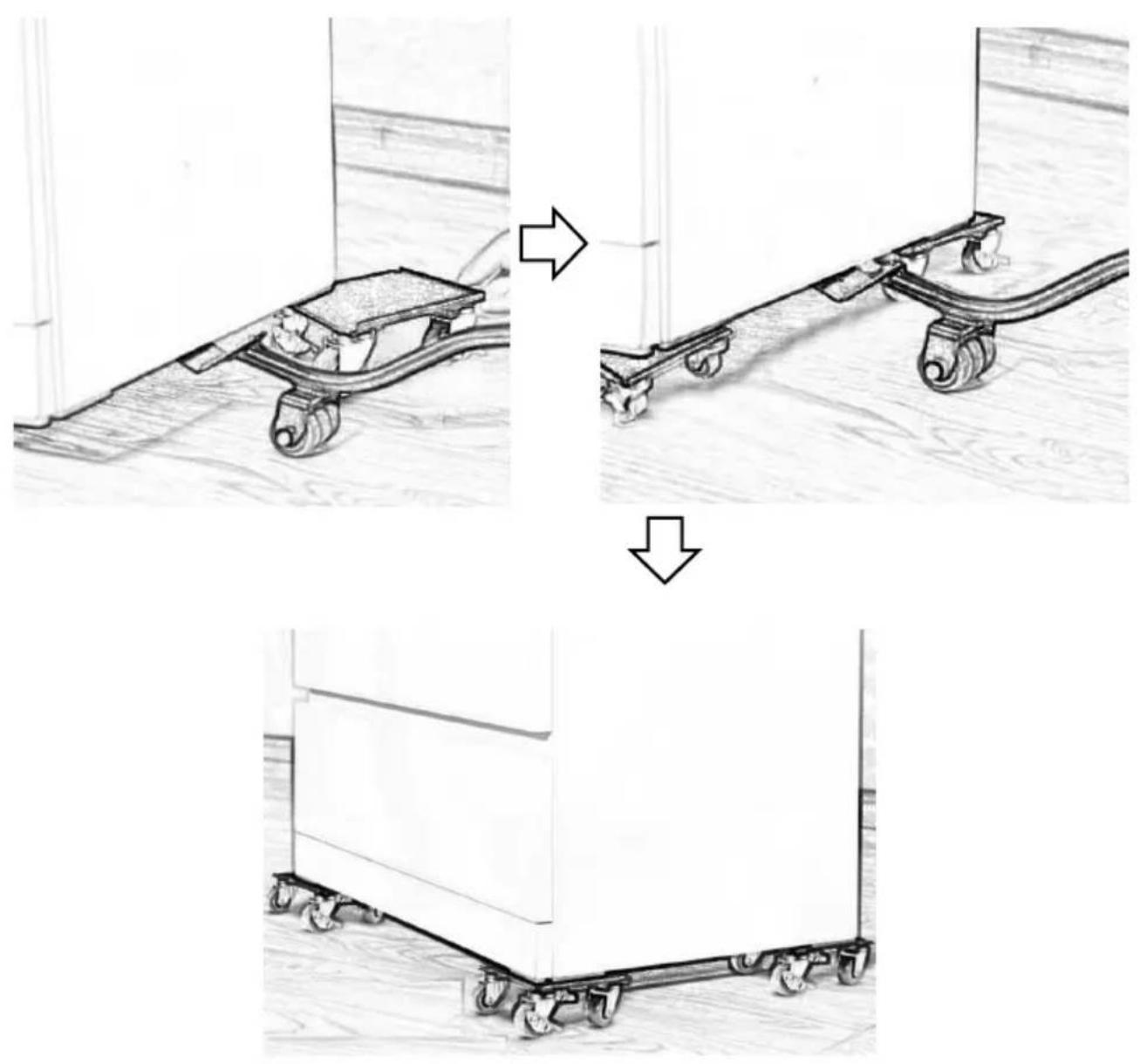

Step1: Push the crowbar into the bottom of the furniture, hold the han and press down.

Two-panel sketch showing a car handle attachment and a hand holding a tool on a wooden floor (no text or symbols)

NOTE: The crowbar is equipped with heightening pads to fit furniture of different heights.

Hand holding a flexible hose connecting a battery to a car chassis on a tiled floor (no text or symbols visible)

Step2: Push household machinery movers into the bottom of the furniture, pull out the crowbar.

Step3: Push 4 household machinery movers into the bottom four corners of the furniture.

Make sure the installation is secure and you can move the furniture.

NOTE:

1) This product is suitable for moving furniture indoors on a flat floor cannot be used on uneven, soft ground, such as cement, similar cement, carpets and so on.
2) This product is not suitable for sloping ground or ground with step

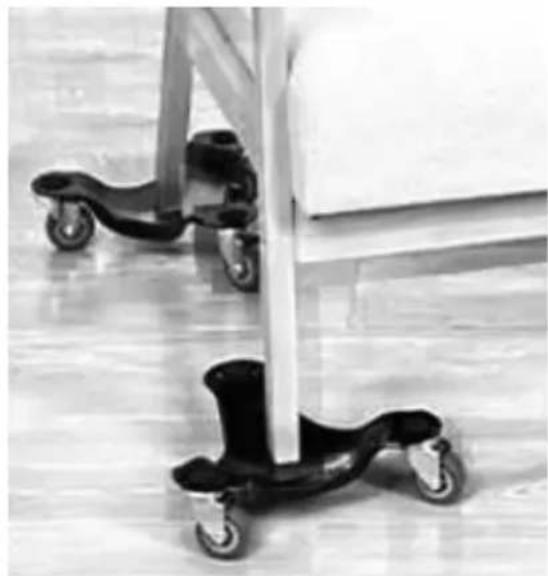

3) For furniture with legs, Make sure the legs of the furniture are ce on the mover. The correct usage is shown below in Fig 1 , Fig2

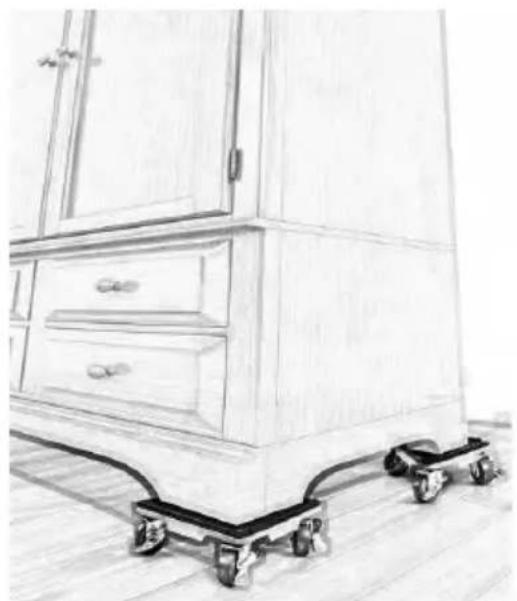

Pencil sketch of a wooden wardrobe with drawers and wheels on a tiled floor (no text or symbols)

Black and white photo of a pair of small wheeled scooters on a tiled floor, no visible text or symbols

Fig 1 Fig 2

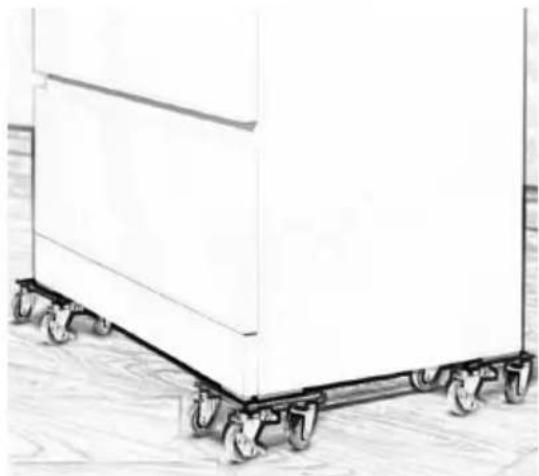

4) For bottom flat furniture, Make sure the top side of the tool is plain completely on the bottom of the furniture, as shown below in Fig 3 ,F

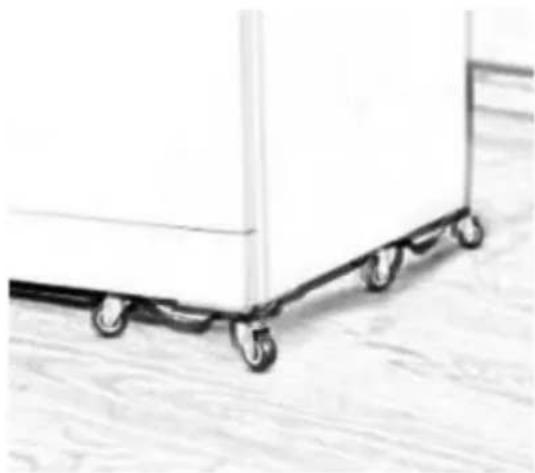

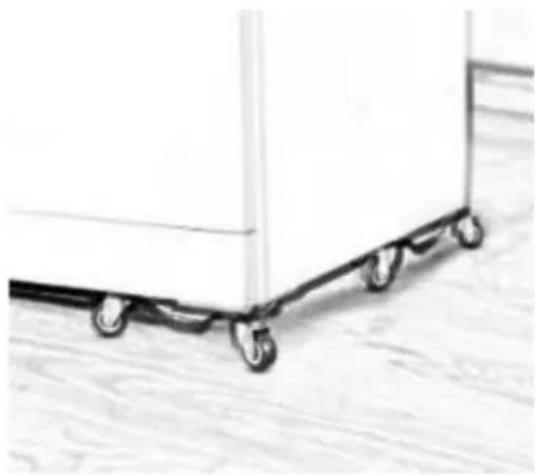

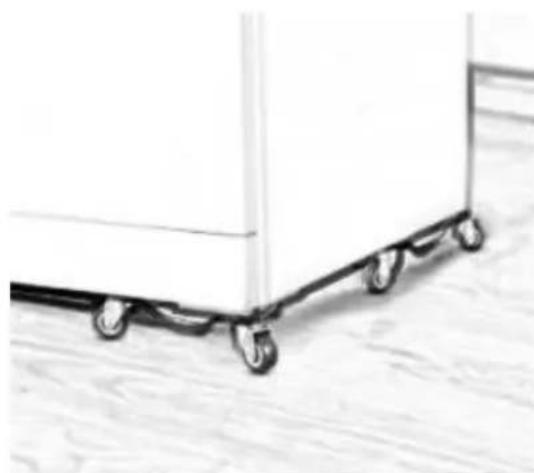

Illustration of a white rectangular cart with wheels, mounted on a wooden floor (no text or symbols)

Close-up of a white cabinet with wheels on a wooden floor (no text or symbols visible)

Fig 3 Fig 4(JYS-135)

5) When using this product, it should be moved slowly at a low speed excessive speed can easily cause the mover to slide out.
6) A mover equipped with universal wheels has good steering performance and requires slow rotation when turning.
7) A mover(JYD-114) equipped with directional wheels requires manual assistance when turning.
8) A mover equipped with brakes can be used when needed to prevent the mover from moving.

MAINTENANCE

1. After the mover is used, please clean it first and keep it in a dr environment.
2. Regular inspection of the mover, Replace the wheel or mover in the wheel is damaged.
3. After use, PP Wheel's mover should be cleaned in time, because wheel can easily be hurt by sharp objects such as iron filings, sand, etc.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of mechanical components including stacked blocks, wheels, and a tool with a handle (no text or symbols)

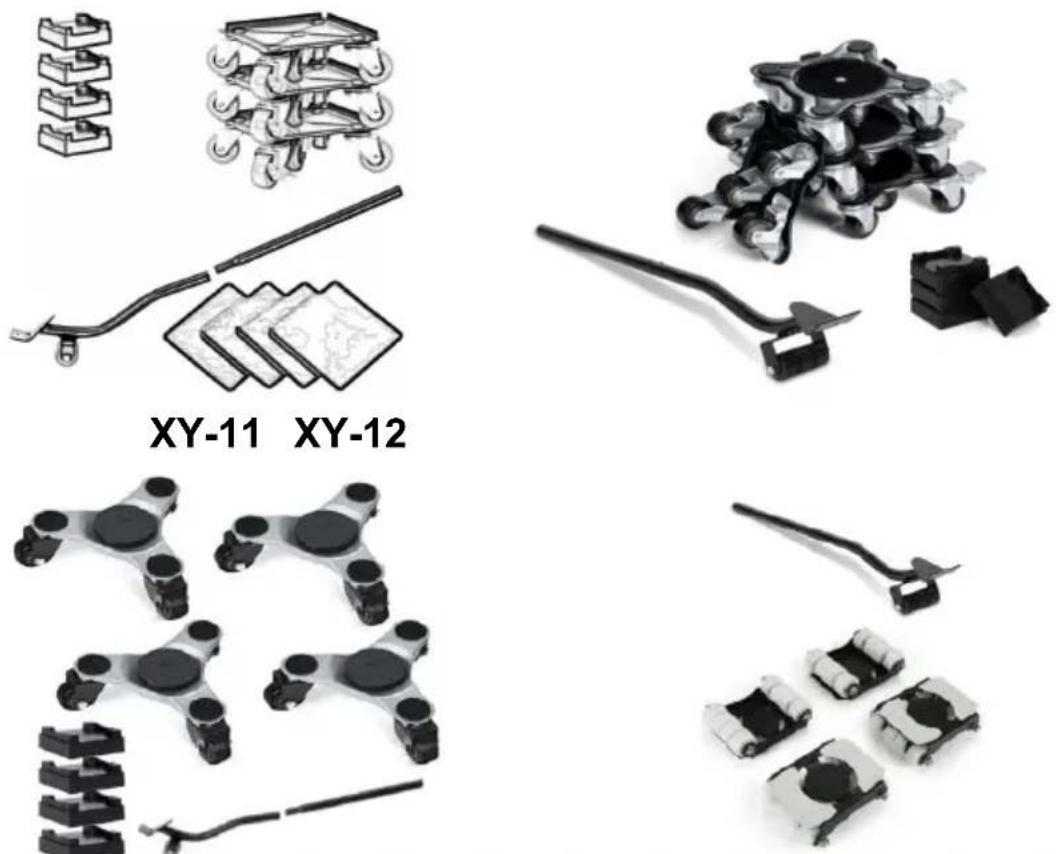

XY-11 XY-12
