CHAIRS CART USER MANUAL

Model: VV46

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Thanks for purchasing one of our products. Please read the assembly instructions carefully before installation.

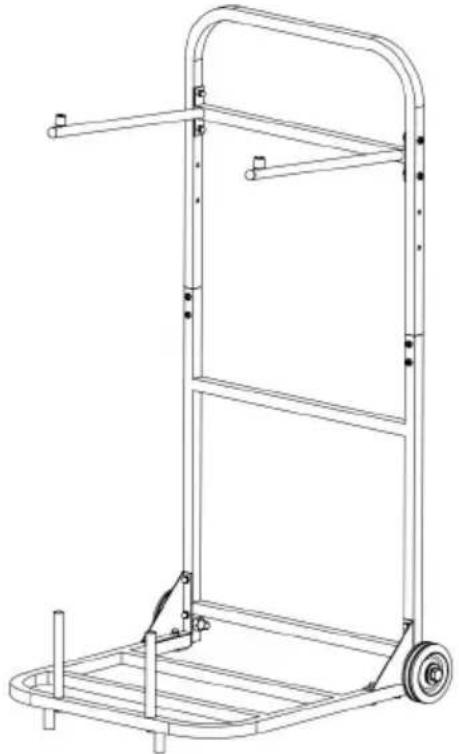

Line drawing of a multi-level metal pallet jack with wheels and handle (no text or symbols)

Model:VV46 (Photo for reference)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PARAMETERS

Model	Product Size/cm	Maximum number of carrying chairs	accessory
VV46	110x 56.5x 58	10pcs (Max:45kg)	Elastic string×1

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities only apply to a who correctly assembled product.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. The weight of the plate is heavy; pay attention to the installation hurting it, and if necessary, find someone to assist with the installation

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Do not allow children to play with or a this item.

2. Use as intended only. Do not sit or stand on the product.

3. Inspect before every use. Do not use it if parts are loose or dan

4. Use on flat, level, and hard surfaces only.
5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.
6. When the heavy load is moving for a long time, it is necessary whether the screw is loose to avoid the body shaking when moving.

SAVE THESE INSTRUCTIONS

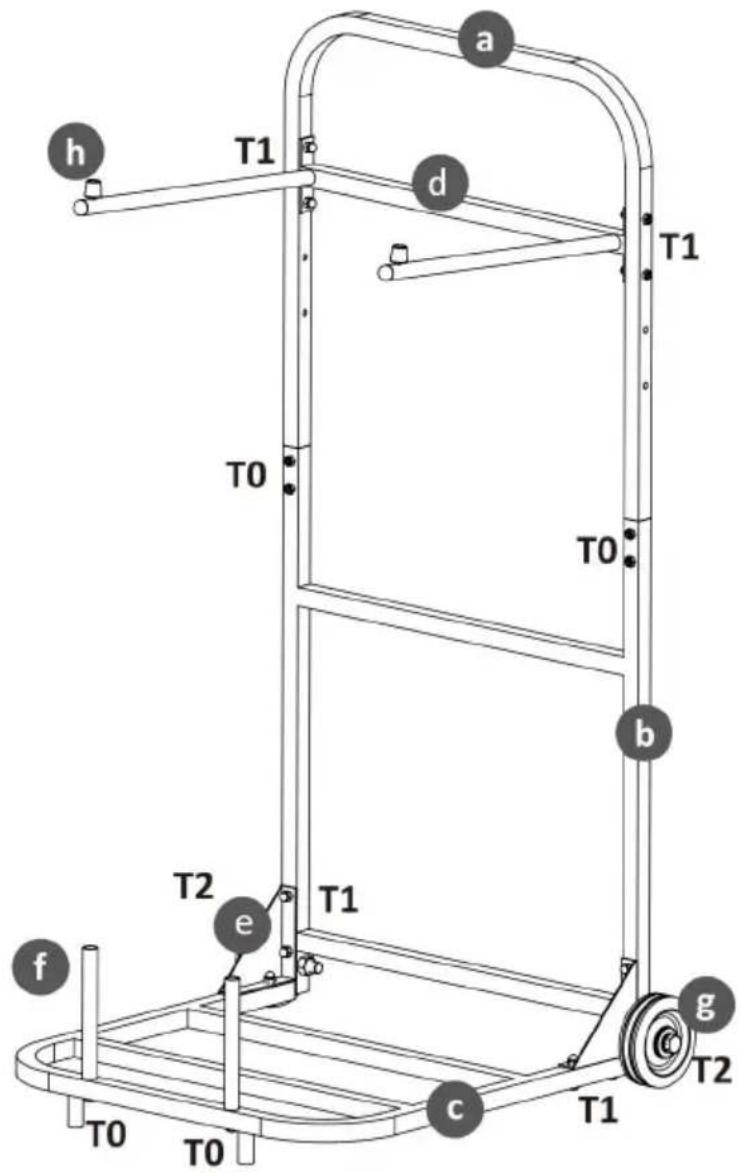

Exploded Drawing

a h T1 d T1 T0 T0 b T2 e T1 f c g T2 T1 T0 T0

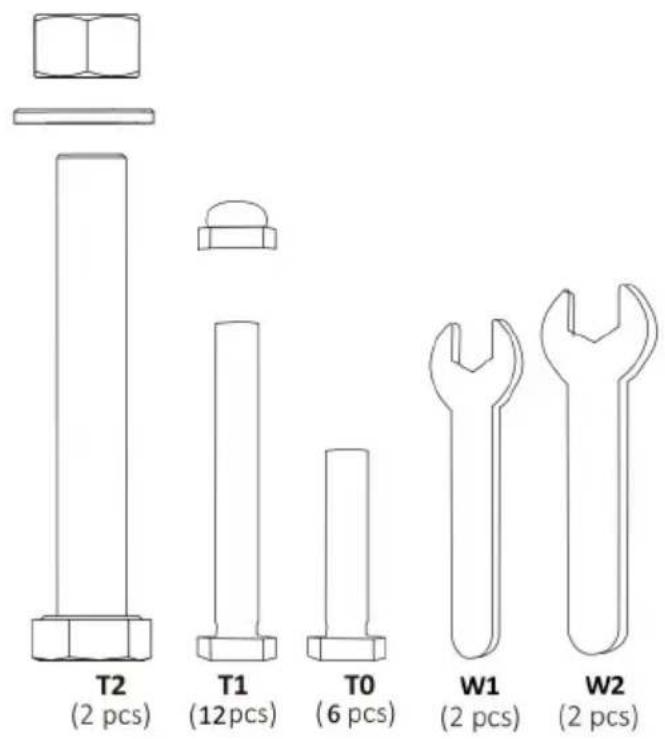

T2 (2 pcs) T1 (12pcs) T0 (6 pcs) W1 (2 pcs) W2 (2 pcs)

PARTS LIST

NO.	Description	Quantity
a	Upper frame	1
b	Lower frame	1
c	Base frame	1
d	Chair Hangers	1
e	Connector Bracket	2
f	Post	2
g	Wheel	2
h	Knob	2
T0	Hex screw (M6*16)	6
T1	Hex screw (M6*30) with nu	12
T2	Hex screw (M12*80) with nut washer	2
W1	Wrench Key 10mm	2
W2	Wrench Key 18mm	2

ASSEMBLY STEPS

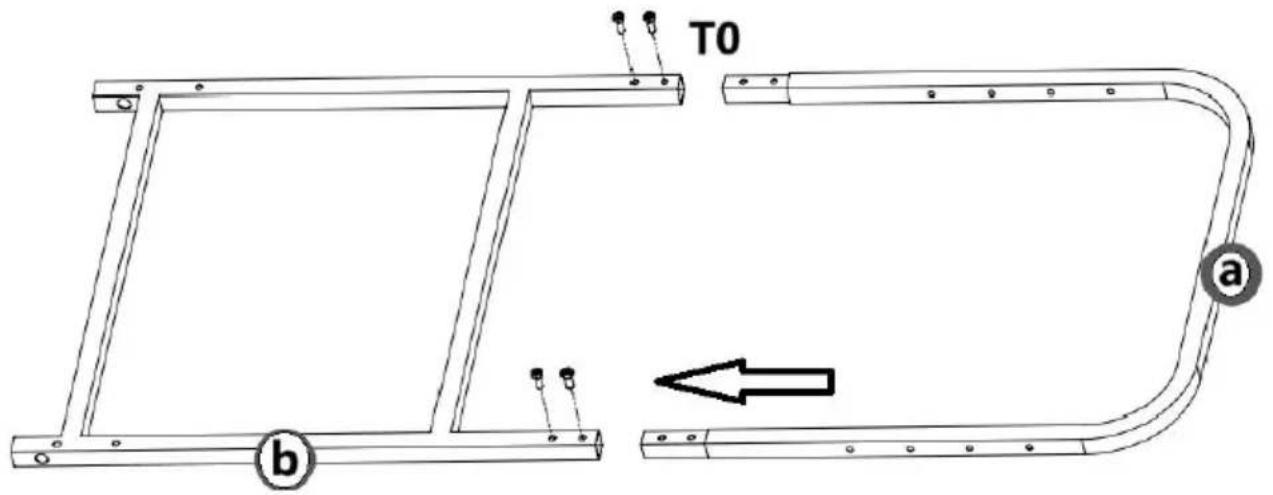

STEP 1:

Install the Upper frame ^a to the lower frame ^b by two screws(T0) on side. Use the wrench(W1) to lock the wheel in place.

T0 a b

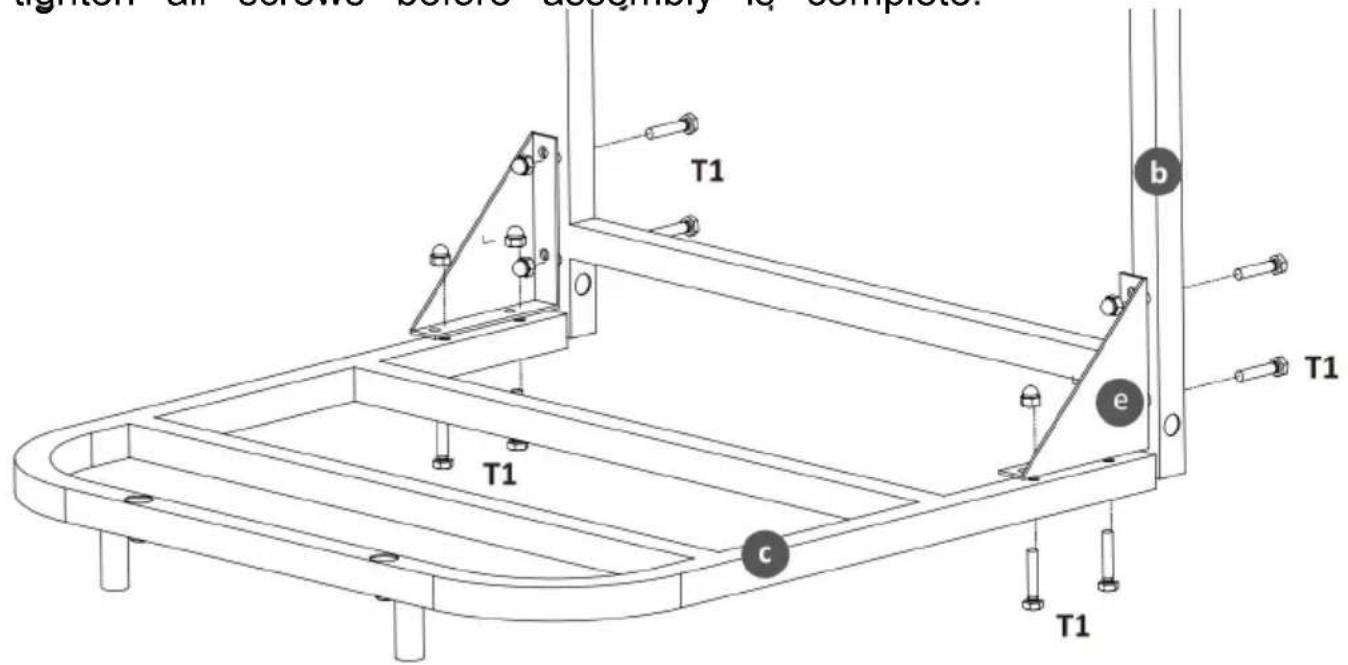

STEP 2:

Fix the Lower frame ^b and Connector Bracket ^e with screw T1,

Fix the Base frame© and Connector Bracket® with T1; Please do I tighten all screws before assembly is complete.

lighter - all screws - before assembly 14 - completor T1 b T1 e T1 T1 c

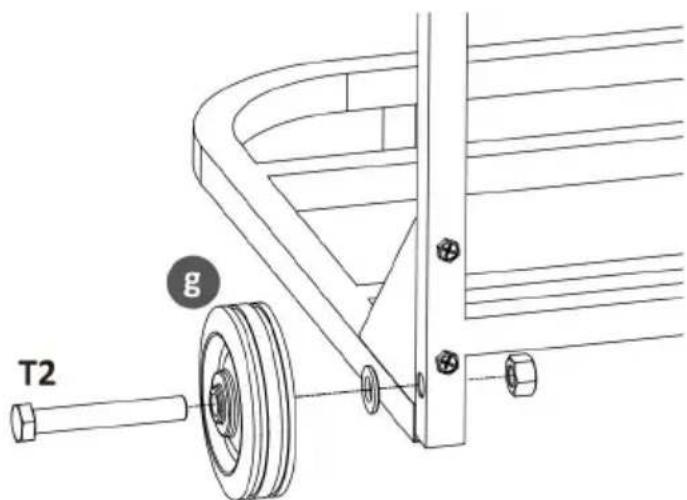

STEP 3: Assemble the left and right wheels ^⑧ with screw T2.

T2 g

Note: Make sure the wash goes in between the wheel(g) and the low frame(b)

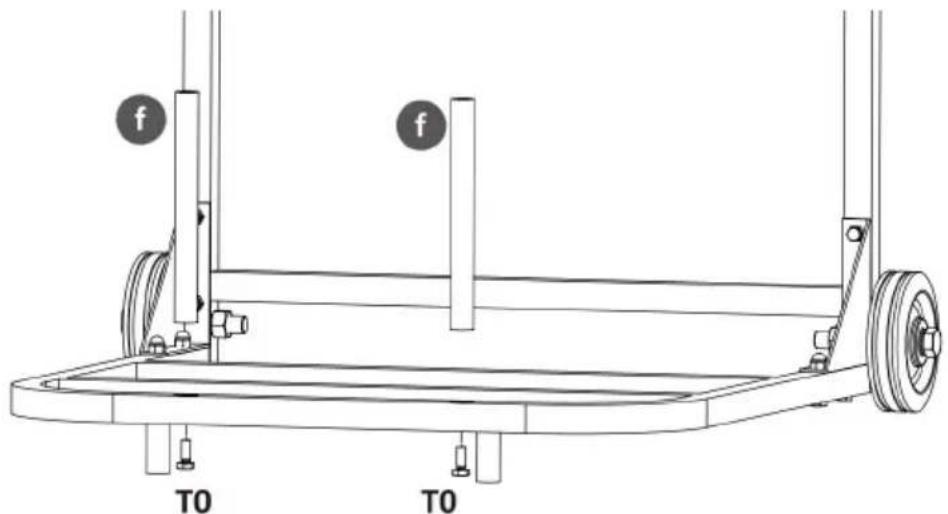

STEP 4: Assemble the 2 Posts ^f with screws T0.

f f TO TO

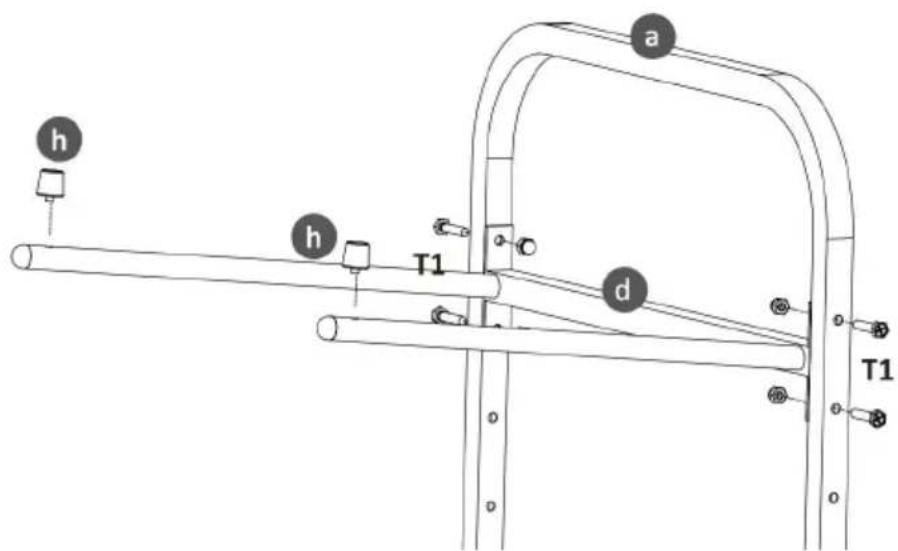

STEP 5:

Assemble Chair Hangers ^d on the Upper frame ^a with screws T1, T1 install Knob on Chair Hangers ^d

a h h T1 d T1

Cleaning

-For cleaning, wipe the surface with a damp (not wet) cloth or wipe a clean lint-free cotton cloth.
