VV-2501F - Musical instrument Vevor - Free user manual and instructions

Brand	Vevor
Model	VV-2501F
Product Type	Passive floor-standing speaker
Category	Musical instrument - Audio speaker
Maximum Power	145 W
Tweeter Size	0.75 inch (19 mm)
Woofer Size	5.25 inches × 2 (133 mm each)
Frequency Response	70 Hz - 20 kHz
Impedance	8 Ω
Enclosure Material	MDF (medium-density fiberboard) with PVC finish
Power	External amplifier required (not included)
Connections	Screw terminals (+/-) for speaker cables (2 conductors)
Installation Position	Flat, stable, dry, and well-ventilated surface
Main Functions	High-fidelity stereo audio output, multiple input adaptability via amplifier, durable design with edge protection
Maintenance and Cleaning	Clean with a damp cloth and warm water; do not use abrasive cleaners or solvents; do not touch the speaker cones directly
Safety	Avoid exposure to water and moisture; do not use in rain; ensure amplifier voltage is appropriate; handle with dry hands
Spare Parts and Repairability	Not specified in the manual; contact the manufacturer for repairs
General Information	Manufacturer: Shanghaimuxinmuyeyouxiangongsi, Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN. Imported into Australia by SIHAO PTY LTD, into the United States by Sanven Technology Ltd.

Frequently Asked Questions - VV-2501F Vevor

How to connect the VV-2501F speaker to an amplifier?

Use speaker cables (2 conductors, not included). Connect the red wire to the + terminal and the black wire to the - terminal. Make sure the left and right channels are correctly connected and that the connections are secure.

What type of amplifier is recommended for this speaker?

Use a certified external amplifier capable of delivering at least 145 W at 8 Ω. Adjust the volume and frequency response according to your preferences.

Is the speaker powered?

No, it is a passive speaker. It requires an external amplifier to operate.

What are the dimensions of the VV-2501F speaker?

Exact dimensions are not provided in the manual. As an estimate, speakers in this range typically measure about 90 cm in height, 20 cm in width, and 30 cm in depth. Contact the manufacturer for precise information.

How to clean the speaker?

Gently clean with a damp cloth and warm water. Do not use abrasive cleaners, ammonia, solvents, or window cleaners. For the grille, use the vacuum brush or a slightly damp sponge. Do not touch the speaker cones directly.

Can I use this speaker outdoors?

No, avoid exposure to water, moisture, and high temperatures. Use it only in a dry, indoor environment.

What is the frequency response of the speaker?

The frequency response is 70 Hz to 20 kHz, providing high-quality sound reproduction.

Is the speaker shipped with cables?

No, speaker cables are not included. You must purchase them separately.

What to do if the sound is distorted?

Check the cable connections (+ and - terminals), ensure the amplifier is suitable (8 Ω, sufficient power) and that the volume is not too high. Also verify that the left and right channels are correctly assigned.

Where to find spare parts for this speaker?

The manual does not mention spare parts. Contact the manufacturer (Shanghaimuxinmuyeyouxiangongsi) or the retailer for assistance.

USER MANUAL VV-2501F Vevor

FLOOR STANDING SPEAKER

Model: VV-2501F / VV-2502F / VV-1601F /

VV-2602F / VV-2801F

Scan for Assistance

Model: VV-2501F/ VV-2502F/ VV-1601F/ VV-2602F/ VV-2801F

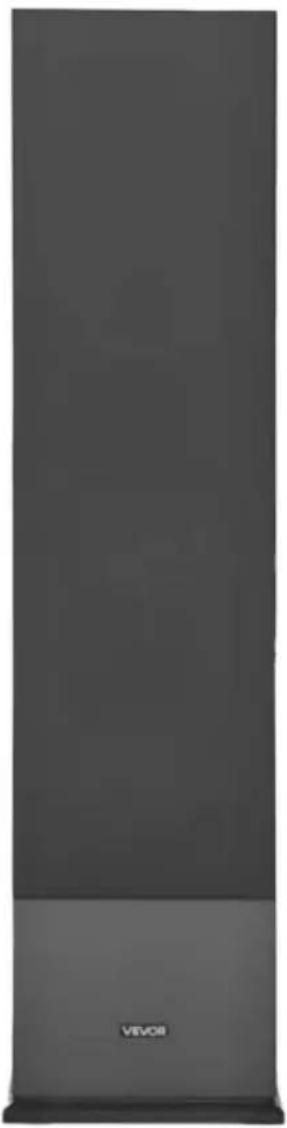

(The picture is for reference only, please refer to the actual object)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

Warning - To reduce the risk of injury, user must read instruction manual carefully.

1. Important Notices

Water & Moisture

Do not place the speakers in environments where water exposure or moisture is possible. Avoid using them in rainy or humid conditions.

Power Safety

When connecting external amplifiers or other devices, ensure the voltage is appropriate and that connections are secure. Always operate with dry hands.

Scratch & Impact Protection

The speaker enclosure is made of MDF, or density board with a PVC finish. Avoid contact with sharp objects to prevent scratches or damage to the surface.

Proper Installation

These are passive speakers without built-in amplification. Use only certified external amplifiers to drive the speakers and follow proper connection instructions.

2. Product Overview

Product Type: Passive Floor-standing Speakers

Applications: Suitable for high-fidelity, stereo audio playback in home and office setups.

Key Specifications (Refer to each model for exact parameters):

Model: VV-2501F/VV-2502F:Speaker Maximum Output Power: 145WTweeter Size: 0.75 inch+1 inchWoofer Size: 5.25 inch×2Frequency Response: 70Hz - 20KHzImpedance: 8 Ω	VV-2501F / VV-2502F
Model: VV-1601FSpeaker Maximum Output Power: 200WTweeter Size: 1 inchWoofer Size: 6.25 inch×1Frequency Response: 65Hz - 20KHzImpedance: 8 ΩPassive speakers
Model VV-2602F:Speaker Maximum Output Power: 400WTweeter Size: 1 inchWoofer Size: 6.5 inch×2Frequency Response:60Hz - 20KHzImpedance: 8 ΩPassive speakers
Model: VV-2801FSpeaker Maximum Output Power: 600WTweeter Size: 1 inchWoofer Size: 8 inch×2Frequency Response: 55Hz - 20KHzImpedance: 8 ΩPassive speakers

Additional Note: This model is designed as a high-quality passive speaker ideal for dynamic sound reproduction.

Enclosure Materials: Typically built from density board, MDF, or similar materials with PVC finish for scratch and impact resistance.

3. Quick Setup and Connection

1. Choosing the Installation Position:

Select a stable, dry, and well-ventilated location away from water sources and high temperatures. Ensure the speaker is placed on a flat, secure surface.

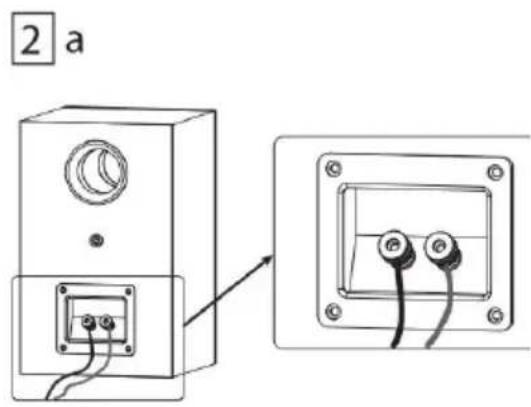

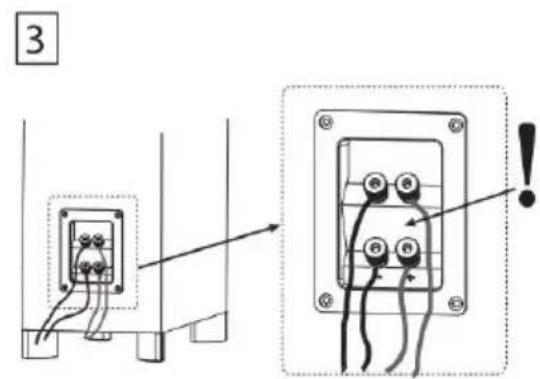

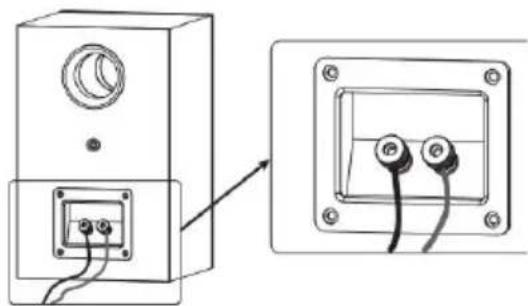

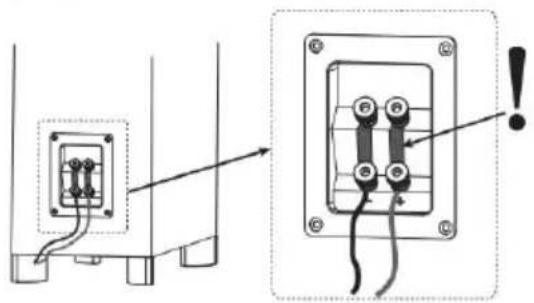

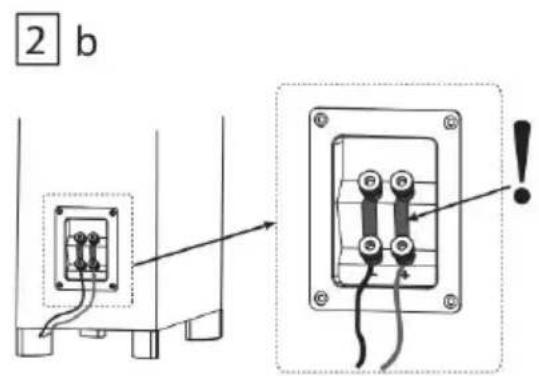

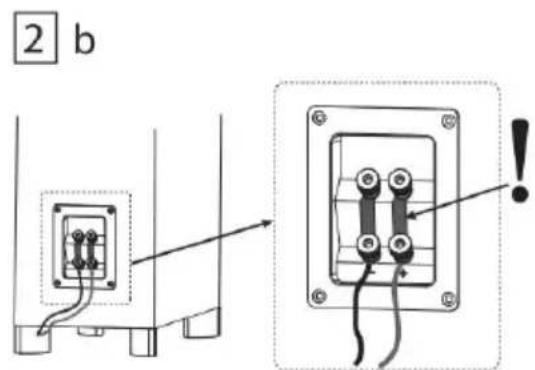

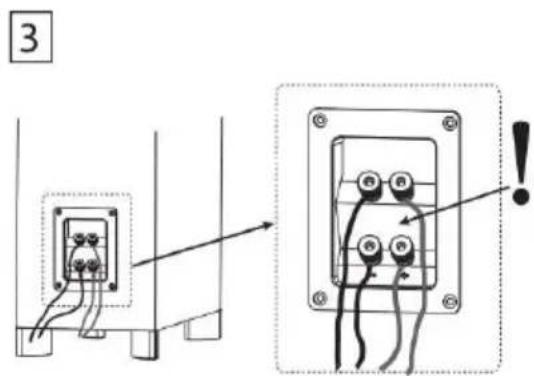

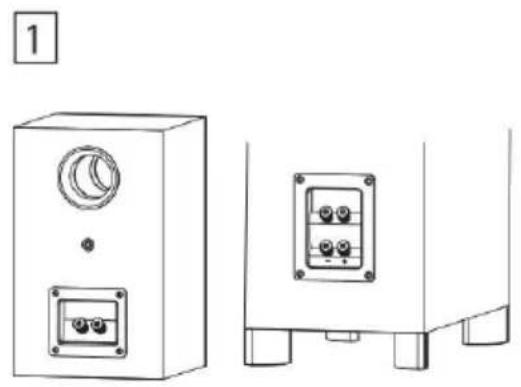

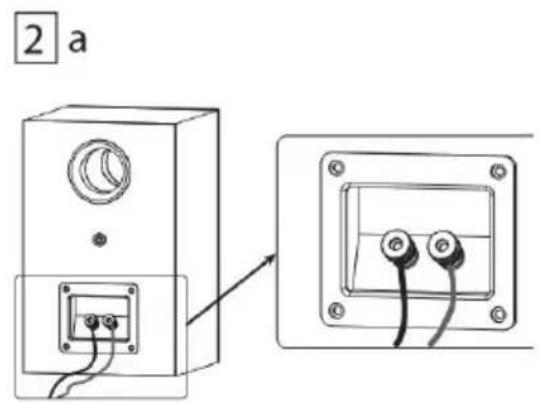

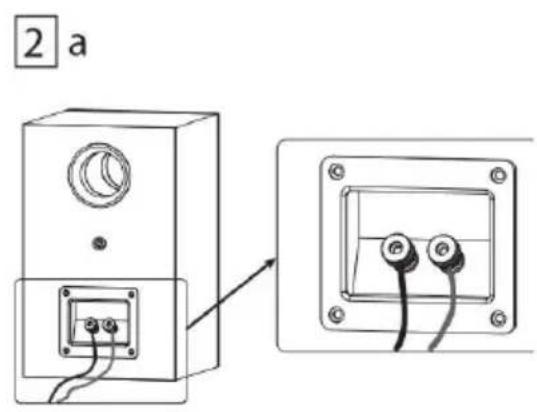

2. Connecting Devices:

Use the speaker cables (typically 2-meter cables, not included) to connect the speakers to an external amplifier or audio device.

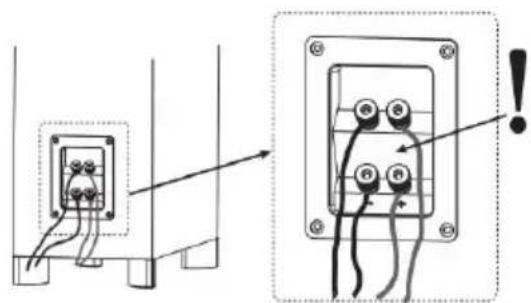

Important: Ensure the red wire is connected to the + terminal, and the black wire is connected to the - terminal.

Verify that the left and right channels are connected correctly and set to avoid poor contact that may impact sound quality.

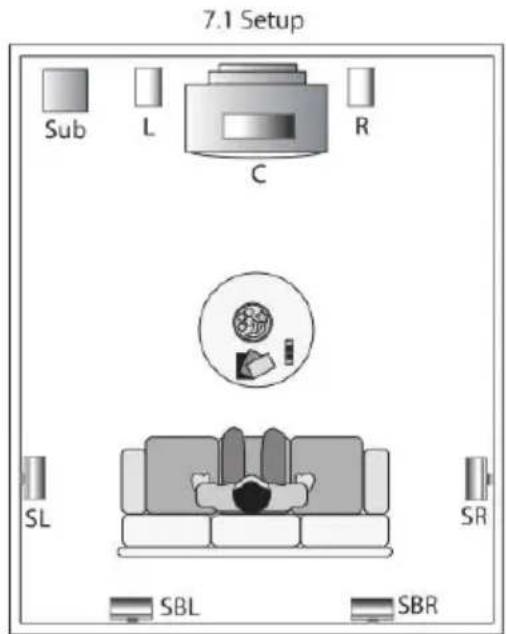

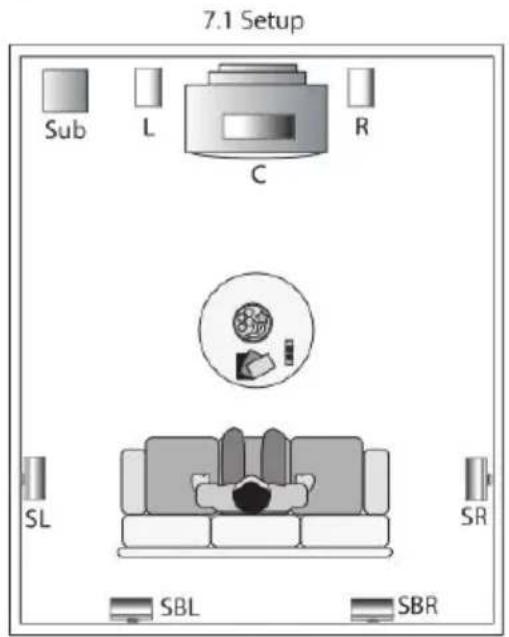

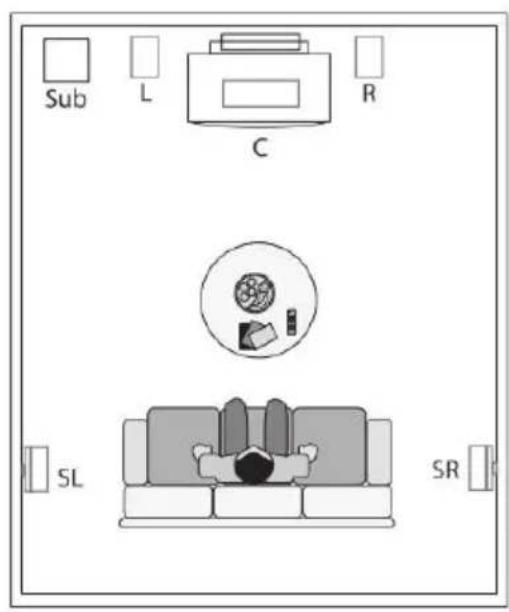

3. System Adjustment:

Adjust the volume and frequency response controls on the external amplifier to match the speaker specifications for optimal performance.

4. Main Functions

High-Quality Audio Output:

Delivers high-fidelity stereo sound suitable for a wide range of audio playback scenarios.

Multiple Input Adaptability:

When paired with an external amplifier or AV receiver, the speakers handle various audio sources seamlessly.

Simple and Durable Design:

The design includes edge protection to ensure that the speakers maintain their appearance and tactile feel over long-term use.

5. Care of Finish

The floor standing speaker should be gently cleaned with only a cloth and warm water from time to time, in order to remove any dust fingerprints. Do not use an abrasive cleaner, or any type of ammonia based cleaners, or window-type cleaners. To remove the dust from the grille cloth, use the brush attachment on your vacuum cleaner or a dampened sponge or dust-free cloth. Do not touch the speaker cones directly or enter them in contact with water or cleaning materials, as can cause irreparable damage.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
