XH-04 - Sports net Vevor - Free user manual and instructions

Brand	Vevor
Model	XH-04
Product type	Football rebound net
Intended use	Sports training, ball rebounding
Frame material	Steel
Net material	Mesh fabric (nylon/polyester)
Number of parts	12 types of parts included (varying quantities)
Weight (estimated)	Approximately 12 kg
Dimensions (estimated)	Approximately 150 cm x 180 cm (frame)
Power supply	None (manual)
Main functions	Rebound the ball, passing and shooting drills
Assembly	Required, two people, tools not provided (hammer and Phillips screwdriver)
Safety	Use on flat surface, secure to ground with stakes, do not leave unattended, keep away from children and pets
Care and cleaning	Wipe with soft, dry cloth; do not use water or abrasive products
Usage conditions	Outdoor only in good weather, avoid rain and lightning
Warranty	Technical support and electronic warranty certificate: www.vevor.com/support
Spare parts and repairability	Additional spare parts included; can order via support
Recommended age	Not suitable for children under 36 months
General information	Use under supervision of a coach; do not use for purposes other than sports training

Frequently Asked Questions - XH-04 Vevor

What are the dimensions of the Vevor XH-04 rebound net?

Exact dimensions are not specified in the manual, but a model of this type typically measures about 150 cm high and 180 cm wide. The frame is made of steel.

How to assemble the rebound net?

Assembly requires two people. Use a hammer and a Phillips screwdriver (not provided). Follow the steps in the manual, starting by identifying the numbered parts. Secure the frame to the ground with the provided stakes for stability.

Can I use the rebound net on a concrete floor?

Yes, but you must use the ground stakes to secure it. Make sure the ground is flat and the stakes hold well. For concrete, it may be necessary to use appropriate anchors (not provided).

What type of maintenance is recommended?

Clean the net and frame with a soft, dry cloth. Never use water, abrasive products, or aggressive sponges. Store it dry after use to prevent rust.

Is the rebound net suitable for children?

This product is not a toy. It is intended for sports use under the supervision of a coach. Children under 36 months should not use it. Never leave children to play with it alone.

How can I get spare parts?

The manual indicates that spare parts are included in the packaging. If you need additional parts, contact technical support via www.vevor.com/support.

Can the rebound net be used in rainy weather?

No, it is not recommended to use the rebound net in rainy or stormy weather due to the risks of lightning and slippery conditions. Use it only in good weather.

What is the warranty of this product?

Vevor offers technical support and an electronic warranty certificate. For more information, visit www.vevor.com/support with your model number XH-04.

Can I place objects on the net to stabilize it?

No, do not place any objects on the rebound net. This could damage it or cause it to fall. Always use the ground stakes to secure it to the ground.

Is the rebound net delivered with assembly tools?

No, the necessary tools (hammer and Phillips screwdriver) are not provided. You must own them or purchase them separately.

USER MANUAL XH-04 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

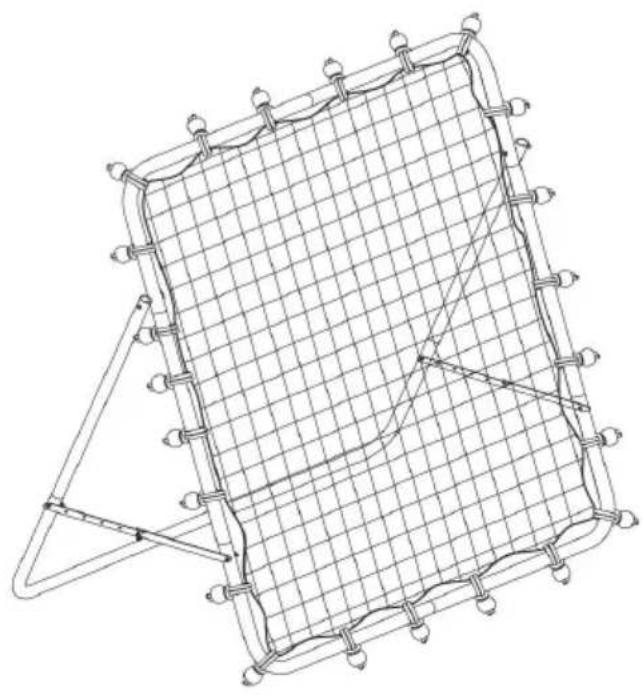

SOCCER REBOUND NET

MODEL: XH-04

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: XH-04

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Not suitable for children under 36 months
	Do not use when suffering from high blood pressure!

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules on this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assembly needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
3. Weight and elastic and other product properties are only applicable to correct and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is sports training equipment, not a toy. It must be used under the guidance of a coach. Do not allow children or pets to play alone or approach the item. Do not climb on the product.
7. Use only as intended. Do not sit or stand on the product.
8. Inspect before every use. Do not use if parts are loose or damaged.
9. People or objects hanging on the product will cause it to fall.
10. Pay attention to pedestrians and vehicles when using.
11. Do not use this unit for any purpose other than the indicated usage.
12. Do not place items on the rebound net to avoid damage.
13. Do not use for commercial purposes.
14. DO NOT CLEAN WITH ANY ABRASIVE MATERIAL.
15. Never leave it unattended while in use.
16. Pet urine and feces can damage the product; keep pets away.
17. Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.
18. The product should be placed on a flat surface. And it should be installed in an open and safe place, avoiding areas near windows, roads, railways, rivers, etc.
19. Sports equipment (soccer boots, football gloves, etc.) should be worn during use. Do not place it in a damp environment.

WARNING:

1. Ground nails must be used to fix the product on the ground (to ensure the reliability of the ground itself) to prevent it from falling.
2. This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors in rainy and cloudy days, avoid lightning strikes and falls. People or pets hanging on the product will cause injury or death.

ASSEMBLY STEPS

1. Please dispose of all plastic bags carefully and keep them away from children and pets.
2. Check all components provided according to the list in this manual. Make sure you have all of the parts listed.
3. Although paying particular attention when manufacturing this product, you may be careful during the assembly process to avoid being scratched by sharp edges.
4. Wear protective gloves during assembly and using.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.
7. The product requires the use of a hammer and a Phillips screwdriver (hammer and cross screwdriver need to be purchased by oneself).

Attention: Ground nails must be used to fix the product on the ground (ensure the reliability of the ground itself) to prevent it from falling.

Parts No.	Picture	Qty	Parts No.	Picture	Qty
1		2PCS	7		2 PCS
2		2PCS	8		4PCS
3		2PCS	9		1 PCS
4		1 PCS	10		2PCS
5		1PCS	11		4PCS
6		2PCS	12		24PC S

Note: the quantity of parts shown in the manual is the actual usage and the extra parts are spare parts. Please pay attention to the number label on the surface packaging.

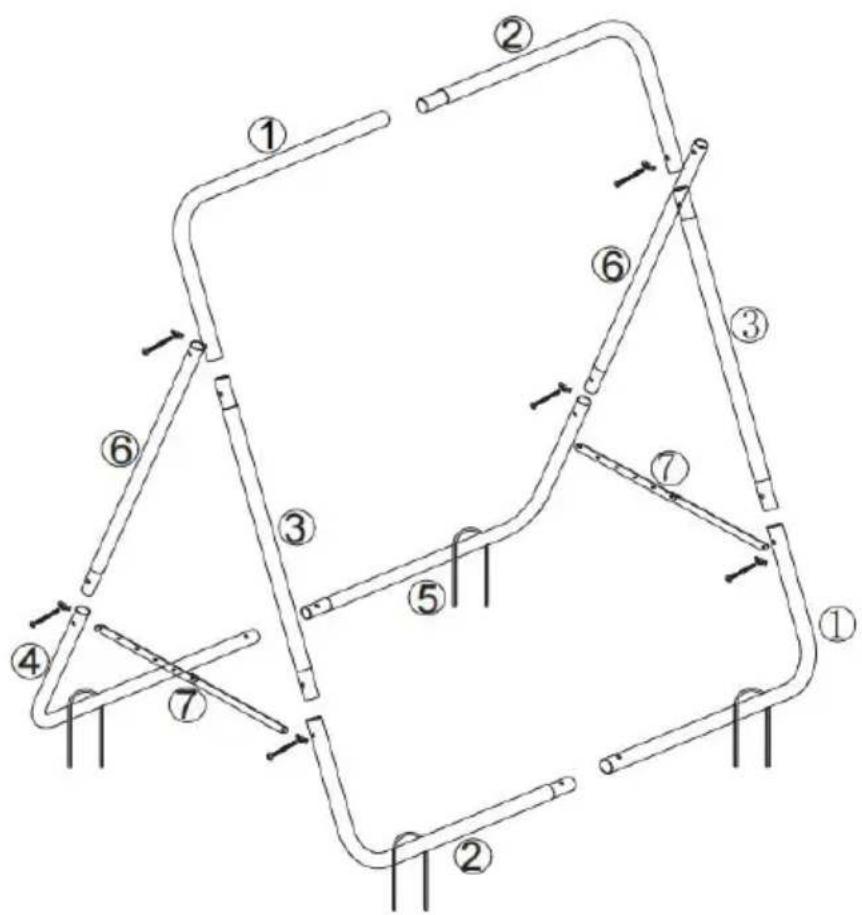

STEP 1

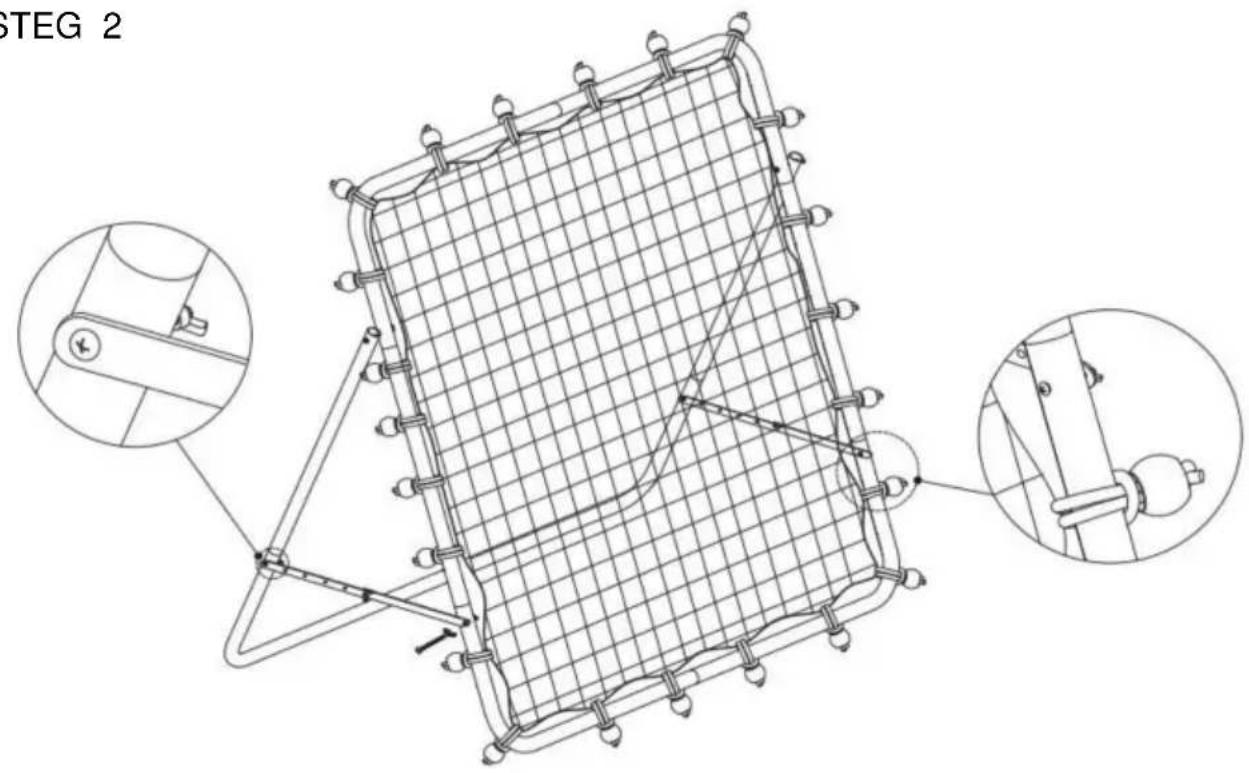

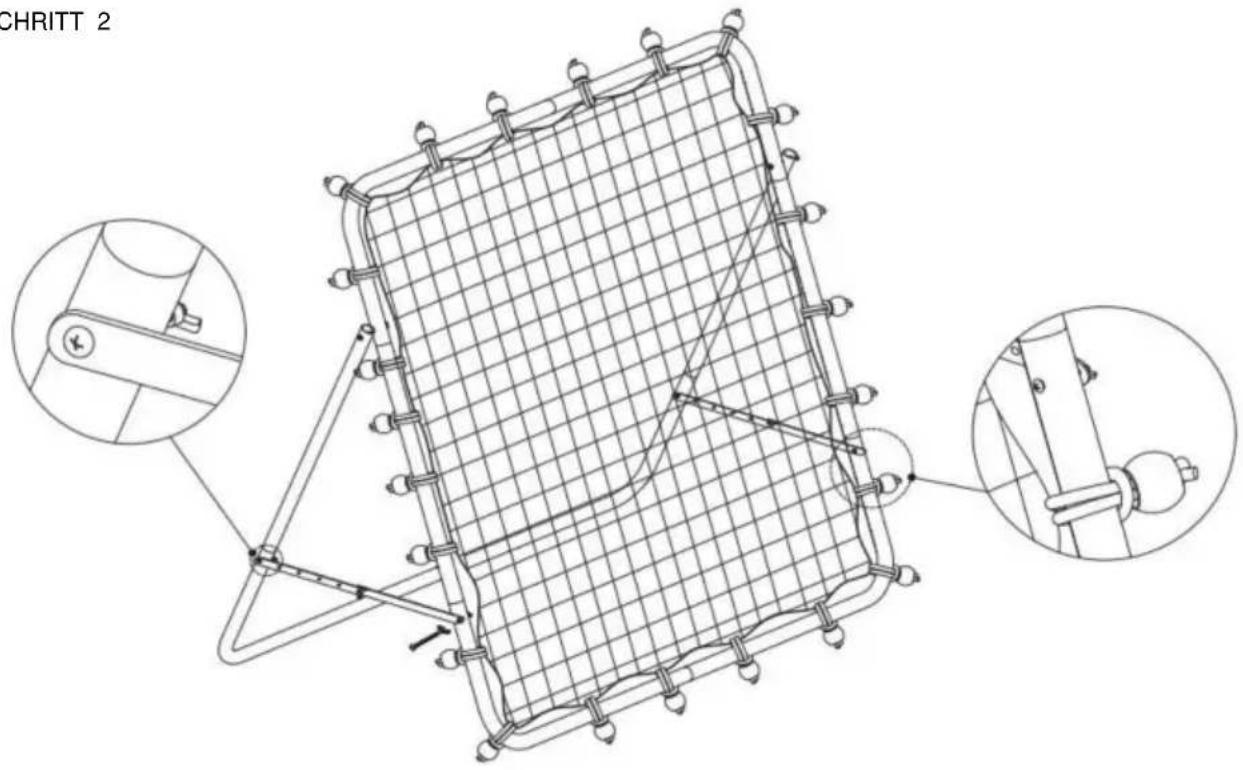

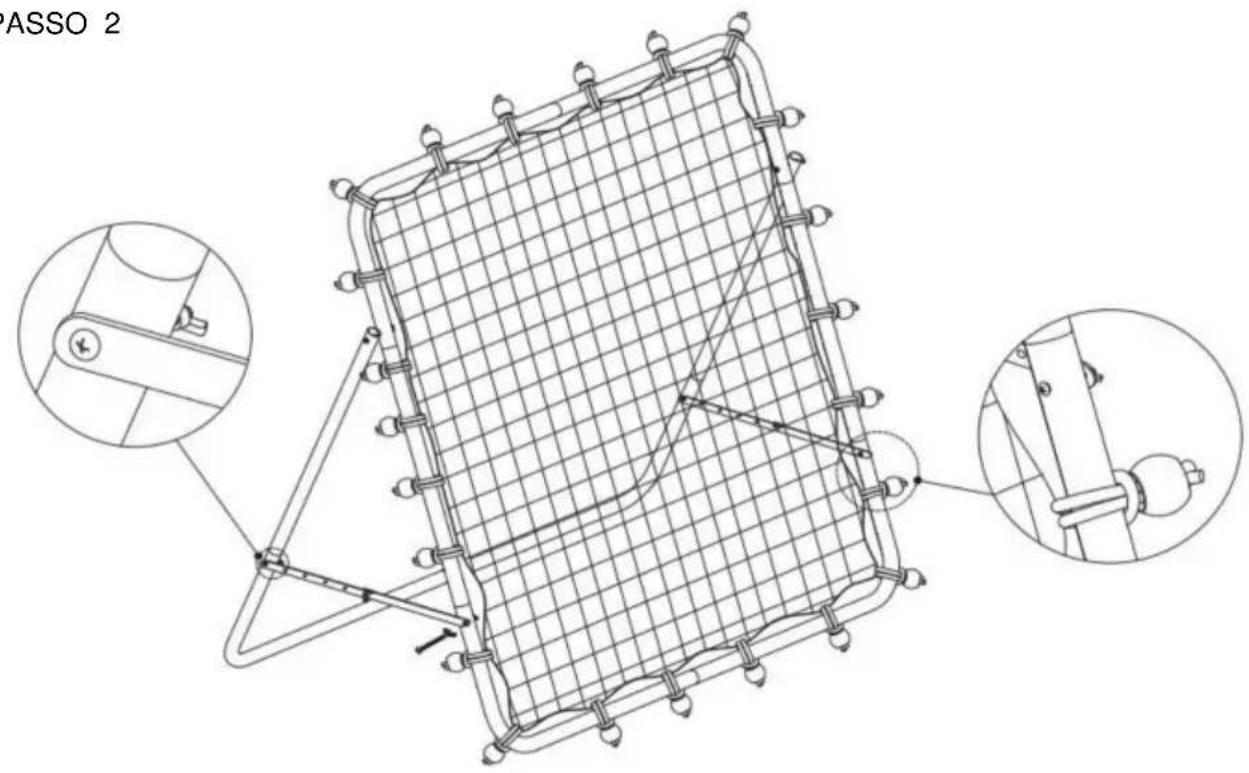

STEP 2

Attention: Ground nails must be used to fix the product on the ground (ensure the reliability of the ground itself) to prevent it from falling.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad. Clean with water or other liquids. Be sure to keep the product dry.
2. Children are not allowed to wipe the product to avoid tipping and falling.
3. After the product is disassembled, please put the parts and accessories together.
