FLOOR STANDING SPEAKER

Model: VV-2501F / VV-2502F / VV-1601F /

VV-2602F / VV-2801F

Scan for Assistance

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Model: VV-2501F/ VV-2502F/ VV-1601F/ VV-2602F/ VV-2801F

Exterior view of a modern office building (no signage)

(The picture is for reference only, please refer to the actual object

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user man. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

Warning-To reduce the risk of injury, user must read ins manual carefully.

1. Important Notices

Water & Moisture

Do not place the speakers in environments where water exposure or moisture is possible. Avoid using them in rainy or humid conditions.

Power Safety

When connecting external amplifiers or other devices, ensure the volta is appropriate and that connections are secure. Always operate with d hands.

Scratch & Impact Protection

The speaker enclosure is made of MDF, or density board with a PV. Avoid contact with sharp objects to prevent scratches or damage to t surface.

Proper Installation

These are passive speakers without built-in amplification. Use only certified external amplifiers to drive the speakers and follow proper connection instructions.

2. Product Overview

Product Type: Passive Floor standing Speakers

Applications: Suitable for high-fidelity, stereo audio playback in hon and office setups.

Key Specifications (Refer to each model for exact parameters):

Model: VV-2501F/VV-2502F:Speaker Maximum Output Power: 145WTweeter Size: 0.75 inch+1 inchWoofer Size: 5.25 inch×2Frequency Response: 70Hz - 20KHzImpedance: 8 Ω	VV-2501F / VV-2502F
Model: VV-1601FSpeaker Maximum Output Power: 200WTweeter Size: 1 inchWoofer Size: 6.25 inch×1Frequency Response: 65Hz - 20KHzImpedance: 8 ΩPassive speakers
Model VV-2602F:Speaker Maximum Output Power: 400WTweeter Size: 1 inchWoofer Size: 6.5 inch×2Frequency Response:60Hz - 20KHzImpedance: 8 ΩPassive speakers
Model: VV-2801FSpeaker Maximum Output Power: 600WTweeter Size: 1 inchWoofer Size: 8 inch×2Frequency Response: 55Hz - 20KHzImpedance: 8 ΩPassive speakers

Additional Note: This model is designed as a high-quality passive speaker ideal for dynamic sound reproduction.

Enclosure Materials: Typically built from density board, MDF, or similar materials with PVC finish for scratch and impact resistance

3. Quick Setup and Connection

1. Choosing the Installation Position:

Select a stable, dry, and well-ventilated location away from water sour and high temperatures. Ensure the speaker is placed on a flat, secur surface.

2. Connecting Devices:

Use the speaker cables (typically 2-meter cables, not included) to connect the speakers to an external amplifier or audio device.

Important: Ensure the red wire is connected to the + terminal, and black wire is connected to the - terminal.

Verify that the left and right channels are connected correctly and set to avoid poor contact that may impact sound quality.

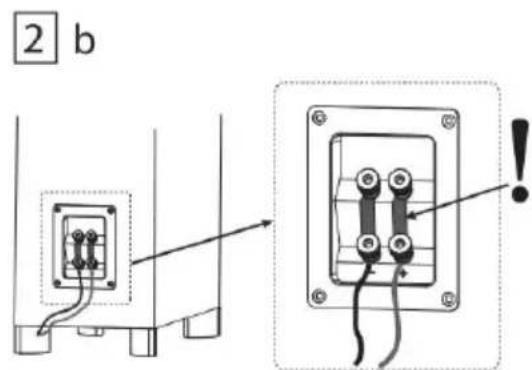

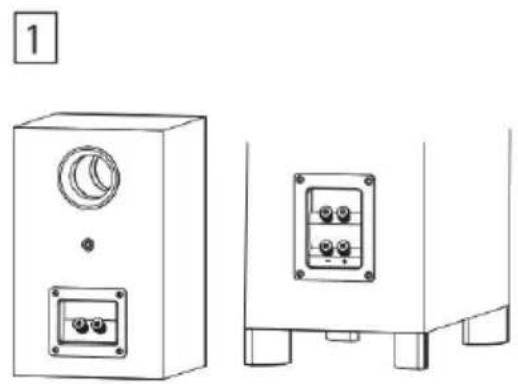

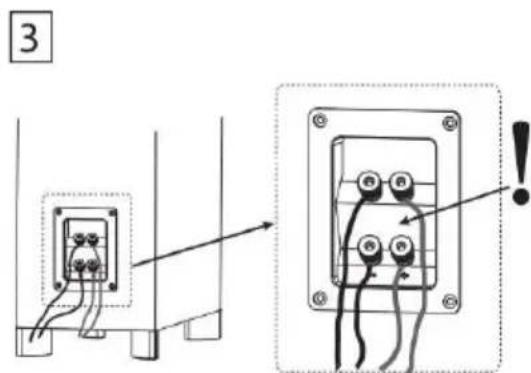

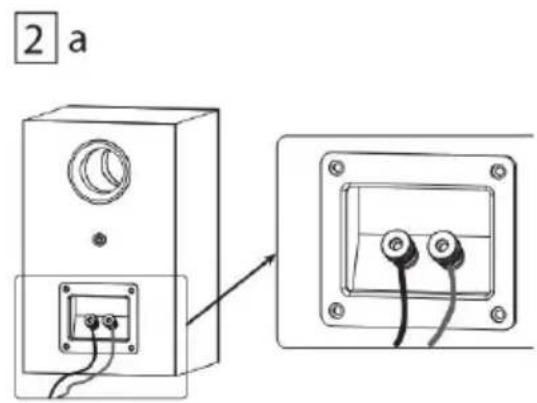

DIAGRAMS / FIGURES / DIAGRAMAS

Technical line drawing of two electrical enclosure units with control knobs and buttons (no text or symbols)

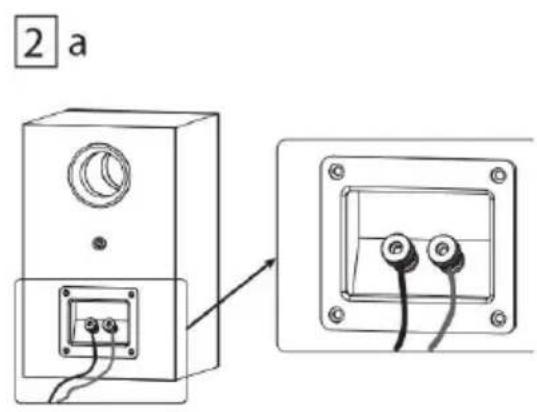

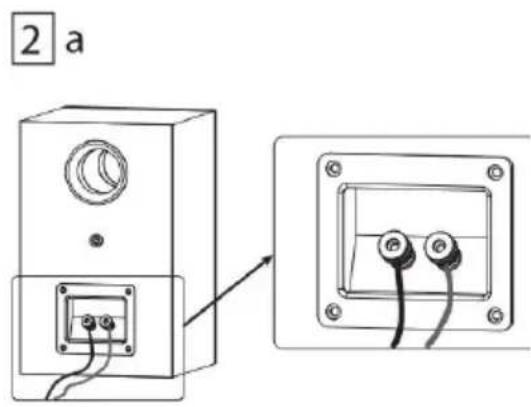

2 a

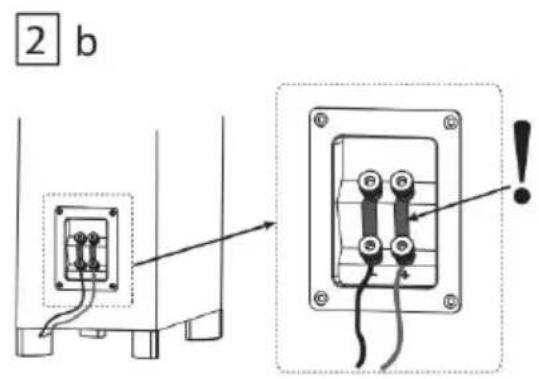

2 b

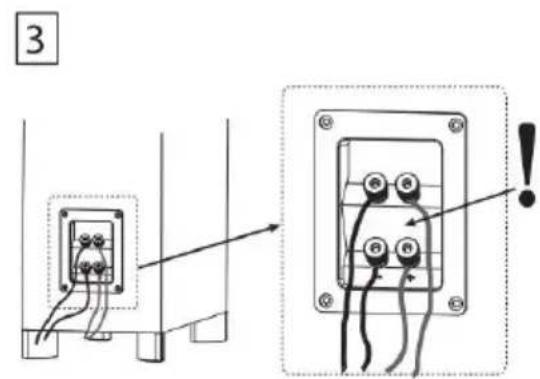

3

3. System Adjustment:

Adjust the volume and frequency response controls on the external amplifier to match the speaker specifications for optimal performance.

4. Main Functions

High-Quality Audio Output:

Delivers high-fidelity stereo sound suitable for a wide range of audio playback scenarios.

Multiple Input Adaptability:

When paired with an external amplifier or AV receiver, the speakers handle various audio sources seamlessly.

Simple and Durable Design:

The design includes edge protection to ensure that the speakers mair their appearance and tactile feel over long-term use.

6 a

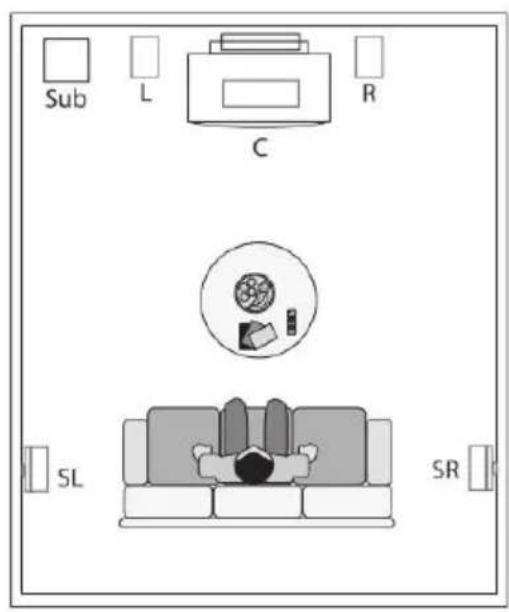

Sub L C R SL SR

6 b

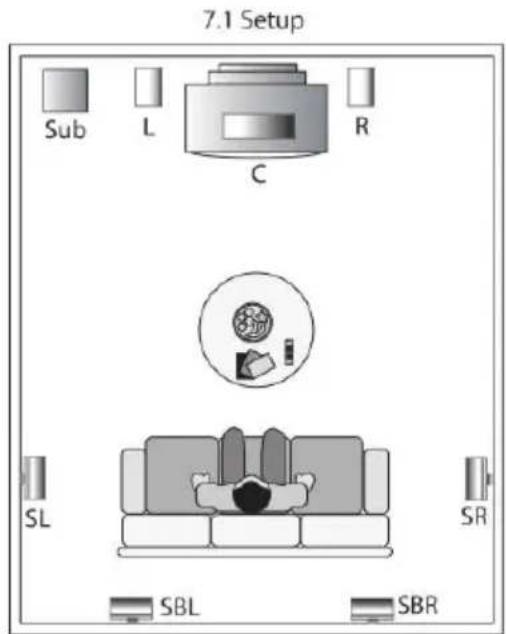

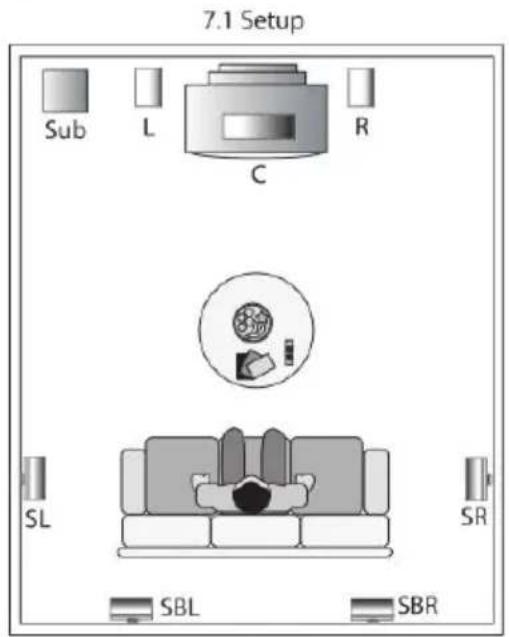

7.1 Setup Sub L R C SL SR SBL SBR

5. Care of Finish

The floor standing speaker should be gently cleaned with only a cloth and warm water from time to time, in order to remove any dust fingerprints. Do not use an abrasive cleaner, or any type of ammonia based cleaners, or window-type cleaners. To remove the dust from the grille cloth, use the brush attachment on your vacuum cleaner or a s dampened sponge or dust-free cloth. Do not touch the speaker cones directly or enter them in contact with water or cleaning materials, as can cause irreparable damage.
