CABIN PLAYHOUSE

MODEL:TLG92008

Line drawing of a children's playground with wooden structure, stairs, and play equipment (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

02008 SAFETY INSTRUCTIONS

WARNING:

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690mm
Material	Wood

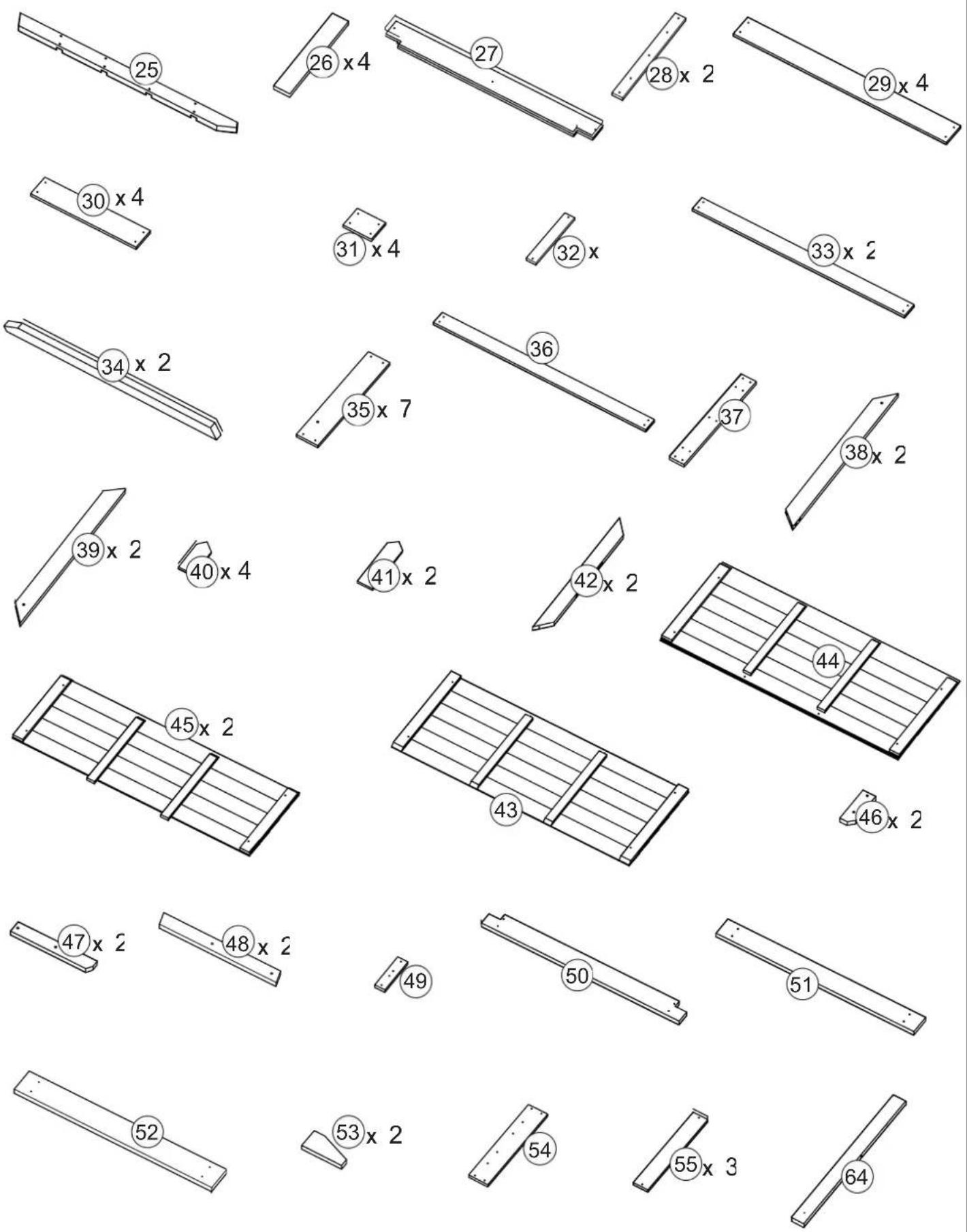

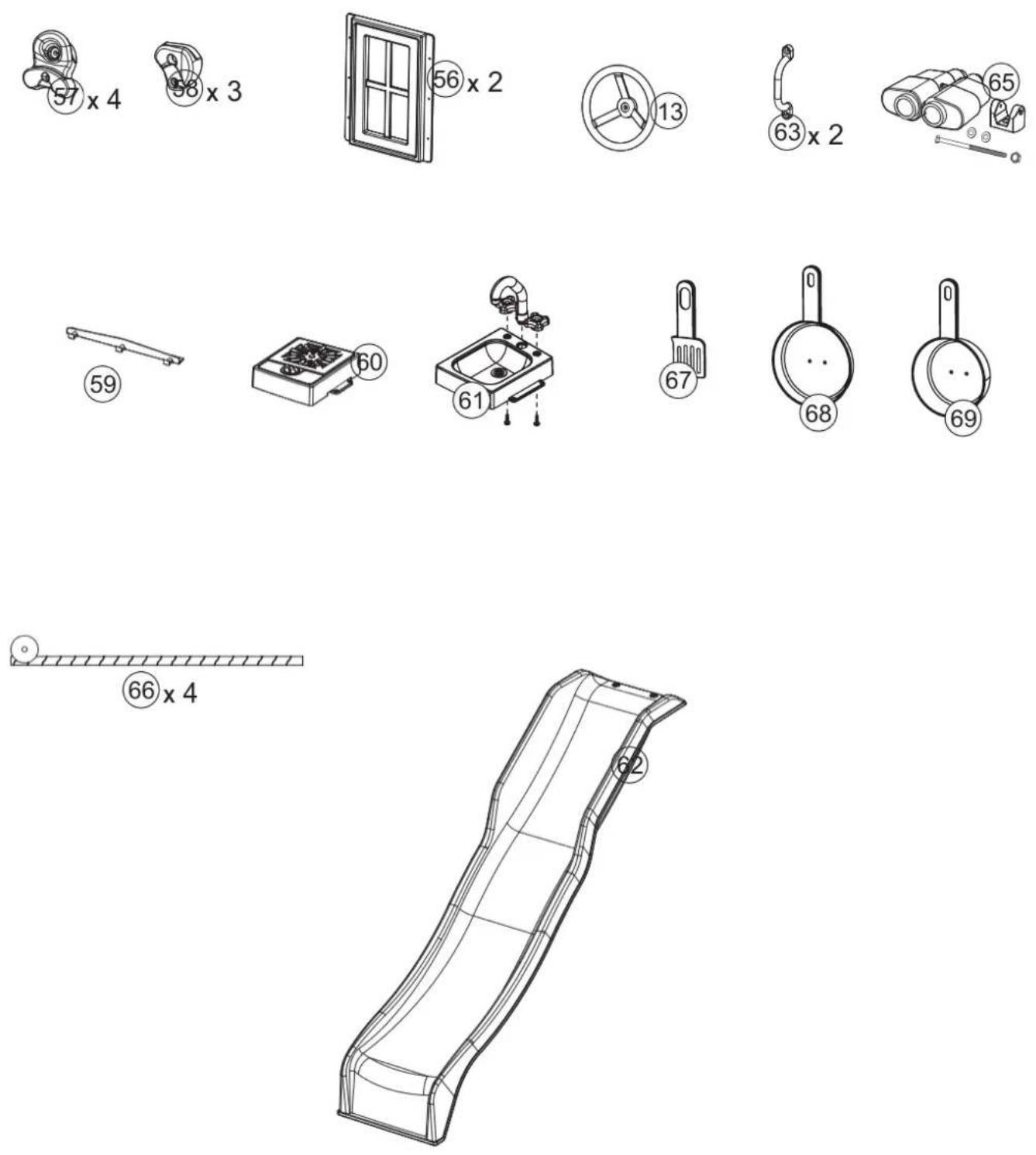

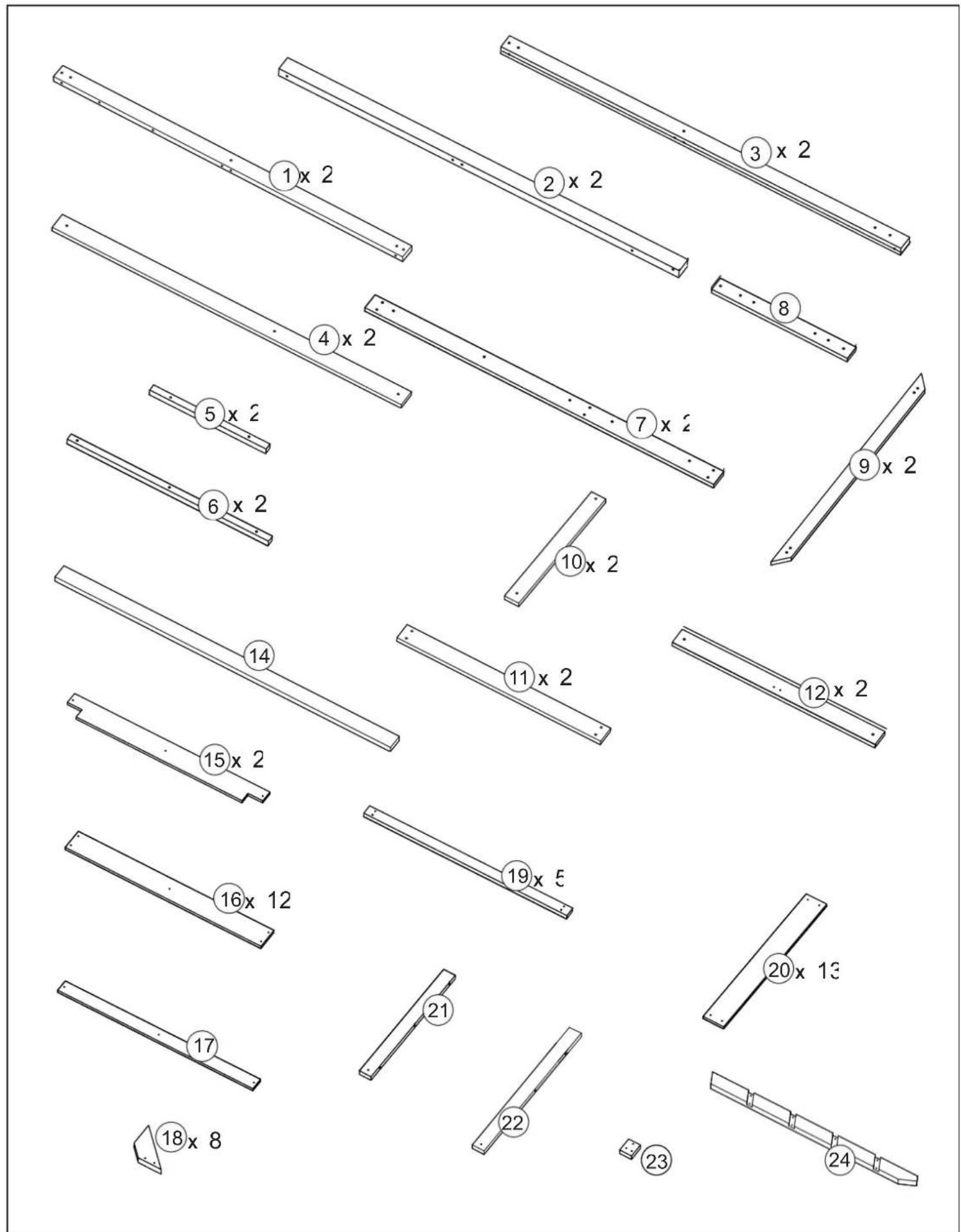

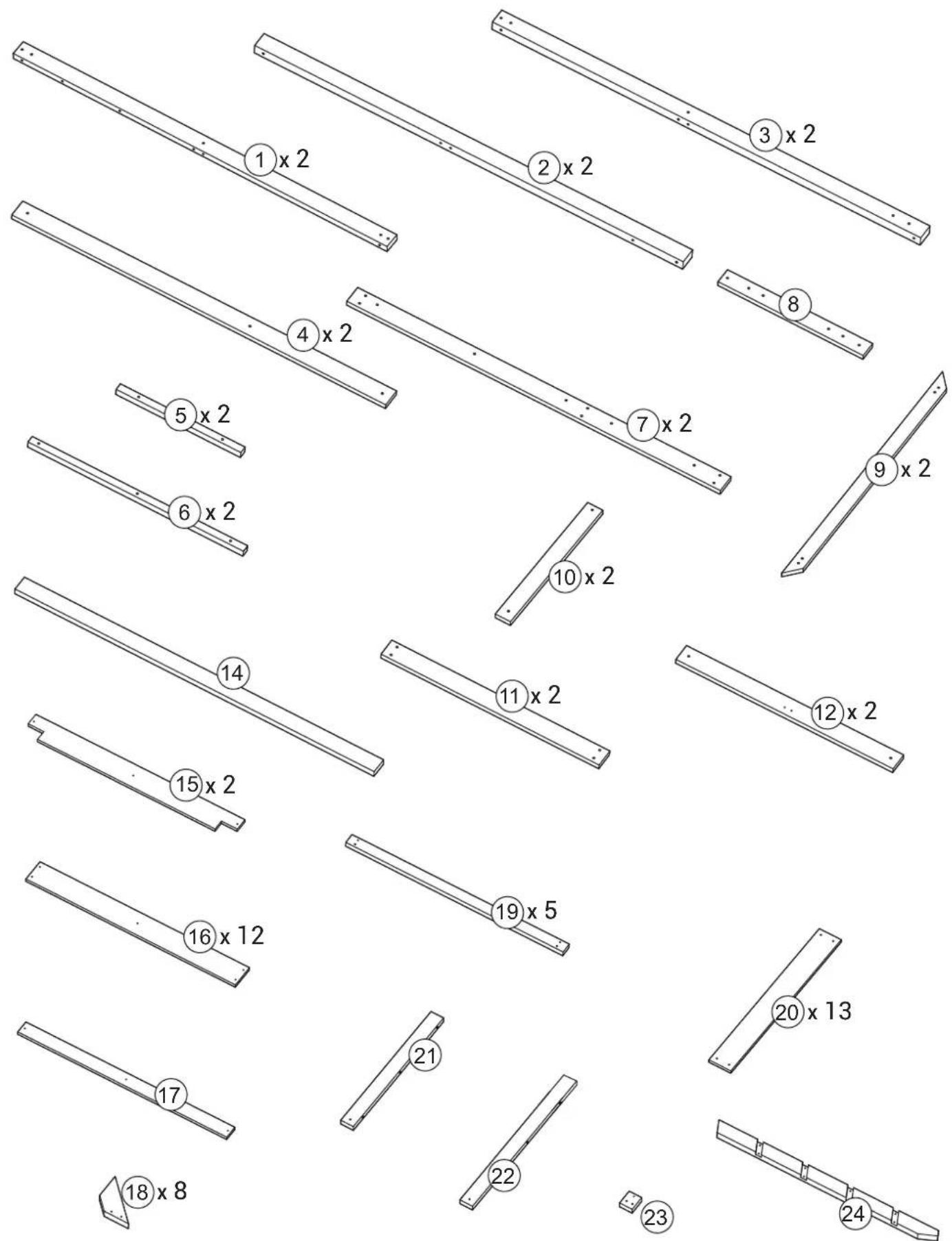

1 x 2 2 x 2 3 x 2 4 x 2 5 x 2 6 x 2 7 x 2 8 9 x 2 10 x 2 11 x 2 12 x 2 13 x 2 14 15 x 2 16 x 12 17 18 x 8 19 x 5 20 x 13 21 22 23 24

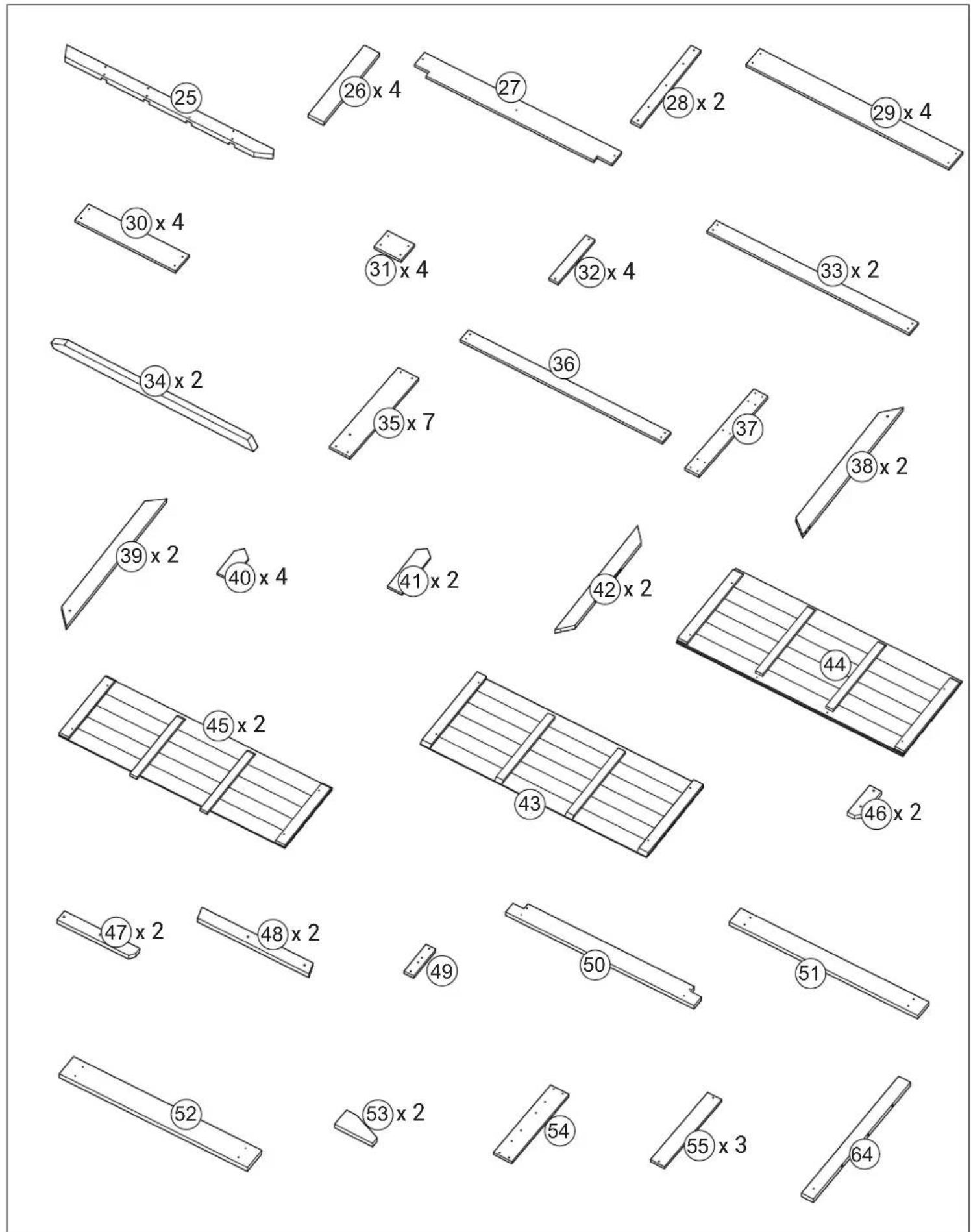

25 26 x 4 27 28 x 2 29 x 4 30 x 4 31 x 4 32 x 4 33 x 2 34 x 2 35 x 7 36 37 38 x 2 39 x 2 40 x 4 41 x 2 42 x 2 43 44 45 x 2 46 x 2 47 x 2 48 x 2 49 50 51 52 53 x 2 54 55 x 3 56 x 3 57 x 2

x 4

x 3

56×2

⑥6 x 4

Technical line drawing of a curved structural component with a circular marker labeled '62' (no text or symbols beyond the number)

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	x 222
		20mm 20mm		25mm15mm				35mm
F	x 76	G	x 20	H	x 15	I	x8	J	x20
45mm 60mm				70mm		H2		—	H3
K	x30	L	x6	M	x7	N	x4	O	x8
H4		—				WL3 WL5H12 PB2		CX6H
P	x 4	Q	x64	R	x7	S	x24	T	x85
		TN1		BN1		FW3 FW1
U	x 71		x1
LW1		D6

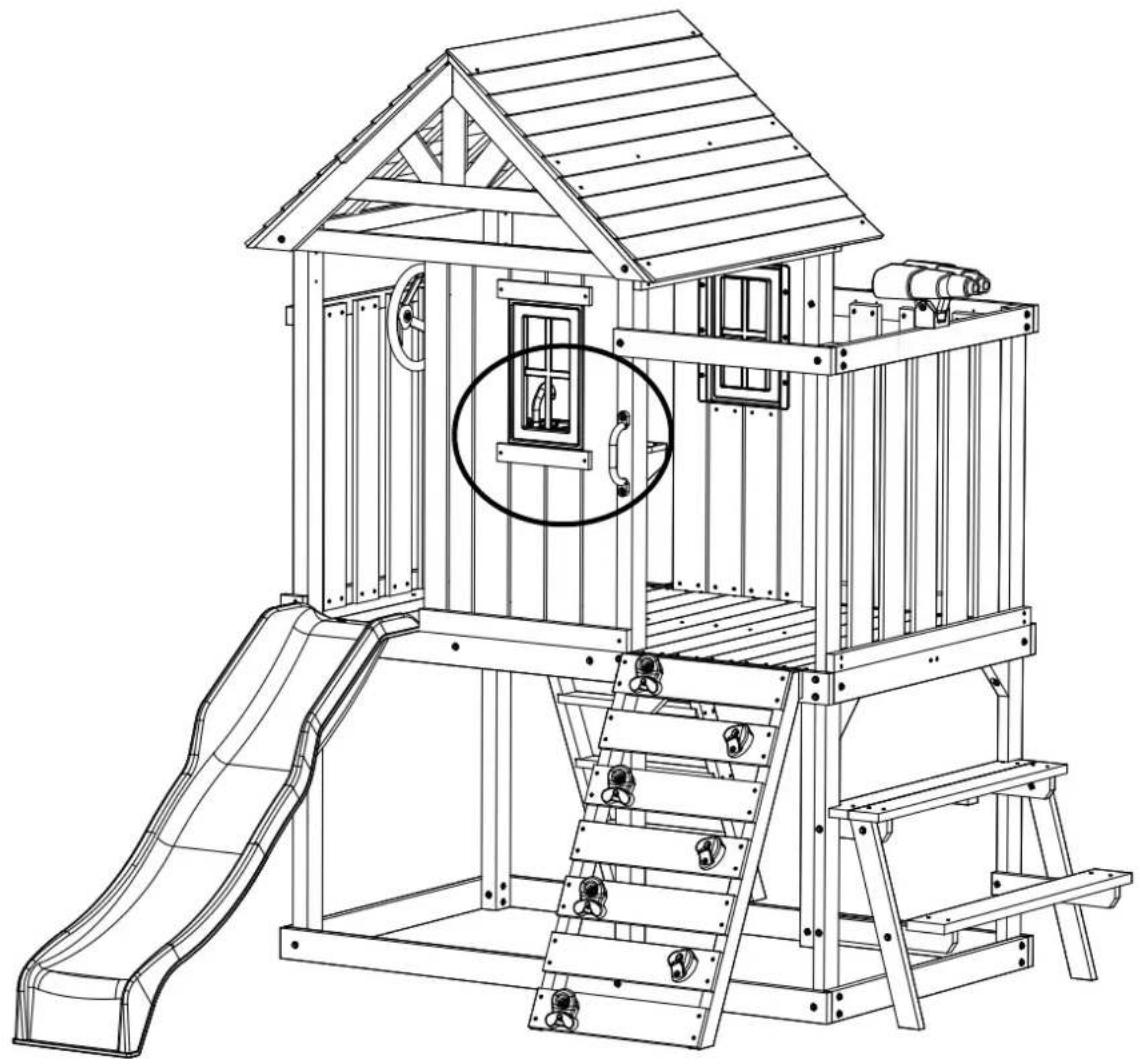

Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:Limpie las superficies con un paño suave seco o húmedo. No use limpiadores abrasivos.

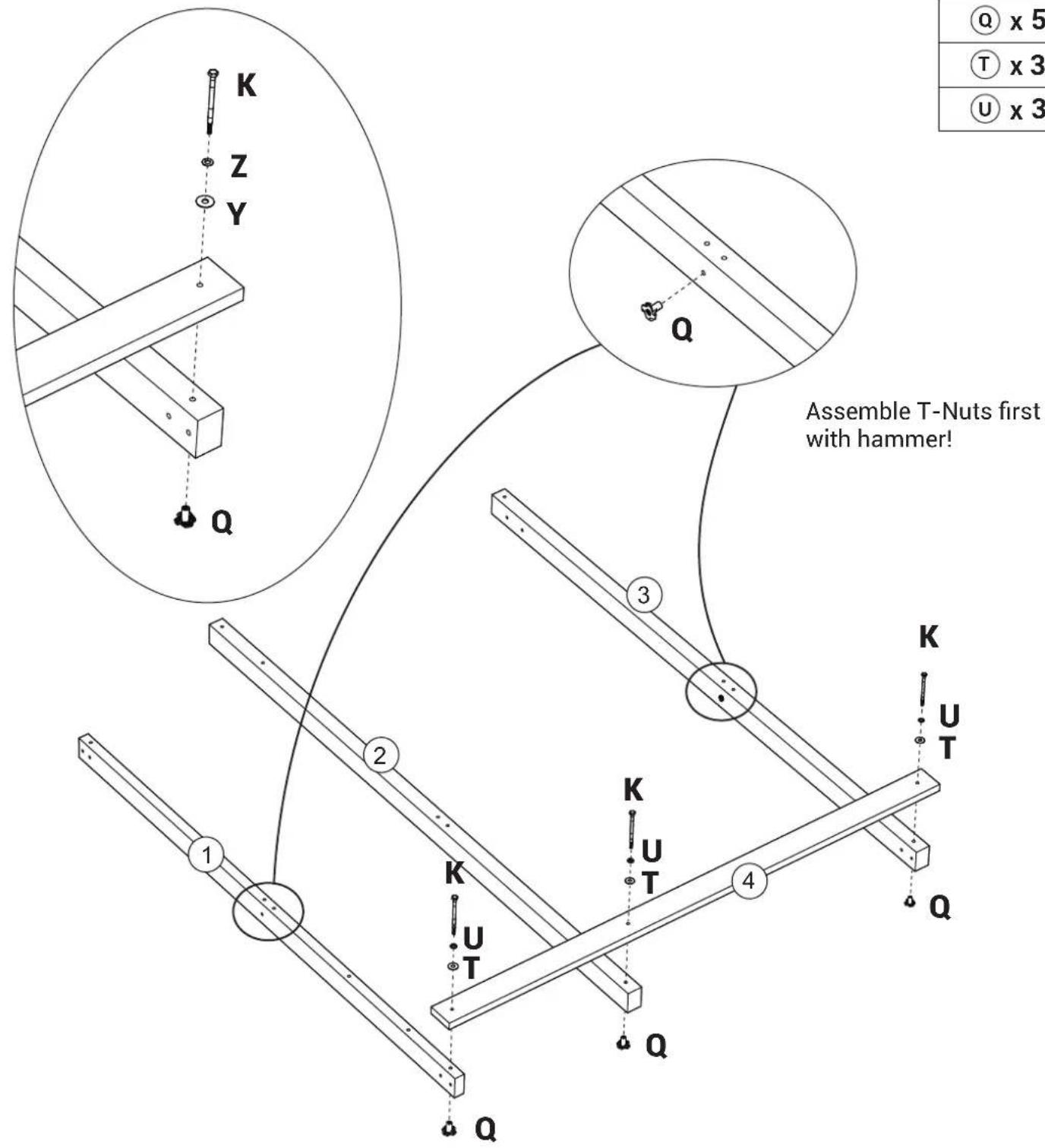

Step Étape Paso

1

1 x 1

2 x 1

3 x 1

4 x 1

K x 3

Q x 5

T x 3

U x 3

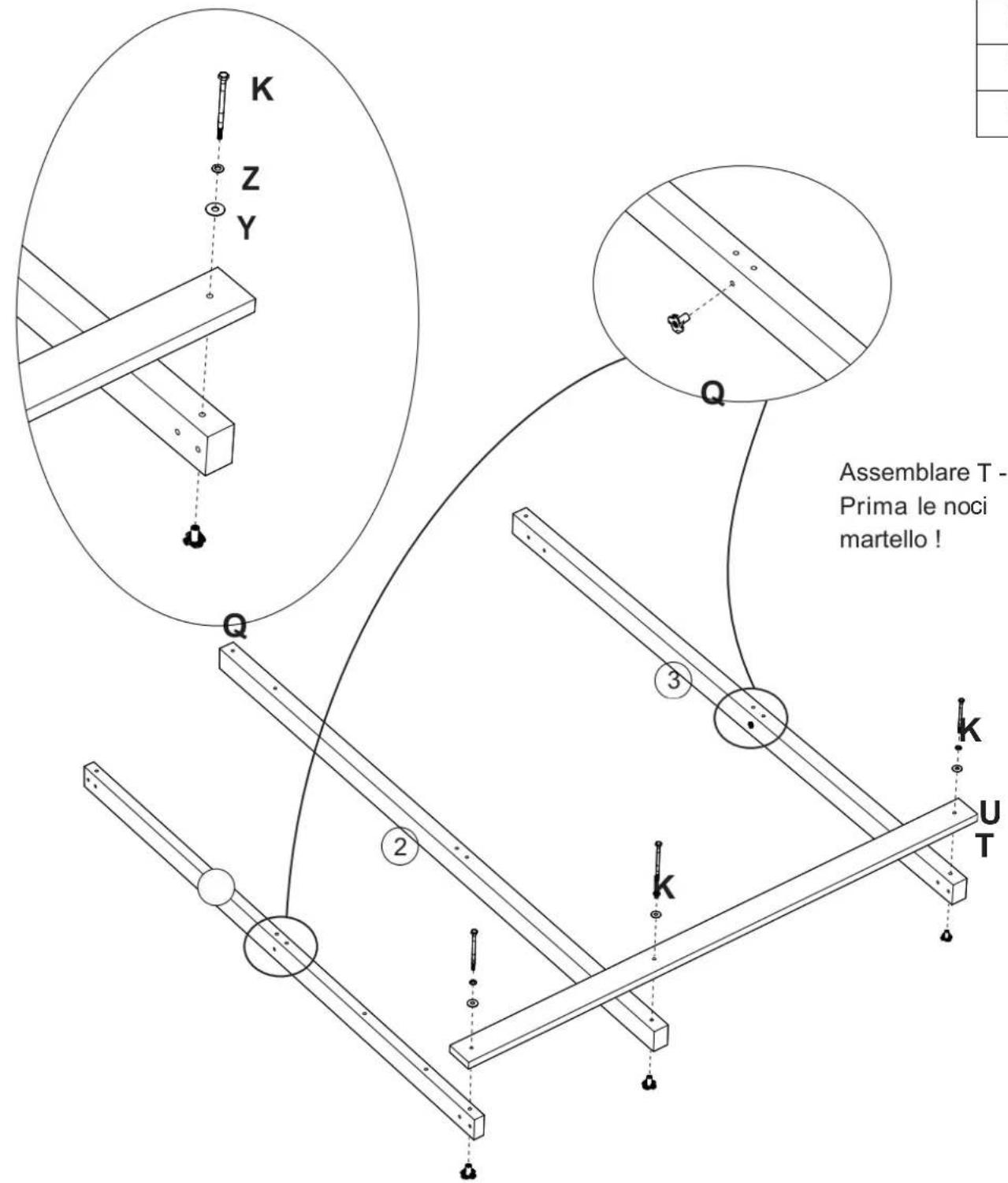

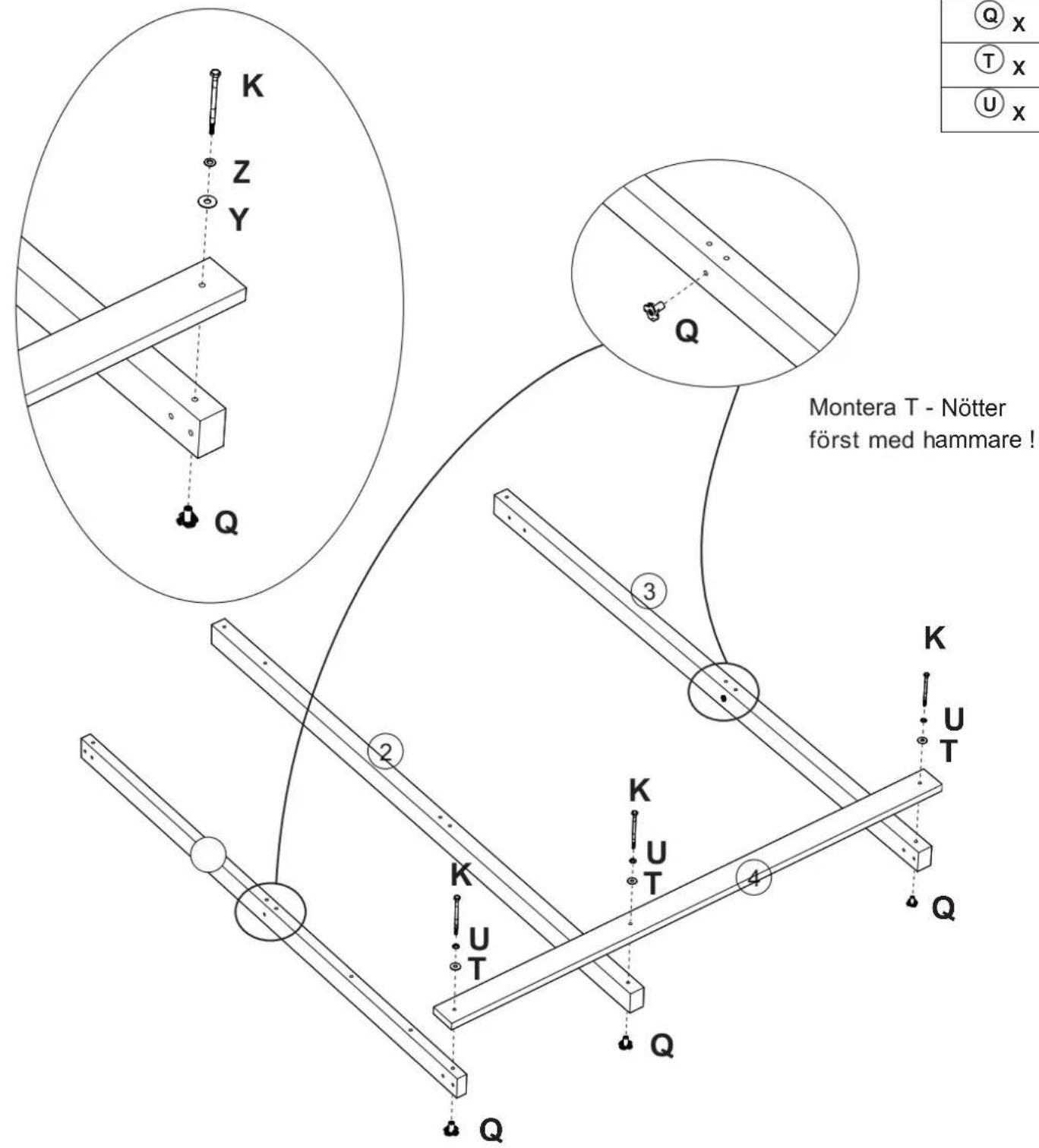

Q x 5 T x 3 U x 3 Assemble T-Nuts first with hammer! K Z Y Q 1 2 3 4 K U T K U T Q Q Q

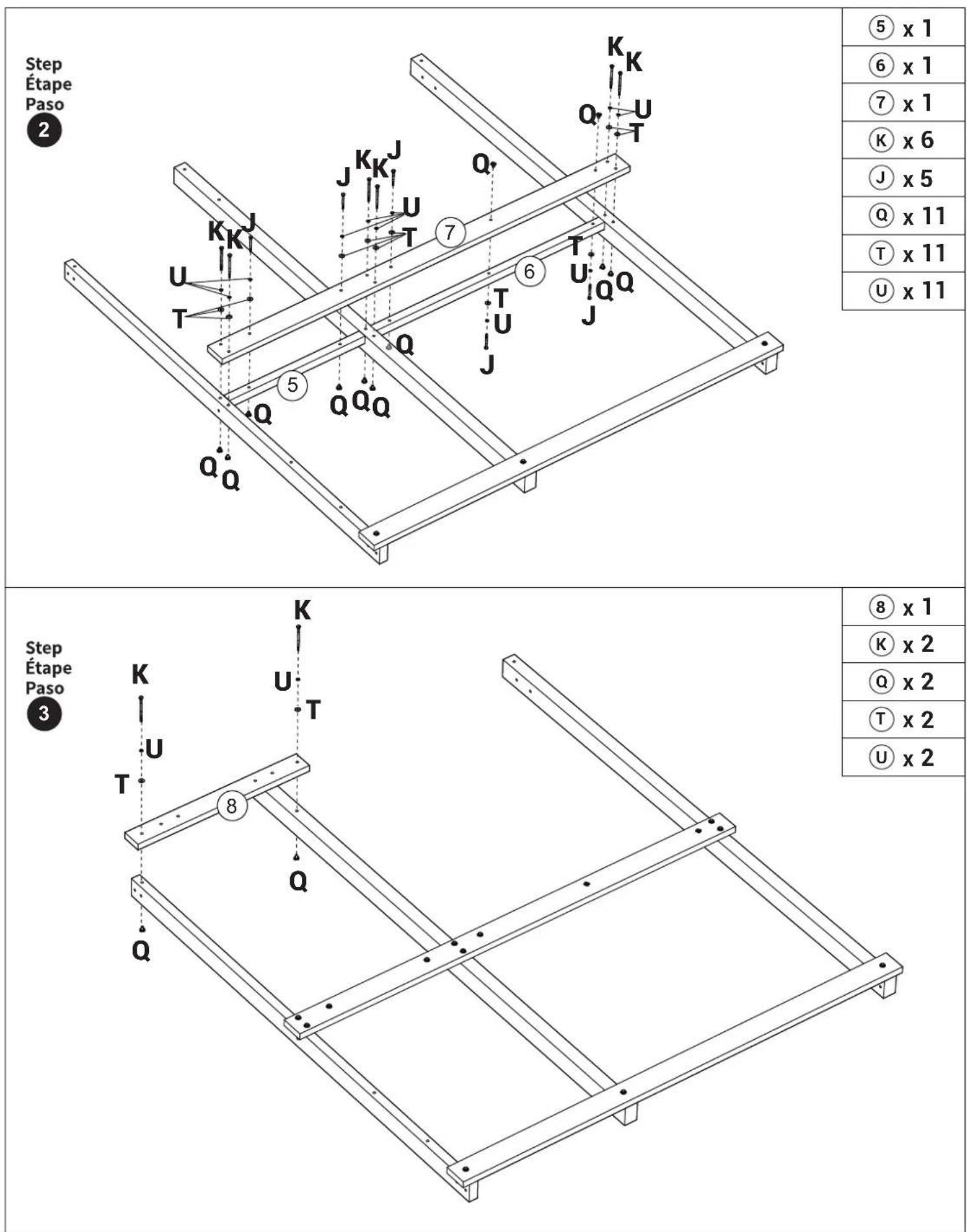

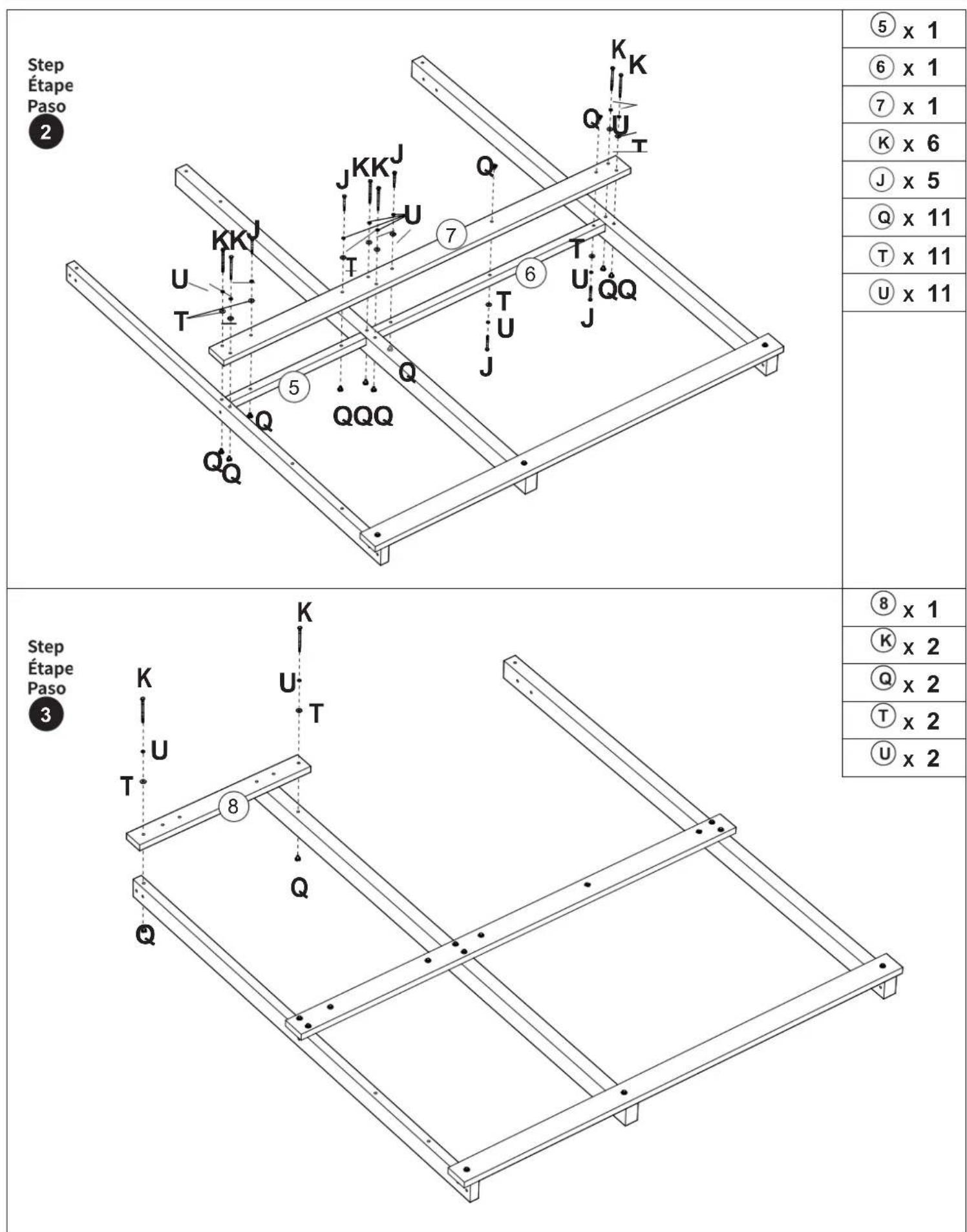

Step Étape Paso 2 ⑤ x 1 ⑥ x 1 ⑦ x 1 ⑧ x 6 ⑨ x 5 ⑩ x 11 ⑪ x 11 U x 11 Step Étape Paso 3 ⑧ x 1 K x 2 Q x 2 T x 2 U x 2

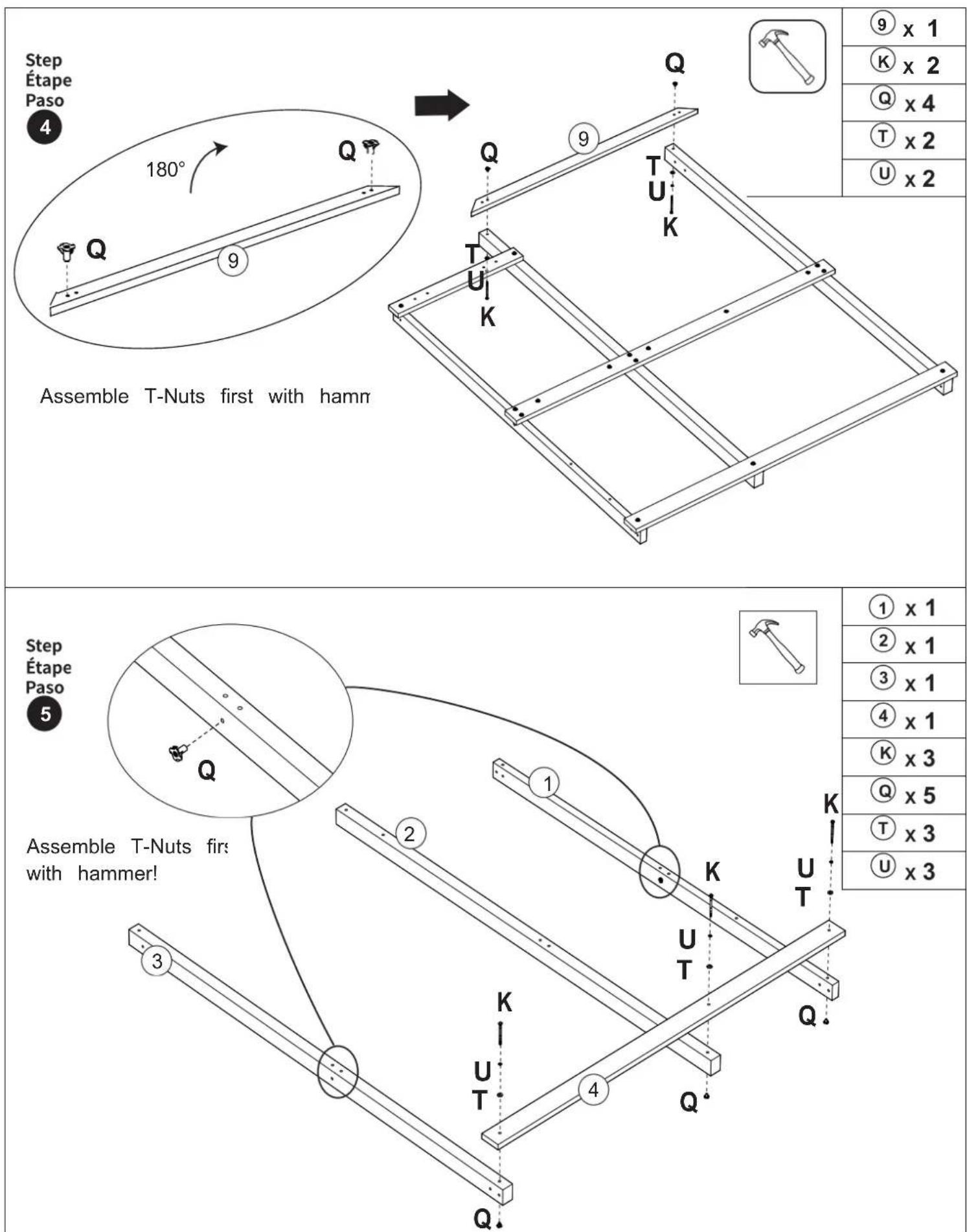

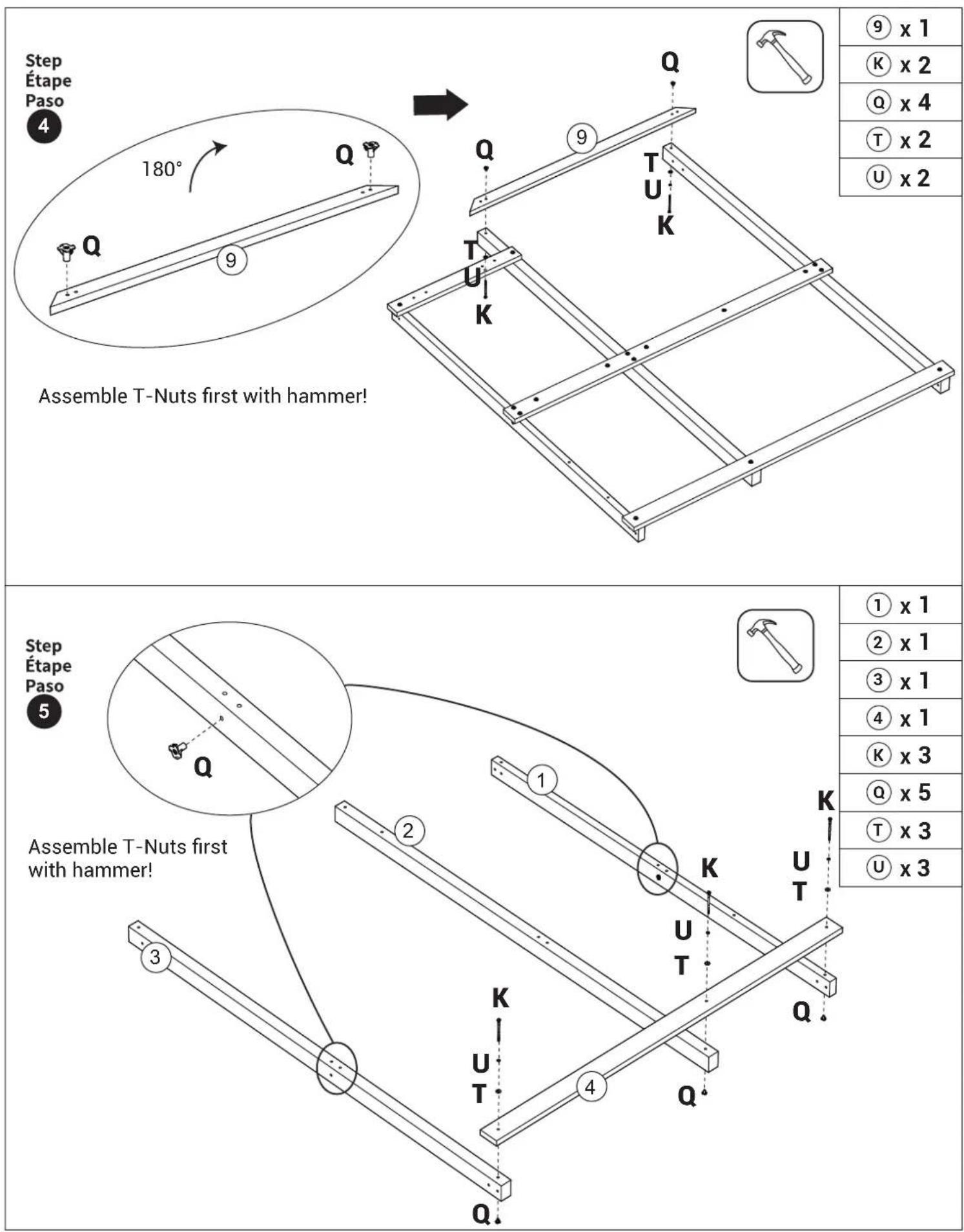

Step Étape Paso 4 180° Q 9 Assemble T-Nuts first with hammer! Step Étape Paso 5 Q Assemble T-Nuts first with hammer! ⑨ x 1 K x 2 Q x 4 T x 2 U x 2 ① x 1 ② x 1 ③ x 1 ④ x 1 K x 3 Q x 5 T x 3 U x 3

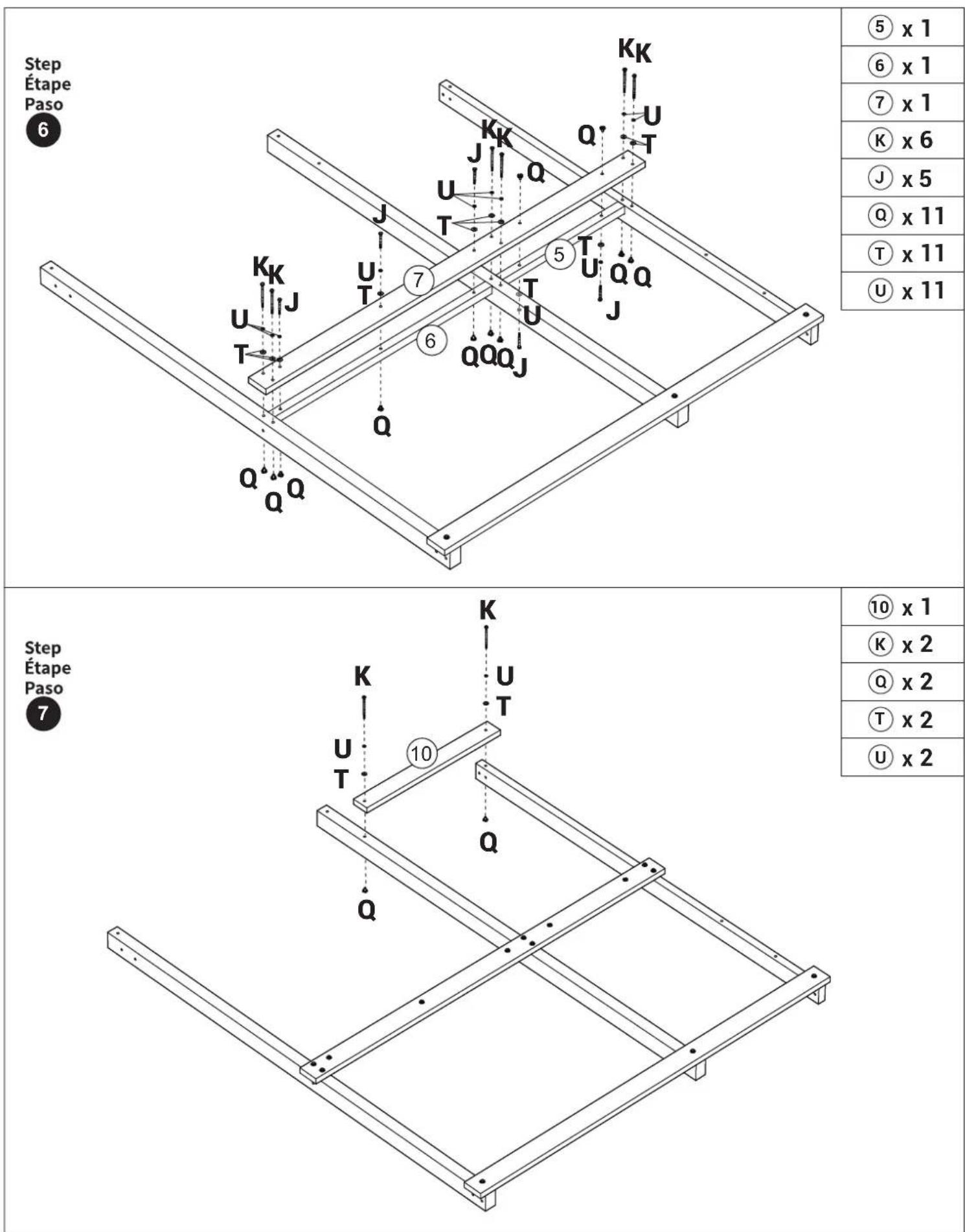

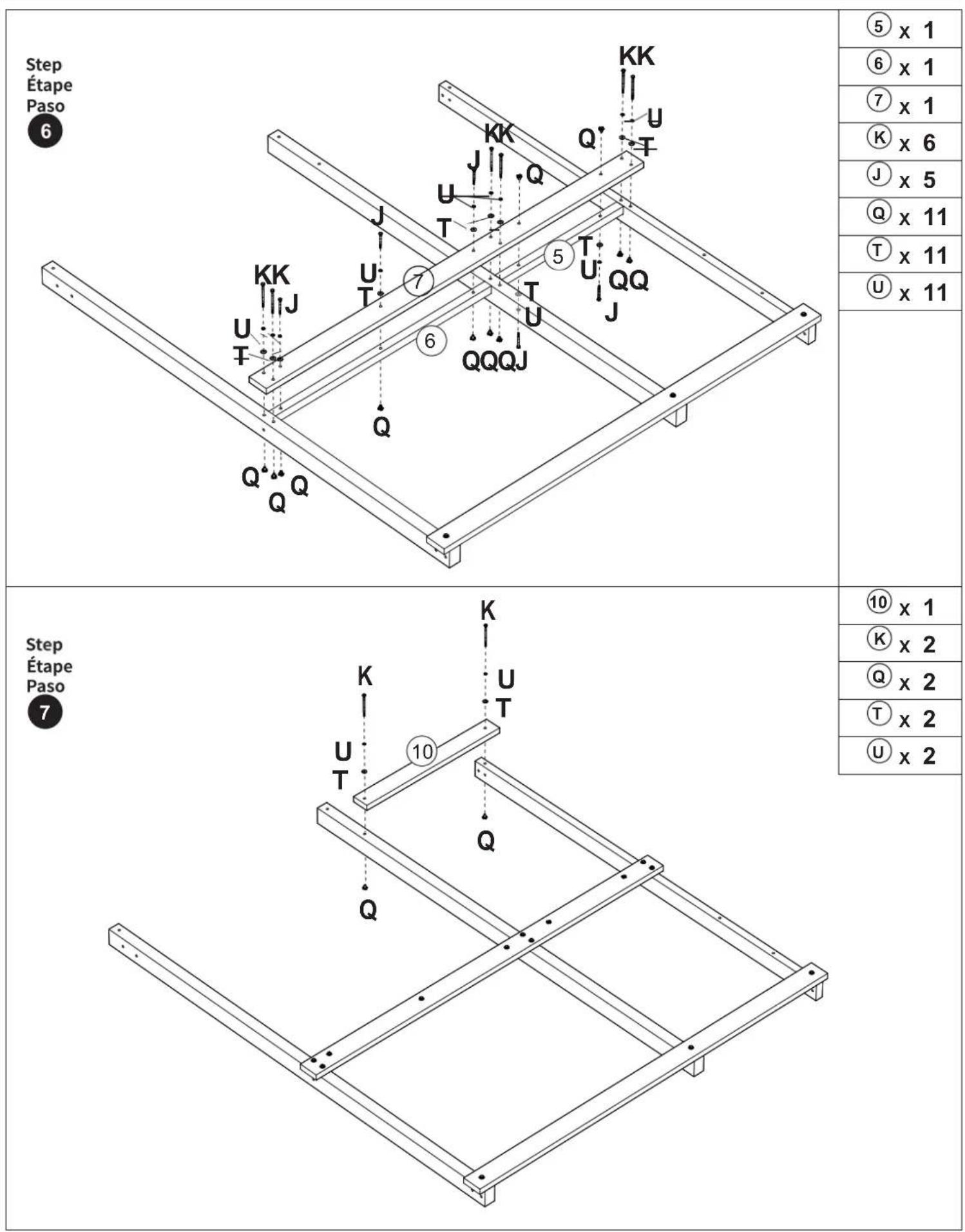

Step Étape Paso 6 5 x 1 6 x 1 7 x 1 K x 6 J x 5 Q x 11 T x 11 U x 11 Step Étape Paso 7 10 x 1 K x 2 Q x 2 T x 2 U x 2

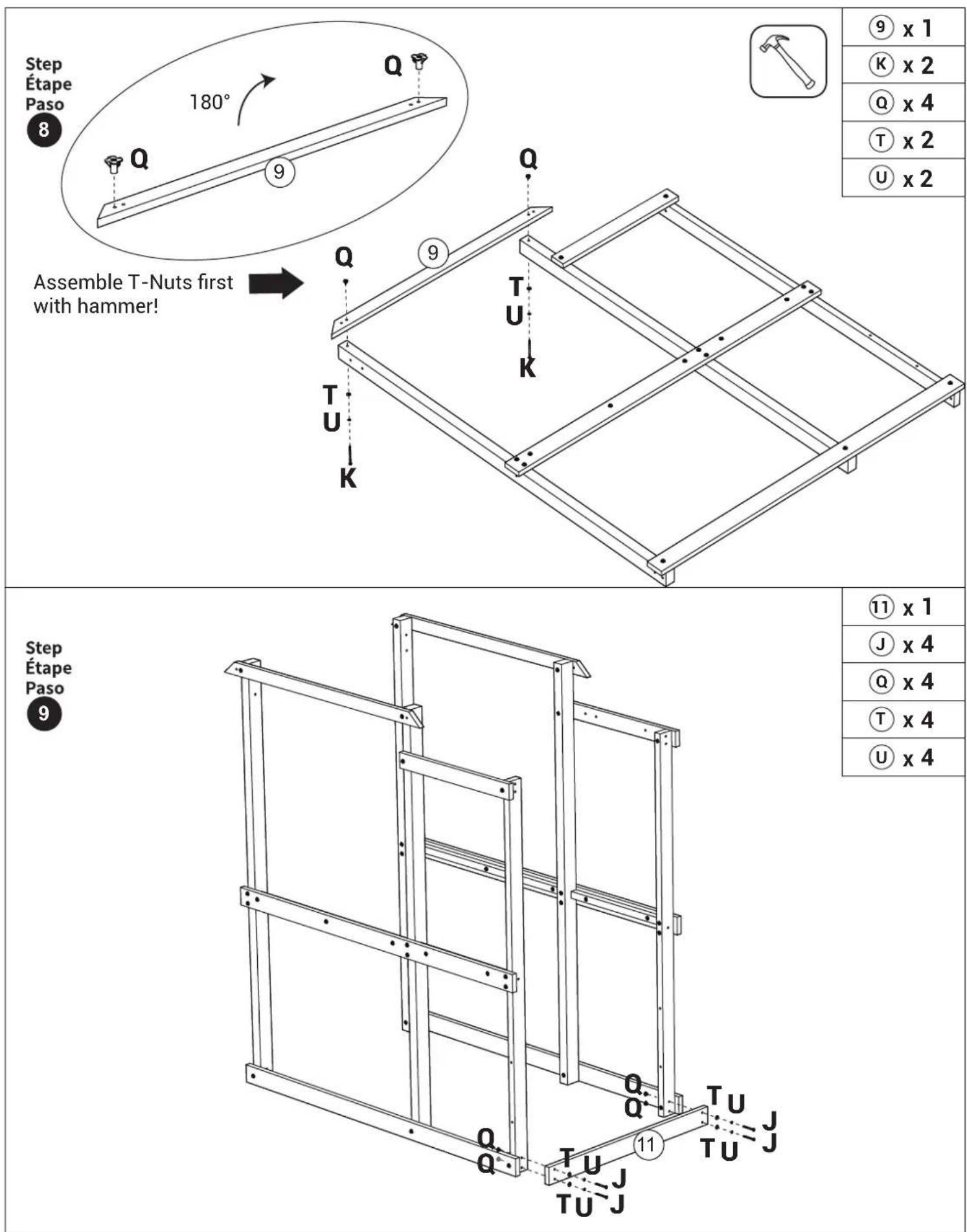

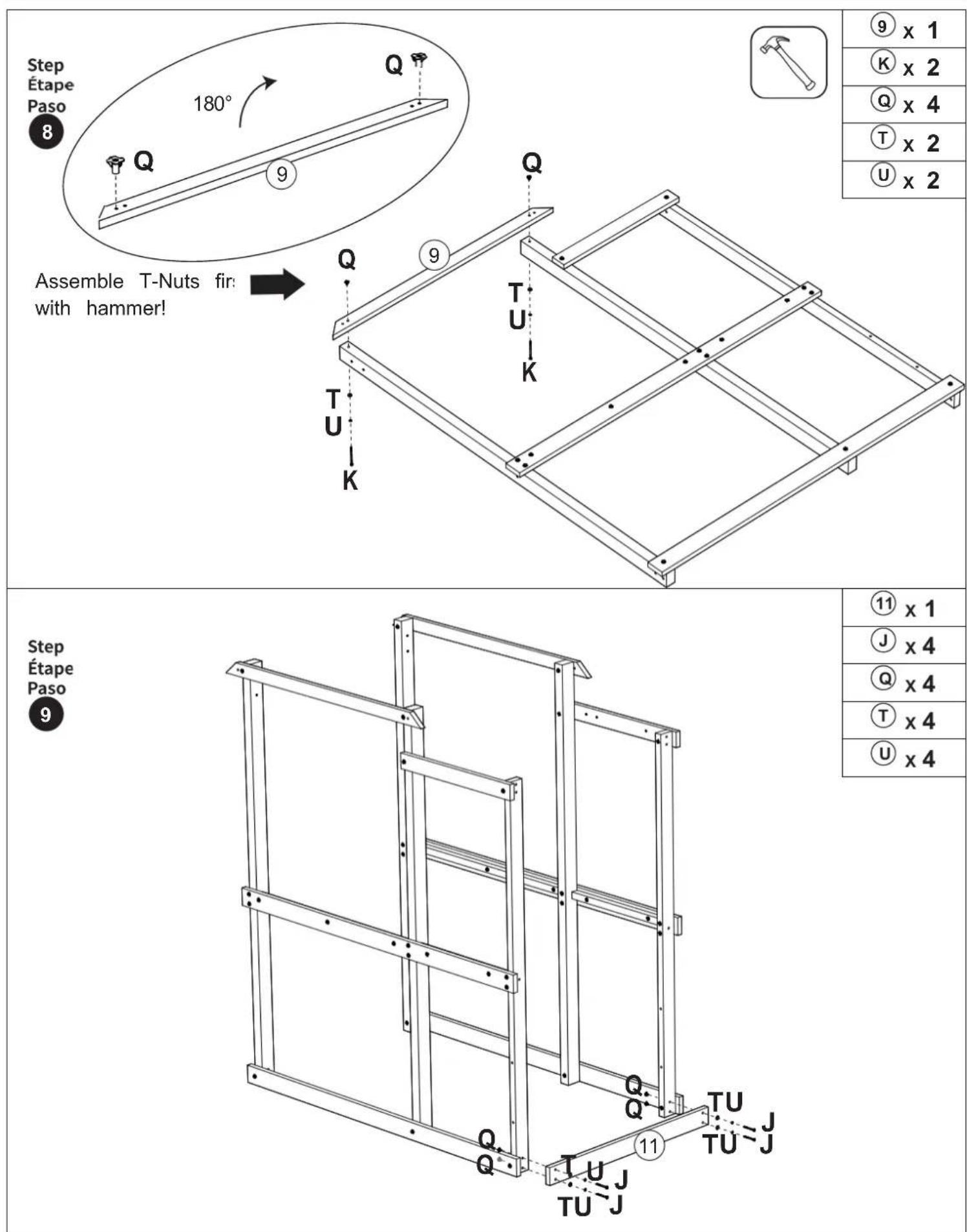

Step Étape Paso 8 180° Q Q 9 Assemble T-Nuts first with hammer! Q 9 T U K Step Étape Paso 9 ⑨ x 1 K x 2 Q x 4 T x 2 U x 2 ⑪ x 1 J x 4 Q x 4 T x 4 U x 4

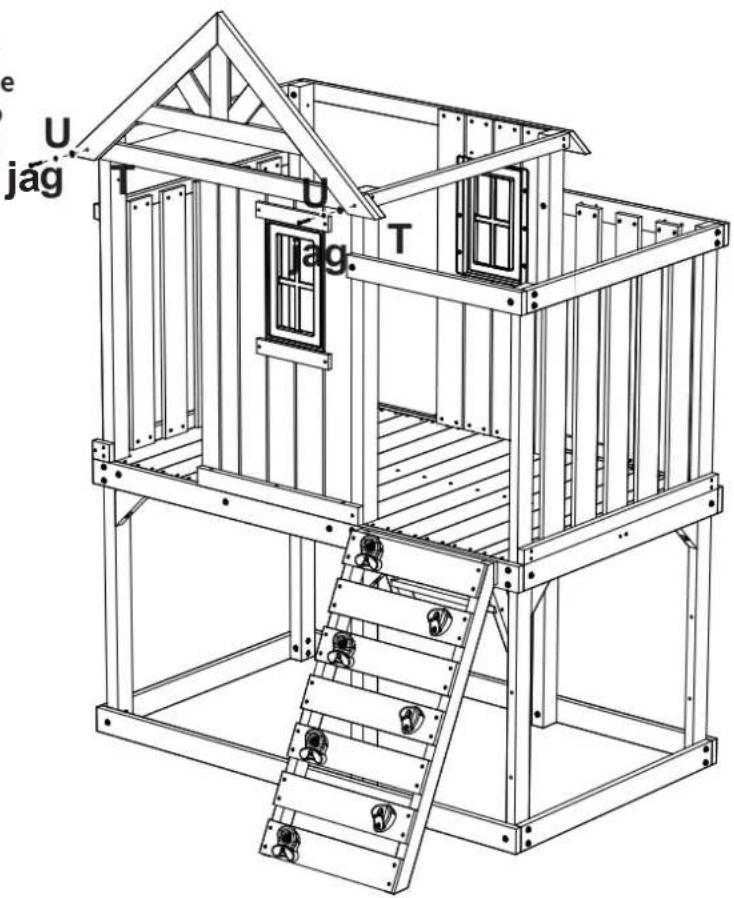

Step Étape Paso 10

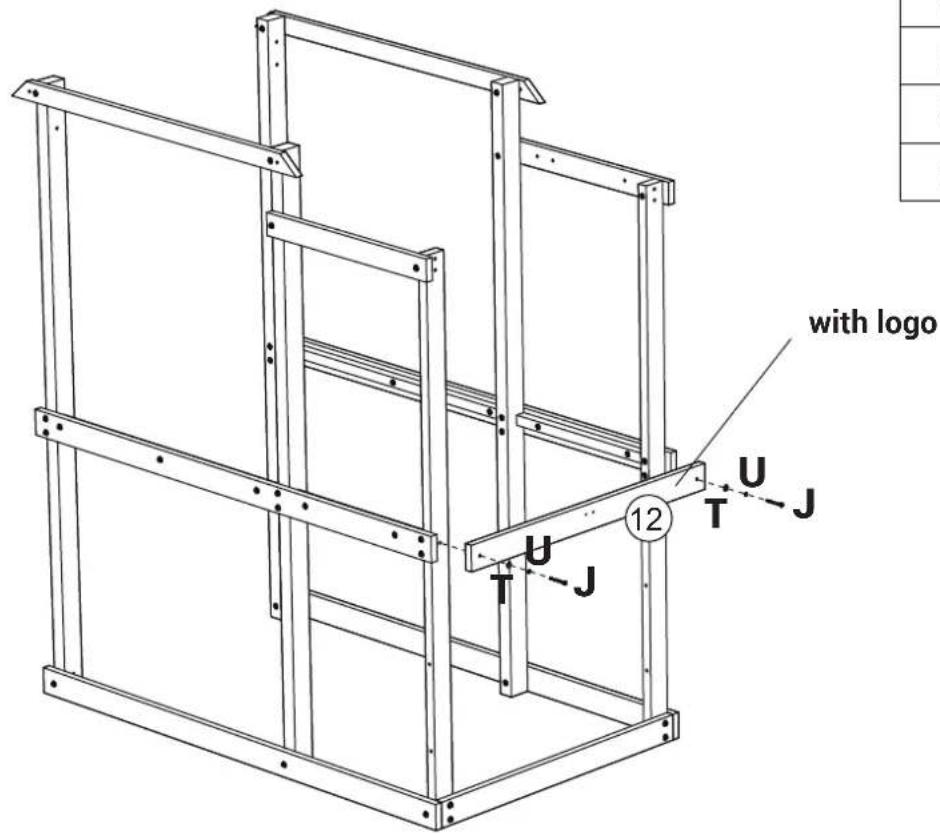

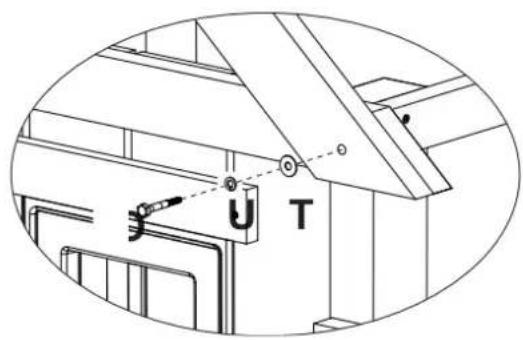

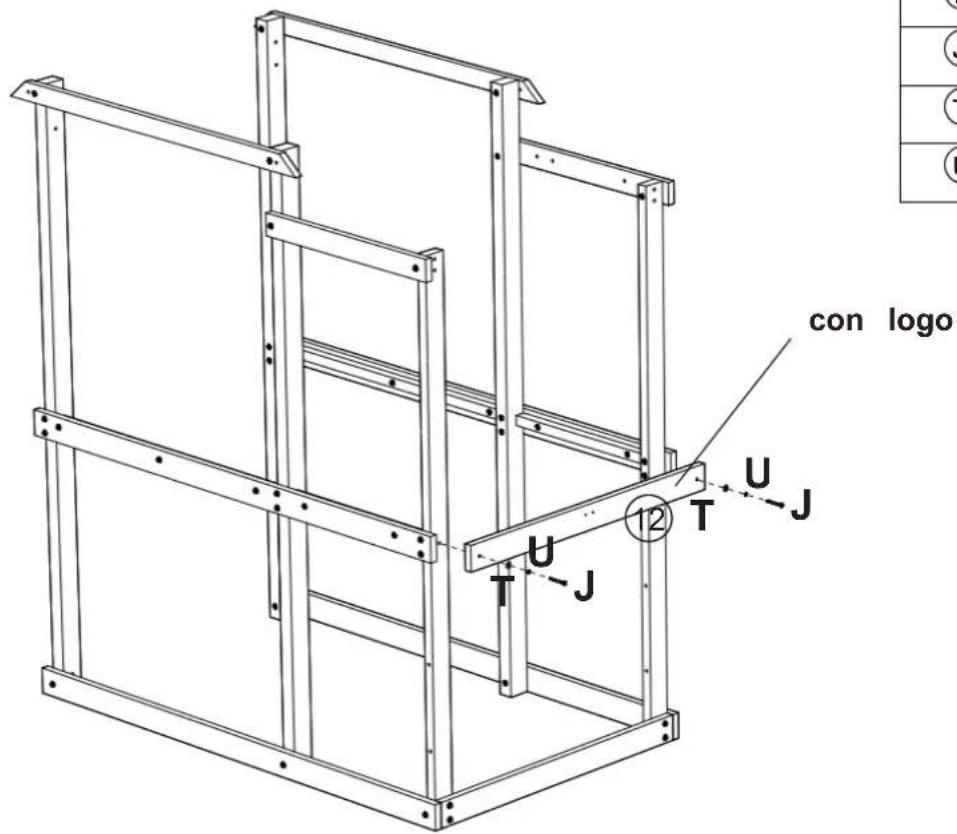

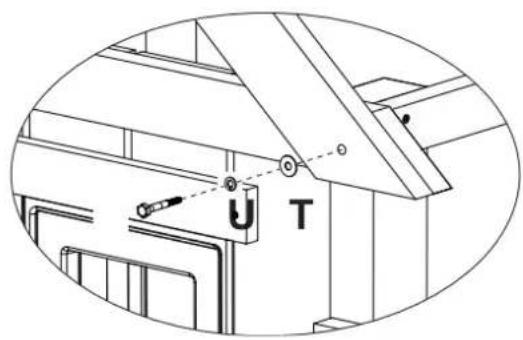

with logo U-J 12 T-J T U-J

12 x 1

J x 2

T x 2

U x 2

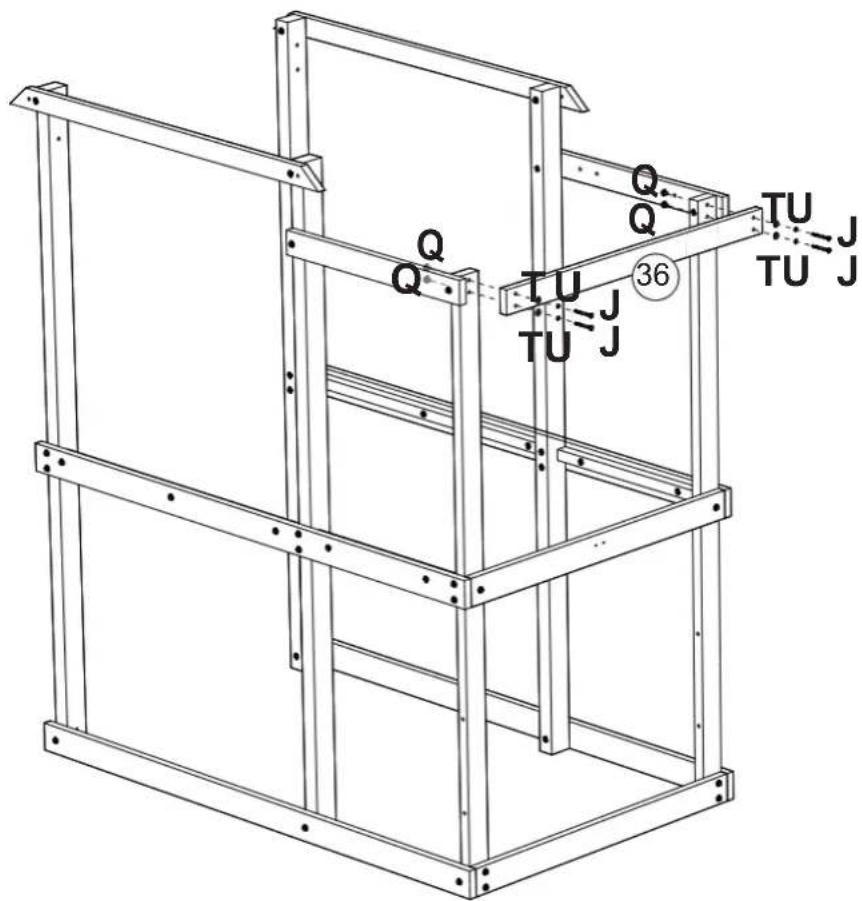

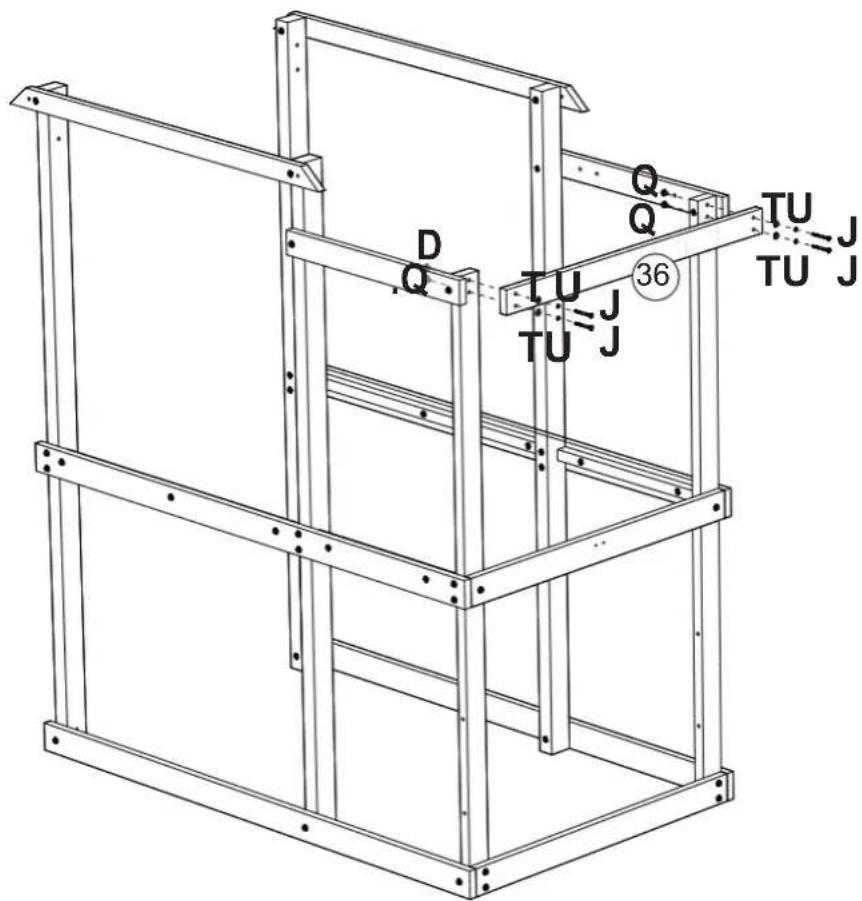

Step Étape Paso 11

Q Q TU TU=J 36 TU=J TU=J TU=J TU=J TU=J

36 x 1

J x 4

Q x 4

T x 4

U x 4

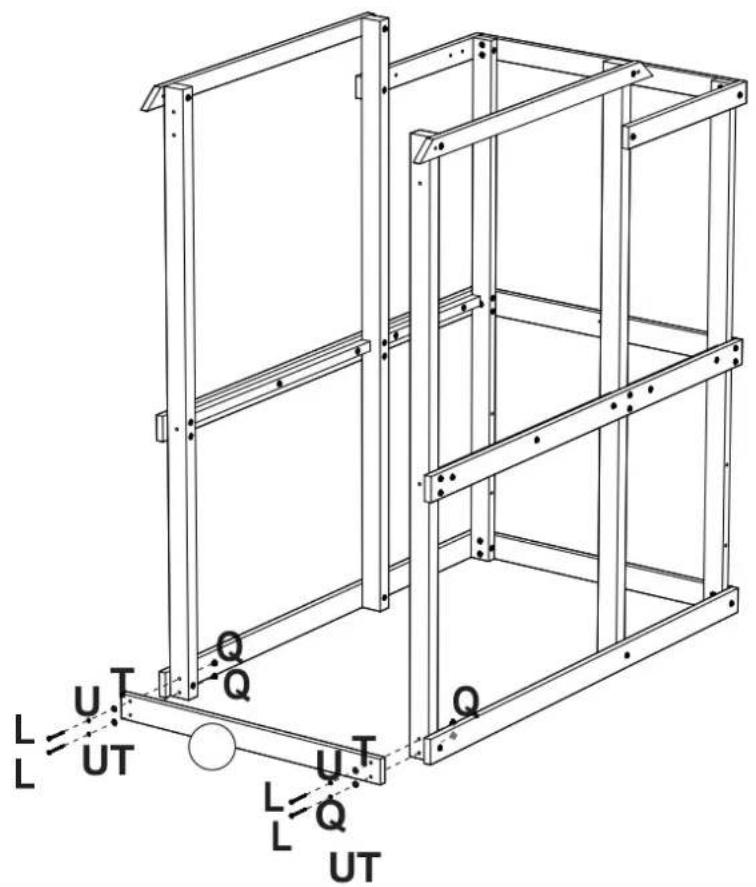

Step Étape Paso 12

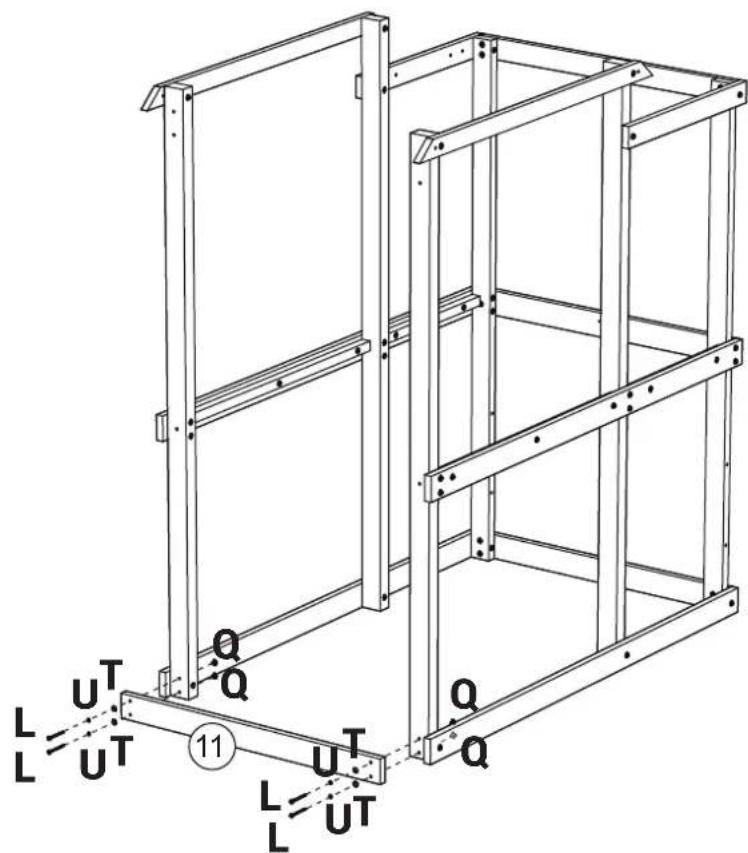

L=UT L=UT 11 Q Q U T U T L=UT Q Q

11 x 1

L x 4

Q x 4

T x 4

U x 4

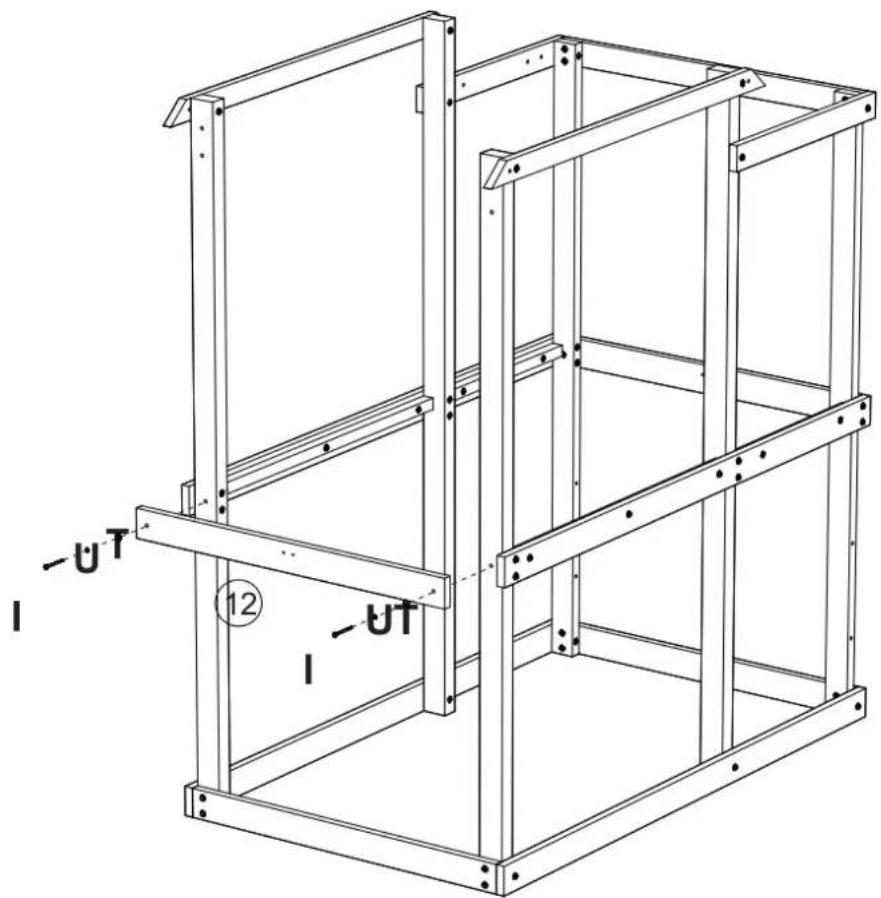

Step Étape Paso 13

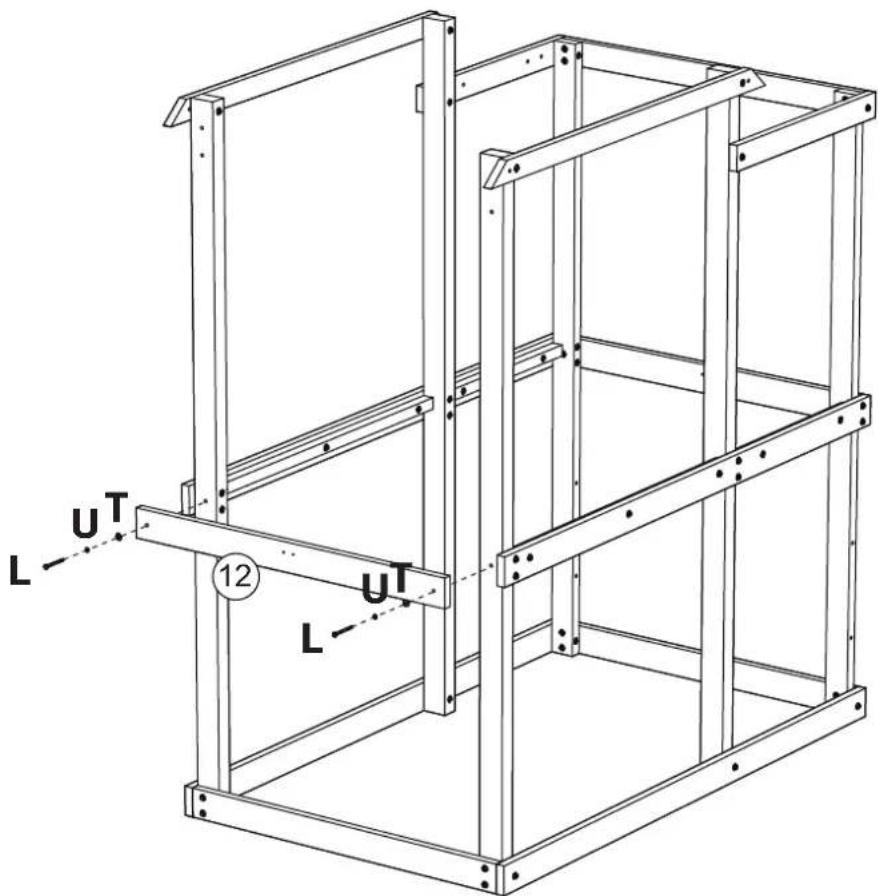

L uT 12 uT L

12 x 1

L x 2

T x 2

U x 2

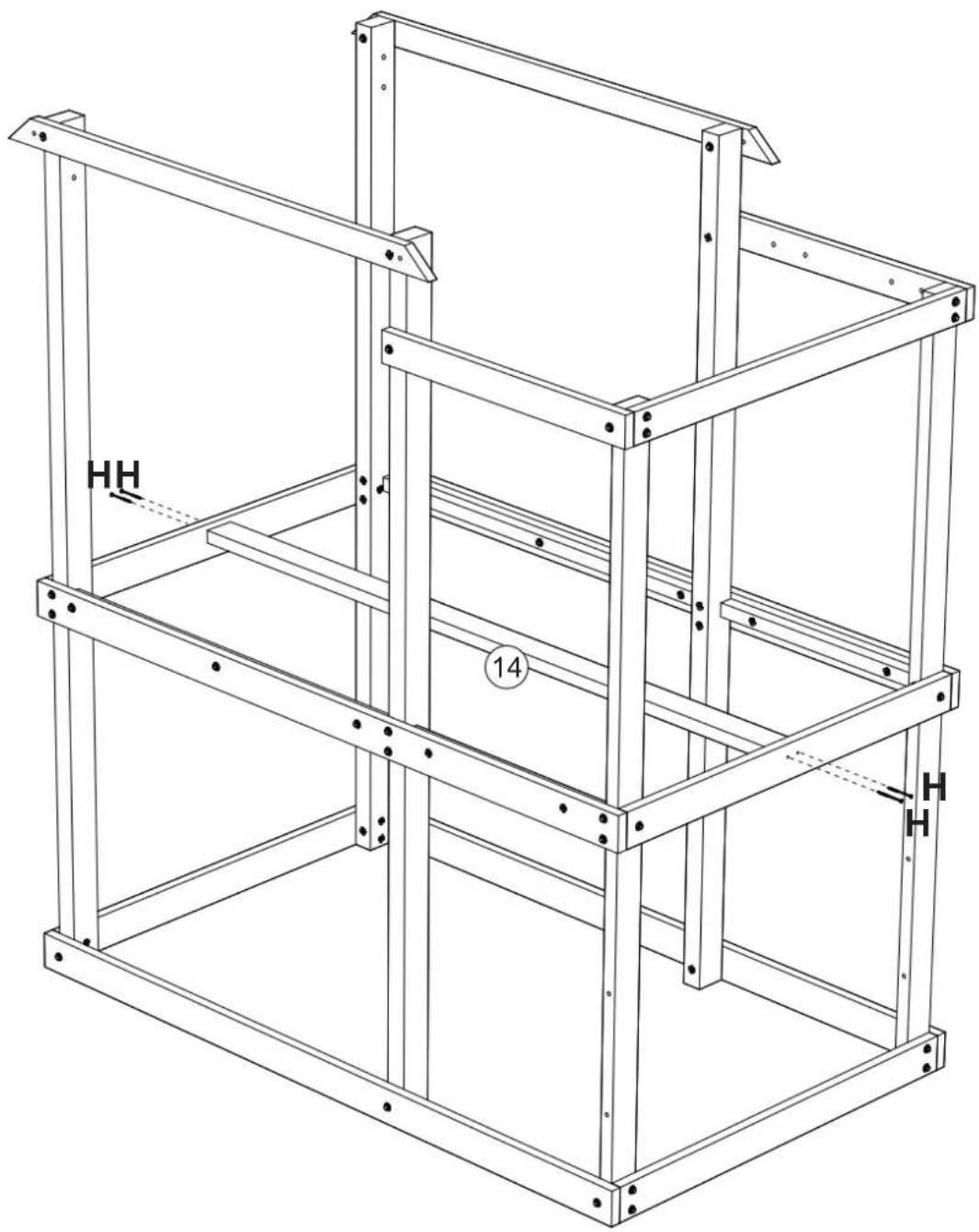

Step Étape Paso 14

14 x 1

H x 4

Technical line drawing of a multi-level metal shelving unit with labeled components (no text or symbols beyond basic labels)

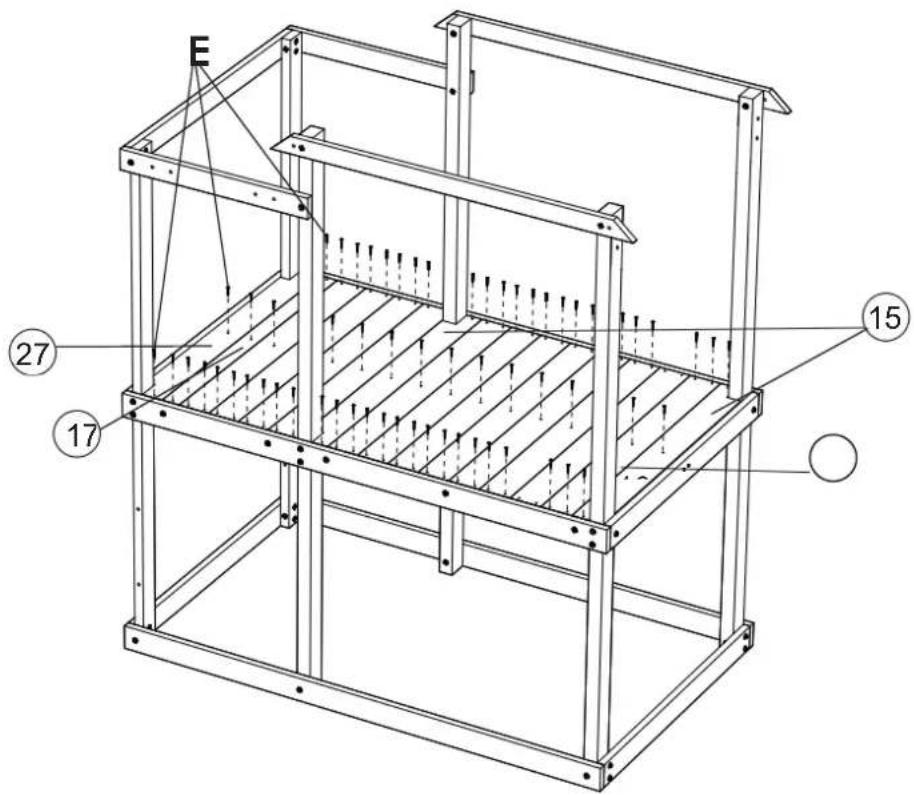

Step Étape Paso 15

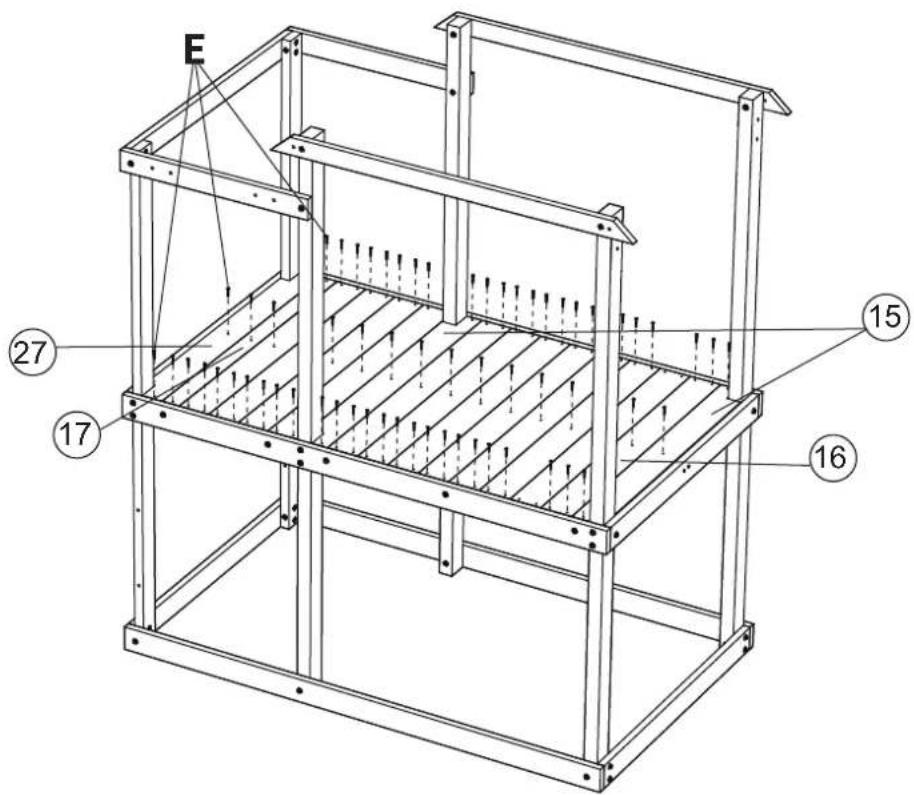

E 27 17 15 16

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

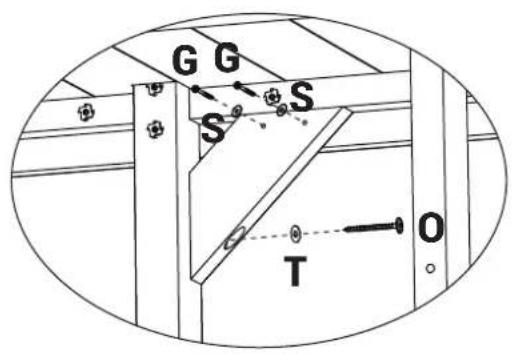

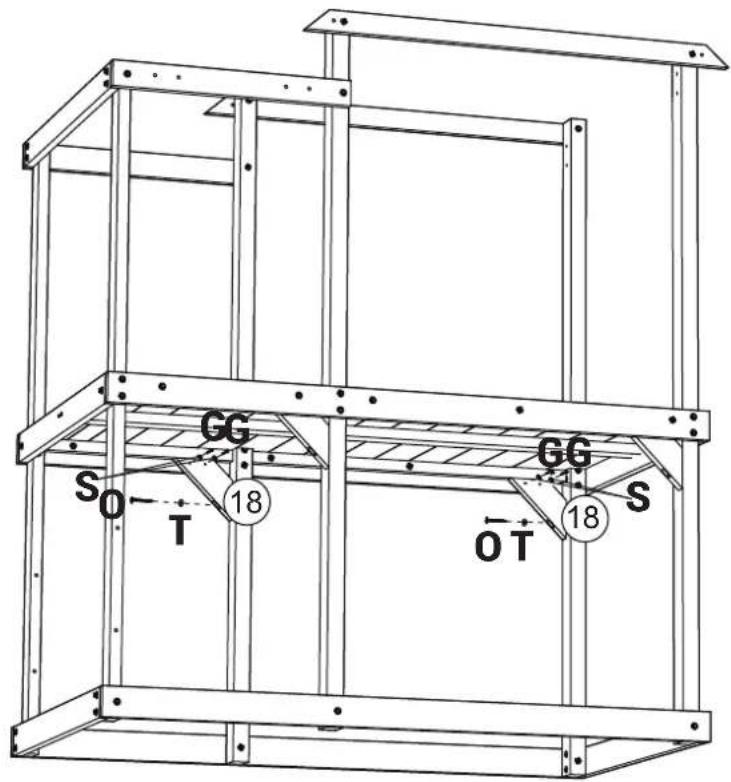

Step Étape Paso 16

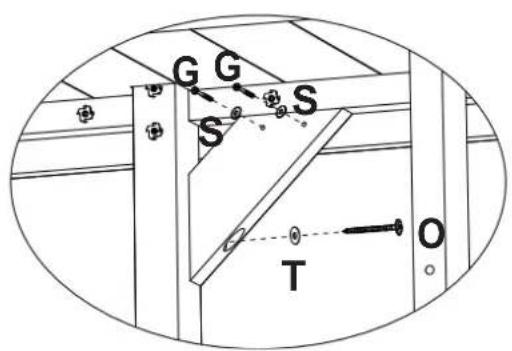

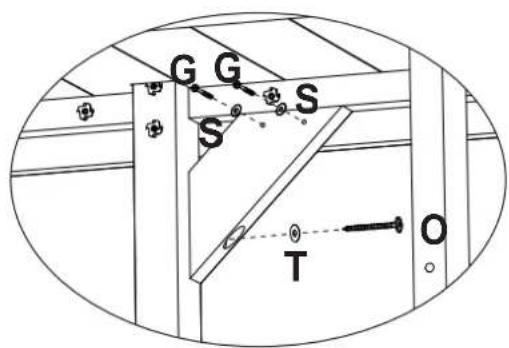

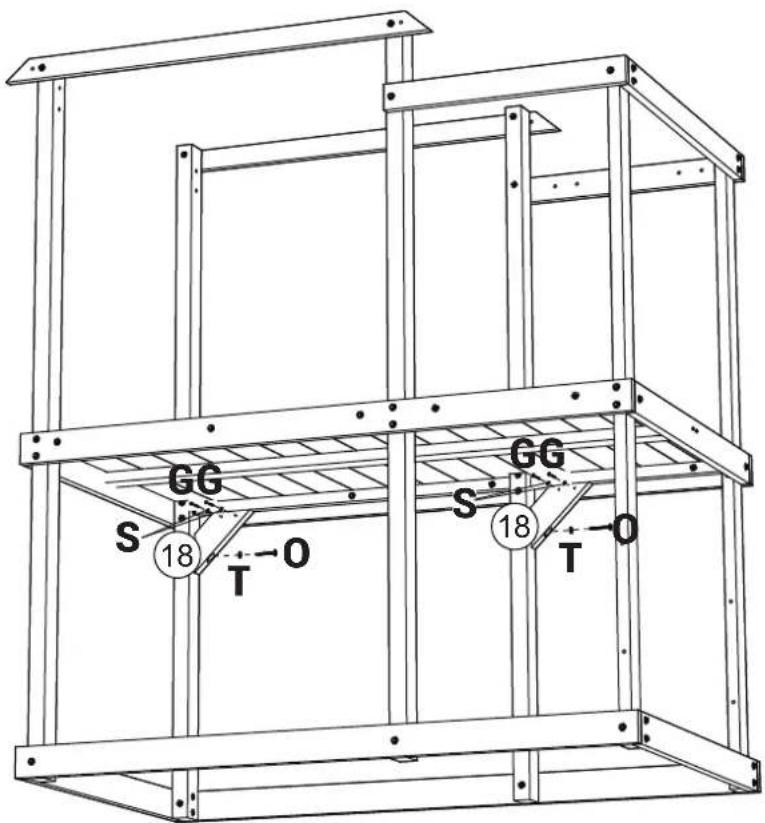

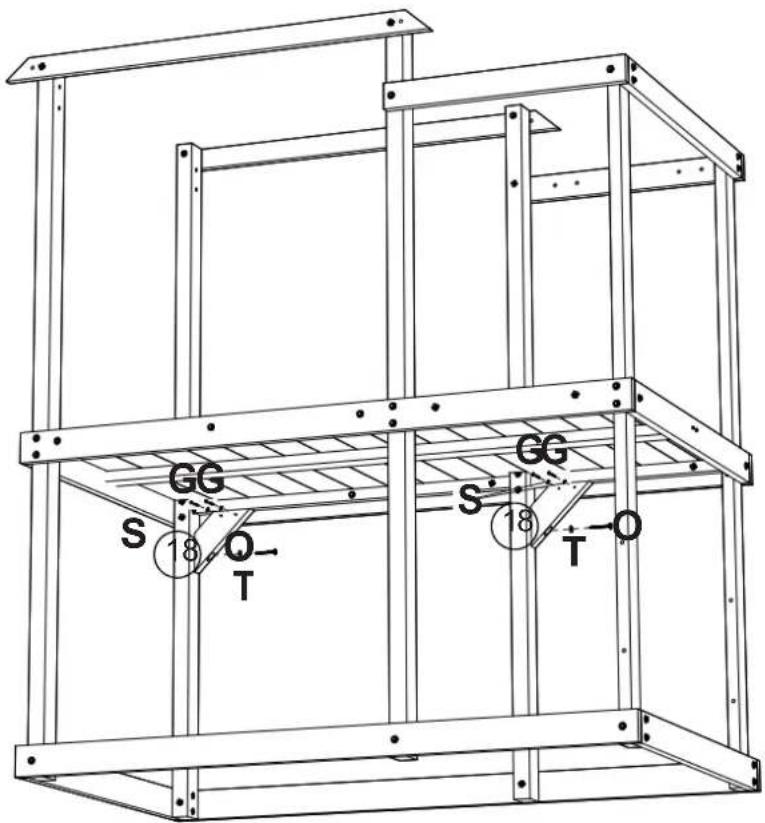

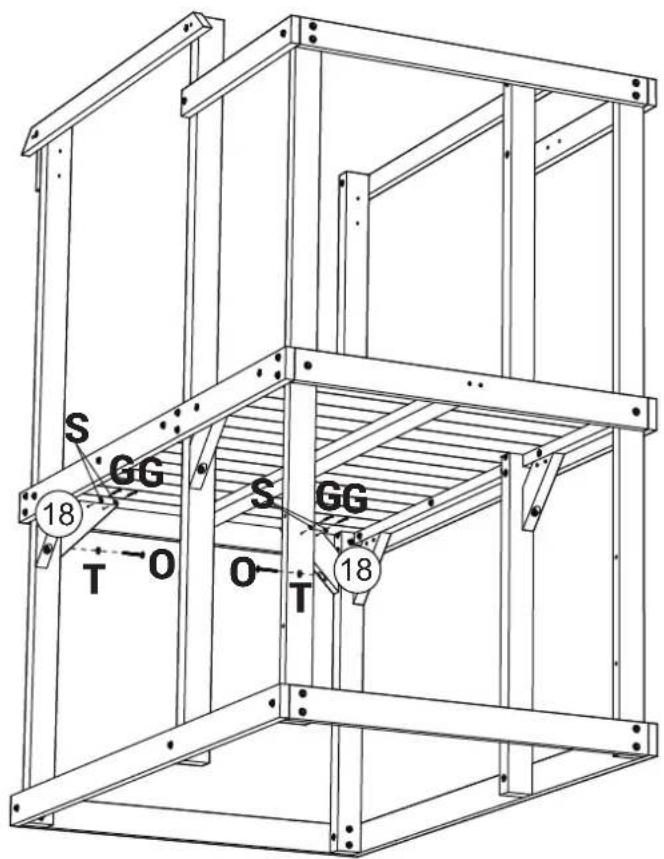

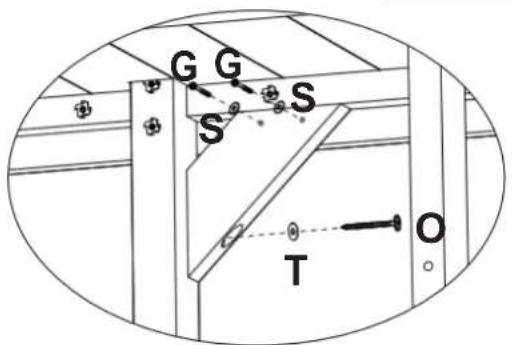

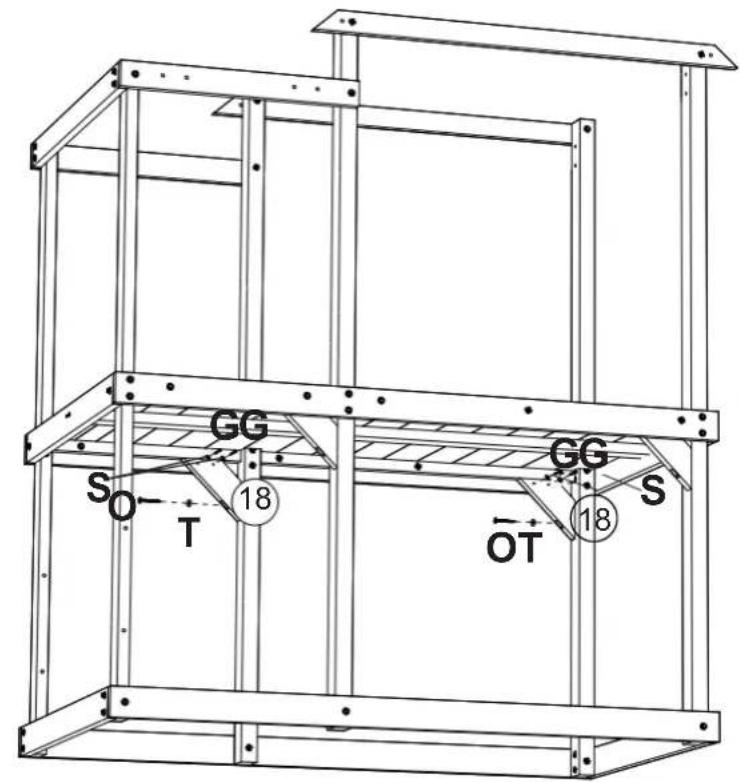

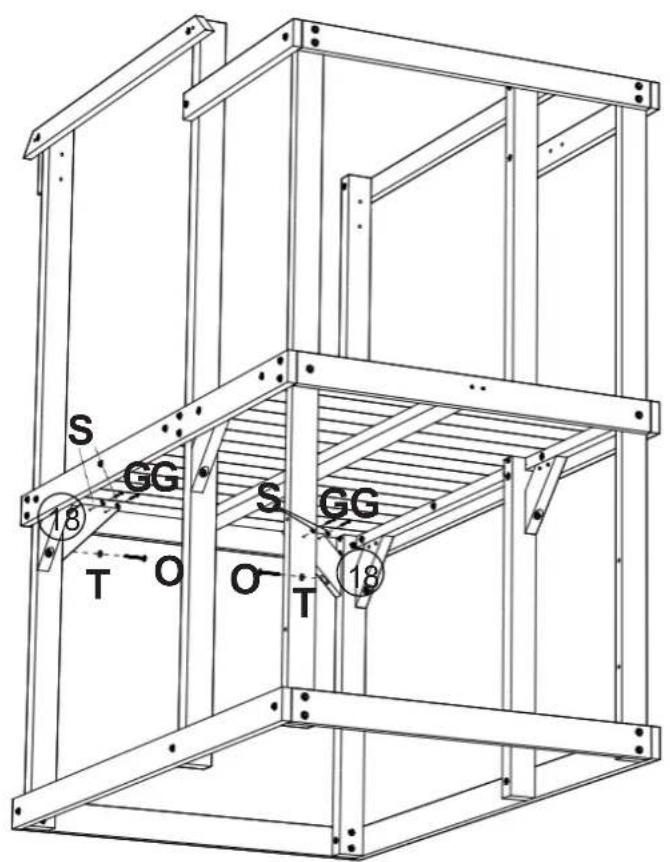

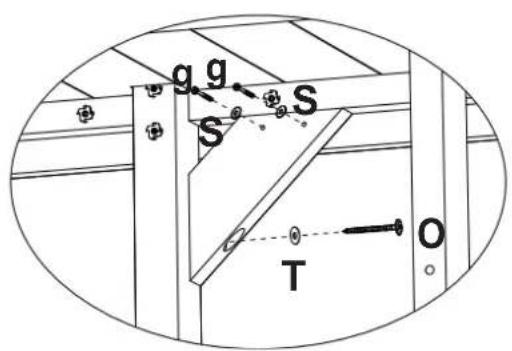

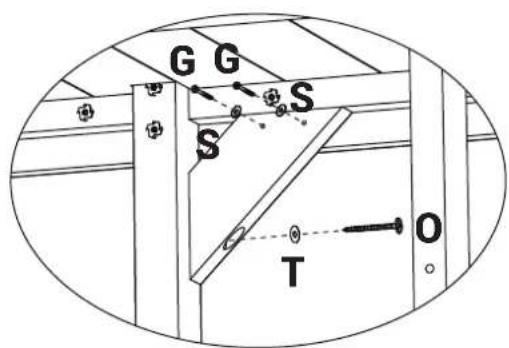

GG S 18 O T GG S 18 O T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

Step Étape Paso 17

GG GG SO T 18 OT 18 S

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 18

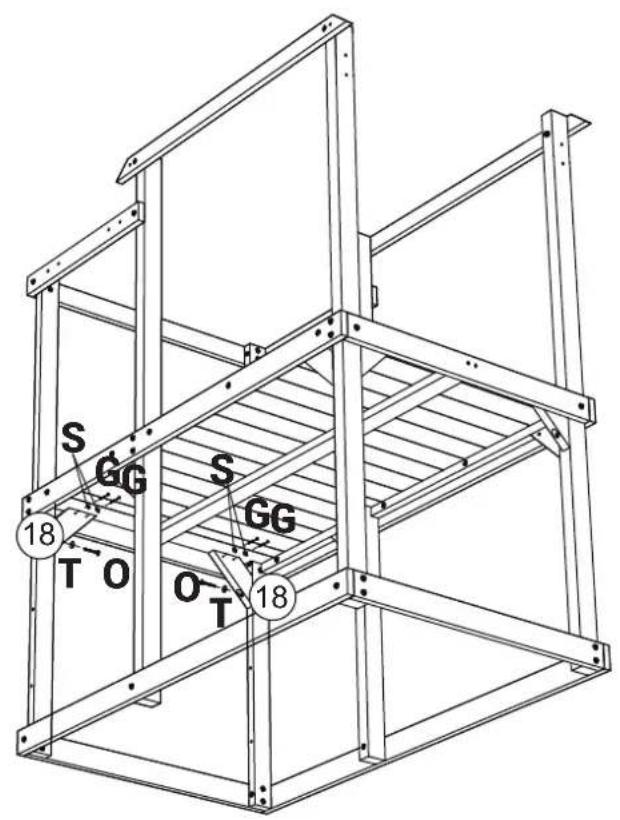

S GG 18 T -O O T S GG 18 T

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 19

S GG S GG 18 T O O T 18

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
s x 4
T x 2

⑲ x 3

(F) x 12

(F) x 12

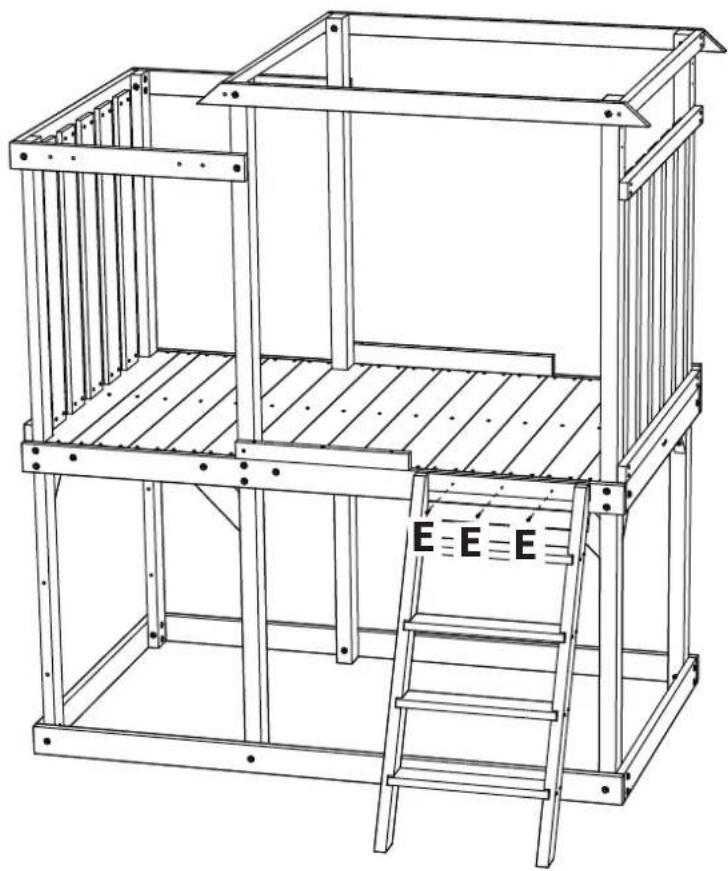

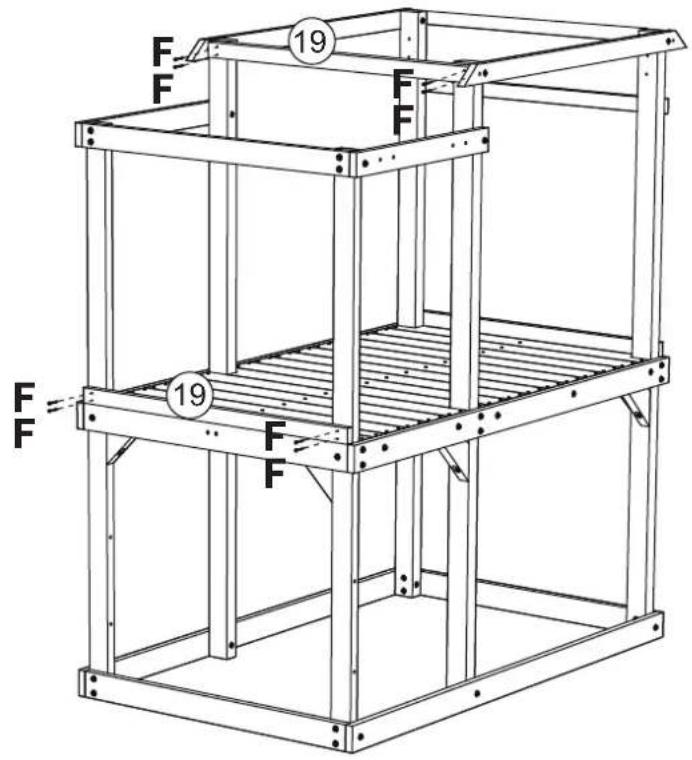

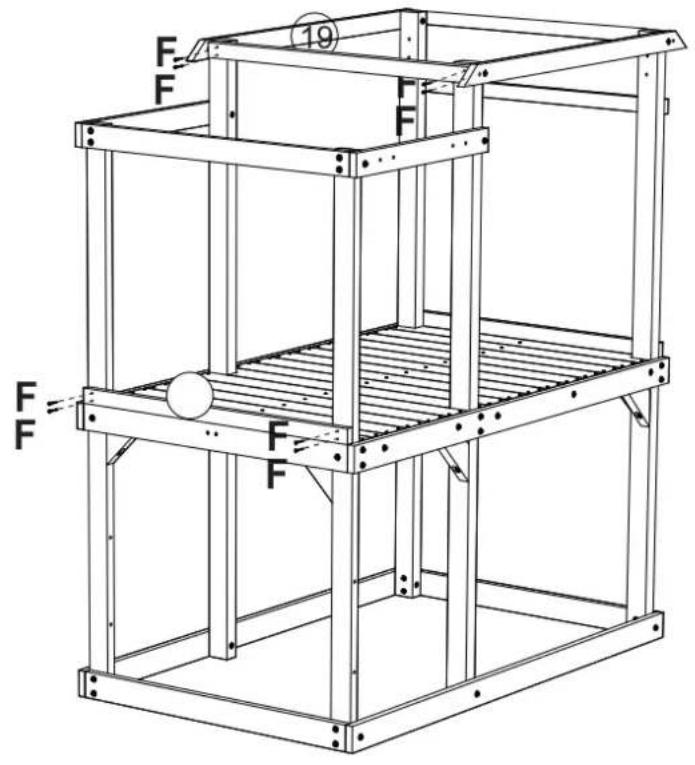

Step Étape Paso 20

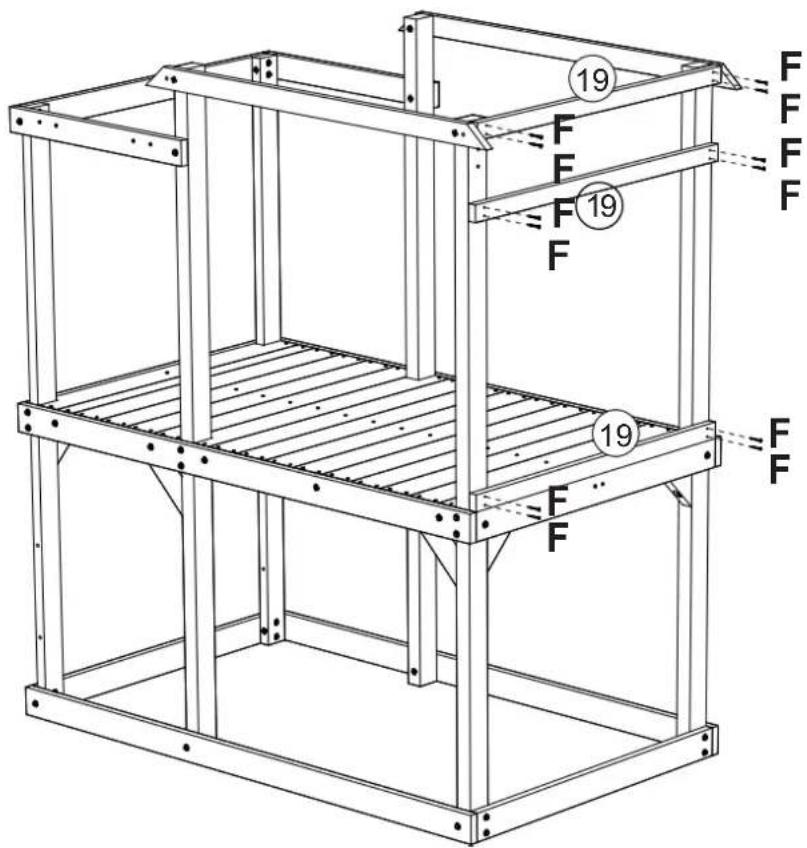

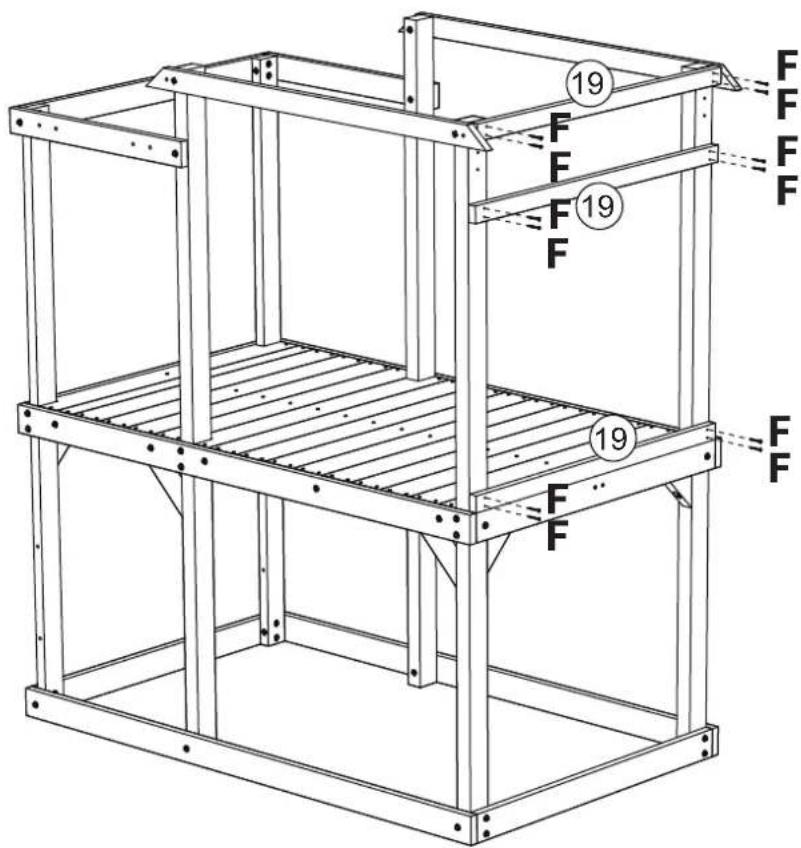

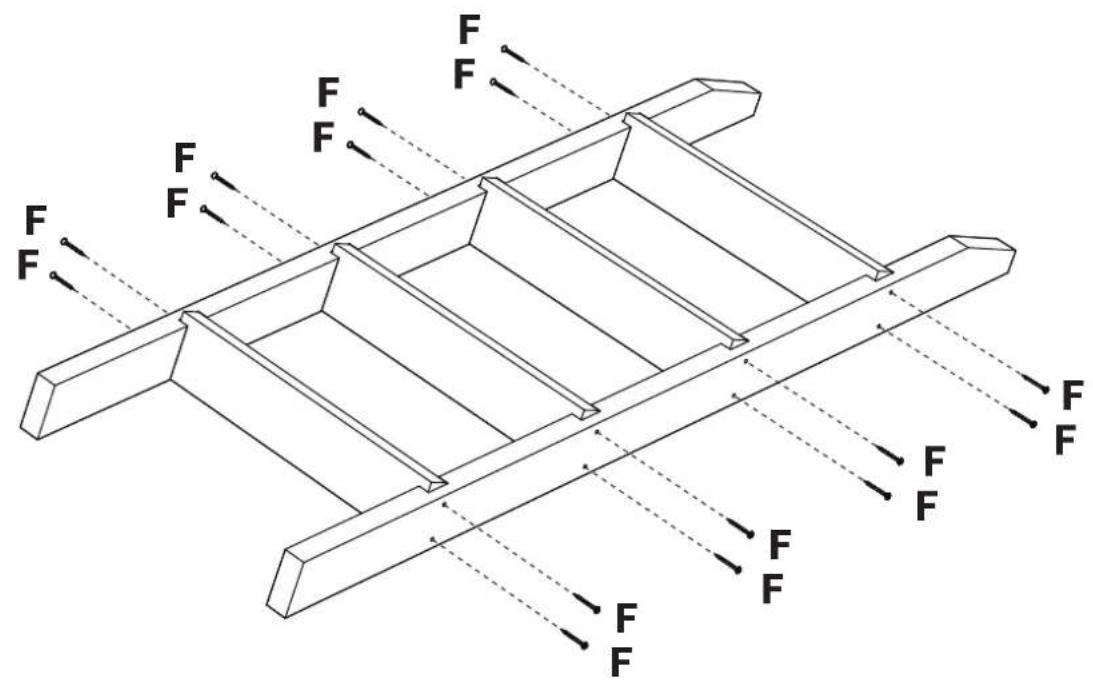

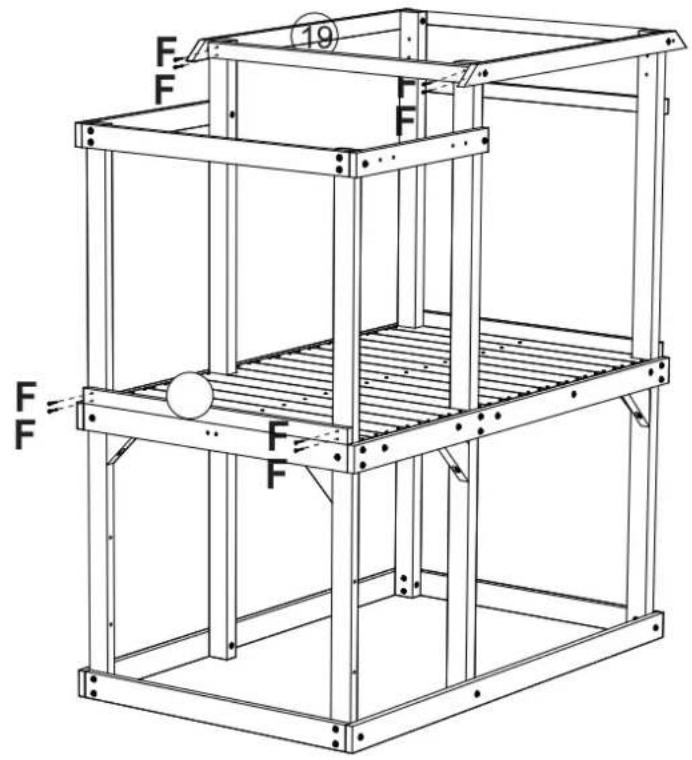

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 19 19 F F F F

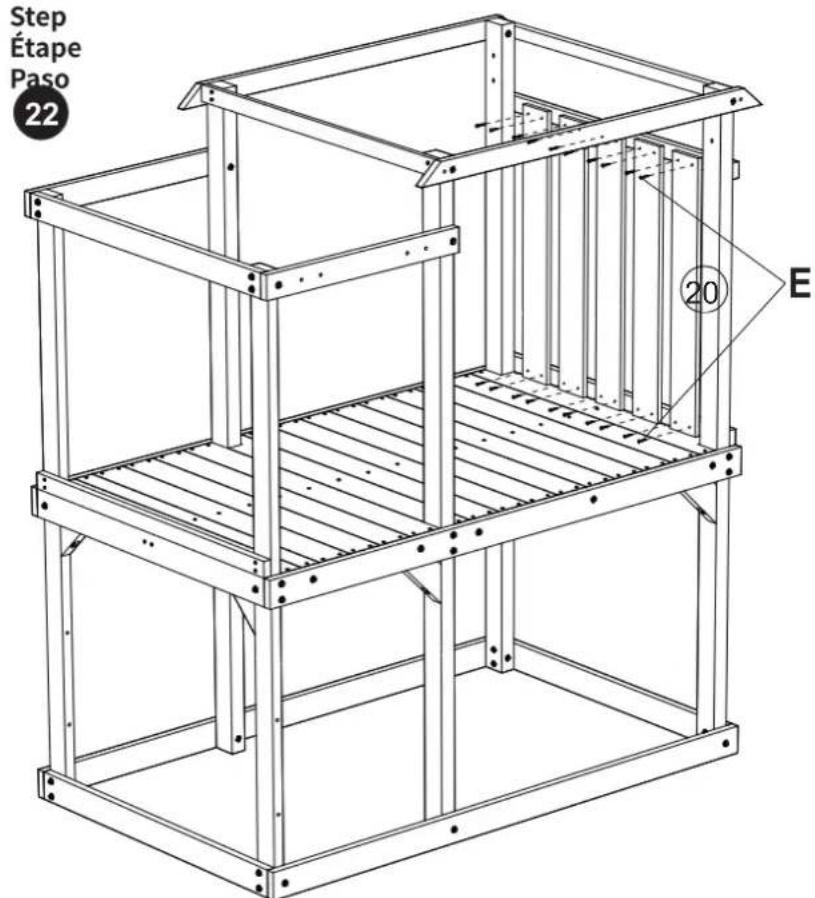

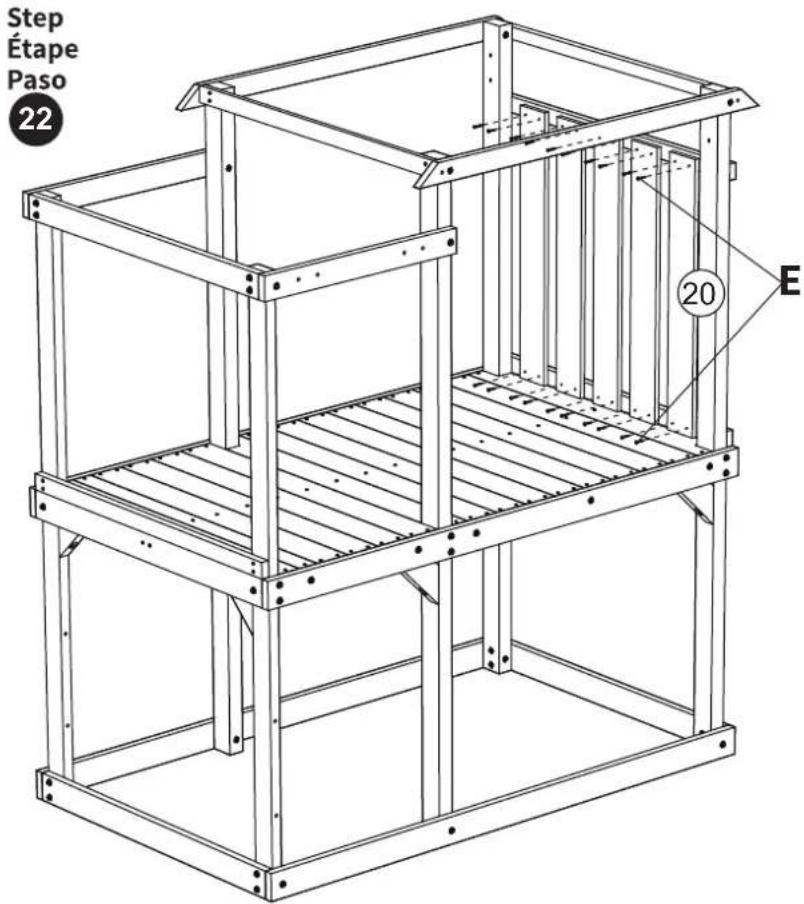

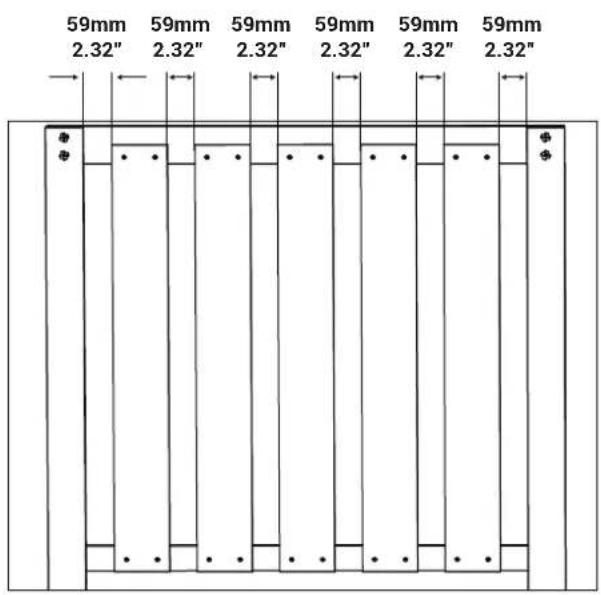

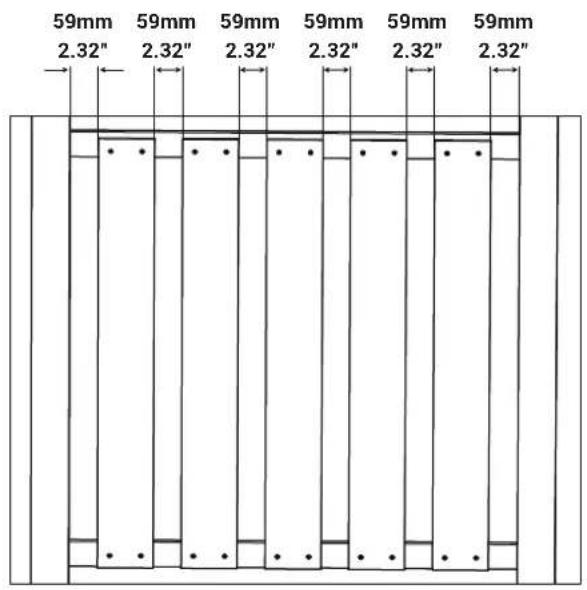

Step Étape Paso 22 20 E

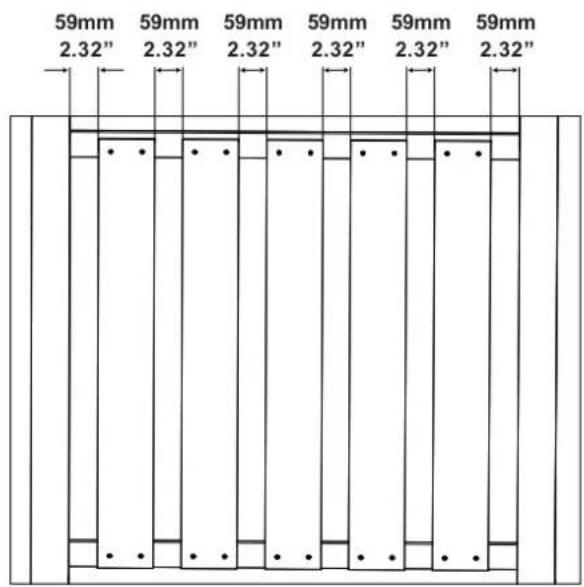

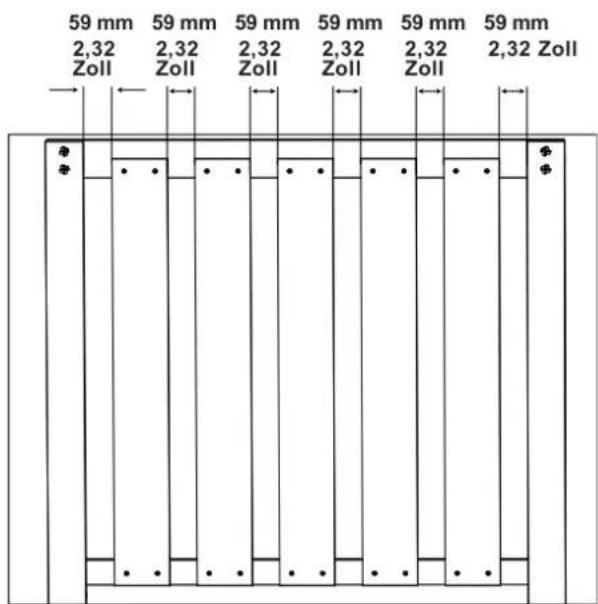

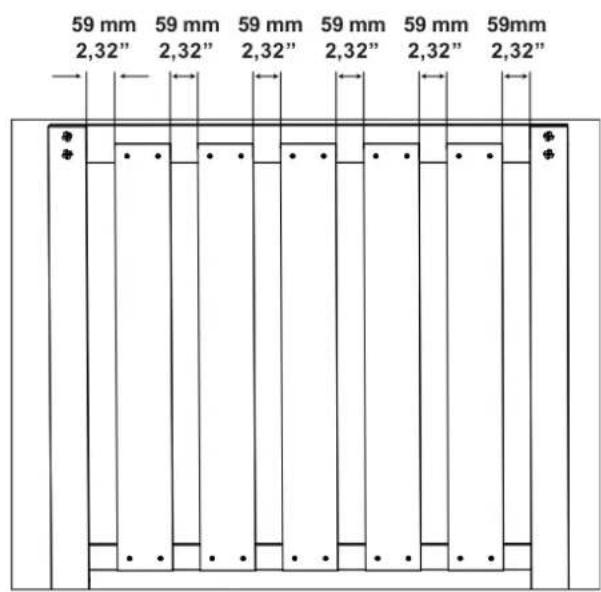

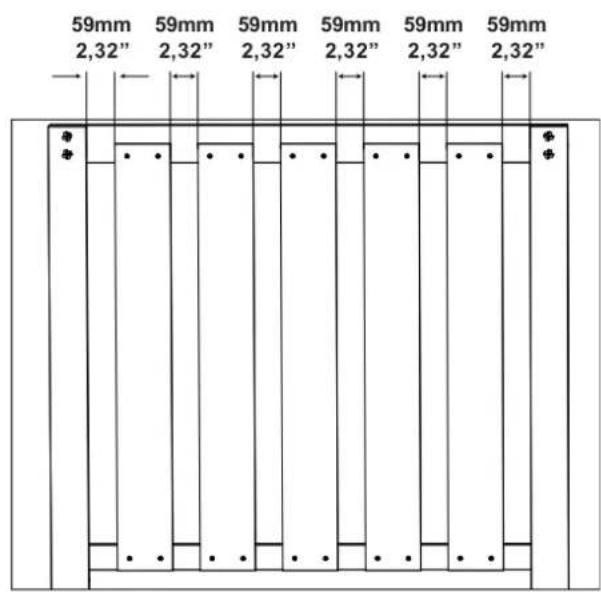

59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

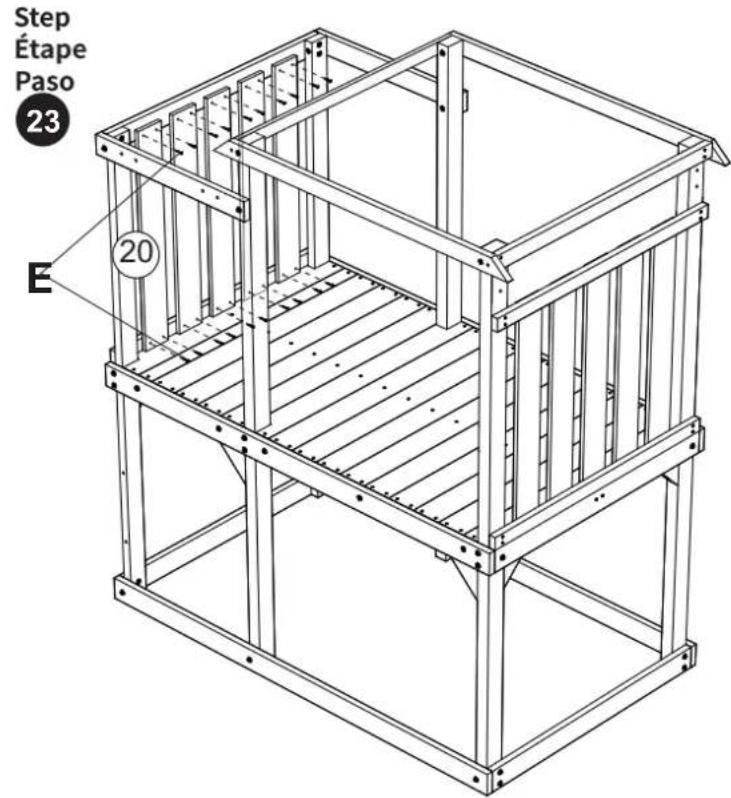

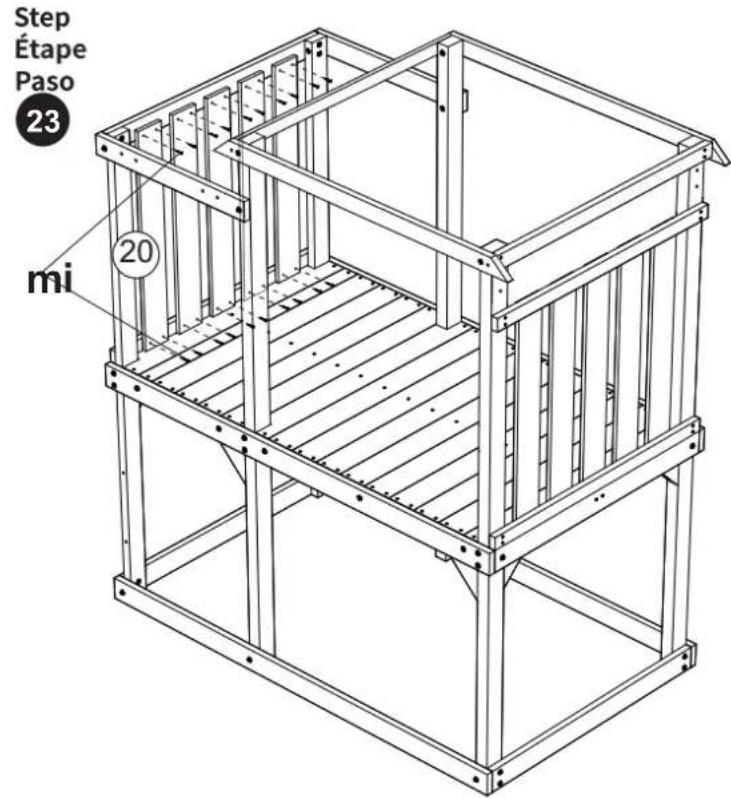

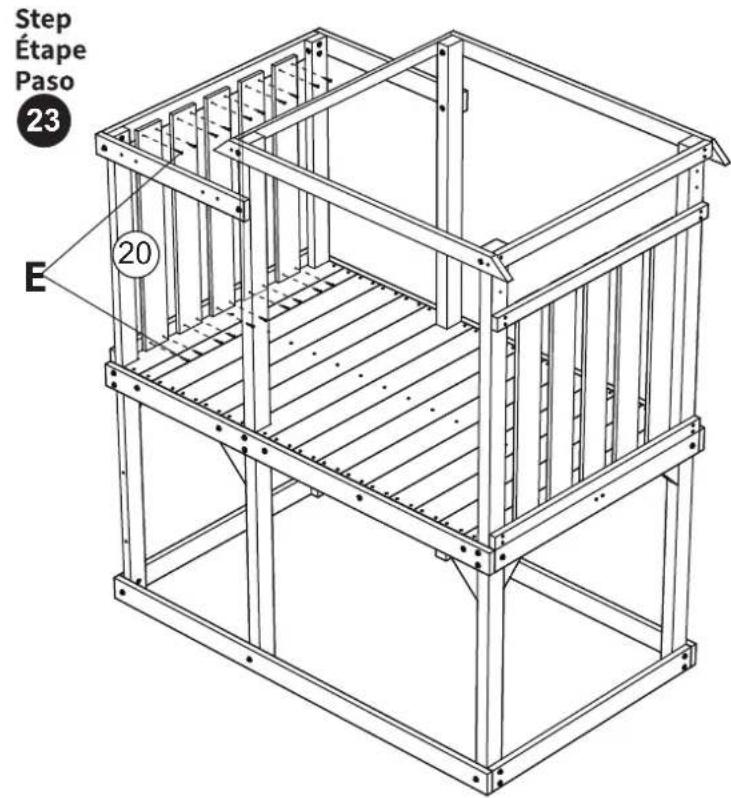

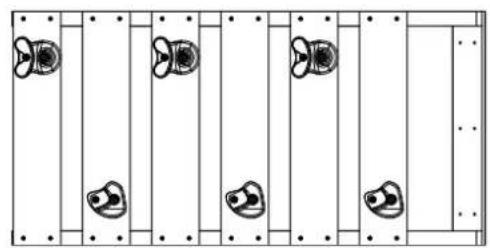

Step Étape Paso 23 E 20

⑳ x 5

E x 20

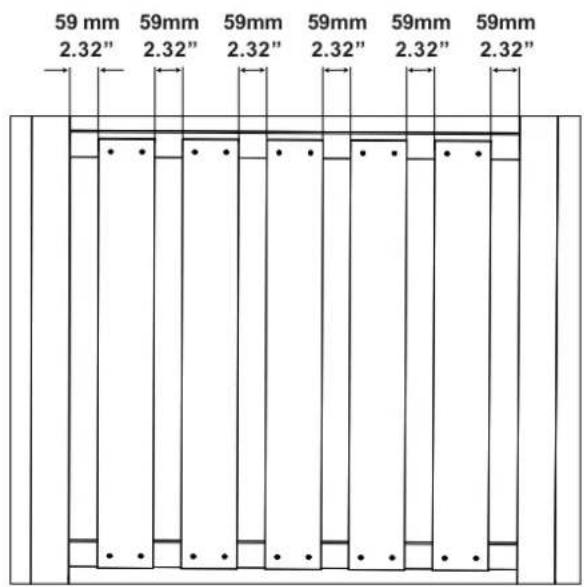

59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

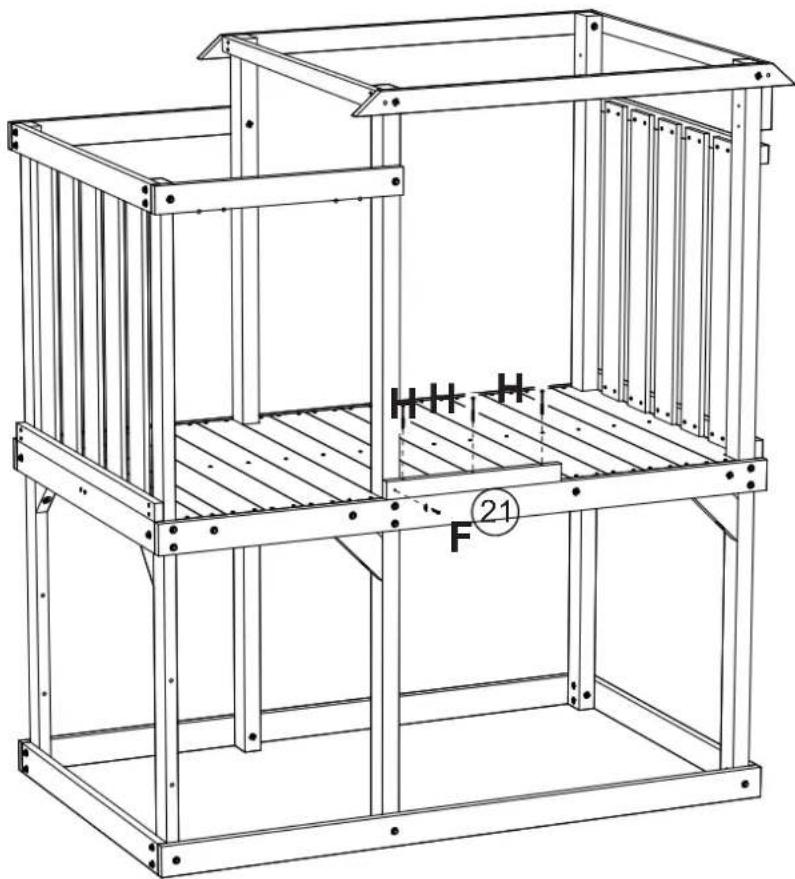

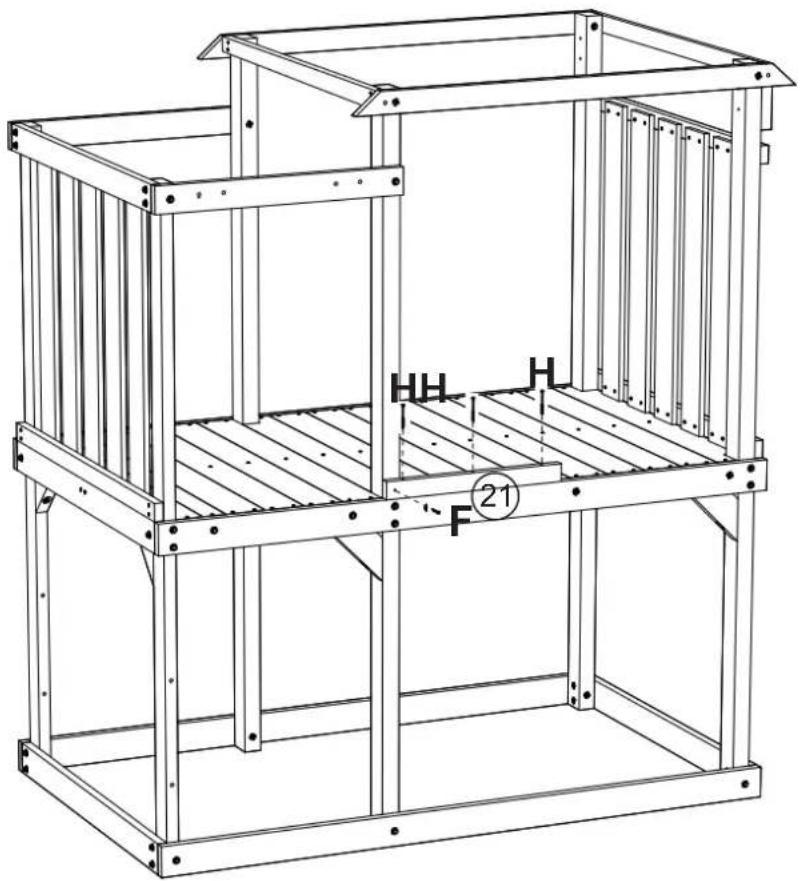

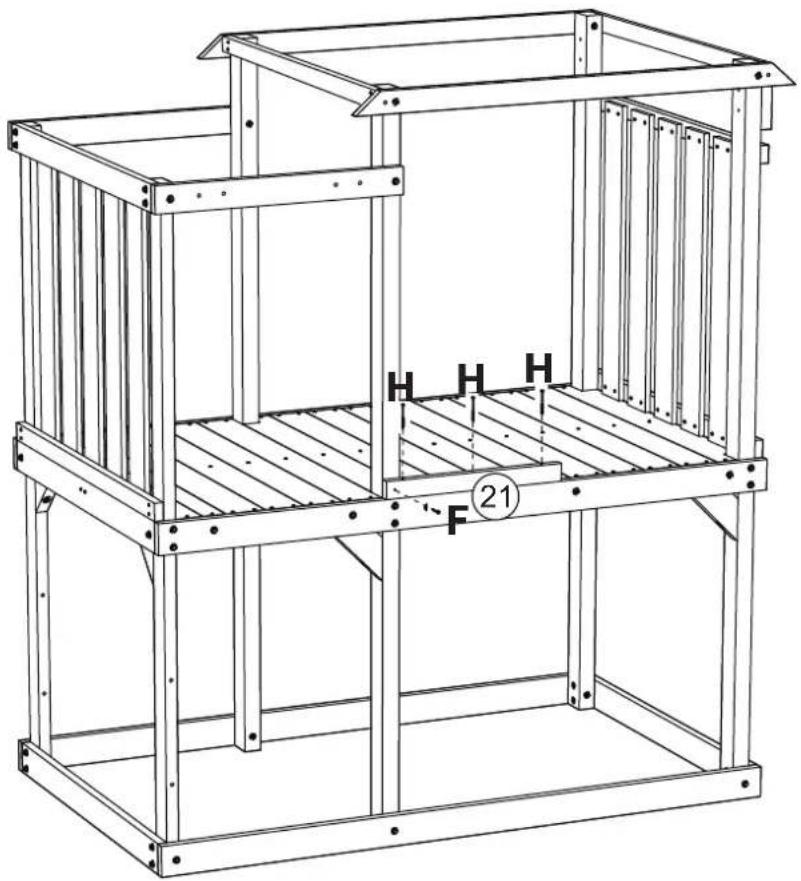

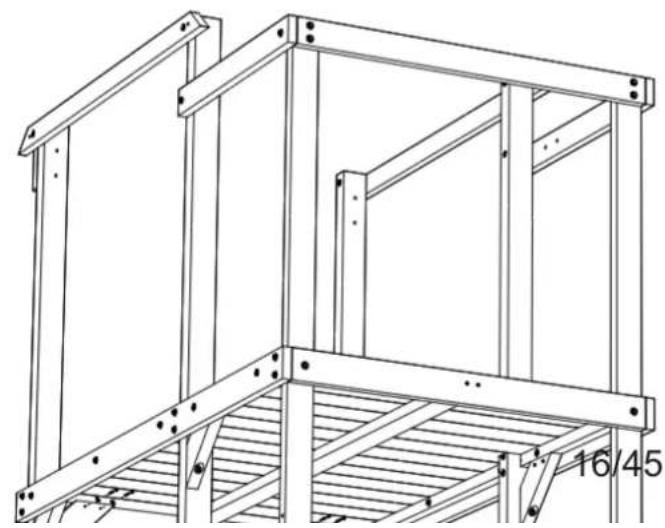

Step Étape Paso 24

Technical line drawing of a multi-level metal frame structure with no visible text or symbols

②1 x 1

F x 1

(H) x 3

Step Étape Paso 25

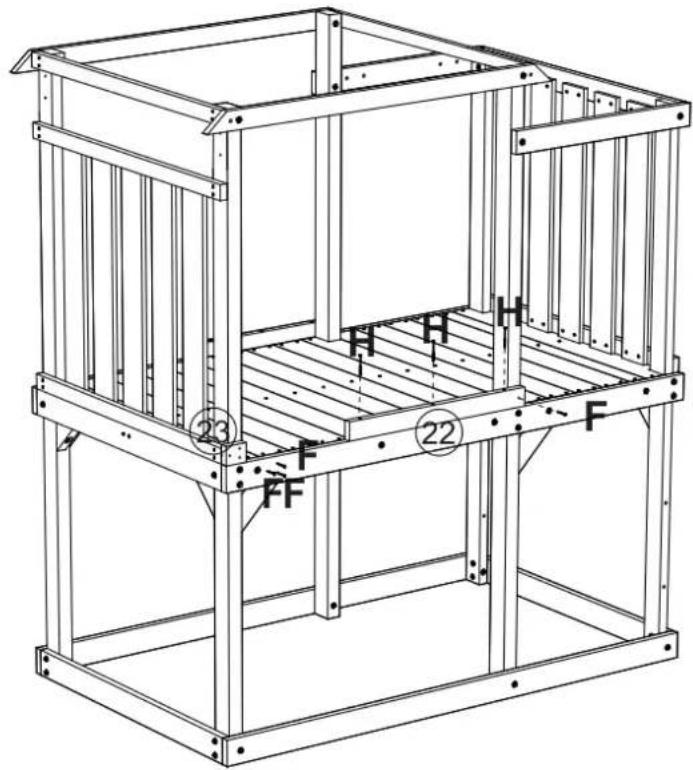

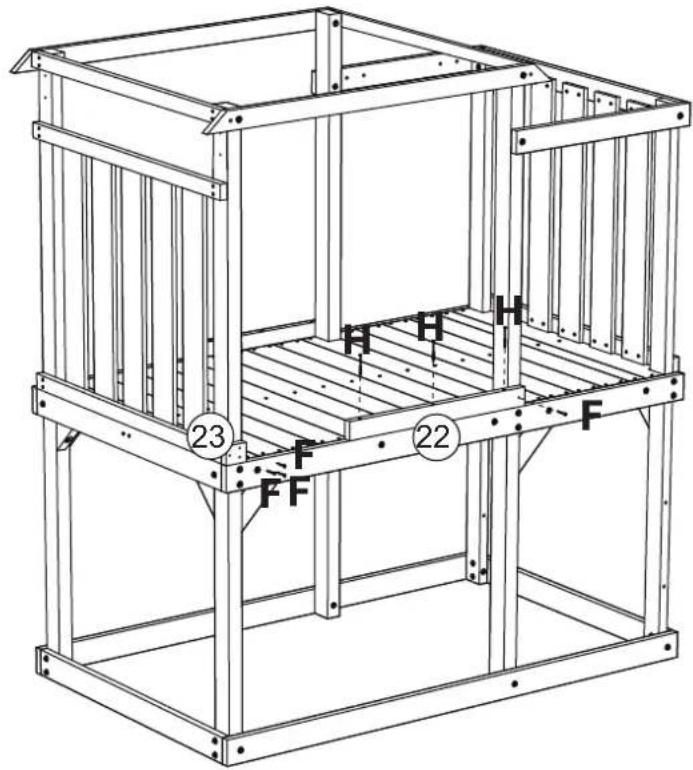

23 FF 22 F H H H F F

Step Étape Paso 26

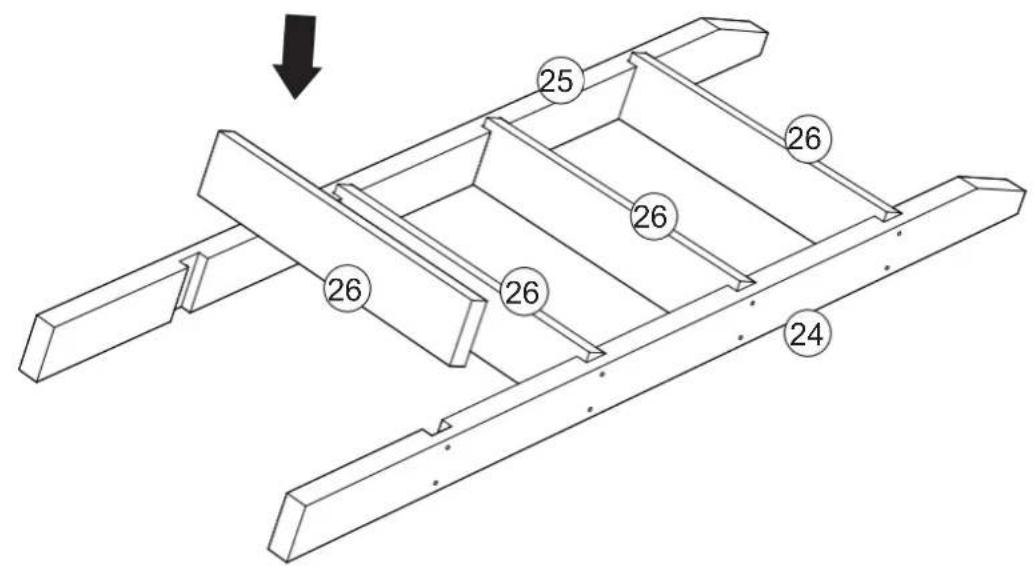

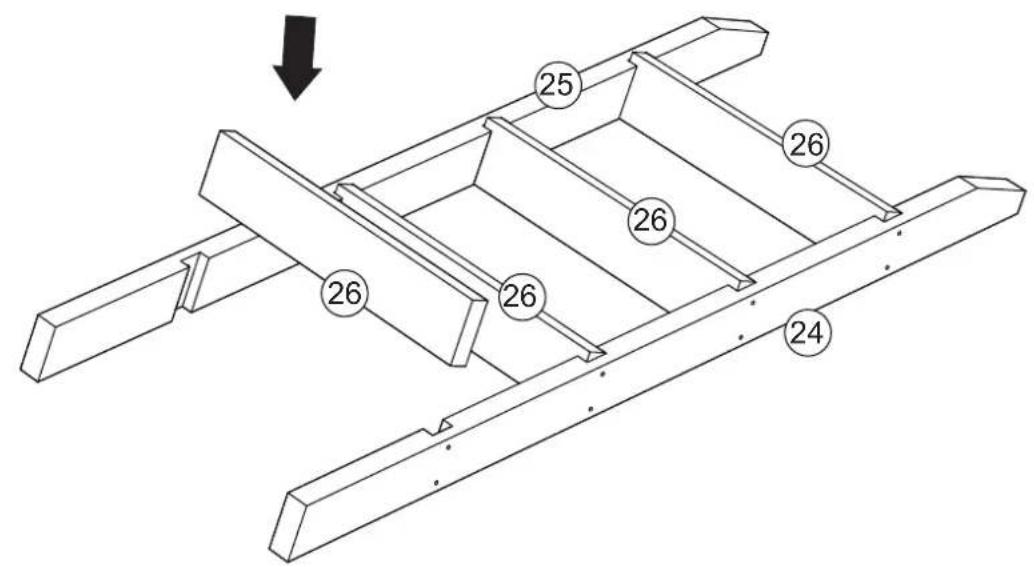

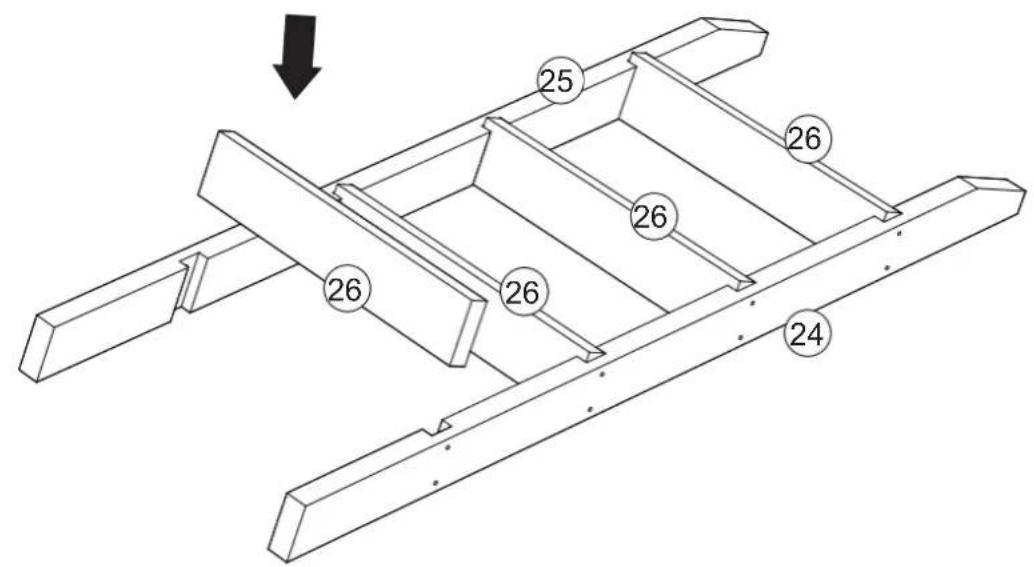

25 26 26 26 24

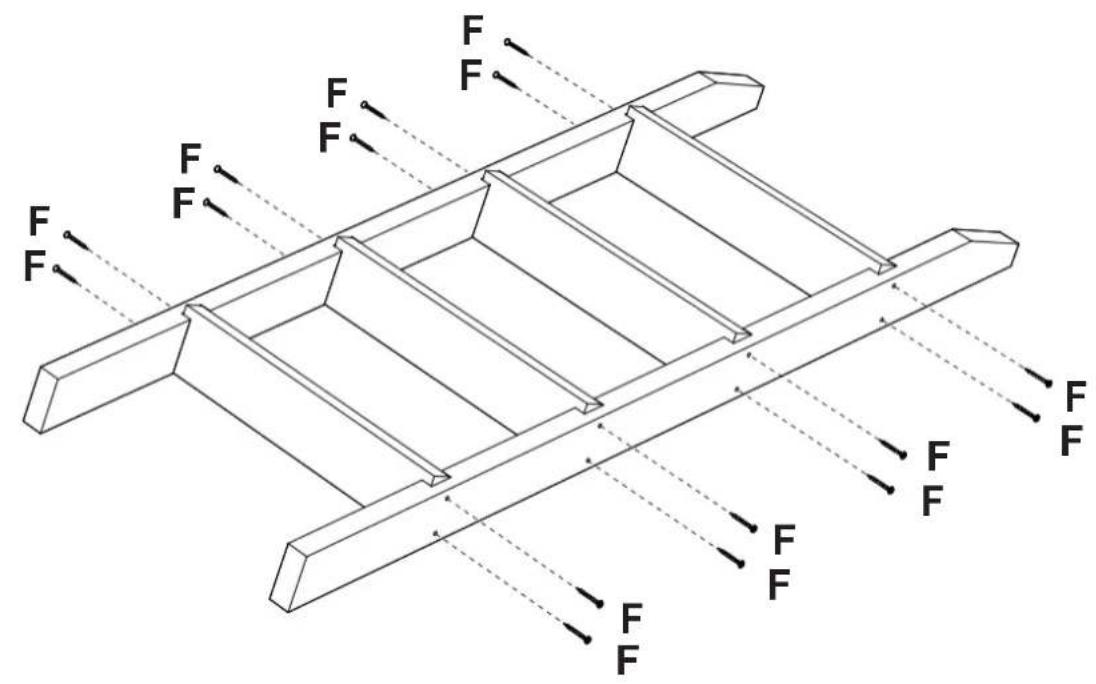

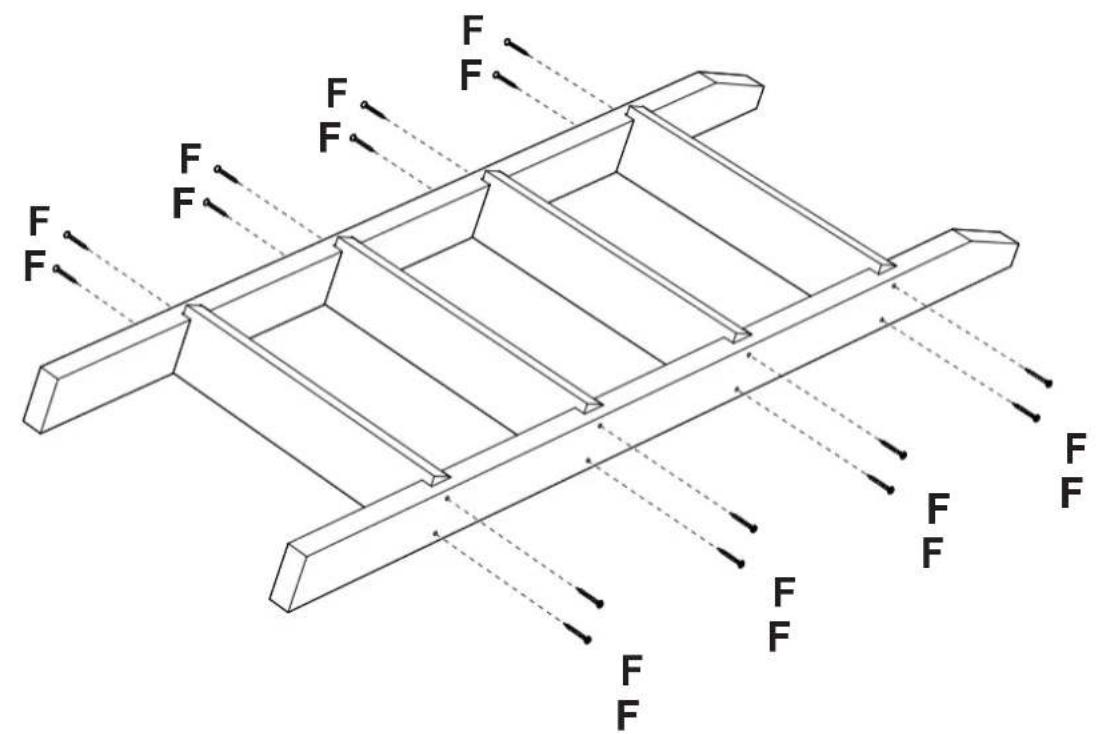

Step Étape Paso 27

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

(F) x 16

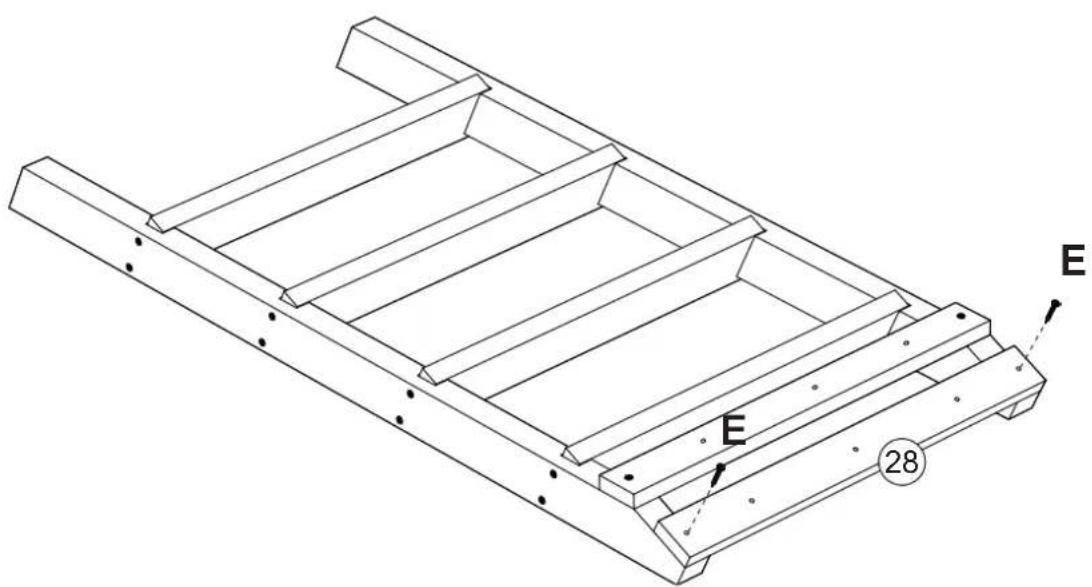

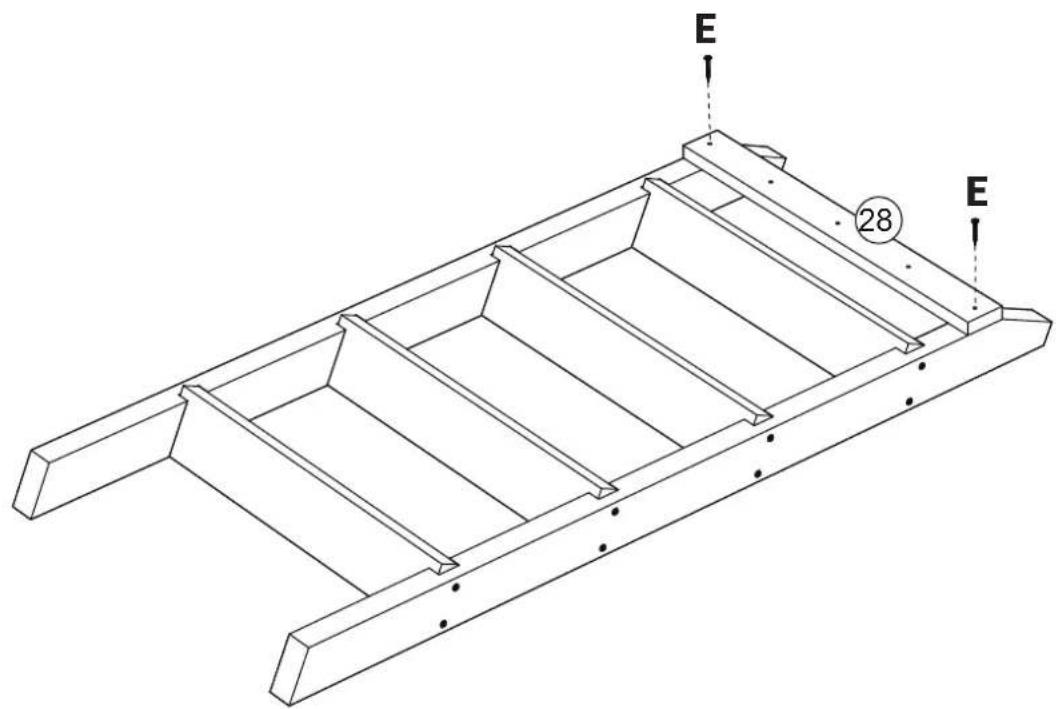

Step Étape Paso 28

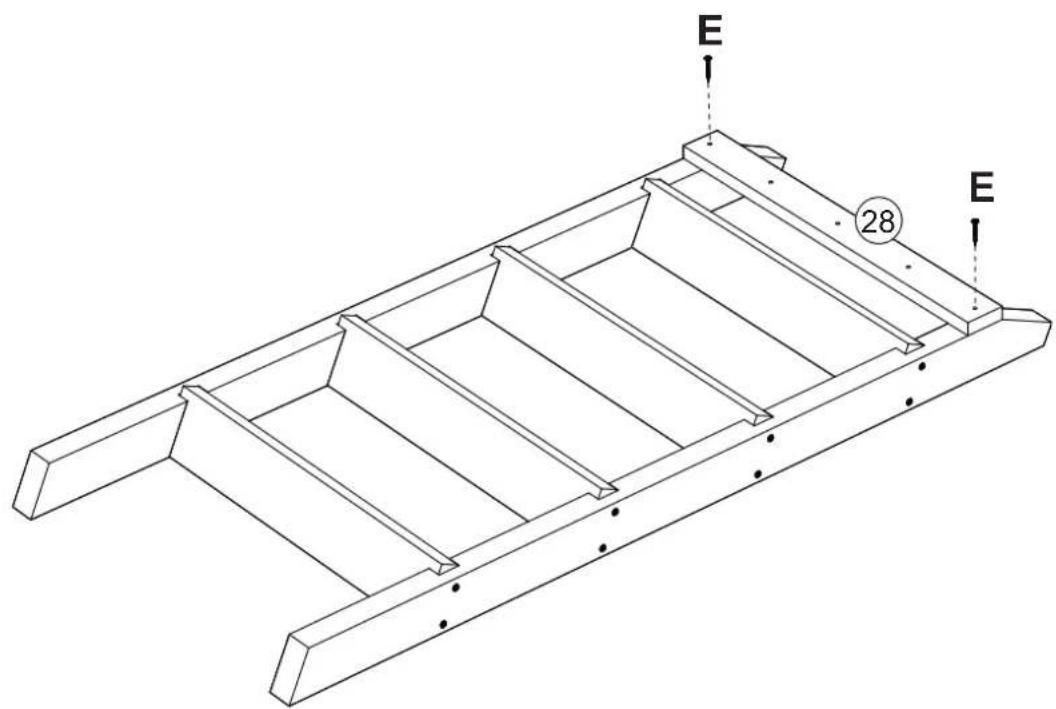

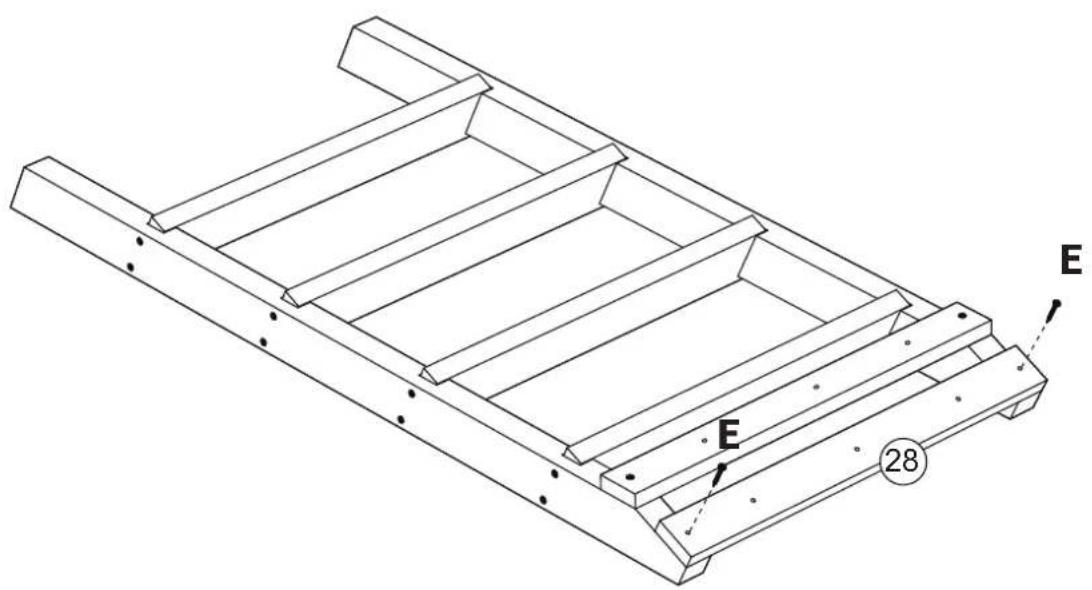

E 28 E

28 x 1
E x 2

Step Étape Paso

29

E E 28

⑳ x 1
E x 2

E x 3

Step Étape Paso

30

Technical line drawing of a multi-level metal structure with ladder and frame (no text or symbols)

Step Étape Paso 31

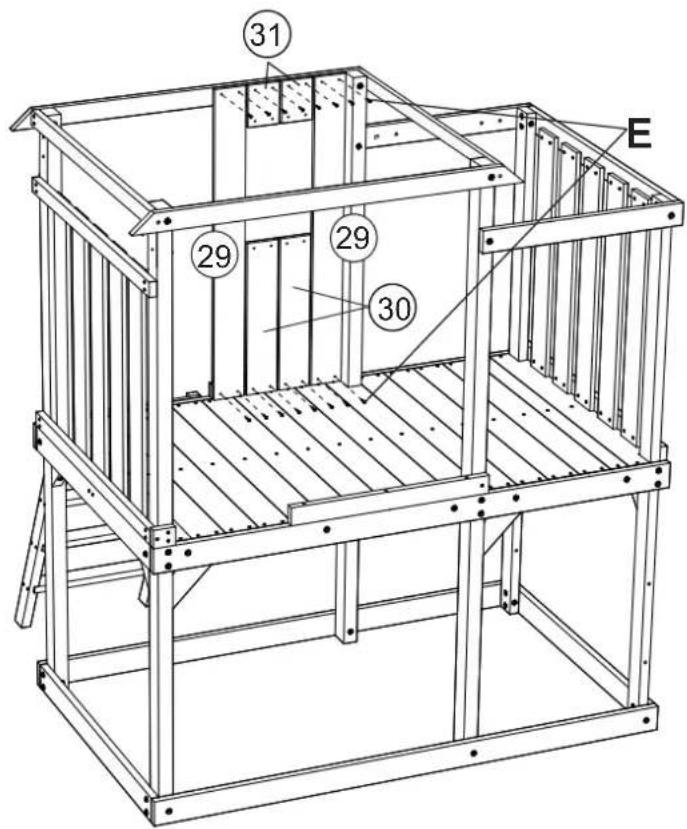

31 29 29 30 E

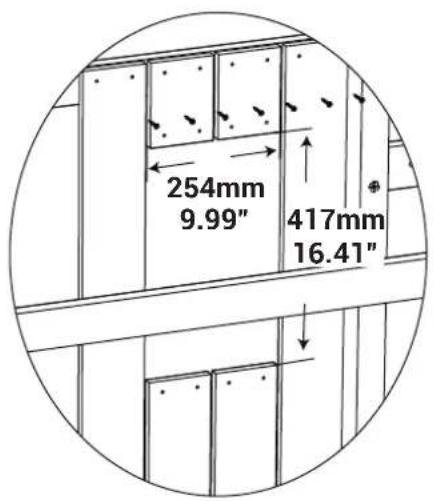

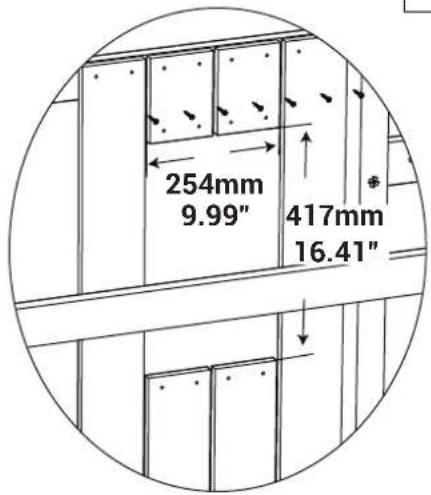

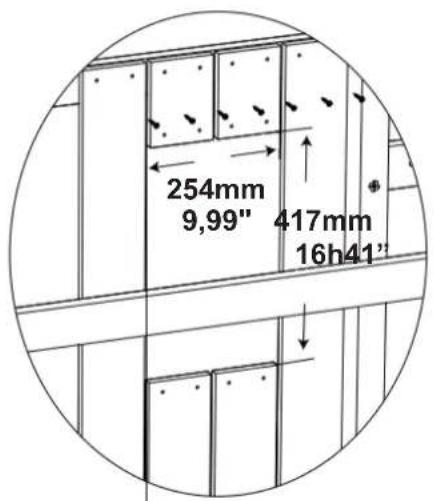

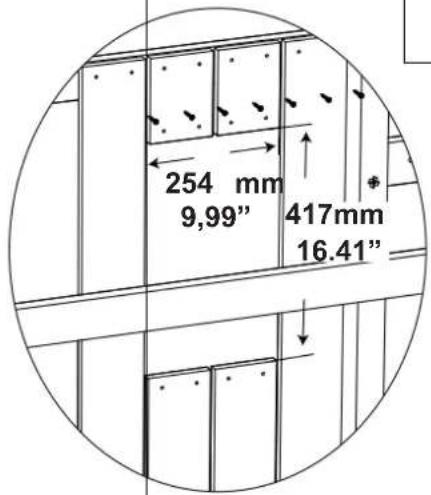

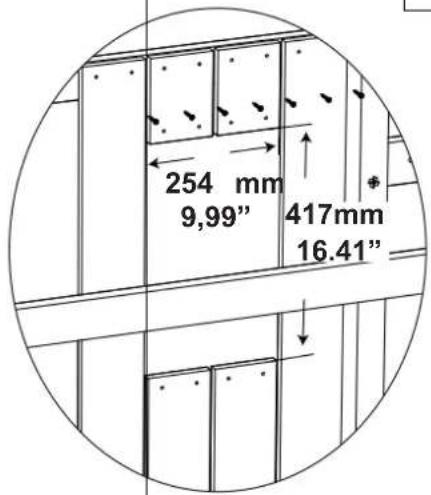

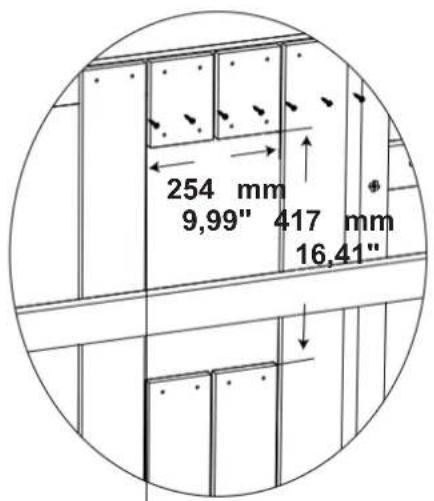

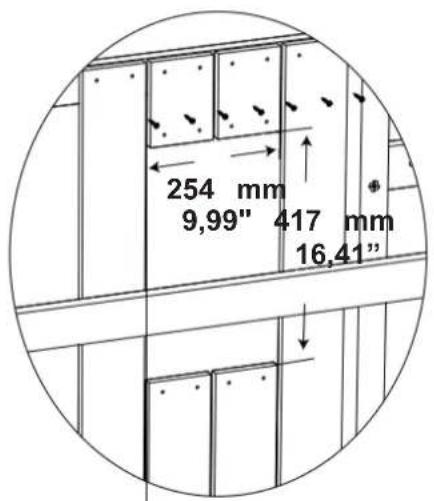

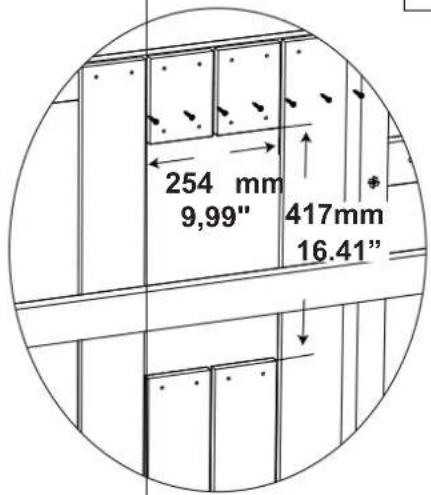

254mm 9.99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E x 16

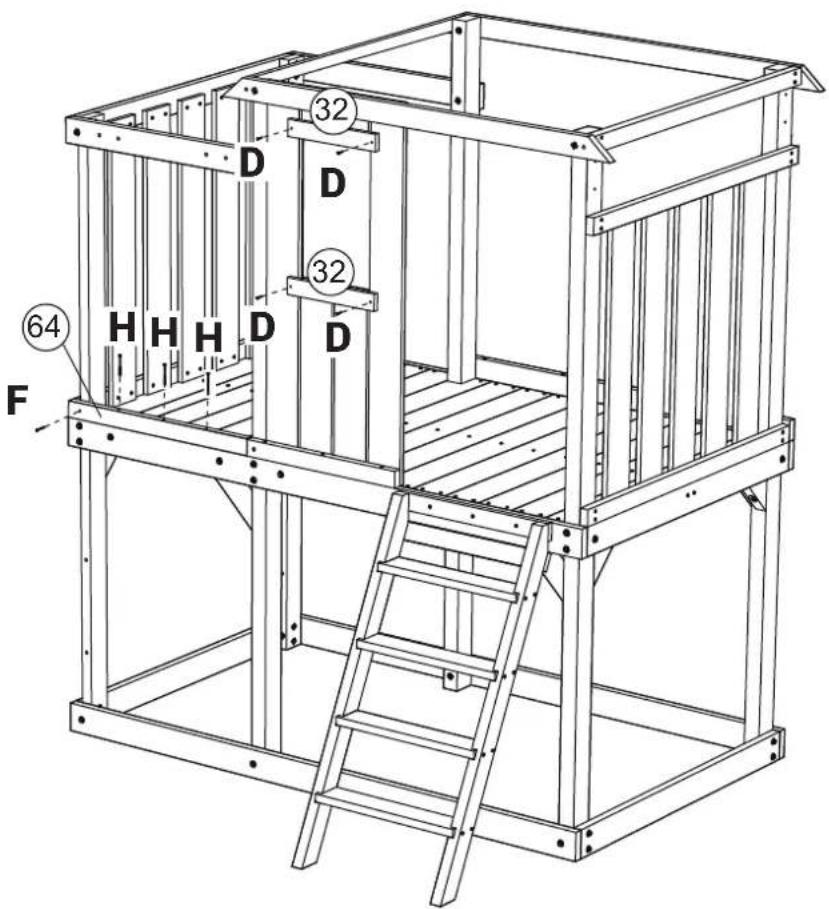

Step Étape Paso 32

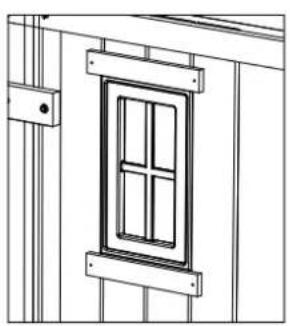

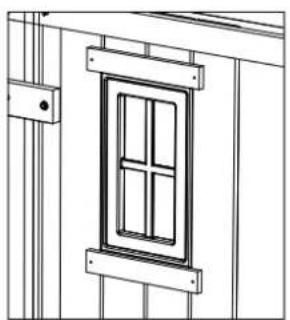

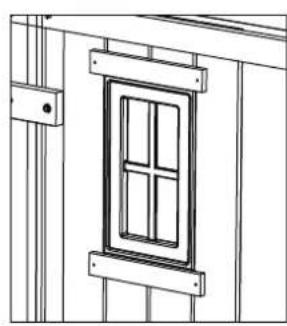

Line drawing of a window frame mounted on a wooden door, with no text or symbols present.

Line drawing of a window frame with four panes and mounting brackets (no text or symbols)

Align with window

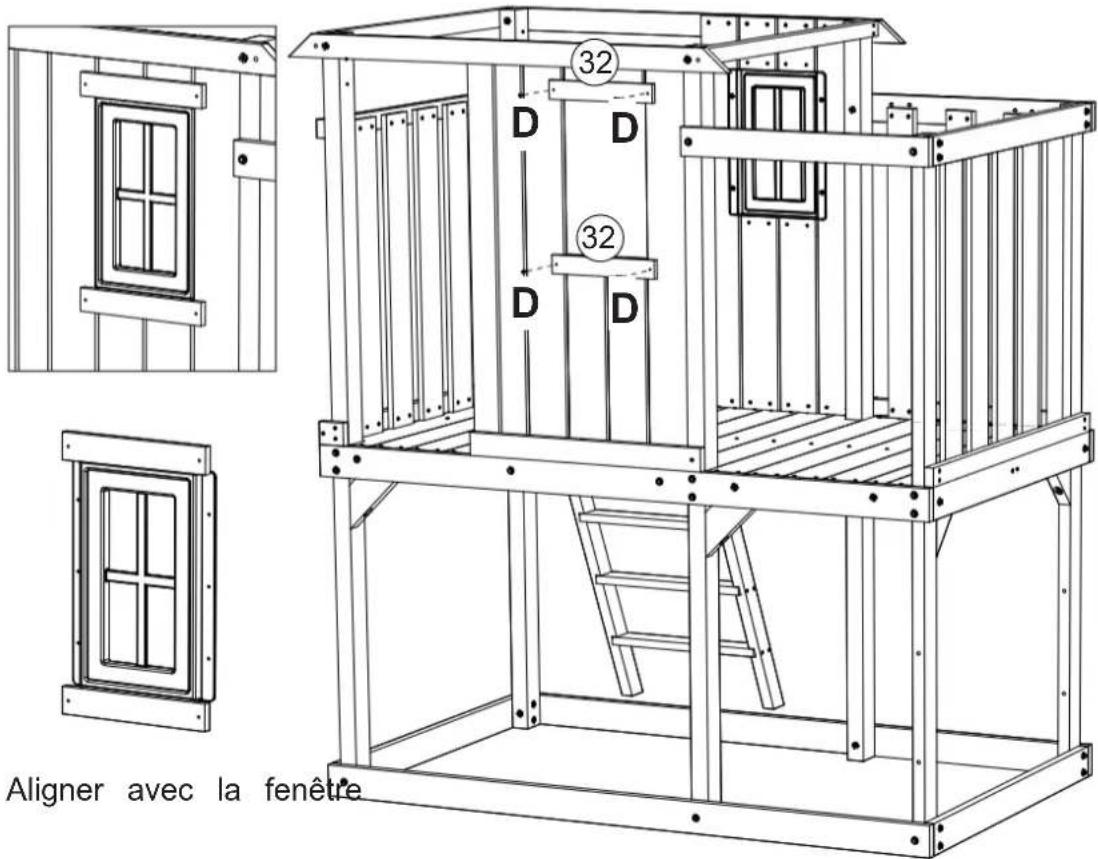

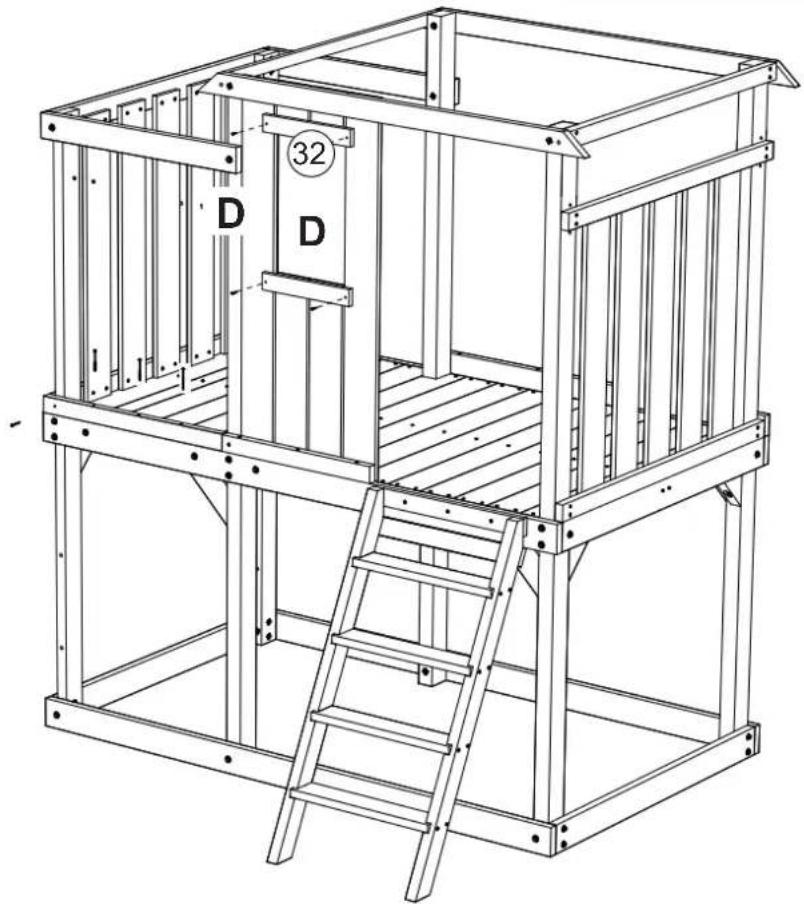

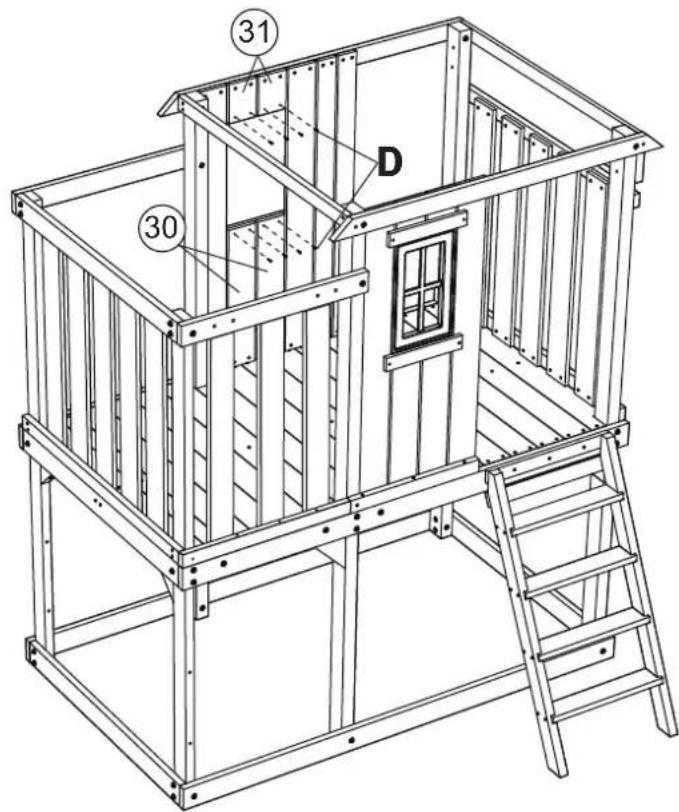

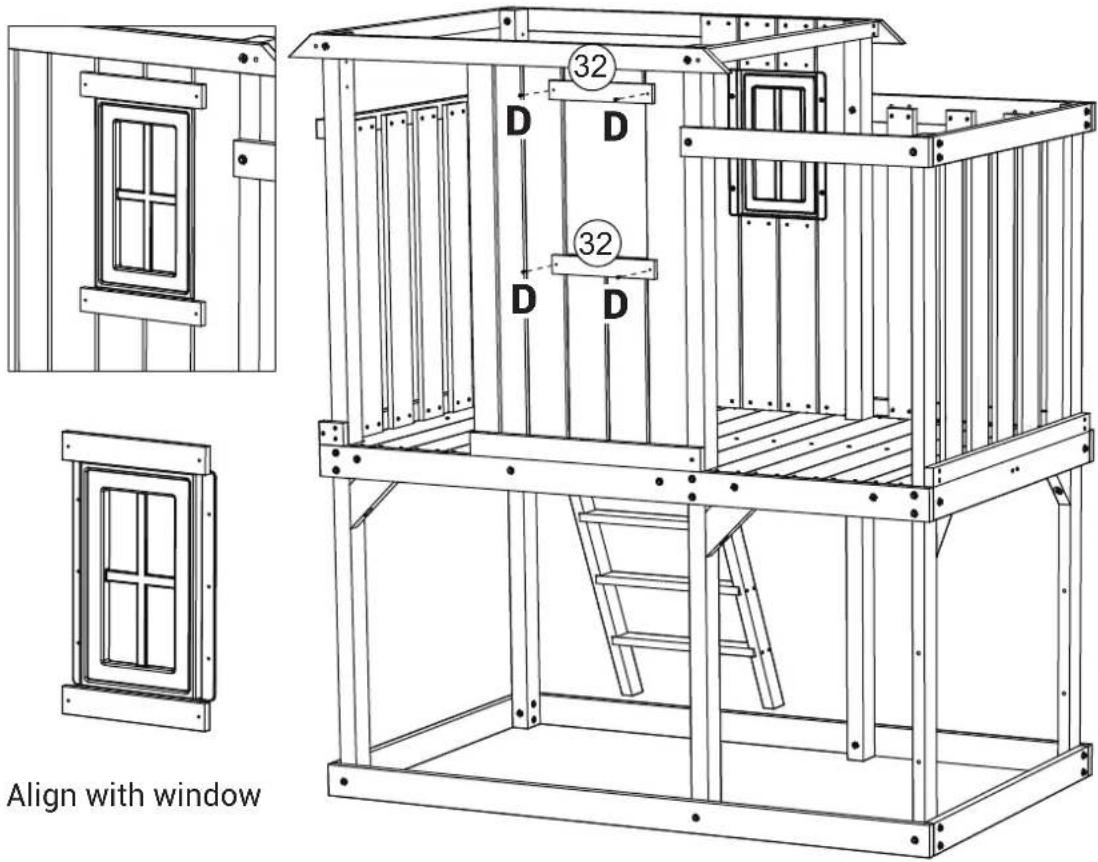

32 D D 32 64 F H H D D

32 x 2

64 x 1

D x 4

F x 1

H x 3

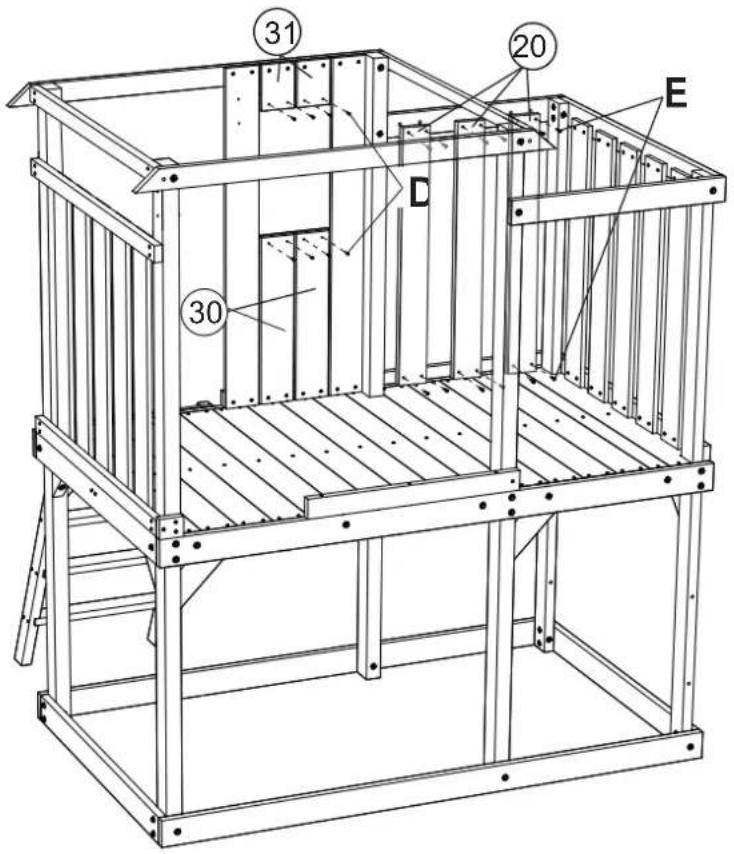

Step Étape Paso 33

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

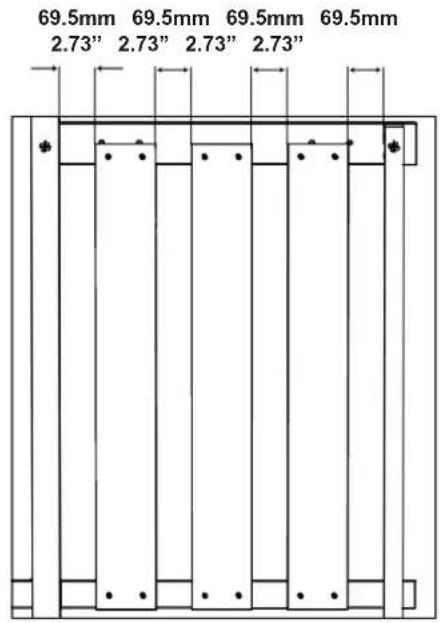

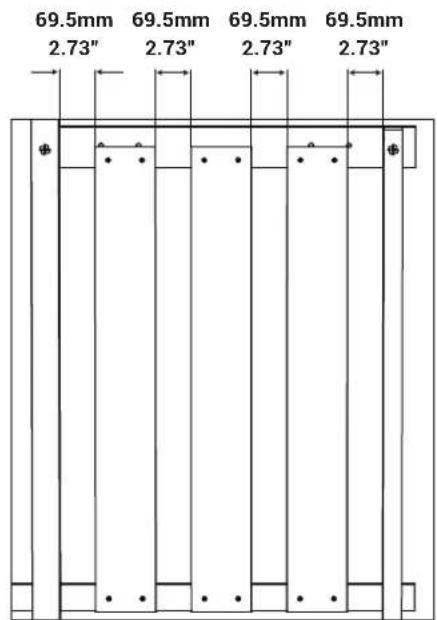

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73" Φ

56 x 1

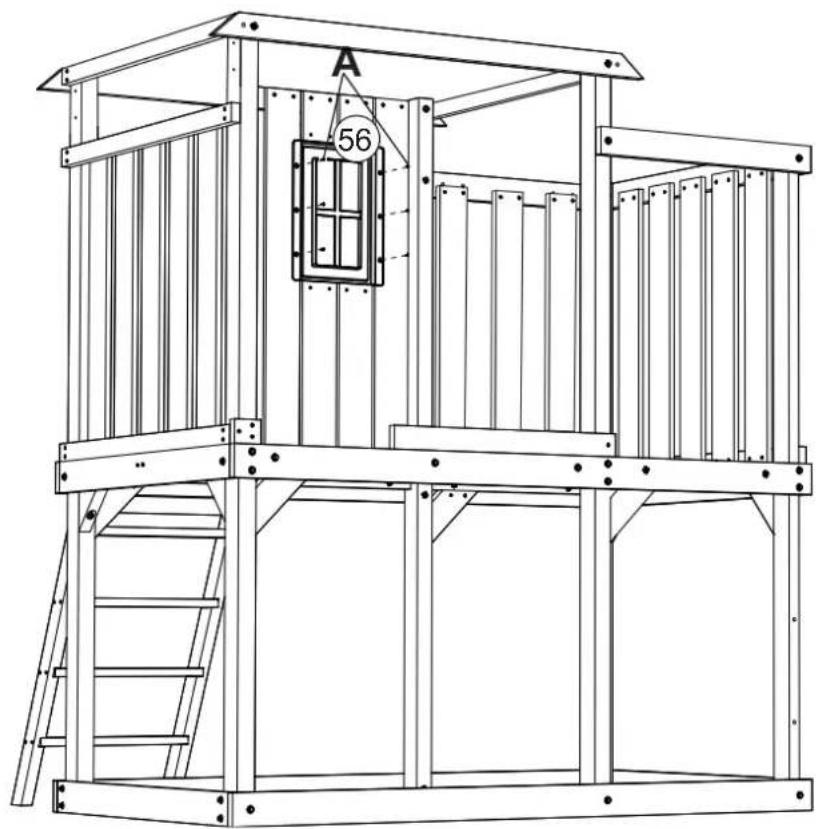

A x 6

Step Étape Paso 34

A 56

Step Étape Paso 35

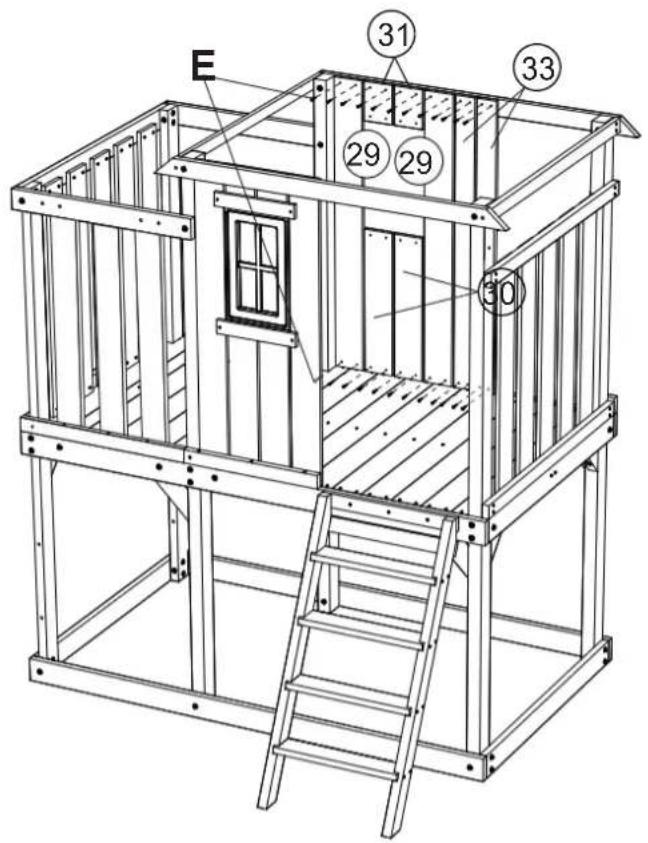

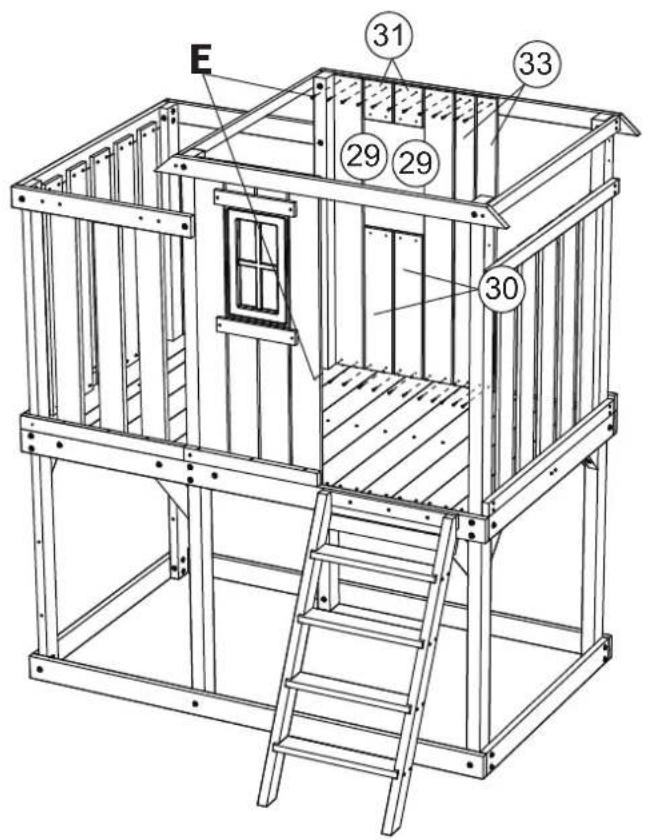

E 31 33 29 29 30

254mm 9.99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

32 D D 32 D D Align with window

32 x 2

D x 4

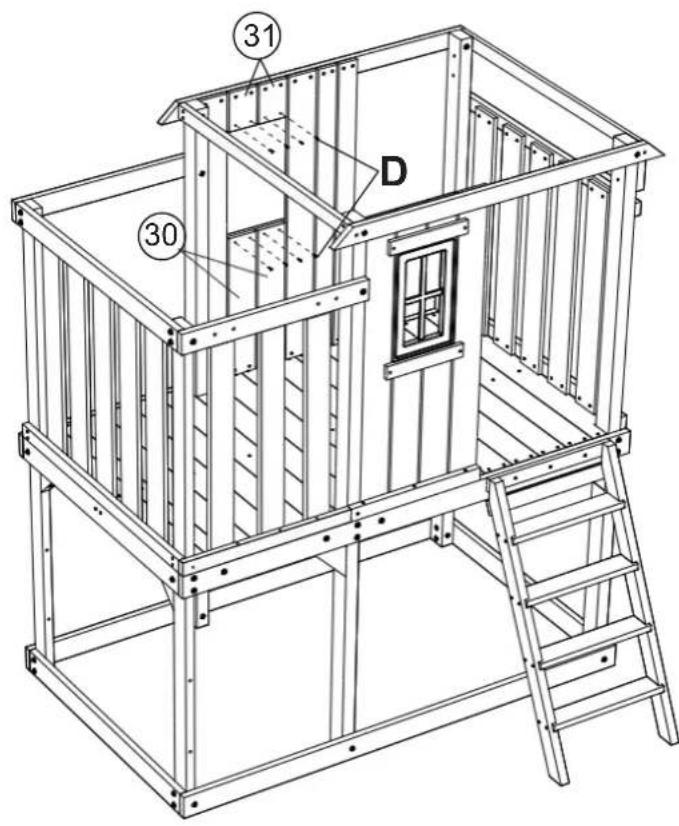

Step Étape Paso 37

Technical line drawing of a children's play structure with labeled components and structural details

D x 8

Step Étape Paso 38

Line drawing of a children's play structure with ladder, frame, and window (no text or symbols)

56 x 1
A x 6

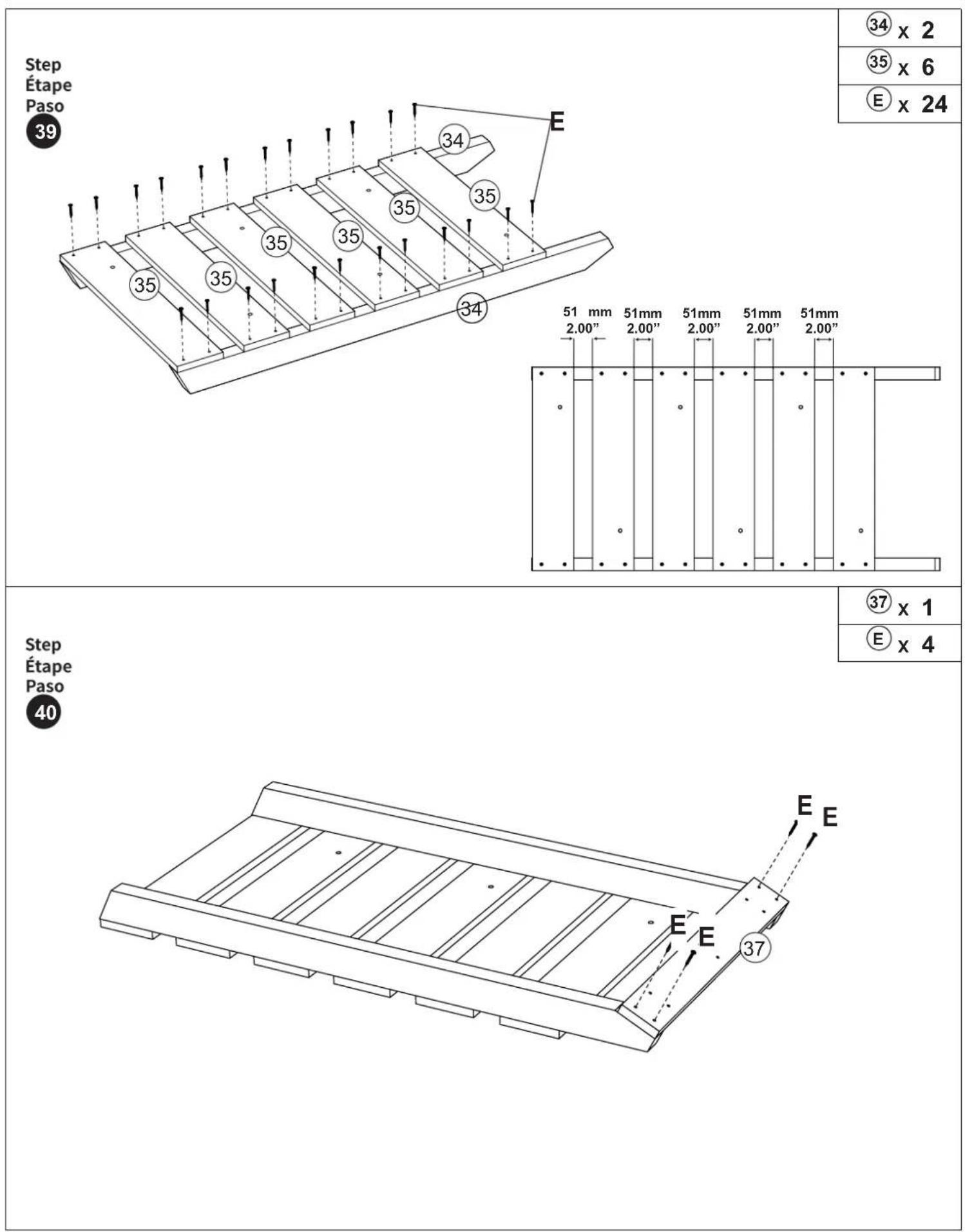

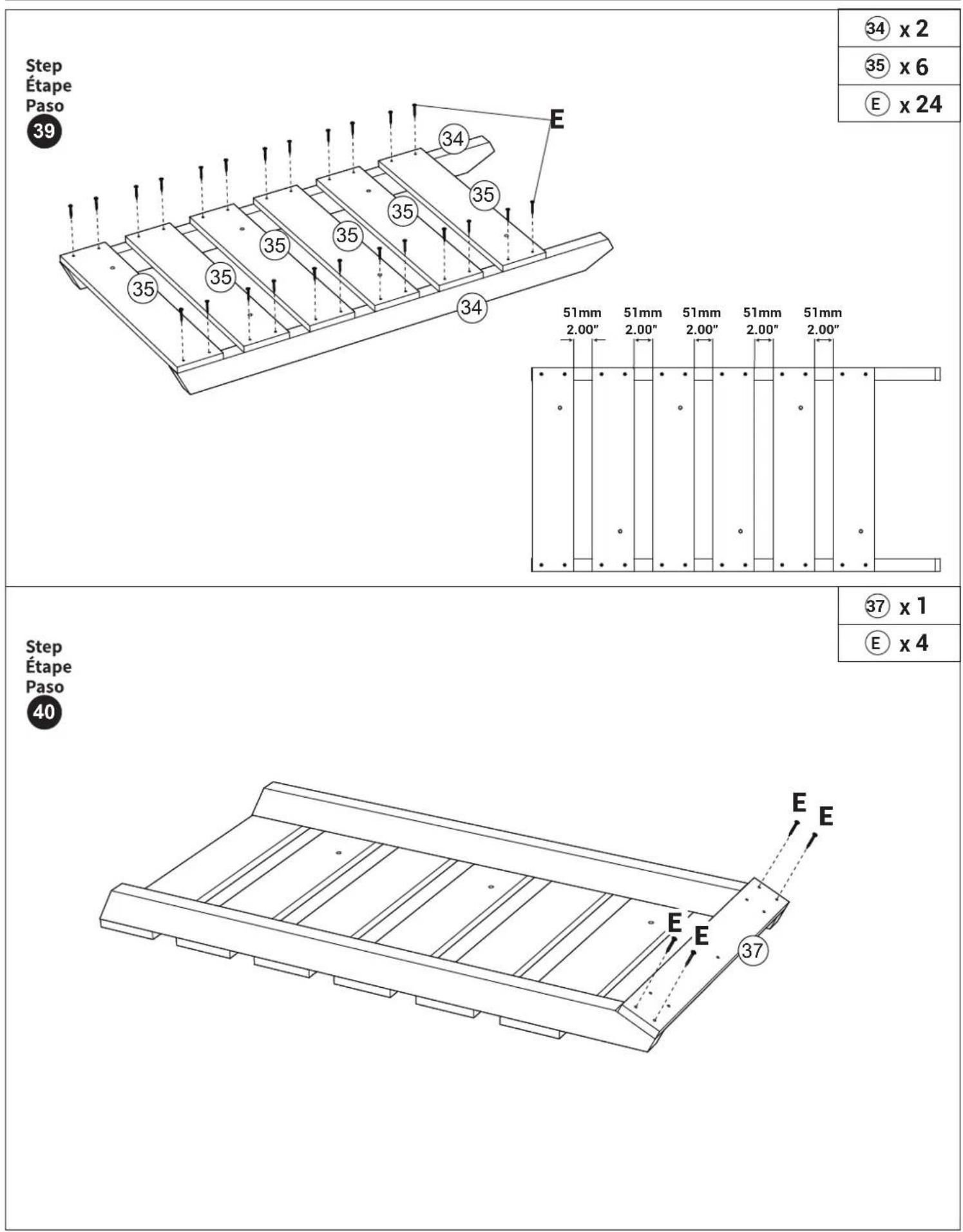

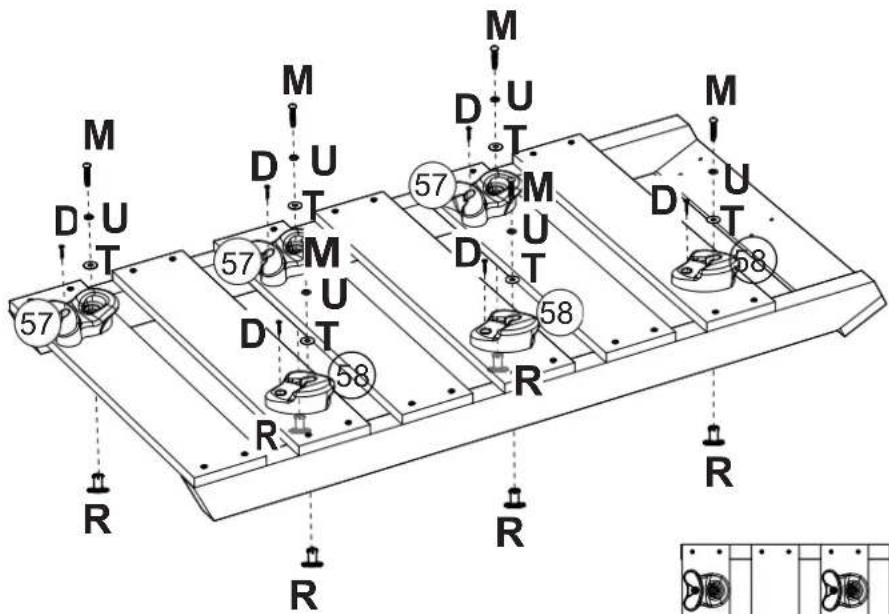

Step Étape Paso 41

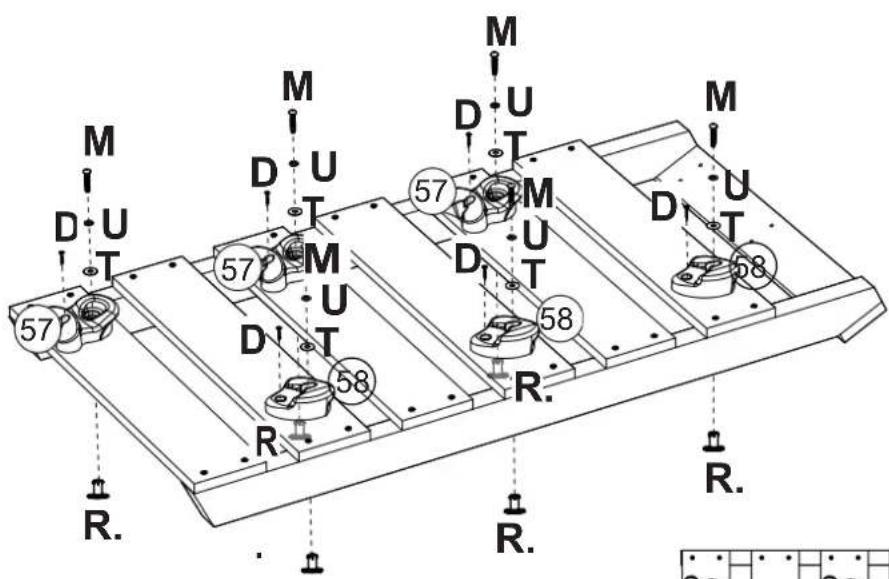

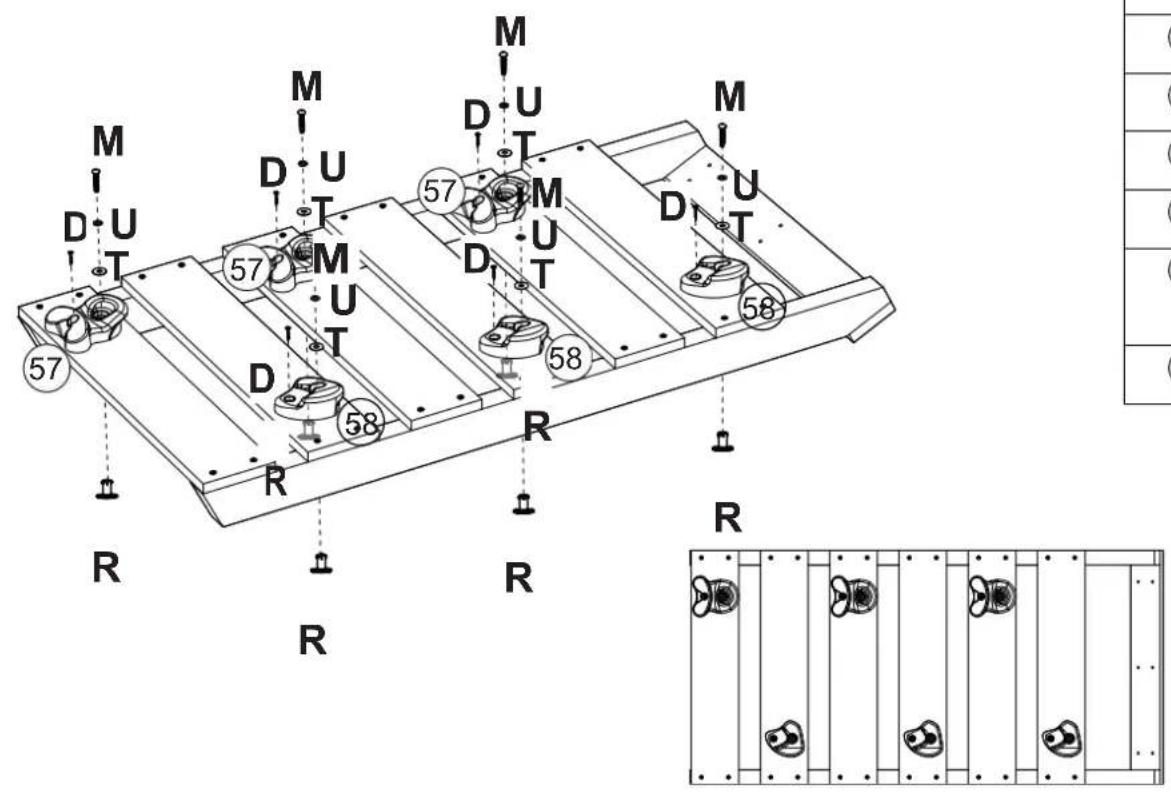

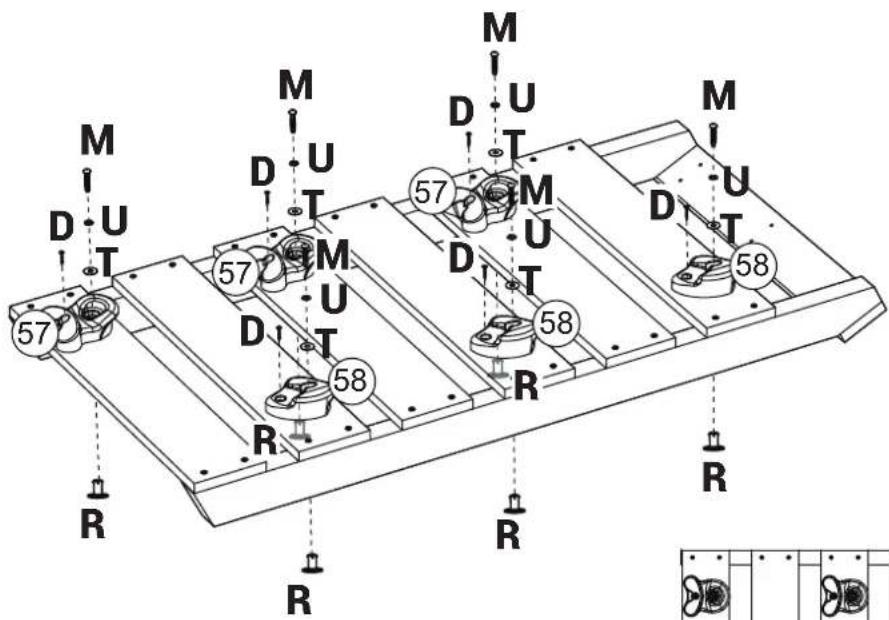

M D U T M D U T M D U T M D U T 57 58 57 57 57 58 R R R R R

57 x 3

58 x 3

D x 6

M x 6

R x 6

T x 6

U x 6

Pure electrical circuit lines without any symbols

E x 6

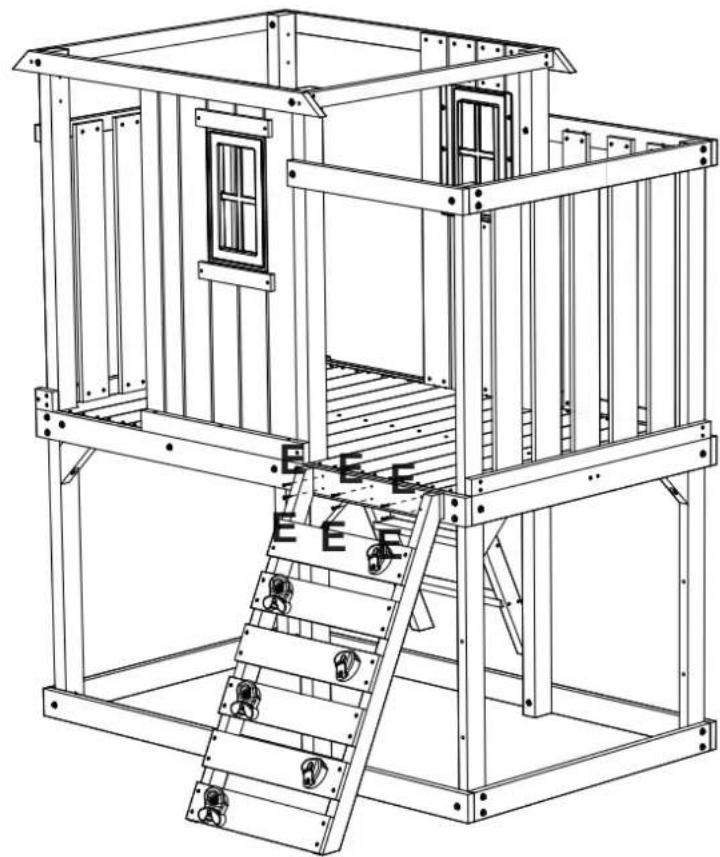

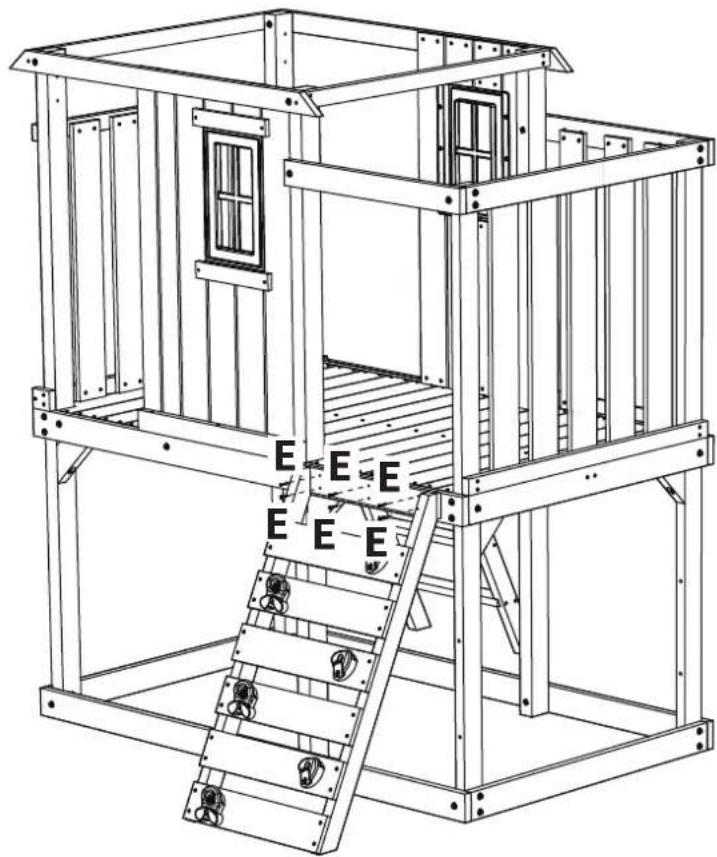

Step Étape Paso 42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

Step Étape Paso

43

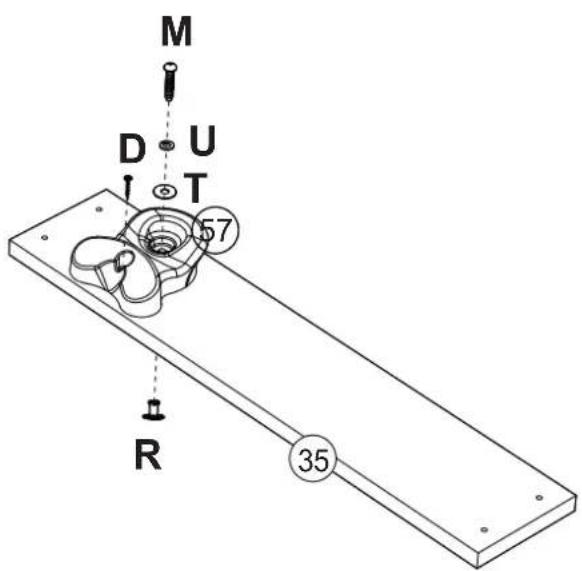

M D U T 57 R 35

③5 x 1
57 x 1
D x 1
M x 1
R x 1
T x 1
U x 1

E x 4

Step Étape Paso

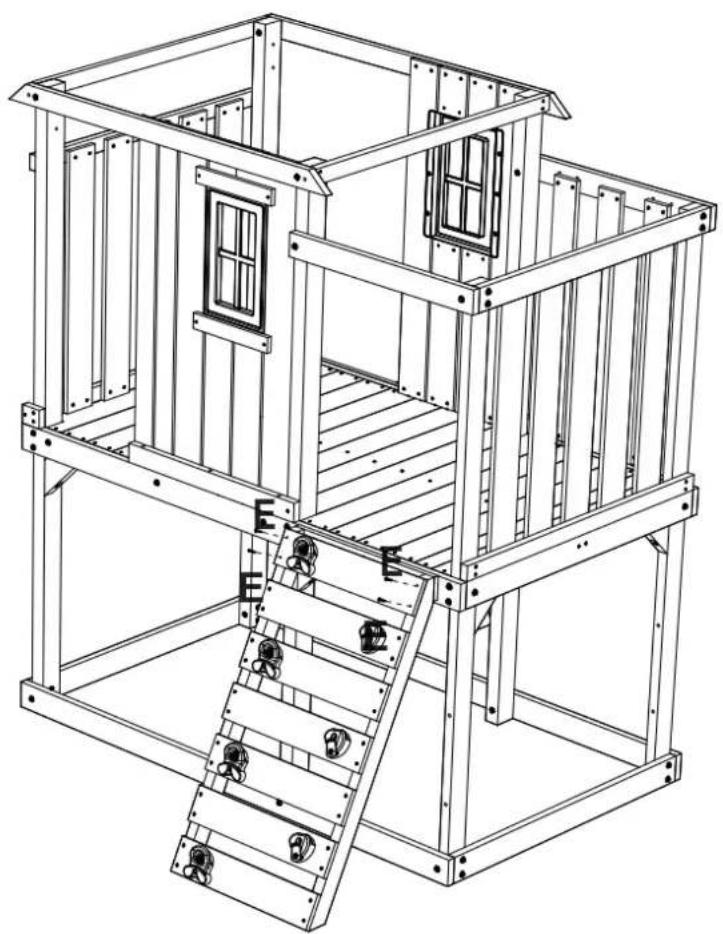

44

Technical line drawing of a multi-level modular structure with ladder and window, no text or symbols present

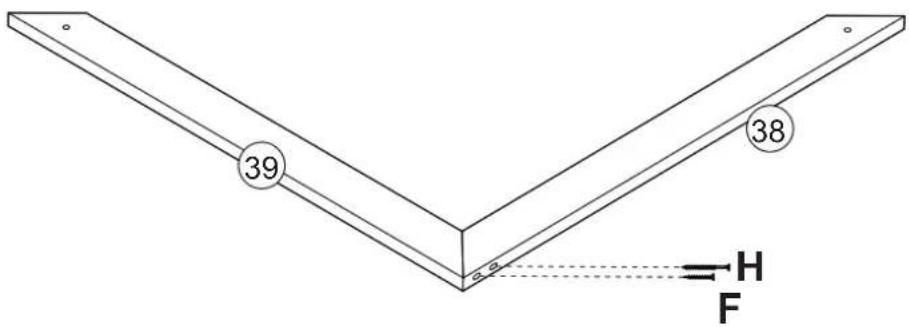

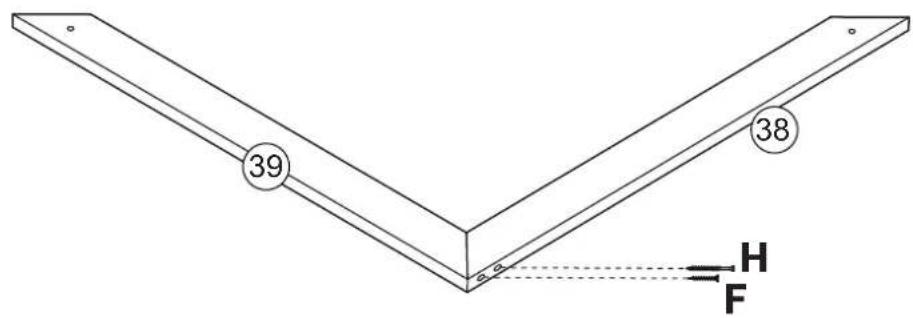

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1

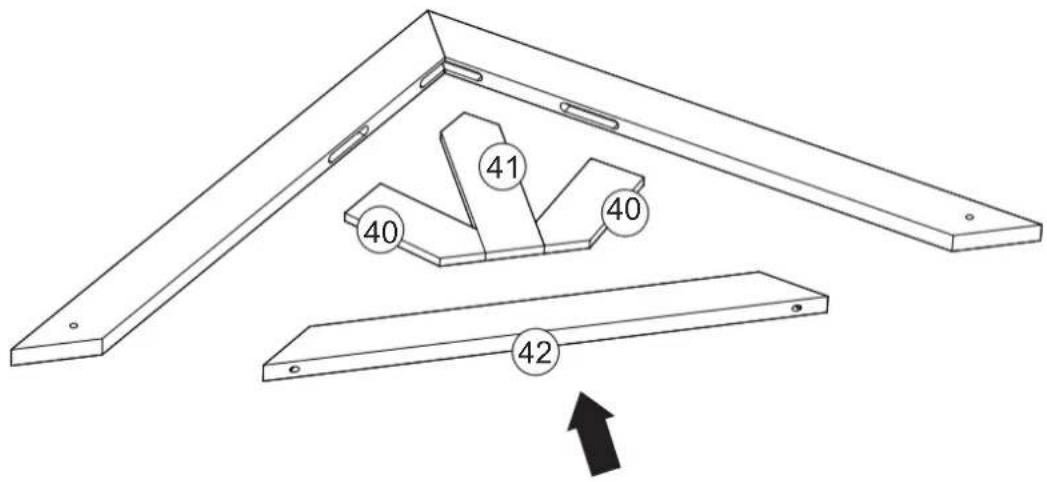

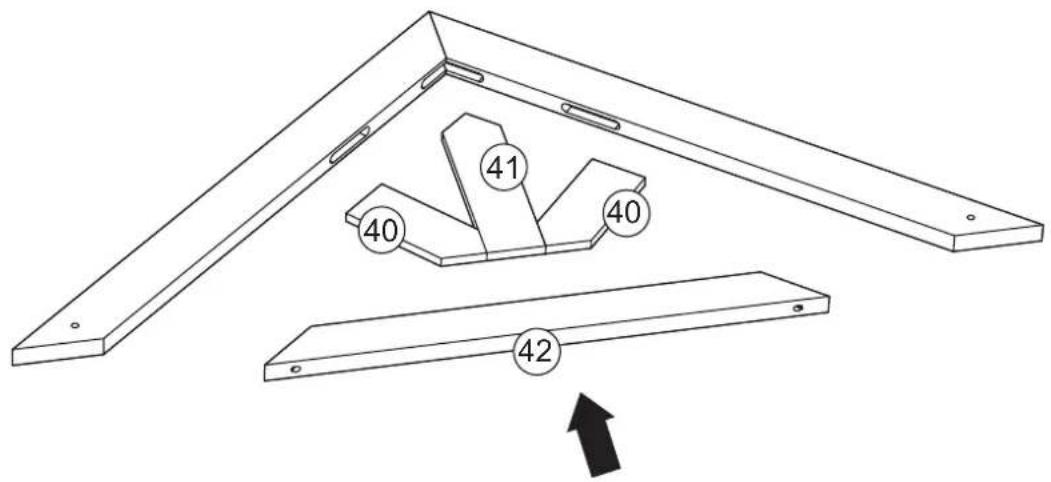

Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

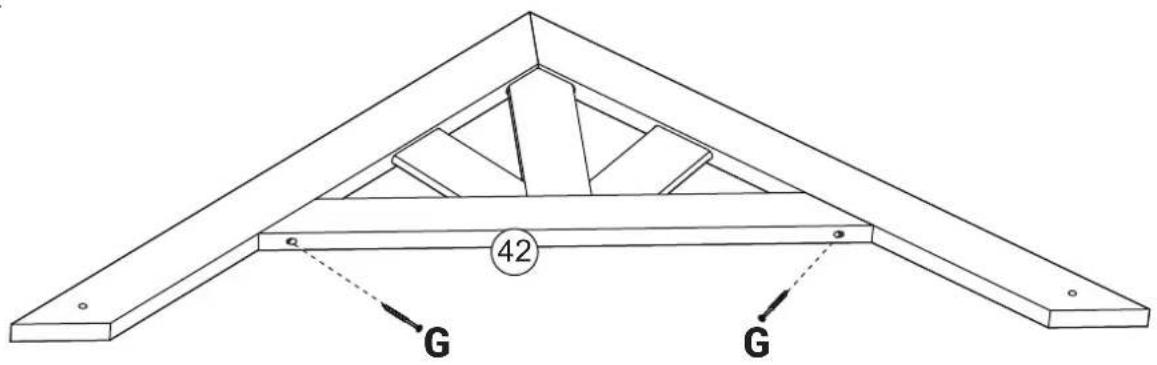

47 x 2

④2 x 1

G x 2

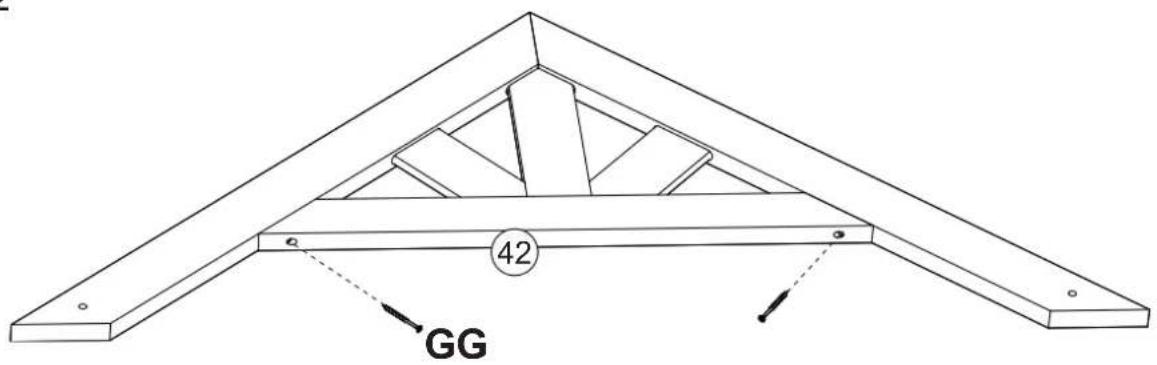

42 G G

Step

Étape

Paso

48

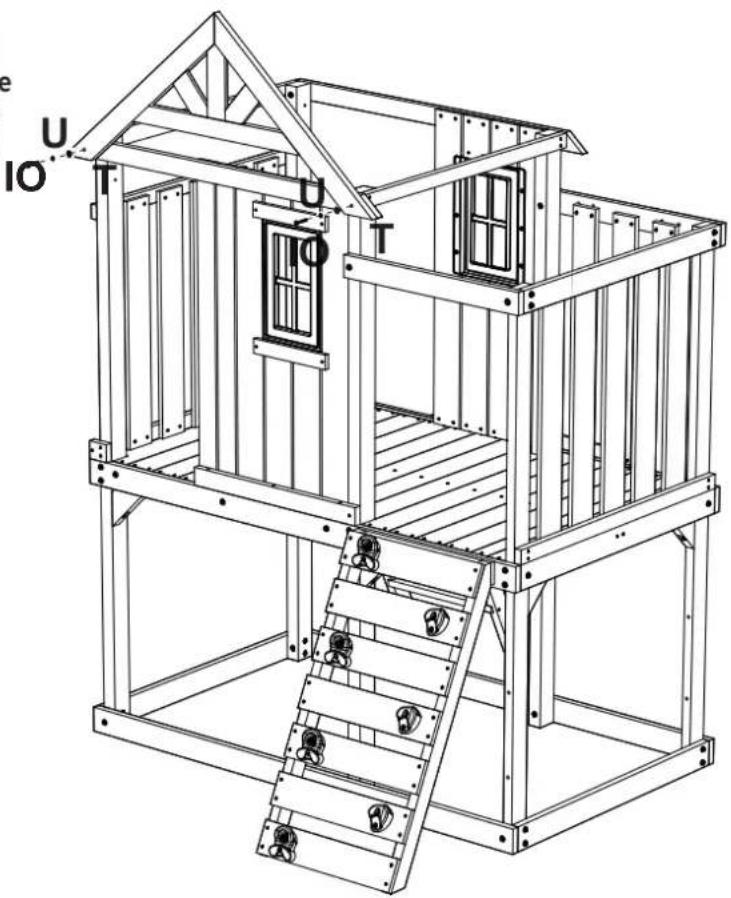

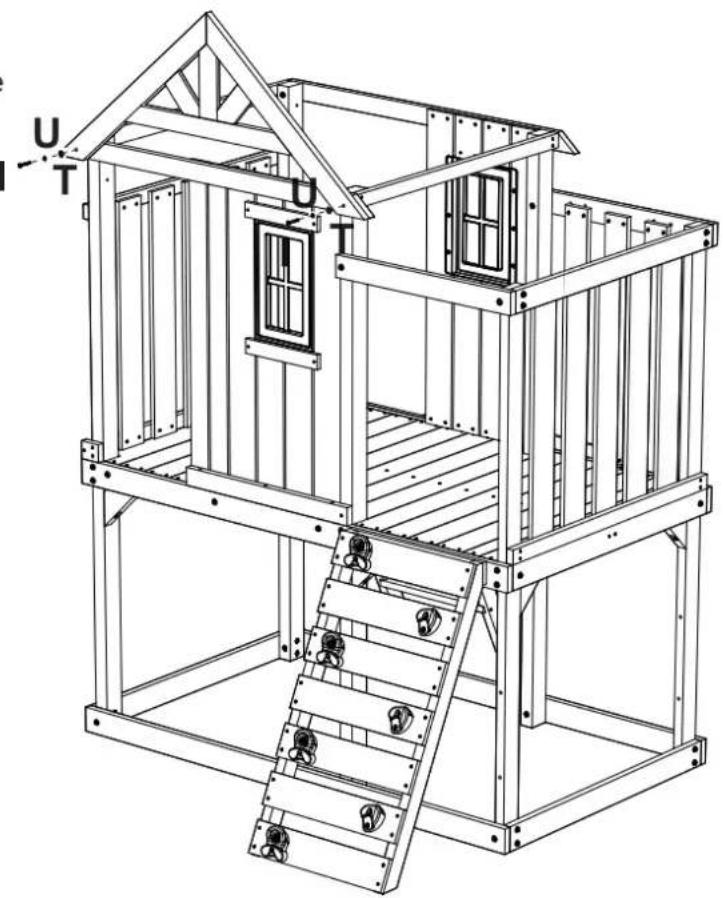

Line drawing of a wooden play structure with stairs and windows, no text or symbols present

① x 2

⑦ x 2

⑧ x 2

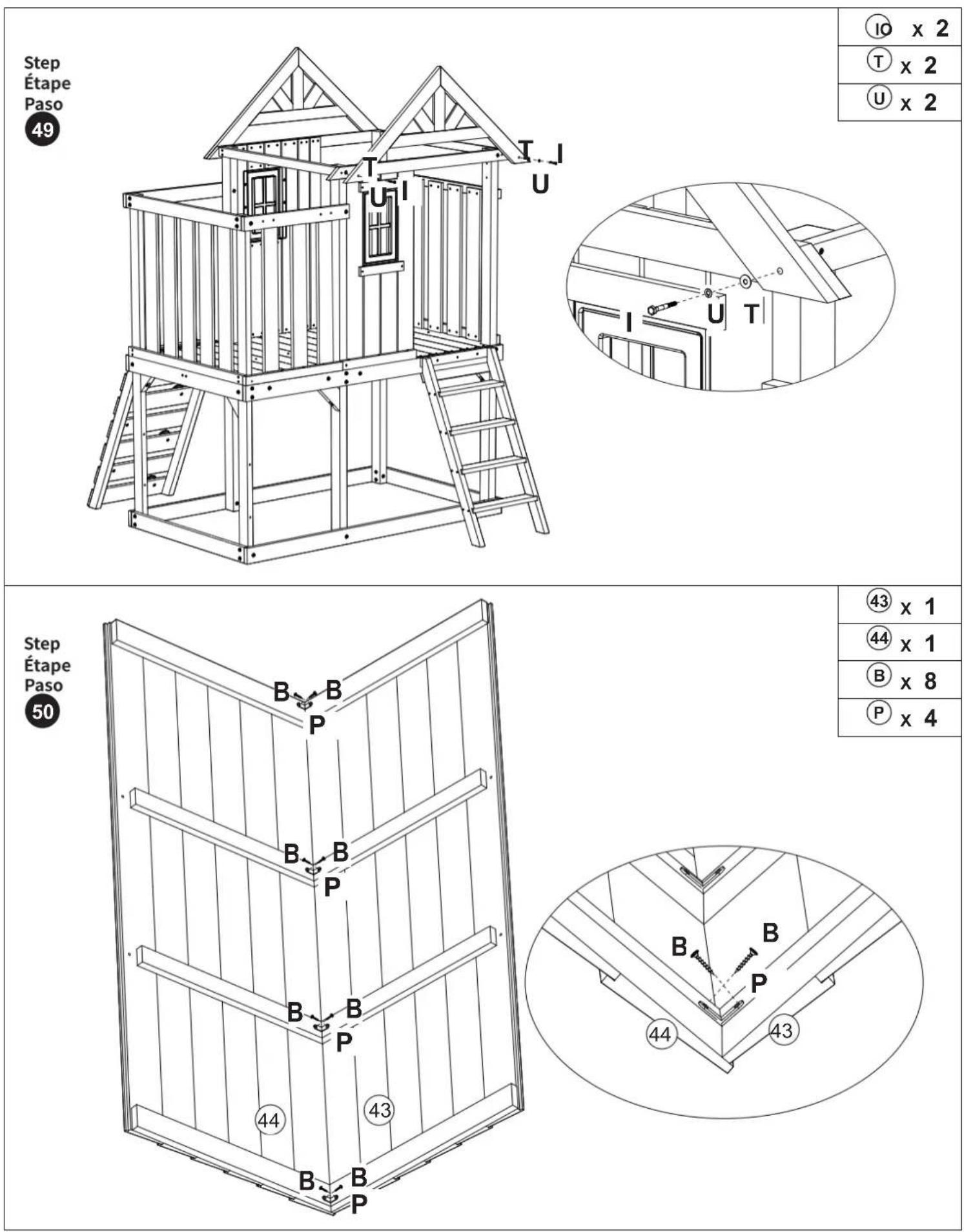

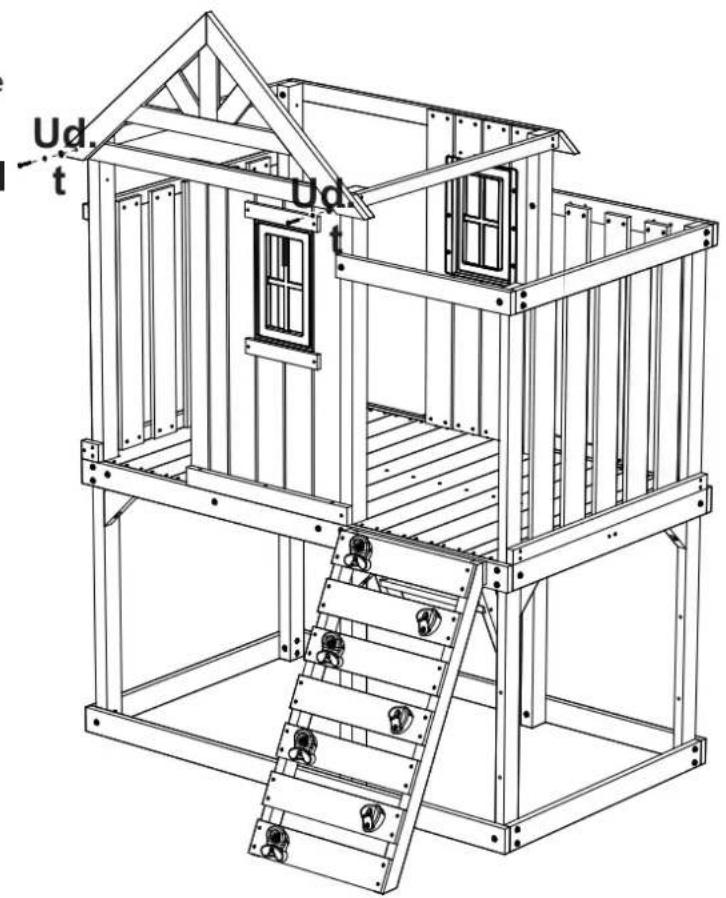

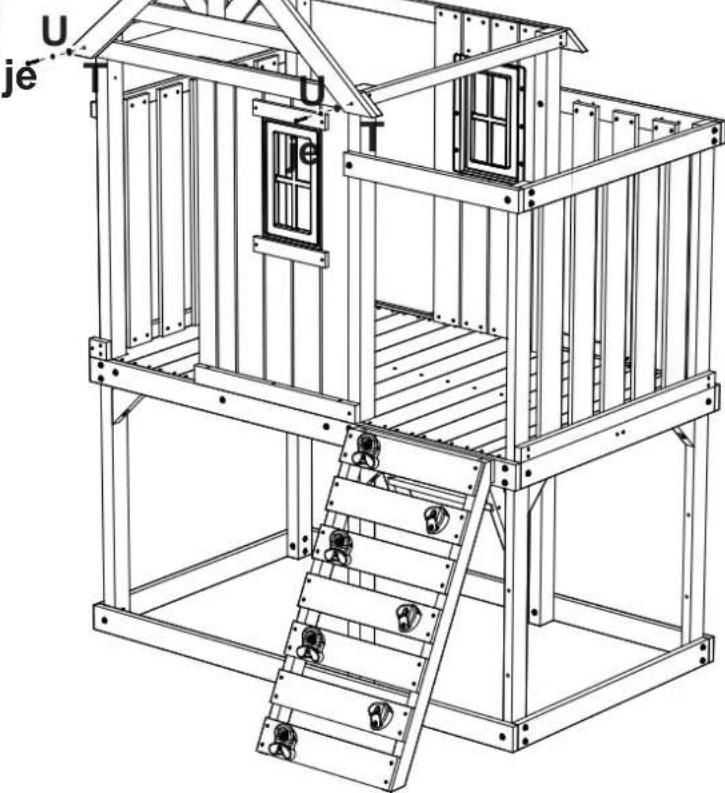

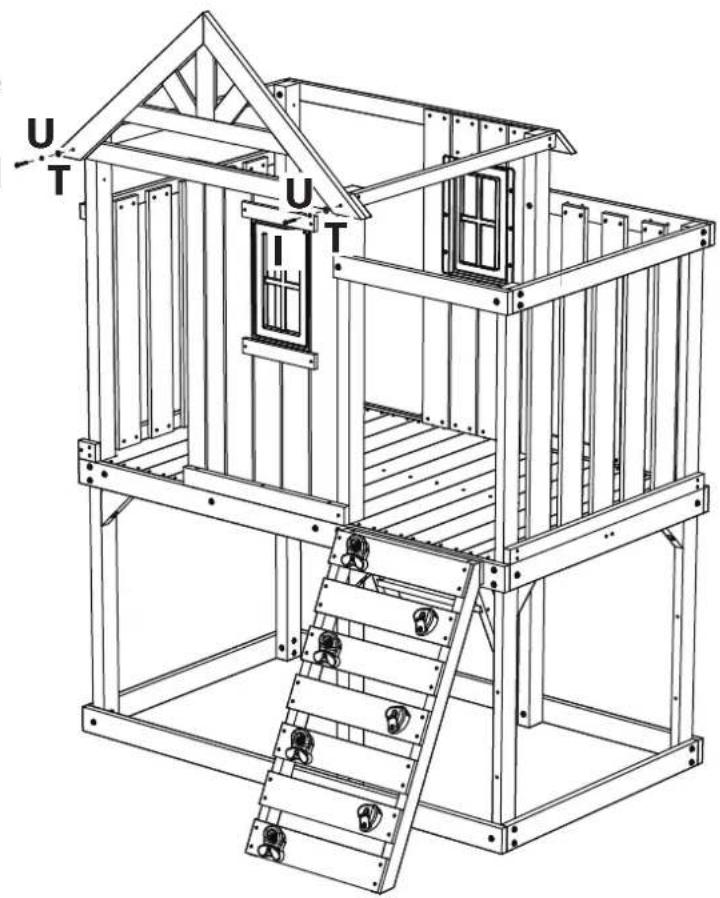

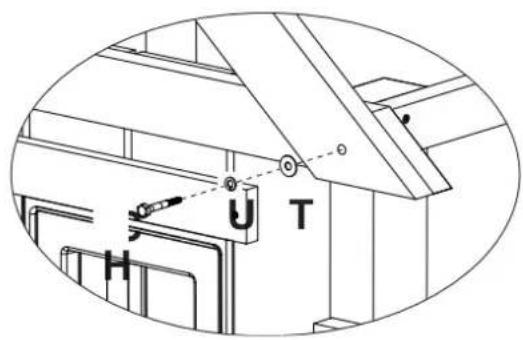

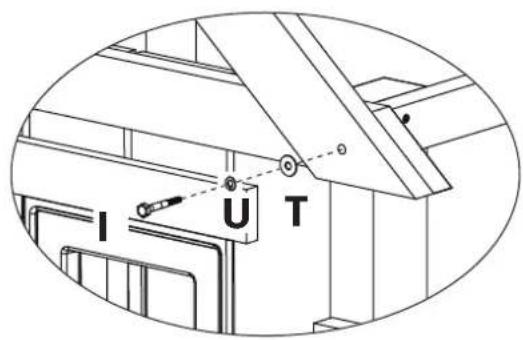

I U T θ

I x 2

T x 2

U x 2

43 x 1

44 x 1

B x 8

P x 4

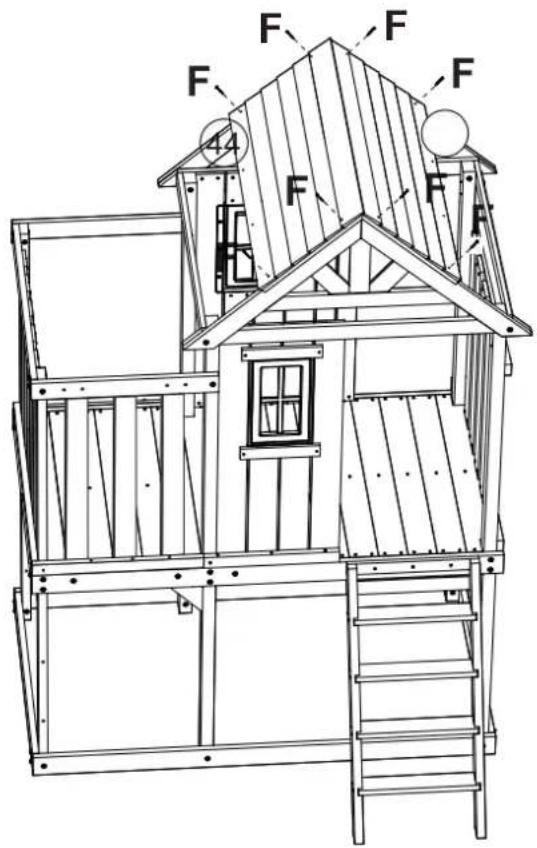

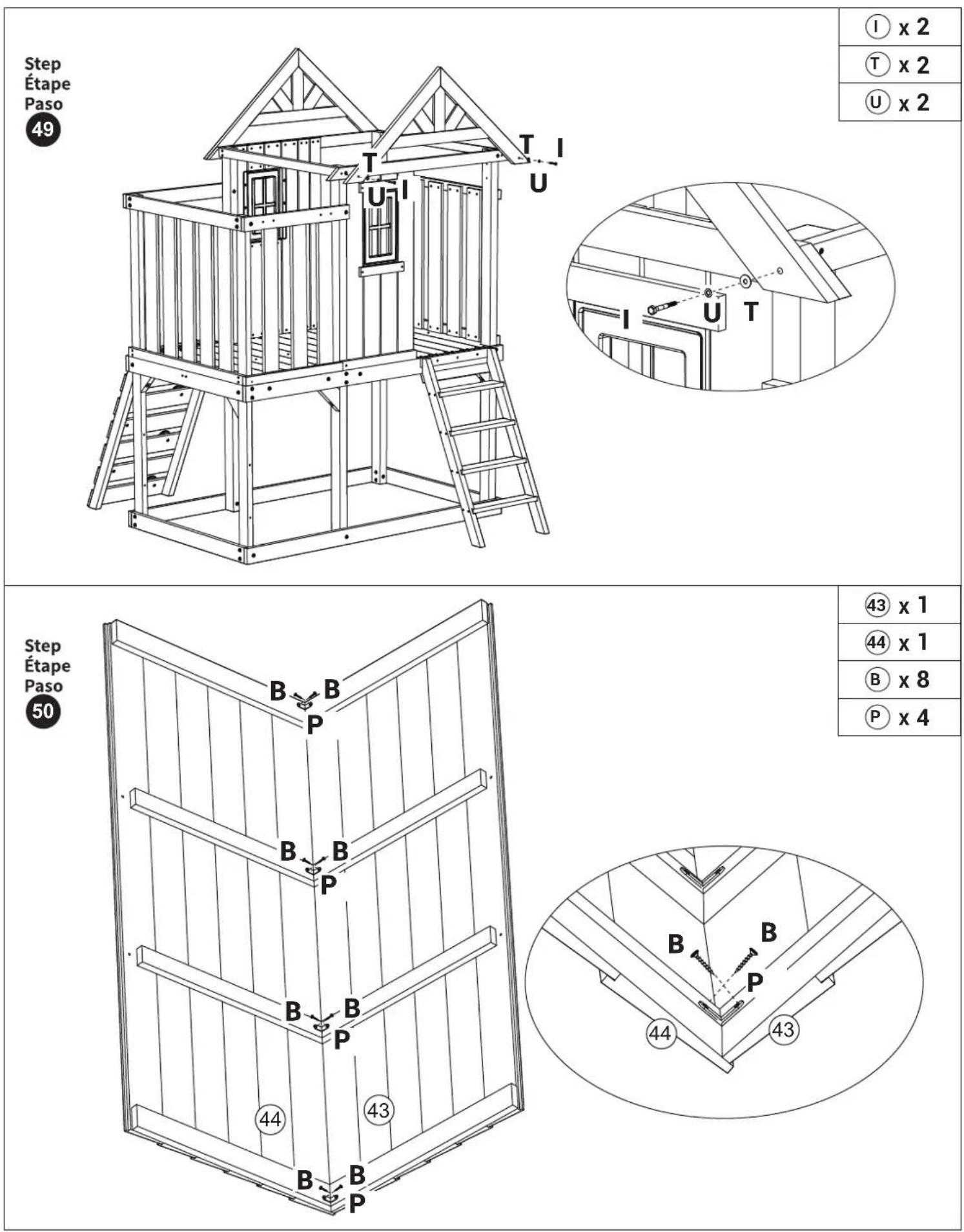

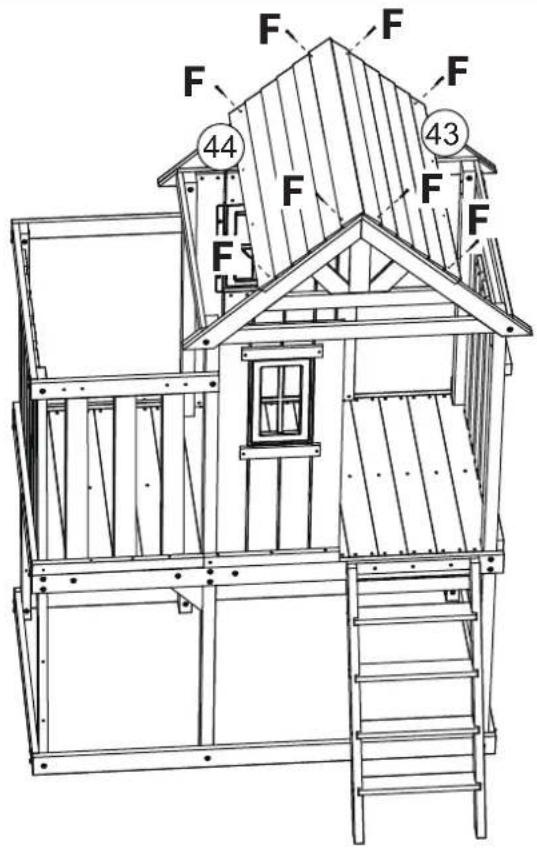

Step Étape Paso 51

F F F 44 F F 43 F F

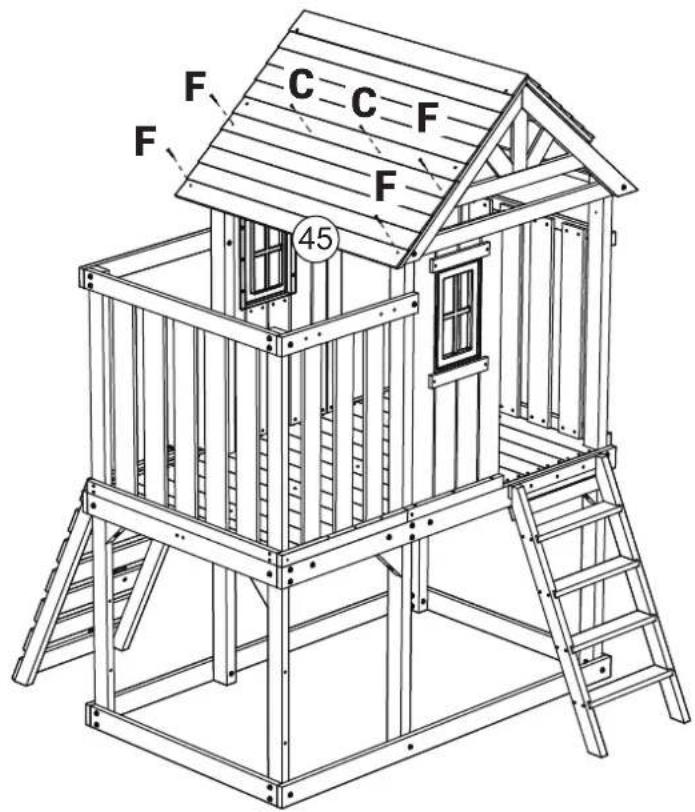

Step Étape Paso 52

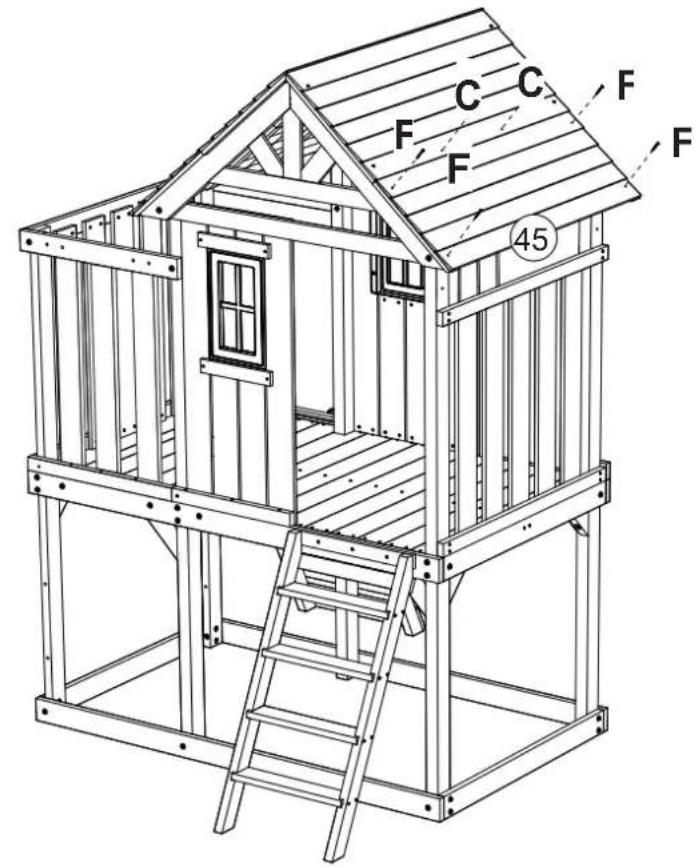

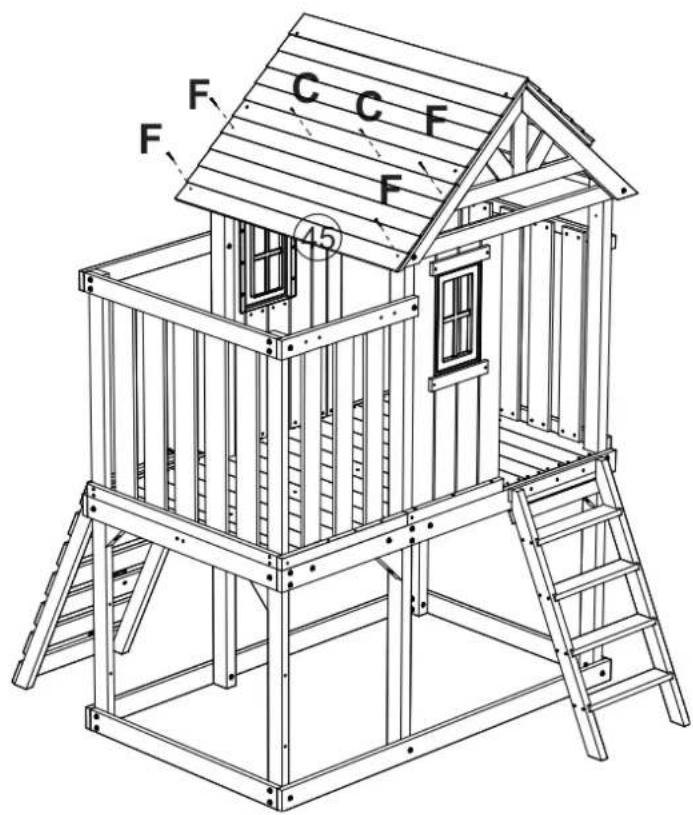

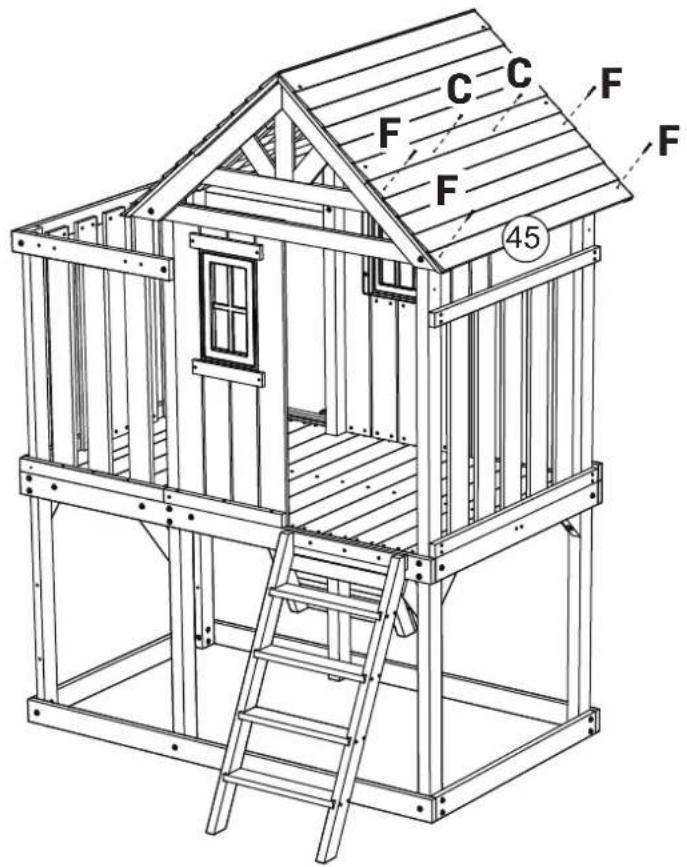

F C C F F F 45

Step Étape Paso 53

C C F F F F 45

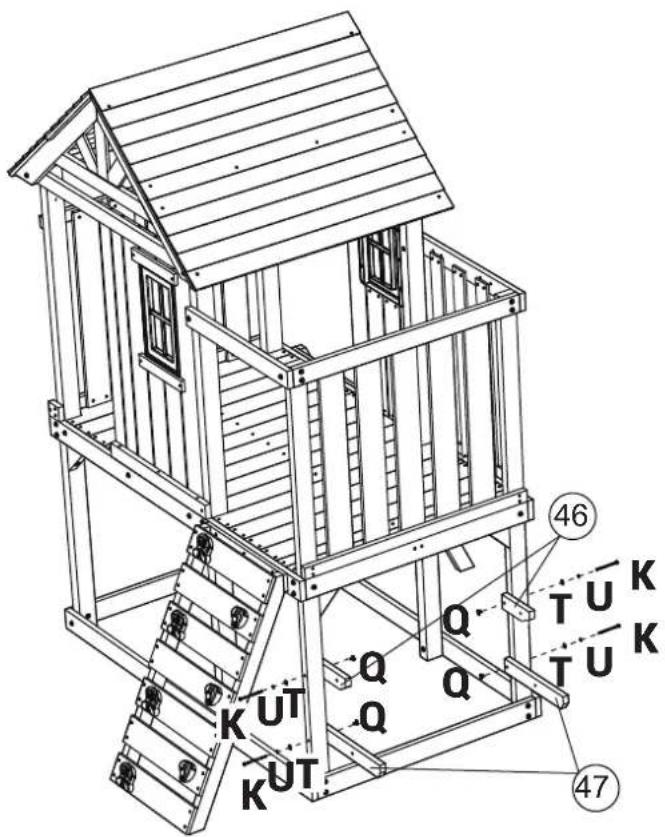

Step Étape Paso 54

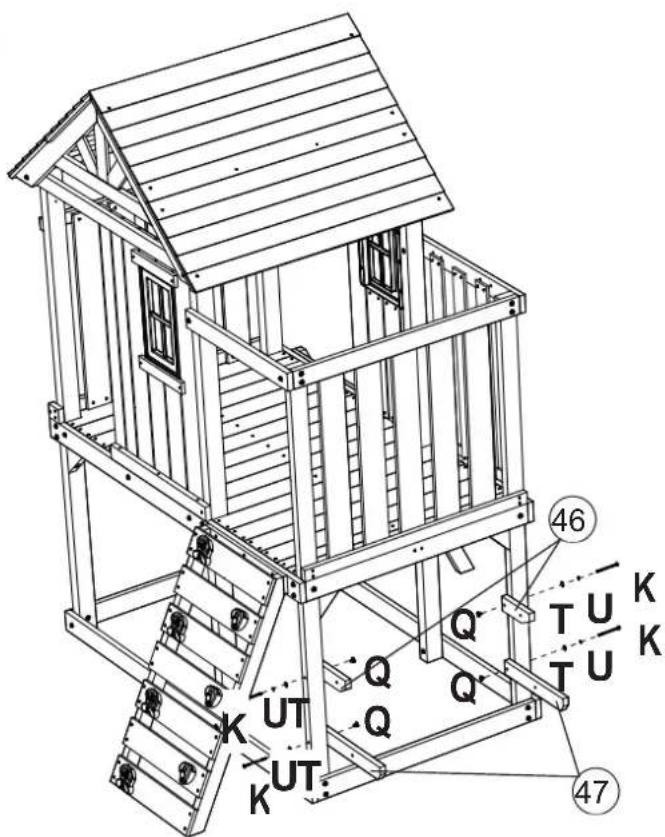

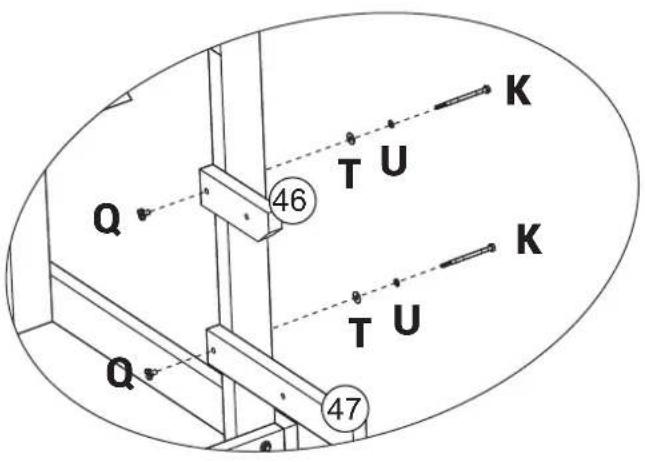

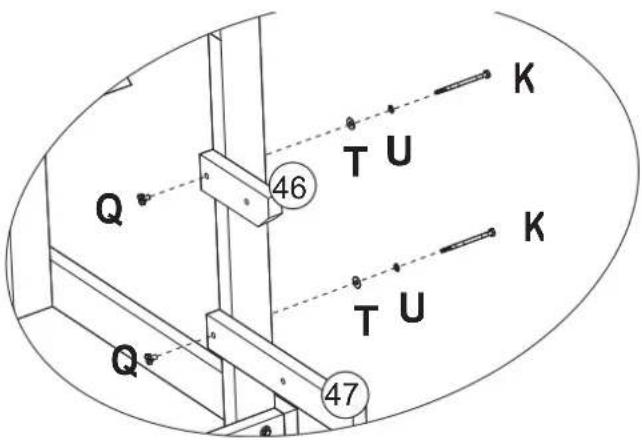

KUT Q Q T U K T U K KUT 46 47

Q 46 T U K T U K 47 Q

④6 x 2 ④7 x 2 ⑤ x 4 ⑥ x 4 ⑦ x 4 ⑧ x 4

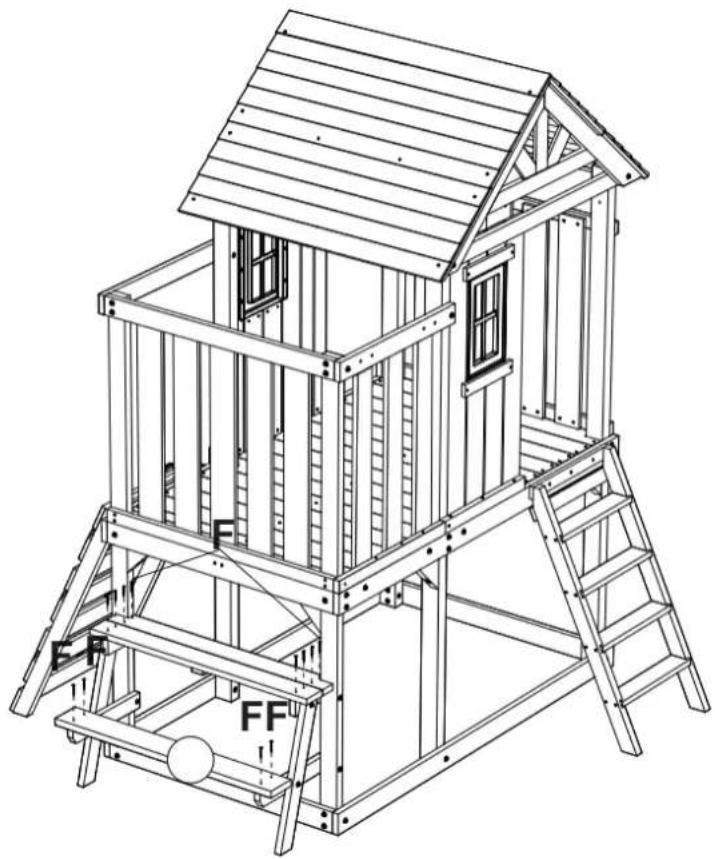

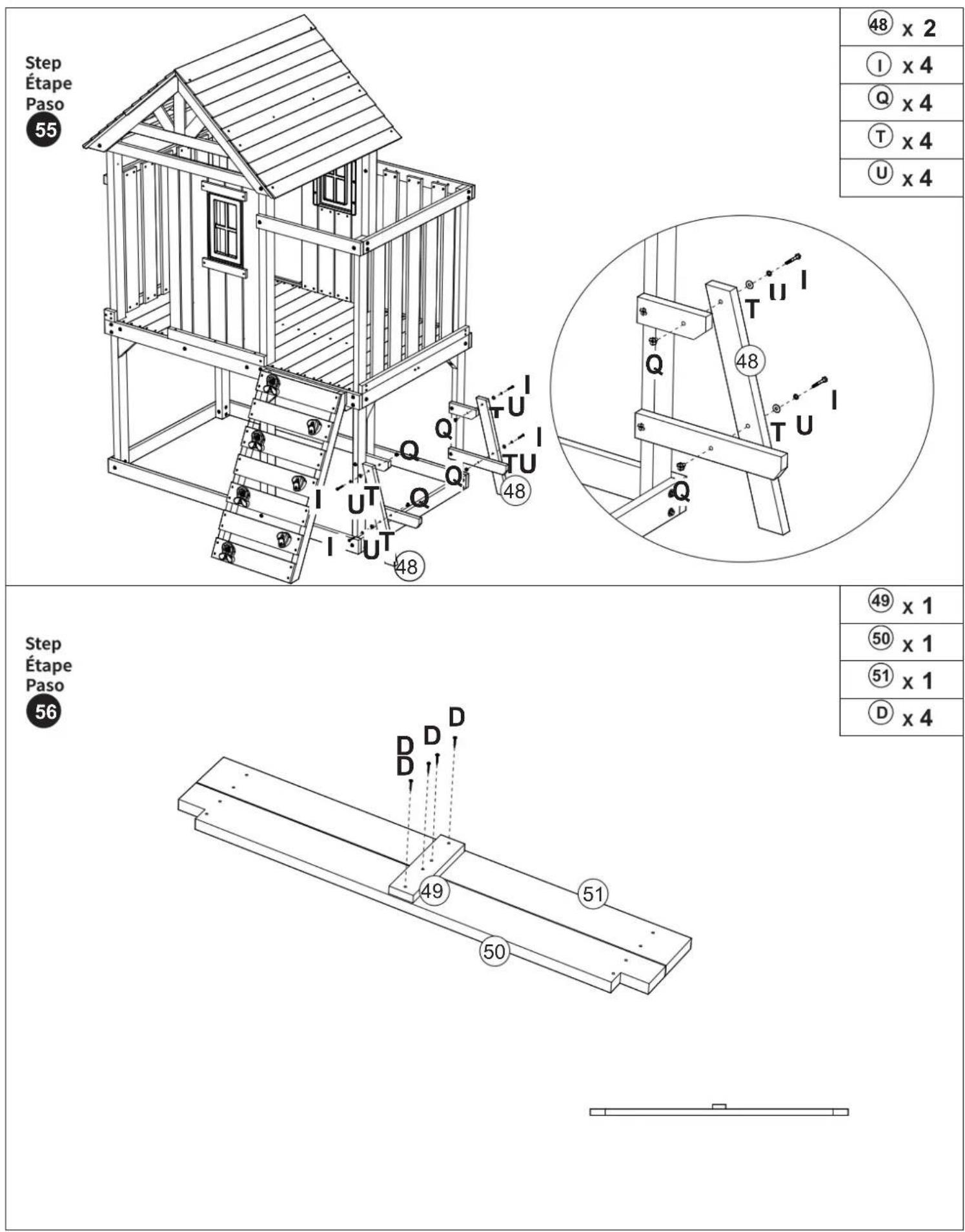

Step Étape Paso 57

Line drawing of a wooden play structure with ladder and frame, labeled 'F' and '52' (no text or symbols beyond labels)

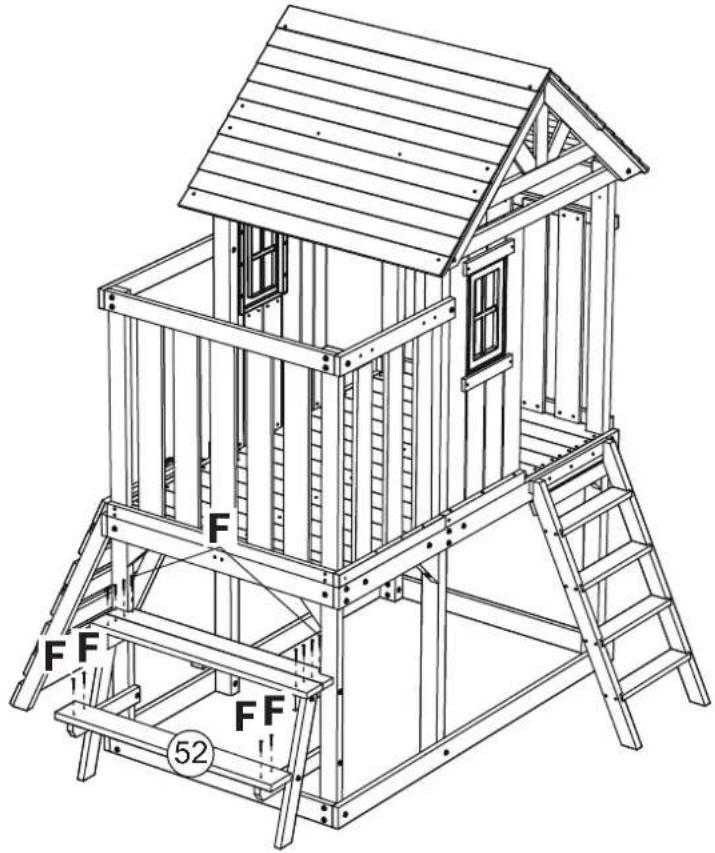

⑤2 x 1
(F) x 12

53 x 2
54 x 1
E x 4

[Non-Text]

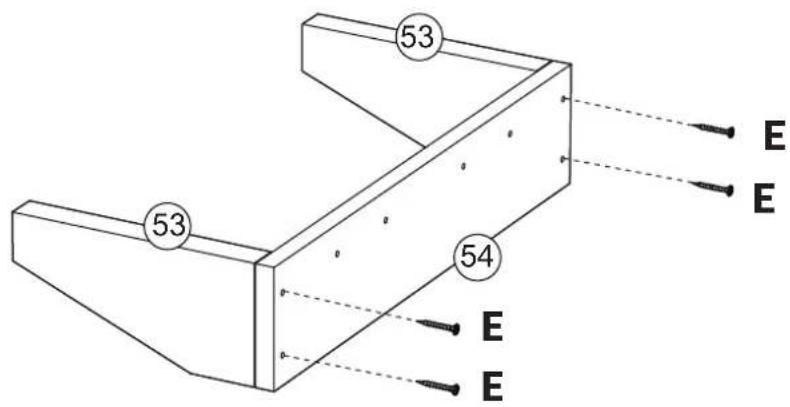

Step Étape Paso 58

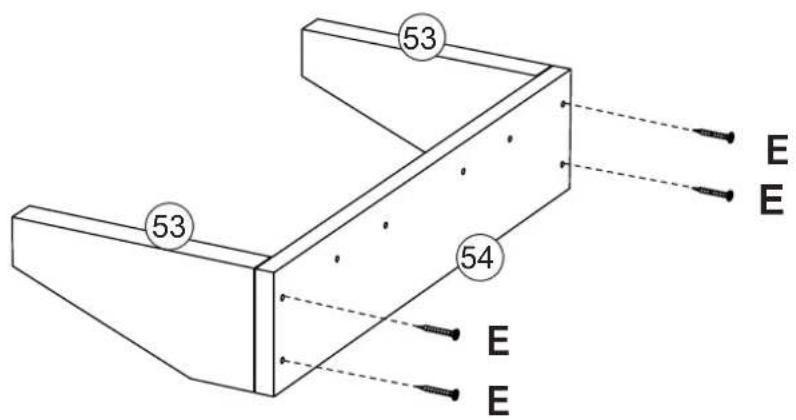

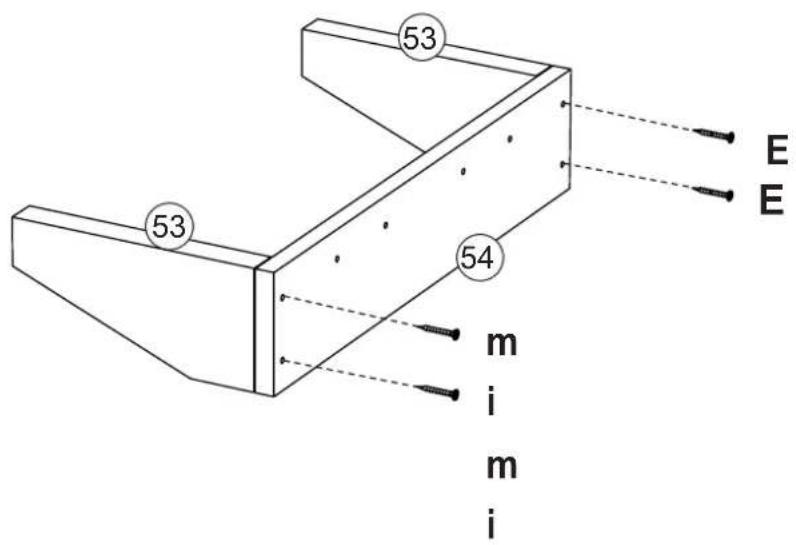

53 53 54 E E E E

Step Étape Paso 59

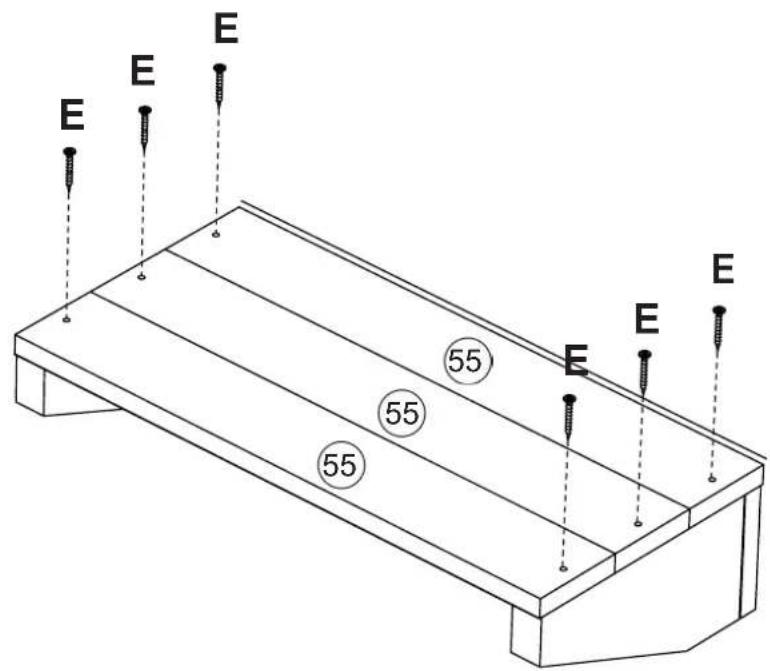

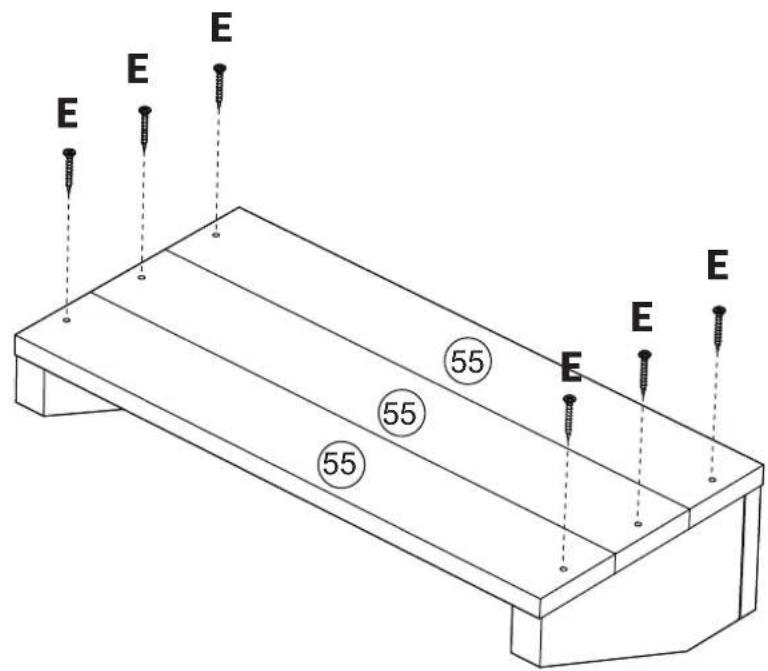

E E E E 55 55 55 E E E

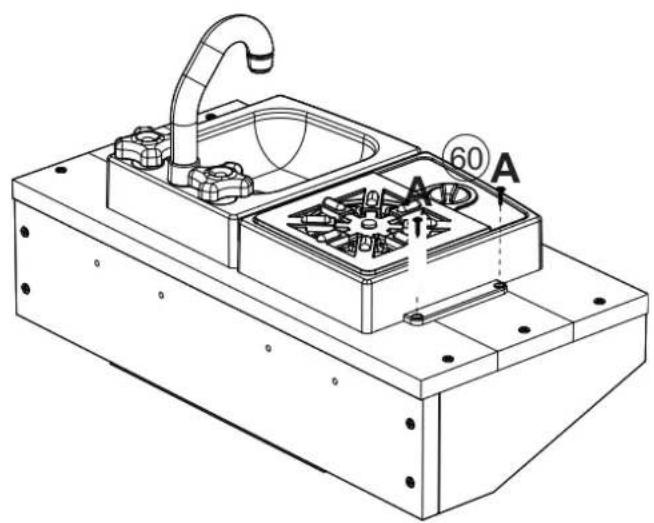

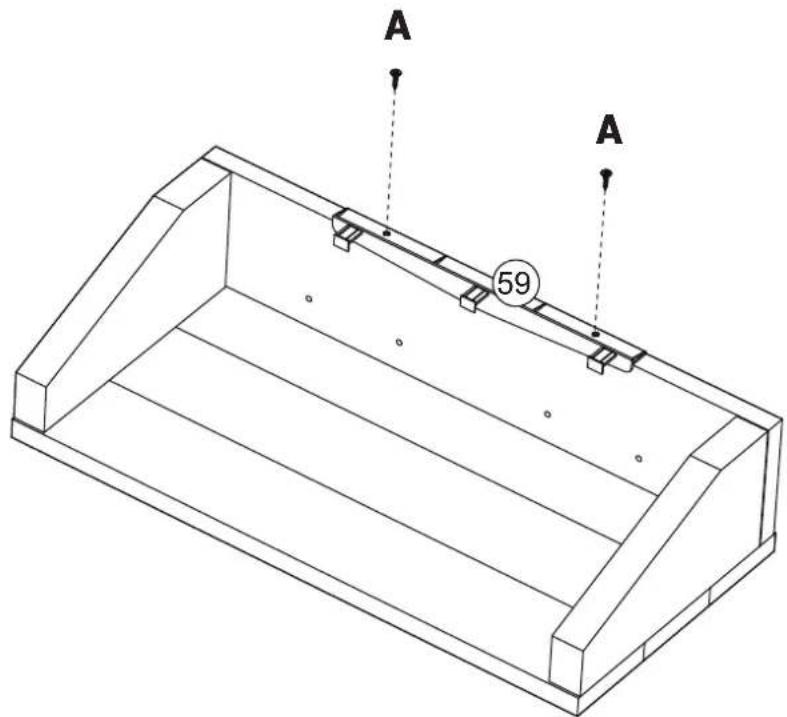

Step Étape Paso 60

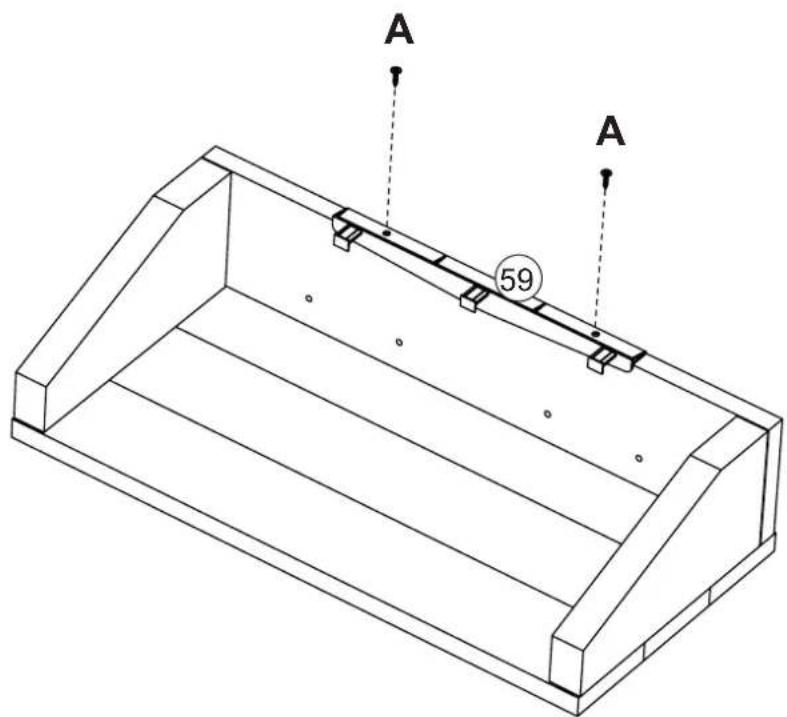

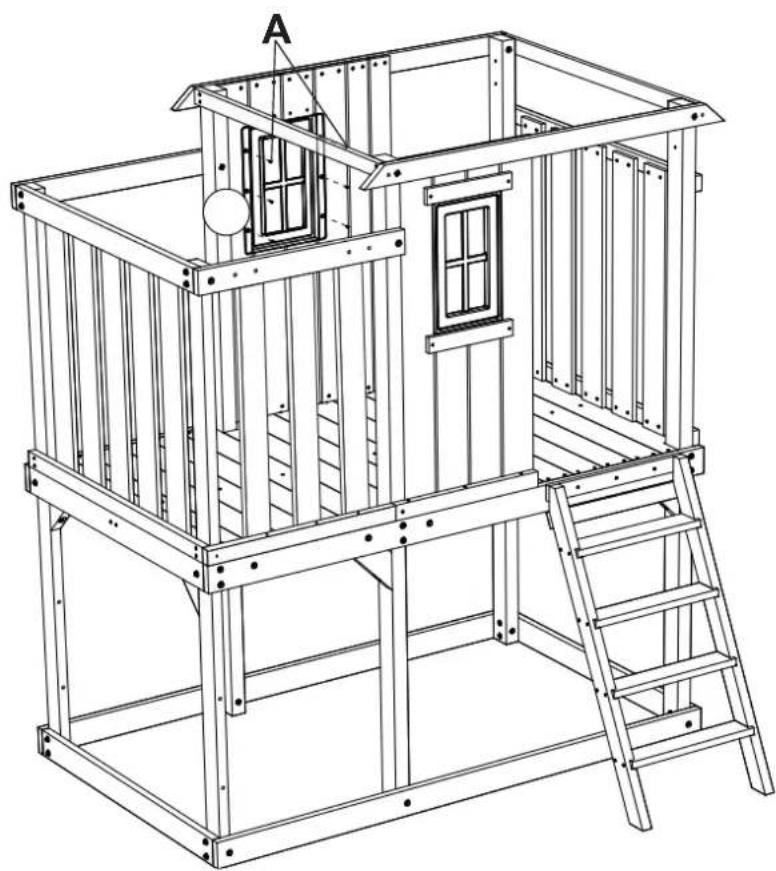

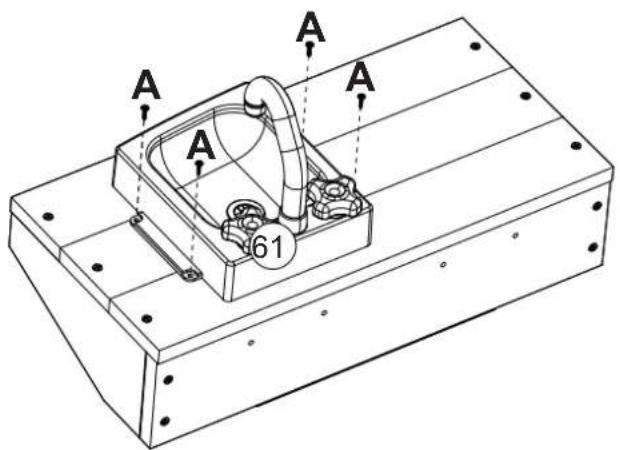

A 59 A

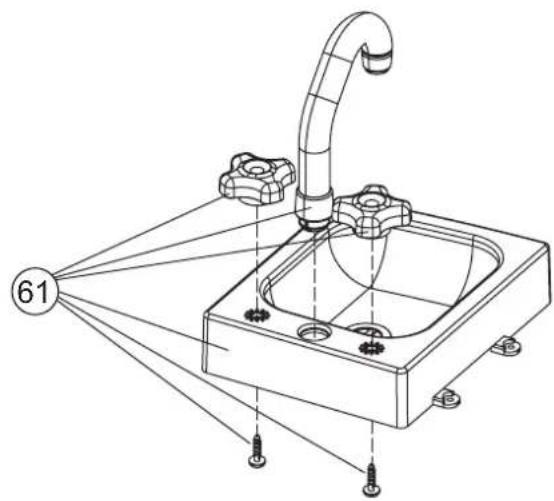

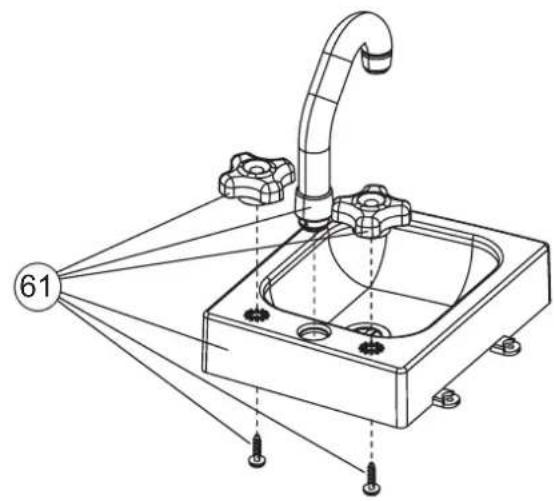

Step Étape Paso 61

61

A A A 61

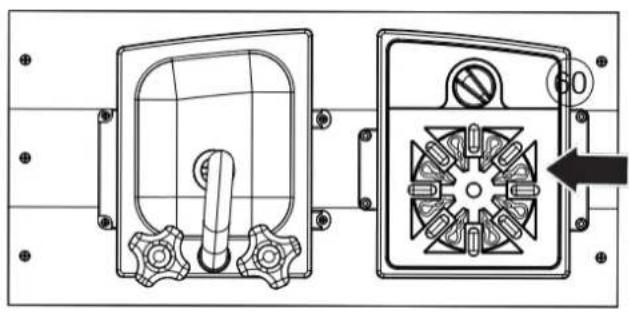

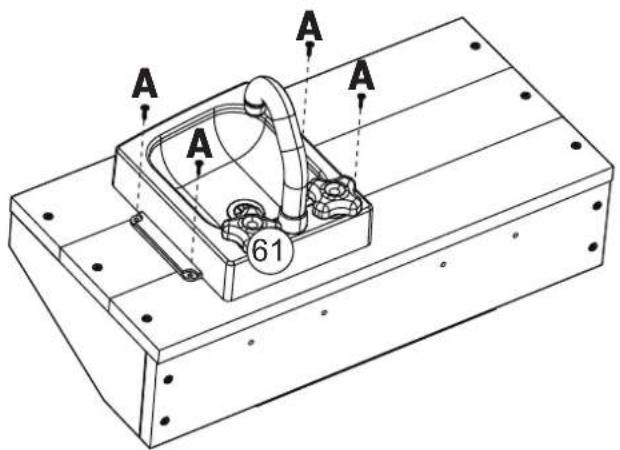

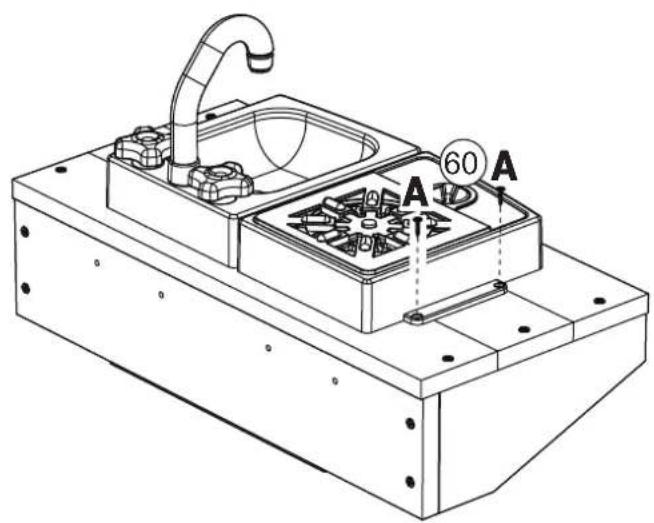

Technical diagram showing two labeled components with a 60-degree directional arrow, likely illustrating a mechanical or electrical assembly.

60 A 1D A

60 x 1

61 x 1

A x 6

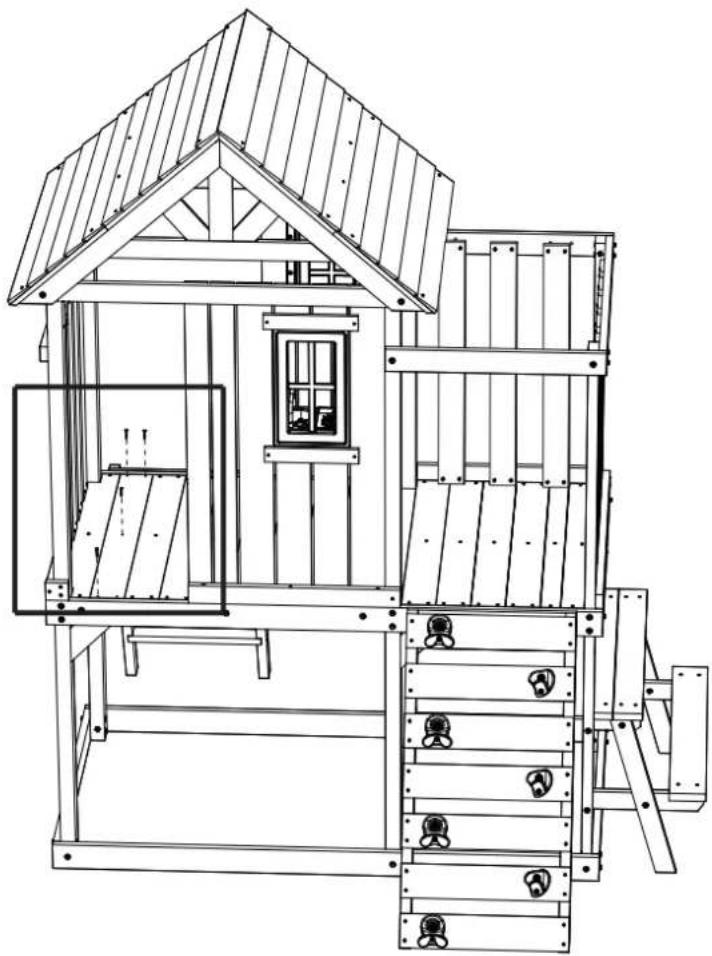

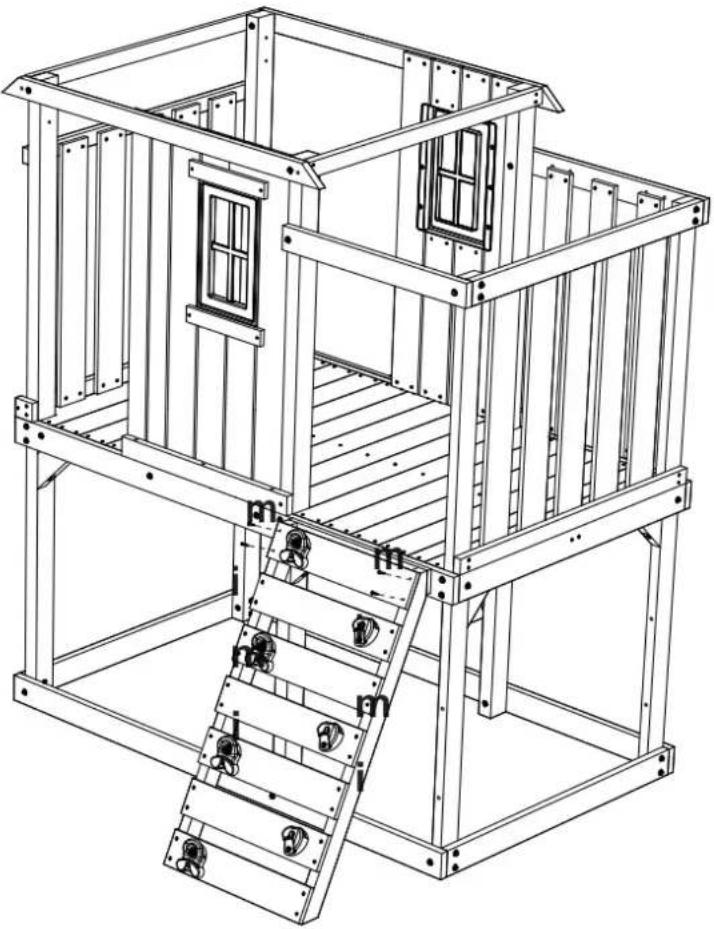

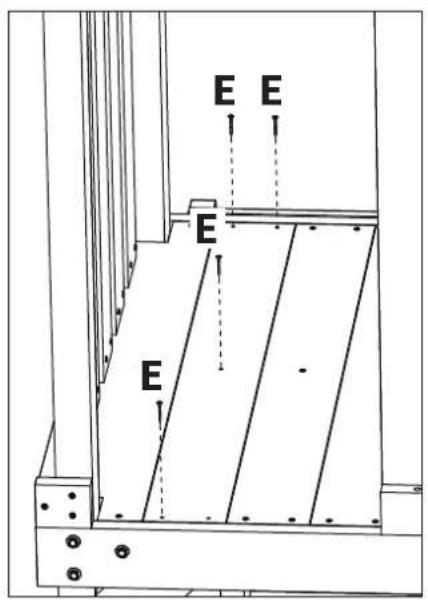

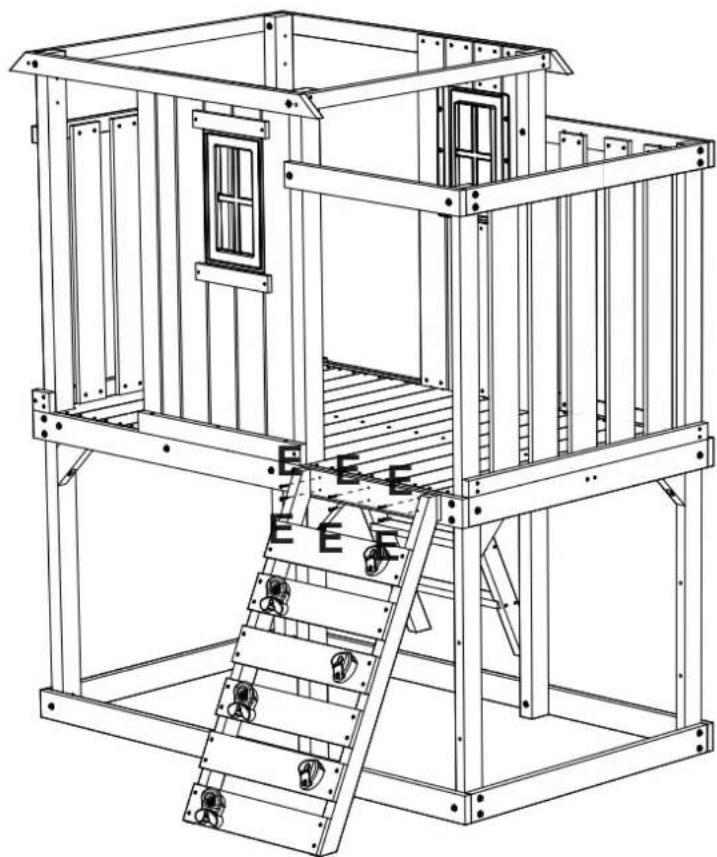

Step Étape Paso 62

Line drawing of a wooden structure with stairs and beams, no text or symbols present

E x 4

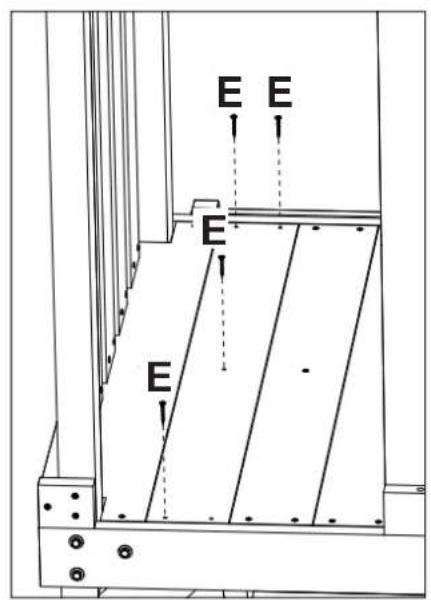

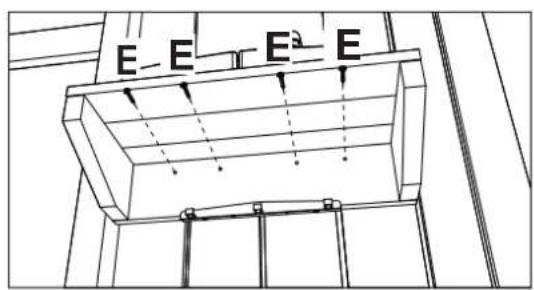

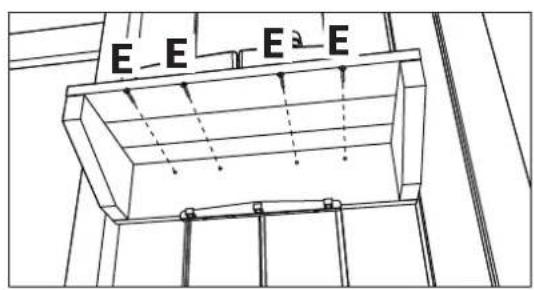

E E E a E

E x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and safety symbols (no text or labels)

E E E E

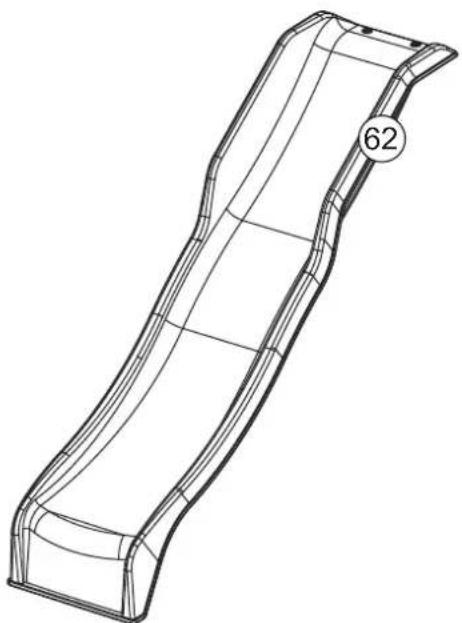

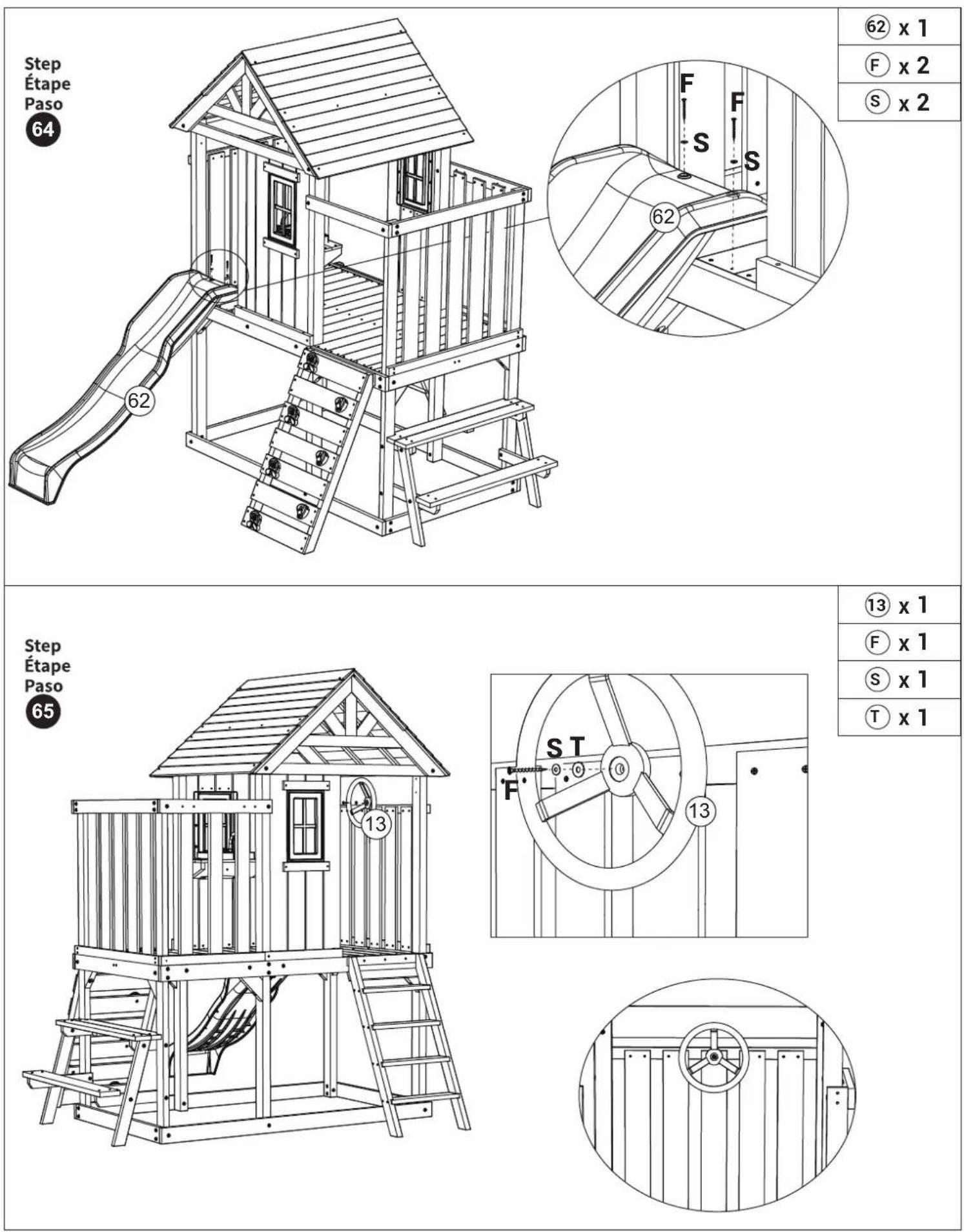

62 x 1

F x 2

S x 2

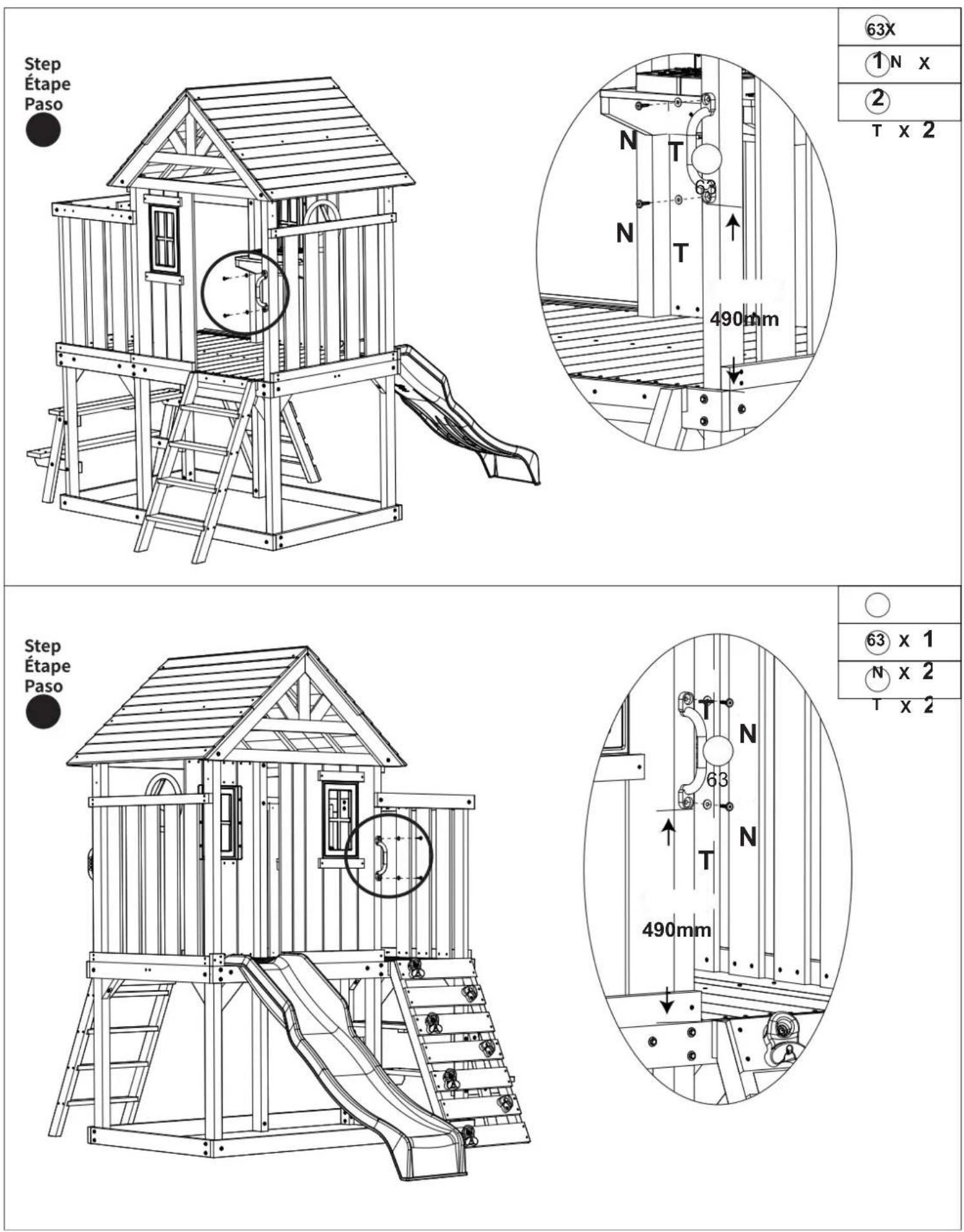

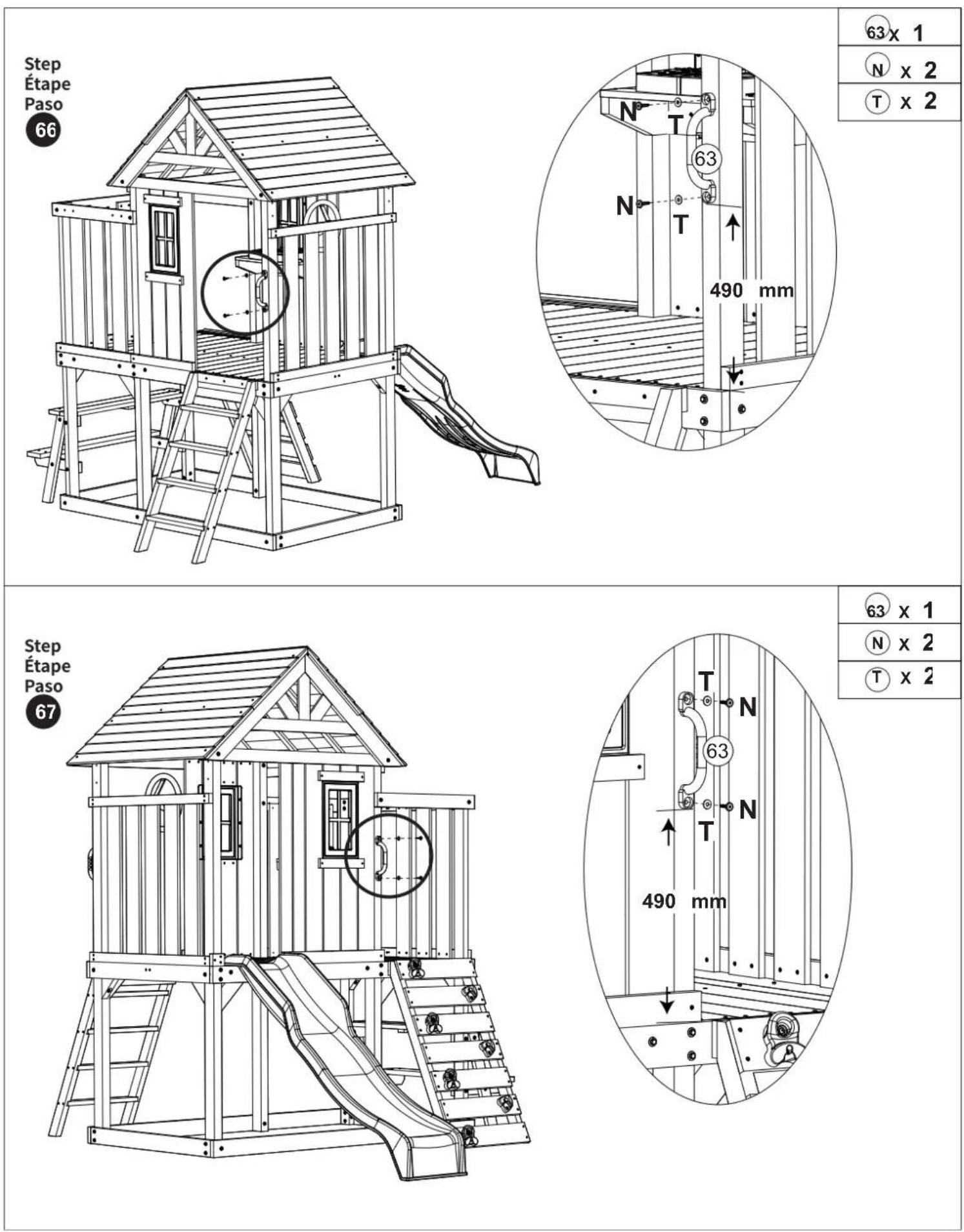

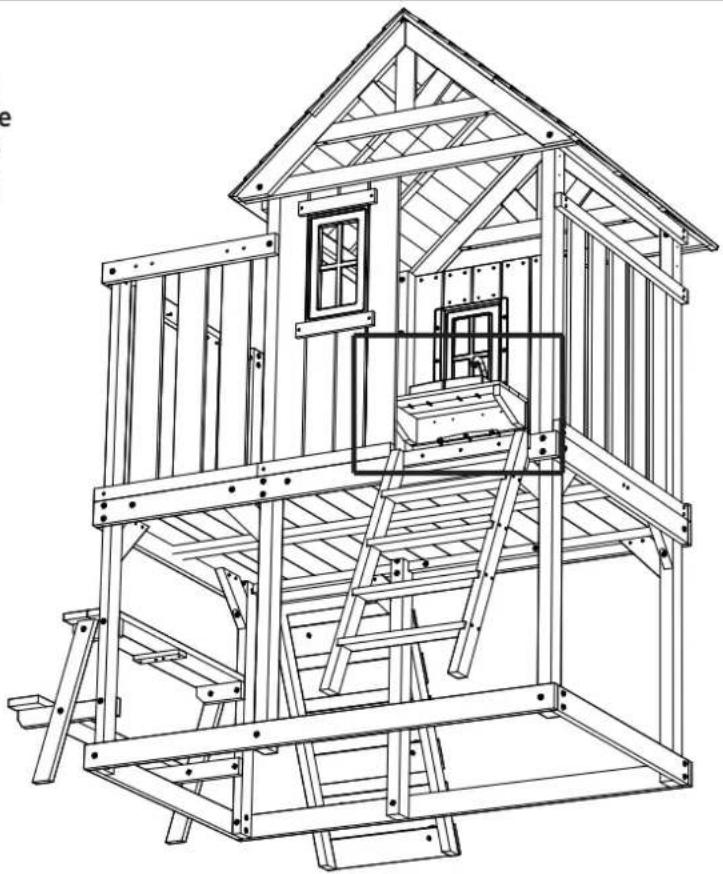

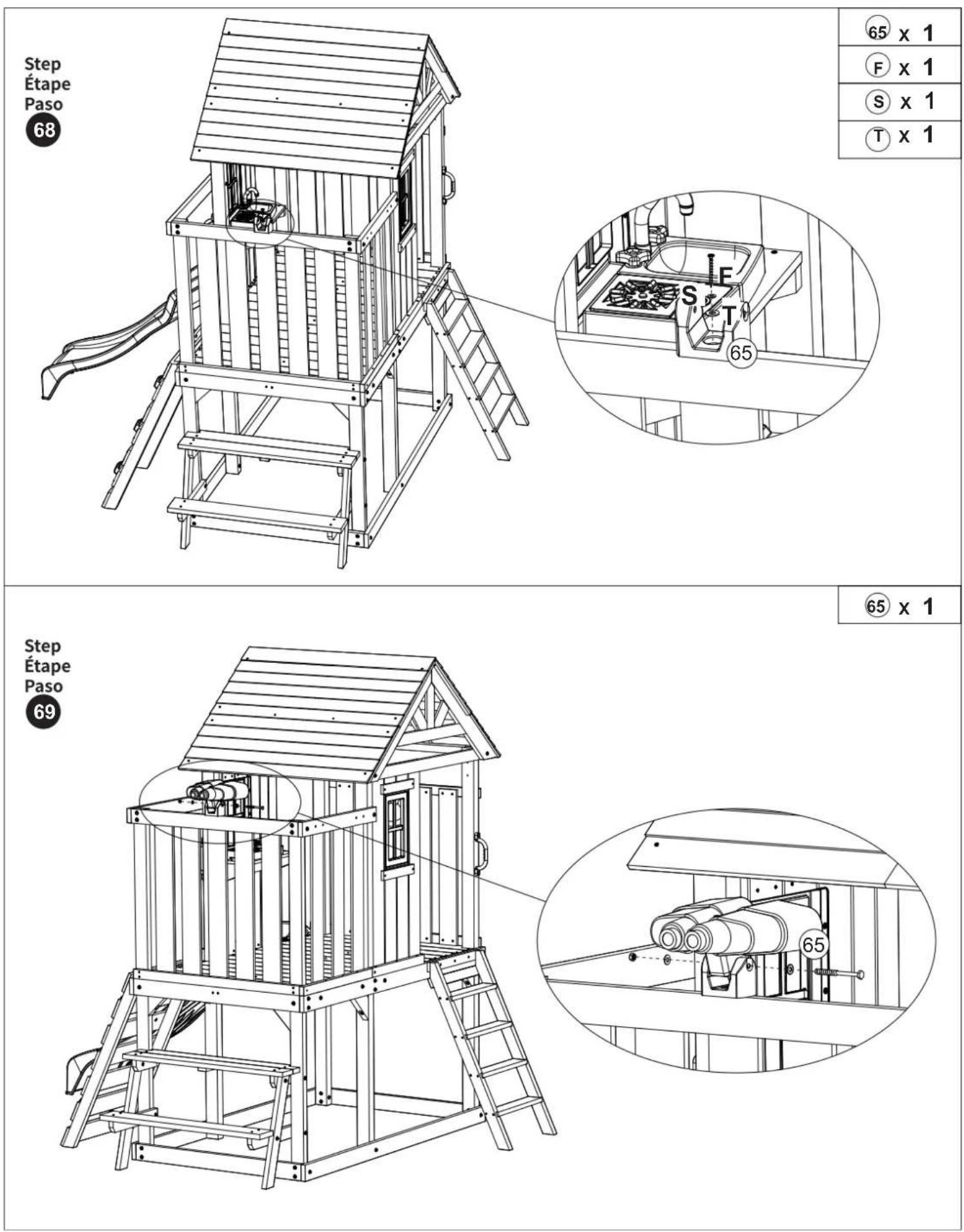

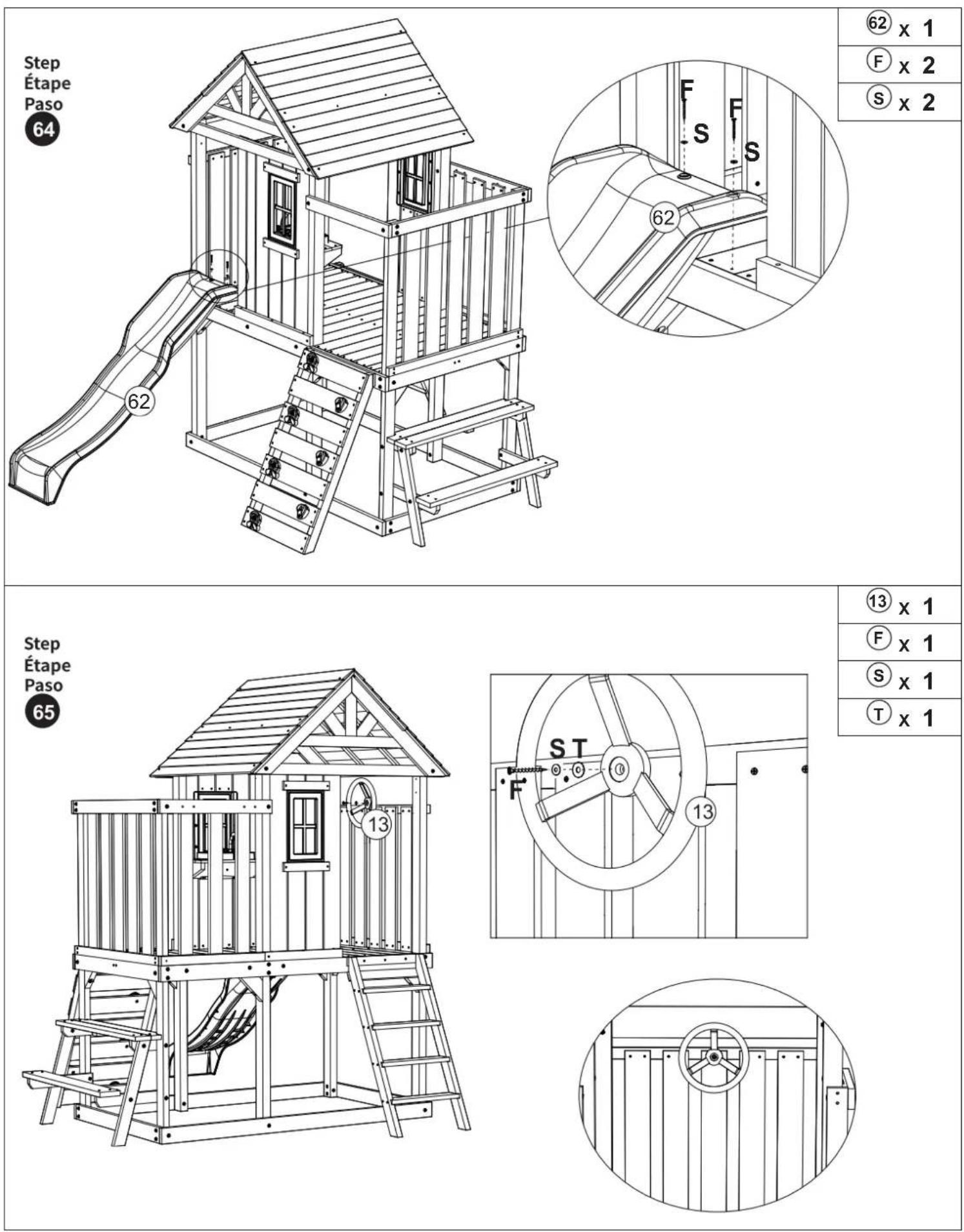

Step Étape Paso 70

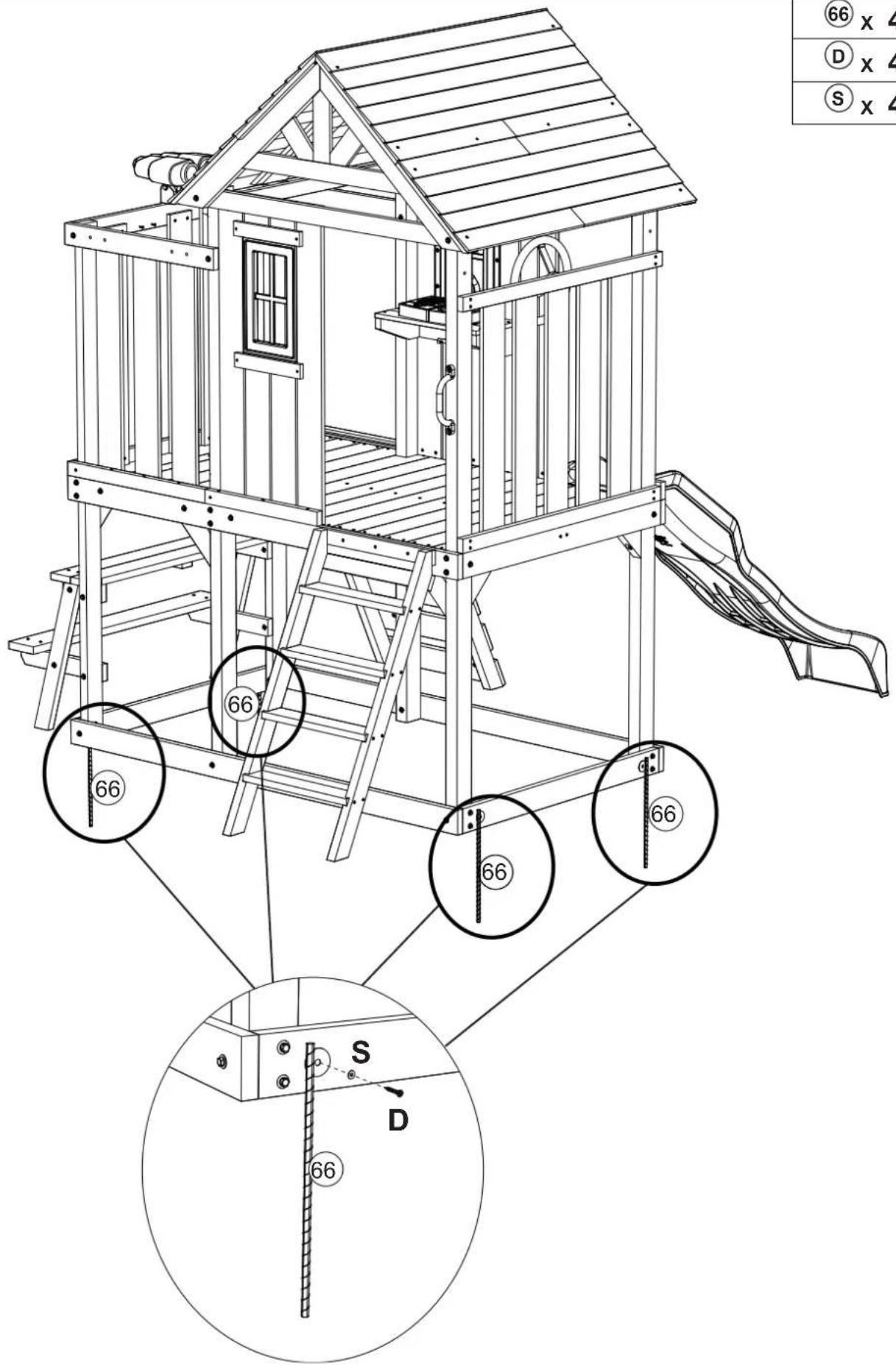

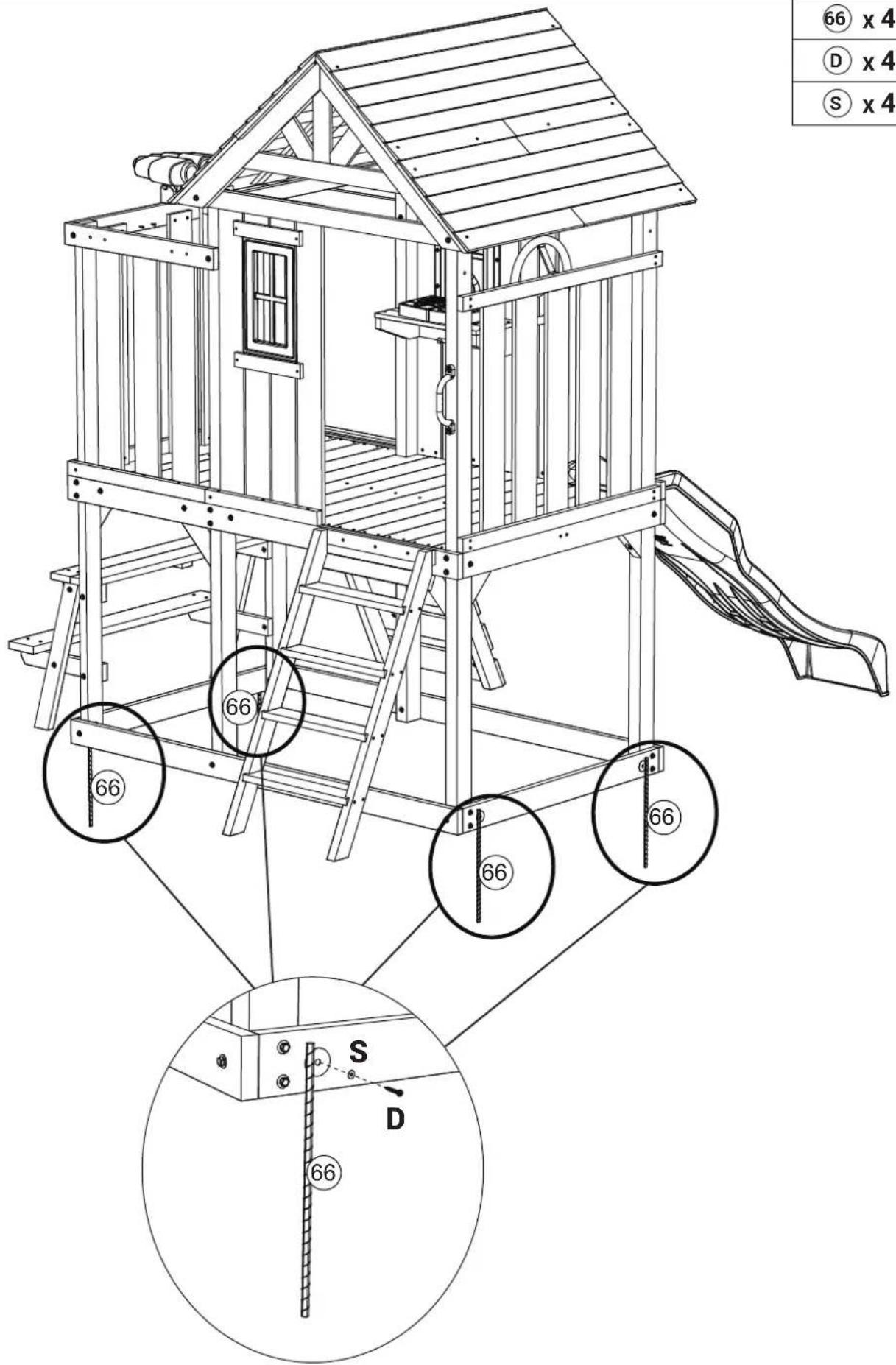

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso 71

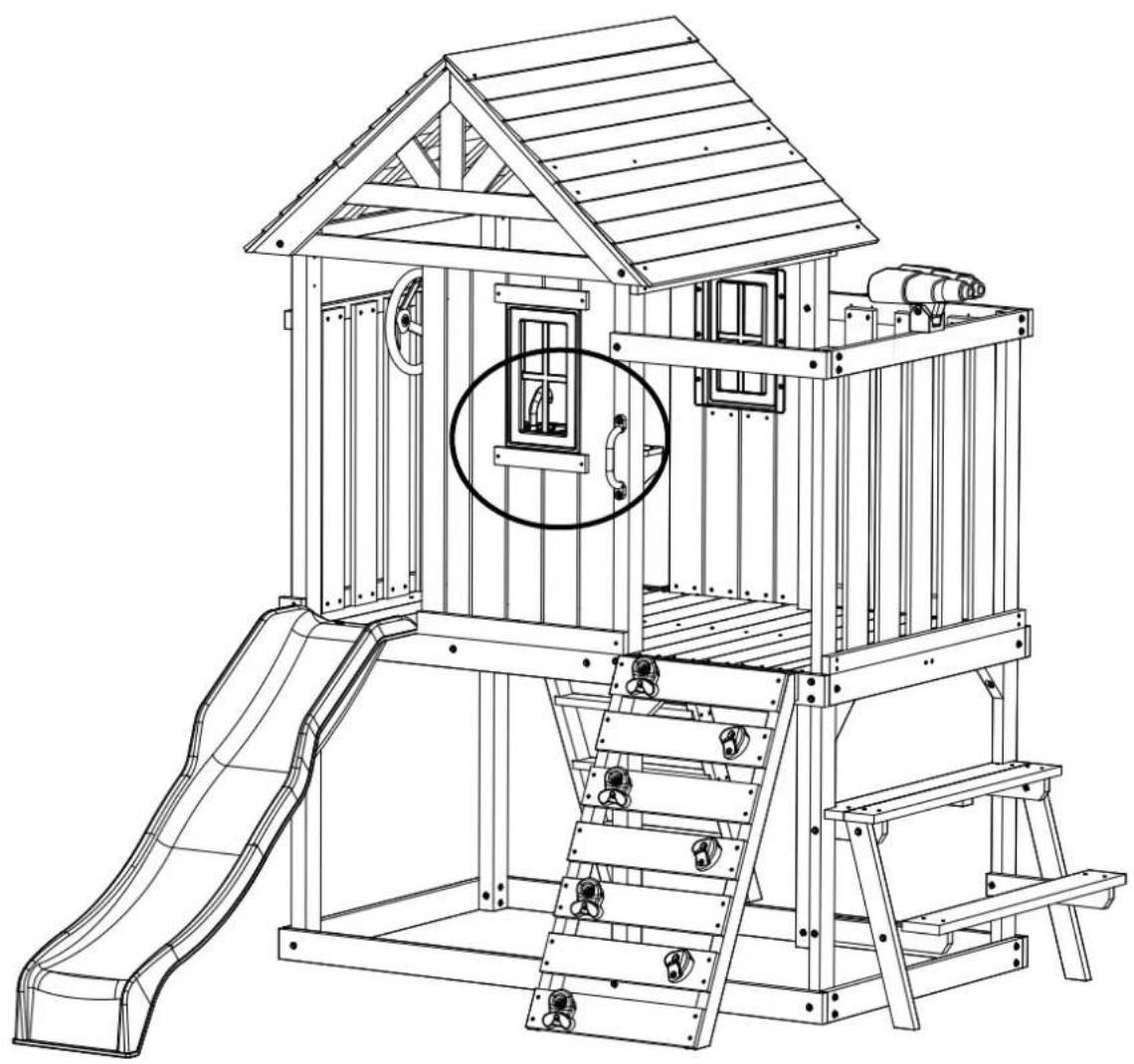

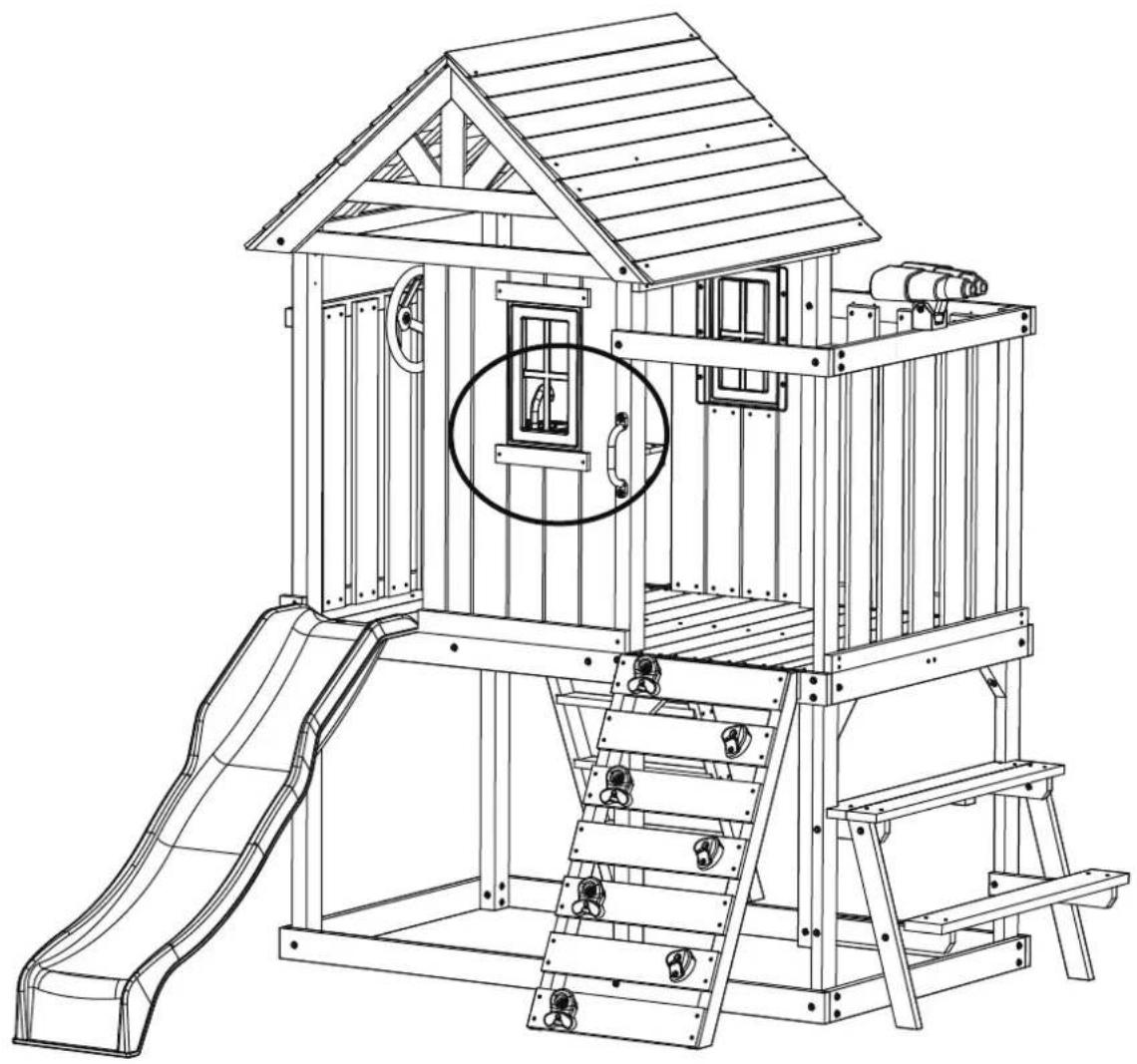

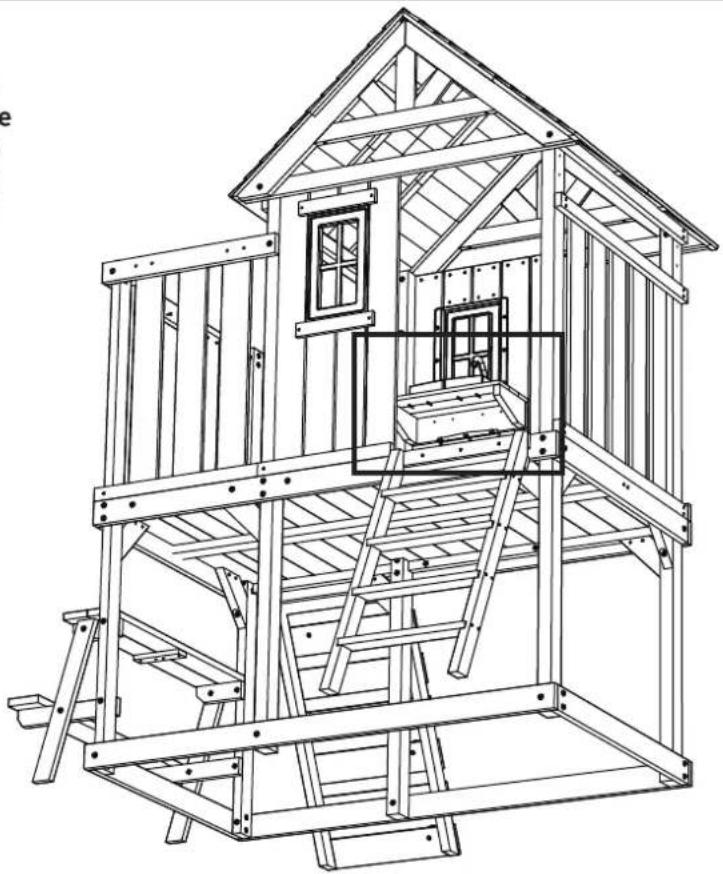

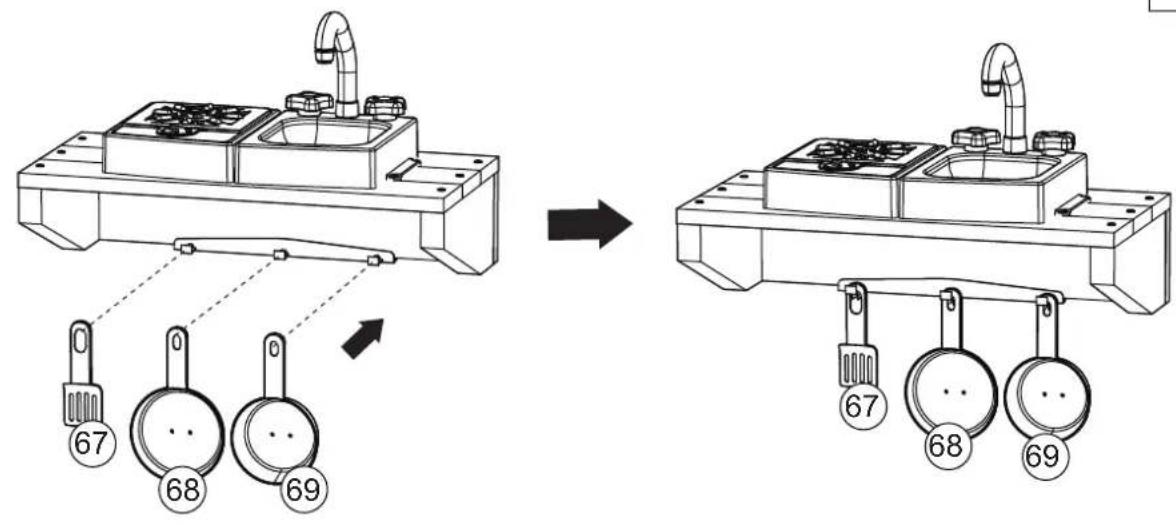

Technical diagram showing a device before and after assembly, with labeled parts 67, 68, 69 and a directional arrow indicating transformation.

67 x 1

68 x 1

69 x 1

Line drawing of a children's playground with wooden structure, stairs, and play equipment (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR ^R

TOUGH TOOLS. HALF PRICE

Line drawing of a children's playground with wooden structure, stairs, and play equipment (no text or symbols)

NEED HELP?CONTACT US!

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690mm
Material	Wood

92008

1x 2 2x 2 3x 2 4x 2 5x 2 6x 2 7x 2 8 9x 2 10x 2 11x 2 12x 2 13x 2 14 15x 2 16x 12 17 18x 8 19x 5 20x 13 21 22 23 24

92008

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	I
									[X222]
	15mm		20mm		20mm		25mm
									35mm
F	x76	GRAMO	x20	h x 15	l x8	j	x20
	45mm		60mm		70mm		H2		H3
k	x 30	l	x 6	METRO	x 7	norte	x 4	oh	x 8
	H4		H12		PB2		WL3		WL5
P	x 4	q		R	x 7	S x 24		t	x 85
			TN1		BN1		FW3		FW1
Ud.71	x		x 1
	LW1		D6
Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:

Cleaning and Care:

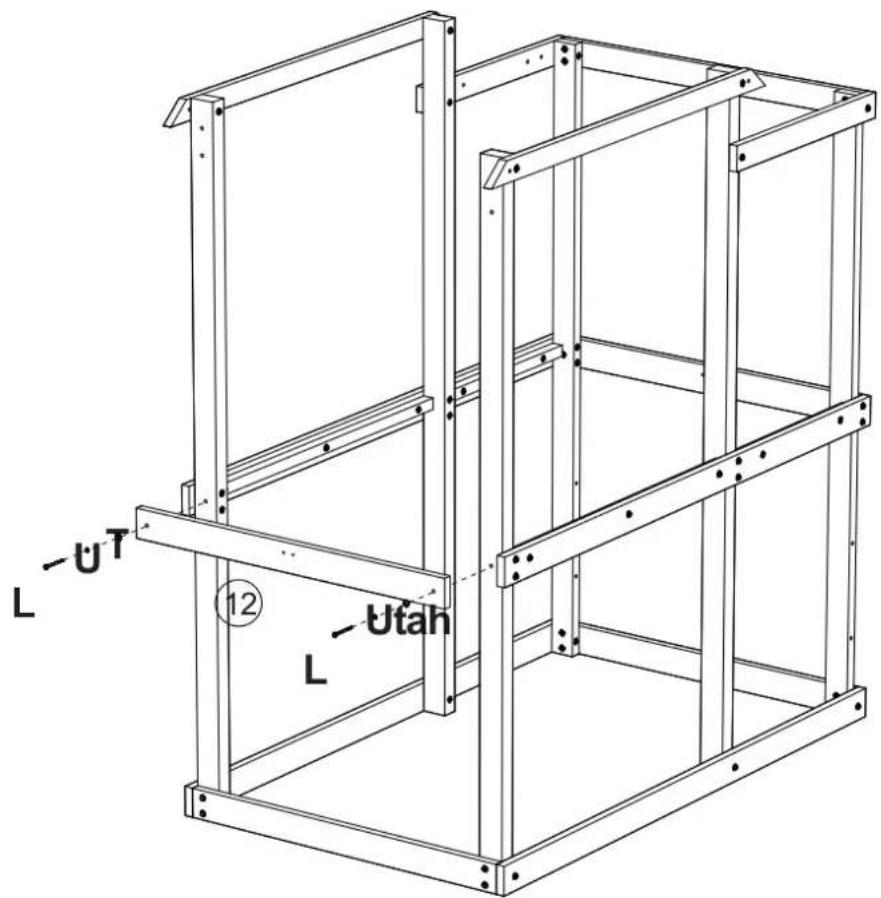

-U T 12 Utah I

12 x 1

L x 2

T x 2

U x 2

Step Étape Paso 14

14 x 1

H x 4

S S 14 S S

Step Étape Paso 15

E 27 17 15

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

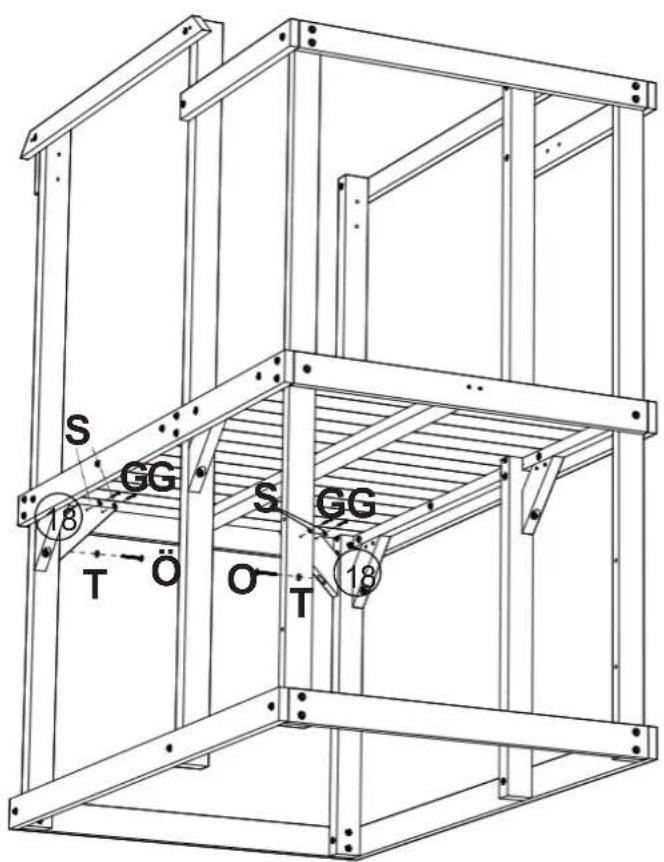

Step Étape Paso die

GG S 18 O- T GG S 18 O- T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

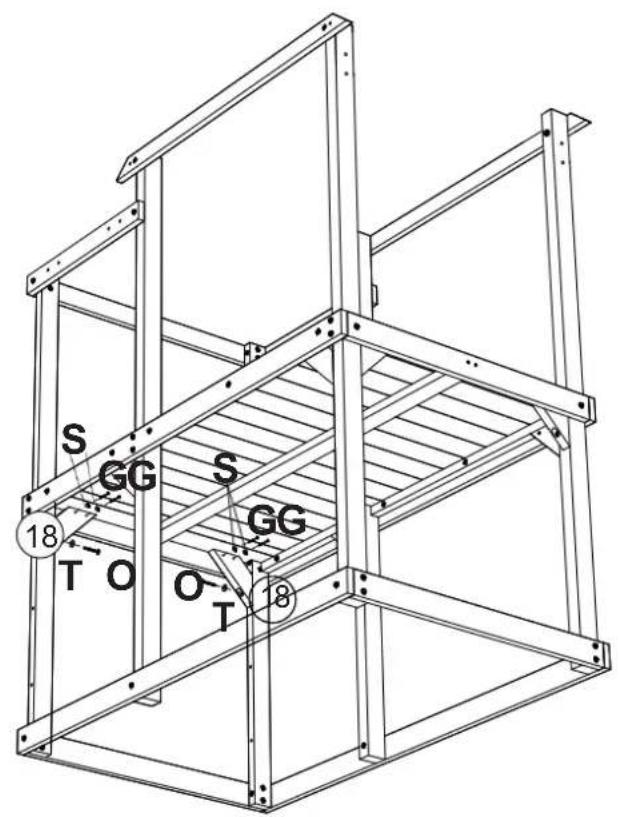

Step Étape Paso 17

18 x 2

G x 4

O x 2

S x 4

T x 2

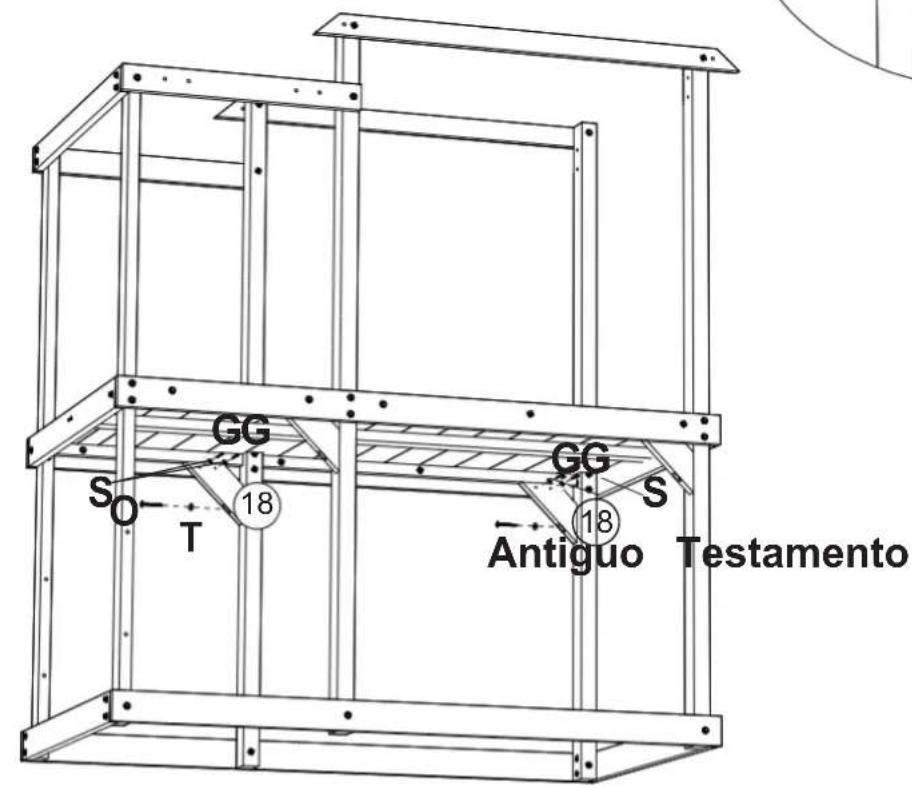

GG GG S 18 SO T Antiguo Testamento

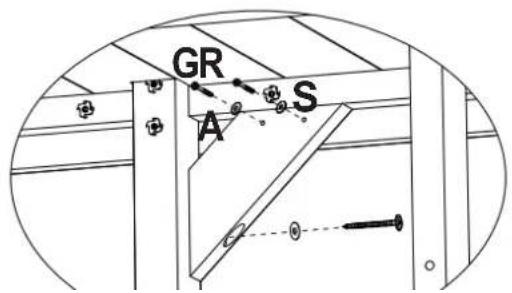

GR A S M O G oh R A M O S

T

Step Étape Paso 18

Technical line drawing of a structural frame with vertical supports and horizontal beams (no text or symbols)

GR A S

18 x 2

G x 4

O x 2

S x 4

T x 2

92008

MO G R A M O S

T ^0

Step Étape Paso 19

S GG S GG 18 t oh oh T 18

GRAMO GRAMO S S oh t

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
⑤ x 4
① x 2

19 x 3

F x 12

Step Étape Paso 20

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 F F F F F F

Step Étape Paso 22 20 E

59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

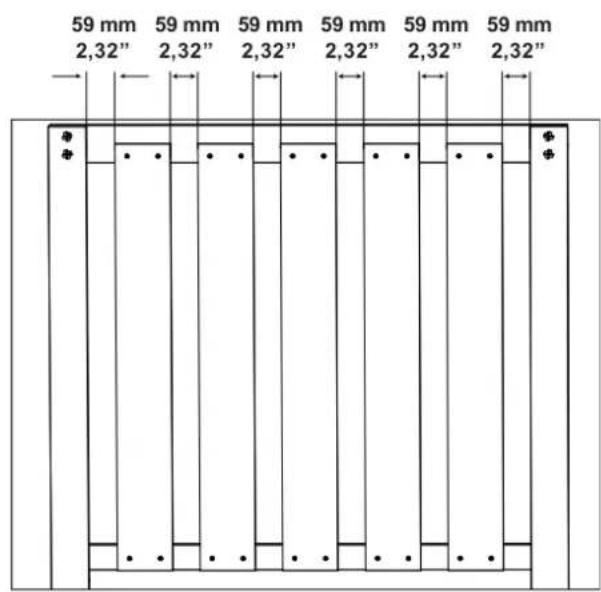

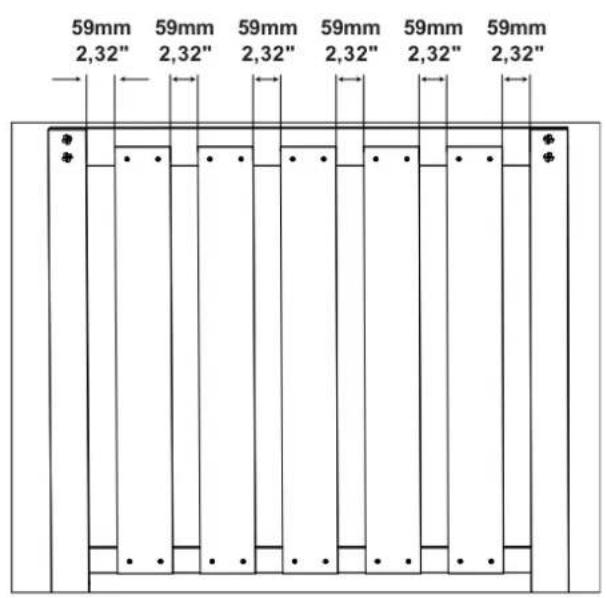

Step Étape Paso 23 mi 20

59mm 2,32" 59mm 2,32" 59mm 2,32" 59mm 2,32" 59mm 2,32" 59mm 2,32" 59mm 2,32"

20×5

E×20

Step Étape Paso 24

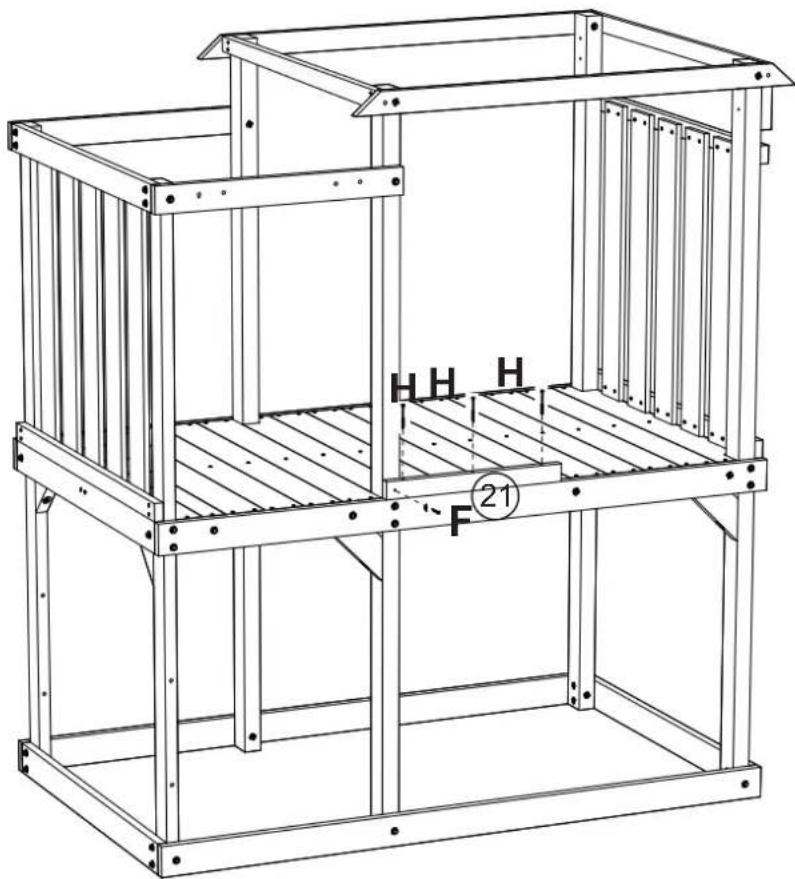

S S h F 21

21x 1

Fx 1

Hx 3

Step Étape Paso 25

h h 23 F F 22 F

22 x 1

23 x 1

F x 4

H x 3

Step Étape Paso 26

25 26 26 26 24

24 x 1

25 x 1

26 x 4

Step Étape aso 27

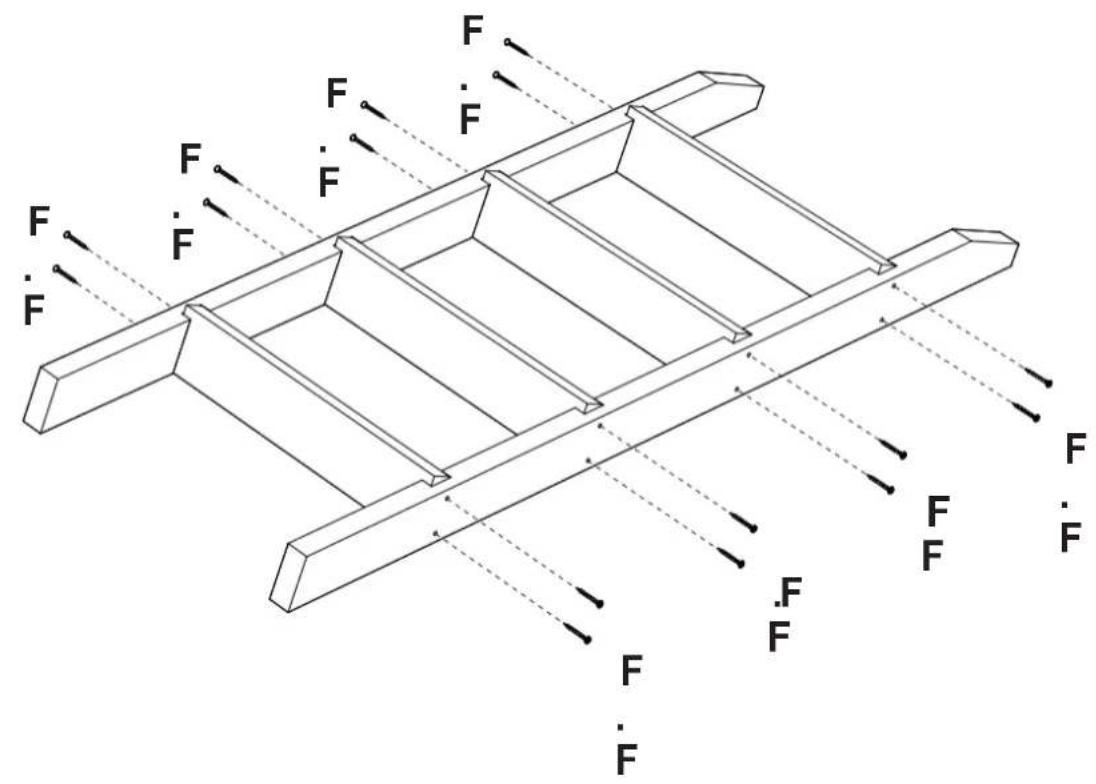

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

F x dieci séis

Step Étape aso

28 x 1
⑤ x 2

mi

mi 28

Step Étape Paso

29

mi mi 28

28 x 1
⑤ x 2

⑤ x 3

Step Étape Paso

30

Technical line drawing of a multi-level metal structure with ladder and frame (no text or symbols)

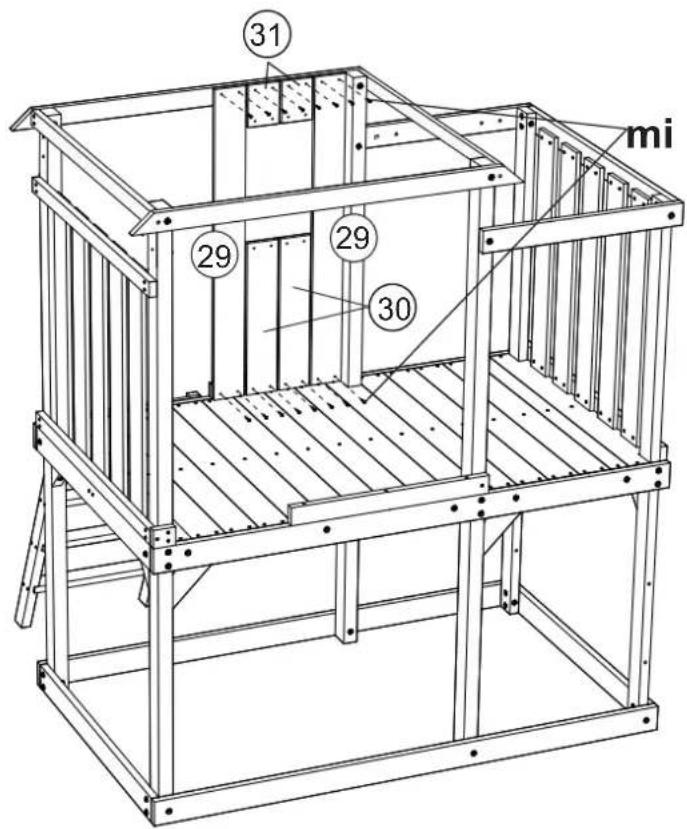

Step Étape Paso 31

31 29 29 30 mi

254 mm 9,99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E xdieciséis

Step Étape Paso 32

Architectural line drawing of a window frame mounted on a wooden structure (no text or symbols)

Technical line drawing of a window frame with four panes and mounting brackets (no text or symbols)

Technical line drawing of a multi-level metal structure with ladder and frame (no text or symbols)

32 x 2

64 x 1

D x 4

F x 1

H x 3

64 h h h D DF 32

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73"

Step Êtape Paso 34

Technical line drawing of a mechanical structure with ladder, frame, and support beams (no text or symbols)

56 x 1

A x

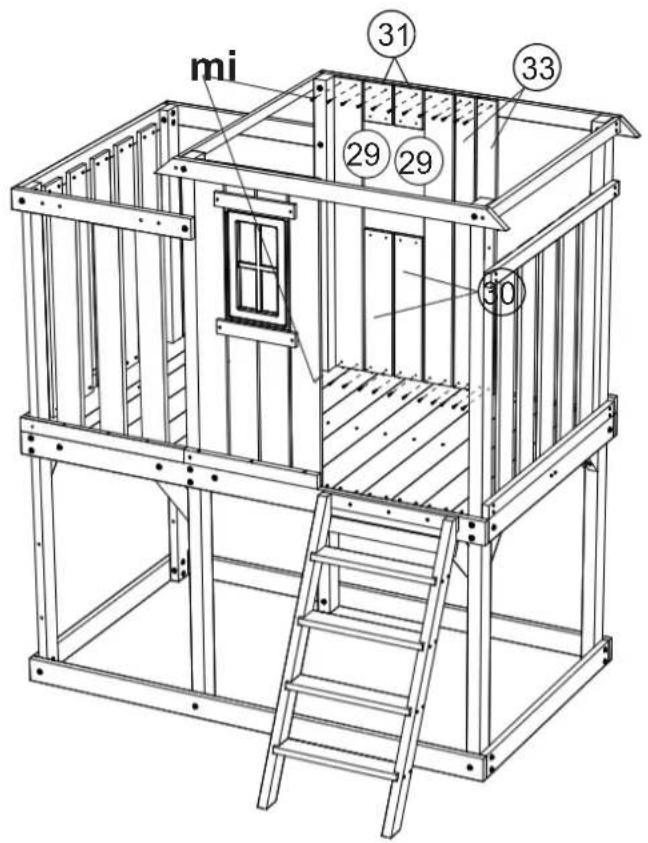

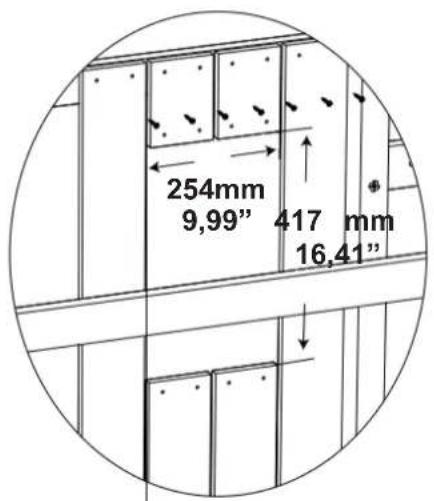

Step Étape Paso 35

mi 31 33 29 29 30

254 mm 9,99" 417 mm 16,41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

32 D D 32 D D Alinear con la ventana

32×2

D×4

Step Étape Paso 37

31 D 30

D x 8

Step Étape Paso 38

Line drawing of a modular playground structure with ladder, window, and frame (no text or symbols)

⑤6 x 1 ① x 6

92008

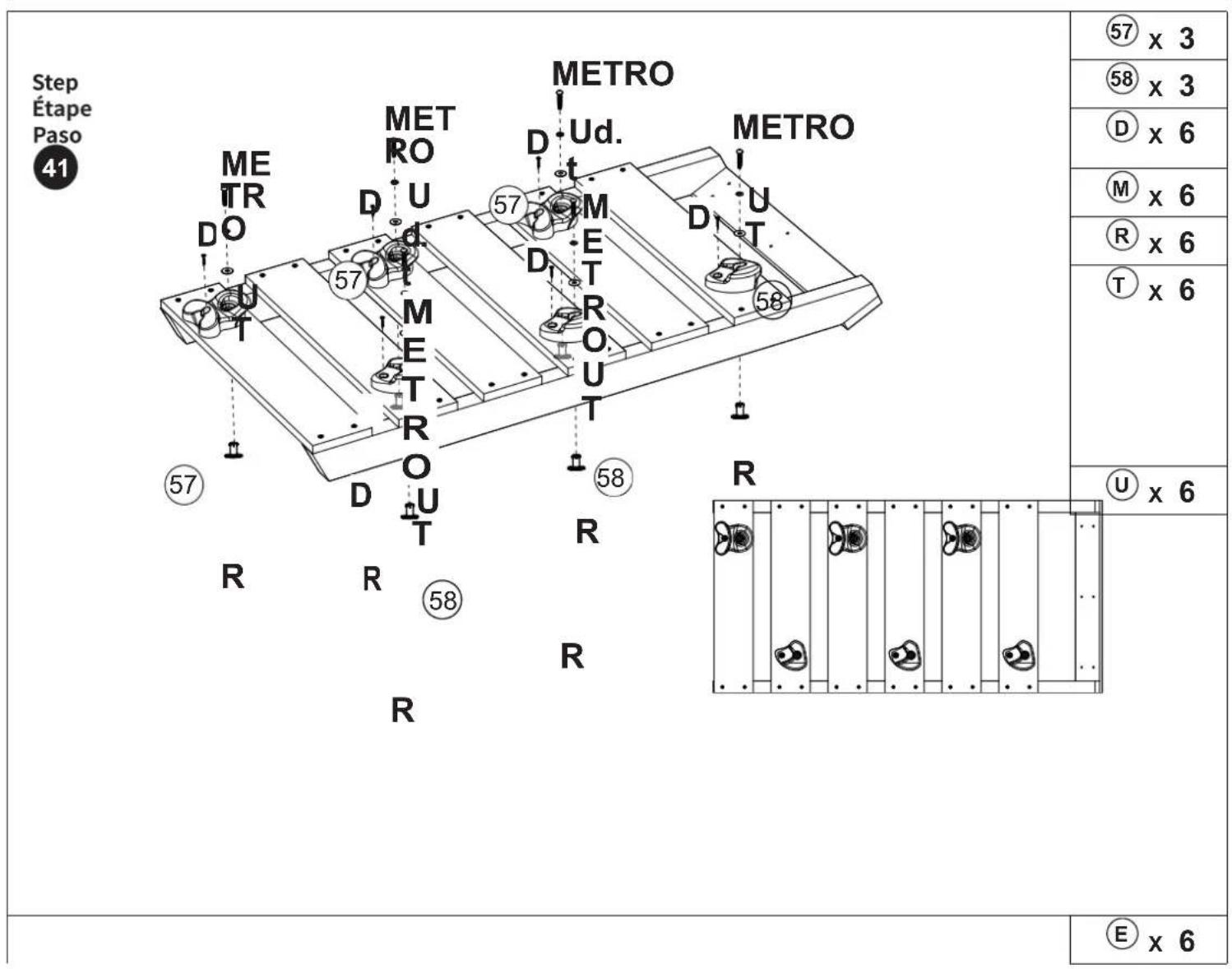

Step Étape Paso 41 METRO Ud. METRO Ud. METRO Ud. DO U Ud. 57 58 57 58 57 58 57 58 R R R R R R 57 x 3 58 x 3 D x 6 M x 6 R x 6 T x 6 U x 6 E x 6

Step Étape Paso 42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

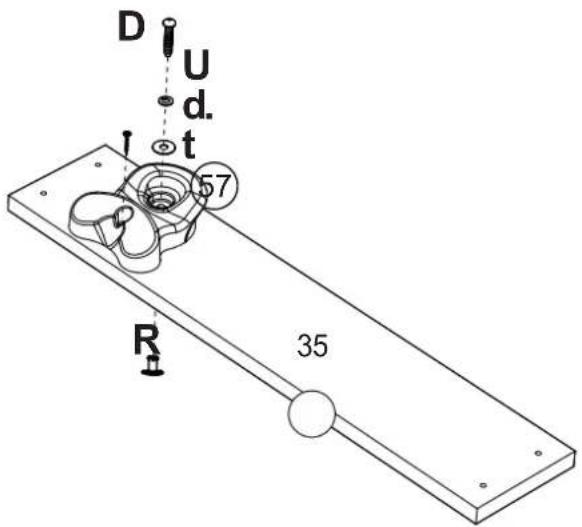

Step Étape Paso43	METRO	35 x 1
		57 x 1
		D x 1
		M x 1
		R x 1
		T x 1
		U x 1
Step Étape Paso44		E x 4

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1
Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

47 x 2

④2 x 1

G x 2

42 GG

Step

Étape

Paso

48

Technical line drawing of a wooden modular play structure with stairs and windows (no text or symbols)

① x 2

⑦ x 2

⑧ x 2

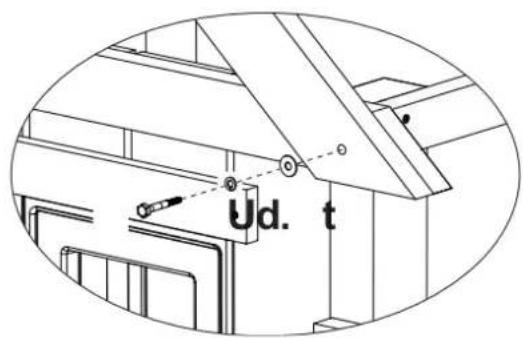

Ud. t

I x 2

T x 2

U x 2

43 x 1

44 x 1

B x 8

P x 4

Step Étape Paso 51

F F F 42 F F F F

43 x 1

44 x 1

F x 8

Step Étape Paso 52

F C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 53

C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 54

K UT K UT Q Q Q Q T U K T U K 46 47

Q 46 T U K K T U Q 47

46 x 2

47 x 2

K x 4

Q x 4

T x 4

U x 4

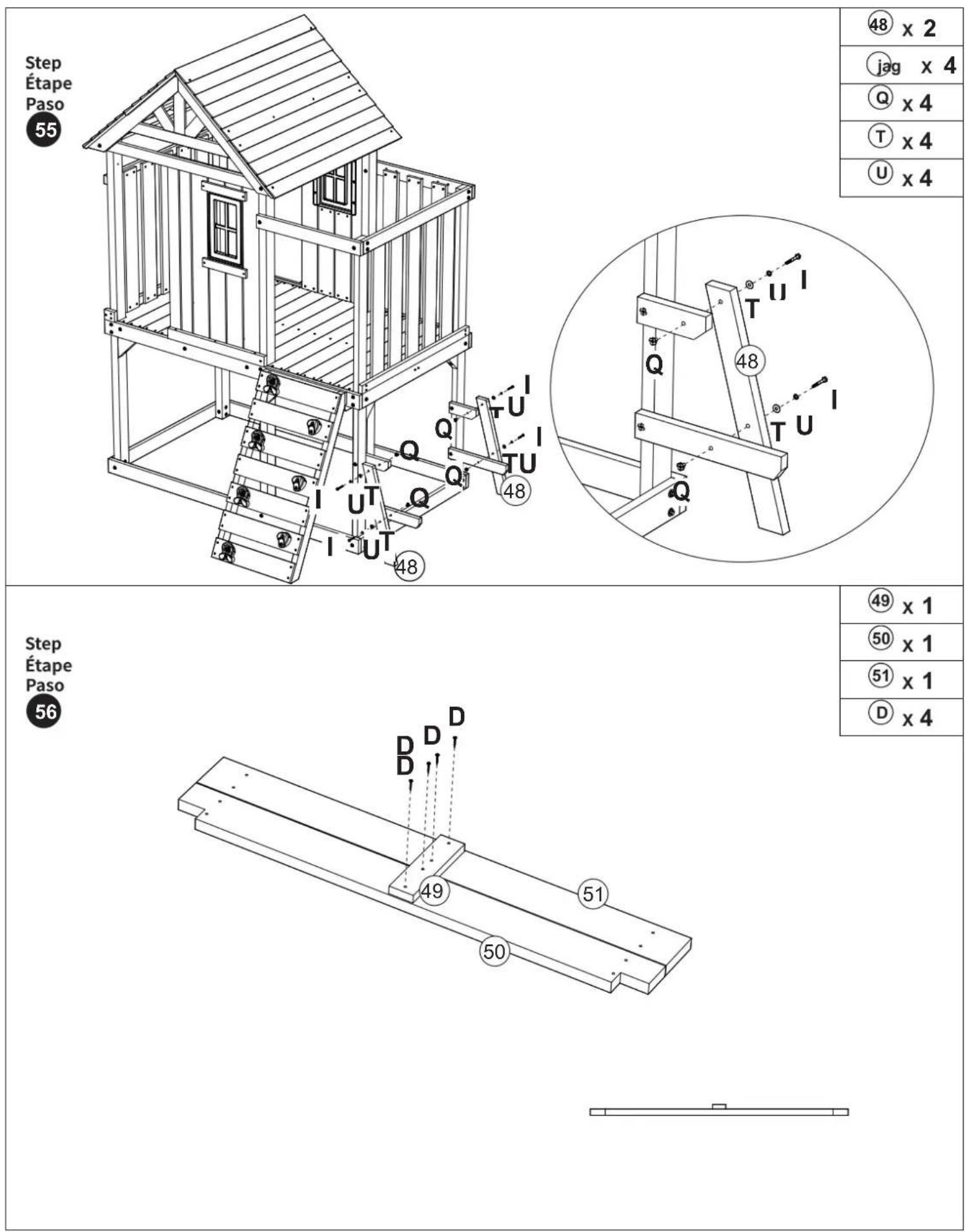

Step Étape Paso 57

Line drawing of a wooden play structure with ladder and frame (no text or symbols)

Step Étape Paso 58

53 53 54 m i m i E E

Step Étape Paso 59

mi mi mi 55 55 55 E E E

Step Étape Paso 60

A 59 A

Step Étape Paso 61

61

A A A 61

Technical diagram of a mechanical device with internal components and mounting holes (no text or symbols)

Technical diagram of a mechanical device with labeled components and dimension annotation

60x1

61x1

A x 6

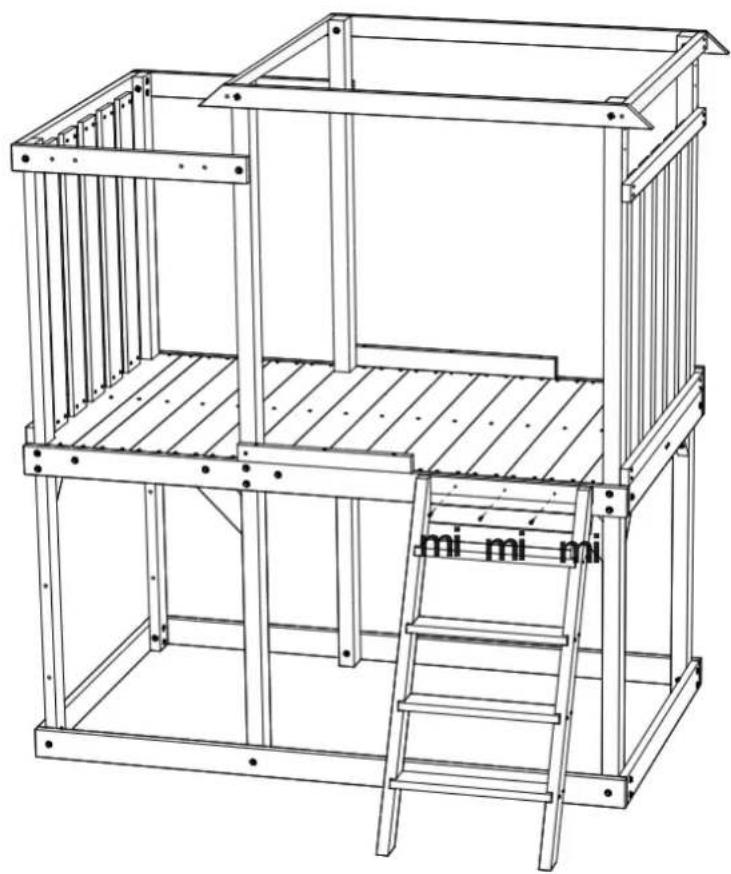

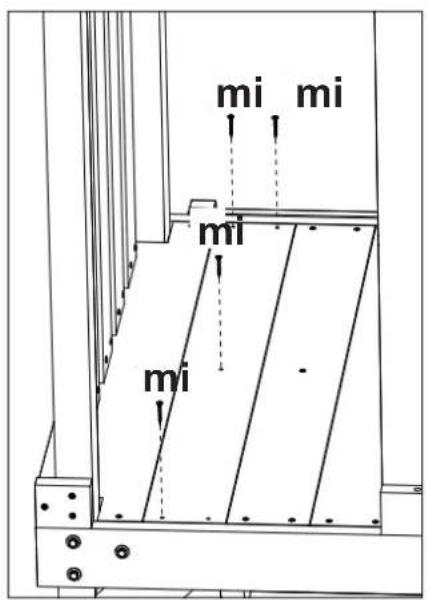

Step Étape Paso 62

Line drawing of a wooden structure with stairs and supports, no text or symbols present

mi x 4

E-mi r-mi mi

mi x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and equipment (no text or symbols)

mi mi mi mi

62 x 1

F x 2

S x 2

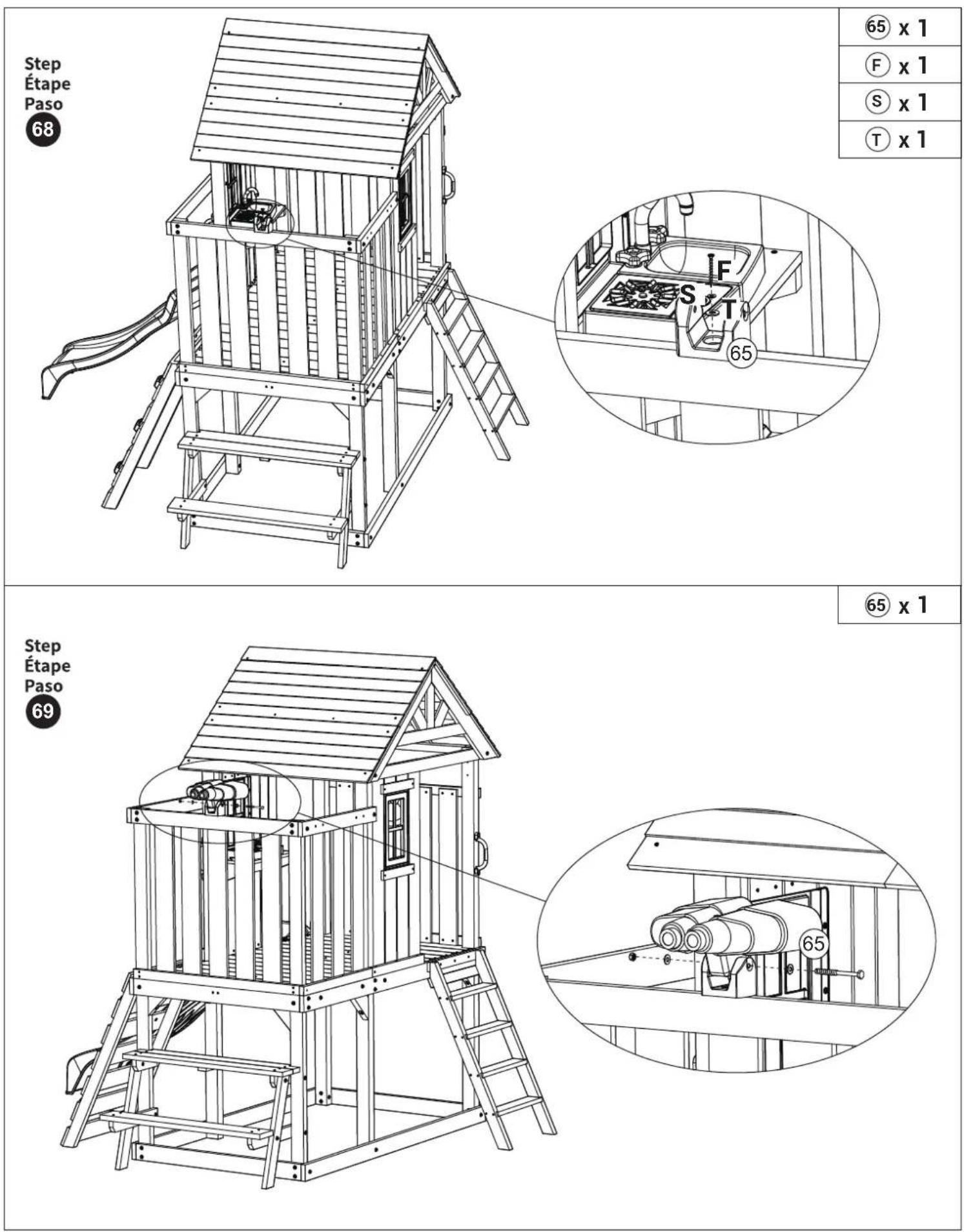

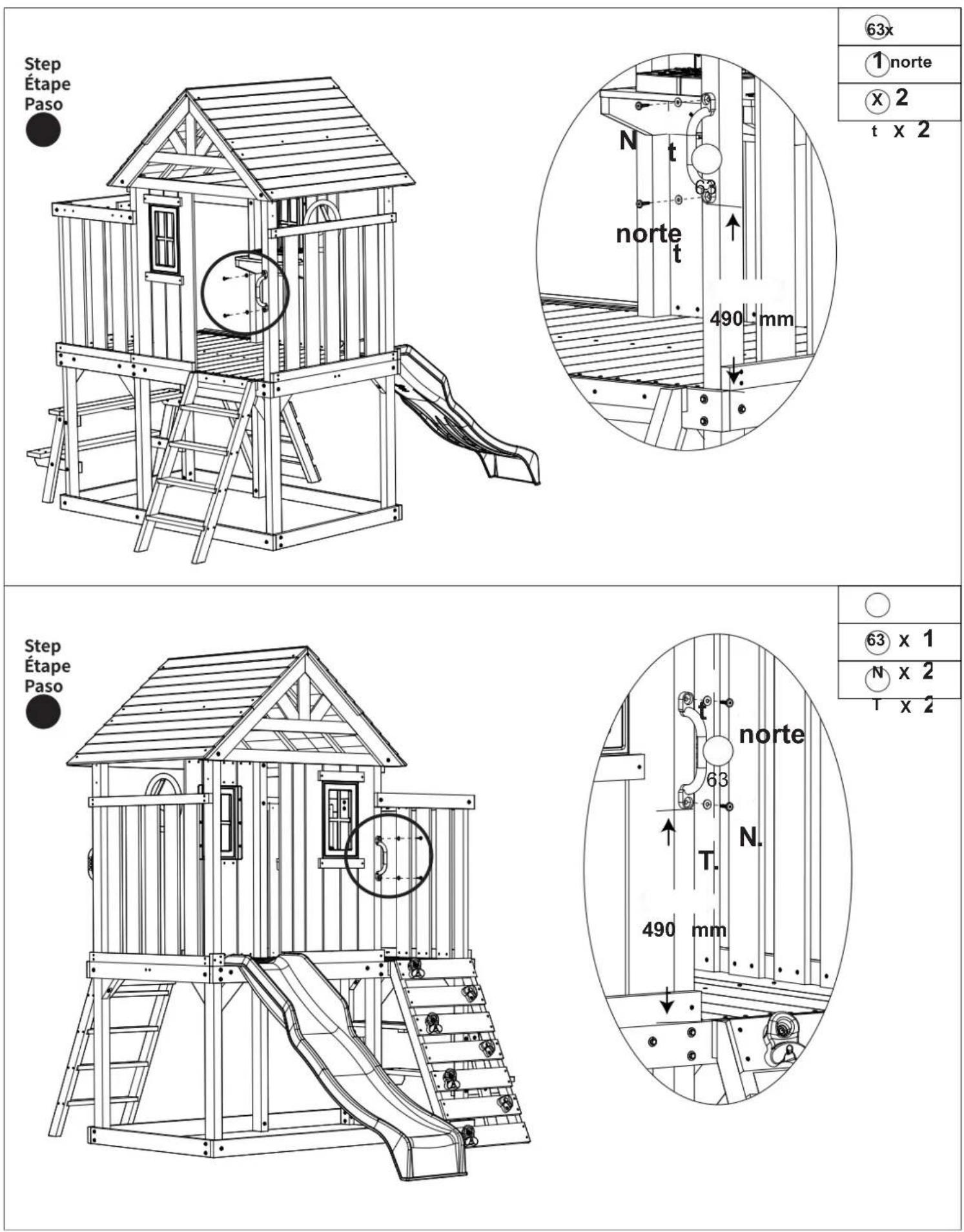

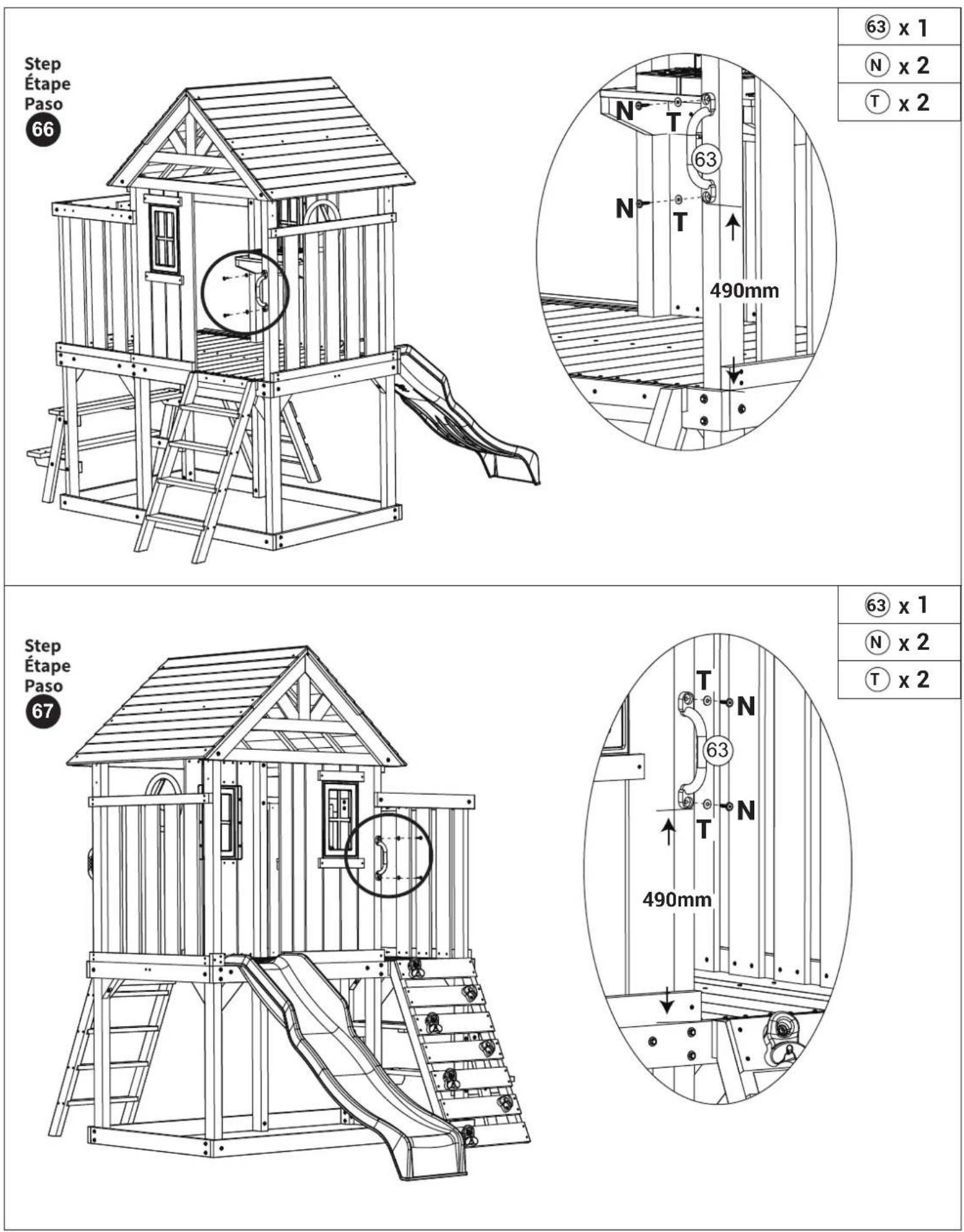

Step Étape Paso 68 65 x 1 F x 1 S x 1 T x 1 sesenta y cinco sesenta y cinco x 1 Step Étape Paso sesenta y cinco

Step Étape Paso

70

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso

67 x 1

68 x 1

69 x 1

Technical diagram showing a device before and after assembly, with labeled parts 67 to 69 indicated.

Line drawing of a wooden play structure with stairs, slides, and a window (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

Line drawing of a wooden play structure with stairs, slides, and a roof (no text or symbols)

NEED HELP?CONTACT US!

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690 mm
Material	Wood

92008

1x 2 2x 2 3x 2 4x 2 5x 2 6x 2 7x 2 8 9x 2 10x 2 11x 2 12x 2 13x 2 14 15x 2 16x 12 17 18x 8 19x 5 20x 13 21 22 23 24

92008

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	I
15 mm		20 mm		20 mm		25 mm		[X222]35 mm
F	x76 G	x20	H x 15	IO x8	J	X20
45 mm		60 mm		70 mm		H2		H3
K	x 30	I	x 6	M	x 7	N	x 4	O	x 8
H4		— H12		PB2		WL3		WL5
P	x 4	Q		R	x 7	S x 24		T	x 85
		TN1		BN1		FW3		FW1
U	x 71		x 1
LW1		D6
Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:Limpie las superficies con un paño suave seco o húmedo. No use limpiadores abrasivos.

Step Étape Paso

1

1 x 1

2 x 1

3 x 1

4 x 1

K x 3

Q x 5

T x 3

U x 3

K Z Y Q Assemblare T - Prima le noci martello ! Q 3 2 K U T

92008

1

K

UT

4

Q

UT

Q

Q

Step Étape Paso 2 5 x 1 6 x 1 7 x 1 K x 6 J x 5 Q x 11 T x 11 U x 11 5 Q 6 T 7 U J QQ QQ Step Étape Paso 3 8 x 1 K x 2 Q x 2 T x 2 U x 2

Step Étape Paso 4 180° Q 9 Assemble T-Nuts first with ham Step Étape Paso 5 Q Assemble T-Nuts first with hammer! ① x 1 ② x 1 ③ x 1 ④ x 1 ⑤ x 3 ⑥ x 5 ⑦ x 3 ⑧ x 3

Step Étape Paso 6 5 x 1 6 x 1 7 x 1 K x 6 J x 5 Q x 11 T x 11 U x 11 KK U Q U T J 7 5 T U QQ J 6 QQQJ Q Q Q Step Étape Paso 7 10 x 1 K x 2 Q x 2 T x 2 U x 2

Step Étape Paso 8 180° Q 9 Assemble T-Nuts fin: with hammer! Step Étape Paso 9 ⑨ x 1 K x 2 Q x 4 T x 2 U x 2 ⑪ x 1 J x 4 Q x 4 T x 4 U x 4

Step Étape Paso 10

con logo T U J 12 T U J

12 x 1

J x 2

T x 2

U x 2

Step Étape Paso 11

D Q TU J TU=J 36 TU=J TU=J

36 x 1

J x 4

Q x 4

T x 4

U x 4

Step Étape Paso 12

UT Q Q UT Q UT Q UT

11 x 1

L x 4

Q x 4

T x 4

U x 4

Step Étape Paso 13

-UT I -UT 12 I

12 x 1

L x 2

T x 2

U x 2

Step Étape Paso 14

14 x 1

H x 4

HH 14 H H

Step Étape Paso 15

E 27 17 15

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

Step Étape Paso 16

GG S 18 O- T GG S 18 O- T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

Step Étape Paso 17

GG GG S 18 SO T OT 18 S

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 18

S GG 18 T - O O S GG T 18

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 19

S GG S GG 18 T O O T 8

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
⑤ x 4
① x 2

⑲ x 3

⑤ x 12

⑲ x 3 F x 12

Step Étape Paso 20

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 F F F F F F

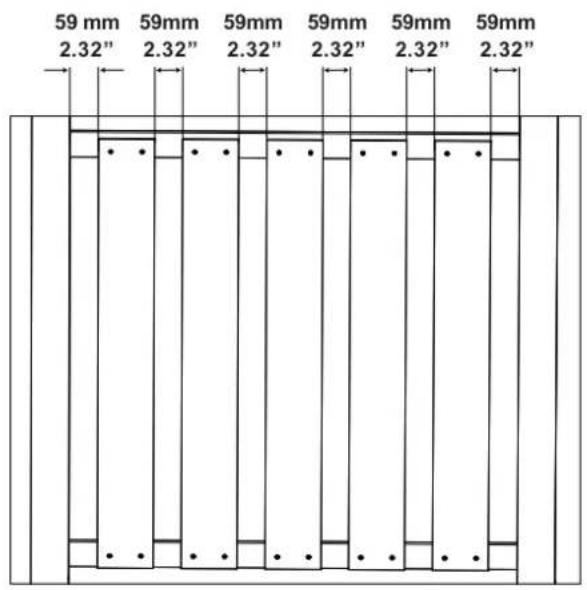

Step Étape Paso 22 20 E

59 mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

Step Étape Paso 23 E 20

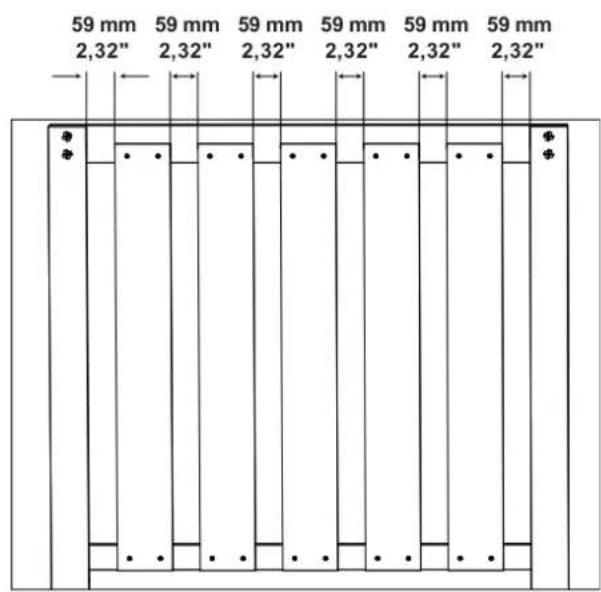

59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32"

20×5

E×20

Step Étape Paso 24

Technical line drawing of a multi-level metal frame structure with no visible text or symbols

21x 1

Fx 1

Hx 3

Step Étape Paso 25

Technical diagram of a metal frame structure with labeled components and section numbers

22 x 1

23 x 1

F x 4

H x 3

Step Étape Paso 26

25 26 26 26 24

24 x 1

25 x 1

26 x 4

Step Étape aso 27

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

(F) x 16

Step Étape aso 28

E 28 E

⑳ x 1 ⑧ x 2

Step Étape Paso

29

E E 28

28 x 1
⑤ x 2

⑤ x 3

Step Étape Paso

30

Technical line drawing of a multi-level modular structure with railings and ladder (no text or symbols)

Step Étape Paso 31

31 29 29 30 E

254 mm 9,99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E x 16

Step Étape Paso 32

Line drawing of a window frame mounted on a wooden door, with no text or symbols present.

Technical line drawing of a window frame with four panes and mounting brackets (no text or symbols)

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73"

Step Êtape Paso 34

UN 56

56 x 1

A x

Step Étape Paso 35

E 31 33 29 29 30

254 mm 9,99" 417 mm 16,41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

32 D D 32 D D Allineare con la finestra

32×2

D×4

Step Étape Paso 37

31 D 30

D x 8

Step Étape Paso 38

Line drawing of a wooden play structure with ladder, window, and frame (no text or symbols)

⑤6 x 1 ⑨ x 6

Step Étape Paso 41

M D·U T M D·U T M D·U T 57 M D·U T D·U T 58 R R R R R 57 58

57 x 3

58 x 3

D x 6

M x 6

R x 6

T x 6

U x 6

E x 6

Step Étape Paso 42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

Step Étape Paso 43

M D U T 57 R 35

35 x 1

57 x 1

D x 1

M x 1

R x 1

T x 1

U x 1

Step Étape Paso 44

Technical line drawing of a modular metal structure with ladder and window (no text or symbols)

⑤ x 4

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1
Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

47 x 2

④2 x 1

G x 2

42 GG

Step

Étape

Paso

48

Line drawing of a wooden play structure with stairs and windows, no text or symbols present

⑩ x 2

⑦ x 2

⑧ x 2

U T

10 x 2

T x 2

U x 2

43 x 1

44 x 1

B x 8

P x 4

Step Étape Paso 51

F F F 42 F F F F

43 x 1

44 x 1

F x 8

Step Étape Paso 52

F C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 53

F C C F F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 54

K UT K UT Q Q Q Q T U K T U K 46 47

Q 46 T U K K T U Q 47

46 x 2

47 x 2

K x 4

Q x 4

T x 4

U x 4

Step Étape Paso57		52 x 1
		F x 12
Step Étape Paso58		53 x 2
		54 x 1
		E x 4
	53	E
	53	E
	54

53
53
54

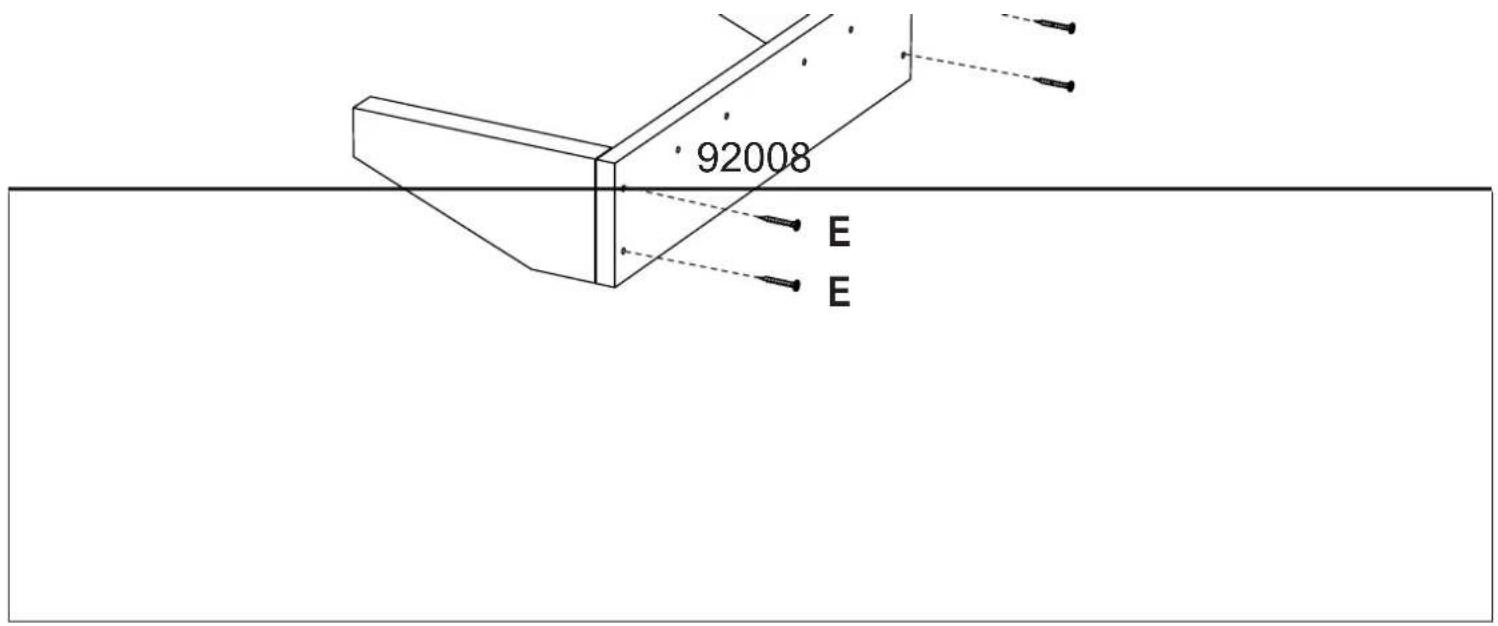

92008 E E

Step Étape Paso 59

E E E 55 55 55 E E E

55 x 3

E x 6

Step Étape Paso 60

UN 59 UN

59×1

A×2

Step Étape Paso 61

61

UN UN UN 61

Technical diagram of a mechanical device with two views: front view and side view, showing internal components and mounting holes (no text or symbols)

60 UN UN

60x1

61x1

A x 6

Step Étape Paso 62

Line drawing of a wooden structure with stairs and beams, no text or symbols present

E x 4

E-E-E³-E

E x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and equipment (no text or symbols)

E E E E

62 x 1

F x 2

S x 2

Step Étape Paso

70

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso

71

Technical diagram showing a device before and after assembly, with labeled parts 67 to 69 indicated.

67 x 1

68 x 1

69 x 1

Line drawing of a children's playground with wooden structure, stairs, and a window (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

STRUMENTI RESISTENTI, METÀ PREZZO

Line drawing of a wooden play structure with stairs, slides, and a roof (no text or symbols)

NEED HELP?CONTACT US!

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690mm
Material	Wood

92008

1x 2 2x 2 3x 2 4x 2 5x 2 6x 2 7x 2 8 9x 2 10x 2 11x 2 12x 2 13x 2 14 15x 2 16x 12 17 18x 8 19x 5 20x 13 21 22 23 24

92008

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	I
	15mm	20mm		20mm		25mm		[X222]35mm
F x 7 G		x 20	H x 15	I x 8	J x 20
	45mm	60mm		70mm		H2		H3
K	x 30	L	x 6	M	x 7	N	x 4	O	x 8
	H4	H12		PB2		WL3		WL5
P	x 4	Q		R	x 7	S x 24		T	x 85
		TN1		BN1		FW3		FW1
U	x 71		x 1
	LW1	D6
Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:Limpie las superficies con un paño suave seco o húmedo. No use limpiadores abrasivos.

Cleaning and Care:

z logo U J T U J 12 T

12 x 1

J x 2

T x 2

U x 2

Step Étape Paso 11

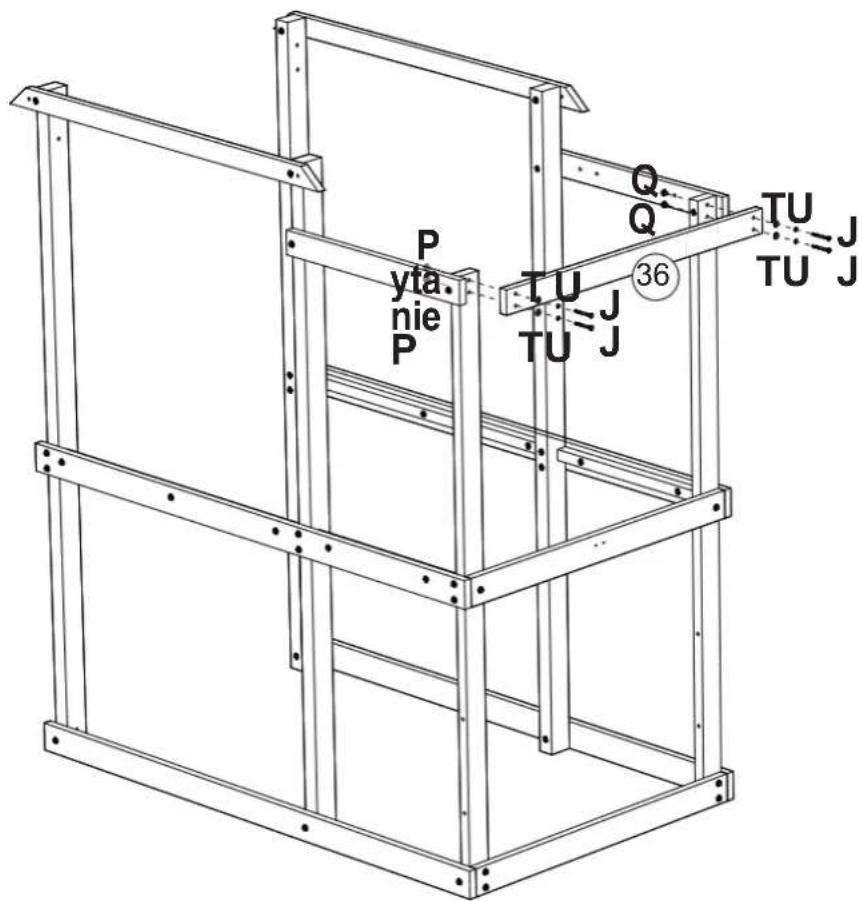

P yta. nie P TU TU=J 36 Q Q TU=J TU=J

36 x 1

J x 4

Q x 4

T x 4

U x 4

Step Étape Paso 12

L=UT L=UT Q Q U U L=UT Q L=UT

11 x 1

L x 4

Q x 4

T x 4

U x 4

Step Étape Paso
13

L -UT ⑫ L -UT L

12 x 1

L x 2

T x 2

U x 2

Step Étape Paso 14

14 x 1

H x 4

H.H 14 H.H

Step Étape Paso 15

E 27 17 15

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

Step Étape Paso 16

GG S 18 O- T GG S 18 O- T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

Step Étape Paso 17

GG GG S 18 SO T OT 18 S

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 18

S GG 18 T - O O S GG T 18

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 19

S GG S GG 18 T O O T 8

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
⑤ x 4
⑦ x 2

⑲ x 3 F x 12

Step Étape Paso 20

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 F F F F F F

Step Étape Paso 22 20 E

59 mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

Step Étape Paso 23 mi 20

59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59mm 2,32" 59mm 2,32"

20×5

E×20

Step Étape Paso 24

Technical line drawing of a multi-level metal frame structure with no visible text or symbols

21x 1

Fx 1

Hx 3

Step Étape Paso 25

Technical diagram of a metal frame structure with labeled components and section numbers

22 x 1

23 x 1

F x 4

H x 3

Step Étape Paso 26

25 26 26 26 24

24 x 1

25 x 1

26 x 4

Step Étape aso 27

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

(F) x 16

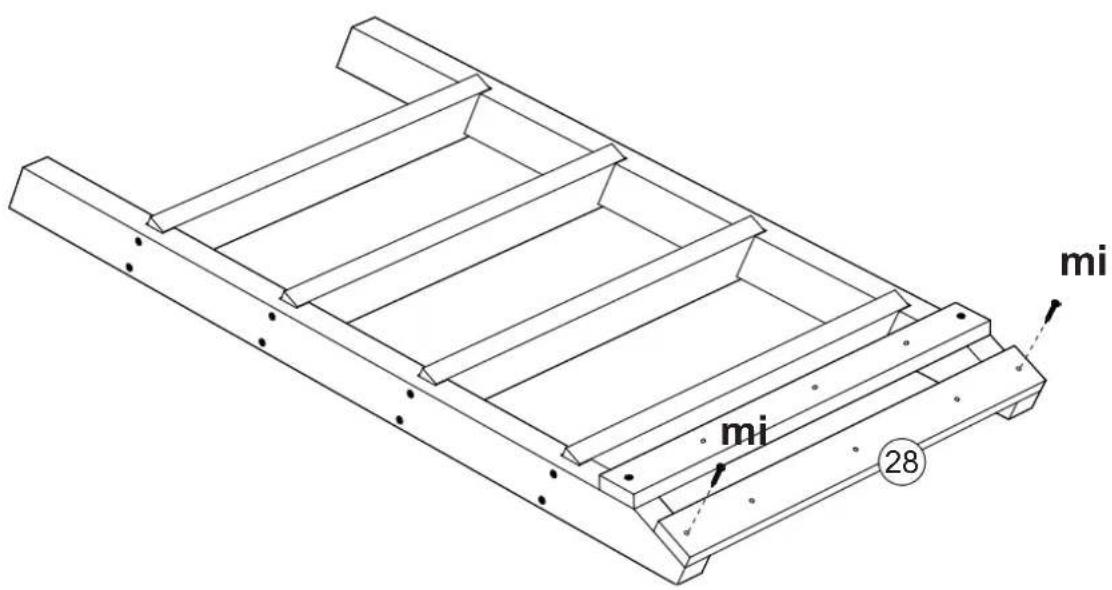

Step Étape aso

⑳ x 1
⑤ x 2

mi

mi 28

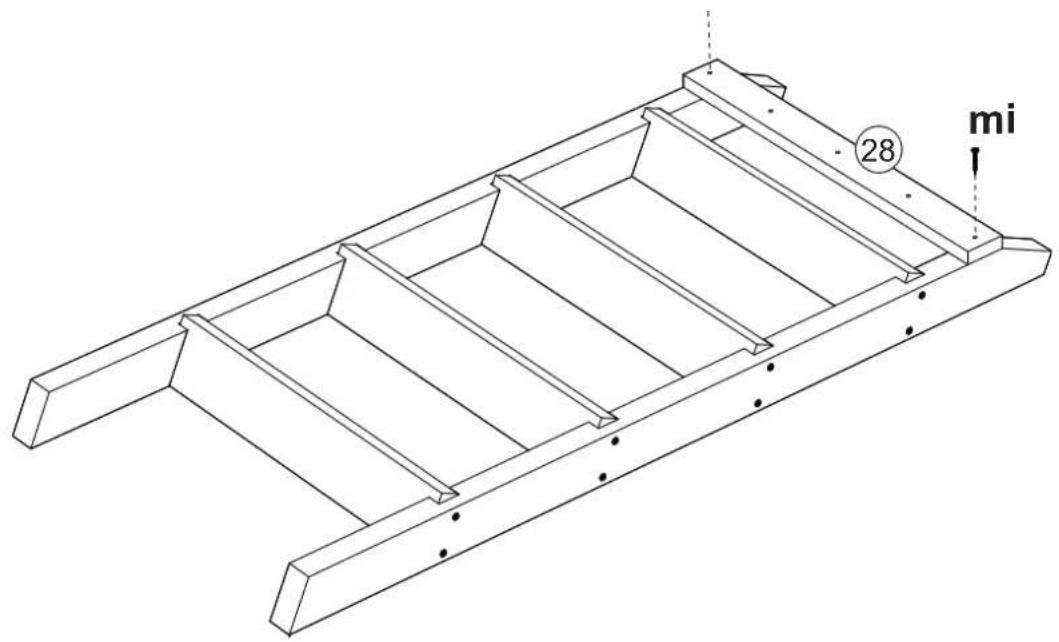

Step Étape Paso

29

mi mi 28

28 x 1
⑤ x 2

⑤ x 3

Step Étape Paso

30

Technical line drawing of a multi-level metal structure with ladder and frame (no text or symbols)

Step Étape Paso 31

31 29 29 30 mi

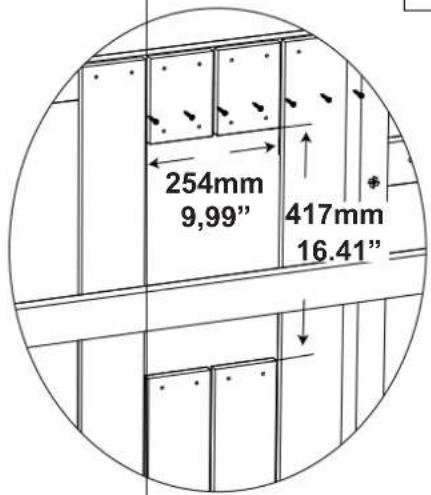

254mm 9,99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E x 16

Step Étape Paso 32

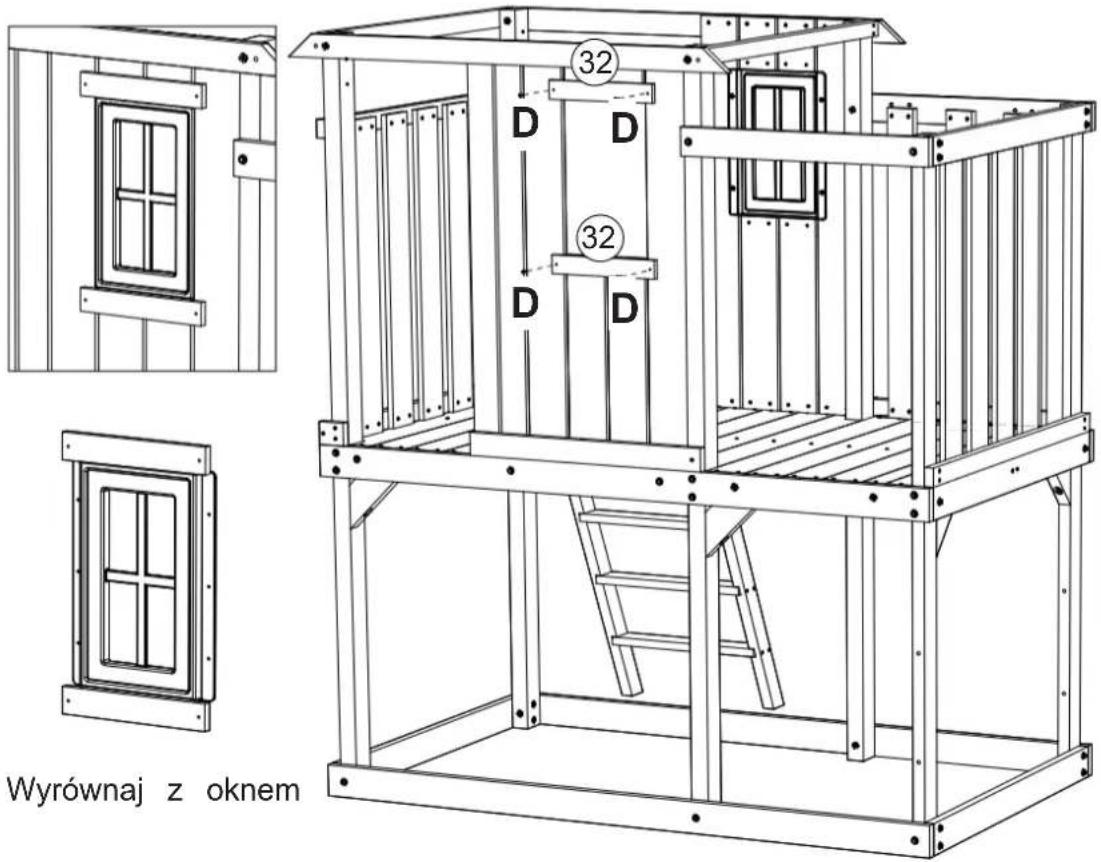

Line drawing of a window frame mounted on a wooden door, with no text or symbols present.

Technical line drawing of a window frame with four panes and mounting brackets (no text or symbols)

Wyrównaj z oknem

64 H H H D D 32 32 DF

32 x 2

64 x 1

D x 4

F x 1

H x 3

Step Étape Paso 33

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73"

Step Êtape Paso 34

Technical line drawing of a mechanical structure with ladder, frame, and support beams (no text or symbols)

56 x 1

A x

Step Étape Paso 35

mi 31 33 29 29 30

254mm 9,99" 417 mm 16,41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

Line drawing of a modular playground structure with ladder, window, and frame (no text or symbols)

⑤6 x 1 ① x 6

Step Étape Paso

41

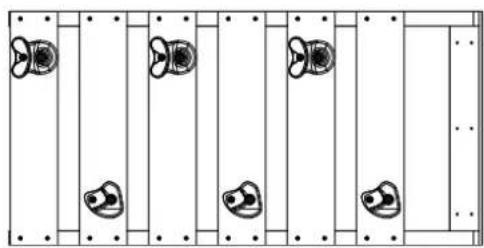

M D U T M D U T M D U T 57 M D U T 58 R R R R R 57 57 57 58 R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R

57 x 3

58 x 3

D x 6

M x 6

R x 6

T x 6

U x 6

Pure electrical circuit lines without any symbols

⑤ x 6

Step Étape Paso

42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

Step Étape Paso 43

M D U T 57 R 35

35 x 1

57 x 1

D x 1

M x 1

R x 1

T x 1

U x 1

Step Étape Paso 44

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

⑤ x 4

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1
Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

47 x 2

④2 x 1

G x 2

42 GG

Step

Étape

Paso

48

Technical line drawing of a wooden play structure with stairs and windows (no text or symbols)

① x 2

⑦ x 2

⑧ x 2

U T

I x 2

T x 2

U x 2

43 x 1

44 x 1

B x 8

P x 4

Step Étape Paso 51

F F F 42 F F F F

43 x 1

44 x 1

F x 8

Step Étape Paso 52

F C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 53

F C C F F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 54

K UT K UT Q Q Q Q T U K T U K 46 47

Q 46 T U K K T U Q 47

46 x 2

47 x 2

K x 4

Q x 4

T x 4

U x 4

Step Étape Paso57		52 x 1
		F x 12
Step Étape Paso58		53 x 2
		54 x 1
		E x 4
	53	E
	53	.E
	54

53
53
54

92008 m i m i

Step Étape Paso 59

mi mi mi 55 55 55 E E E

55 x 3

E x 6

Step Étape Paso 60

A 59 A

59 x 1

A x 2

Step Étape Paso 61

Technical line drawing of a mechanical device with a faucet and mounting base, no text or symbols present

A A A 61

Technical diagram of a mechanical device with internal components and mounting holes (no text or symbols)

Technical diagram of a mechanical device with labeled components and dimension annotation

60x1

61x1

A x 6

Step Étape Paso 62

Line drawing of a wooden structure with stairs and beams, no text or symbols present

mi x 4

E-mi r-mi mi

mi x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and equipment (no text or symbols)

mi mi mi mi

62 x 1

F x 2

S x 2

Step Étape Paso

70

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso

71

Technical diagram showing a mechanical assembly before and after transformation, with labeled components 67 to 69.

67 x 1

68 x 1

69 x 1

Line drawing of a children's playground with wooden structure, stairs, and a window (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

WYTRZYMAŁE NARZĘDZIA, PÓŁ CENA

www.vevor.com/suppo rt

VEVOR ^R

TOUGH TOOLS. HALF PRICE

Line drawing of a children's playground with wooden structure, stairs, and play equipment (no text or symbols)

NEED HELP?CONTACT US!

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690 mm
Material	Wood

92008

1x 2 2x 2 3x 2 4x 2 5x 2 6x 2 7x 2 8 9x 2 10x 2 11x 2 12x 2 13x 2 14 15x 2 16x 12 17 18x 8 19x 5 20x 13 21 22 23 24

92008

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	x 222
15 mm		20 mm		20 mm		25 mm		35 mm
F x 7 G		x20 H x 15 ICH x8 J x20
45 mm		60 mm		70 mm		_H2		_H3
K	x 30	M	x 6	M	x 7	N	x 4	Ö	x 8
H4		_H12		PB2		WL3		WL5
P	x 4	Q		R	x 7	S x 24		T	x 85
		TN1		BN1		FW3		FW1
U	x 71		x 1
LW1		T6
Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:Limpie las superficies con un paño suave seco o húmedo. No use limpiadores abrasivos.

Cleaning and Care:

M UT Q Q M UT M UT M Q M UT

11 x 1

L x 4

Q x 4

T x 4

U x 4

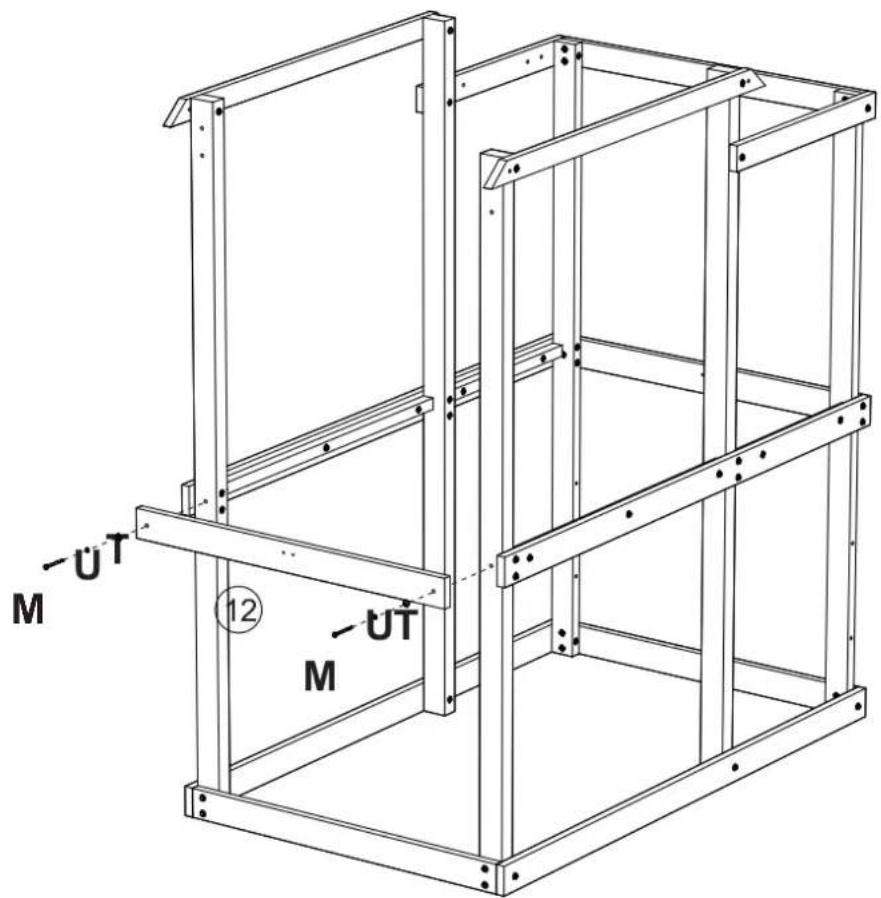

Step Étape Paso 13

-UT M -UT 12 M

12 x 1

L x 2

T x 2

U x 2

Step Étape Paso 14

14 x 1

H x 4

Technical line drawing of a multi-level metal shelving unit with labeled components (H, H) and number 14, no readable text or symbols beyond labels.

Step Étape Paso 15

E 27 17 15

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

Step Étape Paso 16

GG S 18 O- T GG S 18 O- T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

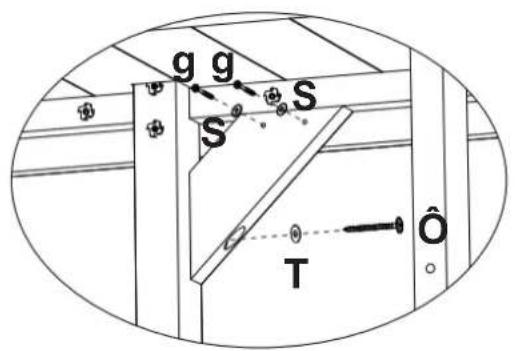

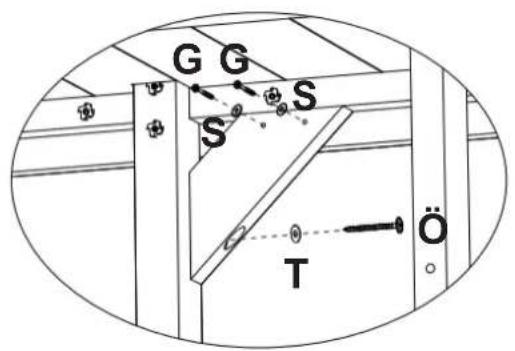

Step Étape Paso 17

GG GG S 18 SO T OT 18 S

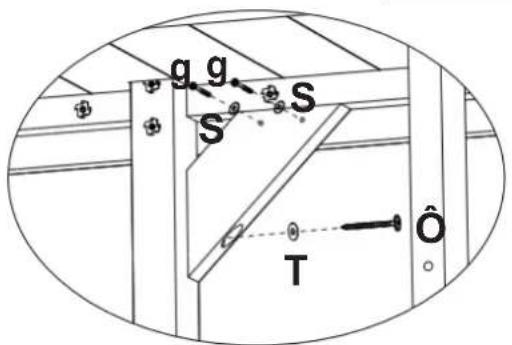

G G S S T Ö

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 18

S GG 18 T - Ö O S GG T 18

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 19

S GG S GG 18 T Ö Ö T 8

G G S S T Ö

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
⑤ x 4
① x 2

⑲ x 3

⑤ x 12

⑲ x 3 ① x 12

Step Étape Paso 20

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 F F F F F F

Step Étape Paso 22 20 E

59 mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

Step Étape Paso 23 E 20

20×5

E×20

59 mm 2,32 Zoll 59 mm 2,32 Zoll 59 mm 2,32 Zoll 59 mm 2,32 Zoll 59 mm 2,32 Zoll

Step Étape Paso 24

Technical line drawing of a multi-level metal frame structure with no visible text or symbols

21 x 1

F x 1

H x 3

Step Étape Paso 25

Technical diagram of a metal frame structure with labeled components and section numbers

22 x 1

23 x 1

F x 4

H x 3

Step Étape Paso 26

25 26 26 26 24

24 x 1

25 x 1

26 x 4

Step Étape aso 27

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

(F) x 16

Step Étape aso 28

E 28 E

⑳ x 1 ⑧ x 2

Step Étape Paso

29

E E 28

28 x 1
⑤ x 2

⑤ x 3

Step Étape Paso

30

Technical line drawing of a multi-level modular structure with railings and ladder (no text or symbols)

Step Étape Paso 31

31 29 29 30 E

254 mm 9,99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E x 16

Step Étape Paso 32

Line drawing of a window frame mounted on a wooden door, with no text or symbols present.

Technical line drawing of a window frame with four panes and mounting brackets (no text or symbols)

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73"

Step Êtape Paso 34

Technical line drawing of a mechanical structure with ladder, frame, and support frame (no text or symbols)

56 x 1

A x

Step Étape Paso 35

E 31 33 29 29 30

254 mm 9,99" 417 mm 16,41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

Line drawing of a modular playground structure with ladder, window, and frame (no text or symbols)

⑤6 x 1 ① x 6

Step Étape Paso

41

M D U T M D U T M D U T 57 M D U T 58 R R R R R 57 57 57 58 R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R

⑤7 x 3

⑤8 x 3

(D) × 6

M x 6

® x 6

T x 6

⑧ x 6

Pure electrical circuit lines without any symbols

⑤ x 6

Step Étape Paso

42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

Step Étape Paso 43

M D U T 57 R 35

35 x 1

57 x 1

D x 1

M x 1

R x 1

T x 1

U x 1

Step Étape Paso 44

Technical line drawing of a modular metal structure with ladder and window (no text or symbols)

⑤ x 4

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1
Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

47 x 2

④2 x 1

G x 2

42 GG

Step

Étape

Paso

48

e U ICH T U ICH T

ICH x 2

⑦ x 2

⑧ x 2

U T H

ICH x 2

Tx x 2

Ux x 2

43 x 1

44 x 1

B x 8

P x 4

Step Étape Paso 51

F F F 42 F F F F

43 x 1

44 x 1

F x 8

Step Étape Paso 52

F C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 53

F C C F F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 54

K UT K UT Q Q Q Q T U K T U K 46 47

Q 46 T U K T U K Q 47

46 x 2

47 x 2

K x 4

Q x 4

T x 4

U x 4

Step Étape Paso 57

Line drawing of a wooden play structure with ladder and frame (no text or symbols)

Step Étape Paso 58

53 53 54 E E E E

Step Étape Paso 59

E E E 55 55 55 E E E

55 x 3

E x 6

Step Étape Paso 60

A 59 A

59 x 1

A x 2

Step Étape Paso 61

61

A A A 61

Technical diagram of a mechanical device with internal components and mounting holes (no text or symbols)

Technical diagram of a mechanical device with labeled components and dimension annotation

60x1

61x1

A x 6

Step Étape Paso 62

Line drawing of a wooden structure with stairs and beams, no text or symbols present

E x 4

E-E-E³-E

E x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and equipment (no text or symbols)

E E E E

62 x 1

F x 2

S x 2

Step Étape Paso

70

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso

71

Technical diagram showing a device before and after assembly, with labeled parts 67 to 69 indicated.

67 x 1

68 x 1

69 x 1

Line drawing of a children's playground with wooden structure, stairs, and a window (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

Line drawing of a children's playground with wooden structure, stairs, and play equipment (no text or symbols)

NEED HELP?CONTACT US!

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690mm
Material	Wood

92008

1x 2 2x 2 3x 2 4x 2 5x 2 6x 2 7x 2 8 9x 2 10x 2 11x 2 12x 2 13x 2 14 15x 2 16x 12 17 18x 8 19x 5 20x 13 21 22 23 24

92008

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	I
	15mm	20mm		20mm		25mm		[X222]35mm
F	x76 g	x20	H x 15	je	x8 J.	x20
	45mm	60mm		70mm		H2		H3
K	x 30	L	x 6	M	x 7	N	x 4	Ô	x 8
	H4	H12		PB2		WL3		WL5
P	x 4	Q		R.	x 7	S x 24		T	x 85
		TN1		NE1		FW3		AH1
U	x 71	x 1
	LW1	D6
Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:Limpie las superficies con un paño suave seco o húmedo. No use limpiadores abrasivos.

Cleaning and Care:

L=T Ut ah Q Q L=T U L Q Utah

11 x 1

L x 4

Q x 4

T x 4

U x 4

Step Étape Paso 13

L -UT ⑫ Utah L

12 x 1

L x 2

T x 2

U x 2

Step Étape Paso 14

14 x 1

H x 4

HH 14 H H

Step Étape Paso 15

E 27 17 15

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

Step Étape Paso 16

GG S 18 O- T GG S 18 O- T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

Step Étape Paso 17

GG GG S 18 SO T OT 18 S

g g S S T Ô

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 18

S GG 18 T - O O S GG T 18

g g S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 19

S GG S GG 18 T O O T 8

g g S S T Ô

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
⑤ x 4
⑦ x 2

19 x 3

F x 12

Step Étape Paso 20

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 F F F F F F

Step Étape Paso 22 20 E

59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

Step Étape Paso 23 E 20

59mm 2,32" 59mm 2,32" 59mm 2,32" 59mm 2,32" 59mm 2,32" 59mm 2,32"

20×5

E×20

Step Étape Paso 24

Technical line drawing of a multi-level metal frame structure with no visible text or symbols

21x 1

Fx 1

Hx 3

Step Étape Paso 25

Technical diagram of a metal frame structure with labeled components and section numbers

22 x 1

23 x 1

F x 4

H x 3

Step Étape Paso 26

25 26 26 26 24

24 x 1

25 x 1

26 x 4

Step Étape aso 27

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

(F) x 16

Step Étape aso 28

E 28 E

⑳ x 1 ⑧ x 2

Step Étape Paso

29

E E 28

28 x 1
⑤ x 2

⑤ x 3

Step Étape Paso

30

Technical line drawing of a multi-level modular structure with railings and ladder (no text or symbols)

Step Étape Paso 31

31 29 29 30 E

254mm 9,99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E x 16

Step Étape Paso 32

Line drawing of a window frame mounted on a wooden door, with no text or symbols present.

Technical line drawing of a window frame with four panes and mounting brackets (no text or symbols)

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73"

Step Êtape Paso 34

UN 56

56 x 1

A x

Step Étape Paso 35

E 31 33 29 29 30

254mm 9,99" 417mm 16h41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

Line drawing of a wooden play structure with ladder, frame, and window (no text or symbols)

⑤6 x 1 ① x 6

Step Étape Paso 41

M D U T M D U T 57 M D U T D U T 58 R. R. R. R.

R.

Pure electrical circuit lines without any symbols

57 x 3

58 x 3

D x 6

M x 6

R x 6

T x 6

U x 6

E x 6

Step Étape Paso 42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

Step Étape Paso 43

M D U T 57 R. 35

35 x 1

57 x 1

D x 1

M x 1

R x 1

T x 1

U x 1

Step Étape Paso 44

Technical line drawing of a modular metal structure with ladder and window (no text or symbols)

⑤ x 4

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1
Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

47 x 2

④2 x 1

G x 2

42 GG

Step

Étape

Paso

48

Technical line drawing of a modular playground structure with ladder and window (no text or symbols)

je x 2

⑦ x 2

⑧ x 2

U T

je x 2

T x 2

U x 2

43 x 1

44 x 1

B x 8

P x 4

Step Étape Paso 51

F F F 42 F F F F

43 x 1

44 x 1

F x 8

Step Étape Paso 52

F C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 53

C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 54

K UT K UT Q Q Q 46 TU K TU K 47

Q 46 T U K K T U Q 47

46 x 2

47 x 2

K x 4

Q x 4

T x 4

U x 4

Step Étape Paso

57

Line drawing of a wooden play structure with ladder and frame (no text or symbols)

⑤2 x 1
(F) x 12

52 x 1 F x 12

Step Étape Paso

58

53 53 54 E E E E

⑤3 x 2
⑤4 x 1
⑤ x 4

⑤3 x 2 ⑤4 x 1 ⑥ x 4

Step Étape Paso 59

E E E 55 55 55 E E E

55 x 3

E x 6

Step Étape Paso 60

UN 59 UN

59 x 1

A x 2

Step Étape Paso 61

61

UN UN UN 61

Technical diagram of a mechanical device with internal components and mounting holes (no text or symbols)

60 UN UN

60x1

61x1

A x 6

Step Étape Paso 62

Line drawing of a wooden structure with stairs and supports, no text or symbols present

E x 4

E-E-E³-E

E x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and equipment (no text or symbols)

E E E E

62 x 1

F x 2

S x 2

Step Étape Paso

70

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso

71

Technical diagram showing a device before and after assembly, with labeled parts 67 to 69 indicated.

67 x 1

68 x 1

69 x 1

Line drawing of a children's playground with wooden structure, stairs, and a window (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

OUTILS DUR, DEMI PRIX

www.vevor.com/support

VEVOR ^R

TOUGH TOOLS. HALF PRICE

Technische ondersteuning en E-garantiecertificaat www.vevor.com/support

CABINE SPEELHUIS

MODEL:TLG92008

Line drawing of a wooden play structure with stairs, slides, and a roof (no text or symbols)

NEED HELP?CONTACT US!

www.vevor.com/support

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690mm
Material	Wood

92008

1x 2 2x 2 3x 2 4x 2 5x 2 6x 2 7x 2 8 9x 2 10x 2 11x 2 12x 2 13x 2 14 15x 2 16x 12 17 18x 8 19x 5 20x 13 21 22 23 24

92008

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	I
	15 mm	20 mm		20 mm		25 mm		[X222]35 mm
F x 7 G		x20	H x 15 I	x8	J	x20
	45 mm	60 mm		70 mm		H2		H3
K	x 30	L	x 6	M	x 7	N	x 4	O	x 8
	H4	H12		PB2		WL3		WL5
P	x 4	Q	x 64	R	x 7	S x 24		T	x 85
		TN1		BN1		FW3		FW1
U	x 71	x 1
	LW1	D6
Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:Limpie las superficies con un paño suave seco o húmedo. No use limpiadores abrasivos.

Cleaning and Care:

met logo T J U J 12 T U J

12 x 1

J x 2

T x 2

U x 2

Step Étape Paso 11

Q Q TU=J 36 TU=J TU=J TU=J

36 x 1

J x 4

Q x 4

T x 4

U x 4

Step Étape Paso 12

L=UT L=UT Q Q L=UT Q L=UT

11 x 1

L x 4

Q x 4

T x 4

U x 4

Step Étape Paso
13

-UT L -UT 12 L

12 x 1

L x 2

T x 2

U x 2

Step Étape Paso 14

14 x 1

H x 4

Technical line drawing of a multi-level metal shelving unit with labeled components (H, H) and number 14, no readable text or symbols beyond labels.

Step Étape Paso 15

E 27 17 15

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

Step Étape Paso 16

GG S 18 O- T GG S 18 O- T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

Step Étape Paso 17

GG SO T 18 GG S O.T 18

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 18

S GG 18 T - O O S GG T 18

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 19

S GG S GG 18 T O O T 8

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
⑤ x 4
① x 2

⑲ x 3 F x 12

Step Étape Paso 20

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 F F F F F F

Step Étape Paso 22 20 E

59 mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

Step Étape Paso 23 E 20

59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32"

20×5

E×20

Step Étape Paso 24

Technical line drawing of a multi-level metal frame structure with no visible text or symbols

21x 1

Fx 1

Hx 3

Step Étape Paso 25

Technical diagram of a metal frame structure with labeled components and section numbers

22 x 1

23 x 1

F x 4

H x 3

Step Étape Paso 26

25 26 26 26 24

24 x 1

25 x 1

26 x 4

Step Étape aso 27

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

(F) x 16

Step Étape aso 28

E 28 E

⑳ x 1 ⑧ x 2

Step Étape Paso

29

E E 28

28 x 1
⑤ x 2

⑤ x 3

Step Étape Paso

30

Technical line drawing of a multi-level modular structure with railings and ladder (no text or symbols)

Step Étape Paso 31

31 29 29 30 E

254 mm 9,99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E x 16

Step Étape Paso 32

Line drawing of a window frame mounted on a wooden door, with no text or symbols present.

Technical line drawing of a window frame with four panes and mounting brackets (no text or symbols)

64 H H H D D 32 32 DF

32 x 2

64 x 1

D x 4

F x 1

H x 3

Step Étape Paso 33

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73"

Step Êtape Paso 34

Technical line drawing of a mechanical structure with ladder, frame, and support frame (no text or symbols)

56 x 1

A x

Step Étape Paso 35

E 31 33 29 29 30

254 mm 9,99" 417 mm 16,41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

Line drawing of a wooden play structure with ladder, frame, and window (no text or symbols)

⑤6 x 1 ① x 6

Step Étape Paso

41

M D U T M D U T M D U T 57 M D U T 58 R R R R R 57 57 57 58 R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R

57 x 3

58 x 3

D x 6

M x 6

R x 6

T x 6

U x 6

Pure electrical circuit lines without any symbols

⑤ x 6

Step Étape Paso

42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

Step Étape Paso 43

M D U T 57 R 35

35 x 1

57 x 1

D x 1

M x 1

R x 1

T x 1

U x 1

Step Étape Paso 44

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

⑤ x 4

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1
Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

47 x 2

④2 x 1

G x 2

42 GG

Step

Étape

Paso

48

Technical line drawing of a wooden play structure with stairs and windows (no text or symbols)

① x 2

⑦ x 2

⑧ x 2

U T

I x 2

T x 2

U x 2

43 x 1

44 x 1

B x 8

P x 4

Step Étape Paso 51

F F F 42 F F F F

43 x 1

44 x 1

F x 8

Step Étape Paso 52

F C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 53

C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 54

K UT K UT Q Q Q Q 46 TU K TU K 47

Q 46 T U K T U K Q 47

46 x 2

47 x 2

K x 4

Q x 4

T x 4

U x 4

Step Étape Paso 57

Line drawing of a wooden play structure with ladder and frame (no text or symbols)

Step Étape Paso 58

53 53 54 E E E E

Step Étape Paso 59

E E E 55 55 55 E E E

55 x 3

E x 6

Step Étape Paso 60

A 59 A

59 x 1

A x 2

Step Étape Paso

61

61

A A A 61

Technical diagram of a mechanical device with internal components and mounting holes (no text or symbols)

Technical diagram of a mechanical device with labeled components and dimension annotation

60x1

61x1

A x 6

Step Étape Paso 62

Line drawing of a wooden structure with stairs and beams, no text or symbols present

E x 4

E-E-E³-E

E x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and equipment (no text or symbols)

E E E E

62 x 1

F x 2

S x 2

Step Étape Paso

70

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso

71

Technical diagram showing a device before and after assembly, with labeled parts 67 to 69 indicated.

67 x 1

68 x 1

69 x 1

Line drawing of a children's playground with wooden structure, stairs, and a window (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

STERK GEREEDSCHAP, HALF PRIJS

Technische ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR ^R

TOUGH TOOLS. HALF PRICE

Line drawing of a children's playground with wooden structure, stairs, and play equipment (no text or symbols)

NEED HELP?CONTACT US!

1. This manual lists the contents included in the box. Please take time to identify the hardware as well as the individual components of the product.
2. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
3. Small parts present in unassembled state. It's a choking hazard!
4. Please follow the assembly instructions closely. Improper assembly can result in personal or property damage.
5. Assembled by an adult. In the process of play, parents should always accompany the children's side.
6. Do not install it in a dark, damp place.
7. Put it in a place with good ventilation.
8. Clean and disinfect your product frequently to keep it clean and hygienic.
9. Do not overload.

MODEL AND PARAMETERS

Model	TLG92008
Age of application	3-10 age
Product Size	2320*3100*2690mm
Material	Wood

92008

1x 2 2x 2 3x 2 4x 2 5x 2 6x 2 7x 2 8 9x 2 10x 2 11x 2 12x 2 13x 2 14 15x 2 16x 12 17 18x 8 19x 5 20x 13 21 22 23 24

92008

92008

A	x 20	B	x 8	C	x 4	D	x 39	E	x 222
15 mm		20 mm		20 mm		25 mm		35 mm
F x 7 G		x 20 H x 15 jag		x 8 J x 20
45 mm		60 mm		70 mm		_H2		_H3
K	x 30	L	x 6	M	x 7	N	x 4	O	x 8
H4		_H12		PB2		WL3		WL5
P	x 4	Q		R	x 7	S x 24		T	x 85
		TN1		BN1		FW3		FW1
U	x 71		x 1
LW1		D6
Cleaning and Care:Clean surfaces with a dry or damp soft cloth. Do not use abrasive cleaners.Nettoyage et Entretien:Nettoyer les surfaces avec un chiffon doux, sec ou humide. Ne pas utiliser de nettoyants abrasifs.Limpieza y Cuidado:Limpie las superficies con un paño suave seco o húmedo. No use limpiadores abrasivos.

Step Étape Paso

1

1 x 1

2 x 1

3 x 1

4 x 1

K x 3

Q x 5

T x 3

U x 3

L=UT L=UT Q Q L=UT Q L=UT

11 x 1

L x 4

Q x 4

T x 4

U x 4

Step Étape Paso 13

L -UT ⑫ L -UT L

12 x 1

L x 2

T x 2

U x 2

Step Étape Paso 14

14 x 1

H x 4

Technical line drawing of a multi-level metal shelving unit with labeled components (H, H) and number 14, no readable text or symbols beyond labels.

Step Étape Paso 15

E 27 17 15

15 x 2

16 x 12

17 x 1

27 x 1

E x 67

Step Étape Paso 16

GG S 18 O- T GG S 18 O- T

18 x 2

G x 4

O x 2

S x 4

T x 2

G G S S T O

Step Étape Paso 17

GG GG S 18 SO T OT 18 S

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 18

S GG 18 T - O O S GG T 18

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

Step Étape Paso 19

S GG S GG 18 T O O T 8

G G S S T O

18 x 2

G x 4

O x 2

S x 4

T x 2

⑱ x 2
G x 4
① x 2
⑤ x 4
⑦ x 2

⑲ x 3 F x 12

Step Étape Paso 20

19 F F F F 19 F F 19 F F

Step Étape Paso 21

19 F F F F F F

Step Étape Paso 22 20 E

59 mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32" 59mm 2.32"

Step Étape Paso 23 E 20

59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32" 59 mm 2,32"

20×5

E×20

Step Étape Paso 24

Technical line drawing of a multi-level metal frame structure with no visible text or symbols

21x 1

Fx 1

Hx 3

Step Étape Paso 25

Technical diagram of a metal frame structure with labeled components and section numbers

22 x 1

23 x 1

F x 4

H x 3

Step Étape Paso 26

25 26 26 26 24

24 x 1

25 x 1

26 x 4

Step Étape aso 27

F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F

(F) x 16

Step Étape aso 28

E 28 E

⑳ x 1 ⑧ x 2

Step Étape Paso

29

E E 28

28 x 1
⑤ x 2

⑤ x 3

Step Étape Paso

30

Technical line drawing of a multi-level metal frame structure with ladder and support beams (no text or symbols)

Step Étape Paso 31

31 29 29 30 E

254 mm 9,99" 417mm 16.41"

29 x 2

30 x 2

31 x 2

E x 16

Step Étape Paso 32

Line drawing of a window frame mounted on a wooden door, with no text or symbols present.

Technical line drawing of a window frame with four panes and mounting brackets (no text or symbols)

64 H H H D D 32 32 DF

32 x 2

64 x 1

D x 4

F x 1

H x 3

Step Étape Paso 33

Technical diagram of a multi-level metal frame structure with labeled components and numbered parts

20 x 3

D x 8

E x 12

69.5mm 69.5mm 69.5mm 69.5mm 2.73" 2.73" 2.73" 2.73"

Step Êtape Paso 34

Technical line drawing of a mechanical structure with ladder, frame, and support frame (no text or symbols)

56 x 1

A x

Step Étape Paso 35

E 31 33 29 29 30

254 mm 9,99" 417 mm 16,41"

29 x 2

30 x 2

31 x 2

33 x 2

E x 24

Step Étape Paso 36

Line drawing of a wooden play structure with ladder, frame, and window (no text or symbols)

⑤6 x 1 ① x 6

Step Étape Paso

41

M D U T M D U T M D U T 57 M D U T 58 R R R R R 57 57 57 58 R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R

57 x 3

58 x 3

D x 6

M x 6

R x 6

T x 6

U x 6

Pure electrical circuit lines without any symbols

⑤ x 6

Step Étape Paso

42

Technical line drawing of a modular building structure with ladder and window (no text or symbols)

Step Étape Paso 43

M D U T 57 R 35

35 x 1

57 x 1

D x 1

M x 1

R x 1

T x 1

U x 1

Step Étape Paso 44

Technical line drawing of a modular metal structure with ladder and window (no text or symbols)

⑤ x 4

Step Étape Paso45 x 2	38 x 1
	39 x 1
	F x 1
	H x 1
Step Étape Paso46 x 2	40 x 2
	41 x 1
	42 x 1

Step

Étape

Paso

47 x 2

④2 x 1

G x 2

42 GG

Step

Étape

Paso

48

e U jág T U jág T

jag x 2

⑦ x 2

⑧ x 2

U T g

jag x 2

T x 2

U x 2

43 x 1

44 x 1

B x 8

P x 4

Step Étape Paso 51

F F F 42 F F F F

43 x 1

44 x 1

F x 8

Step Étape Paso 52

F C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 53

C C F F 45

45 x 1

C x 2

F x 4

Step Étape Paso 54

K UT K UT Q Q Q Q T U K T U K 46 47

Q 46 T U K K T U Q 47

46 x 2

47 x 2

K x 4

Q x 4

T x 4

U x 4

Step Étape Paso

57

Line drawing of a wooden play structure with ladder and frame (no text or symbols)

⑤2 x 1
(F) x 12

52 x 1 F x 12

Step Étape Paso

58

53 53 54 E E E E

⑤3 x 2
⑤4 x 1
⑤ x 4

⑤3 x 2 ⑤4 x 1 ⑥ x 4

Step Étape Paso 59

E E E 55 55 55 E E E

55 x 3

E x 6

Step Étape Paso 60

A 59 A

59 x 1

A x 2

Step Étape Paso 61

Technical line drawing of a mechanical device with a faucet and mounting base, no text or symbols present

A A A 61

Technical diagram of a mechanical device with internal components and mounting holes (no text or symbols)

Technical diagram of a mechanical device with labeled components and dimension annotation

60x1

61x1

A x 6

Step Étape Paso 62

Line drawing of a wooden structure with stairs and beams, no text or symbols present

E x 4

E-E-E³-E

E x 4

Step Étape Paso 63

Technical line drawing of a wooden play structure with roof, windows, and equipment (no text or symbols)

E E E E

62 x 1

F x 2

S x 2

Step Étape Paso

70

66 x 4 D x 4 S x 4 66 66 66 66 S D 66

66 x 4

D x 4

S x 4

Step Étape Paso

71

Technical diagram showing a device before and after assembly, with labeled parts 67 to 69 indicated.

67 x 1

68 x 1

69 x 1

Line drawing of a children's playground with wooden structure, stairs, and a window (no text or symbols)

MAINTENANCE

1. Clean and disinfect your product frequently to keep it clean and hygienic.
2. Check the reliability of the parts before use.

Manufacturer: Heze Jingran Woodware Co., Ltd.

Address: Zhuangzhai Town Industrial Park, Cao County, Shandong Province

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TÅRA VERKTYG, HALV PRIS

www.vevor.com/suppo rt
