Brand	Vevor
Model	VV-2801F
Product Type	Passive Column Speaker
Maximum Power	600 W
Tweeter	1 inch
Woofer	8 inches × 2
Frequency Response	55 Hz - 20 kHz
Impedance	8 Ω
Cabinet Material	MDF with PVC finish
Speaker Type	Passive (requires external amplifier)
Main Functions	High-fidelity stereo sound, multiple input adaptability, durable design
Connection	Speaker wires (red +, black -)
Usage	Home and professional stereo audio playback
Safety	Do not expose to water/moisture, use with dry hands, avoid shocks and sharp objects
Maintenance and Cleaning	Damp cloth and warm water for cabinet, vacuum for grille, do not touch cones
Spare parts and repairability	Not specified, contact manufacturer for repair
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim
Warranty	Not specified, refer to seller
Included Accessories	User manual (cables not included)

Frequently Asked Questions - VV-2801F Vevor

Which amplifier to use with the VV-2801F?

Use a certified external amplifier with compatible power, preferably between 200 and 600W at 8 Ω, for optimal performance.

How to connect the VV-2801F passive speakers?

Connect the speaker wires (not included) respecting polarity: red wire to positive (+) terminal and black wire to negative (-) terminal. Ensure connections are secure.

Can I use these speakers outdoors?

No, they are not designed for exposure to water or moisture. Use them only in a dry indoor environment.

How to clean the VV-2801F speakers?

Use a soft cloth slightly damp with warm water for the cabinet. For the grille, use your vacuum brush. Never touch the speaker cones and do not use abrasive products.

What is the maximum supported power?

The maximum output power of the speaker is 600W. Be careful not to exceed this limit to avoid damaging the speakers.

Are the speakers amplified?

No, they are passive speakers. They require an external amplifier to operate.

What are the dimensions of the VV-2801F speakers?

Exact dimensions are not provided in the manual, but the model has two 8-inch woofers and a 1-inch tweeter. Estimate about 120 cm in height and 30 cm in width.

Can I use them with a home hi-fi system?

Yes, they are perfectly suitable for home or professional high-fidelity stereo use, paired with an appropriate amplifier.

Are there any specific safety precautions?

Avoid any exposure to water and moisture. Always plug in with dry hands. Do not place sharp objects near the cabinet to avoid scratches.

What to do in case of sound issues?

First check cable connections and polarity. Make sure the amplifier is on and the volume is set. If the problem persists, consult the manual or contact the manufacturer.

USER MANUAL VV-2801F Vevor

Affordable. Reliable. Home Improvement.

FLOOR STANDING SPEAKER

Model: VV-2501F / VV-2502F / VV-1601F /

VV-2602F / VV-2801F

Scan for Assistance

Model: VV-2501F/ VV-2502F/ VV-1601F/ VV-2602F/ VV-2801F

Exterior view of a modern office building (no signage)

(The picture is for reference only, please refer to the actual object

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user man. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

Warning-To reduce the risk of injury, user must read ins manual carefully.

1. Important Notices

Water & Moisture

Do not place the speakers in environments where water exposure or moisture is possible. Avoid using them in rainy or humid conditions.

Power Safety

When connecting external amplifiers or other devices, ensure the volta is appropriate and that connections are secure. Always operate with d hands.

Scratch & Impact Protection

The speaker enclosure is made of MDF, or density board with a PV. Avoid contact with sharp objects to prevent scratches or damage to t surface.

Proper Installation

These are passive speakers without built-in amplification. Use only certified external amplifiers to drive the speakers and follow proper connection instructions.

2. Product Overview

Product Type: Passive Floor standing Speakers

Applications: Suitable for high-fidelity, stereo audio playback in hon and office setups.

Key Specifications (Refer to each model for exact parameters):

Model: VV-2501F/VV-2502F:Speaker Maximum Output Power: 145WTweeter Size: 0.75 inch+1 inchWoofer Size: 5.25 inch×2Frequency Response: 70Hz - 20KHzImpedance: 8 Ω	VV-2501F / VV-2502F
Model: VV-1601FSpeaker Maximum Output Power: 200WTweeter Size: 1 inchWoofer Size: 6.25 inch×1Frequency Response: 65Hz - 20KHzImpedance: 8 ΩPassive speakers
Model VV-2602F:Speaker Maximum Output Power: 400WTweeter Size: 1 inchWoofer Size: 6.5 inch×2Frequency Response:60Hz - 20KHzImpedance: 8 ΩPassive speakers
Model: VV-2801FSpeaker Maximum Output Power: 600WTweeter Size: 1 inchWoofer Size: 8 inch×2Frequency Response: 55Hz - 20KHzImpedance: 8 ΩPassive speakers

Additional Note: This model is designed as a high-quality passive speaker ideal for dynamic sound reproduction.

Enclosure Materials: Typically built from density board, MDF, or similar materials with PVC finish for scratch and impact resistance

3. Quick Setup and Connection

1. Choosing the Installation Position:

Select a stable, dry, and well-ventilated location away from water sour and high temperatures. Ensure the speaker is placed on a flat, secur surface.

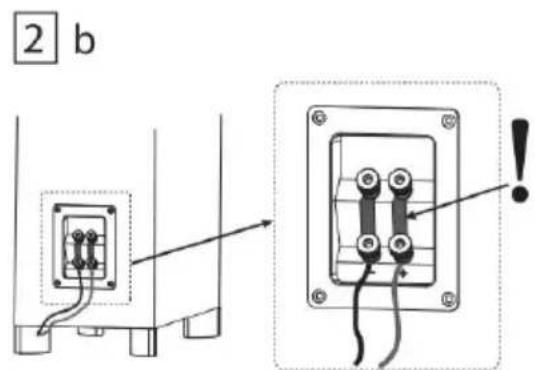

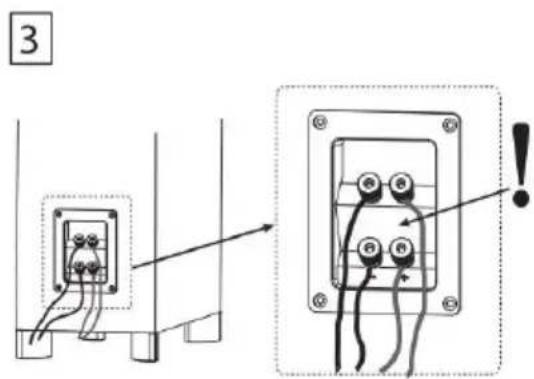

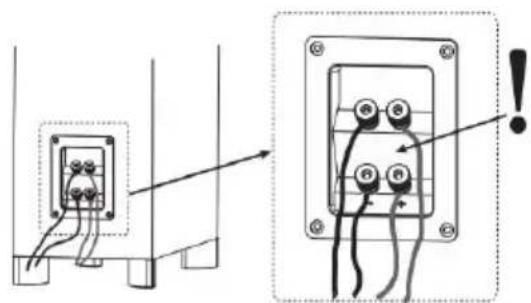

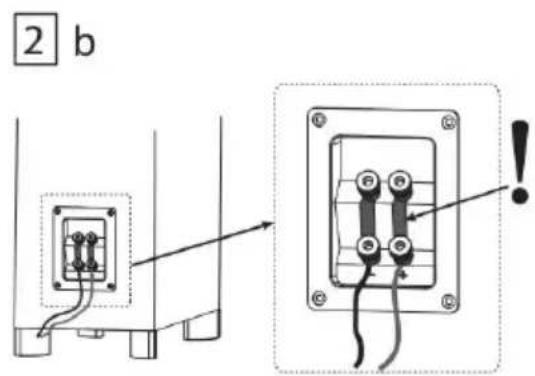

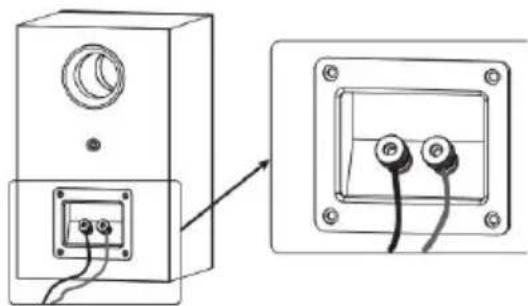

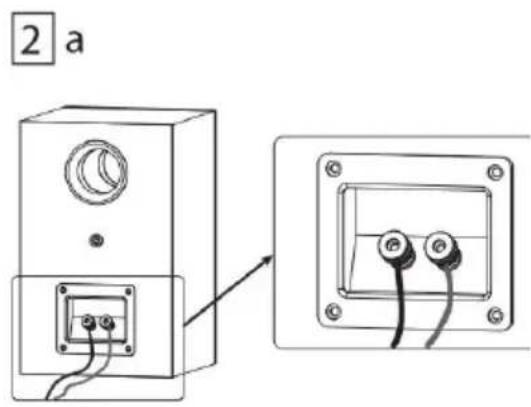

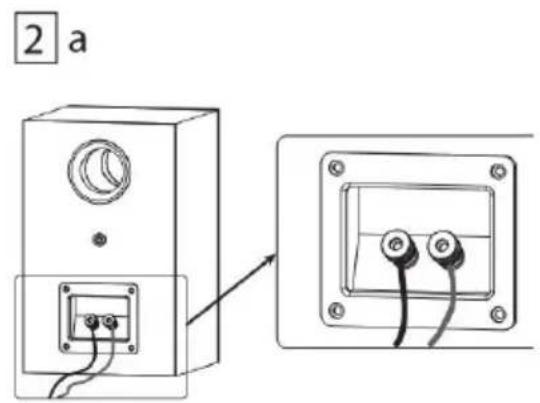

2. Connecting Devices:

Use the speaker cables (typically 2-meter cables, not included) to connect the speakers to an external amplifier or audio device.

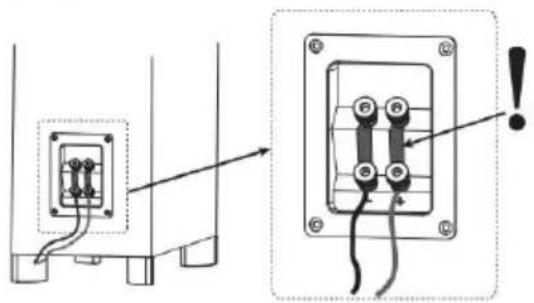

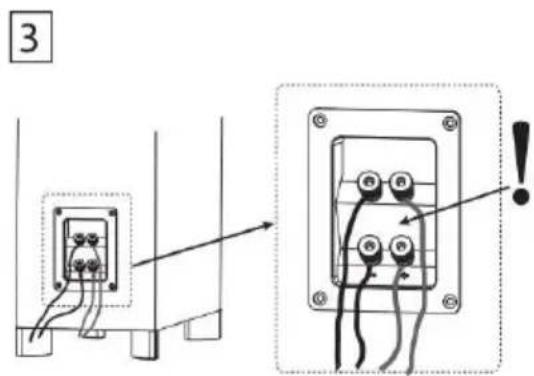

Important: Ensure the red wire is connected to the + terminal, and black wire is connected to the - terminal.

Verify that the left and right channels are connected correctly and set to avoid poor contact that may impact sound quality.

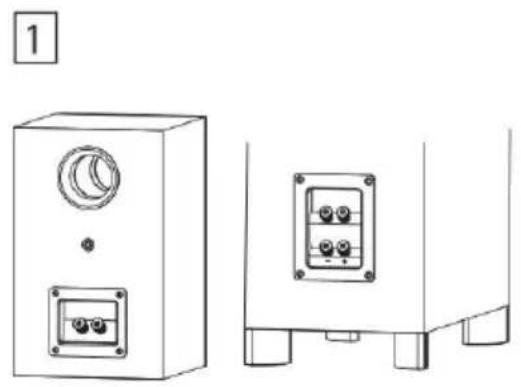

DIAGRAMS / FIGURES / DIAGRAMAS

Technical line drawing of two electrical equipment units with labeled components (no text or symbols)

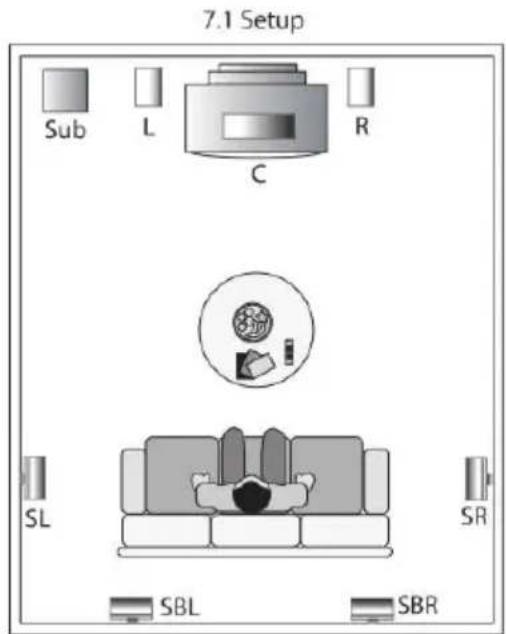

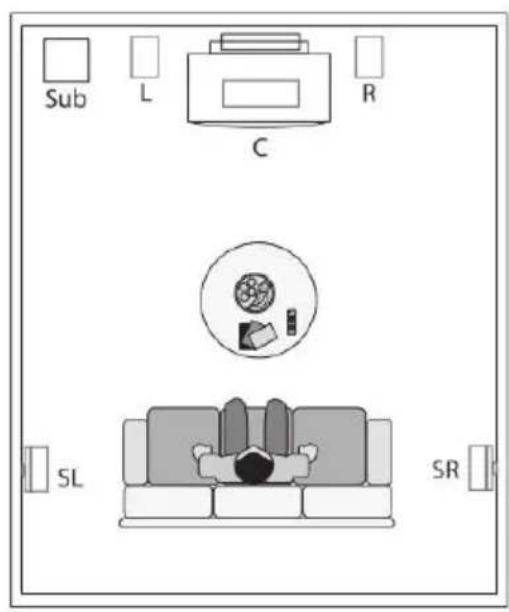

3. System Adjustment:

Adjust the volume and frequency response controls on the external amplifier to match the speaker specifications for optimal performance.

4. Main Functions

High-Quality Audio Output:

Delivers high-fidelity stereo sound suitable for a wide range of audio playback scenarios.

Multiple Input Adaptability:

When paired with an external amplifier or AV receiver, the speakers handle various audio sources seamlessly.

Simple and Durable Design:

The design includes edge protection to ensure that the speakers mair their appearance and tactile feel over long-term use.

6 a

6 b

5. Care of Finish

The floor standing speaker should be gently cleaned with only a cloth and warm water from time to time, in order to remove any dust fingerprints. Do not use an abrasive cleaner, or any type of ammonia based cleaners, or window-type cleaners. To remove the dust from the grille cloth, use the brush attachment on your vacuum cleaner or a s dampened sponge or dust-free cloth. Do not touch the speaker cones directly or enter them in contact with water or cleaning materials, as can cause irreparable damage.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
