SF-808 - Scale Vevor - Free user manual and instructions

Product Type	Digital Weighing Scale
Brand	Vevor
Model	SF-808
Maximum Capacity	200 kg
Graduation	50 g
Weighing Units	kg, lb:oz, lb
Platform Size	30.5 x 25.4 cm (12 x 10 inches)
Power Supply	4 AAA batteries (1.5 V) or 5 V DC power adapter
Display	Digital LCD
Functions	On/Off, Tare, Unit Change
Overload Indication	Display overload indication
Low Battery Indication	Display “LO”
Operating Temperature	5°C to 35°C
Calibration	Possible with calibration weight from 20 kg to 50 kg
Net Weight (packed)	2.4 kg
Dimensions (package)	360 x 305 x 80 mm
Platform Material	Stainless Steel (estimated)
Maintenance	Clean with a soft dry cloth; avoid moisture
Safety	Do not overload; do not drop; do not expose to moisture
Spare Parts	Batteries (4 x AAA), power adapter (not included)
Repairability	User calibration; technical support at www.vevor.com/support
Warranty	Technical support via www.vevor.com/support

Frequently Asked Questions - SF-808 Vevor

How to turn the Vevor SF-808 scale on and off?

Press the ON/OFF button to turn the scale on. To turn it off, press the same button again. The display shows “0.0” when ready.

How to use the tare function?

Place an empty container on the platform, then press the TARE button to reset the weight to zero. You can then add ingredients without counting the container's weight.

How to change the weighing unit?

Press the UNIT (or MODE) button to toggle between available units: kg, lb:oz, and lb. The selected unit is displayed on the screen.

How to calibrate the scale?

Place the scale on a flat surface. Turn it on, then press and hold the UNIT button for 6 seconds until the capacity appears. Use TARE to select a calibration weight (20-50 kg) and UNIT to confirm. Place the corresponding weight on the platform. The display shows “PASS” on success, or “Err” on failure.

What to do if the screen shows “LO”?

This means the batteries are low. Replace the 4 AAA batteries (1.5 V) with new ones. You can also use the optional power adapter (5 V DC).

What to do in case of overload?

Never exceed the maximum capacity of 200 kg. If overloaded, the screen shows an error indication (“Vieux” or other). Immediately remove the excess weight to avoid damaging the scale.

How to maintain the scale?

Clean the platform and housing with a soft, dry cloth. Do not use chemicals. Avoid moisture and do not immerse the scale in water. Store it in a dry place.

What type of batteries to use?

Use 4 AAA batteries of 1.5 V. For extended use, you can also plug in a power adapter (110-240 V AC to 5 V DC) sold separately.

Can the scale weigh very heavy objects?

Yes, the Vevor SF-808 scale can weigh up to 200 kg (440 lb) with a precision of 50 g. Do not exceed this limit to avoid damage.

Where to find technical support or warranty?

Visit the official website www.vevor.com/support for technical assistance, warranty certificates, and additional information. Keep the manual for reference.

USER MANUAL SF-808 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHIPPING SCALE

MODEL:SF-808

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

SHIPPING SCALE

MODEL:SF-808

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection in European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

INSTRUCTIONS

Thank you very much for choosing this digital scale. Weighing scales are precision instruments that should always be handled with care. Please read all of the instructions before using it. The information will help you achieve the best possible results.

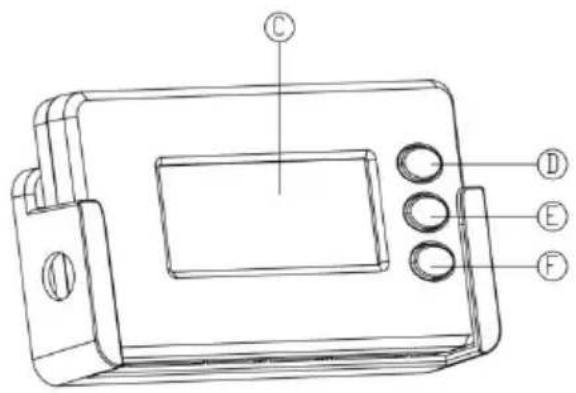

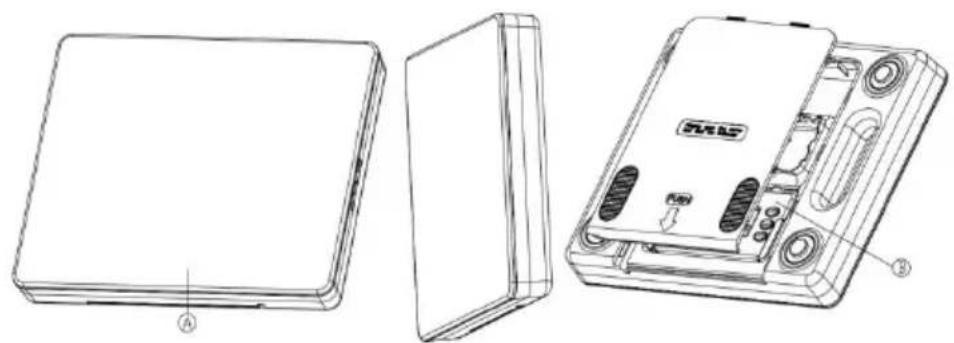

A Weighing plate

B Indicator

C LCD display

F TARE button

D ON/OFF button

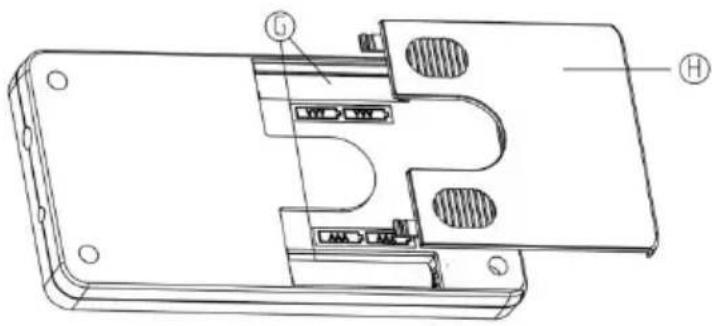

G Battery jar

E MODE button

H Battery cover

SAVE THIS MANUAL

Capacity × Graduation	200kgx50g
Weighing units	Kg lb:oz lb
Weighing pan size	12” x 10”
Overload indication	[O_Ld]
Low voltage indication	[LO]
Optimumoperating temperature	5°C-35°C
Power Supplier	4 x AAA(1.5V) batteries or AC adapter (110-240V AC to 5V DC)

Button Functions

1. ON/OFF Button: Pressing this button will turn the scale on and off. 2. TARE Button: Pressing this button will tare the weight of the load. The tare function will eliminate the weight put on the scale, such as a car or vessel. This will give the weight only of the items added to the scale. 3. UNIT Button: Pressing this button changes the unit of measure for the scale.

OPERATION

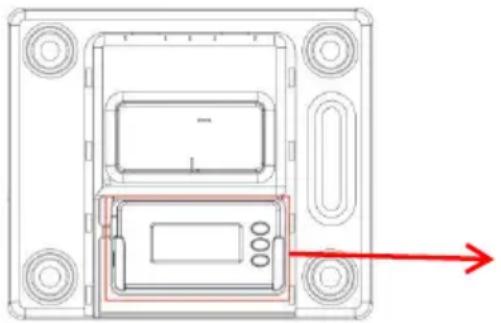

1. Open the back cover and take out the indicator.

Take out this indicator at the back of the scale.

1. Press the ON/OFF button to switch the product on. The display shows "0.0".
2. Place an item on the weighing plate. Wait for the readout on the display to stabilize.
3. After use, press the ON/OFF button to switch the product off.

CALIBRATION

1. Put the scale on a flat platform.
2. Switch on the scale, press the "UNIT" for six seconds until LCD shows capacity and calibration weight.
3. Press TAER button to select calibration weight between 20kg 50kg.
4. Press UNIT button to choose calibration weight.
5. Place the standard weight on the pan according to the value show the LCD display.
6. After 2 to 3 seconds, the LCD display will show PASS indicating scale has been calibrated successfully.
7. If you fail in calibration, the scale will show "Err". You can press ON/OFF to stop calibration and try again.

CARE INSTRUCTIONS

Don't put the scale on an uneven surface

Don't expose scale to moisture

Don't drop or mistreat the scale

Don't overload the scale. This will permanently damage it!

Don't leave weight on the scale when not in use.

Replace battery when the scale shows "LO" on the display.

	items	Description
1	Name	Shipping Scale
2	Model	SF-808
3	Parameter	Rating(s): 4x1.5AAA or 5Vdc, Capacity:200kg/440Division:50g
4	Package Size	360x305x80mm
5	G.W.	2.4KG
