Product type	Room divider / fabric partition screen
Brand	Vevor
Model	PFTSTGMS09
Color	White
Number of panels	3
Product dimensions (L x H x D)	2280 x 1840 x 520 mm
Frame material	Aluminum
Screen material	Fabric
Product weight (estimated)	8 kg
Maximum load	Do not support weight; do not sit or stand on it
Assembly required	Yes, tool included (hex key)
Intended use	Interior space division, decoration
Safety instructions	Do not use as a toy; assemble on a flat surface; wear gloves and safety glasses
Care and cleaning	Wipe the frame with a damp cloth; for fabric creases, use a household iron
Spare parts	Contact customer service via www.vevor.com/support
Warranty	Electronic warranty certificate available online
User manual	Available in multiple languages at notice-facile.com

Frequently Asked Questions - PFTSTGMS09 Vevor

How to assemble the Vevor PFTSTGMS09 room divider?

Follow the steps in the manual: connect tubes A and B, attach crossbars C with long screws F, then insert fabric H into the crossbars. Assemble the three groups and connect them with parts E. Use the provided tool G to tighten all screws.

What tools are provided for assembly?

A tightening tool G (hex key) is included. Long screws F and additional screws are also provided.

Can I wash the fabric of the room divider?

The fabric is not removable. For creases, use a household iron at low temperature to smooth them. For stains, gently wipe with a damp cloth and mild detergent.

What is the height of the room divider?

The total height of the assembled product is 1840 mm (approximately 1.84 m).

Can the room divider support objects?

No, this room divider is designed only as a partition screen. Do not sit on it or place heavy objects on it. The maximum load is zero.

Is the room divider stable on uneven ground?

For optimal stability, assemble the room divider on a flat, hard, level surface. If the floor is uneven, the divider may tip over.

How to clean the aluminum frame?

Wipe the frame with a soft damp cloth, then dry it. Do not use abrasive or corrosive products.

Where can I find the full manual?

The manual is available for free in PDF format at notice-facile.com. You can also download it in multiple languages.

What to do if a part is missing or damaged?

Contact Vevor customer service via www.vevor.com/support with your order number and model PFTSTGMS09. An electronic warranty certificate is available.

Is the room divider foldable?

Yes, the room divider folds using hinges E between the panels. It can be stored flat or in an accordion style.

USER MANUAL PFTSTGMS09 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

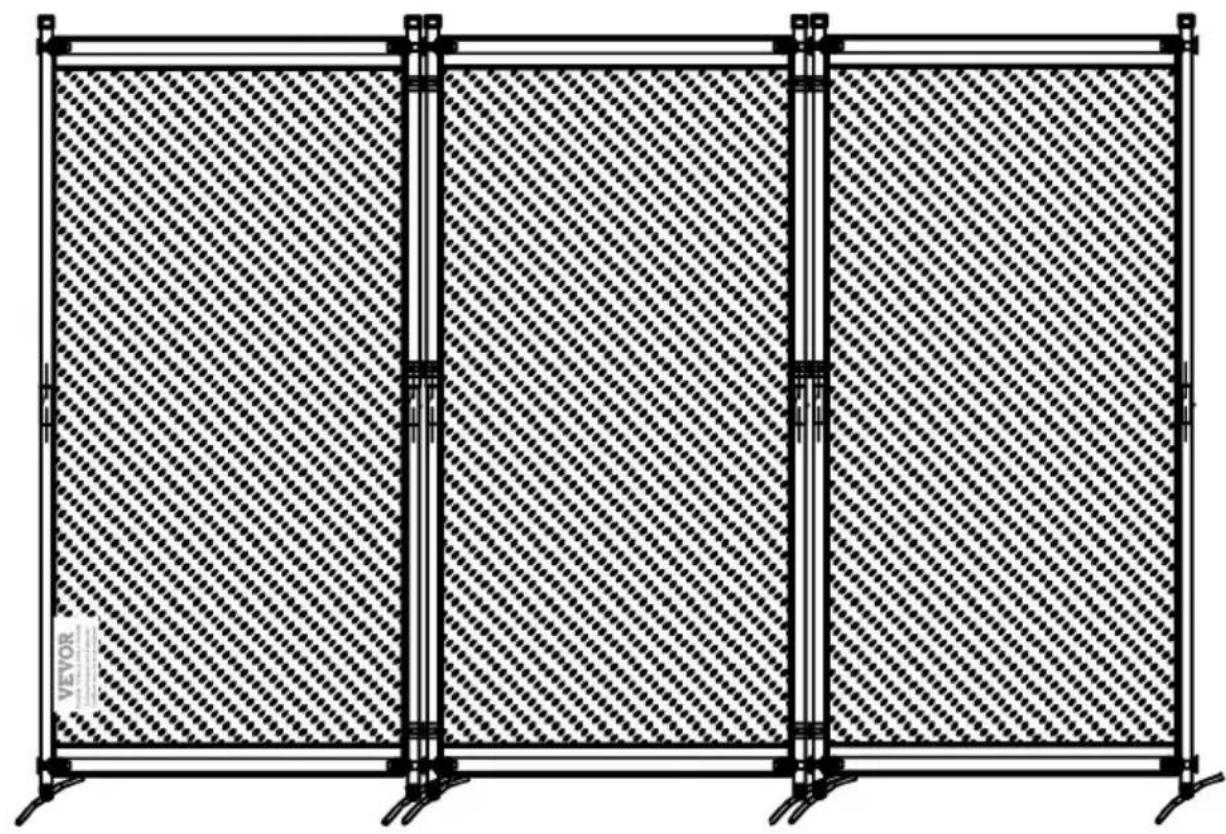

FABRIC ROOM DIVIDER

USER MANUAL

PFTSTGHS04

PFTSTGSH05

PFTSTGMS06

PFTSTGHS07

PFTSTGSH08

PFTSTGMS09

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FABRIC ROOM DIVIDER

PFTSTGHS04 PFTSTGSH05 PFTSTGMS06

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Fabric Room Divide.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with this item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Fabric Room Divider.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

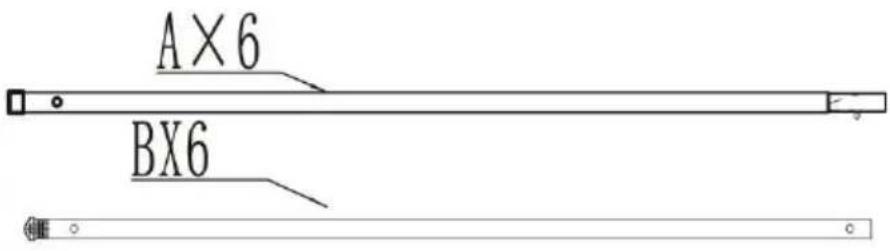

PARTS LIST

A+B		6
C		6
D		6
E		6
F		18+2
G		1
H		3
NOTE: H is the fabric of the screen, pay attention not to g when installing.

ASSEMBLY STEP

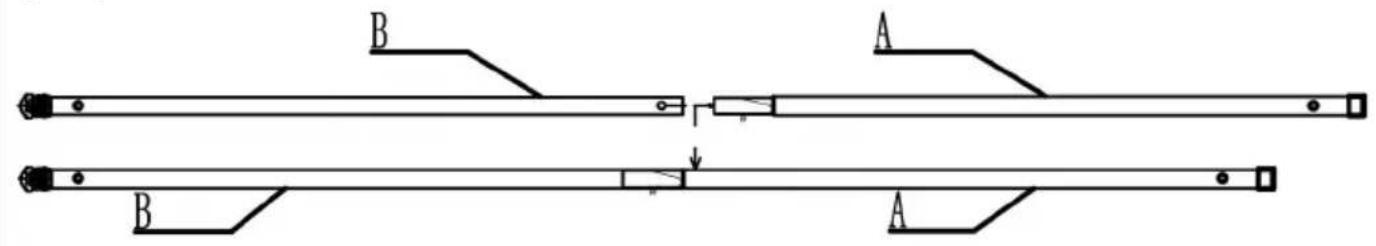

STEP 1

Connect material B and Material A (as shown in the figure).

Connect them together.

Total 6 groups.

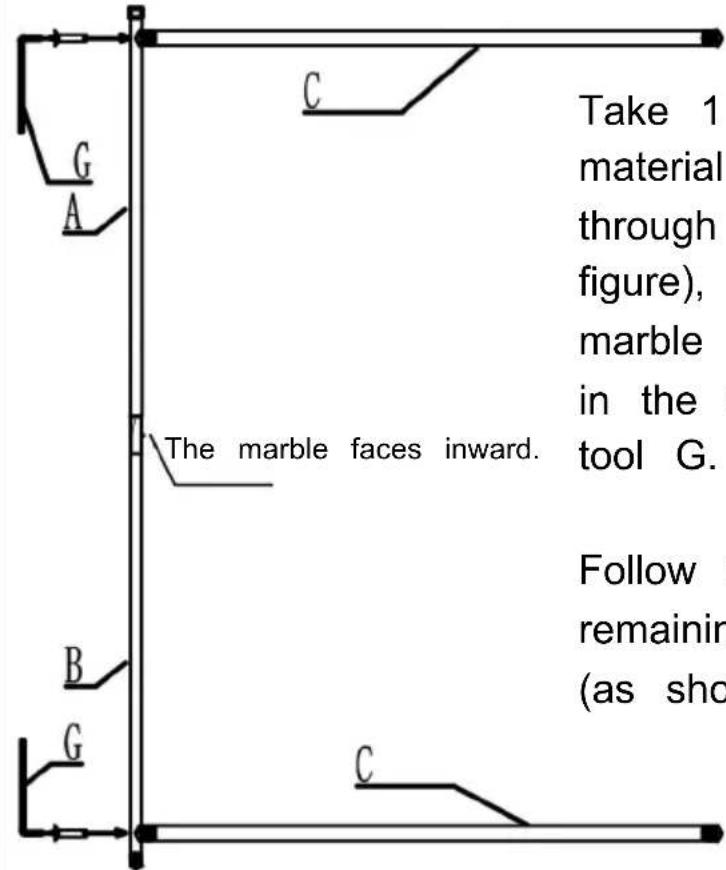

STEP 2

Take 1 piece of material B and 2 pieces of material C from step 1, connect them through long screws F (as shown in figure), pay attention to the position of marble when combining them (as shown in the figure), and then tighten them with tool G.

Follow the same steps to connect the remaining 2 groups for a total of 3 (as shown).

STEP 3

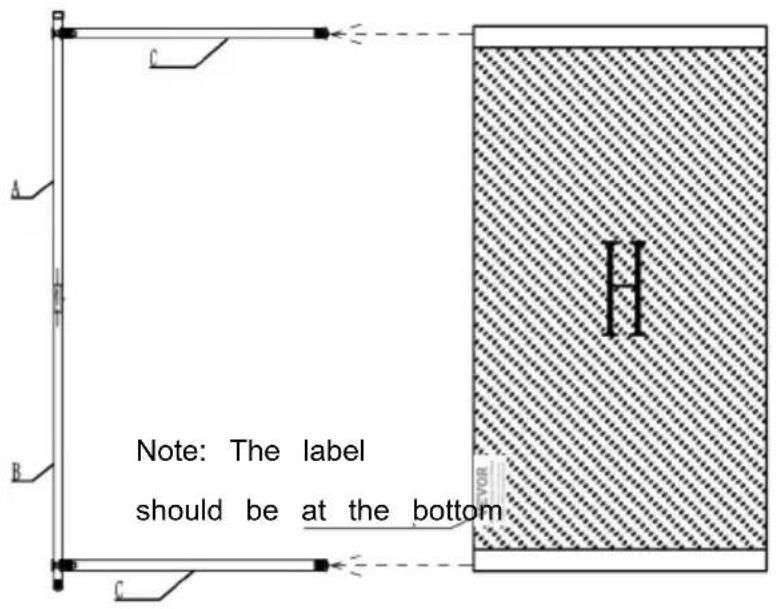

H Material is screen fabric, pay attention to clean during installation.

Insert the sleeve of material H into the upper and lower cross.

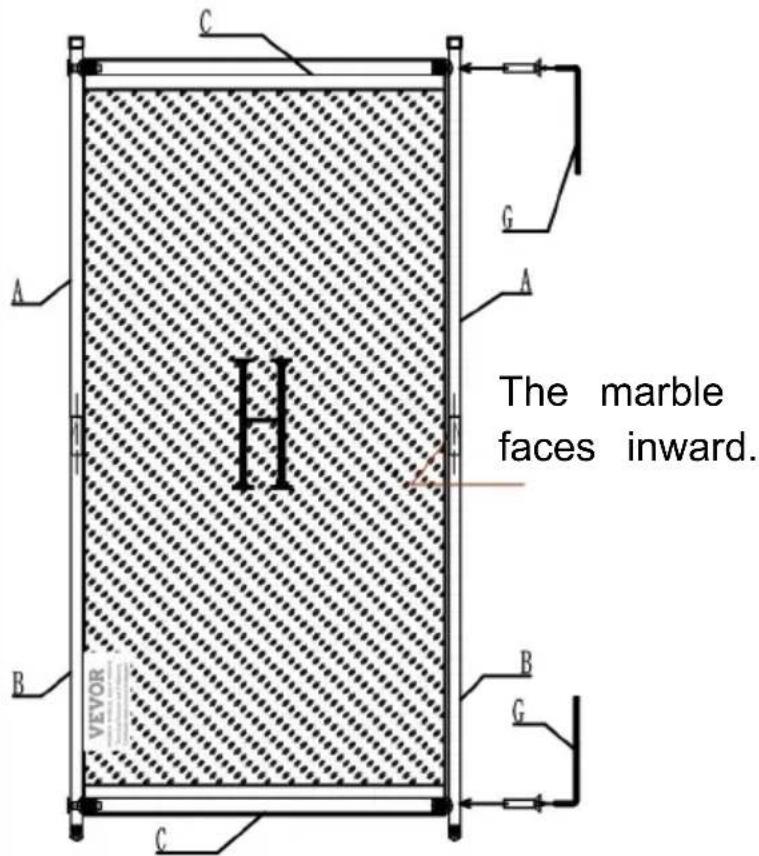

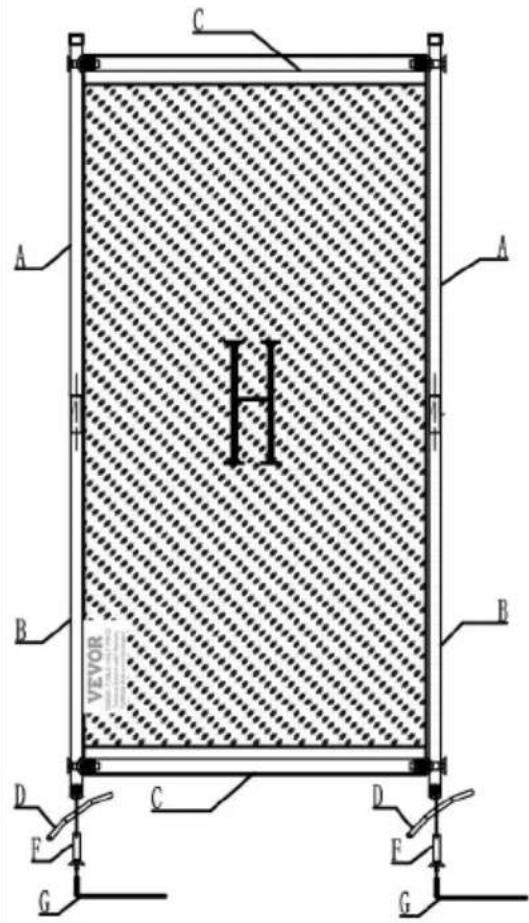

STEP 4

From the remaining tubes in step 1, take a set of tubes, assemble them on the frame, unscrew the screws first, then connect them, and then tighten them with the G tool.

Do the same for the other two groups. Note the position of the marble.

STEP 5

Take material D and assemble it in the frame from step 4. Unscrew the screw first, then connect it, and then tighten it with tool (

The remaining 2 groups complete the assembly with the same steps.

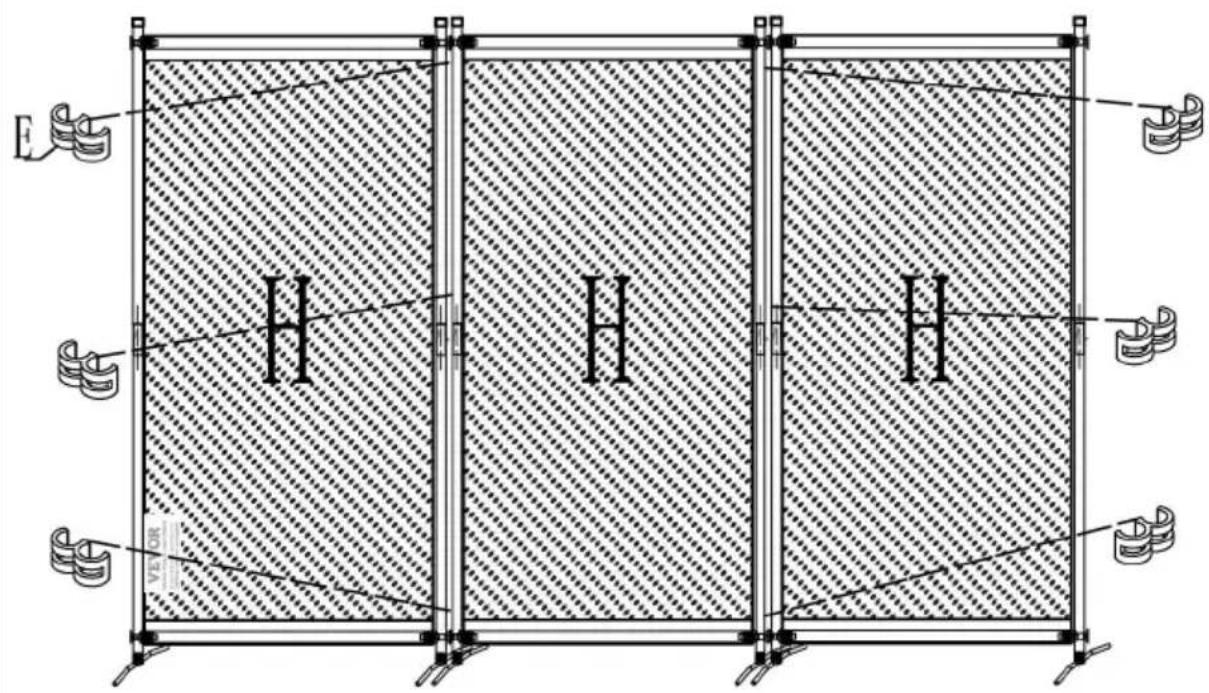

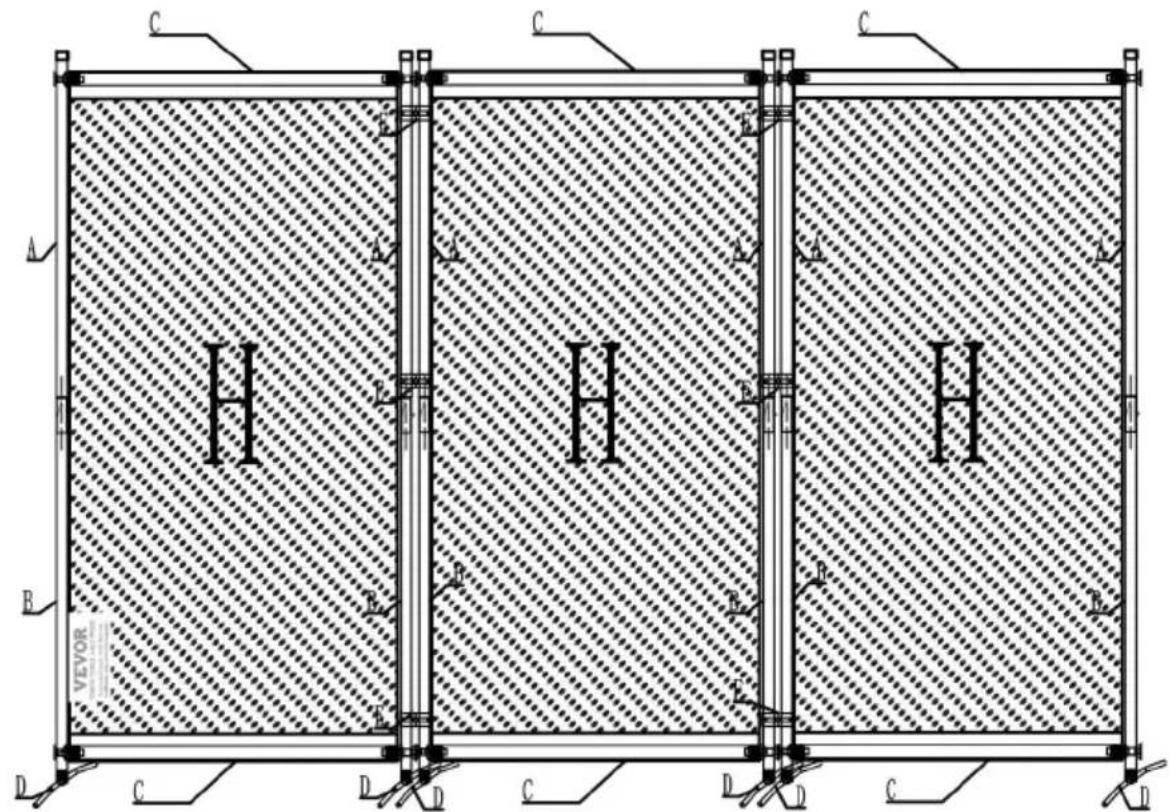

STEP 6

Put the 3 groups of shelves neatly and connect them by mate

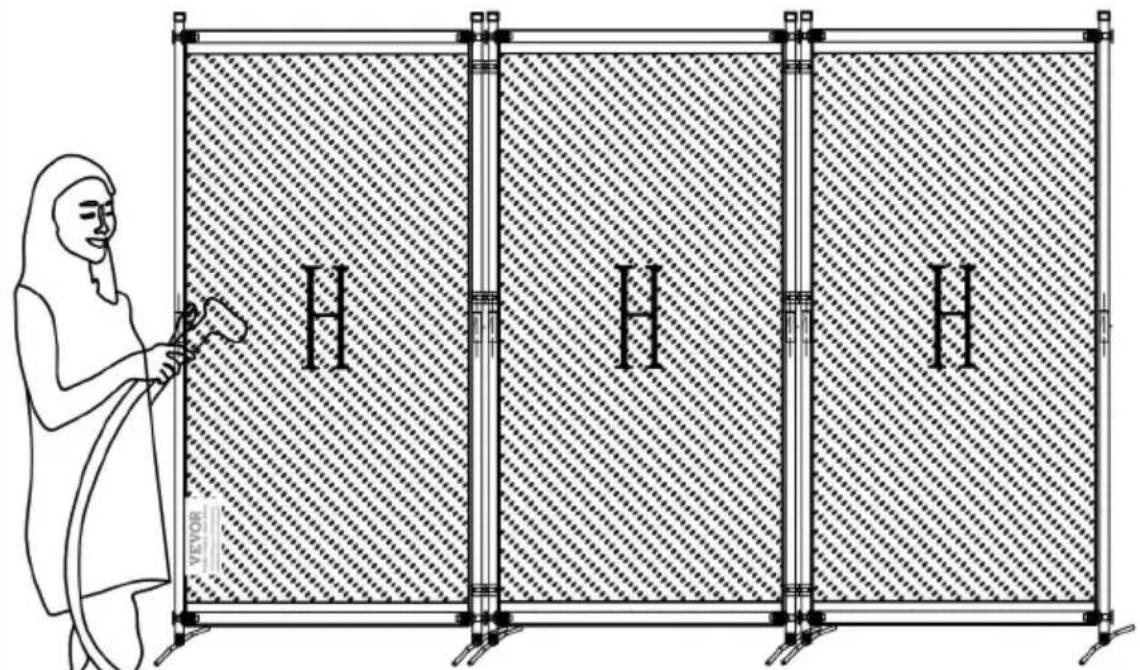

STEP 7

After the installation is completed, arrange the fabric to ensure that the fabric is smooth. If the fabric has wrinkles, you can use a household hanging press to iron it.

STEP 8

PRODUCT PARAMETER

Model	Colour	Number of panels	Product Size
PFTSTGHS04	Black	3	2600*1840*520mm
PFTSTGHS04	Gray
PFTSTGMS06	Cream-Coloured
PFTSTGHS07	Black		2280*1840*520mm
PFTSTGSH08	Gray
PFTSTGMS09	White

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
