USER MANUAL LX-36575A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

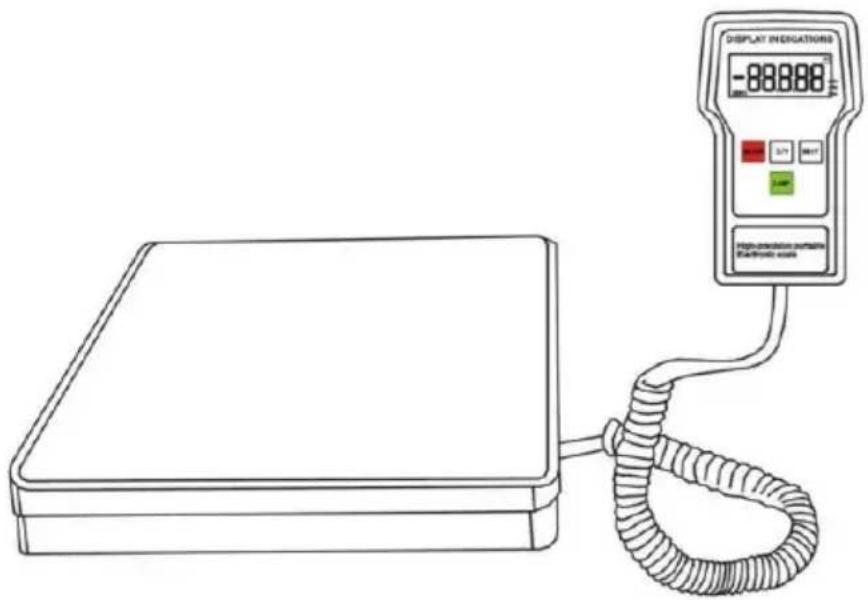

ELECTRONIC SCALE

MODEL:LX-36575A/LX-36575D

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:LX-36575A/LX-36575D

Vevor LX-36575A - ELECTRONIC SCALE - 1

text_image DISPLAY INTEGRATIONS -888888 3/1 0.017 2mm High-resolution portable Electronic units

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

ModelLX-36575ALX-36575D
PowerDC9VDC9V
??A 或??W??A 或??W
Max weight (lbs)110220
Precision2g5g
Product size425*310*66 mm425*310*66 mm
Net weight3.25kg3.25kg

PART LIST

ModelPictureLX-36575ALX-36575D
batteryVevor LX-36575A - NEED HELP? CONTACT US! - 111
electronic scaleVevor LX-36575A - NEED HELP? CONTACT US! - 211
boxVevor LX-36575A - NEED HELP? CONTACT US! - 311

SECURITY & WARNINGS

Vevor LX-36575A - SECURITY & WARNINGS - 1

Study, understand and follow all instructions provided with this product. Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these instructions in a safe and accessible place.

Warning

Don't use the product on the following occasions:

  1. The occasions of vibration and swing;
  2. The occasions of air conditioning and fan blowing straight;
  3. Dusty and wet places;
  4. Inflammable and explosive occasions;

Matters needing attention

  1. Check the cause in time when you find that the weight value is in the process of using the Electronic Scale, where there is electromagnetic interference, such as mobile phones, televisions, freezer or other strong magnetic interference.
  2. Avoid damaging the surface of the product

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product are not expressly approved by the party. Responsibility for compliance could void the us authority to operate the product.

Note: This product has been tested and found to comply with the lir

a Class B digital device pursuant to Part 15 of the FCC Rules. The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses, and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception which can be determined by turning the product off and on, the user encouraged to try to correct the interference by one or more of the following measures.

  • Reorient or relocate the receiving antenna.
  • Increase the distance between the product and the receiver.
  • Connect the product to an outlet on a circuit different from that to the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for assista

CORRECT DISPOSAL

Vevor LX-36575A - CORRECT DISPOSAL - 1

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection the European Union. This applies to the product and all accessories marked with this symbol. Products marked as su may not be discarded with normal domestic waste, but must be taken collection point for recycling electrical and electronic devices.

Introduction

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

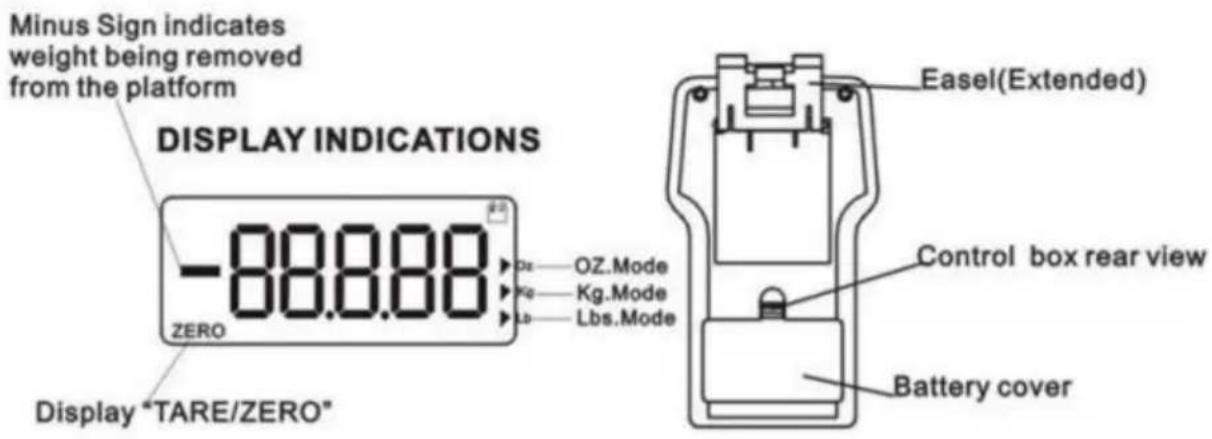

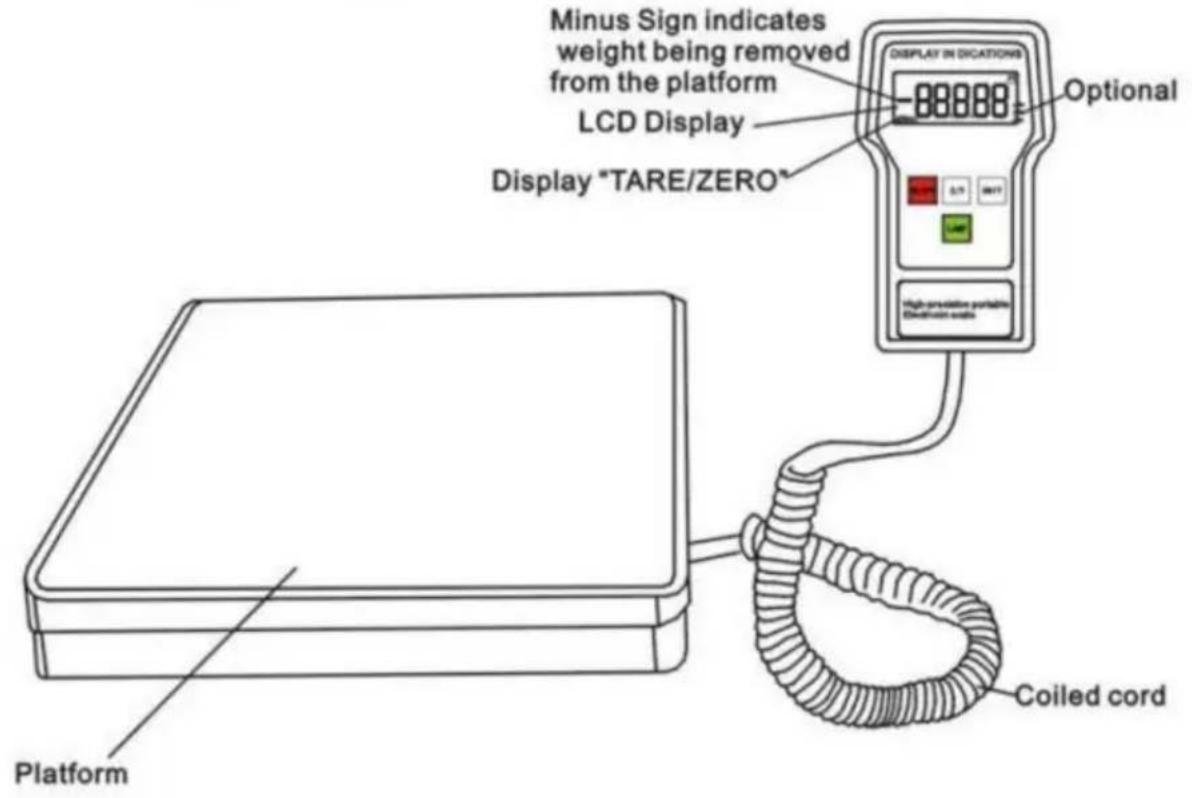

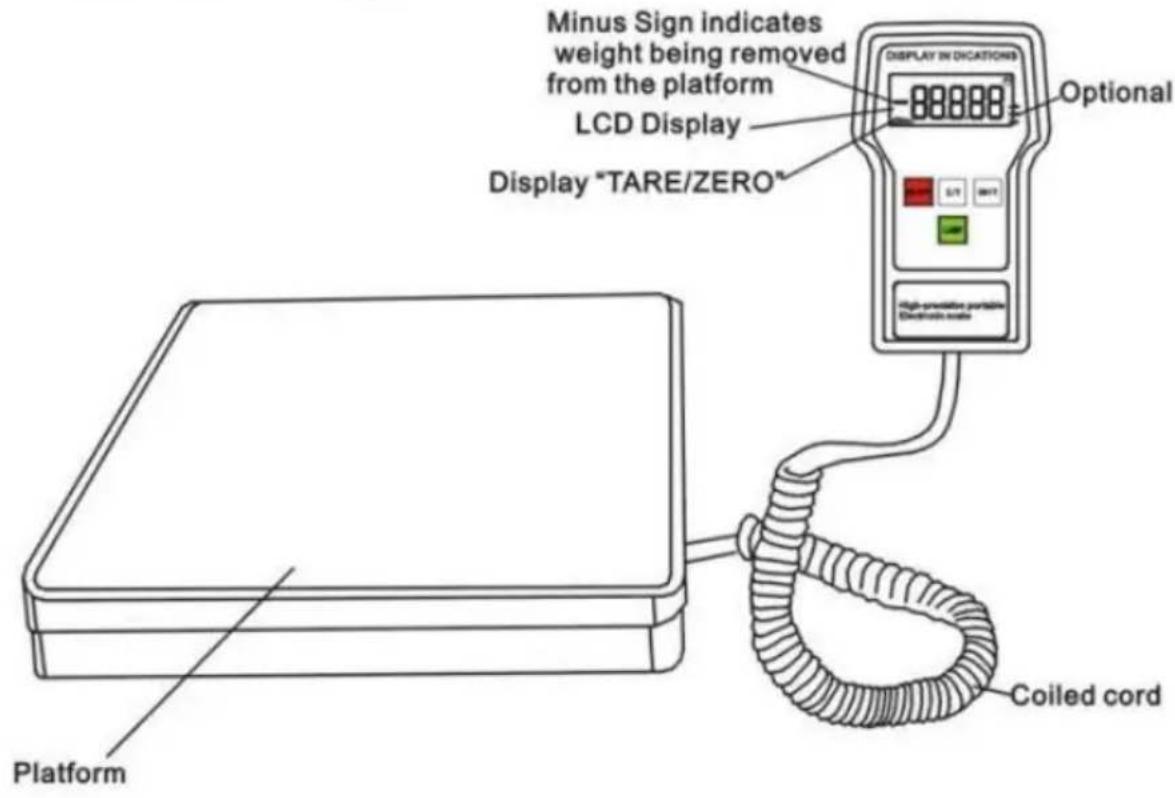

Unit Diagram

Vevor LX-36575A - Unit Diagram - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-precision portfolio Electronic scale Coiled cord Platform

Vevor LX-36575A - Unit Diagram - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZ Mode Kg Mode Lbs Mode Easel(Extended) Control box rear view Battery cover

Set Up

  1. Place the unit on a firm and level surface. The platform and control box can be used in the case or they can be used outside of the case.
  2. Remove the battery cover from the rear of the control box by compressing the tab at the base of the batter cover.
  3. Insert 9V battery. Replace the battery cover by aligning tabs and snap back into place.
  4. Turn the unit power on by pressing the ON/OFF button.
  5. Select the unit of measure by pressing the UNIT (Kg/Lbs/Oz) button.
  6. Press the LAMP button to activate the backlight. Press the LAMP button again to deactivate the backlight.

NOTE: To prevent damage to the unit do not leave dead batteries in the control box. Remove the batteries if the units will not be used for an extended period of time.

CAUTION: If the platform is used in the case, make certain nothing touches the case, control box or platform as false readings may occur.

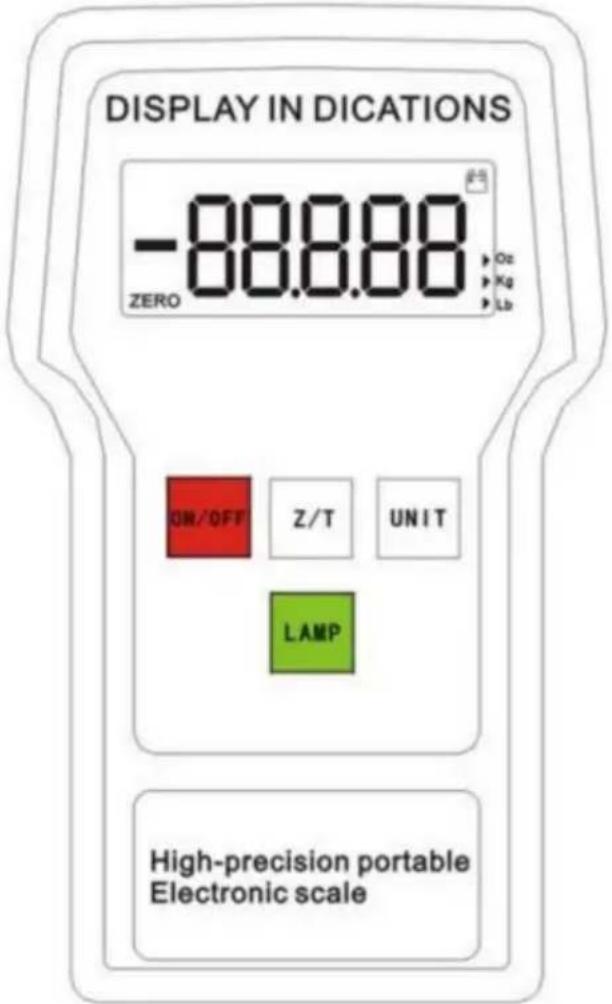

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz. Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: _OZ/_lbs/_g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-_gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

text_image DISPLAY IN DICATKINS -88888 dB High-performance turbine Electronics scale

BESOIN D'AIDE? CONTACTEZ-NOUS!

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

Unit Diagram
Vevor LX-36575A - Features - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-provision portable Dissipation scales Platform Coiled cord

Vevor LX-36575A - Features - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZMode KgMode LbMode Easel(Extended) Control box rear view Battery cover

Set Up

  1. Place the unit on a firm and level surface. The platform and control box can be used in the case or they can be used outside of the case.
  2. Remove the battery cover from the rear of the control box by compressing the tab at the base of the batter cover.
  3. Insert 9V battery. Replace the battery cover by aligning tabs and snap back into place.
  4. Turn the unit power on by pressing the button.
  5. Select the unit of measure by pressing the UNIT (Kg/Lbs/Oz) button.
  6. Press the LAMP button to activate the backlight. Press the LAMP button again to deactivate the backlight.

NOTE: To prevent damage to the unit do not leave dead batteries in the control box. Remove the batteries if the units will not be used for an extended period of time.

CAUTION: If the platform is used in the case, make certain nothing touches the case, control box or platform as false readings may occur.

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: _OZ/_lbs/_g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-_gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

text_image DISPLAY IN DIGITALS -888.88 dB High-performance turbine Electronic scale

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

Unit Diagram
Vevor LX-36575A - Features - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-provision portable Dissipation scales Platform Coiled cord

Vevor LX-36575A - Features - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZMode KgMode LbMode Easel(Extended) Control box rear view Battery cover

Set Up

  1. Place the unit on a firm and level surface. The platform and control box can be used in the case or they can be used outside of the case.
  2. Remove the battery cover from the rear of the control box by compressing the tab at the base of the batter cover.
  3. Insert 9V battery. Replace the battery cover by aligning tabs and snap back into place.
  4. Turn the unit power on by pressing the button.
  5. Select the unit of measure by pressing the UNIT (Kg/Lbs/Oz) button.
  6. Press the LAMP button to activate the backlight. Press the LAMP button again to deactivate the backlight.

NOTE: To prevent damage to the unit do not leave dead batteries in the control box. Remove the batteries if the units will not be used for an extended period of time.

CAUTION: If the platform is used in the case, make certain nothing touches the case, control box or platform as false readings may occur.

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: _OZ/_lbs/_g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-_gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

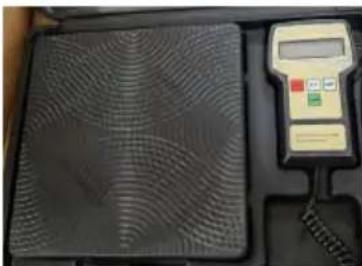

text_image DISPLAY IN DICATKINS -88888 dB High-performance turbine Electronics scale

HO BISOGNO DI AIUTO? CONTATTACI!

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

Unit Diagram
Vevor LX-36575A - Features - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-provision portable Dissipation scales Platform Coiled cord

Vevor LX-36575A - Features - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZMode KgMode LbMode Easel(Extended) Control box rear view Battery cover

Set Up

  1. Place the unit on a firm and level surface. The platform and control box can be used in the case or they can be used outside of the case.
  2. Remove the battery cover from the rear of the control box by compressing the tab at the base of the batter cover.
  3. Insert 9V battery. Replace the battery cover by aligning tabs and snap back into place.
  4. Turn the unit power on by pressing the button.
  5. Select the unit of measure by pressing the UNIT (Kg/Lbs/Oz) button.
  6. Press the LAMP button to activate the backlight. Press the LAMP button again to deactivate the backlight.

NOTE: To prevent damage to the unit do not leave dead batteries in the control box. Remove the batteries if the units will not be used for an extended period of time.

CAUTION: If the platform is used in the case, make certain nothing touches the case, control box or platform as false readings may occur.

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: _OZ/_lbs/_g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-_gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

text_image DISPLAY IN DICATKINS -88888 dB High-performance turbine Electronics scale

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

Unit Diagram
Vevor LX-36575A - Features - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-provision portable Dissipation scales Coiled cord Platform

Vevor LX-36575A - Features - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZMode KgMode LbMode Easel(Extended) Control box rear view Battery cover

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: _OZ/_lbs/_g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-_gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

text_image DISPLAY IN DICATKINS -88888 dB High-performance turbine Electronics scale

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

Unit Diagram
Vevor LX-36575A - Features - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-provision portable Dissipation scales Platform Coiled cord

Vevor LX-36575A - Features - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZMode KgMode LbMode Easel(Extended) Control box rear view Battery cover

Set Up

  1. Place the unit on a firm and level surface. The platform and control box can be used in the case or they can be used outside of the case.
  2. Remove the battery cover from the rear of the control box by compressing the tab at the base of the batter cover.
  3. Insert 9V battery. Replace the battery cover by aligning tabs and snap back into place.
  4. Turn the unit power on by pressing the button.
  5. Select the unit of measure by pressing the UNIT (Kg/Lbs/Oz) button.
  6. Press the LAMP button to activate the backlight. Press the LAMP button again to deactivate the backlight.

NOTE: To prevent damage to the unit do not leave dead batteries in the control box. Remove the batteries if the units will not be used for an extended period of time.

CAUTION: If the platform is used in the case, make certain nothing touches the case, control box or platform as false readings may occur.

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: OZ/____lbs/____g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-__gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

ELEKTRONISCHE SCHAAL

MODEL:LX-36575A/LX-36575D

text_image DISPLAY IN DICATKINS -88888 dB High-performance turbine Electronics scale

HULP NODIG? NEEM CONTACT MET ONS OP!

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

Unit Diagram
Vevor LX-36575A - Features - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-provision portable Dissipation scales Platform Coiled cord

Vevor LX-36575A - Features - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZMode KgMode LbMode Easel(Extended) Control box rear view Battery cover

Set Up

  1. Place the unit on a firm and level surface. The platform and control box can be used in the case or they can be used outside of the case.
  2. Remove the battery cover from the rear of the control box by compressing the tab at the base of the batter cover.
  3. Insert 9V battery. Replace the battery cover by aligning tabs and snap back into place.
  4. Turn the unit power on by pressing the button.
  5. Select the unit of measure by pressing the UNIT (Kg/Lbs/Oz) button.
  6. Press the LAMP button to activate the backlight. Press the LAMP button again to deactivate the backlight.

NOTE: To prevent damage to the unit do not leave dead batteries in the control box. Remove the batteries if the units will not be used for an extended period of time.

CAUTION: If the platform is used in the case, make certain nothing touches the case, control box or platform as false readings may occur.

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: _OZ/_lbs/_g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-_gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

text_image DISPLAY IN DICATKINS -88888 dB High-performance turbine Electronics scale

BEHÖVS HJÄLP? KONTAKTA OSS!

Digital Refrigerant Scales utilize the most technologically advanced refrigerant meters today and are ideal for HVAC and refrigeration systems. The weight can be measured in standard or metric units. The units have a built in alarm to indicate the measurement has been exceeded.

Features

  1. High visibility LCD display
  2. Three units of measure options (kg/oz/lbs).
  3. Backlight for the display
  4. Automatic Shut-off after 10 minutes of non-use; backlight will shut off after 3 minutes of non-use or use.
  5. Compact, portable, battery operated design
  6. "FULL" display when the weight exceeds the specified range

Unit Diagram
Vevor LX-36575A - Features - 1

text_image Minus Sign indicates weight being removed from the platform LCD Display Display "TARE/ZERO" DISPLAY IN DICATIONS Optional High-provision portable Dissipation scales Platform Coiled cord

Vevor LX-36575A - Features - 2

text_image Minus Sign indicates weight being removed from the platform DISPLAY INDICATIONS -88.8.88 ZERO Display "TARE/ZERO" OZMode KgMode LbMode Easel(Extended) Control box rear view Battery cover

Set Up

  1. Place the unit on a firm and level surface. The platform and control box can be used in the case or they can be used outside of the case.
  2. Remove the battery cover from the rear of the control box by compressing the tab at the base of the batter cover.
  3. Insert 9V battery. Replace the battery cover by aligning tabs and snap back into place.
  4. Turn the unit power on by pressing the button.
  5. Select the unit of measure by pressing the UNIT (Kg/Lbs/Oz) button.
  6. Press the LAMP button to activate the backlight. Press the LAMP button again to deactivate the backlight.

NOTE: To prevent damage to the unit do not leave dead batteries in the control box. Remove the batteries if the units will not be used for an extended period of time.

CAUTION: If the platform is used in the case, make certain nothing touches the case, control box or platform as false readings may occur.

Keypad

Vevor LX-36575A - Keypad - 1

text_image DISPLAY IN DICATIONS -88.8.88 ZERO Oz Kg Lb ON/OFF Z/T UNIT LAMP High-precision portable Electronic scale

Vevor LX-36575A - Keypad - 2

ON/OFF:Press to power on.press to power off

Vevor LX-36575A - Keypad - 3

UNIT:Select unit of measure:LBS/KG/OZ

Vevor LX-36575A - Keypad - 4

ZERO:ZERO display

Vevor LX-36575A - Keypad - 5

LAMP:Backlight

Operation

  1. Set up the unit as described in steps 1 - 5 under the Set Up heading.
  2. Press the Z/T button to clear the unit. Ensure to start the unit at 0.
  3. Place the cylinder in the center of the platform.
  4. Start the charging or recovery operation by opening the cylinder and manifold and gauge set valves.
  5. When operation is completed, close the cylinder and manifold and gauge set valves.

NOTE: The unit have an Over Range Indicator which displays "FULL" when the weight of the cylinder exceeds the maximum capacity of the unit. To prevent damage to the unit, immediately remove the cylinder from the platform if the display states "FULL".

  1. Remove the cylinder from the platform and press the button to deactivate the unit.

Weight Measurements

  1. Turn the unit on by pressing the ON/OFF button.
  2. Press the UNIT button to choose the type of unit of measure.
    (KG/LBS/OZ)
  3. Press the Z/T button to zero out the display.

  4. Place the weighing object in the center of the platform and the gross weight will display.

  5. Remove weighing object from scale and press to turn off the unit. ON/OFF button

Maintenance

  1. Immediately remove the weighing object from the platform if the display states "FULL". This is the over range indicator which means the weight has exceeded the maximum capacity of the platform.
  2. Replace the battery of the unit if the battery indicator flashes in the top right hand corner of the control box.

Specifications

Capacity:

110lbs/50kg

154lbs/70kg

200lbs/90kg

220lbs/100kg

Resolution: _OZ/_lbs/_g Operating temperature range: 32° to 122°F(0\~50°C) Storage temperature range: -4 to 158°F(-20\~70°C) Accuracy: +/-_gof reading whichever is greater Platform size: 23cm*23cm, removable Total unit weight: 3.3kg

NOTE: To prevent damage, never exceed the rated capacity of the unit

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : LX-36575A

Category : Scale
