USER MANUAL MDH08 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FURNITURE DOLLIES

MODEL: MDH08

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FURNITURE DOLLIES

MODEL: MDH08

Mechanical assembly with four articulated legs and blue wheels, no visible text or symbols

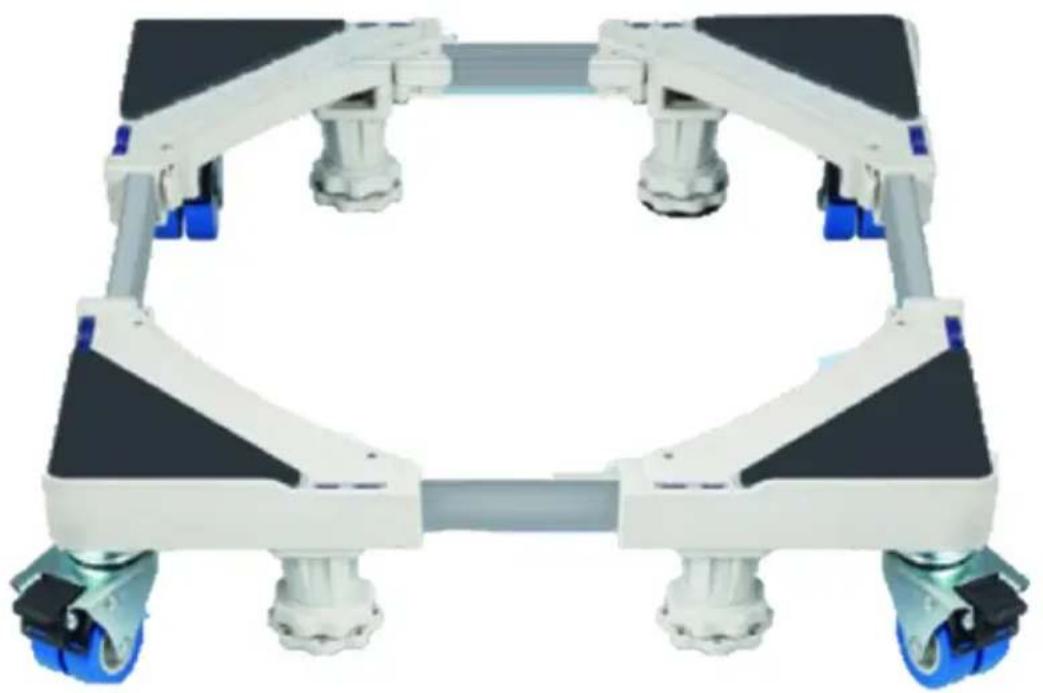

Photo for Reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTION AND PRECAUTIONS

WARNING:

WARNING:

1. Please do not put it near flammable materials.
2. It is forbidden to carry people under any condition.
3. This product cannot be used to go up or down stairs.
4. Don't move too fast when passing pothole areas
5. Do not climb, sit or stand on the dolly.

6. Do not exceed the loading capacity.

7. Do not use the dolly if any part is missing or damaged. Replace damage parts immediately.

MODEL AND PARAMETERS

Model	Photo	PARAMETERS
MDH08	1-pack	Material: PP +stainless steelLoad Capacity:1. The maximum load does not exceed 1100 pounds.

ASSEMBLY & INSTALLATION

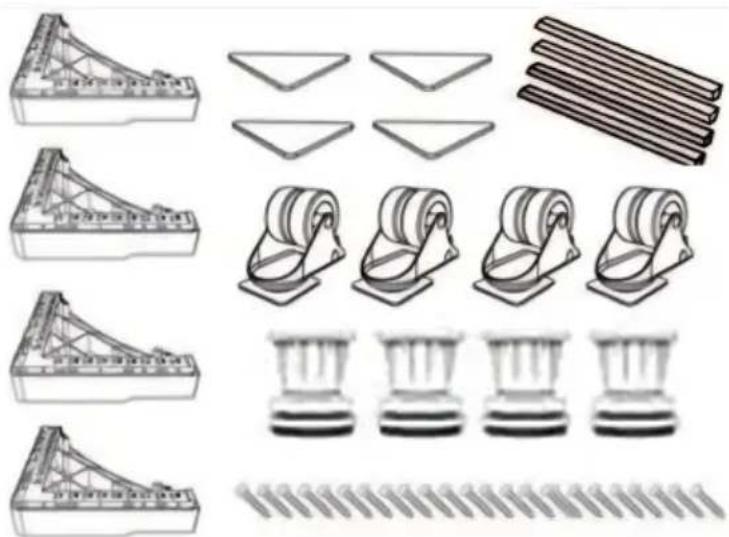

Part list:

Collection of 3D architectural drawings and mechanical components, including triangular and cylindrical parts (no text or symbols)

Assembly:

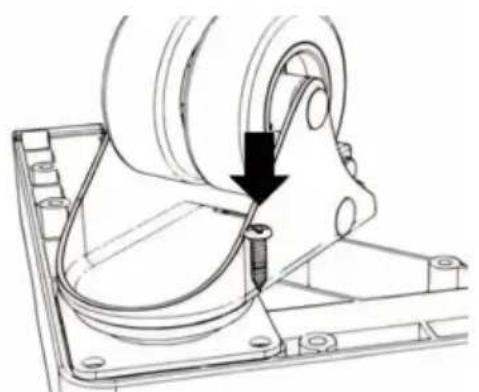

Step 1 Use screws to fix 4 wheels.

Technical line drawing of a mechanical assembly with a pulley and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with four views (top, front, side, and top) showing different components and mounting brackets (no text or symbols)

Step 1 Step 2

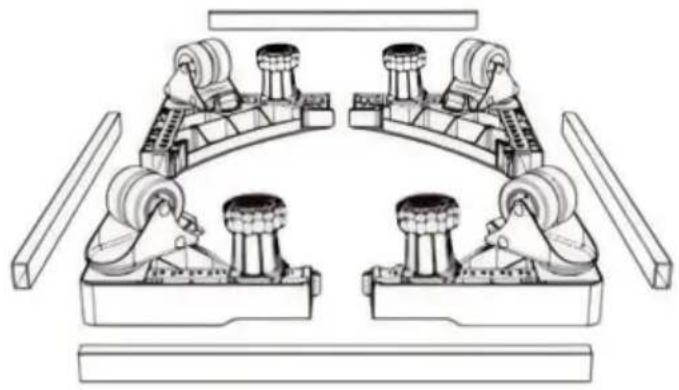

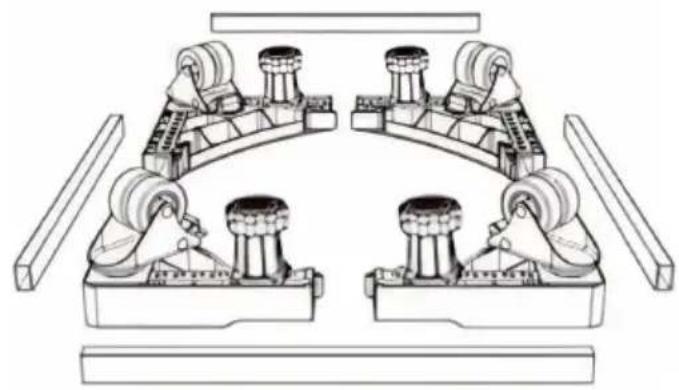

Step 2. Use screws to fix 4 foot pedestals then place Staubkess steel square as picture shows.

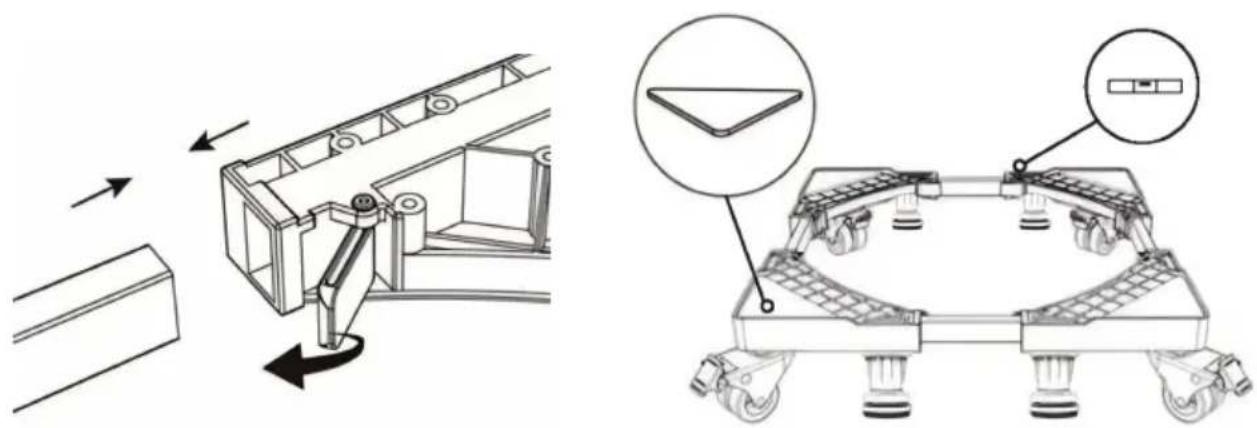

Step 3. 4insert Stainless steel square tube & adjust to the proper size, then buckles.

Technical diagram showing mechanical assembly and component layout (no text or symbols)

Step 3 Step 4

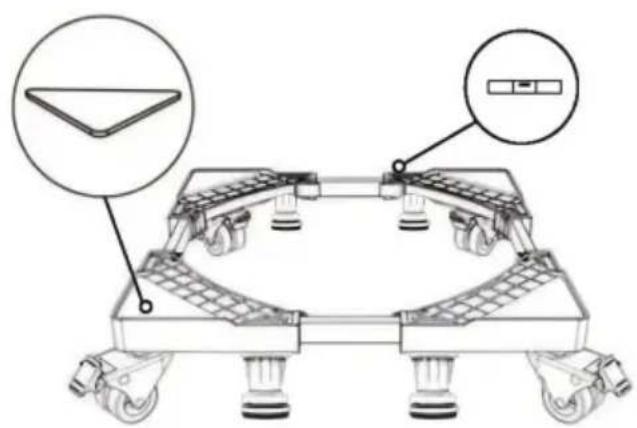

Step 4. Stick shock absorption mats in 4 corners of this base.

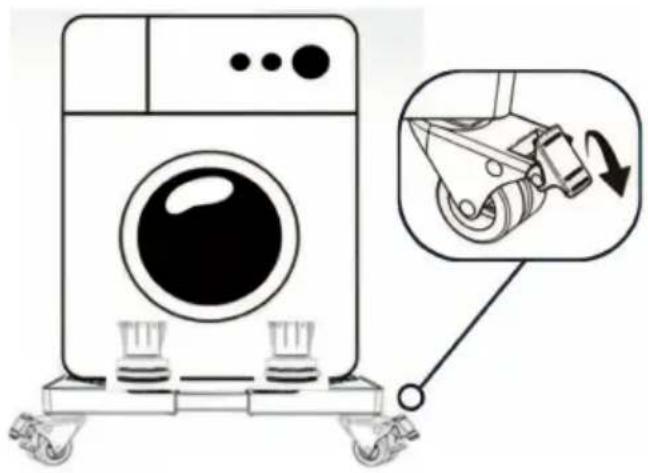

Step 5. Rotate to the proper height to keep the base flat.

Line drawing of a washing machine with a magnified inset showing the blade being lifted (no text or symbols)

Step5

GENERAL SAFETY WARNINGS

WORK AREA SAFETY

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when operate the dolly. Do not use a dolly while you are tired or under the influence of alcohol or medication. A moment of inattention while operating this dolly may in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a respiratory mask. non-skid safety shoes and hearing protection used for appropriate conditions will reduce the risk of personal injury
3. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be in moving parts.

TOOL USE AND CARE

1. Do not force the dolly. Use the correct dolly for your application. The cordolly will do the job better and safer at the rate for which it was designed.
2. Store idle dolly out of the reach of children and do not allow persons ur with the dolly or these instructions to operate it. The dolly can be dangerous hands of untrained users.
3. Maintain dolly. Check for misalignment or binding of moving parts, breakag parts and any other condition that may affect the dolly's operation. If damage have the dolly repaired before use. Many accidents are caused by poorly maintained tools.
4. Use the dolly, accessories, and bits, etc. in accordance with these instruct taking into account the working conditions and the work to be performed. Use the tool for operations different from those intended could result in a hazardous situation.
5. Try to apply force on the four wheels as much as possible, rather than concentrating on the middle

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
