USER MANUAL KH-Q05 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

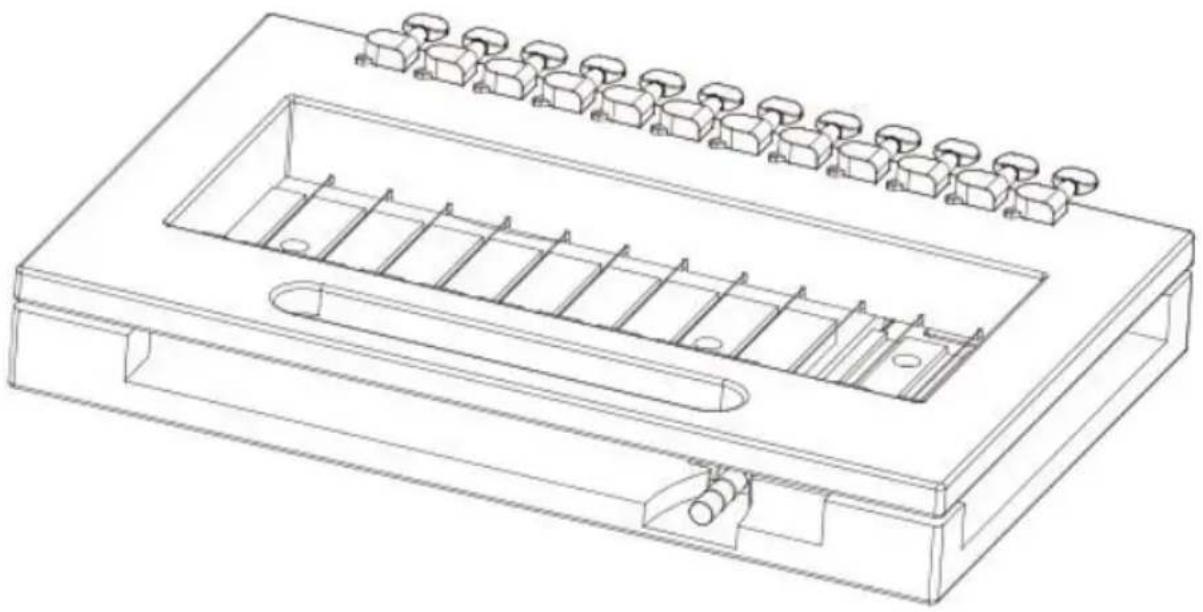

SOAP CUTTER

MODEL: KH-Q05

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SOAP CUTTER

MODEL: KH-Q05

Technical line drawing of a rectangular electronic component with internal slots and mounting holes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Always follow basic safety precautions when using these devices.

These include:

1. The device should not be used with children. There are blades or steels wire on the device. Children may encounter injury accidents. Therefore, this product should be placed in a position not touched by children.

2. For optimal operation and service life of the device, please follow the instructions.

3. Always clean this equipment immediately after every use. To maintain the appearance and increase the service life, clean it daily.

4. Care should be taken not to touch the banging blades or steels directly or operate with gloves during operation.

5. Do not put these devices in a dishwasher or other automatic cleaning device cleaning.

6. The use of accessories or modifications not provided by the manufacturer m cause hazards.

7. Only use this equipment for cutting soap! This product is not suitable for processing foods.

8. Before using this equipment for the first time, please remove all packaging fixing materials according to the illustration and use them after installation.

9. To the replace blade or steel sets, please ensure that the specification and models of blade plate are consistent.

WARNING: Blades or steels can cause cuts. To avoid injury from blades or handle with care and watch your fingers.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	KH-Q05
Cutting Mode	Multi-wire/Single-wire Cutting
Cutting Spacing	1inch & Adjustable
Material	Bamboo & Stainless Steel

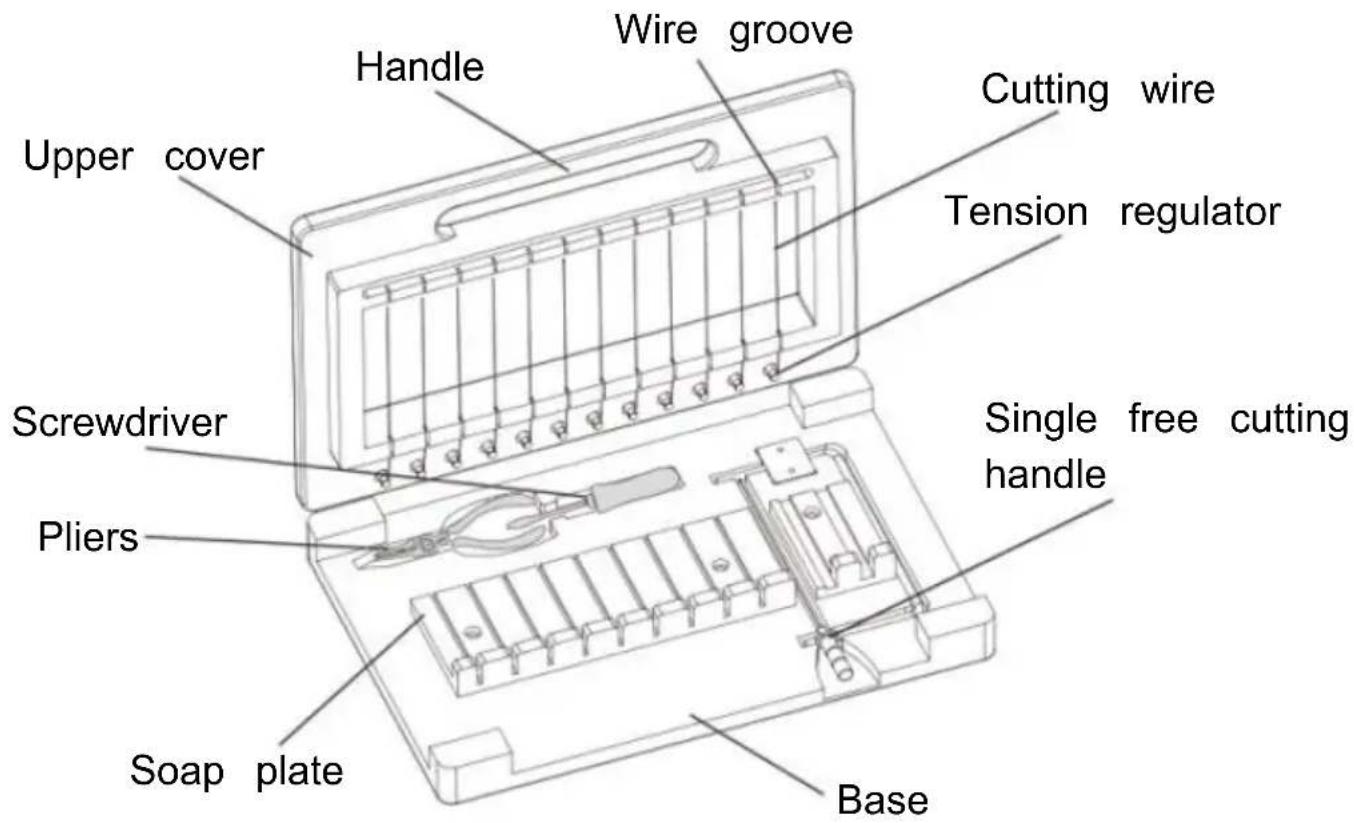

STRUCTURE DIAGRAM AND COMPONENTS

Handle Wire groove Upper cover Screwdriver Pliers Soap plate Base Cutting wire Tension regulator Single free cutting handle Base

No.	Picture	Name	Qty
1		Soap cutter	1
2		Pliers	1
3		Screwdriver	1
4		Open spanner	1
5		Cutting wire	10
6		User Manual	1

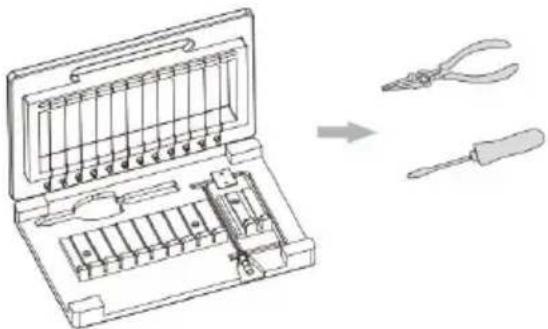

1. Take out the pliers and screwdriver to avoid affecting the use.

Line drawing of a tool kit with a pliers and screwdriver, showing internal components (no text or symbols)

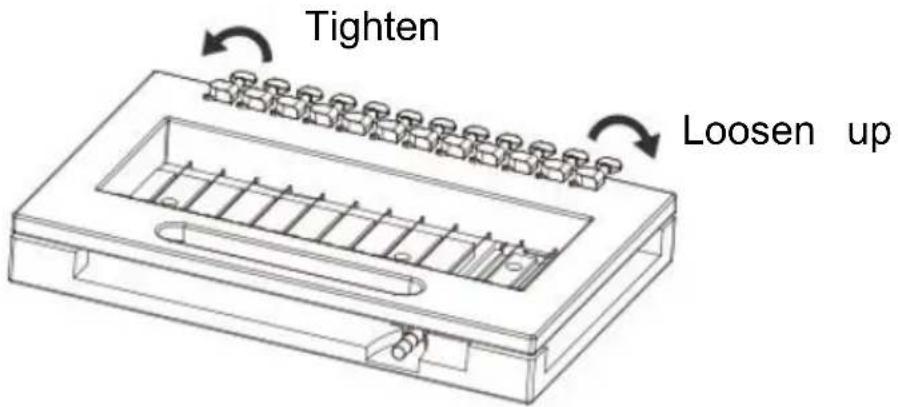

1. Check the tightness of the wire before use.

Tighten Loosen up

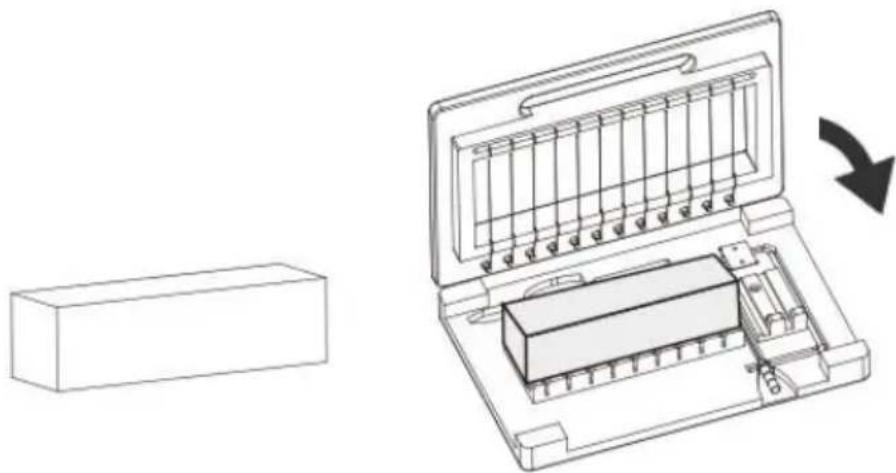

1. Place the soap in the holding plate (Make sure it does not exceed the limit.) and then pull the handle and slowly press down to the bottom.

Technical line drawing of a mechanical device with an open casing and internal components, showing a transformation arrow (no text or symbols)

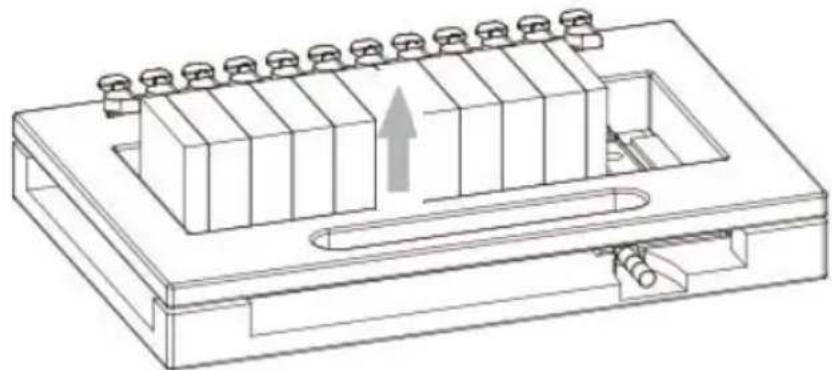

1. There is no need to open the top cover to remove the soap. Just remove from the top.

Technical line drawing of a mechanical assembly with numbered components and an upward arrow indicating motion (no text or symbols)

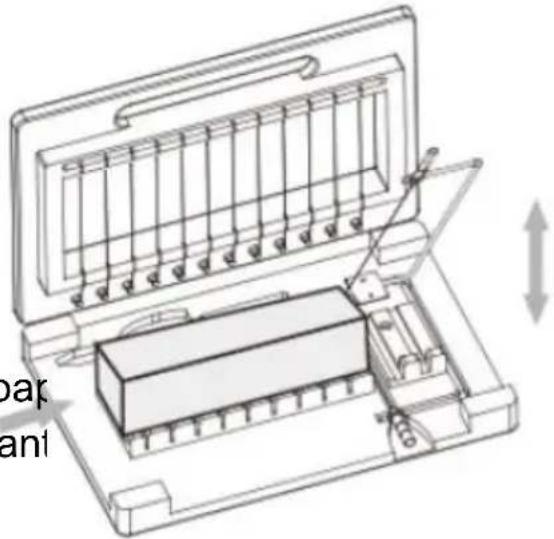

Single-wire Cutting:

Place the soap in the holding plate (Make sure it does not exceed the limit.) .

Pull the single free cutting handle and slowly press down to the bottom.

Push the end of the soap cut out the size you want

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

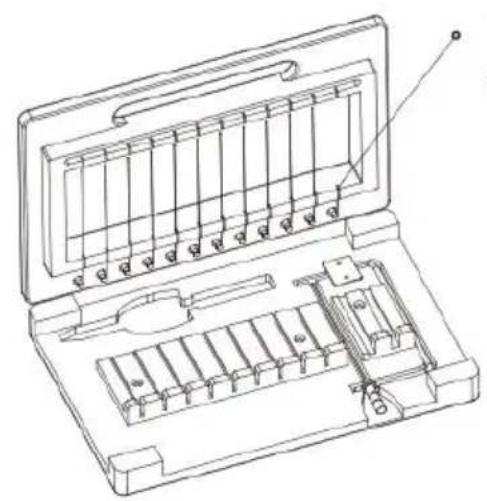

5. Replacement of the cutting wire.

Technical line drawing of a mechanical component with multiple slots and a housing (no text or symbols)

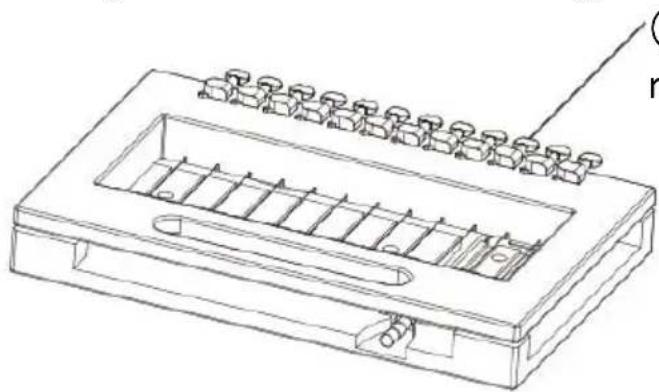

①Adjust the Tension regulator t relax the wire.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

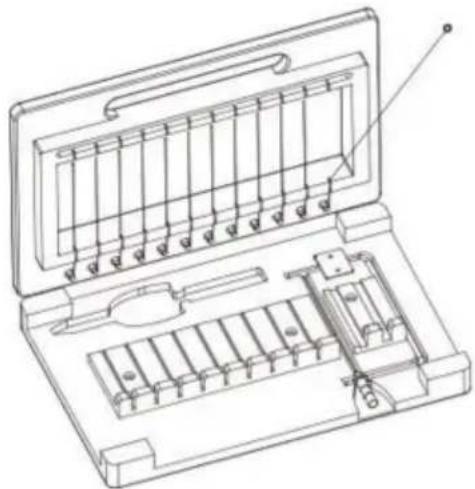

②Remove the other end of the wire and then remove the entire wire.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

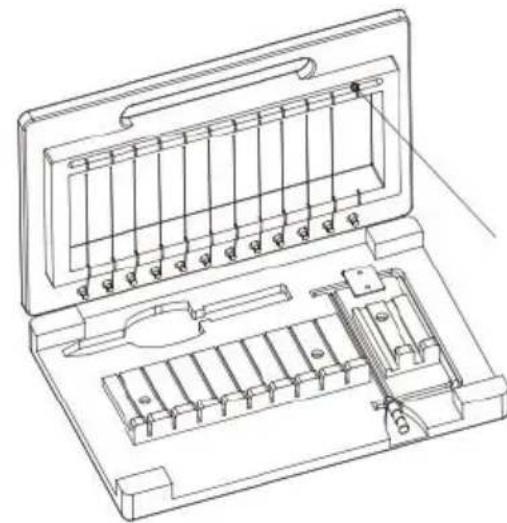

③Pass the new wire through the small circular gasket and press into the wire groove. ④Pass the other end of the wire through the regulator hole, wrap a few more turns to ensure that the pull is not loose, and then manually adjust (Excess length of wire can be cut off).

MAINTENANCE

1. Keep the machine level, clean the surface of the body in time, and keep dry
2. Keep out of reach of children.
3. Do not use hard objects to touch the wire, which may damage the wire and affect the service life.
