HXTC-3LD - Transport cart Vevor - Free user manual and instructions

Brand	Vevor
Model	HXTC-3LD
Product Type	Shelf Transport Cart
Number of Shelves	3
Maximum Capacity per Shelf	50 kg (110 lb)
Total Maximum Capacity	150 kg (330 lb)
Material	Steel
Color	Black or White
Approximate Dimensions (L x W x H)	91 x 38 x 107 cm
Approximate Net Weight	15 kg
Wheel Type	4 swivel casters (2 with brake, 2 without brake)
Power Supply	None (manual)
Main Functions	Transport and storage of books, documents
Maintenance and Cleaning	Clean the surface after each use; check bolts; lubricate wheel bearings
Safety	Do not transport people; do not overload; use on flat surface; engage brakes when stopping
Included Spare Parts	Hex key, M6x8 and M6x14 bolts, M6 cap nuts, 10 mm and 19 mm wrenches, book ends, document holder
Repairability	Bolts and wheels replaceable; regular maintenance recommended
General Information	Manufactured by Shanghai Muxinmuye Co., Ltd. (China); imported by SIHAO PTY LTD (Australia) and Sanven (USA)
Assembly Required	Yes, comes with detailed instructions
Recommended Use	Indoors, flat surfaces

Frequently Asked Questions - HXTC-3LD Vevor

What is the total load capacity of the cart?

The maximum capacity per shelf is 50 kg (110 lb), for a total capacity of 150 kg (330 lb). Do not exceed this limit.

Do the front wheels have brakes?

Yes, two of the four swivel casters are equipped with brakes. Lower the levers to lock, pull them up to unlock.

Is the cart difficult to assemble?

Assembly is simple but it is recommended to have two people. Follow the steps in order: mount the storage panels, attach the side plates, tighten the bolts, install the document holder and wheels.

Can I use this cart outdoors?

This cart is designed for indoor use on flat surfaces. Using it on uneven or sloping ground may cause instability and injury.

How to maintain the cart?

After each use, clean the surface. Regularly inspect the bolts and tighten them if necessary. Lubricate the wheel bearings with grease periodically.

What tools are provided for assembly?

The box contains a hex key, 10 mm and 19 mm wrenches, M6x8 and M6x14 bolts, and M6 cap nuts. No additional tools are needed.

Can the cart carry people?

No, it is strictly forbidden to carry people. The cart is designed solely for transporting goods.

Are the shelves adjustable in height?

The shelves are fixed (non-adjustable). The HXTC-3LD model has three shelves at predetermined heights.

What is the warranty on the product?

The manual does not mention a specific warranty period. Check with the Vevor retailer or consult the terms of sale.

Can the wheels be replaced if they wear out?

Yes, the wheels are replaceable. Unscrew the mounting bolts and install wheels of the same type. Be sure to tighten properly.

USER MANUAL HXTC-3LD Vevor

Affordable. Reliable. Home Improvement.

BOOK CARTS

MODEL: HXTC-3LD

VEVOR

Affordable. Reliable. Home Improvement.

BOOK CARTS

MODEL: HXTC-3LD

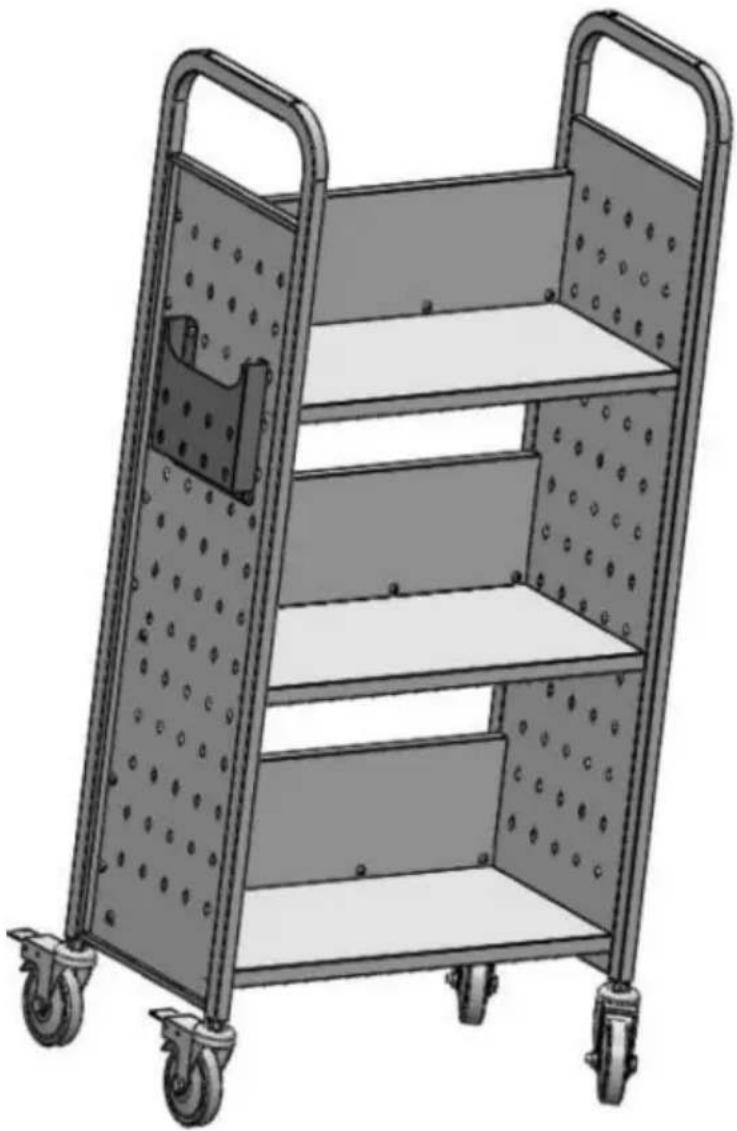

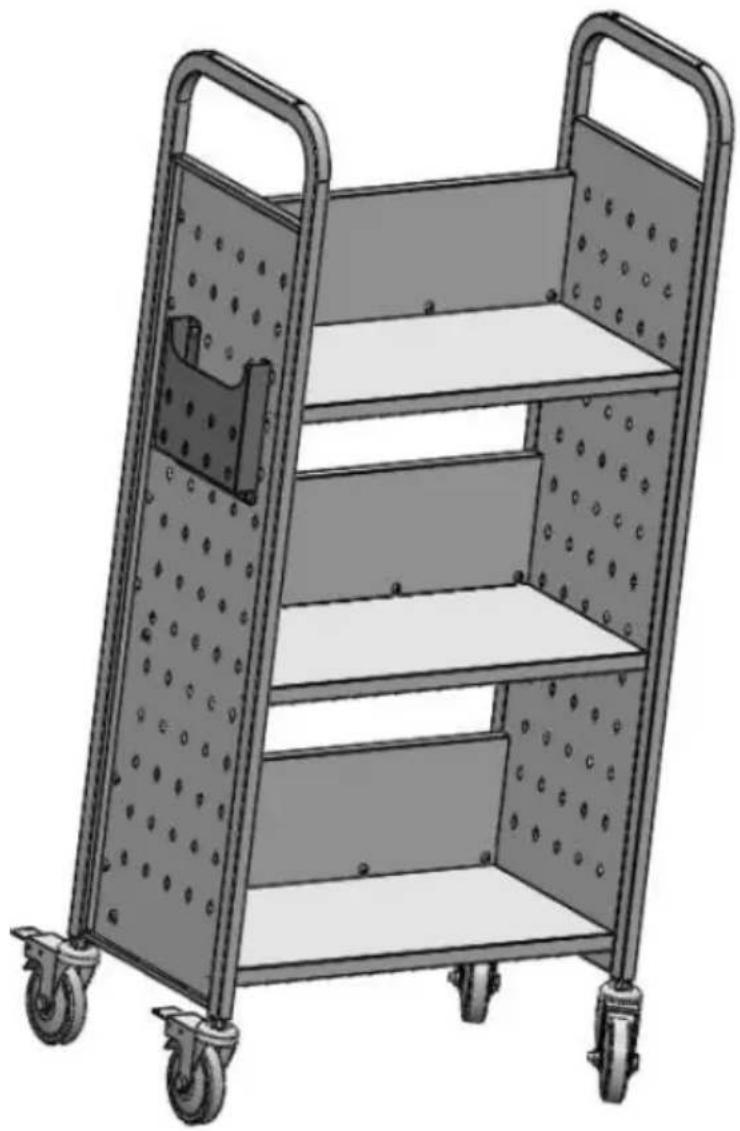

Illustration of a multi-tiered metal cart with wheels and side handles (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. It is forbidden to carry people under any condition.
2. Keep the product on level surfaces. It is forbidden to load articles uneven and hilly terrains. The product may become unstable and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
3. Overload is strictly prohibited.
4. Don't move too fast when passing pothole areas.
5. Use the brakes when this product is not being moved. This prevent the product from rolling.
6. Do not alter this product in any manner.
7. Do not lift the product directly with a forklift or tow with any med devices.

MODEL AND PARAMETERS

Model	HXTC-3LD
Shelve Type	L-shaped(Single-sided)
Number of Shelves	3
Max. Capacity	110lbs/per shelf
Material	Steel
Color	Black / White

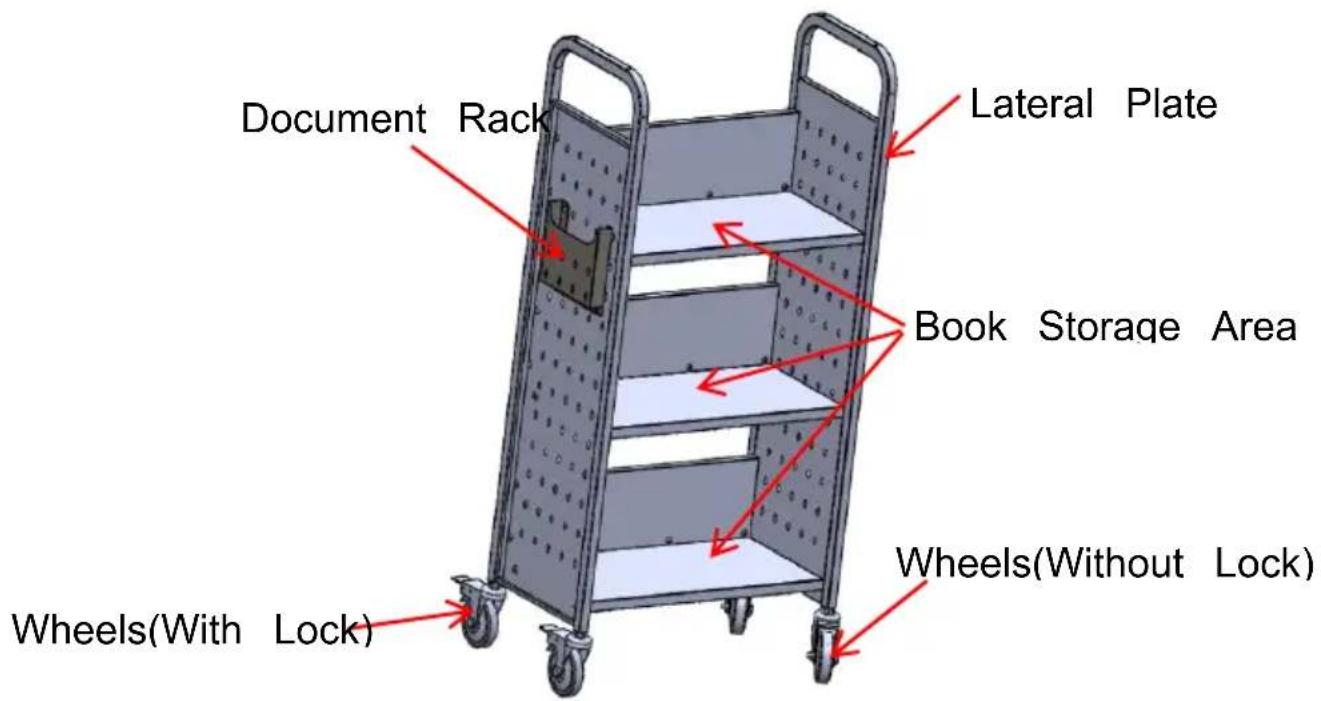

STRUCTURE DIAGRAM

PARTS LIST

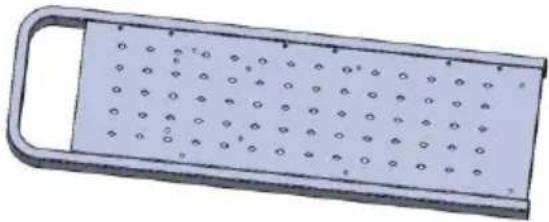

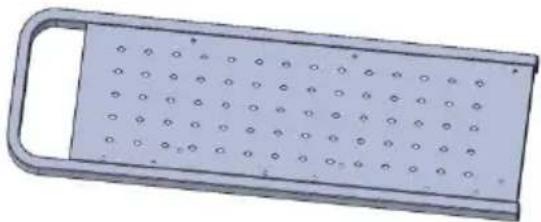

Lateral Plates x1	Lateral Plates x1
Bookshelf Backboards x3	Book Storage Panels x3
Wheels(Without Lock) x2	Wheels(With Lock) x2
Bookends x1	Document Rack x1
Hex key x1	Hat nuts(M6) x16
Bolts(M6*8) x16	Wrenchs(10+19mm) x2
Bolts(M6*14) x24	User Manual x1

INSTALLATION

NOTE: This installation is best done by two people.

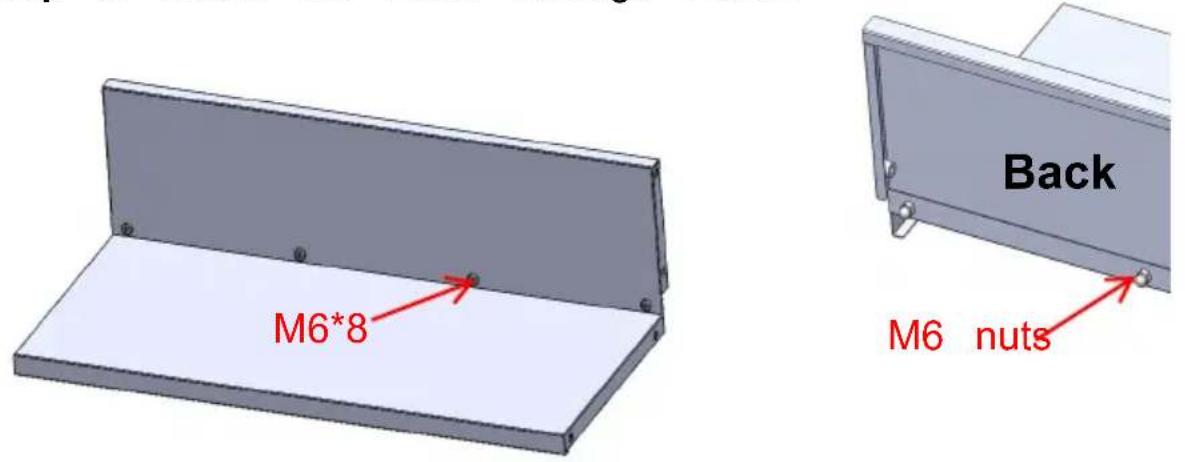

Step 1: Install the Book Storage Panel.

NOTE: Please do not tighten the bolts yet.

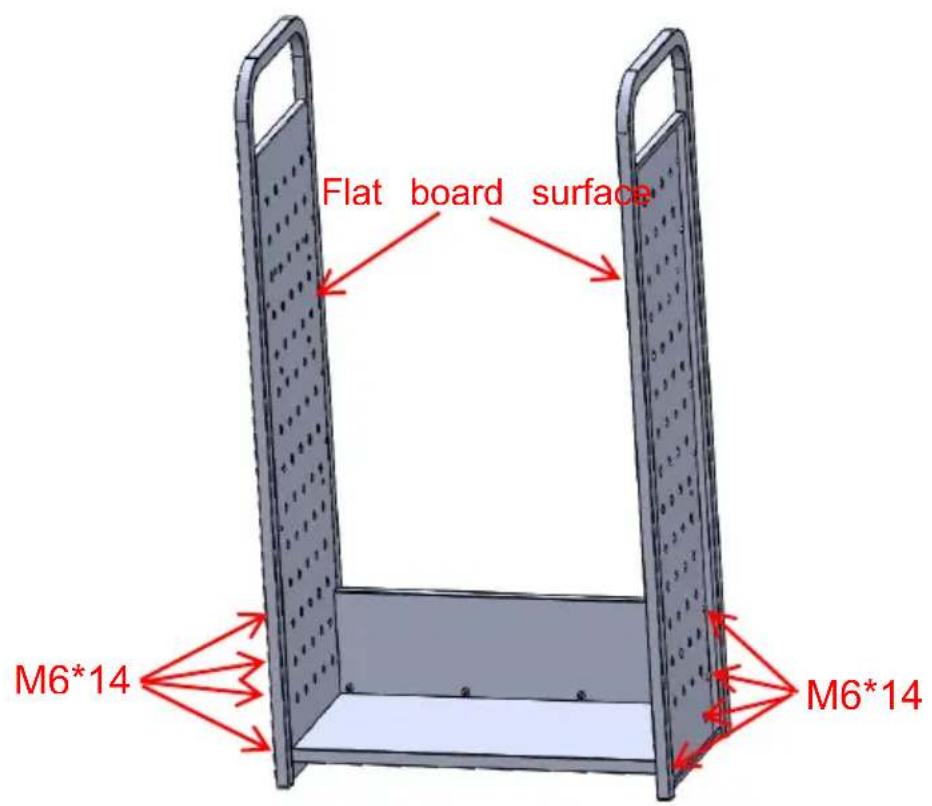

Step 2: Install the Lateral Plates.

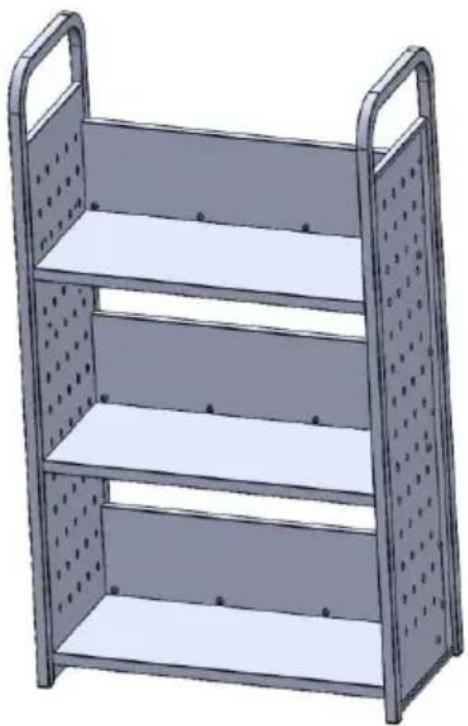

Step 3: After all parts are installed, adjust the angle of the frame and tighten all bolts.

3D rendering of a three-tier metal shelving unit with two handles and dotted pattern panels (no text or symbols)

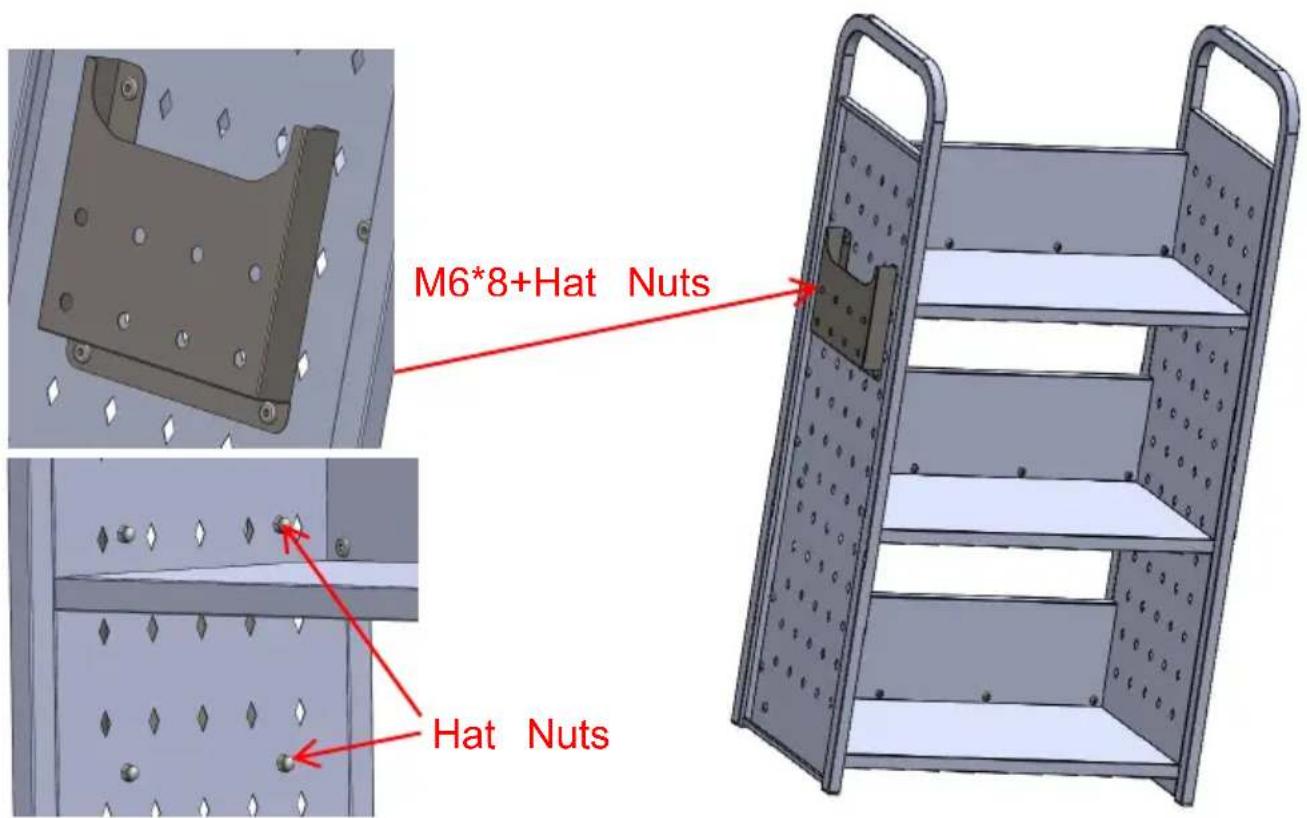

Step 4: Install the Document Rack.

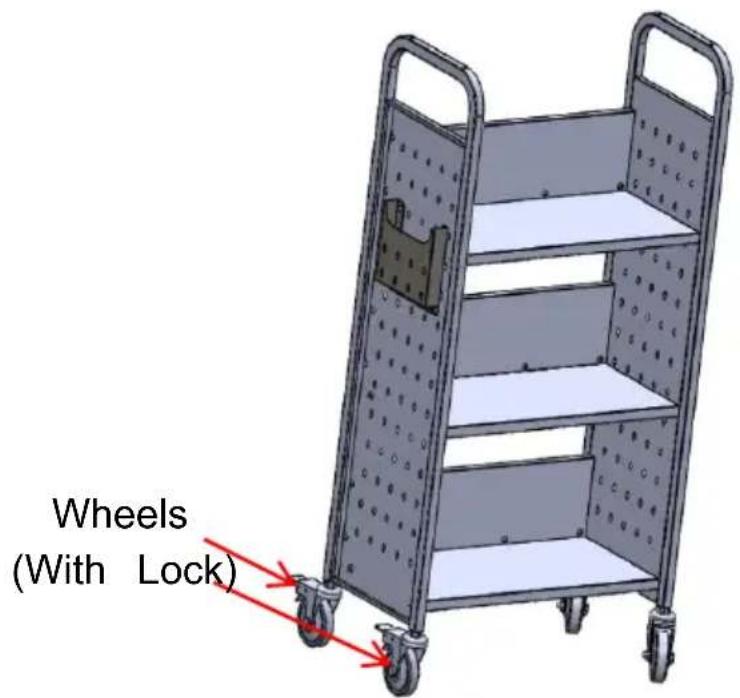

Step 5: Install the four wheels.

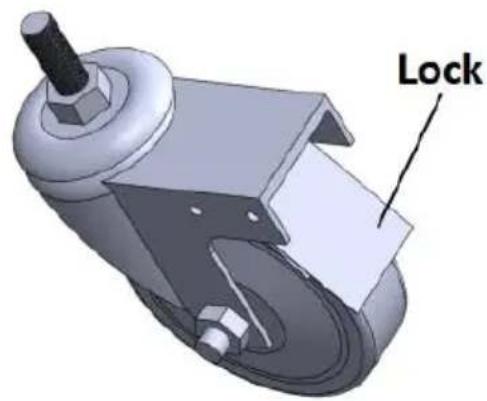

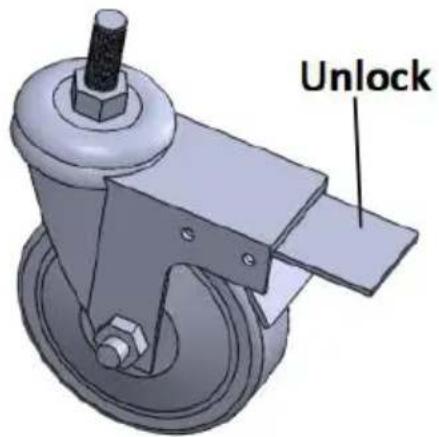

■ To lock the swivel casters with brake, step down the levers.
■ To unlock the swivel casters with brake, pull up the levers.

MAINTENANCE

1. Clean the surface after each use .
   Please check and confirm that the cart is intact before each use.
2. Check that the bolts are tight.
3. Wheel bearings are regularly lubricated with grease.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
