Product Type	Transport Cart
Brand	Vevor
Model	HXTC-3WD
Number of Shelves	3
Shelf Type	W-shaped (double-sided)
Maximum Capacity per Shelf	110 lb (approx. 50 kg)
Maximum Total Capacity	330 lb (approx. 150 kg)
Material	Steel
Color	Black / White
Number of Wheels	4
Swivel Wheels with Brake	2
Swivel Wheels without Brake	2
Included Accessories	Bookends, document holder, hex key, cap nuts (M6), bolts (M6*8), wrenches (10+19mm)
Installation	Recommended for two people
Maintenance	Clean after use; check integrity before each use; tighten bolts if necessary
Lubrication	Wheel bearings should be lubricated regularly with grease
Safety	No transporting people; use on flat surface; do not overload; use brakes when stationary
Manufacturer	Shanghaiuxinmuyeyouxiangongsi, China
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, ASTWOOD NSW 2122
Importer (United States)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Distributor (Europe)	VEVOR, 60329 Frankfurt am Main, Germany

Frequently Asked Questions - HXTC-3WD Vevor

What is the maximum capacity of this cart?

The maximum capacity is 110 lb (approx. 50 kg) per shelf, for a total capacity of 330 lb (approx. 150 kg).

How to lock the wheels?

To lock the brake wheels, lower the levers on the swivel casters. To unlock, pull the levers up.

Can I transport people on this cart?

No, it is strictly forbidden to transport people under any circumstances for safety reasons.

How to install the cart?

Installation is done in several steps: install the book storage panels, then the side plates, adjust the frame angle, tighten all bolts, install the document holder, and finally the wheels. It is recommended to have two people.

What accessories are included?

The included accessories are: bookends, document holder, hex key, cap nuts (M6), bolts (M6*8), and wrenches (10+19mm).

How to maintain the cart?

After each use, clean the surface. Before each use, check that the cart is intact and that the bolts are tightened. Lubricate the wheel bearings regularly with grease.

Can I use the cart on rough terrain?

No, it is forbidden to load items on rough or uneven terrain. The cart may become unstable and tip over, causing injury or damage.

What to do if a bolt loosens?

If a bolt loosens, tighten it using the hex key or the provided wrenches. Regularly check the tightness of all bolts to ensure stability.

Where is this product manufactured?

The product is manufactured in China by Shanghaiuxinmuyeyouxiangongsi, located in Shanghai.

Is the cart delivered assembled?

No, the cart is delivered in parts. Installation is required, and it is recommended to follow the instructions provided in the manual.

USER MANUAL HXTC-3WD Vevor

Affordable. Reliable. Home Improvement.

BOOK CARTS

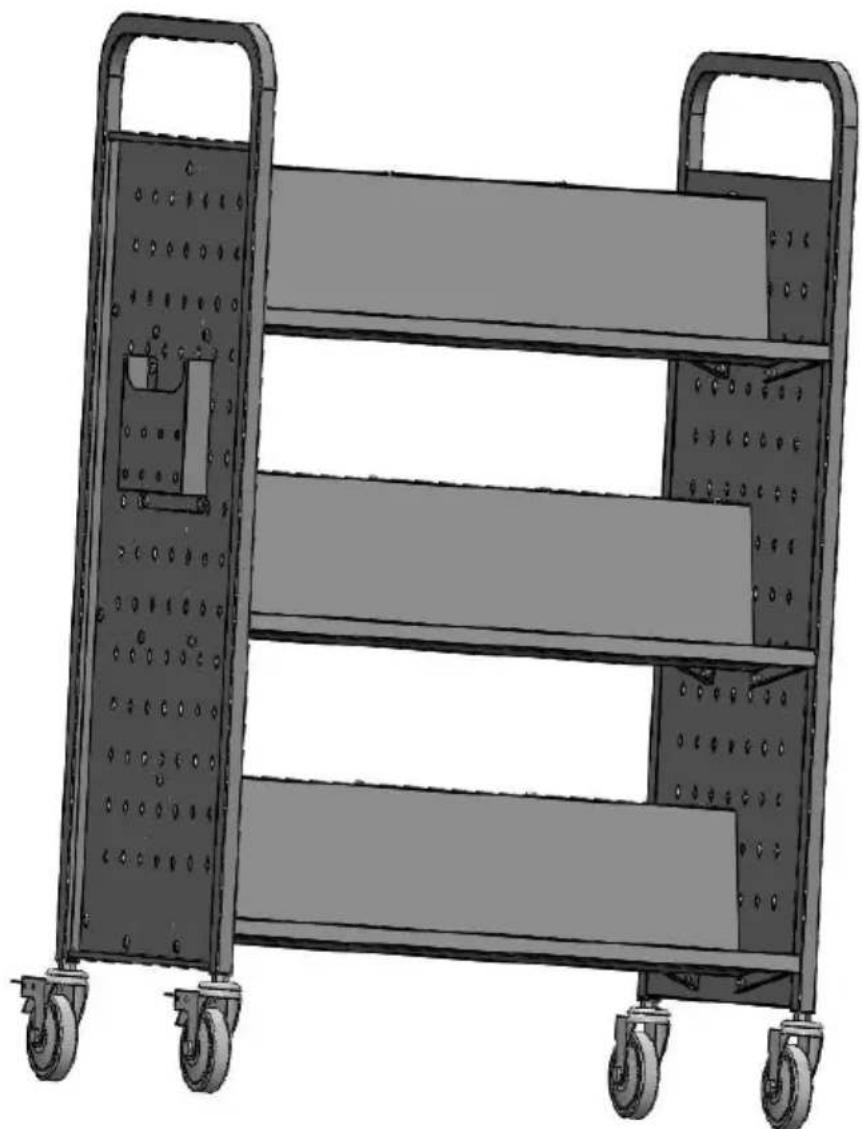

MODEL: HXTC-3WD

MODEL: HXTC-3WD

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. It is forbidden to carry people under any condition.
2. Keep the product on level surfaces. It is forbidden to load articles unevenly and on hilly terrains. The product may become unstable and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
3. Overload is strictly prohibited.
4. Don't move too fast when passing pothole areas.
5. Use the brakes when this product is not being moved. This prevents the product from rolling.
6. Do not alter this product in any manner.
7. Do not lift the product directly with a forklift or tow with any mechanical devices.

MODEL AND PARAMETERS

Model	HXTC-3WD
Shelve Type	W-shaped(Double-sided)
Number of Shelves	3
Max. Capacity	110lbs/per shelf
Material	Steel
Color	Black / White

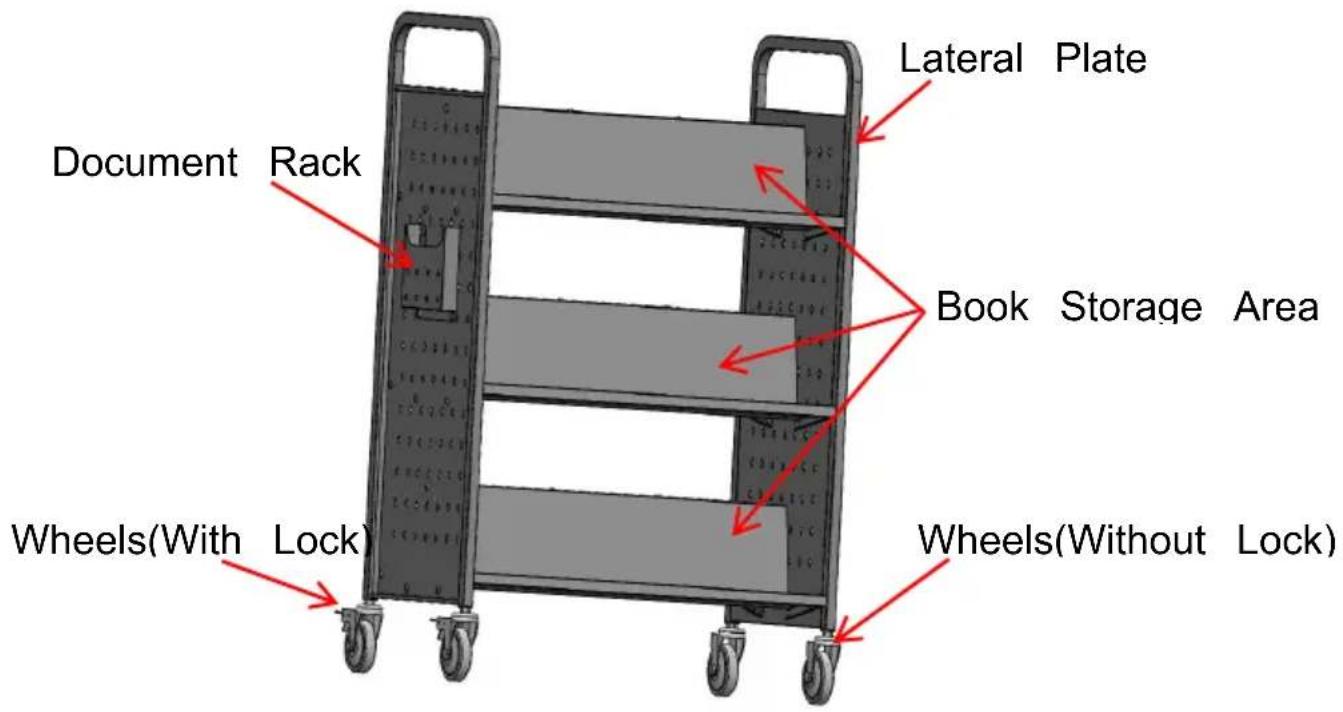

STRUCTURE DIAGRAM

PARTS LIST

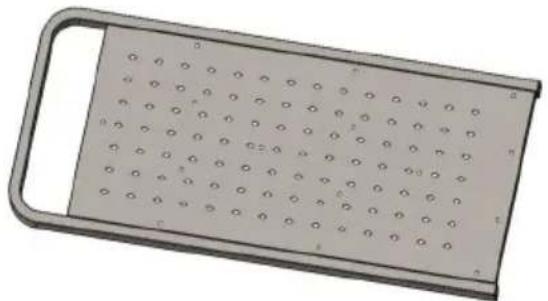

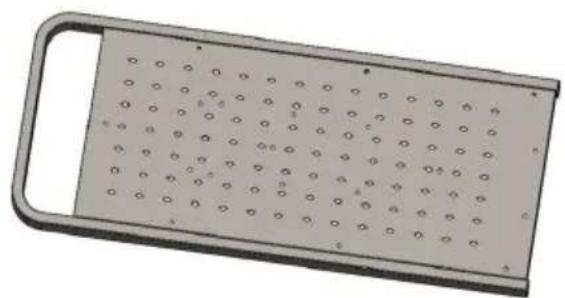

Lateral Plates x1

Lateral Plates x1

Book Storage Panels x6

Bookshelf Backboards x3

②
Bookshelf Backboards x3
Wheels(Without Lock) x2	Wheels(With Lock) x2
Bookends x1	Document Rack x1
Hex key x1	Hat nuts(M6) x28
Bolts(M6*8) x28	Wrenchs(10+19mm) x2
Bolts(M6*14) x42	User Manual x1

INSTALLATION

NOTE: This installation is best done by two people.

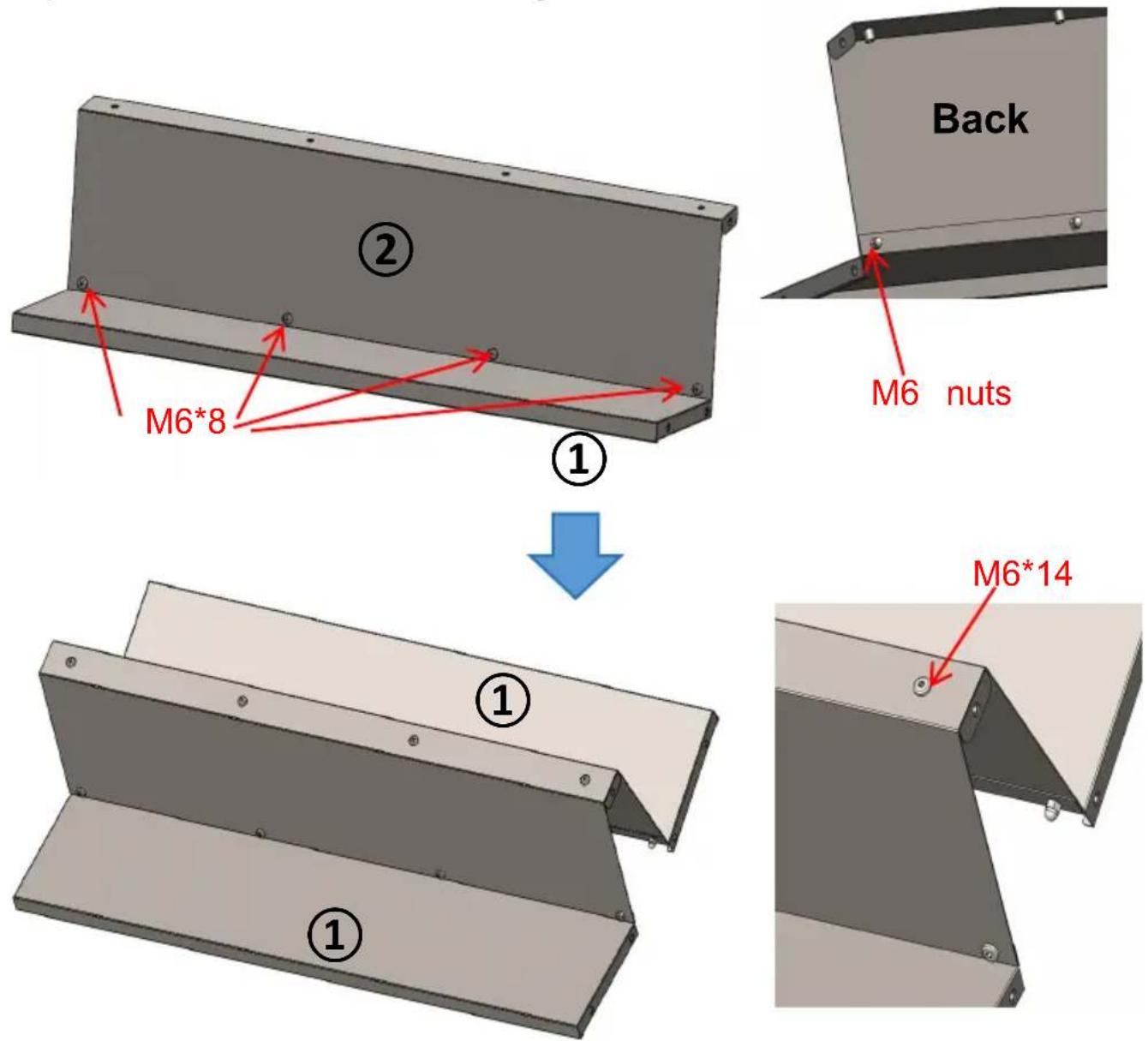

Step 1: Install the Book Storage Panel.

NOTE: Please do not tighten the bolts yet.

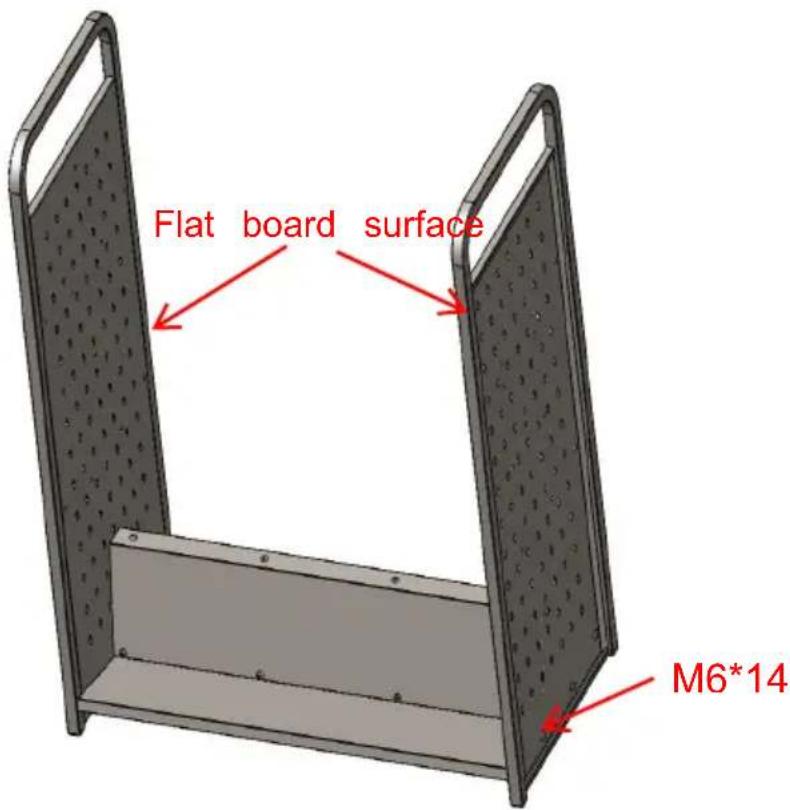

Step 2: Install the Lateral Plates.

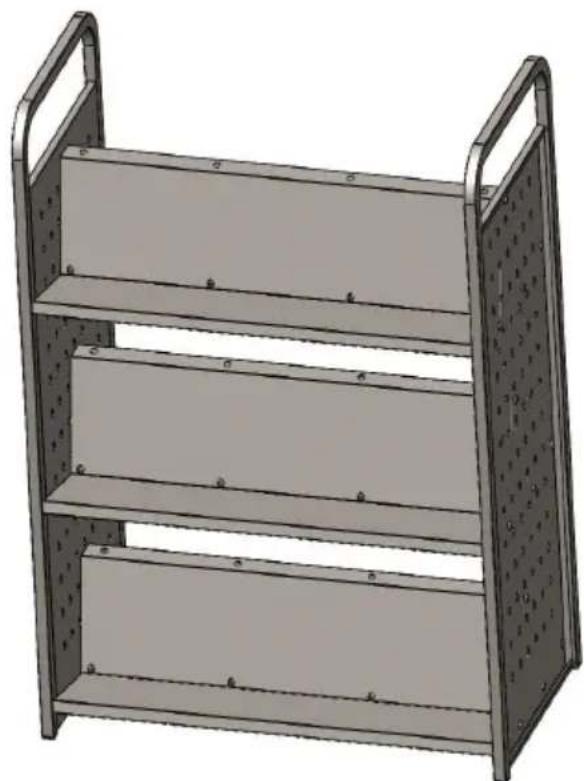

Step 3: After all parts are installed, adjust the angle of the frame and tighten all bolts.

Step 4: Install the Document Rack.

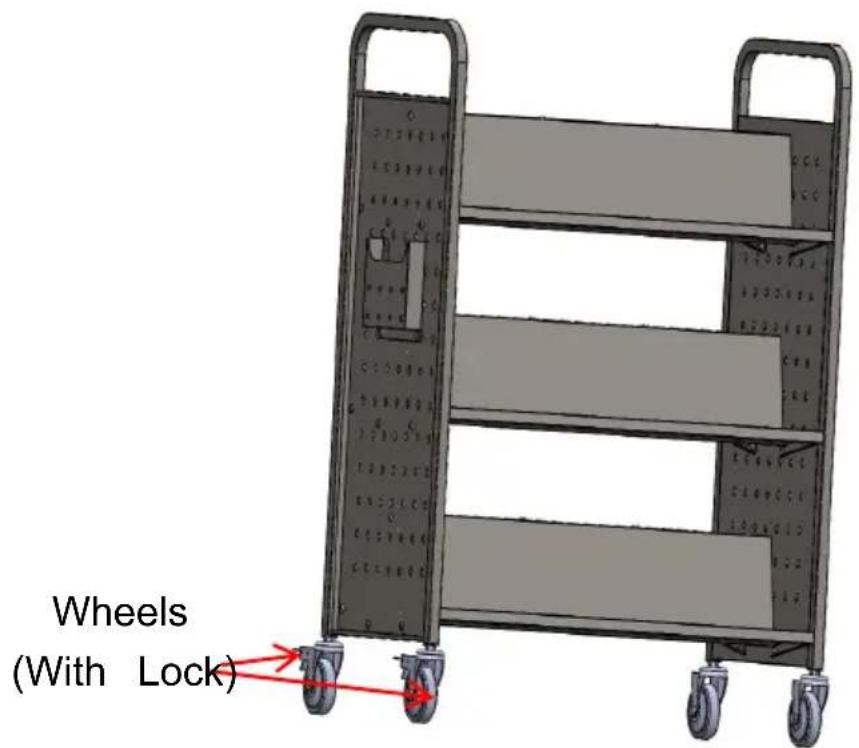

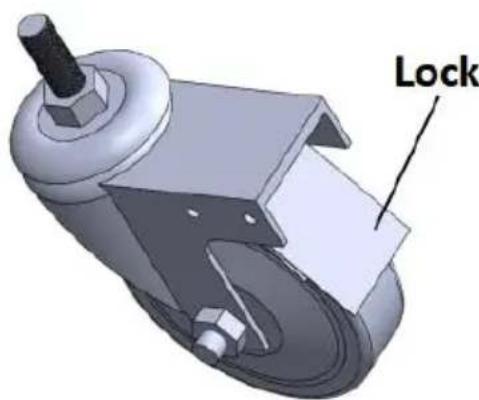

Step 5: Install the four wheels.

To lock the swivel casters with brake, step down the levers. To unlock the swivel casters with brake, pull up the levers.

MAINTENANCE

1. Clean the surface after each use. Please check and confirm that the cart is intact before each use.
2. Check that the bolts are tight.
3. Wheel bearings are regularly lubricated with grease.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A
