USER MANUAL AQ-907F-UV Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SERIES:AQ-A F-UV\_B W

TIPS: A IS 901 / 903 / 905 / 907 / 911 / 913 B IS 10 / 11 / 12 / 15 / 20 / 25

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

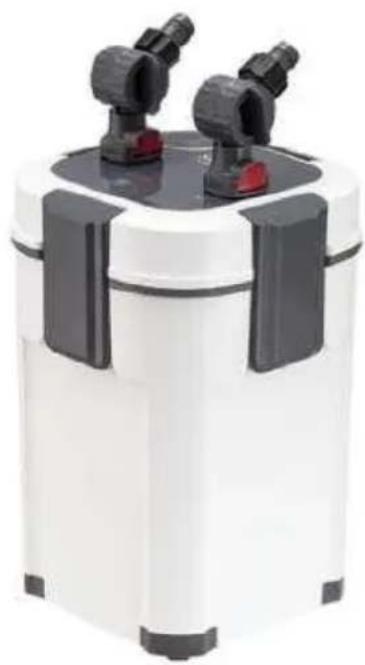

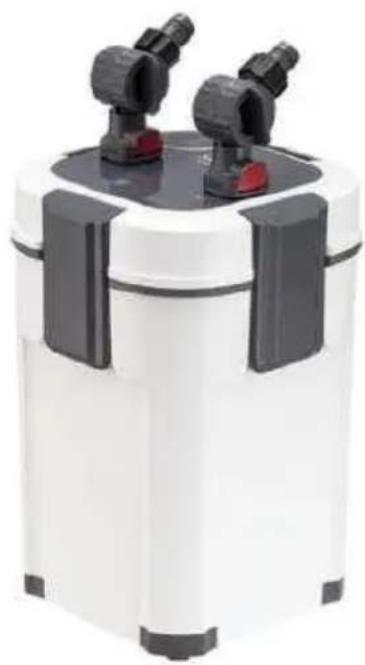

AQUARIUM FILTER

SERIES:AQ-A F-UV_B W

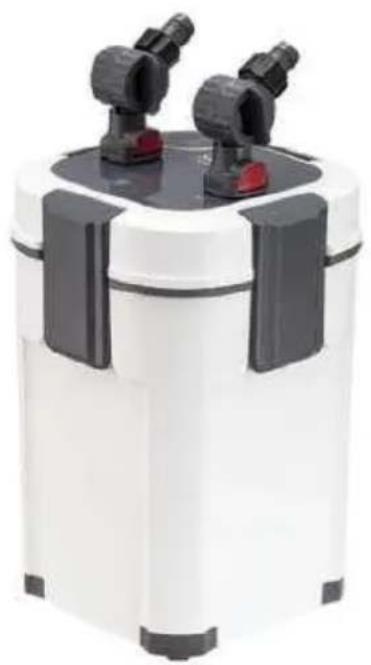

White laboratory equipment with two black connectors and red buttons on top (no visible text or symbols)

White

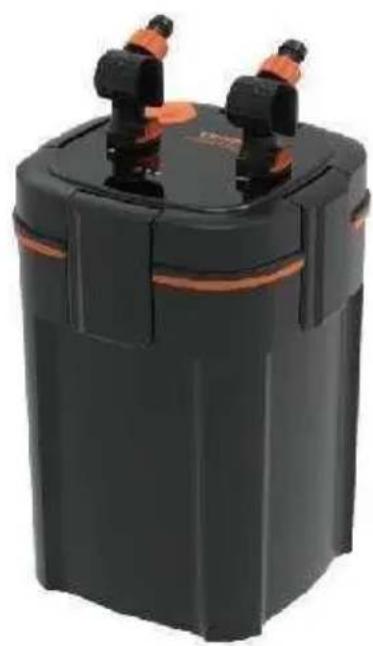

Black rectangular device with two orange connectors on top, no visible text or symbols

Black

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

DANGER- To avoid possible electric shock, special care should be ta since water is employed in the use of aquarium equipment For each following situations, do not attempt repairs by yourself, return the appl to an authorized Service facility for Service or discard the appliance.

1. This appliance can be used by children aged from 8 year and about persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and undersheds the hazards involved. Children shall not play with the appliance Clean and user maintenance shall not be made by children without supervisi
2. The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
3. The maximum inlet water pressure, in pascals: 0.03 MPa
4. The minimum inlet water pressure, in pascals: O.O1MPa, if this is necessary for the correct operation of the appliance.
5. The supply cord cannot be replaced, if the cord is damaged, the appliance should be scrapped.

WARNING - This appliance contains a UV emitter. Do not stare at the source.

Hereby we sincerely thank you for purchasing our product..To operate product safely, please do read this manual carefully.

Warning:

1. Before using the product, please check if there is any damage on power cord. If yes, please do not use the product.
2. To avoid default, please use the product under the regulated voltage frequency.
3. Please do not plug or pull the power cord if your hands are wet.
4. when maintaining or moving the product or when there is any abno situation, please turn off the power first.
5. Please make sure the plug and socket are protected away from wa
6. Please do not pull the power cord straightly when using. Please ke

power cord to be "U" shape(see below picture)to a water go inside the socket along the power cord.

1. Please do not use the product near the flammable
2. Please use the professional technician for maintena
3. Please do not reinstall the product to avoid any (

Drip Loop

Notice:

1. After purchasing, please check if there is any dam age or any mis parts to the product.
2. Please operate the product underneath the waterline of tank.
3. Please install the product on the flat surface.
4. When move the product, please do not take it by holding the valve that way may cause breakage on the valve and further cause water leakage.
5. It is suggested to clean the impeller and propeller once per month, dirt will affect the lifetime of impeller.
6. Impeller is easily worn out item, it is suggested to replace once pe
7. To reach the best UV effect, it is suggested to replace the UV light per half year.
8. This product should work with water.
9. Please periodically(15-20days) clean the filter material to remove the

dirty stuff which will results in low water flow.

1. If use in marine water, please periodically remove the salt on the product or power cord in order to avoid electric leakage.

SAVE THESE INSTRUCTIONS

Model	AQ-901F-UV10W	AQ-903F-UV11W	AQ-905F-UV12W	AQ-907F-UV15W	AQ-911F-UV20W	AQ-913F-UV25W
Voltage	AC110-120 V 60 Hz or AC220-240V 50/60Hz
Pump Power	10 W	11 W	12 W	15 W	20 W	25 W
UV Power	11 W
Flow Max	850 L/H	1000L/H	1200L/H	1500L/H	2000L/H	2500L/H
Noise	<50dB	<50dB	<50dB	<50dB	<50dB	<50dB
Filter Number	2	3	4	4	5	5
Use To Water Tank	55 gal	75 gal	100 gal	120 gal	200 gal	235 gal

INSTRUCTIONS

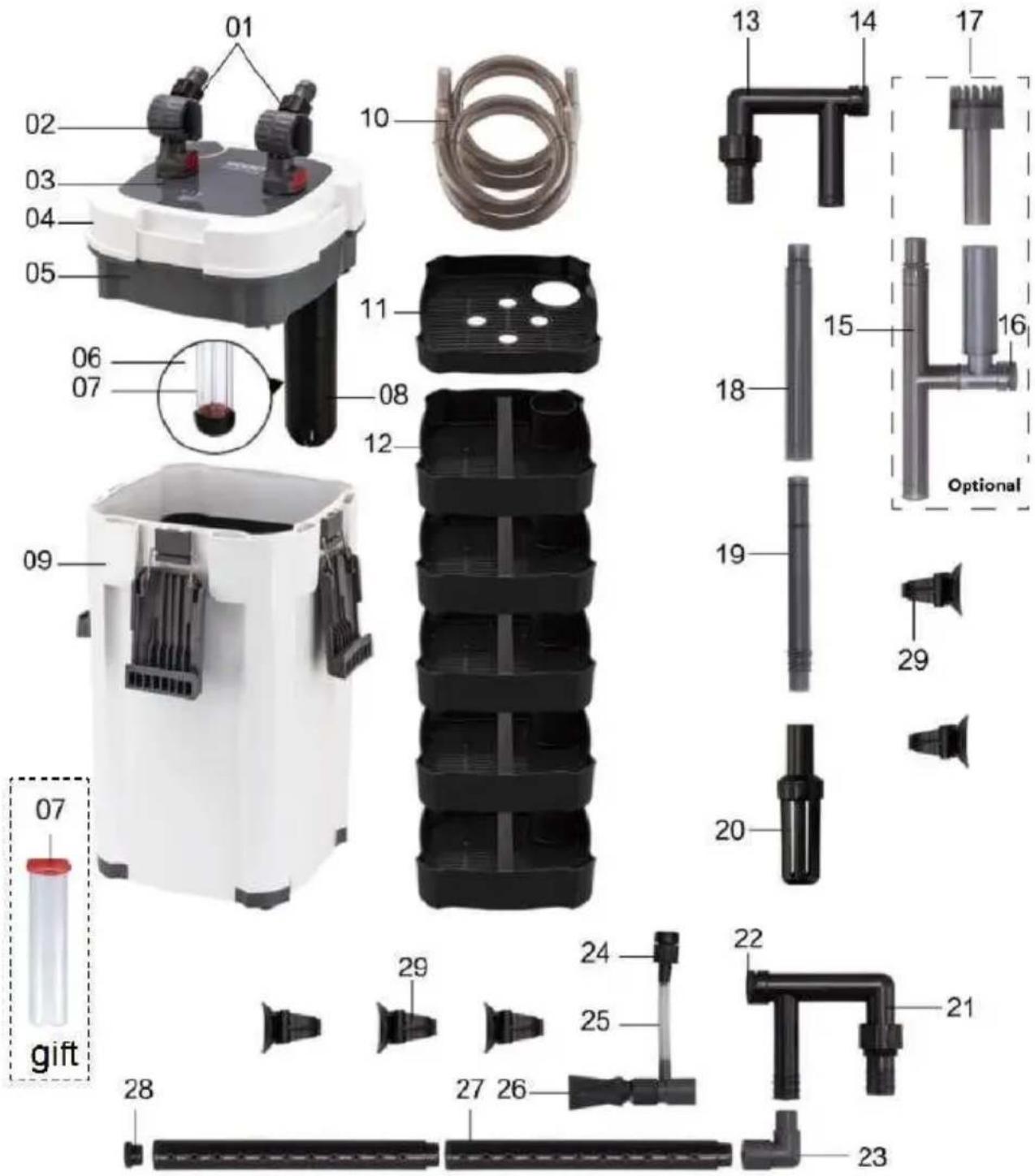

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Optional

01	Input & output discreteness	08	UV light sleeve	15	Surface clear	22	Water outlet adjustment switch
02	Pumping handle	09	Barrel body	16	Degreasing film adjustment switch	23	Bend pipe
03	UV timer switch	10	PVC Water pipe	17	Floating head	24	Air volume regulator
04	Barrel head	11	Basket head	18	Extension tube	25	Air tube
05	Water pump	12	Filter basket	19	Flexible tube	26	Outlet
06	Quartz glass tube	13	Water inlet tube	20	Fleur bouquet	27	Rain pipe
07	UV light	14	Water inlet adjustment switch	21	discharging tube	28	Spray bar cover
						29	Sucker

INSTALLATION INSTRUCTION

Close-up of hands holding a white laboratory brush head with multiple black-and-white microscopes (no visible text or labels)

Two-panel image showing hands cleaning a white plastic device and handling small black containers with nuts on a pink background (no text or symbols visible)

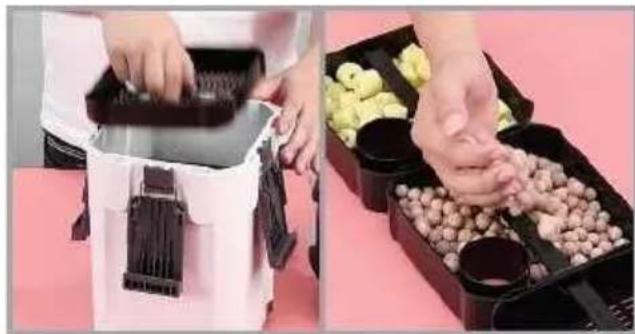

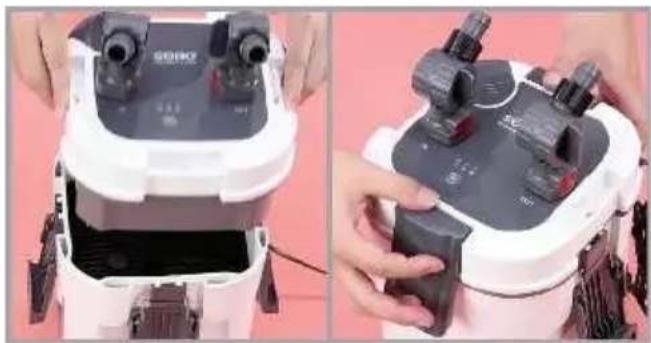

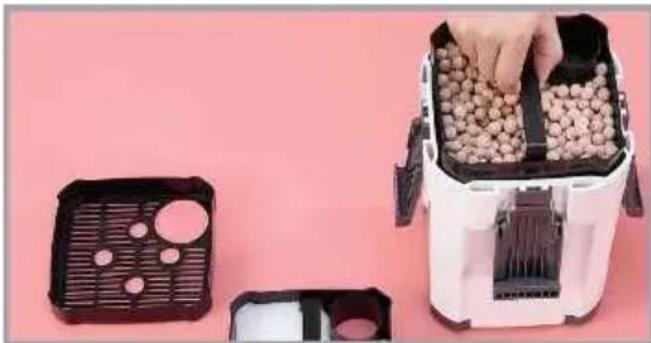

1. Open the fixing buckle of th 2. Take out the filter basket ar bucket cover and pick up the add the cleaned filter. bucket cover.

Product photo of a white electric fryer with a hand placing seeds into it, next to a dark plastic tray and a small tray on a pink background (no text or symbols visible)

Close-up of a white and black electronic device with multiple camera modules, being handled by hands (no visible text or symbols)

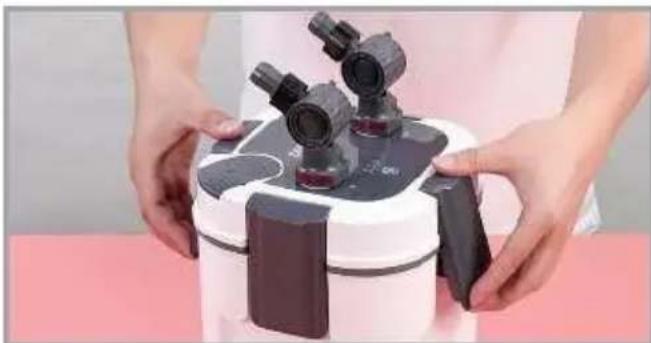

1. Put back the filter basket.

2. Close the lid and fasten the fixing buckle.

Close-up of hands holding a dark mechanical component against a pink background (no text or symbols visible)

Two types of medical or laboratory equipment with coiled tubing and connectors, shown against a solid pink background (no text or symbols visible)

Close-up of hands holding a black tool next to a coiled metal hose against a pink background (no text or symbols visible)

Two types of metal clips and coils on a pink background (no text or symbols visible)

1. Connect the water inlet pipe hose and fix it in the fish tank

2. Connect the outlet pipe and hose and fix it in the fish tank

Close-up of a hand adjusting a black plastic bag attached to a white circular device against a pink background (no text or symbols visible)

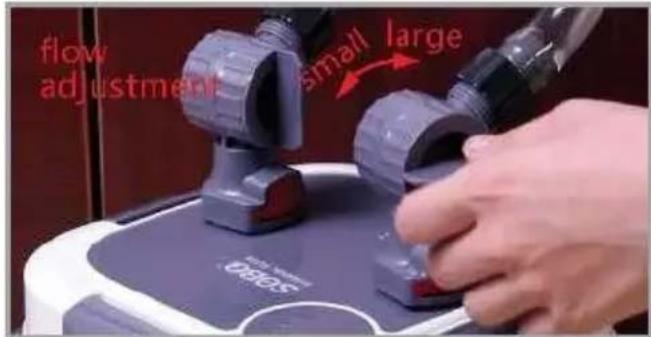

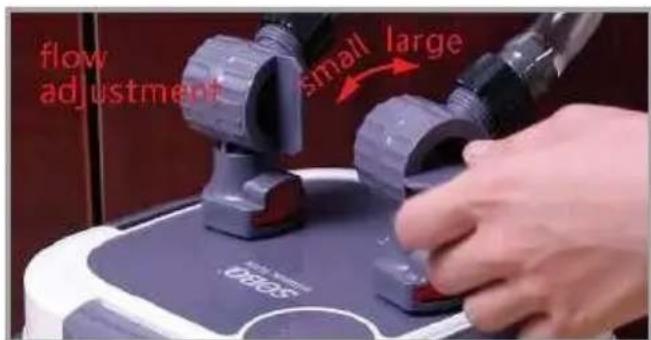

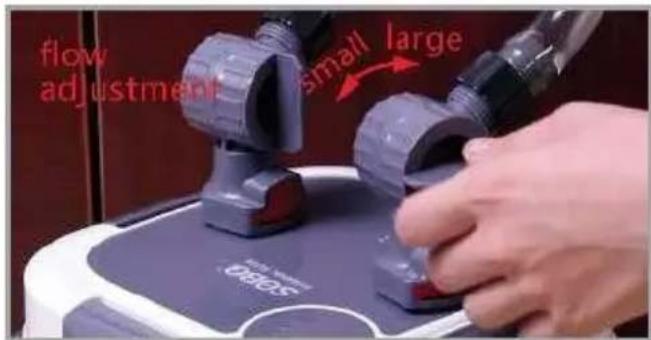

flow adjustment small large OBSOS

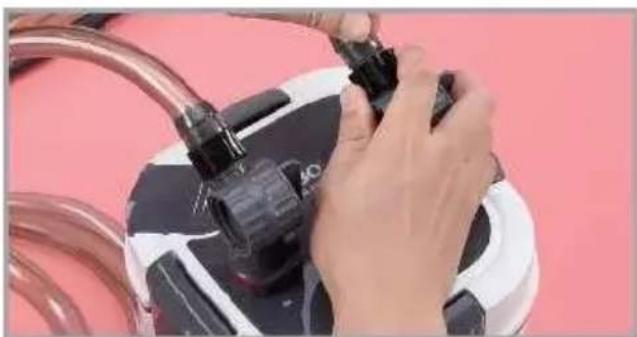

1. The other end of the hose connected to the water inlet and water outlet on the barrel respectively, and the nut is screwed to fix it.

2. Make sure that the flow adjustment is turned on to the maximum. And fill the fish tank water, and the water surface is than 12cm from the edge of the tank.

Close-up of hands using a handheld device to adjust or install a white appliance with orange and red components (no visible text or symbols)

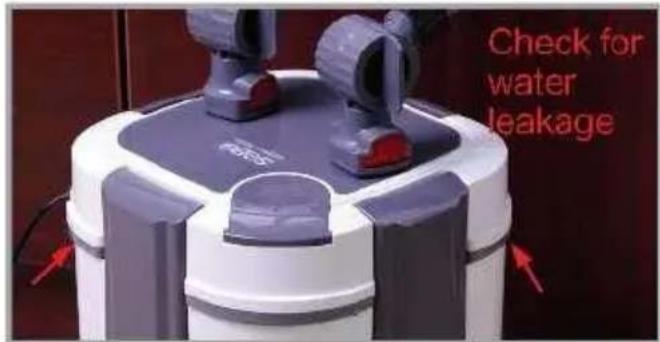

Check for water leakage

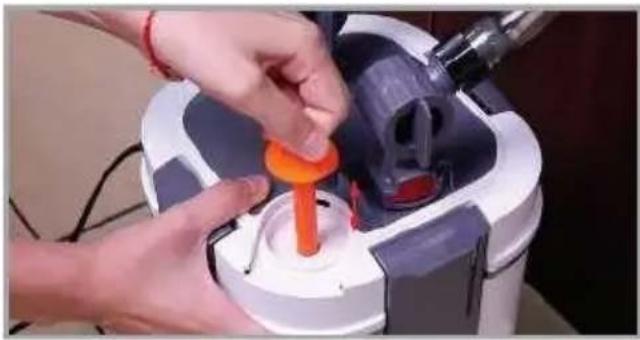

1. Pull the pump handle up an down2\~4 times to suck the wat into the bucket.

2. After connecting to the power supply check whether there is water leakage around the filter barrel. After 30\~60 minutes of normal startup, check again whether there is water leakage. there is no problem, it can be normally.

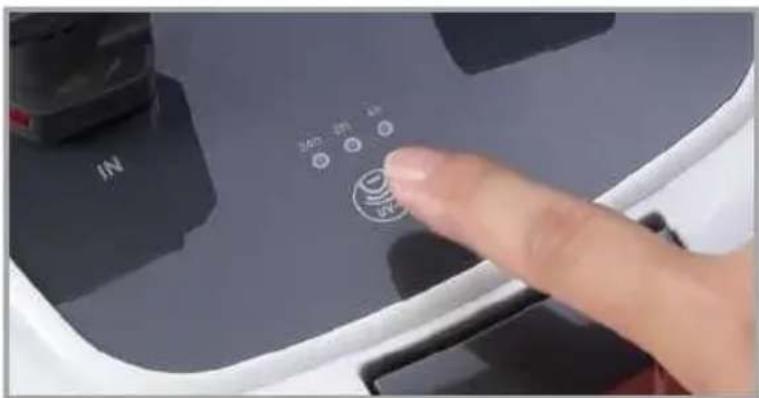

3. Touch the UV button to turn on the UV germicidal lamp, a to touch to set the timer to turn on the germicidal lamp.

1st gear: 24h light on, normally open but not close. 2nd gear: 8h light on, 8 on and off 16 hours cycle. gear: 4h light on, 4 hours and off 20 hours cycle. gear: the light is off, normal off.

IN 340 271 AP IN

TIP:

When connecting pvc tubing, please make sure

the flexible tube is not twisted.

Simple line drawing of a fire extinguisher with a hose and a cross mark (no text or symbols)

Position canister filter on flat place, do not slope or upside down.

Simple line drawing of a mechanical or electrical component with a bracket and a connector, no text or symbols present.

When assemble inlet pipe, please make sure the water in tank is

above min, water level.

minimum water level ×

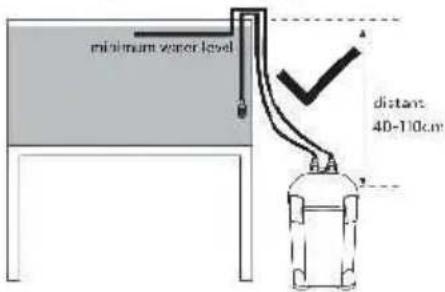

Canister filter must be placed on flat ground,

40\~110cm below the water level.

minimum water level distans 40-110cm

CLEANING AND RELACEMENT INSTRUCTION

Close-up of hands using a handheld device to adjust a white cylindrical component, no visible text or symbols

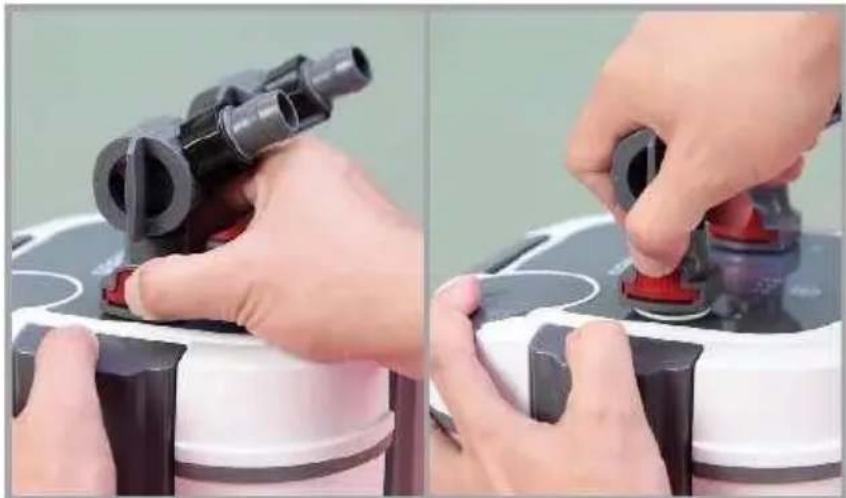

1. Press the buttons both ends of the water inlet and outlet to pull out the water inlet an outlet for cleaning.

Four-panel photo showing a hand placing a grater into a white microwave oven, with additional components visible on the right (no text or symbols)

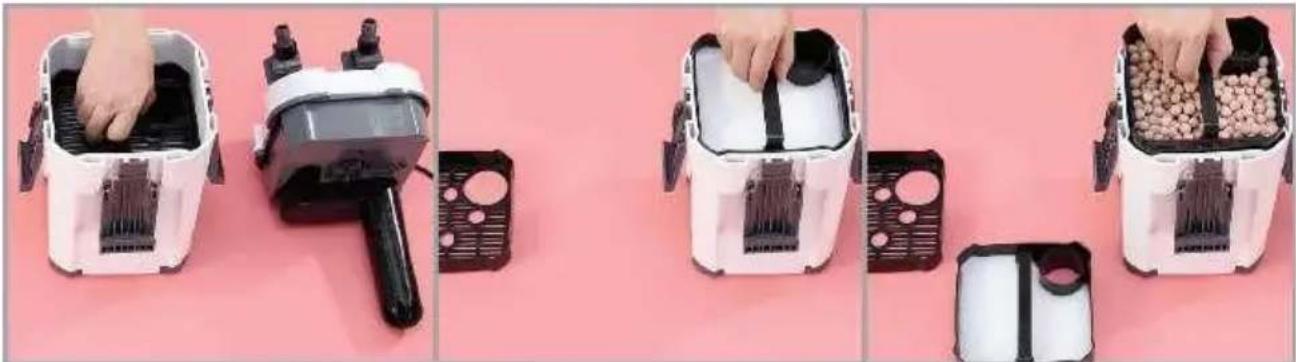

1. Open the barrel cover and take out the filter material for cle replacement.

Three-panel sequence showing hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

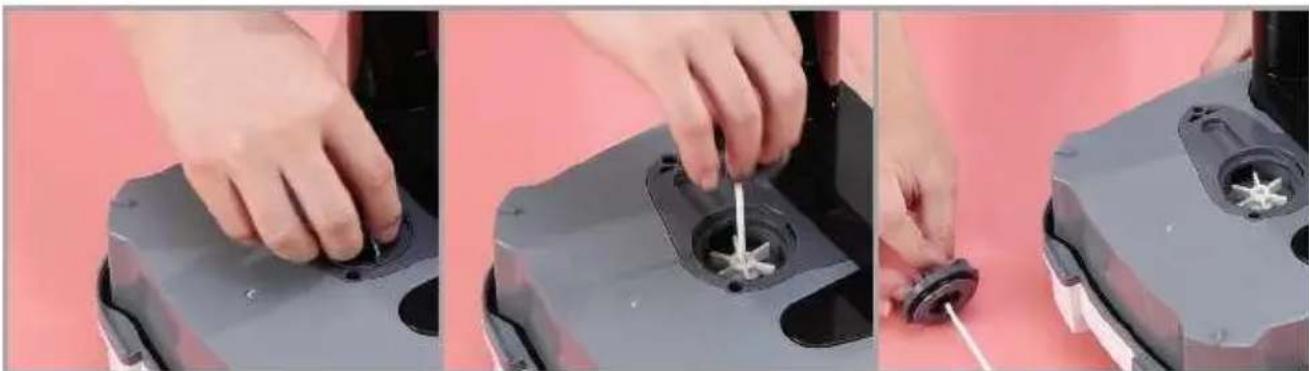

1. Rotate the water drum cover to open the buckle, take out the clean or replace the new rotor as required. The rotor holes can cleaned with a brush.

Three-panel photo sequence showing hands operating a device with a power cord, next to a black L-shaped tool (no text or symbols visible)

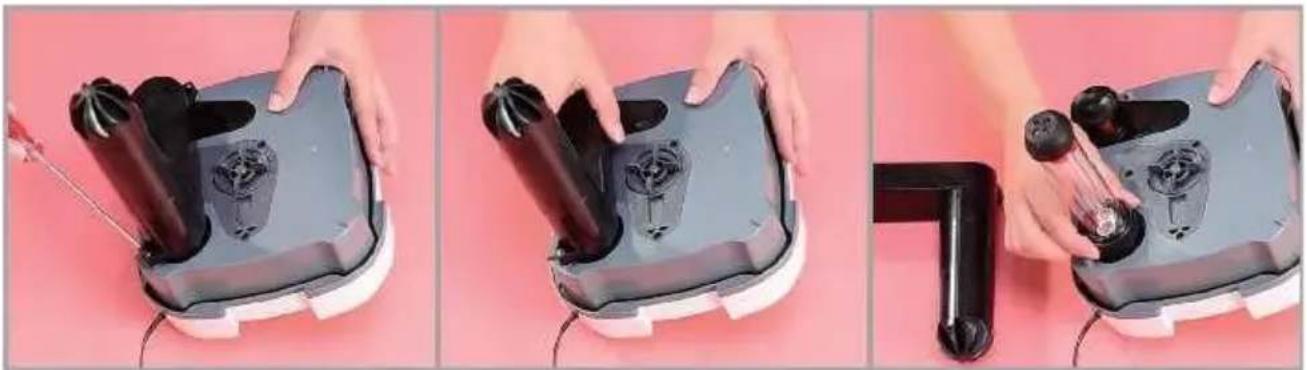

1. Unscrew the screw with a Phillips screwdriver and remove th cover for cleaning. After removing the germicidal lamp cover, wip on the quartz tube with a damp towel or clean water. Do not quartz tube when cleaning, to prevent water from flowing into th head line and causing a short circuit.

Close-up of hands using a handheld device to adjust the interior panel of a game controller (no visible text or symbols)

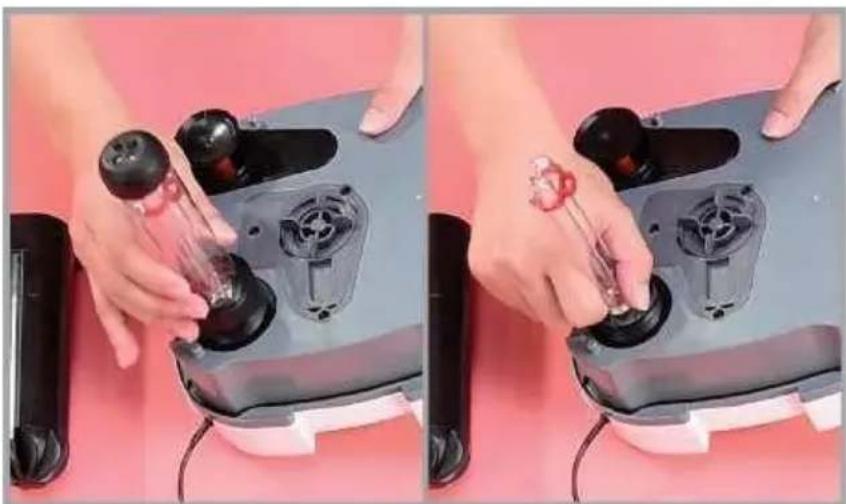

1. If you need to rep the UV lamp, you can twist off the fastening nut, remove the quartz sleeve, and remove the UV lamp for replacement.

TROUBLE SHOOTING

Probable Situations	Reasons	Treatment method
Cannot start	Power supply is unplugPump head damage.The impeller stuck by foreign matters.The impeller is not fixe well.	Connect to power supplyChange a new pump hTake out the foreign matters.Fix impeller well.
Water leaking	Water valve tap is damaged.Water valve o-ring is damaged or with foreign matter.Power head o-ring is damaged or with foreign matters.Power head and caniste not locked well.PVC tubing and water valve is not connected weImpeller cover o-ring is damaged or with foreign matters.	Change new water valve tapsChange a new water va o-ring or remove foreign matters.Change a new power ho-ring or remove foreign matters.Re-fix well.Re-fix well.Change a new impeller cover o-ring or remove foreign matters.
Noisy	Impeller is damaged.The impeller stuck by foreign matters or not fixe correctly.Inlet tap is closed.Air exists in canister filt	Change a new impeller.Remove foreign matters re-fix impeller.Open inlet valve taps.Shake canister filter bod and let air out completely.
Abnormal start	The canister is not fille with water.The water in aquarium too low.Water valve taps are n open.	Fully fill canister filter casing with water.The water in aquarium must be above the min. water level.Open water valve taps.
Little water output	Inlet and outlet valve a notfully open.Inlet and outlet pipes a too dirty.PVC tubing is too dirty.	Open Inlet and outlet va fully.Clean the inlet and outl pipes.Clean the PVC tubing.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351
