USER MANUAL CIBT1936 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Underbar Ice Bin

MODEL : CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 CIBT1924N /CIBT1924C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

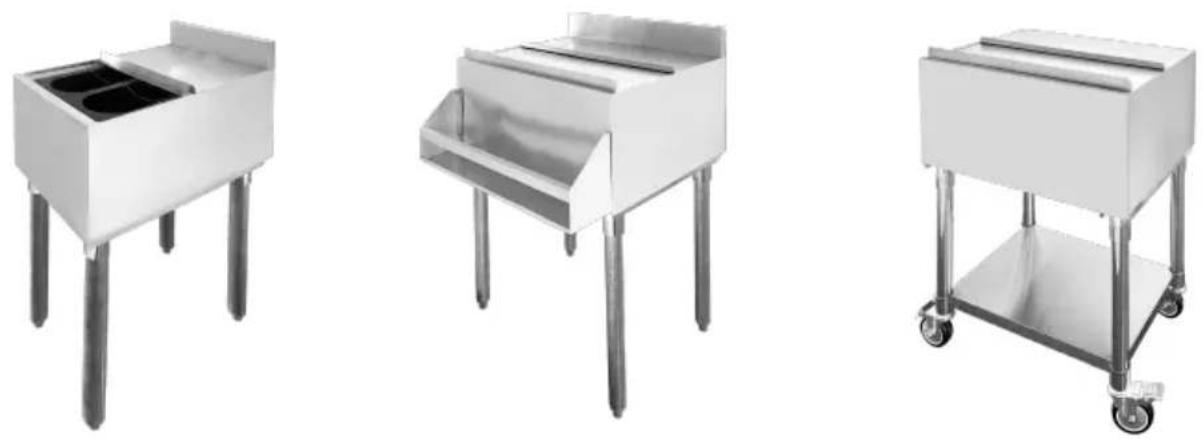

MODEL: CIBT1912/CIBT1924 /CIBT1930 /CIBT1936/CIBT1924N CIBT1924C

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

WARNING!

While assembling and using this product, keep work area clean and lighted, and keep spectators and children out of the work area.

Assemble only according to commercial ice caddy parameter. Improper assembly can create hazards.

Use as intended only.

Keep away from sharp points, blades and other items, so as not to scr the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in commercial caddy. Wrong installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a adhesive strip to prevent heat loss and ensure your ice stays cool for long time.

2. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside a restaurants, perfect for any casual occasion such as dinner, sports pa barbecue.

3. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

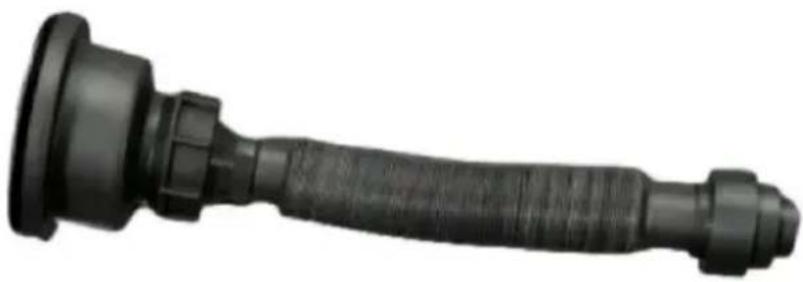

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

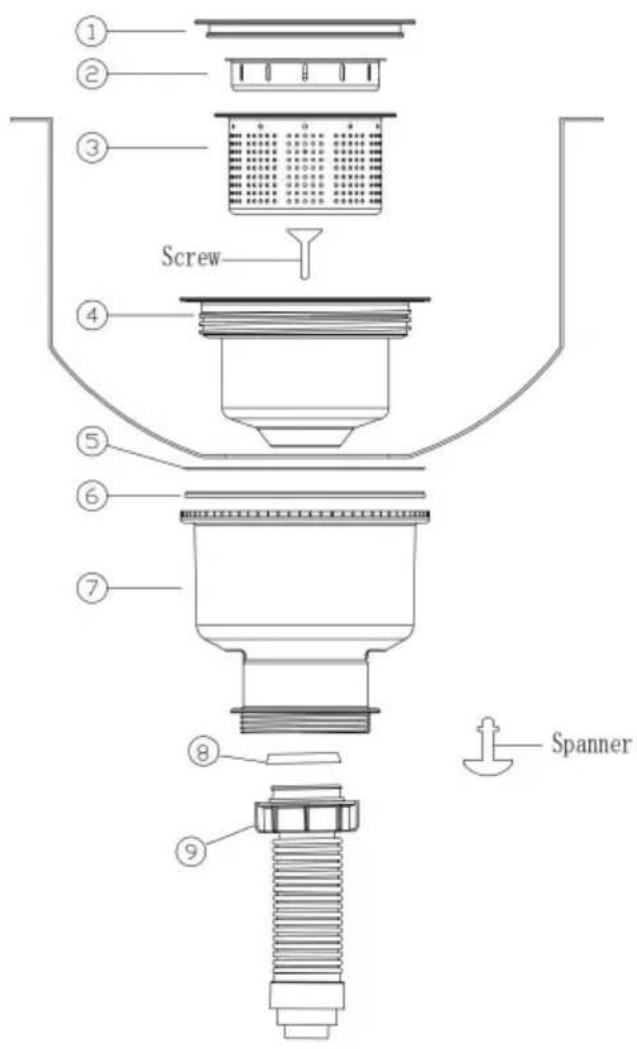

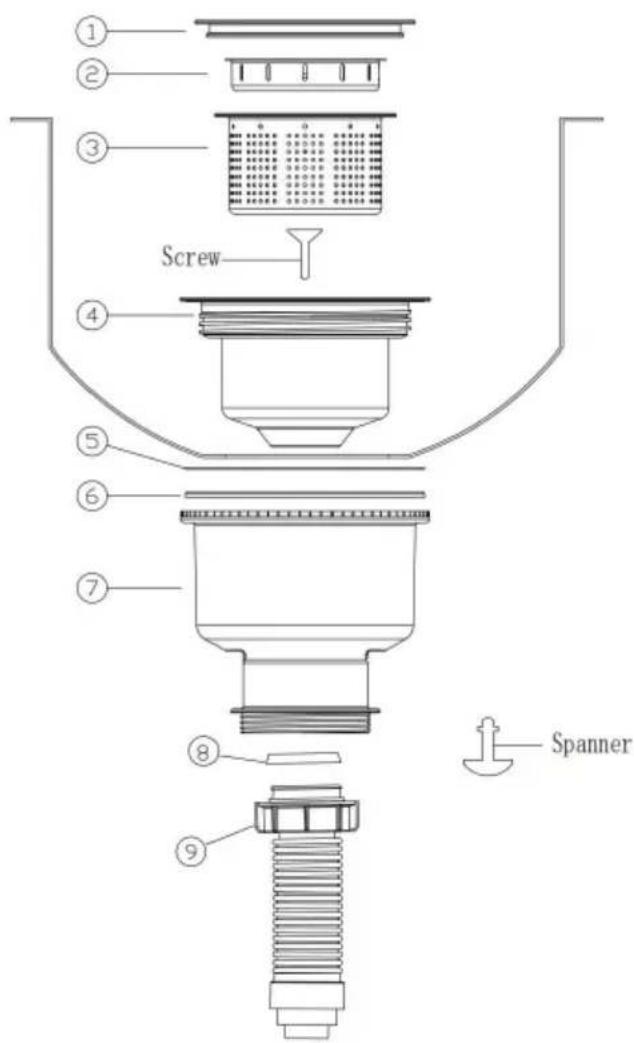

① ② ③ Screw ④ ⑤ ⑥ ⑦ ⑧ ⑨ Spanner

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on part.
2: Tighten the screw with the key, and tighten the 8/9 part on the
3: Place part No. 1/2/3 in part No. 4 to complete the installation.

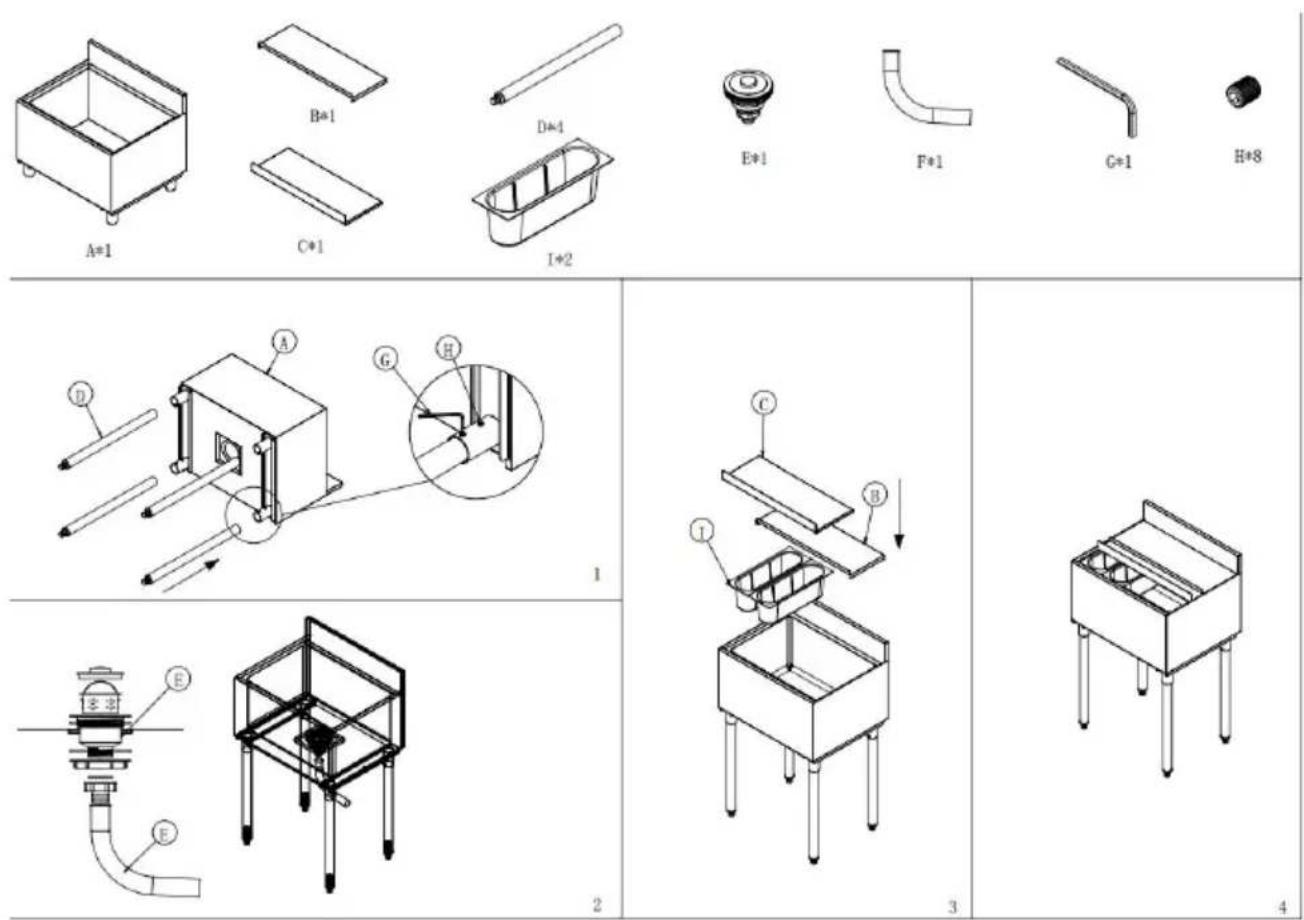

CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 components and Installation steps:

A*1 B*1 C*1 D*1 I*2 E*1 F*1 G*1 H*8 1 2 3 4

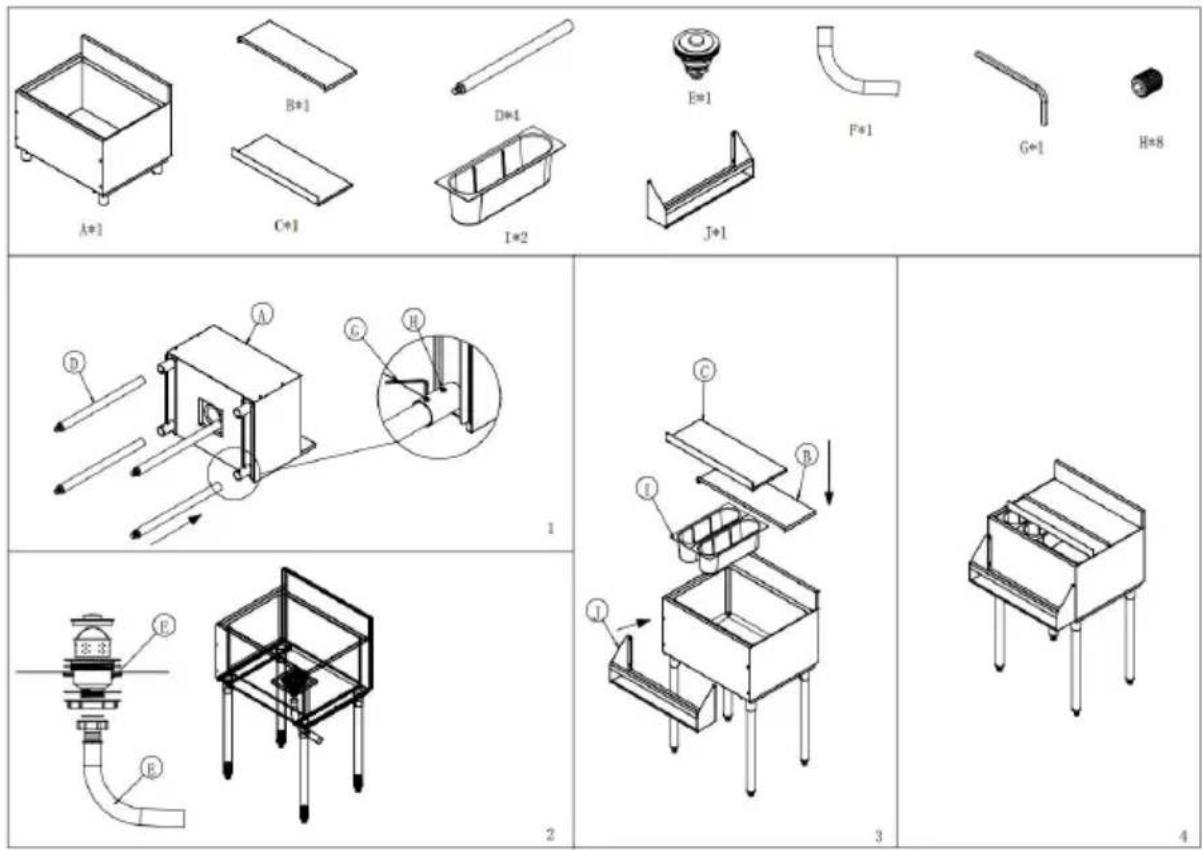

CIBT1924N components and Installation steps:

A*1 B*1 C*1 D*1 I*2 E*1 F*1 G*1 H*8 J*1 1 2 3 4

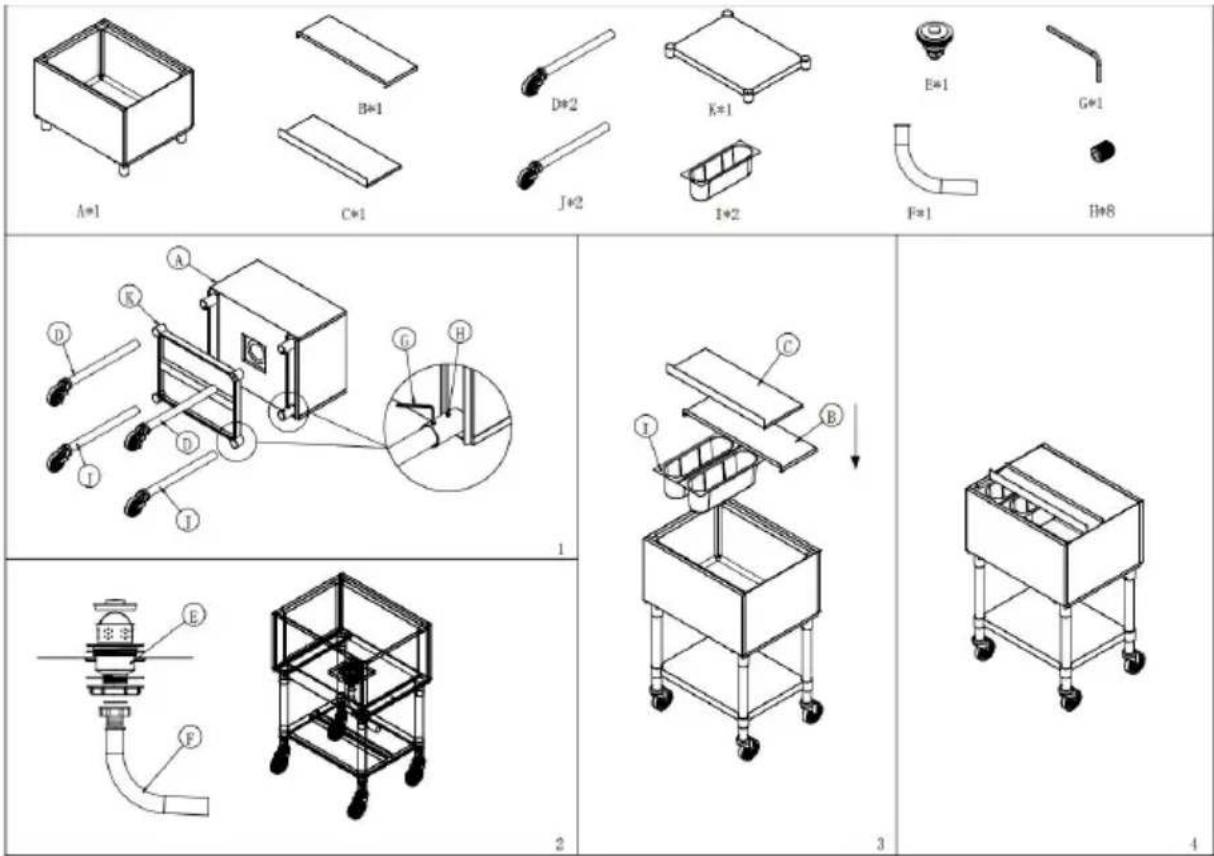

CIBT1924C components and Installation steps:

A=1 B=1 C=1 D=2 J=2 K=1 I=2 E=1 F=1 G=1 H=8 A B C D E F G H 1 2 3 4

DIMENSIONS AND SPECIFICATIONS

Model	Overall size (L*W*H mm)	Product capacity (L)	Holding time
CIBT1912	690*390*615	28	Can provide 24H insulation effect.
CIBT1924	700*580*625	61.6
CIBT1930	850*580*620	78.4
CIBT1936	995*575*620	95.3
CIBT1924N	700*580*650	61.6
CIBT1924C	700*580*590	61.6

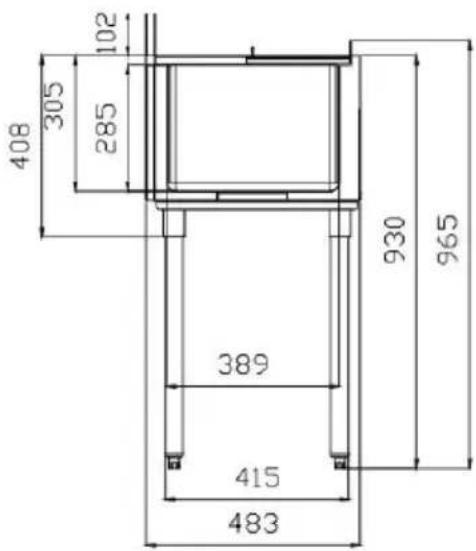

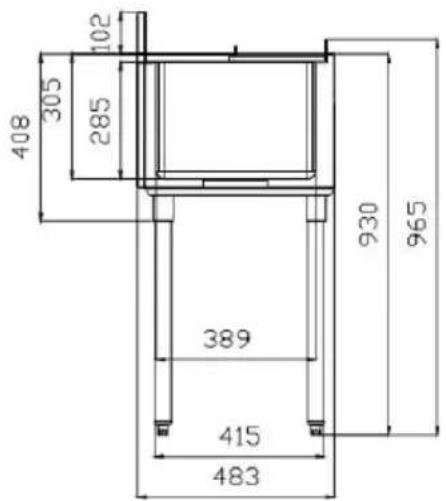

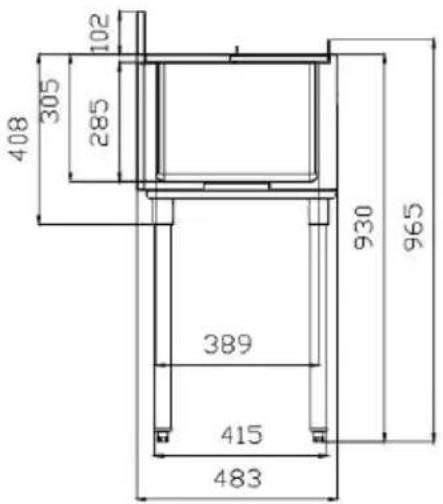

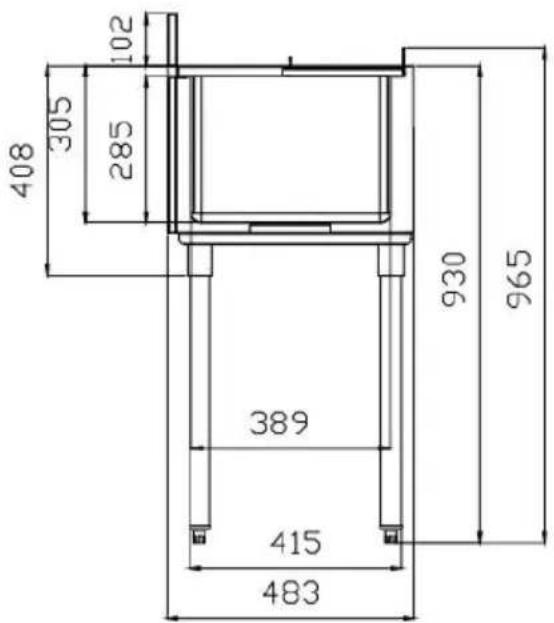

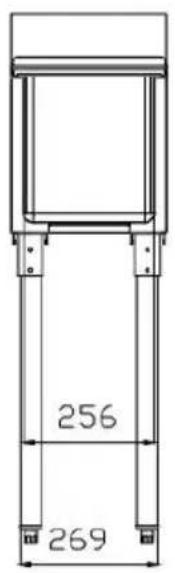

256 269

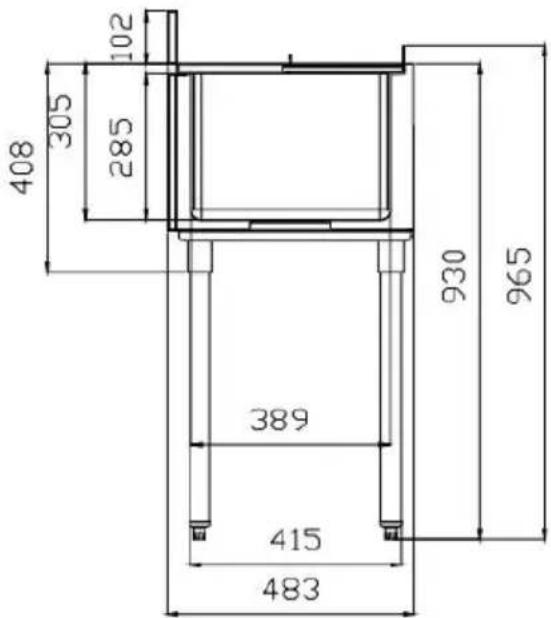

408 305 102 285 930 965 389 415 483

CIBT1912

305 483

561 574

102 305 285 408 930 965 389 415 483

610 483

CIBT1924

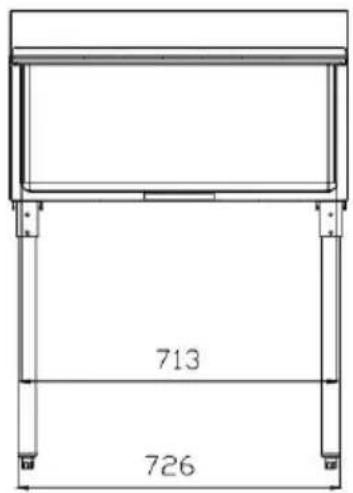

713 726

102 305 285 408 930 965 389 415 483

762 483

CIBT1930

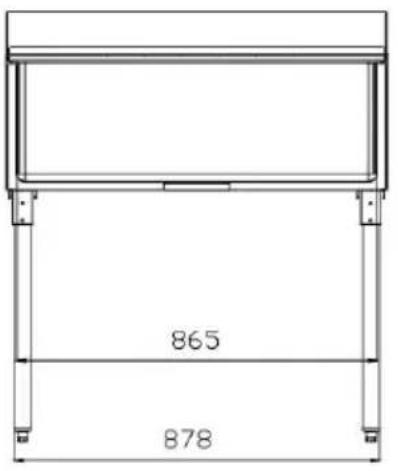

865 878

102 305 285 408 930 965 389 415 483

914 483

CIBT1936

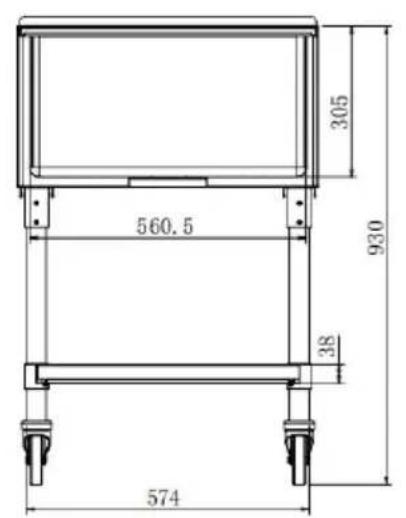

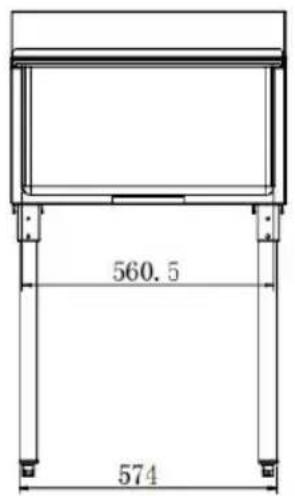

560.5 574

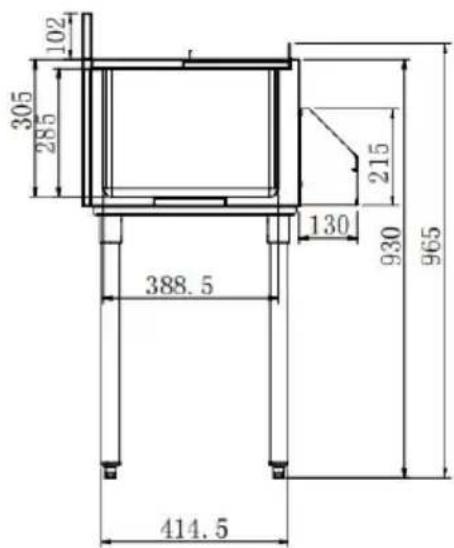

102 305 285 215 130 930 965 388.5 414.5

610 613

CIBT1924N

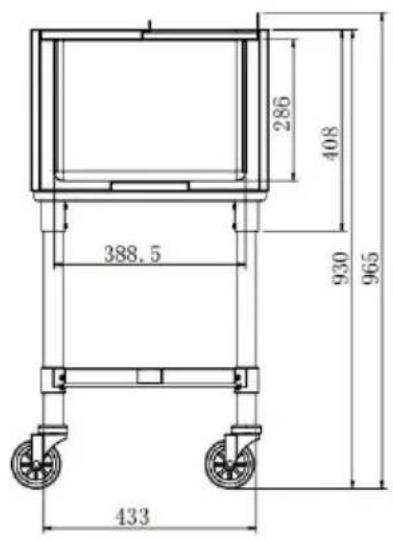

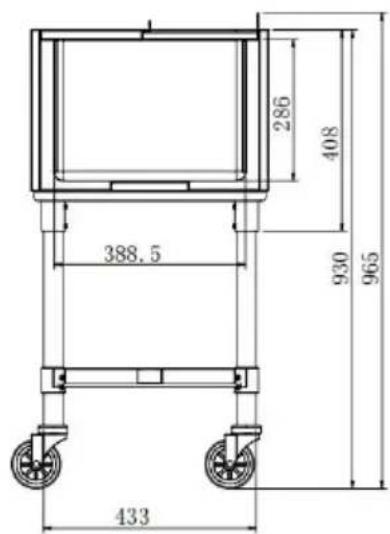

305 560.5 930 38 574

286 408 388.5 930 965 433

610 483

CIBT1924C

NOTE:

1. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
2. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic mechanical component with threaded end and flange (no visible text or symbols)

① ② ③ Screw ④ ⑤ ⑥ ⑦ ⑧ ⑨ Spanner

Kroki instalacji:

DIMENSIONS AND SPECIFICATIONS

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

① ② ③ Screw ④ ⑤ ⑥ ⑦ ⑧ ⑨ Spanner

DIMENSIONS AND SPECIFICATIONS

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

① ② ③ Screw ④ ⑤ ⑥ ⑦ ⑧ ⑨ Spanner

DIMENSIONS AND SPECIFICATIONS

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

Onderbalk ijsbak

MODEL: CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 CIBT1924N /CIBT1924C

HULP NODIG? NEEM CONTACT MET ONS OP!

Black plastic mechanical component with threaded end and flange (no text or symbols visible)

① ② ③ Screw ④ ⑤ ⑥ ⑦ ⑧ ⑨ Spanner

Installatiestappen:

DIMENSIONS AND SPECIFICATIONS

Model	Totale grootte (L*B*H mm)	Productcapaciteit (L)	Houdtijd
CIBT19 12	690*390*615	28	Kan een 24H isolatie-effect bieden.
CIBT1924	700*580*625	61.6
CIBT1930	850*580*620	78.4
CIBT1936	995*575*620	95.3
CIBT1924N	700*580*650	61.6
CIBT1924C	700*580*590	61.6

256 269

408 305 102 285 930 965 389 415 483

CIBT1912

305 483

561 574

102 305 285 408 930 965 389 415 483

610 483

CIBT1924

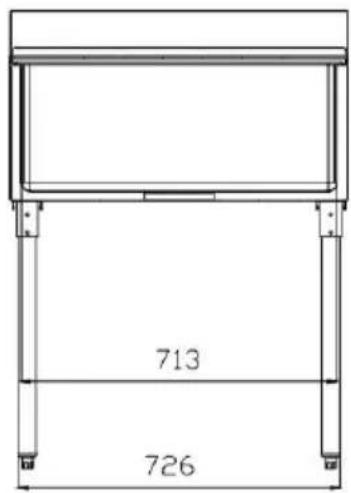

713 726
