USER MANUAL BLC9010 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multi-function Tool Stool

MODEL:BLC9010

VEVOR Support Center

QR code image containing encoded data, no visible human-readable text

MODEL:BLC9010

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

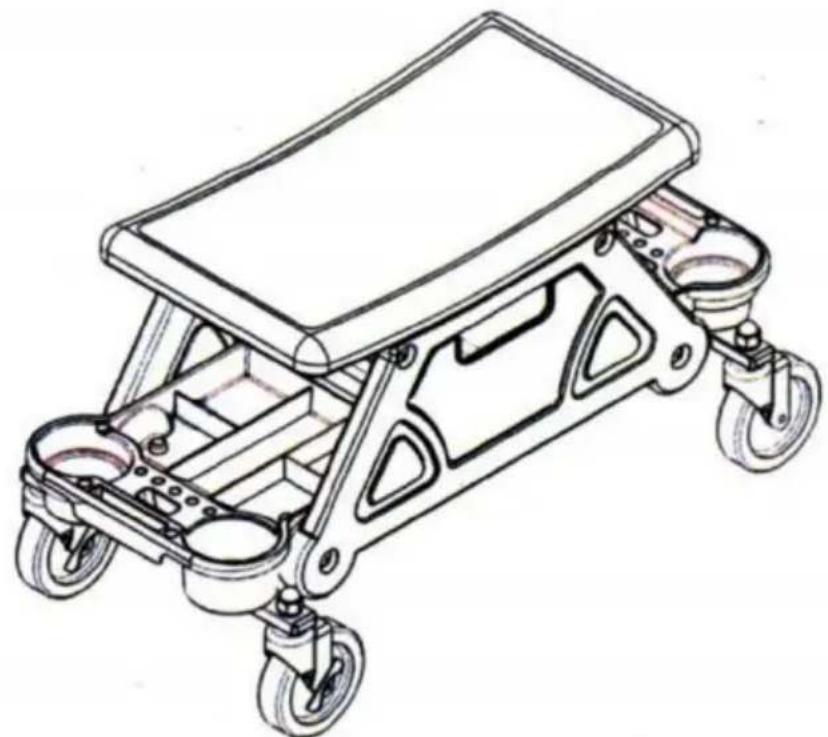

Multi-function

Tool Stool

MODEL:BLC9010

Line drawing of a wheeled robotic vehicle with wheels and structural components (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

SAFETYPRECAUTIONS

WARNING:

Read this material before using this product. Failure to do so c result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assem can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work glove during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of a drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard, and smooth surface capable of safely supporting a fully loaded seat.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with this item.
3. Do not exceed weight capacities, evenly distributed from the bottom up. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product fa
4. Use only on a flat, level, hard, and smooth surface capable safely supporting a fully loaded seat.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or

SAVE THESE INSTRUCTIONS

TECHNICAPARAMETERS

Model	BLC9010
Rated Load (kg)	300lbs
Product weight (kg)	5.3
Product size (mm)	670*340*390

Essential tools for auto beauty and mechanical repair

The multi-function tool stool is equipped with a slidable chassis storage rack and two bottle racks for all of your car cleaning supplies, allowing you to easily clean the wheels without having to bend frequently to a pressure to the back and knees.

Suitable for DIY work items in garages, workshops or homes-the

multi-function tool stool is equipped with durable casters and rubber wheels to allow you to slide easily and quickly in the garage or driv Match the perfect height of the car's side decoration or wheel

cleaning-sit down to complete the low-altitude work of car quick beaut polishing, waxing, ceramic coating, mechanical maintenance, wheel cleaning, tire and rubber. Cleaning, plastic repair, etc., without standing bending over to reduce pressure on your back or knees.

Convenient storage space-there is a storage drawer and two side storage trays under the seat to easily store car cleaning tools such as spray bottles, sealants, microfiber towels, sponges, applicators, etc., so that you can carry it with you when you work.

Features:

1. Rubber wheel casters with lock.
   2 . Storage tray for storing towels , small brushes , and tools .
2. Can hold 4 bottles of 16OZ for easy access.
3. Maximum weight 300LB.
4. 2512" × 13" × 12" .

INSTRUCTION FOR USE

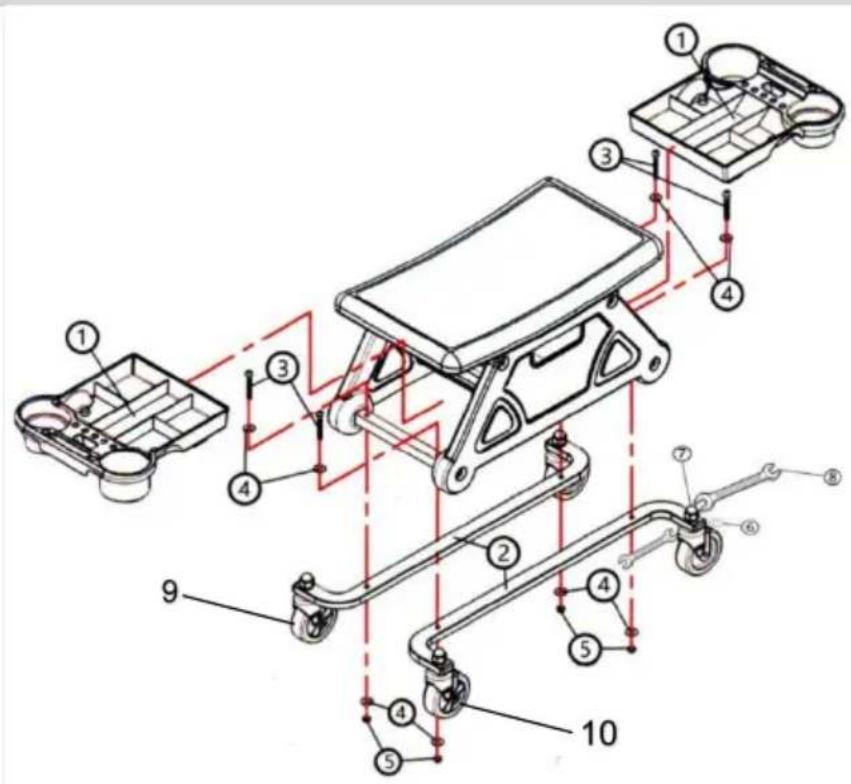

Technical diagram of a mechanical assembly with numbered components and red dashed lines indicating alignment or assembly paths.

Part	Description	QTY	Part	Description	QTY
1	Tool Tray	2	6	M8 Washer	4
2	Underside Frame	2	7	M8 Nut	4
3	M6×45 Screw	4	8	Wrench	1
4	M6 Washer	8	9	Lock wheel	2
5	M6 Nylon Nut	4	10	wheel	2

Insert the wheels into the underside frame and fix them with M8 nuts(7) and washers(6).

Use M6 screws(3), M6 Washer(4) and M6 Nyloc nut (5) to mount the

underside frame to the stool.

Insert the tray at an angle and press down to secure it to the

3D model of a toy car with red and green plastic components, displayed on wheels (no text or symbols visible)

The tray is installed along the inner side of the stool and tilted towards the inside until the inner side of the tray bears against inner card position of the stool.

Press the tray inward and downward with slight force until the s the bottom of the tray snaps into the metal frame, and a slight sound indicates that the tray has been installed in place.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Multifonction Outil Tabouret

MODÈLE : BLC9010

QR code image containing encoded data, no visible human-readable text

MODÈLE : BLC9010

Line drawing of a four-wheeled robotic vehicle chassis with wheels and mounting feet (no text or symbols)

Certificat www.vevor.com/support

Technical diagram of a vehicle chassis with numbered components and structural annotations

3D model of a toy car with red and green plastic components, displayed on wheels (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

MODELL: BLC9010

Line drawing of a four-wheeled robotic vehicle with wheels and mounting brackets (no text or symbols)

BRAUCHEN HILFE? KONTAKT UNS!

Technical diagram of a vehicle chassis with numbered components and red dashed lines indicating assembly or maintenance areas.

3D model of a toy car with red and green plastic parts, displayed on wheels (no text or symbols)

www.vevor.com/support

QR code image containing encoded data, no visible human-readable text

MODELLO:BLC9010

Line drawing of a custom-built wheeled vehicle with wheels and structural components (no text or symbols)

BISOGNO AIUTO? CONTATTO NOI!

Certificato www.vevor.com/support

Technical diagram of a vehicle chassis with numbered components and red dashed lines indicating assembly or maintenance areas.

3D model of a toy car with red and green plastic parts, displayed on wheels (no text or symbols)

www.vevor.com/support

QR code image containing encoded data, no visible human-readable text

MODELO: BLC9010

Line drawing of a four-wheeled robotic vehicle chassis with wheels and mounting feet (no text or symbols)

Technical diagram of a vehicle chassis with numbered components and red dashed lines indicating assembly or maintenance areas.

3D model of a toy car with red and green plastic parts, displayed on wheels (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

MODEL:BLC9010

Line drawing of a small wheeled vehicle with wheels and structural components (no text or symbols)

POTRZEBOWAĆ POMOCY? KONTAKT NAS!

Technical diagram of a mechanical assembly with numbered components and red dashed lines indicating alignment or assembly paths.

3D model of a toy car with red and green plastic components, displayed on wheels (no text or symbols visible)

www.vevor.com/support

QR code image containing encoded data, no visible human-readable text

MODEL: BLC9010

Line drawing of a small wheeled vehicle with wheels and structural components (no text or symbols)

BEHOEFTE HULP? CONTACT ONS!

Certificaat www.vevor.com/support

Technical diagram of a robotic car with numbered components and red dashed lines indicating assembly or maintenance steps.

3D model of a toy car with red and green plastic parts, displayed on wheels (no text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

MODELL: BLC9010

Line drawing of a four-wheeled robotic vehicle with wheels and mounting brackets (no text or symbols)

BEHOV HJÄLP? KONTAKTA USA!

Technical diagram of a mechanical assembly with numbered components and red dashed lines indicating alignment or assembly paths.

Del	Beskrivning	ANTAL	Del	Beskrivning	ANTAL
1	Verktygsbricka	2	6	M8 bricka	4
2	Undersida Ram	2	7	M8 Mutter	4
3	M6×45 Skruva	4	8	Rycka	1
4	M6 Bricka	8	9	Lås hjulet	2
5	M6 Nylon Mutter	4	10	hjul	2

3D model of a toy car with red and green plastic components, displayed on wheels (no text or symbols visible)
