Product Type	Under-counter integrated ice bin
Brand	Vevor
Model	CIBT1924C
Dimensions (W x D x H)	700 x 580 x 590 mm
Capacity	61.6 liters
Main material	Brushed stainless steel
Insulation	Double-layer high-density polyurethane
Thermal autonomy	Up to 24 hours
Lid	With adhesive sealing gasket and adhesive tape
Condensation protection	XPE sponge on sides and bottom
Recommended use	Indoor use, under counter
Supplied accessories	Cup, sealing gasket (x2), lid, sieve, screw, key, exhalent siphon
Cleaning	After each use, drain residual water
Storage	Keep dry when not in use

Frequently Asked Questions - CIBT1924C Vevor

What is the capacity of the Vevor CIBT1924C ice bin?

The capacity is 61.6 liters, allowing to store a large amount of ice.

How to install the Vevor CIBT1924C ice bin?

Installation is done under a counter. Place part #4 into the basin hole, install parts #5/6/7, tighten the screw, then place the lid (parts #1/2/3). Refer to the manual for detailed diagrams.

How to clean my ice bin?

After each use, drain the melted water and clean the inside with warm soapy water. Dry thoroughly to prevent bacteria. In case of prolonged disuse, keep it dry.

Does the ice bin require an electrical power supply?

No, this model is a passive storage container without electrical components. It keeps the ice through thermal insulation.

Can this ice bin be used outdoors?

It is designed for indoor use, preferably under a counter. Outdoor use may expose the stainless steel to corrosion if not protected.

How long does the ice stay cold?

Thanks to the high-density polyurethane insulation, the ice can stay cold up to 24 hours under normal conditions.

What accessories are included with the CIBT1924C?

The package includes: a cup, two sealing gaskets, a lid, a sieve, a screw, a key, and an exhalent siphon.

Is the lid waterproof?

Yes, the lid is equipped with an adhesive tape and sealing gaskets to prevent heat loss and condensation.

What to do if condensation forms on the outside?

The XPE sponge on the sides and bottom absorbs condensation. If it persists, check that the lid is properly closed and that the insulation is not damaged.

Is this model compatible with other Vevor ice machines?

The CIBT1924C is a storage bin compatible with under-counter ice machines of the CIBT series. It is placed under the dispenser to collect the ice.

USER MANUAL CIBT1924C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Underbar Ice Bin

MODEL : CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 CIBT1924N /CIBT1924C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

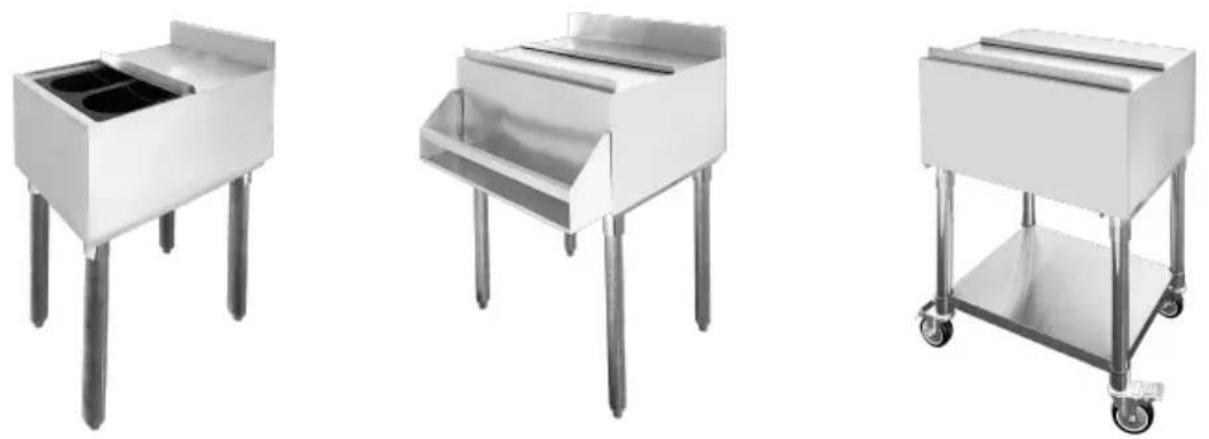

MODEL: CIBT1912/CIBT1924 /CIBT1930 /CIBT1936/CIBT1924N CIBT1924C

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

WARNING!

While assembling and using this product, keep work area clean and lighted, and keep spectators and children out of the work area.

Assemble only according to commercial ice caddy parameter. Improper assembly can create hazards.

Use as intended only.

Keep away from sharp points, blades and other items, so as not to scr the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in commercial caddy. Wrong installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a adhesive strip to prevent heat loss and ensure your ice stays cool for long time.

2. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside a restaurants, perfect for any casual occasion such as dinner, sports pa barbecue.

3. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

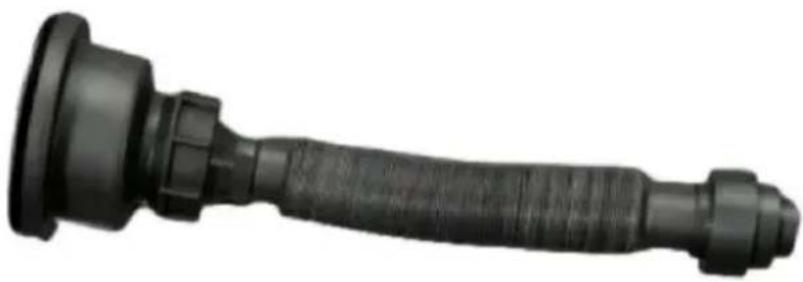

Black plastic mechanical component with threaded end and flange (no visible text or symbols)

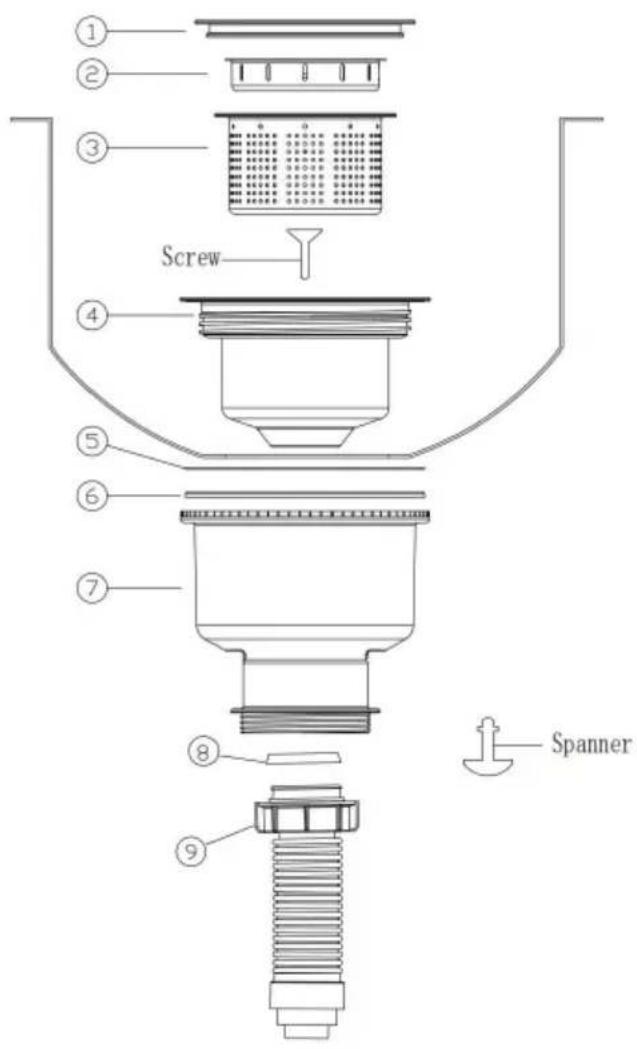

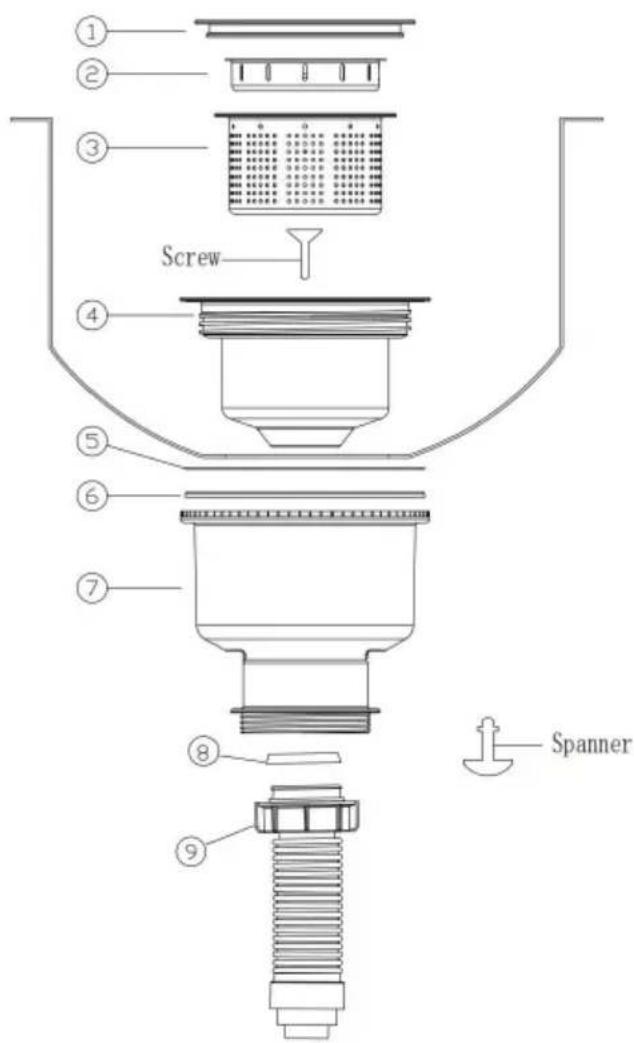

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on part.
2: Tighten the screw with the key, and tighten the 8/9 part on the
3: Place part No. 1/2/3 in part No. 4 to complete the installation.

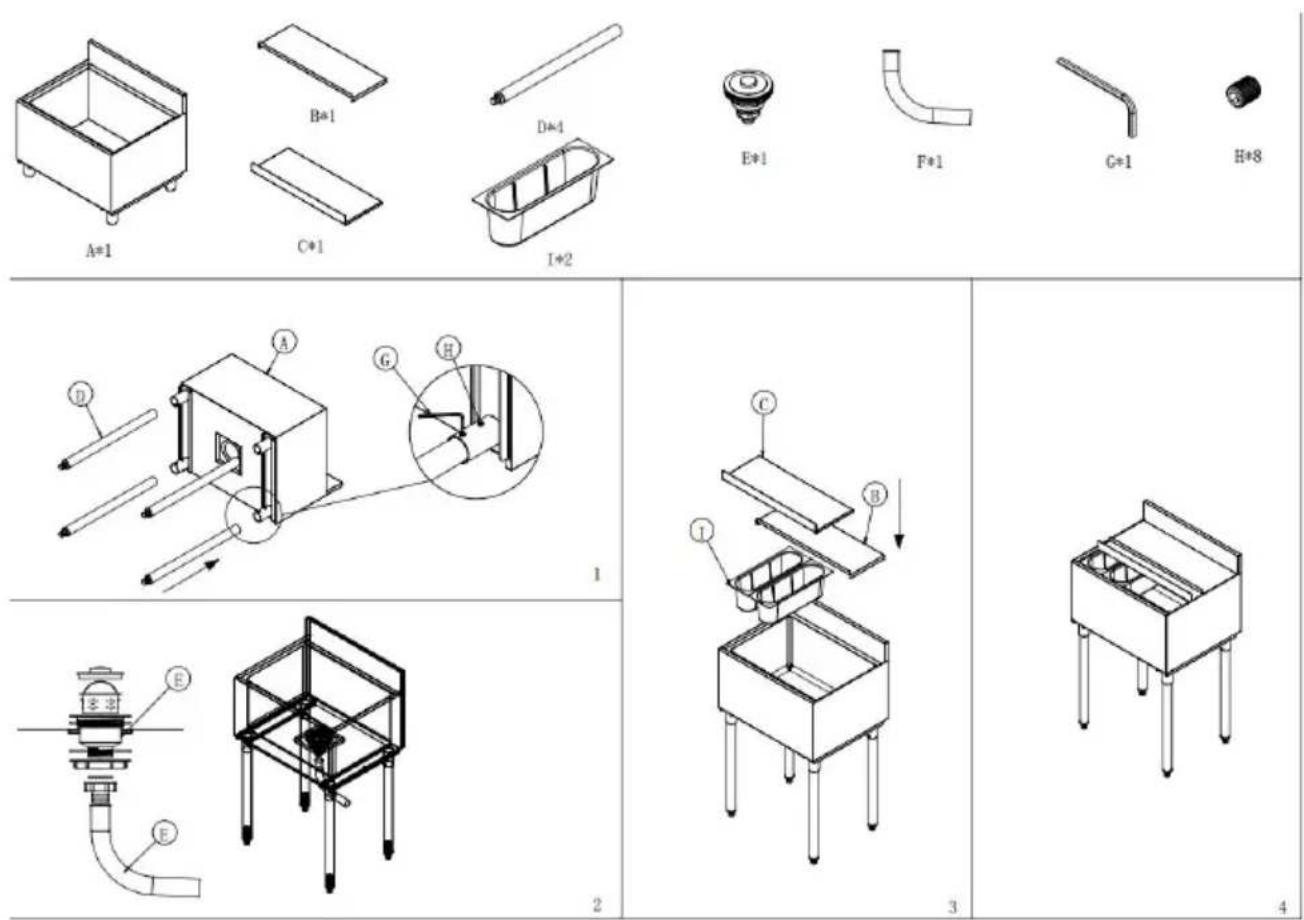

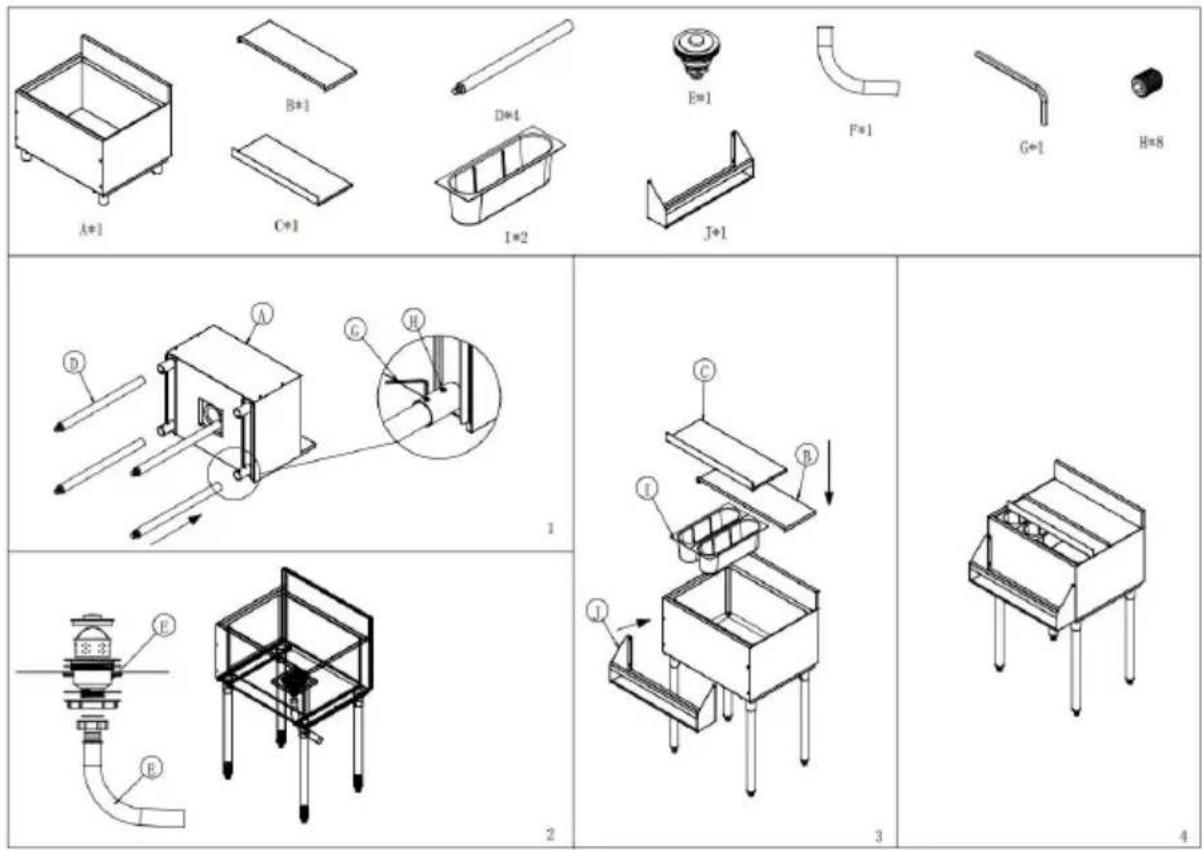

CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 components and Installation steps:

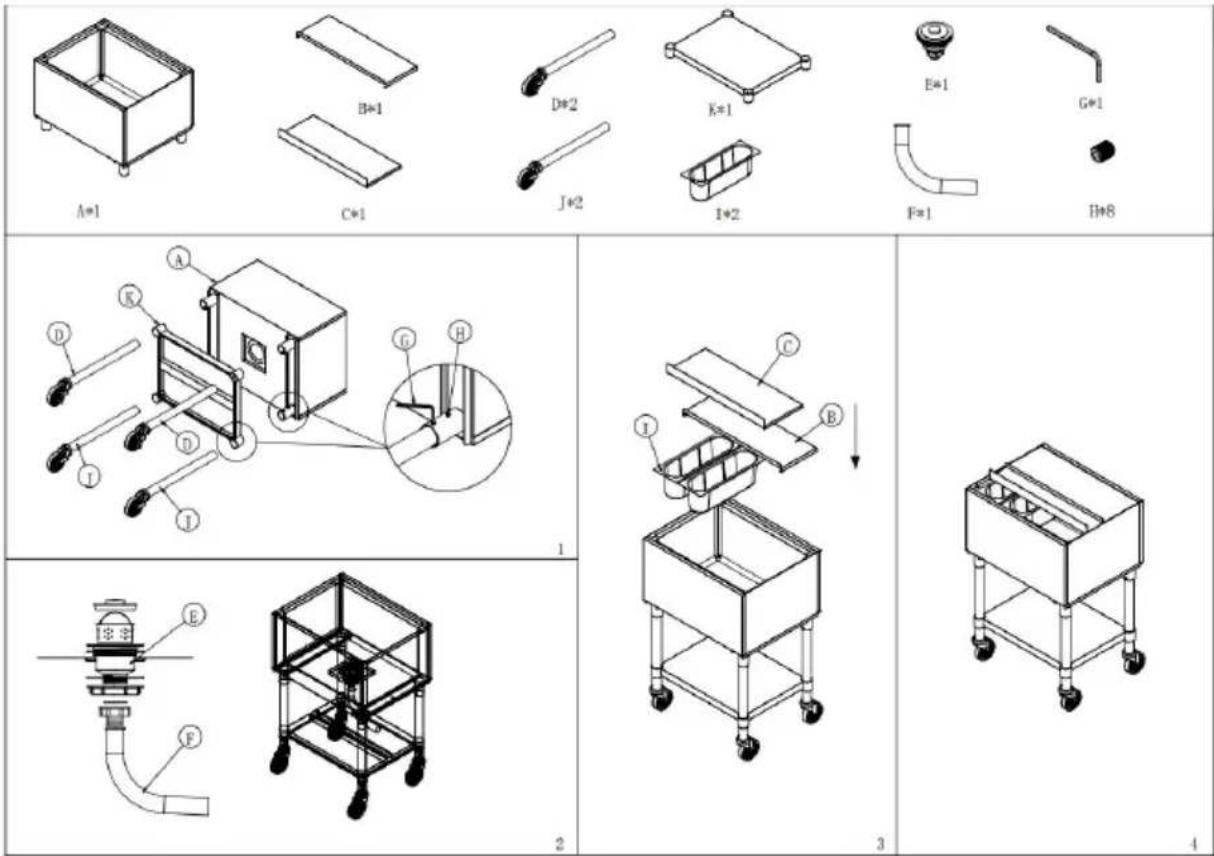

CIBT1924N components and Installation steps:

CIBT1924C components and Installation steps:

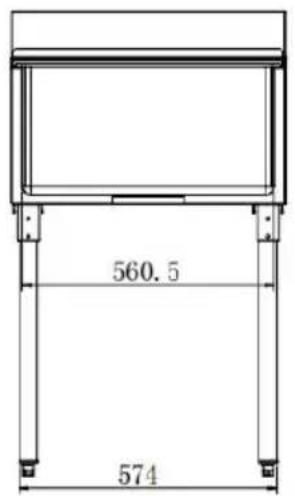

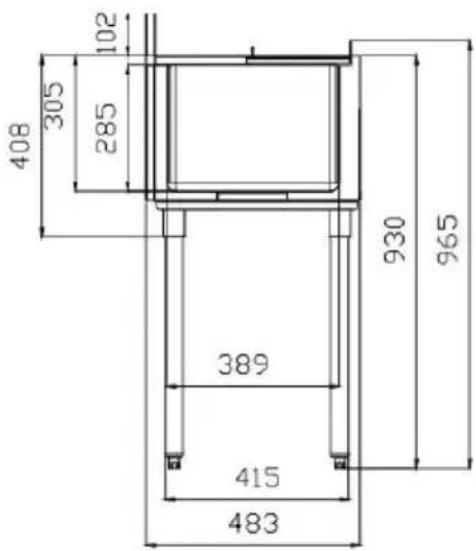

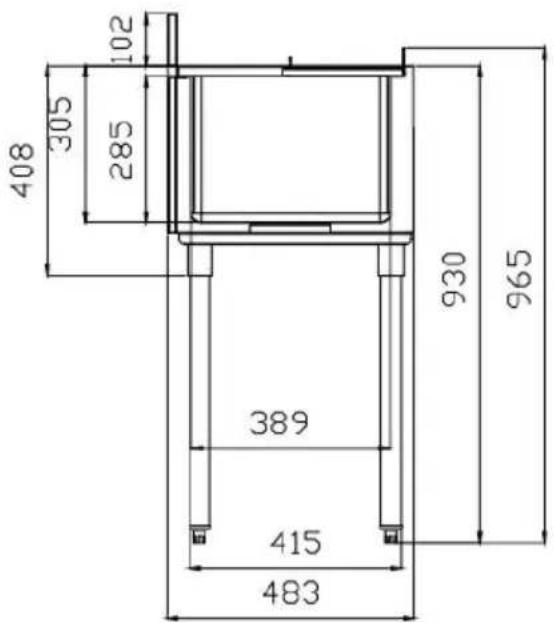

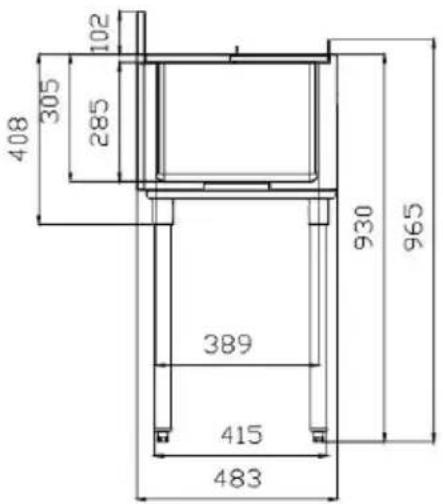

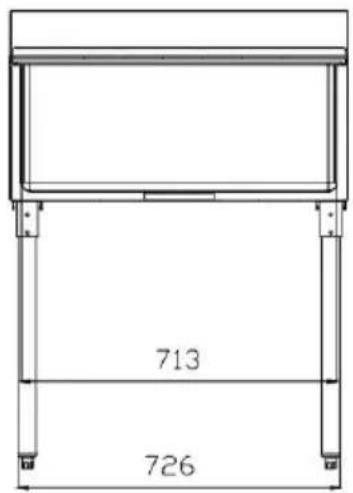

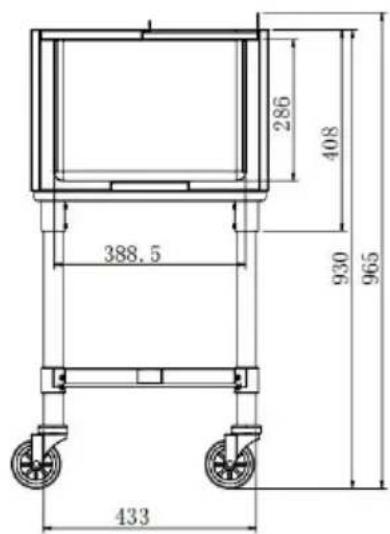

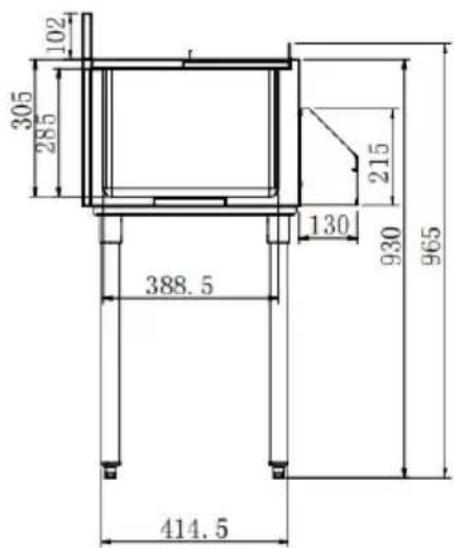

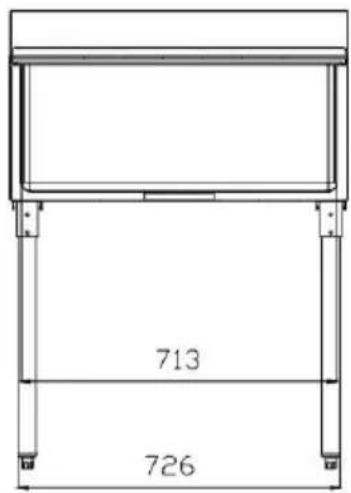

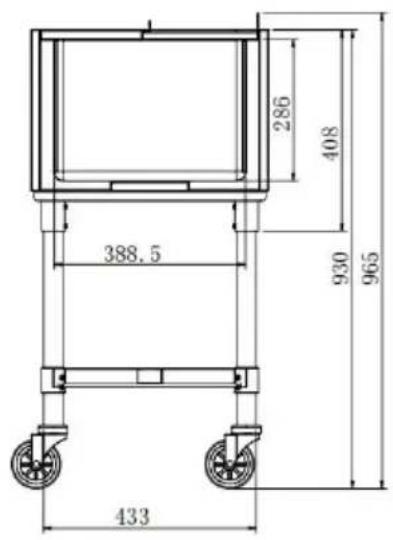

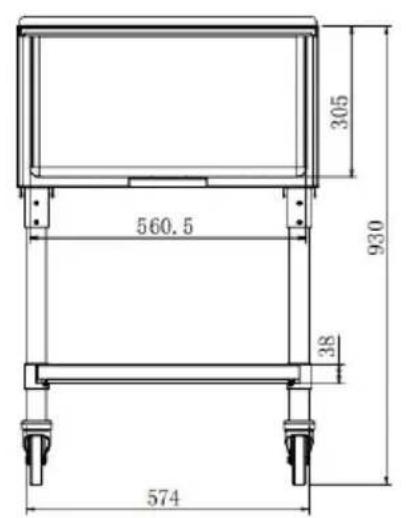

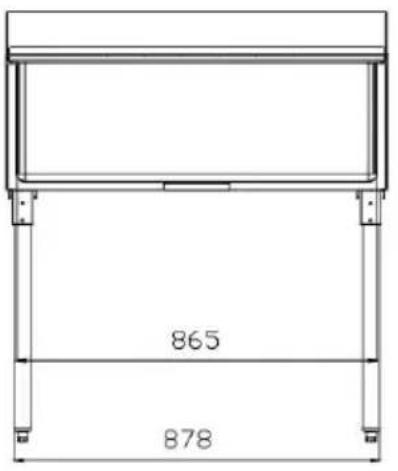

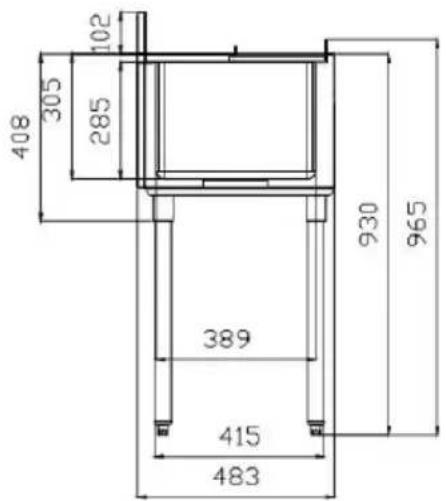

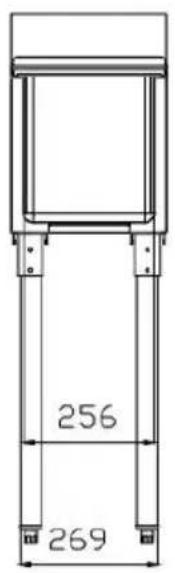

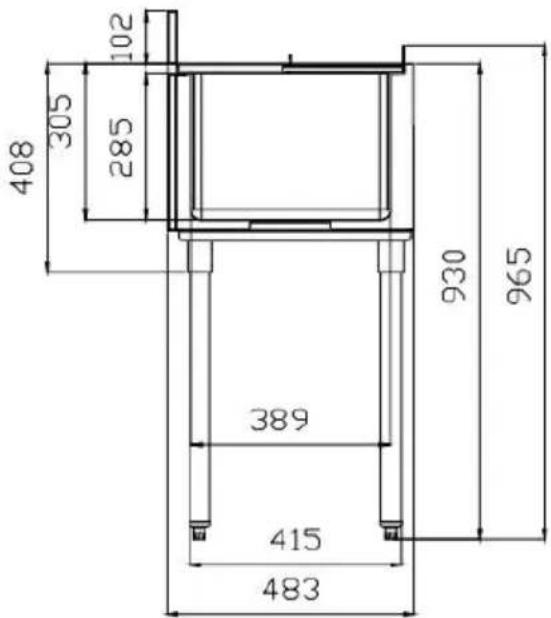

DIMENSIONS AND SPECIFICATIONS

Model	Overall size (L*W*H mm)	Product capacity (L)	Holding time
CIBT1912	690*390*615	28	Can provide 24H insulation effect.
CIBT1924	700*580*625	61.6
CIBT1930	850*580*620	78.4
CIBT1936	995*575*620	95.3
CIBT1924N	700*580*650	61.6
CIBT1924C	700*580*590	61.6

CIBT1912

CIBT1924

CIBT1930

CIBT1936

CIBT1924N

CIBT1924C

NOTE:

1. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
2. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.
