HOCKEY GOAL

MODEL: CD-HG05

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: CD-HG05

Diagram of a room layout with grid pattern and a central rectangular space, no text or symbols present

Note: This product does not include mainnet

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you very much for choosing this Product. Please read all of instructions before using it. The information will help you achieve the b possible results.

INTRODUCTION

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product fully aware of all warnings and precautions.

▶ Always inspect the goal post and net for defects before use and replace damaged parts.
▶ Do not use the goal with faulty parts.
▶ The product is gently placed on a flat ground for use.
▶ Never climb on the net or the goal frame. The goal must need to be used without the net fitted. Please always adhere to the safety instructions.
▶ Remove all weights and anchors before moving or disassembling the goal. Do not use the goal in windy weather
▶ Do not use the goal in sub zero temperatures. We advise ad supervision during assembly and use. Do not drop any heavy objects on the tubes.
- When dismantling the goal ensure that all fittings are packed away, and that non are left on the playing surface.
▶ Check whether the installation is firm before use to avoid potential safety hazards.
▶ Check and tighten the screw interface of each component regularly.
▶ It should be stored in a dry environment if not used for a long tir

PART LIST

A 1PCS

B 1PCS

Simple line drawing of a straight rod or rod with no text or symbols

C 4PCS

Simple diagonal line drawing with no text or symbols

D 2PCS

Abstract black-and-white geometric shape with no text or symbols

E 1PCS

F 6PCS

G 2PCS
M8*50

H 1PCS

ASSEMBLY

Step 1:

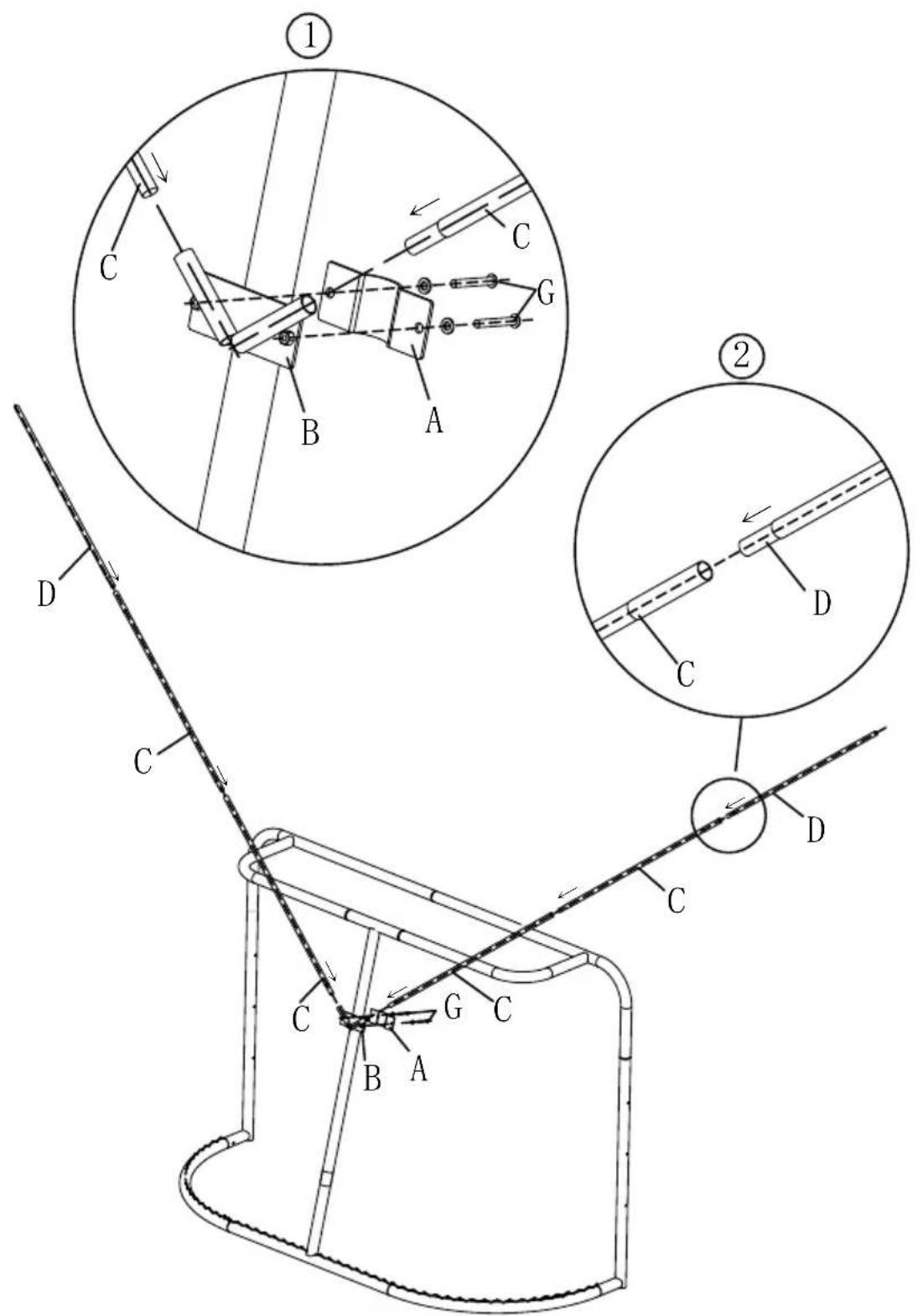

As shown in the figure, the glass fiber tubes on both sides are connected and fixed on the main frame of the original ball net fixed block

Technical diagram showing mechanical assembly with labeled components (A, B, C, D) and circular insets for assembly details.

Step 2:

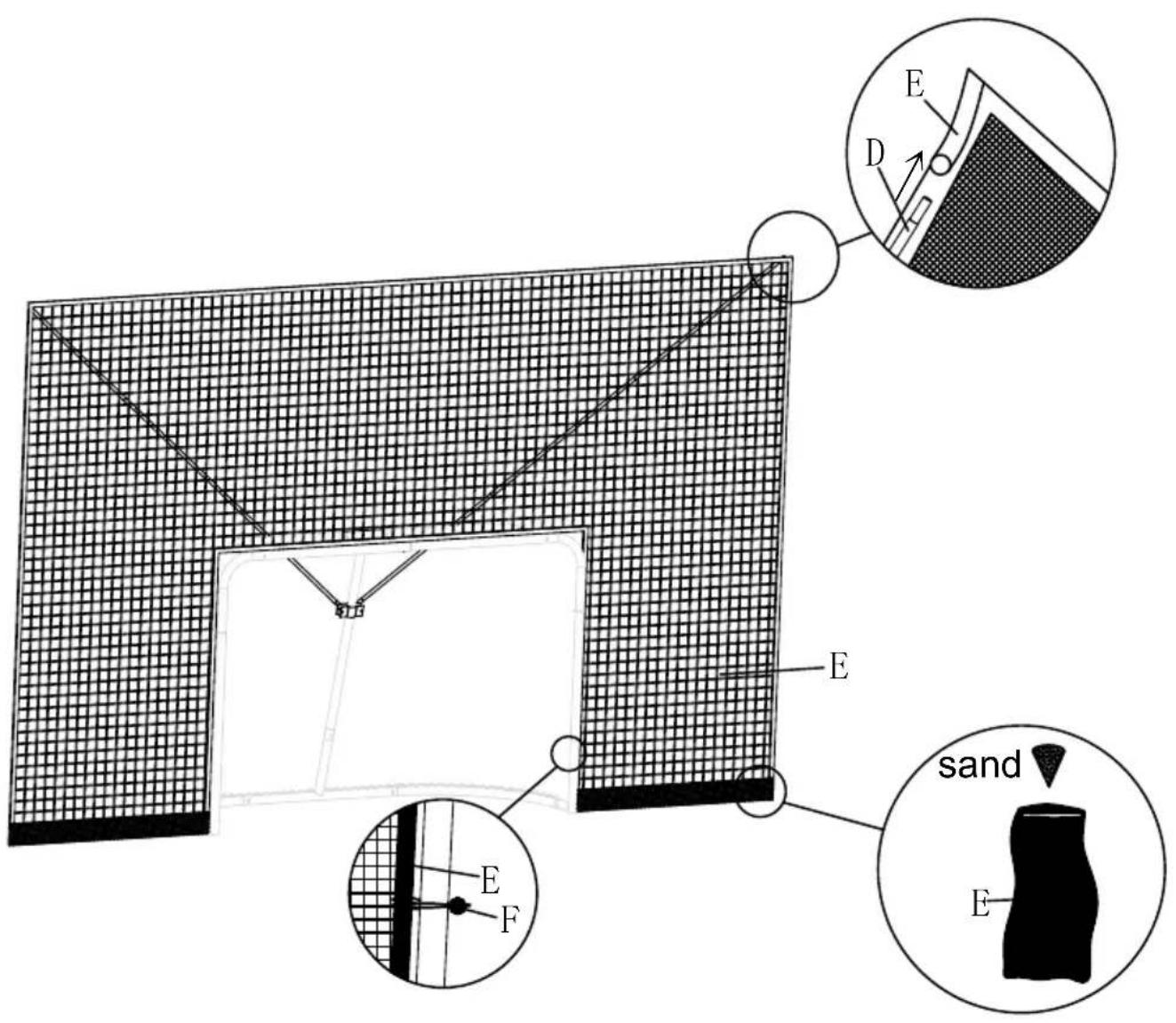

First, the bottom bags on both sides of the side net are filled sand, and then the side net is hung on the glass fiber bracket the side net is fixed on the main frame of the original goal wi spring buckle, Finished.
