Product Type	Fabric partition screen (room divider)
Brand	VEVOR
Model	CLDMFGHS04
Color	Black
Number of Panels	4
Material	Fabric and metal
Product Dimensions (L x W x H)	3085 × 450 × 2455 mm
Maximum Load Capacity	Not specified
Product Weight	Not specified
Power Supply	None (manual)
Main Functions	Space separation, decoration, privacy
Care and Cleaning	Clean with a soft, dry cloth. Avoid abrasive products.
Safety Instructions	Do not sit or stand on it. Assemble on a flat surface. Use only horizontally.
Spare Parts	Not provided by the manufacturer
Repairability	Not user-repairable
Technical Support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (Australia)	SIHAO PTY LTD, NSW 2122
Importer (US)	Sanven Technology Ltd, CA 91730

Frequently Asked Questions - CLDMFGHS04 Vevor

How many panels does the VEVOR CLDMFGHS04 room divider have?

The CLDMFGHS04 model has 4 panels, allowing flexible space separation.

What are the dimensions of the room divider?

The dimensions are 3085 mm in length, 450 mm in depth, and 2455 mm in height.

How to assemble the VEVOR room divider?

Assembly is done in 8 steps: assemble the vertical rods (A+B+C), the horizontal bars (D+E), attach the curtain (H), then assemble everything with the screws and the provided tool (G). Follow the diagrams in the manual.

Can I sit or stand on the room divider?

No, it is strictly forbidden to sit or stand on the room divider. This could cause serious injury.

What is the maximum weight capacity?

The weight capacity is not specified, but it is not recommended to place heavy objects on the room divider. Use it only as a space divider.

How to clean the room divider?

Clean the fabric with a soft, dry cloth. Avoid abrasive chemicals that could damage the coating.

Where to find technical support?

Go to www.vevor.com/support for technical support and the electronic warranty certificate.

Does the room divider come with assembly tools?

Yes, a tool (G) is included in the package for tightening screws during assembly.

Which models are compatible with this manual?

This manual is compatible with models CLDMFGMS01, CLDMFGBS02, CLDMFGSH03, and CLDMFGHS04.

Can I use the room divider outdoors?

This room divider is designed for indoor use only. Exposure to weather could damage it.

USER MANUAL CLDMFGHS04 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

FABRIC ROOM DIVIDER

USER MANUAL

CLDMFGMS01

CLDMFGBS02

CLDMFGSH03

CLDMFGHS04

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of supporting the Fabric Room Divide.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unpack and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Fabric Room Divide.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

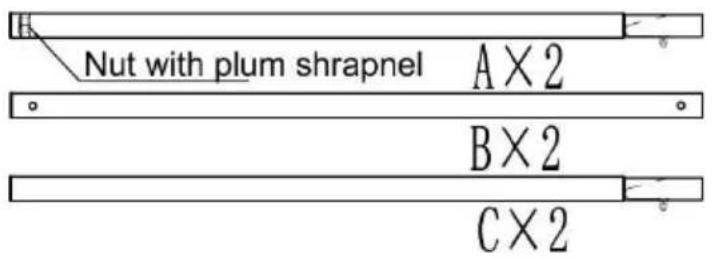

PARTS LIST

A+B+C		2
D		4
E		2
F		2
G		1
H		2+1
I		1
NOTE: H is the fabric of the screen, pay attention not to g when installing.

ASSEMBLY STEP

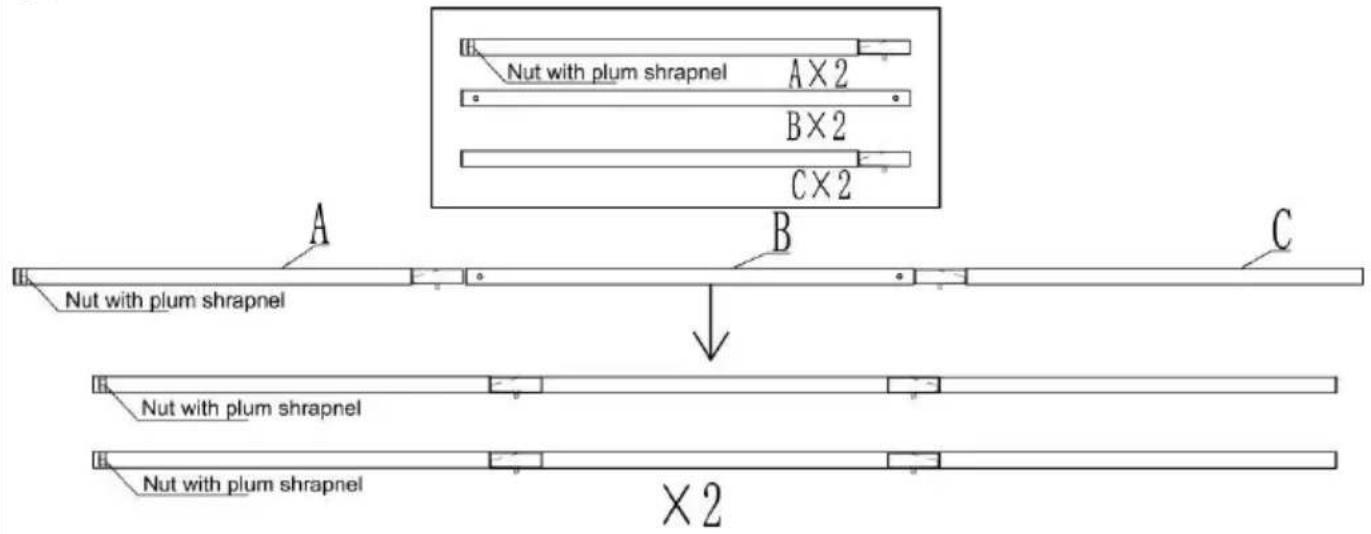

STEP 1

Take A+B+C material, and assemble three in order, a total of for 2 groups of vertical rods.

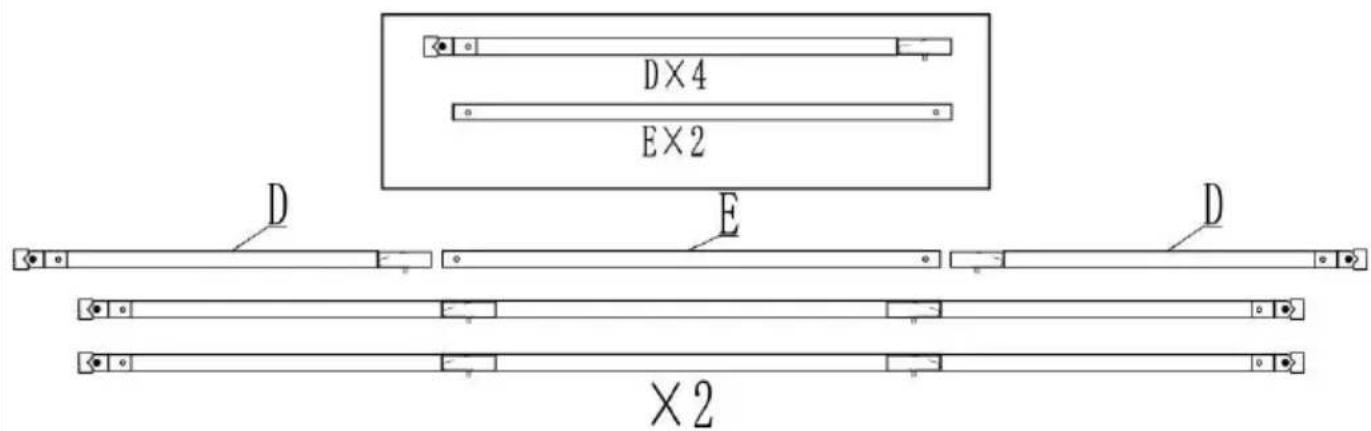

STEP 2

Take D+E materials and assemble them in sequence. There are groups in total, which are 2 groups of cross bars.

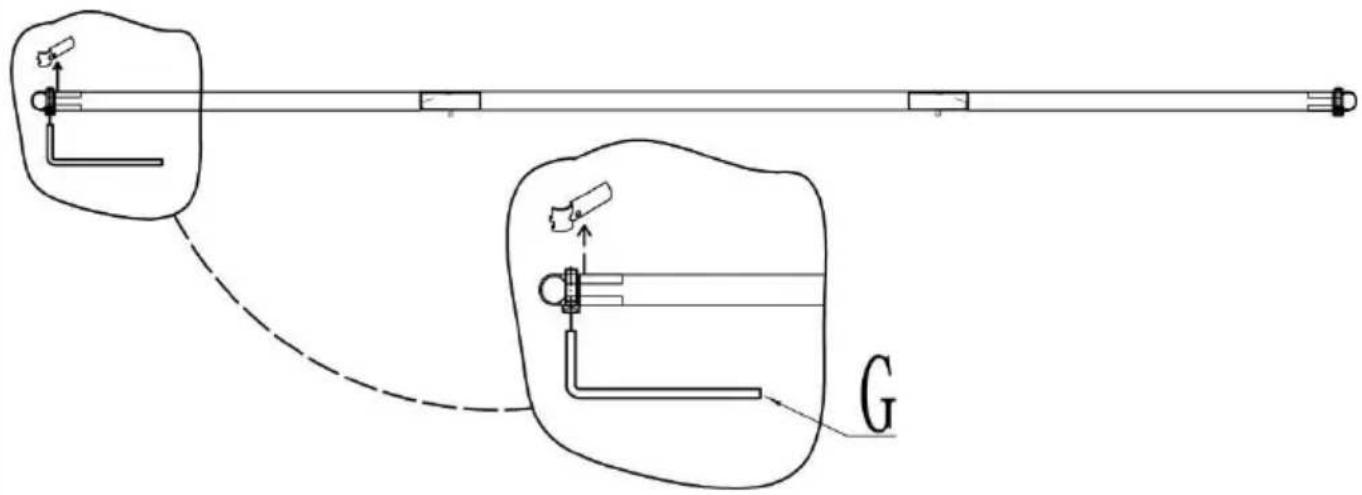

STEP 3

Take the two groups of cross bars in step 2 and disassembl sheets at both ends through tool G, as shown in the figure.

STEP 4

Take the first set of horizontal rods from Step 3 and insert into the horizontal rods, as shown in the figure.

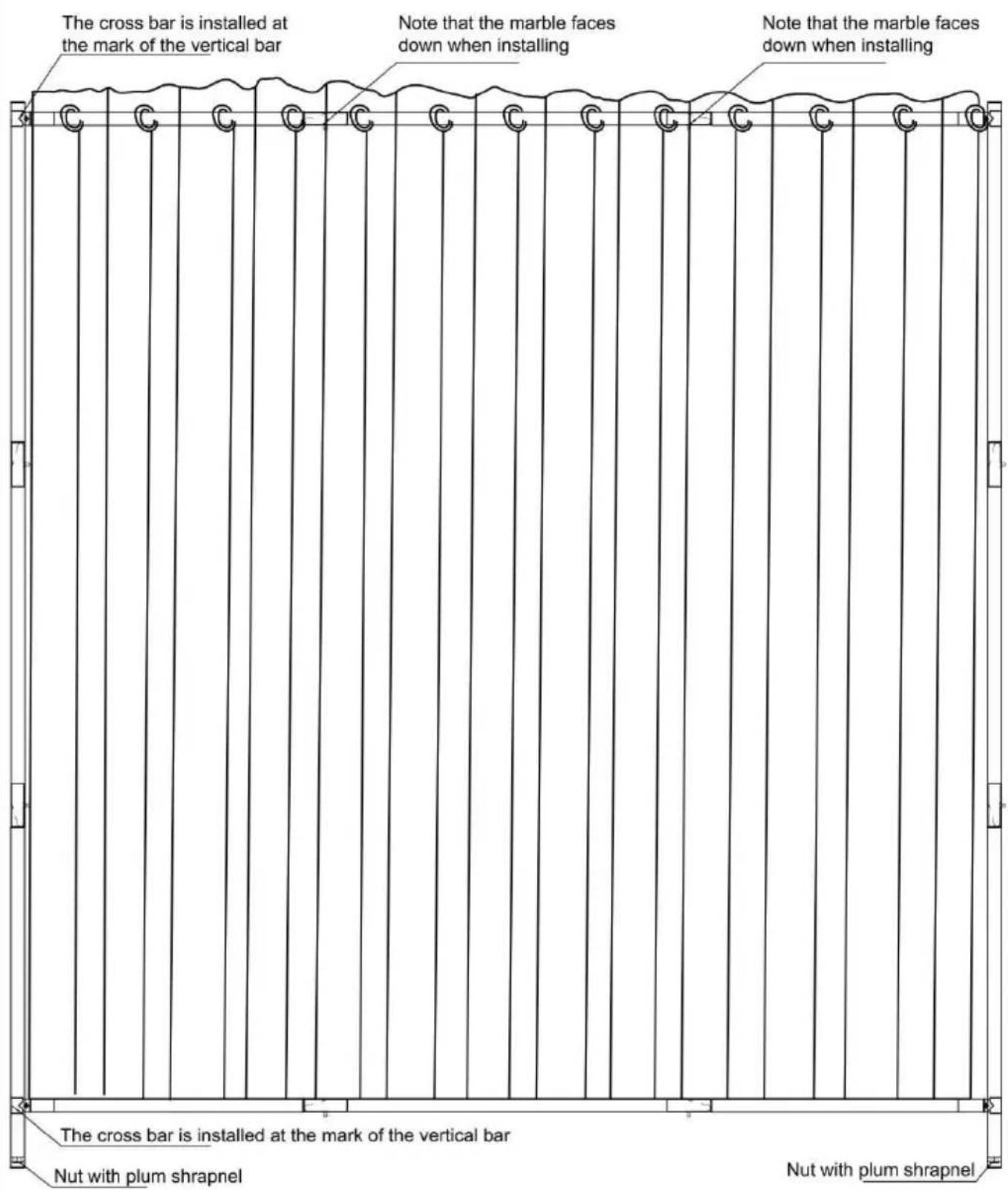

STEP 5

Take the two sets of vertical rods from step 1, lay them flat on and place the bar with the curtain and the other set of horizonta the place where the vertical rods are marked, as shown in the

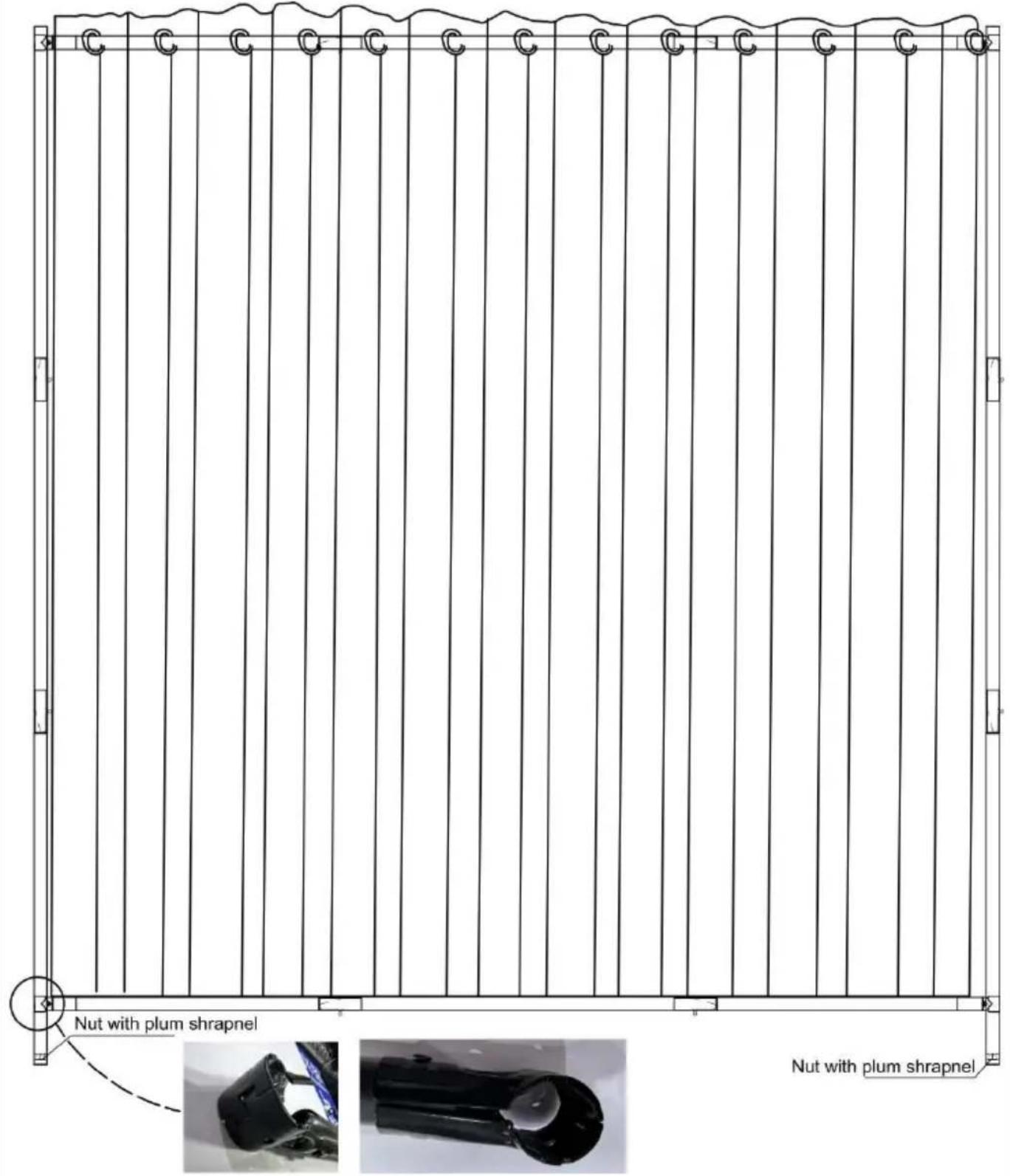

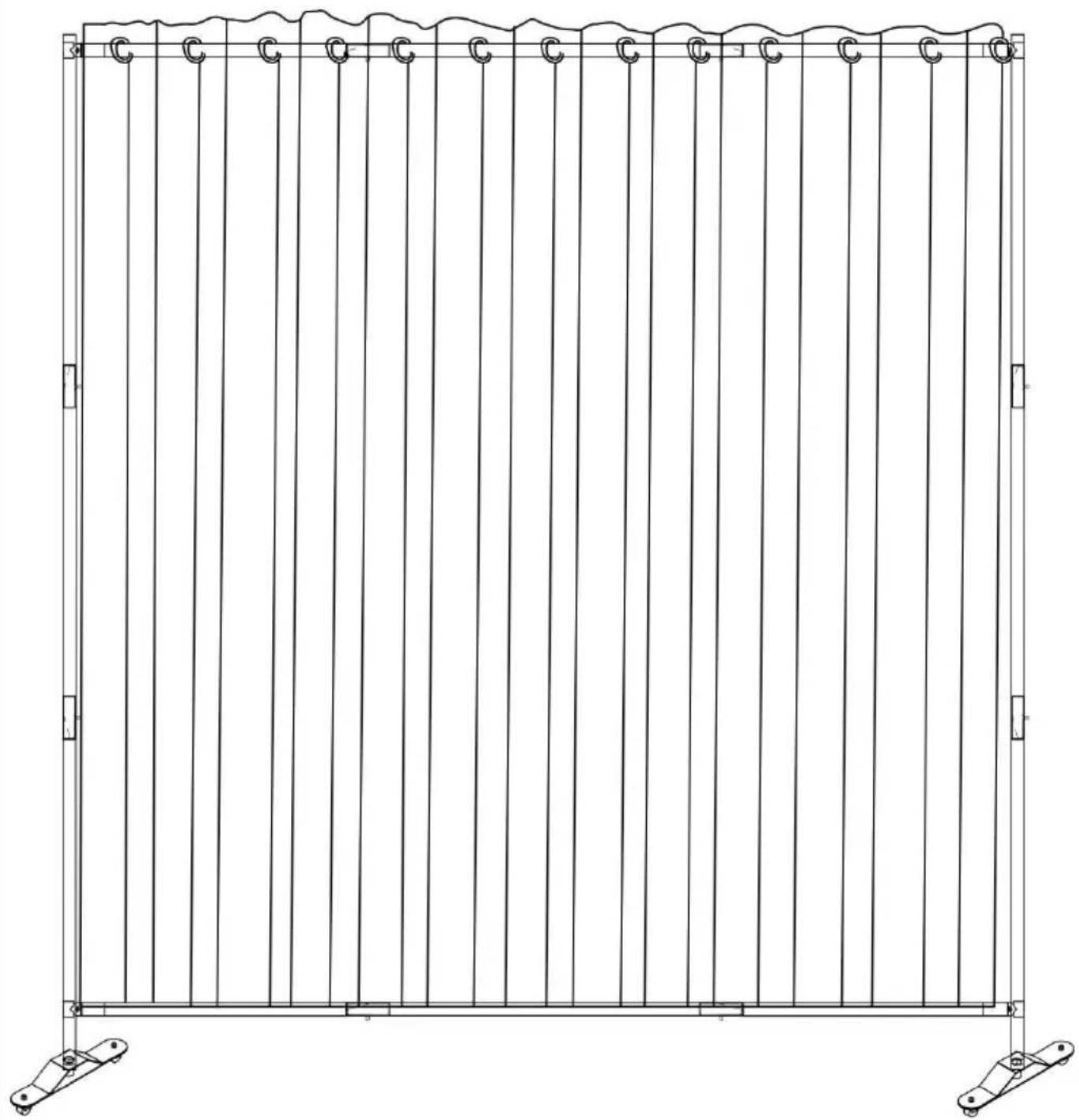

STEP 6

Install the iron sheet taken out in step 3 as shown in the figure (the clasp should be stuck when closing), then insert the screw and tighten it through tool G.

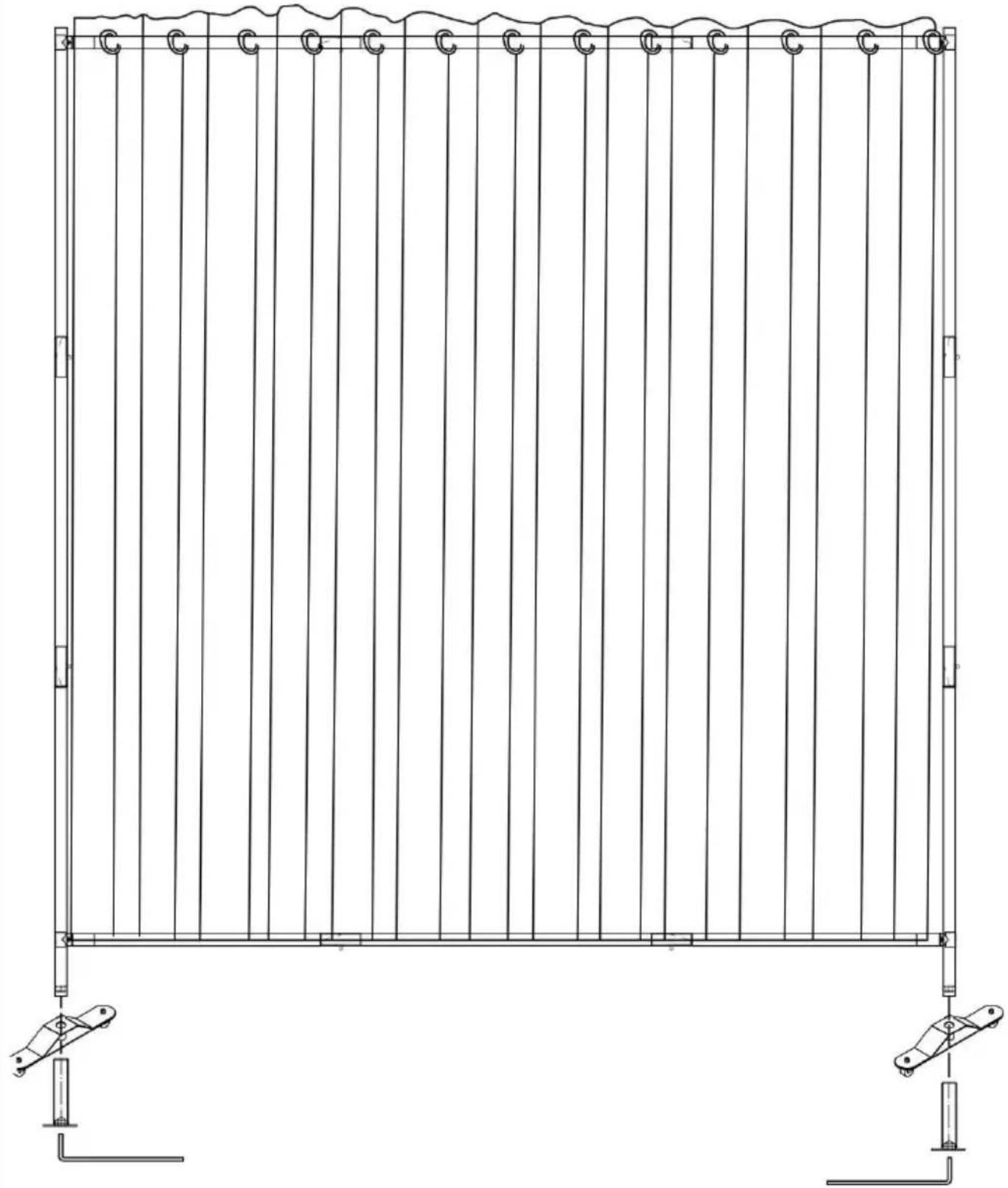

STEP 7

Take material F and insert it into the bottom of the vertical rod as shown in the picture, then insert the screw and tighten it through tool G, which is spare.

STEP 8

STEP 9

PRODUCT PARAMETER

Model	Colour	Number of Panels	Product Size
CLDMFGMS01	Creamy White	1	3085*450*2455mm
CLDMFGBS02	Brownness
CLDMFGSH03	Gray
CLDMFGHS04	Black

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
