CIBT1912 - Ice Maker Vevor - Free user manual and instructions

Product type	Built-in ice bucket (under-counter ice bin)
Brand	Vevor
Model	CIBT1912
Dimensions (L x W x H)	690 x 390 x 615 mm
Capacity	28 liters
Cold retention time	Up to 24 hours
Exterior material	Brushed stainless steel
Insulation	Double layer with high-density polyurethane and adhesive lid seal
Anti-condensation coating	XPE foam on sides and bottom
Included accessories	Cup, lid, strainer, gasket (x2), screw, key, siphon
Recommended use	Ice storage, cooling beverages (wines, beers, cocktails)
Maintenance	Clean after each use; empty and dry if not used for a long time
Safety precautions	Keep out of reach of children (small parts); assemble and use on a clean, well-lit surface
Spare parts	Replaceable filtration components and gaskets available
Technical support	www.vevor.com/support
Warranty	Electronic warranty certificate included
Compatible series	CIBT1912 / CIBT1924 / CIBT1930 / CIBT1936 / CIBT1924N / CIBT1924C

Frequently Asked Questions - CIBT1912 Vevor

What is the capacity of the CIBT1912 ice bucket?

The CIBT1912 ice bucket has a capacity of 28 liters, allowing it to store a large quantity of ice cubes.

How long does the ice stay cold?

Thanks to its double-layer high-density polyurethane insulation, the ice can stay cold for up to 24 hours.

What materials are used for this ice bucket?

The exterior is brushed stainless steel, the interior is insulated with high-density polyurethane, and the sides/bottom are covered with anti-condensation XPE foam.

Does the ice bucket require electricity?

No, this ice bucket is a passive insulated container. It does not require any electricity to operate.

How do I maintain the ice bucket after use?

After each use, it is recommended to clean the interior and drain the melted water. If not used for a long time, empty and dry the bucket to prevent mold.

What accessories are included with the CIBT1912?

The included accessories are: a cup, a lid, a strainer, two gaskets, a screw, a key, and a siphon.

Can the ice bucket be used outdoors?

Yes, it is suitable for patios, backyards, poolside, etc. However, it is recommended to protect it from the elements for better durability.

How do I install the filters on the ice bucket?

To install the filters, place part No. 4 in the basin hole, then mount parts 5/6/7 onto it. Tighten the screw with the key, then place parts 1/2/3 onto part No. 4. Refer to the installation diagram in the manual.

Are spare parts available for this model?

Yes, the filtration components (strainer, gaskets, etc.) are replaceable. For any parts, contact Vevor technical support at www.vevor.com/support.

What are the exact dimensions of the CIBT1912?

The dimensions are 690 x 390 x 615 mm (length x width x height).

USER MANUAL CIBT1912 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Underbar Ice Bin

MODEL: CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 CIBT1924N /CIBT1924C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: CIBT1912/CIBT1924 /CIBT1930 /CIBT1936/CIBT1924N CIBT1924C

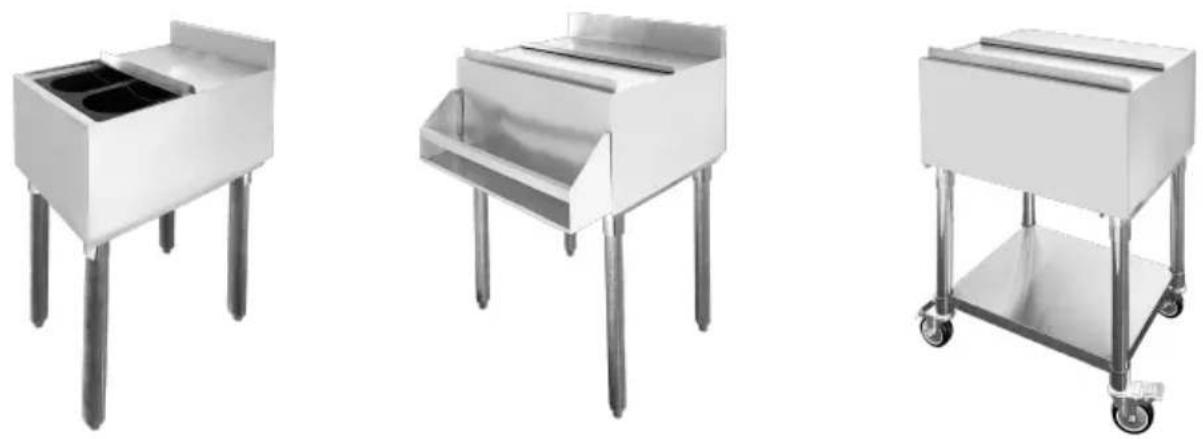

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children when assembling!

WARNING!

While assembling and using this product, keep the work area clean and well-lit, and keep spectators and children out of the work area.

Assemble only according to the commercial ice caddy parameters. Improper assembly can create hazards.

Use as intended only.

Keep away from sharp points, blades, and other items to avoid scratching the product.

NOTE:

1. The illustration shown is for reference only. It may not represent the actual finial purchased.
2. Please follow the installation steps to mount this drop-in commercial caddy. Incorrect installation steps may cause damage or trouble.
3. Installation is easy. Please handle it gently.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. The double-layer design achieves better insulation. The interior is insulated with high-density polyurethane, and the lid is sealed with an adhesive strip to prevent heat loss and ensure your ice stays cool for a long time.
2. The ice bucket with lid is a versatile and essential accessory that can keep wines, beers, cocktails, and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside, and restaurants, perfect for any casual occasion such as dinner, sports parties, or barbecues.
3. The side and bottom of the product are wrapped with XPE sponge, which not only increases the thermal insulation effect but also prevents condensation on the side and bottom, thereby avoiding the problem of water dripping on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1

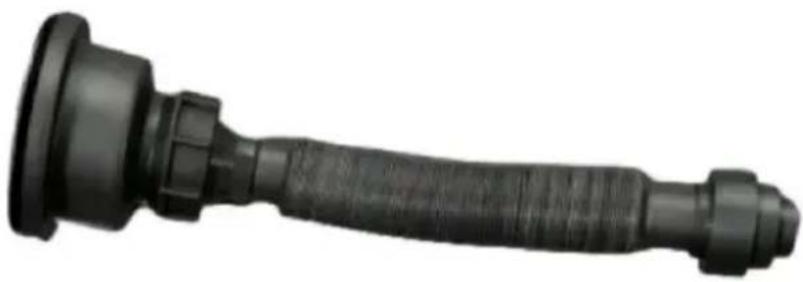

exhalentsiphon	1		Spanner	1

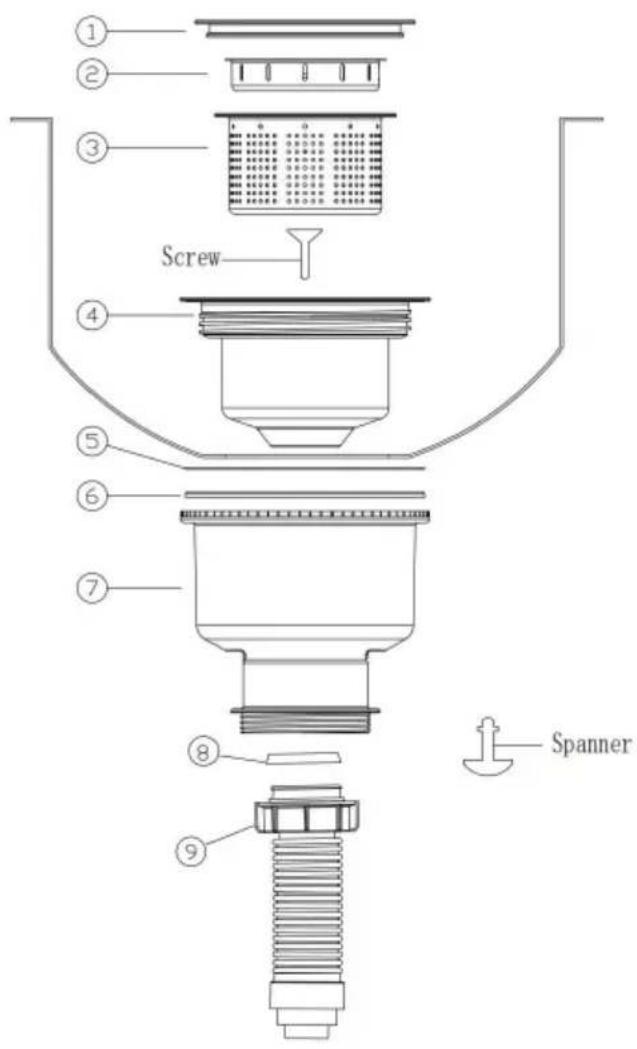

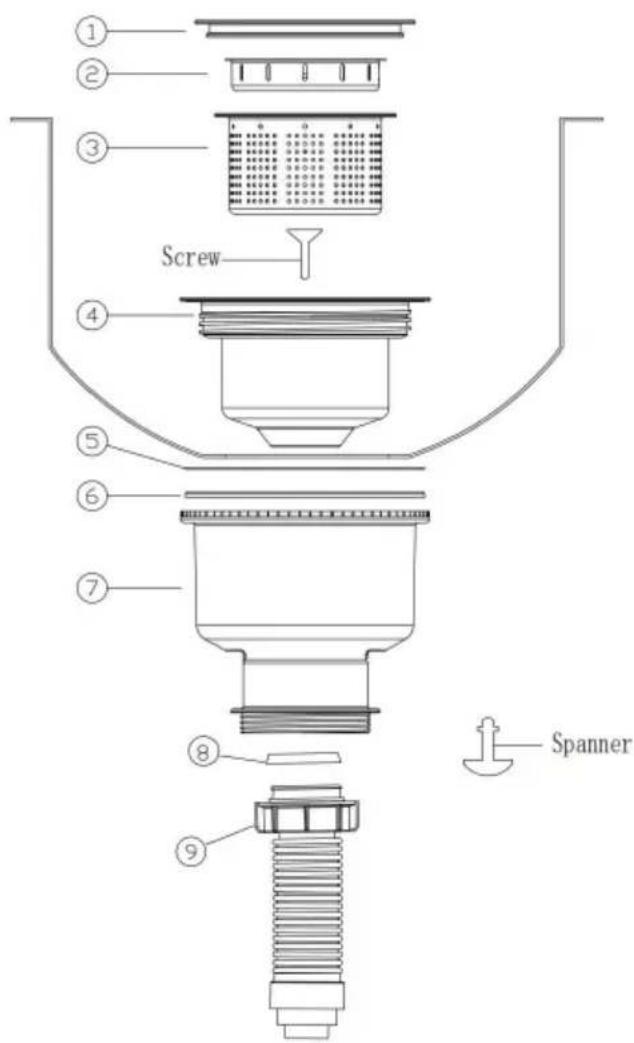

Installation steps:

1: Place part No. 4 in the basin hole, and install parts No. 5/6/7 on part No. 4. 2: Tighten the screw with the key, and tighten parts No. 8/9 on part No. 4. 3: Place parts No. 1/2/3 in part No. 4 to complete the installation.

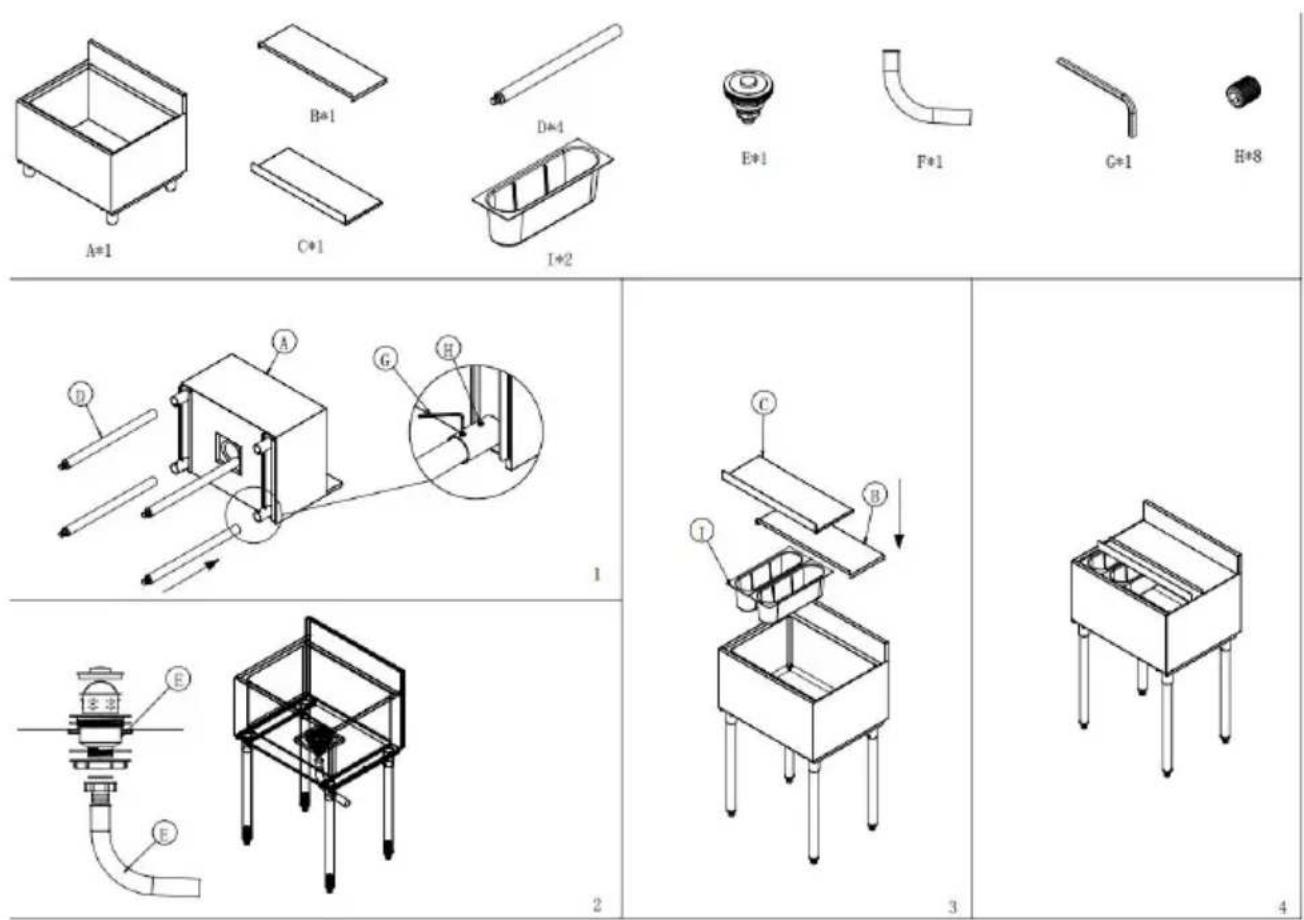

CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 components and Installation steps:

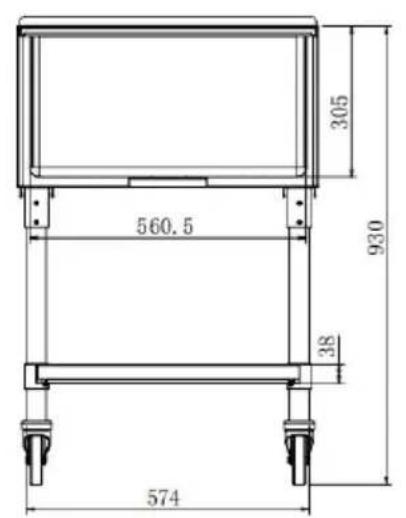

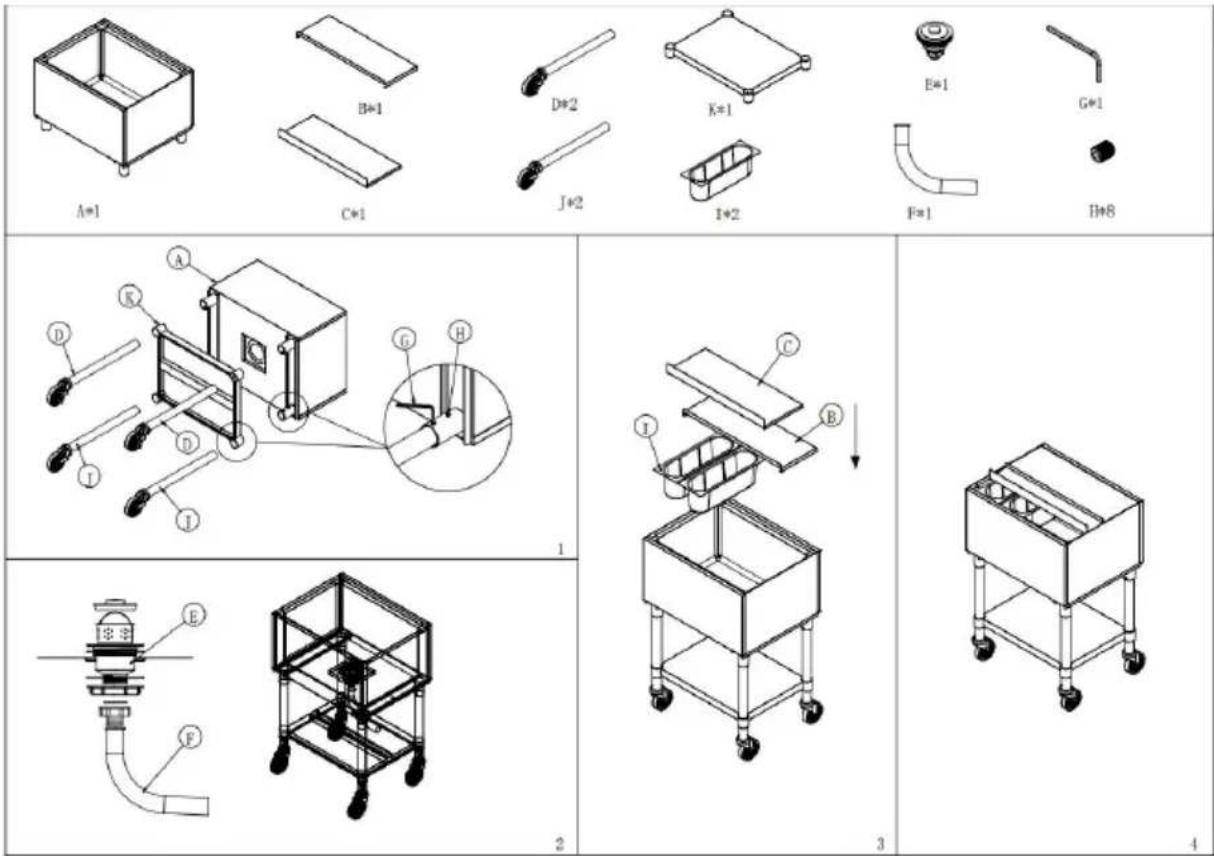

CIBT1924N components and Installation steps:

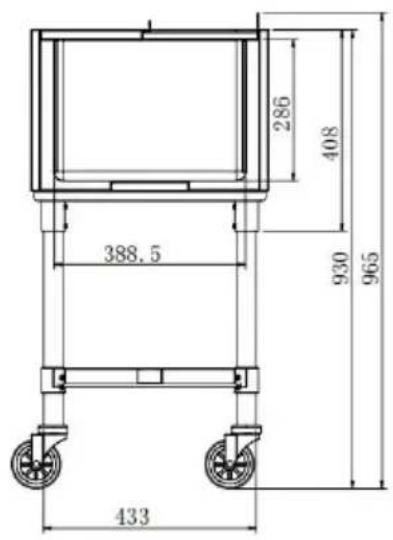

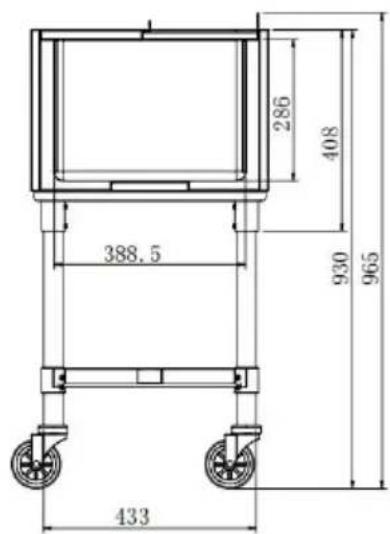

CIBT1924C components and Installation steps:

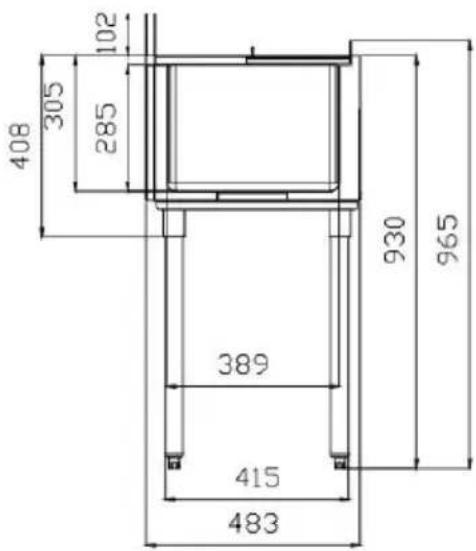

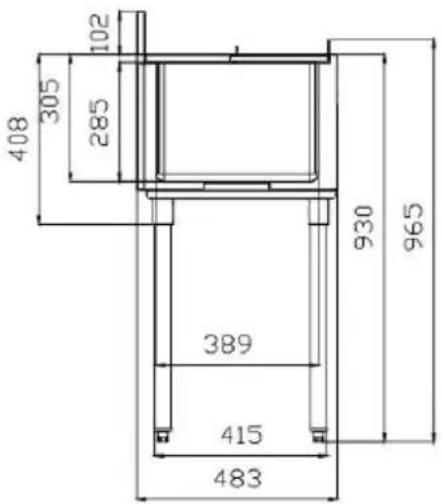

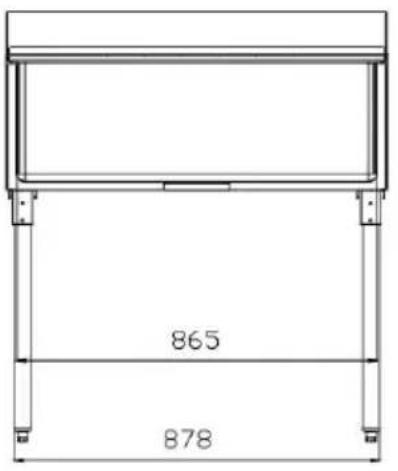

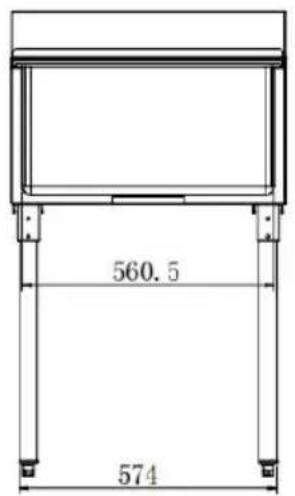

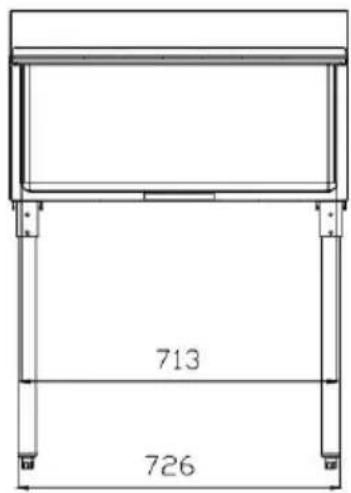

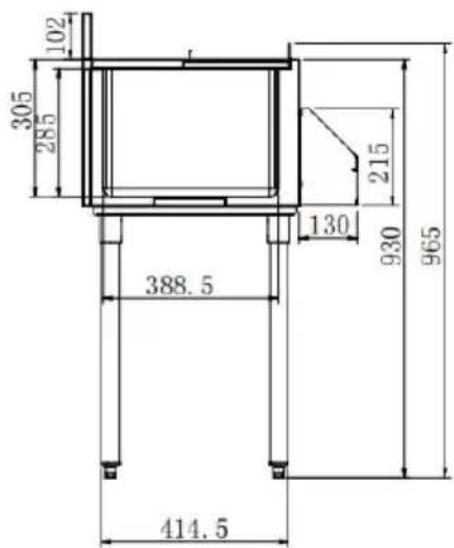

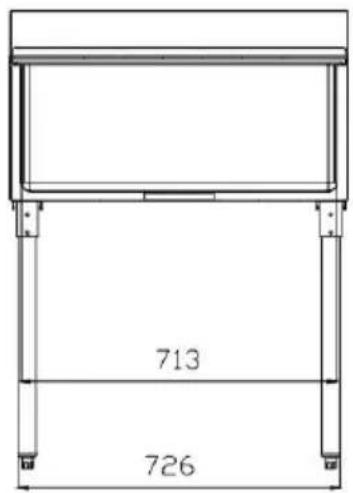

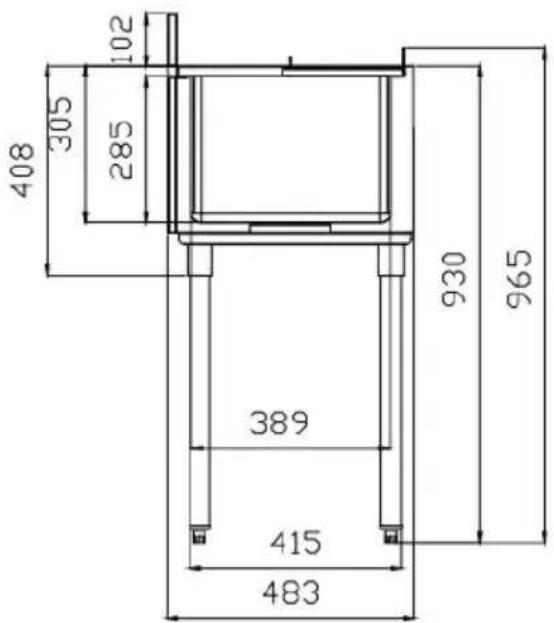

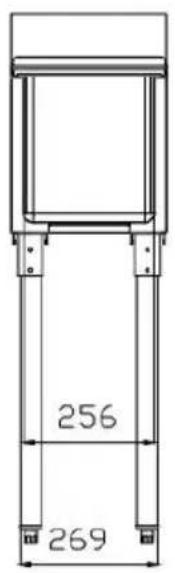

DIMENSIONS AND SPECIFICATIONS

Model	Overall size (L*W*H mm)	Product capacity (L)	Holding time
CIBT1912	690*390*615	28	Can provide 24H insulation effect.
CIBT1924	700*580*625	61.6
CIBT1930	850*580*620	78.4
CIBT1936	995*575*620	95.3
CIBT1924N	700*580*650	61.6
CIBT1924C	700*580*590	61.6

CIBT1912

CIBT1924

CIBT1930

CIBT1936

CIBT1924N

CIBT1924C

NOTE:

1. The product capacity data in the table is calculated based on the density of water, and there will be some errors in practice, which is a normal phenomenon.
2. Because the volume and density of ice differ from those of water, the loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water to fill the ice bucket.

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to replacing ice and water in time.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Installation steps:

DIMENSIONS AND SPECIFICATIONS

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

DIMENSIONS AND SPECIFICATIONS

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

DIMENSIONS AND SPECIFICATIONS

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-warranty Certificate www.vevor.com/support

Ice tray bottom bar

MODEL: CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 CIBT1924N /CIBT1924C

NEED HELP? CONTACT US!

Installation steps:

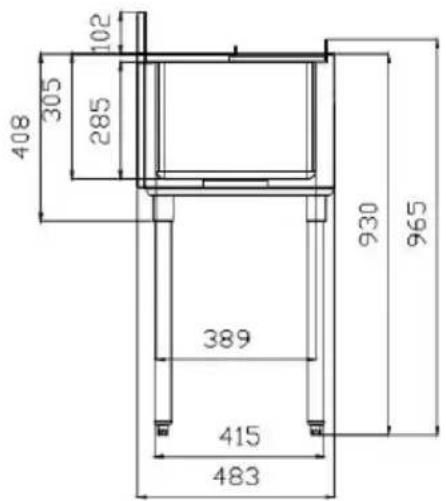

DIMENSIONS AND SPECIFICATIONS

Model	Totale grootte (L*B*H mm)	Productcapaciteit (L)	Houdtijd
CIBT19 12	690*390*615	28	Kan een 24H isolatie-effect bieden.
CIBT1924	700*580*625	61.6
CIBT1930	850*580*620	78.4
CIBT1936	995*575*620	95.3
CIBT1924N	700*580*650	61.6
CIBT1924C	700*580*590	61.6

CIBT1912

CIBT1924

CIBT1930

CIBT1936

CIBT1924N

CIBT1924C

NOTE:

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Installation steps:

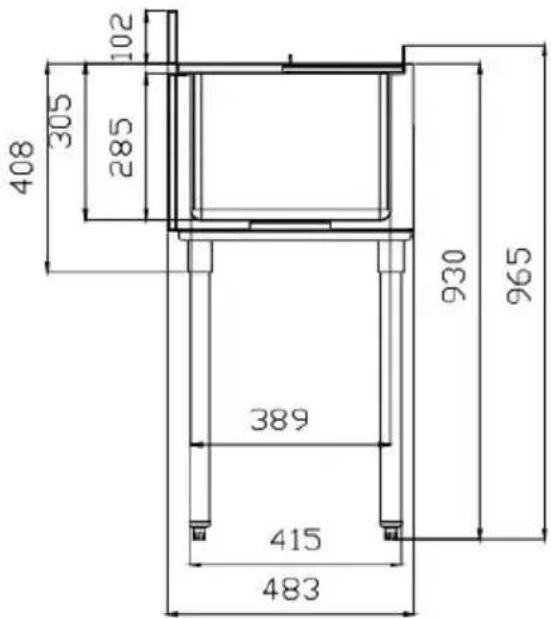

DIMENSIONS AND SPECIFICATIONS

Modell	Total storlek (L*B*H mm)	Produktkapacitet (L)	Hålltid
CIBT19 12	690*390*615	28	Kan ge 24H isoleringseffekt.
CIBT1924	700*580*625	61,6
CIBT1930	850*580*620	78,4
CIBT1936	995*575*620	95,3
CIBT1924N	700*580*650	61,6
CIBT1924C	700*580*590	61,6

CIBT1912

CIBT1924

CIBT1930

CIBT1936

CIBT1924N

CIBT1924C

NOTE:

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

DIMENSIONS AND SPECIFICATIONS

Modelo	Tamaño total (Largo*Ancho*Alto mm)	Capacidad del producto (L)	Tiempo de espera
CIBT19 12	690*390*615	28	Puede proporcionar un efecto de aislamiento de 24 horas
CIBT1924	700*580*625	61.6
CIBT1930	850*580*620	78.4
CIBT1936	995*575*620	95.3
CIBT1924N	700*580*650	61.6
CIBT1924C	700*580*590	61.6

CIBT1912

CIBT1924

CIBT1930

CIBT1936

CIBT1924N

CIBT1924C

NOTE:

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

DIMENSIONS AND SPECIFICATIONS

CLEANING AND MAINTENANCE

www.vevor.com/support
