2024DB - Transport cart Vevor - Free user manual and instructions

Product Type	Stair Climbing Cart
Brand	Vevor
Model	2024DB
Maximum Load (Flat Floor)	88 lb (39.9 kg)
Maximum Load (Climbing Stairs)	60 lb (27.2 kg)
Material	Steel + EVA + PP
Color	Silver
Height (Approx.)	About 110 cm
Width (Approx.)	About 45 cm
Depth (Approx.)	About 30 cm
Weight (Approx.)	About 12 kg
Front Wheels	2 swivel wheels (pads)
Rear Wheels	2 stair wheels with springs
Assembly Required	Yes, with provided wrench
Important Safety Instructions	Do not transport people, avoid overloading, watch for potholes
Maintenance	Avoid prolonged sun exposure, fold when not in use
Spare Parts Provided	Front and rear wheels, springs, axles, washers, wrench
Repairability	Technical support via www.vevor.com/support
Warranty	Electronic warranty certificate available online
Prohibited Use	Transporting people, use by children

Frequently Asked Questions - 2024DB Vevor

What is the maximum load on a flat floor?

The maximum load on a flat floor is 88 lb (39.9 kg).

What is the maximum load on stairs?

For climbing stairs, the maximum load is 60 lb (27.2 kg).

How to assemble the front wheels?

Push the front wheel into the front leg aligning the hex screw, place washers, then tighten the screw with the provided wrench.

How to assemble the rear wheels?

Unfold the frame, slide the axle into the holes of the rear legs, place the wheels into the springs and washers, then insert the axle.

Can this cart transport people?

No, it is strictly prohibited to transport people under any circumstances.

How to remove the wheels?

Locate the black button at the center of the wheel and press inward to separate the wheel from the iron tube.

What maintenance is required?

Avoid prolonged sun exposure to prevent aging. Fold the cart when not in use for an extended period.

Where to find technical support?

Technical support is available at www.vevor.com/support.

Is the cart delivered assembled?

No, assembly is required. The front and rear wheels must be mounted using the provided tools.

What safety precautions should be taken when using on stairs?

Be careful when going up and down. Do not move too fast near potholes. Do not overload the device.

USER MANUAL 2024DB Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STAIR CLIMBING CART

MODEL: 2024DB

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:2024DB

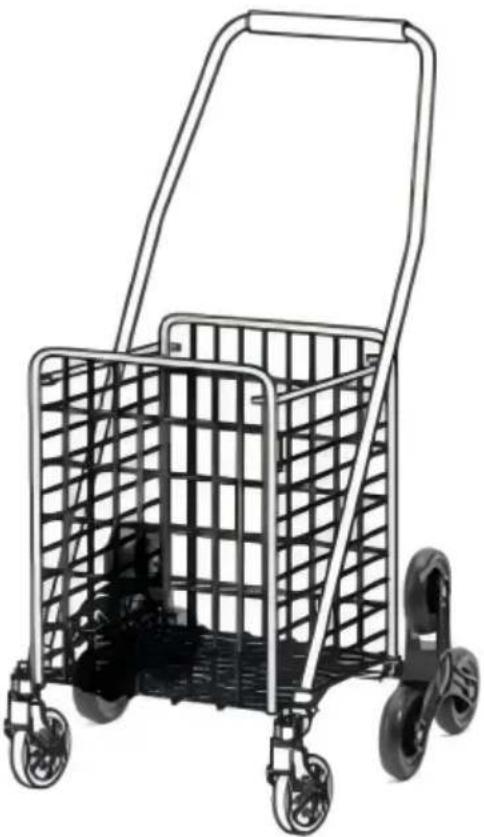

Line drawing of a metal shopping cart with wheels and handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Please do not put it near flammable materials.
2. It is forbidden to carry people under any condition.
3. Please pay attention to safety when going up and down stairs.
4. Overload is strictly prohibited.
5. Don't move too fast when passing pothole areas.

MODEL AND PARAMETERS

Model	2024DB
Maximum Load(Flat Ground)	88lbs
Maximum Load(Climb Stairs)	60lbs
Color	Silver
Material	Steel+EVA+PP

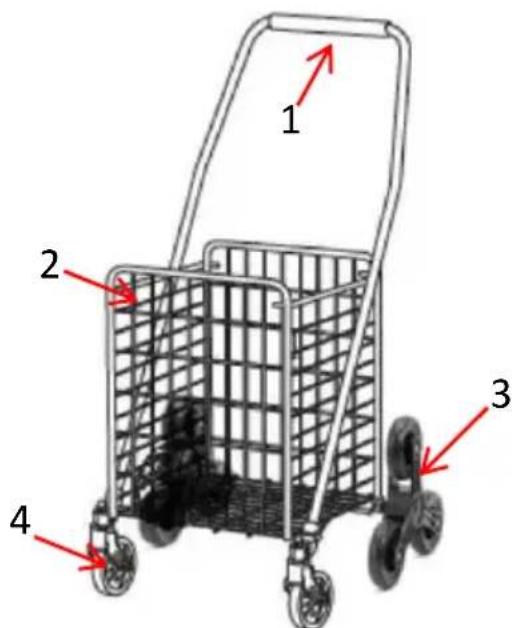

STRUCTURE DIAGRAM AND COMPONENTS

1. Handle 2. Hoop 3. Climbing Wheel 4. Universal Wheel

COMPONENTS

A: Cart Frame x1	B: Spring x2
C: Wrench x1	D: Axle x1
E: Front Wheel x2	F: Nuts x2
G: Washer x2	H: Small Washer x4
I: Rear Wheel x2	Elastic Binding Rope x1
User manual x1

ASSEMBLY

Assemble the front wheels:

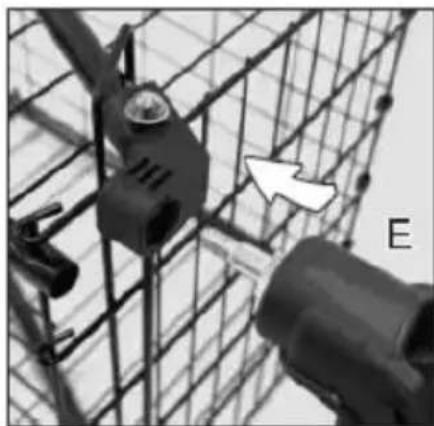

Step 1: Push the front wheel E into the front leg. When pushing in, please align the angle of the connecting part so that the hex head screw c axis of front wheel E can be accurately pushed into the front leg.

Close-up of mechanical components and a grid structure with an arrow pointing to a component (no visible text or symbols)

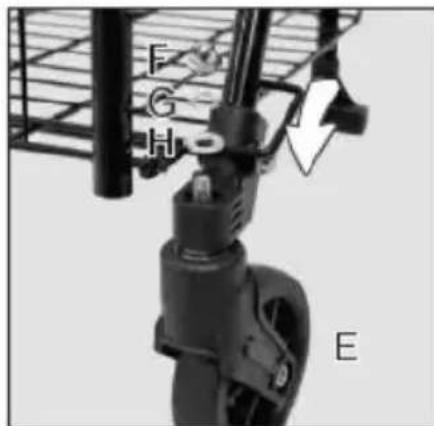

Step 2: Put the small washer H and Washer G on the short shaft of the front wheel E in turn, and then put the screw F in.

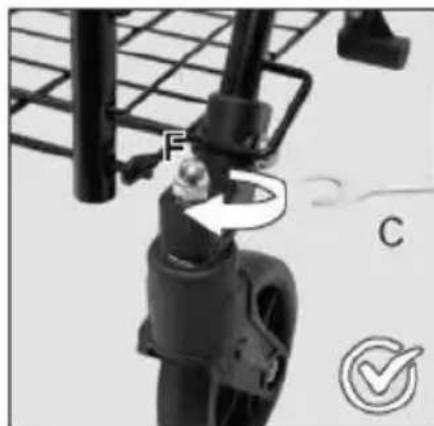

Step 3: Finally, tighten the screw F with wrench C.

Assemble the rear wheels:

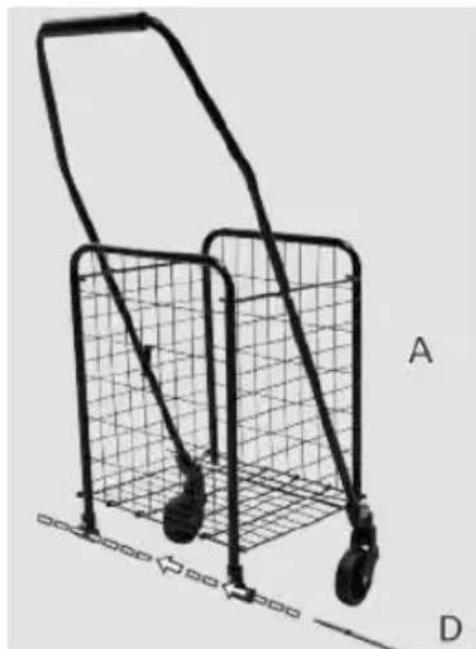

Step 1: Unfold shopping cart frame A to expose the back leg of cart. Slide long axle D through hole in each back leg.

Illustration of two metal shopping carts with wheels and a handle, labeled A and D (no text or symbols on the carts themselves)

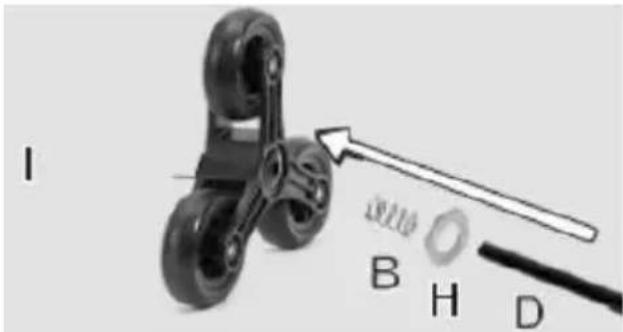

Step 2: Place both sides of the back wheel into spring B and washer H. Insert parts D directly into the center of the wheel. Make sure it is cannot be pulled out. Completing the installation.

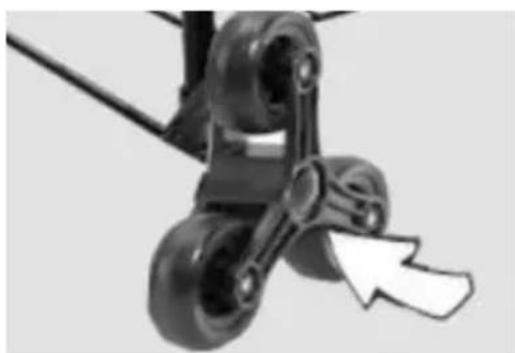

How to remove the wheel: Locate the black button in the center of outside of the wheel and press it inward to separate the wheel from iron pipe.

Close-up of a mechanical linkage component with a white arrow pointing to a specific part (no text or symbols visible)

MAINTENANCE

1. Avoid prolonged exposure to the sun to avoid aging.
2. Please fold the cart when it is not used for a long time.
3. Avoid children taking the stair climbing cart to play.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
