S-E9 MULTI - Air blower Vevor - Free user manual and instructions

Product Type	Air Blower
Brand	Vevor
Model	S-E9 MULTI
Rated Power	950 W
Supply Voltage	AC 220-240 V ~ 50 Hz
Speed	Dual speed (low and high)
Grounding	Yes, grounded plug
Circuit Protection	Use a circuit of 10 A or more
Operating Temperature	-5°C to 50°C
Periodic Maintenance	Clean the intake, impeller, and volute every 6 months
Lubrication	Replace lubricating oil on the bearing every 6 months
Safety	Do not use with solid-state speed controller
Cleaning	Wipe with a damp cloth, unplugged; do not immerse
Storage	Dry and ventilated place, away from acidic or corrosive gases
Transport	Avoid collisions, protect from moisture
Troubleshooting - motor does not run	Check switch, circuit, capacitor, hard objects
Troubleshooting - scraping noise	Tighten impeller screws or remove foreign objects
Troubleshooting - unstable motor	Check voltage, humidity, capacitor, turbine
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available

Frequently Asked Questions - S-E9 MULTI Vevor

What is the power of the Vevor S-E9 MULTI air blower?

The rated power of the Vevor S-E9 MULTI air blower is 950 W.

What safety precautions should be taken?

Do not use with a solid-state speed controller. Always plug into a grounded outlet with a circuit of 10 A or more. Keep children away. Unplug before cleaning.

How to clean the air blower?

Unplug the device, then wipe with a damp cloth. Do not wash with liquid or immerse. Clean the intake, impeller, and volute regularly.

What to do if the motor does not run?

Check that the switch is on, the circuit is not open, the capacitor is not damaged, and no hard object is blocking the impeller.

Can I use a speed controller with this blower?

No, using a solid-state speed controller is prohibited as it may cause fire or electric shock.

What is the required supply voltage?

The S-E9 MULTI model operates under AC 220-240 V ~ 50 Hz. Check that your outlet matches.

How to maintain the motor bearing?

Every 6 months, replace the lubricating oil on the bearing. If the bearing is worn, replace it.

Where can I find technical support?

Technical support is available at www.vevor.com/support with an electronic warranty certificate.

Is the blower suitable for outdoor use?

Yes, but after outdoor use, store it in a dry and ventilated place to avoid moisture. Protect it from rain.

Which models are compatible with this manual?

This manual covers the DS series models: SH-U4 MULTI, SH-U7 MULTI, SH-E7 MULTI, SH-U9 MULTI and S-E9 MULTI.

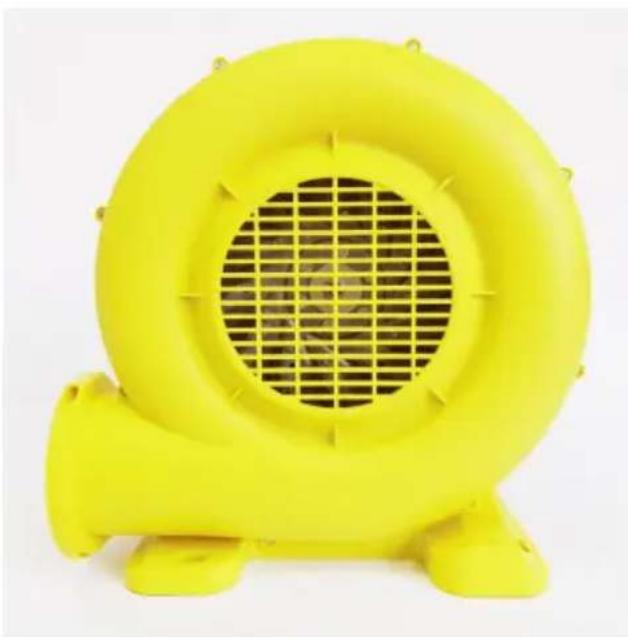

USER MANUAL S-E9 MULTI Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

DS (DOUBLE SPEED) SERIES

AIR-BLOWER USER MANUAL

Model: SH-U4 MULTI/SH-U7 MULTI/SH-E7 MULTI/SH-U9 MULTI/S-E9 MULTI

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

DS (DOUBLE SPEED) SERIES AIR-BLOWER USER MANUAL

MODEL: SH-U4 MULTI/SH-U7 MULTI/SH-E7 MULTI/SH-U9 MULTI/S-E9 MULTI

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed:

i	Warning - To reduce the risk of injury, user must instructions manual carefully.
	This symbol, placed before a safety comment, indicates kind of precaution, warning, or danger. Ignoring this may lead to an accident. To reduce the risk of injuelecution, please always follow the recommendation shown below.
~	Alternating current
	Correct Disposal of this product:This marking indicates that this product should not be disposed with other household wastes throughout the To prevent possible harm to the environment or health from uncontrolled waste disposal, recycle is responsibly to promote the sustainable reuse of many resources. To return your used device, please use the and collection systems or contact the retailer where product was purchased. They can take this product as environmental safe recycling.

WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. Prevent sharp and hard objects from dropping into and prevent liquid from flowing into the air-blower. Do not wash the air-blower with liquid. You must first unplug it from the power source and then wipe it with a wet cloth when you clean it. Do not drain or pull motor leads, and do not bump the air-blower. You'd better use the air-blower between negative five and fifty degrees centigrade. If you let the

Air-blower baked in high temperature will cause motor leads, enameled cables, and heating bodies to age and shorten their lifespan.

Keep Children Away: Do not allow children to play with or around the unit in any way, as this could result in injury.

DANGER: Improper installation of the grounding plug can result in a risk

of electric shock. If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal.

CAUTION: Use only in a 10A power circuit or more. Use only a dedicated circuit. Do not operate this item on the same circuit as other electrical equipment. It must have its own circuit. Do not modify the plug if it does not fit the outlet; have the proper outlet installed by a qualified electrician. The appliance must be positioned so that the plug is accessible. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent, or a similarly qualified person to

avoid a hazard.

Protect Power Cord from Damage: Never operate a unit with a damaged power cord, as this may lead to electrical or fire hazards. If the power supply cord is damaged, it must be replaced by a cord of the same amperage rating.

TECHNICAL PARAMETER

MODEL	POWER	VOLT. & FREQ.
SH-U4 MULTI	450W	AC120V 60Hz
SH-U7 MULTI	750W	AC120V 60Hz
SH-E7 MULTI	750W	AC220-240V 50Hz
SH-U9 MULTI	950W	AC120V 60Hz
S-E9 MULTI	950W	AC220-240V 50Hz

OPERATION

Place the air-blower on a steady, flat surface where children cannot reach it. Make sure that the product is connected to an outlet having the

same configuration as the plug.

Keep Unit Grounded: This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Conveyance: During conveying the air-blower, do not collide or shake it seriously. Please prevent sour, alkali, oil, and water from entering the air-blower; the air-blower needs to be damp-proof.

Storage: Please place it in a dry and ventilated position where there are no sour, alkali, or corrosive gases. After using it outdoors, you should put it in a dry and ventilated room in time. Do not let water enter the air-blower.

MAINTENANCE

DANGER! Unplug or disconnect the appliance from the power supply before servicing. When the air-blower has run for about half a year, it needs to be maintained. You should get rid of dust, dirt, and the things on the inlet, impeller, and in the volute. The source of electrical power must be disconnected prior to the beginning of any such servicing or cleaning operation.

Clear Motor: Please replace lubricating oil on the bearing regularly. If the bearing has worn down, you may replace it.

TROUBLESHOOTING

PROBLEM	CAUSE
Motor won’t run	1. Switch is not turned on. 2. The circuit is opened or it is poor contact. 3. Electric capacity is damaged. 4. Choked up by hard objects.
Motor runs but wheel makes a scraping noise	1.The screws tightened on the vane wheel is 2.There is foreign objects in the air-blower.
Motor is unable to run normally	1.The voltage is unstable. 2.Motor is affected with damp. 3.Electric capacity is failure. 4.The impeller is loose.

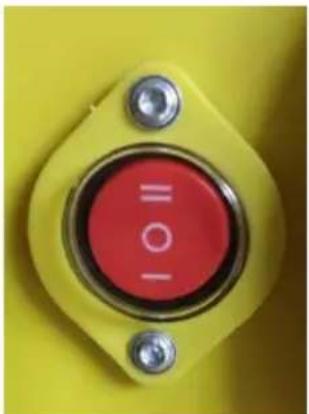

SWITCH:

LOW END—

OFF-O

HIGH END—|
