SH-E7 MULTI - Air blower Vevor - Free user manual and instructions

Brand	Vevor
Model	SH-E7 MULTI
Product Type	Air Blower
Series	DS (Dual Speed)
Power	750 W
Supply Voltage	AC 220-240 V
Frequency	50 Hz
Number of Speeds	2 (dual speed)
Grounding	Mandatory, grounded plug
Circuit Rated Current	10 A minimum, dedicated circuit
Moisture Protection	Protect from liquids, do not wash with water
Operating Temperature Range	-5 °C to 50 °C
Motor Material	Induction motor with lubricated bearings
Motor Maintenance	Regular greasing of bearings, replace if worn
Cleaning	Unplug, wipe with damp cloth, do not immerse
Storage	Dry, ventilated place, away from corrosive gases
Transport	Avoid collisions, protect from acids and moisture
Child Safety	Do not let children play with the appliance
Common Malfunctions	Motor does not run, scraping noise, instability
Troubleshooting	Check switch, circuit, capacitor, foreign objects
Warranty	Electronic warranty certificate at vevor.com/support

Frequently Asked Questions - SH-E7 MULTI Vevor

How to connect the SH-E7 MULTI air blower?

Plug the plug into a properly grounded outlet matching AC 220-240 V 50 Hz. Use a dedicated circuit of at least 10 A.

Can I use the air blower with a speed controller?

No, to reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

How to clean the air blower?

Disconnect the appliance from the power supply. Wipe it with a damp cloth. Do not wash it with liquid and do not immerse it.

What are the important safety precautions?

Read the manual carefully. Use only on a circuit of 10 A or more. Do not modify the plug. Keep children away. Unplug before maintenance.

What if the motor does not start?

Check that the switch is on, the circuit is not open, the contact is good, and the capacitor is not damaged. Clear any hard objects blocking the wheel.

Why does the motor make a scraping noise?

The fan blade screws may be loose or there may be foreign objects inside the blower. Open and inspect to remove them.

How to maintain the blower motor?

Every six months or so, clean dust and dirt from the inlet, wheel, and volute. Regularly replace lubricating oil on bearings. If a bearing is worn, replace it.

What is the supply voltage of the SH-E7 MULTI?

The blower operates on alternating current of 220 to 240 volts with a frequency of 50 Hz.

Can the blower be used outdoors?

Yes, but after outdoor use, store it in a dry and ventilated place. Avoid water entering the appliance.

Where can I find technical support and warranty?

Visit vevor.com/support for technical support and electronic warranty certificate.

USER MANUAL SH-E7 MULTI Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

DS (DOUBLE SPEED) SERIES

AIR-BLOWER USER MANUAL

Model: SH-U4 MULTI/SH-U7 MULTI/SH-E7 MULTI /SH-U9 MULTI/S-E9 MULTI

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

DS (DOUBLE SPEED) SERIES

AIR-BLOWER USER MANUAL

MODEL: SH-U4 MULTI/SH-U7 MULTI/SH-E7 MULTI/SH-U9 MULTI/S-E9 MULTI

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed:

	Warning - To reduce the risk of injury, user mus instructions manual carefully.
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this may lead to an accident. To reduce the risk of inju electrocution, please always follow the recommendati shown below.
	Alternating current
	Correct Disposal of this product: This marking indicates that this product should not disposed with other household wastes throughout the To prevent possible harm to the environment or he health from uncontrolled waste disposal, recycle in responsibly to promote the sustainable reuse of ma resources. To return your used device, please use th and collection systems or contact the retailer where product was purchased. They can take this product environmental safe recycling.

WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. Prevent sharp and hard objects from dropping into and prevent liquid from flowing into the air-blower. Do not wash the air-blower with liquid. You must first unplug it from the power source and then wipe it with a wet cloth when you clean it. Do not drag or pull motor leads, and do not bump the air-blower. You'd better use the air-blower between -5°C and 50°C. If you let the

air-blower be baked in high temperature, motor leads, enameled cables, and heating bodies will age and shorten its life.

Keep Children Away: Do not allow children to play with or around the unit, in any way, which could result in injury.

DANGER: Improper installation of the grounding plug can result in a risk of electric shock. If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal.

CAUTION: Use only in a 10A power circuit or more. Use only a set circuit. Do not operate this item in the same circuit as other electrical equipment. It must have its own circuit. Do not modify the plug provided. If it does not fit the outlet, have the proper outlet installed by a qualified electrician. The appliance must be positioned so that the plug is accessible. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent, or a similarly qualified person to

avoid a hazard.

Protect Power Cord from Damage: Never operate a unit with a damaged power cord, as this may lead to electrical or fire hazards. If the power supply cord is damaged, it must be replaced by a cord of the same amperage rating.

TECHNICAL PARAMETER

MODEL	POWER	VOLT. & FREQ.
SH-U4 MULTI	450W	AC120V 60Hz
SH-U7 MULTI	750W	AC120V 60Hz
SH-E7 MULTI	750W	AC220-240V 50Hz
SH-U9 MULTI	950W	AC120V 60Hz
S-E9 MULTI	950W	AC220-240V 50Hz

OPERATION

Place the air-blower on a steady, flat surface where children can be kept away. Make sure that the product is connected to an outlet having the

same configuration as the plug.

Keep Unit Grounded: This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Conveyance: During conveying the air-blower, do not collide or shake it seriously. Please prevent acid, alkali, oil, and water from entering the air-blower. The air-blower needs damp proofing.

Storage: Please place it in a dry and ventilated position where it is not exposed to sour, alkali, or corrosive gases. After using it outdoors, you should put it in a dry and ventilated room in time. Do not let water enter the air-blower.

MAINTENANCE

DANGER! Unplug or disconnect the appliance from the power supply before servicing. When the air-blower has run for about half a year, it needs to be maintained. You should get rid of dust, dirt, and the things on the inlet, impeller, and in the volute. The source of electrical must be disconnected prior to the beginning of any such servicing or cleaning operation.

Clear Motor: Please replace lubricating oil on the bearing regularly. If the bearing has worn down, you may replace it.

TROUBLESHOOTING

PROBLEM	CAUSE
Motor won’t run	1.Switch is not turned on.2.The circuit is opened or it is poor contacted3.Electric capacity is damaged.4.Choked up by hard objects.
Motor runs but wheel makes a scraping noise	1.The screws tightened on the vane wheel is 2.There is foreign objects in the air-blower.
Motor is unable to run normally	1.The voltage is unstable. 2.Motor is affected with damp. 3.Electric capacity is failure. 4.The impeller is loose.

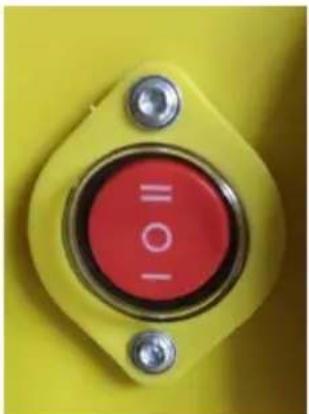

SWITCH:

LOW END—|

OFF—O

HIGH END—| |
