HI420IS - Fan Vevor - Free user manual and instructions

Product Type	Gable Mount Fan
Brand	Vevor
Model	HI420IS
Voltage/Frequency	AC 120 V/60 Hz (US) / AC 220-240 V/50 Hz (EU)
Power	140 W (US) / 130 W (EU)
Sales Area	US, EU, DE
Mounting Type	Gable Wall Mount
Thermostat	Adjustable
Maximum Thermostat Current	15 A
Safety Functions	Disconnect before servicing, do not use in a window, do not insert objects
Maintenance	Clean grilles after disconnecting
Compliance	FCC Part 15, European Directive 2012/19/EU
Intended Use	Residential ventilation
Included Accessories	Mounting bracket, screws
Technical Support	www.vevor.com/support

Frequently Asked Questions - HI420IS Vevor

How to install the HI420IS fan?

Follow the steps in the manual: attach the mounting bracket to the cylinder, mark holes on the wall, drill, insert wall anchors, then screw the top panel. For wiring, disconnect power, remove the thermostat cover, connect the black wires from the thermostat to the power and motor, and the green wire to ground. Ensure compliance with local electrical codes.

What is the required supply voltage?

The HI420IS fan comes in two versions: AC 120 V/60 Hz for the United States and AC 220-240 V/50 Hz for the European Union. Check the label on your unit for the correct voltage.

Can I use this fan in a window?

No, the manual strongly advises against using it in a window because rain could create an electric shock hazard. Use it only in a dry, weatherproof location.

How to clean the fan?

Before any cleaning, unplug the fan from the electrical outlet. Remove the protective grilles and clean them with a soft, dry cloth. Never use water or liquid products, and do not leave the fan running unattended.

What to do if the fan emits smoke or odor?

If you notice smoke, unusual odor, or abnormal motor noise, stop the unit immediately and unplug it. Do not attempt to repair it yourself; contact after-sales service via www.vevor.com/support.

Can I replace the power cord myself?

No, if the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a qualified person to avoid any hazard. Do not attempt repair yourself.

Is the fan suitable for children?

Children under 8 years should not use this appliance. Children aged 8 and above may use it under supervision and after receiving instructions about the risks. Never let children play with the fan.

How to adjust the thermostat?

The thermostat is adjustable. To access it, disconnect the power, remove the thermostat cover, then adjust to the desired setting. Refer to the wiring diagram in the manual for electrical connections.

Where to find technical support and warranty?

Technical support and electronic warranty certificate are available on the website www.vevor.com/support. You will also find contact details for representatives in the EU, UK, Australia, and USA.

What to do if the fan does not start?

First check that the unit is properly plugged in and the voltage matches the indicated one. Make sure the thermostat is set to a sufficient temperature. If the problem persists, consult a qualified technician or contact Vevor support.

USER MANUAL HI420IS Vevor

CABLE MOUNT FAN

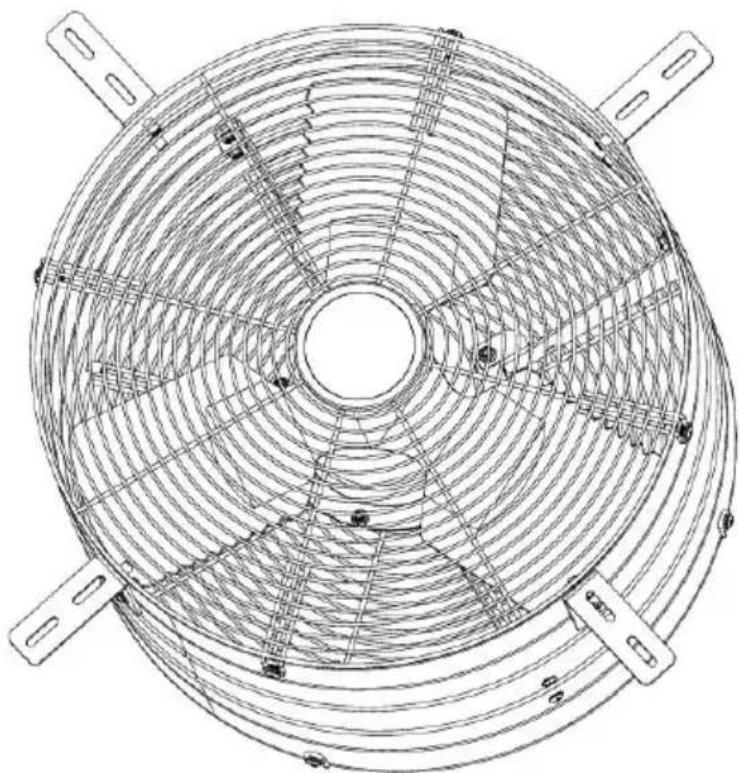

MODEL: HI420IS

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: HI420IS

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that m cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property. - Avoid children using the product. This product is not a toy. Do not allow children to play.

	Improper operation may cause personal injury.
	Improper operation may cause damage to the machi
	Improper operation may cause others object damage.
	The symbol indicates that the user should pay high attention to and pay attention to the drawing shows situation to be noted, and the left figure shows "B of electric shock".
	Disconnect the fan when moving from one location another.
	Do not use a power supply that does not meet the voltageThe use of non compliant power supplies can cause electric shock.If the supply cord is damaged, it must be replaced manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
	If the machine emits smoke, odor, motor noise and abnormal conditions,please do not use it. It may cause or electric shock.
	Do not disassemble, repair or rectify the machine use.Doing So may result in fire or electric shock and p injury.
	BE CAREFUL
	DO NOT Use fan in window. Rain may create electric hazard.
	Do not damage or arbitrarily change the original power cord, and do not bend, forcibly pull, bind or press cord under heavy objects. This will damage the power cord, causing electric leakage fire or electric shock.If the machine is not used for a long time, please the power cord from the socket.
	The connection socket must be installed with leakage protection switch device.
	Never insert fingers, pencils, or any other object the guard when fan is running.
	when the power cord is unplugged from the socket, should be unplugged. Do not pull the power cord to pull the wire, which may cause damage to the wire and lead to or electric shock.
	Disconnect the fan when removing grills for cleaning, not leave the fan running unattended. This appliance used by children aged from 8 years and above and with reduced physical, sensory or mental capabilities of experience and knowledge if they have been give supervision or instruction concerning use of the appli a safe way and understand the hazards involved. children shall not play with the appliance. cleaning a maintenance shall not be made by children without supervision.

SAFETY WARNINGS AND PRECAUTIONS

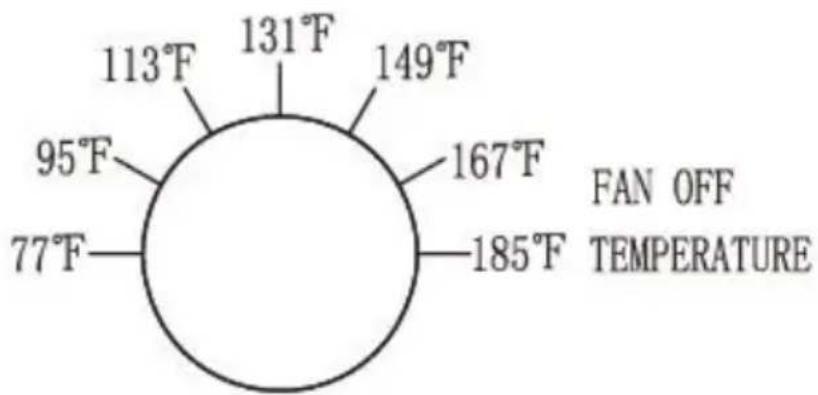

When using your Adjustable Temperature Thermostat, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Read all instructions before using this product.

Adjustable Temperature

THERMOSTAT WITH SAFE FUSE REMOVE COVER TO WIRE THERMOSTAT

CAUTION: Automatically started device. To reduce the risk of injury, disconnect from power supply before servicing. Do not use fan with any solid state speed control device. For residential use only.

1. Observe work area conditions. Do not expose to moisture. Do not operate in damp or wet locations. Keep work area well lit.
2. Maximum amp requirement. Do not use any tools or devices that draw more than 15 amps with this Adjustable Temperature Thermostat.
3. Keep children away. Children must never be allowed in the work area. Do not let them handle machines, tools, or extension cords.
4. Check for damaged parts. Before using the Adjustable Temperature Thermostat, any part that appears damaged should be carefully checked to determine that it would operate properly and perform its intended function. Any part that is damaged should be properly repaired or replaced by a qualified technician. Do not use the Adjustable Temperature Thermostat if the switch does not turn on and off properly.
5. Use proper size and type extension cord. If an extension cord is used, it must be the proper size and type to supply the correct current to the unit without heating up. Otherwise, the extension cord could melt and catch fire or cause electrical damage to the Adjustable Temperature Thermostat.

TECHNICAL PARAMETERS

Model Number	Voltage/Frequency	Power	Area
HI420IS	AC120V/60Hz	140W	NA
HI420IS	AC220-240V/50Hz	130W	EU
HI420IS	AC220-240V/50Hz	130W	AUS

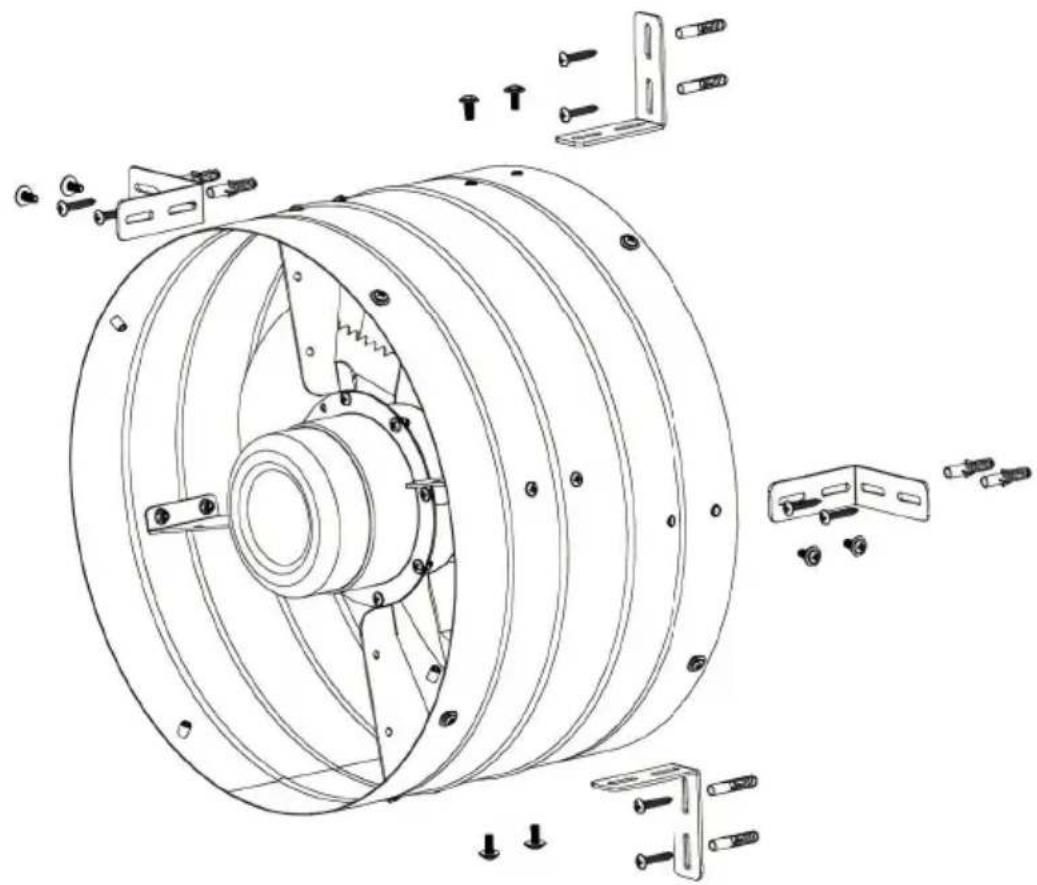

ASSEMBLY INSTRUCTIONS

Step 1: Lock the mounting bracket to the product barrel body with a large flat head screw.

Step 2: Mark the position of the mounting holes on the wall, and drill holes at the drawn positions with an electric drill. Hold the colloidal insert in the hole in the wall.

of the hole in the wall.

Step 3: Secure the top panel to the wall with screws.

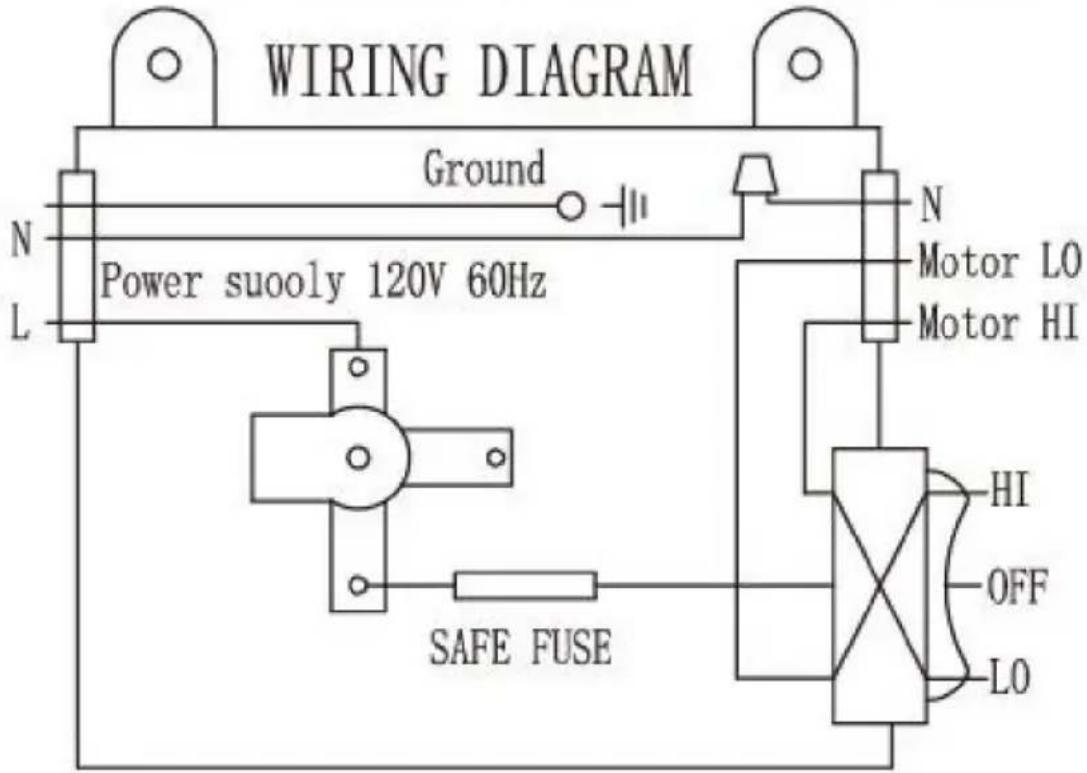

WIRING INSTRUCTIONS

1) Disconnect the power to the unit. 2) Remove the thermostat cover. 3) Remove the box. 4) Mount the new box to the rafter using wood screws to attach. 5) Connect one black wire from the thermostat to the black wire of the incoming power supply. 6) Connect the other black wire from the thermostat to the black motor wire. 7) Connect the green wire from the power supply to the green motor wire. 8) Attach the ground from the incoming power supply to the ground.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Adjustable Temperature

THERMOSTAT WITH SAFE FUSE REMOVE COVER TO WIRE THERMOSTAT

CAUTION: Automatically started device. To reduce the risk of injury, disconnect from power supply before servicing. Do not use fan with any solid state speed control device. For residential use only.

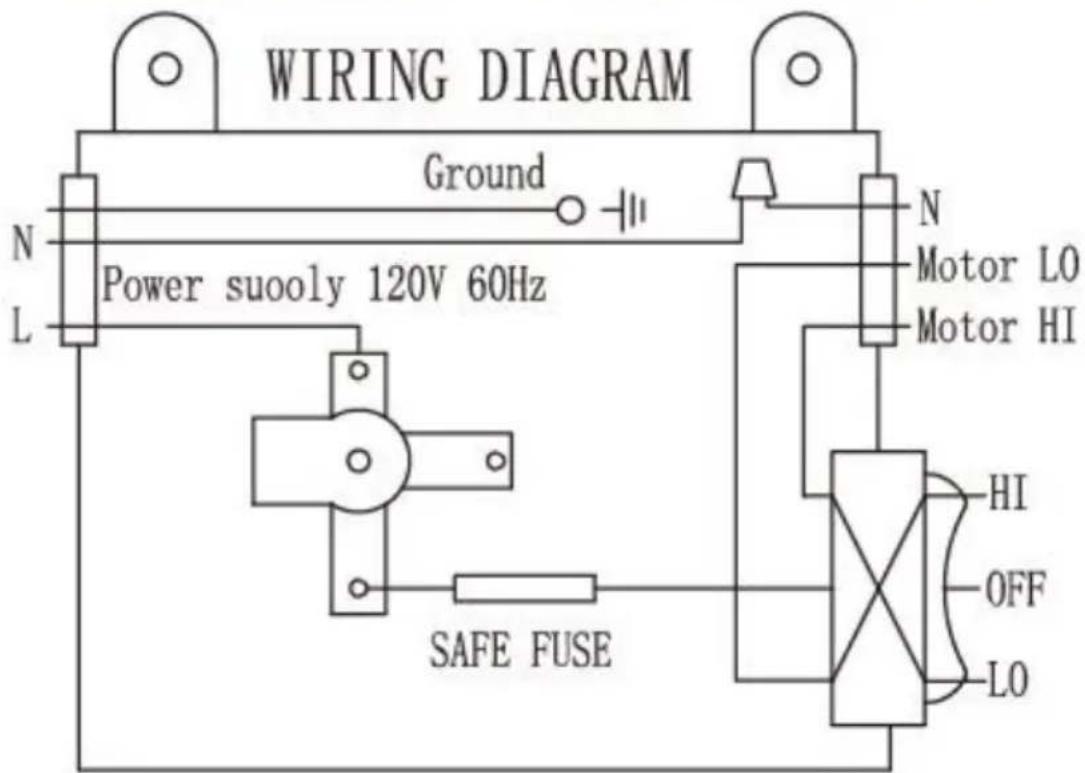

WIRING INSTRUCTIONS
