1/4-5/16B - Hand tool Vevor - Free user manual and instructions

Product Type	Ratchet Chain Binder
Brand	Vevor
Model	1/4-5/16B
Chain Compatibility	1/4-5/16 inches
Working Load Limit (WLL)	2600 lb (approx. 1179 kg)
Breaking Force Limit	13200 lb (approx. 5987 kg)
Adjustable Length Range	45-52 cm
Material	Alloy Steel
Color	Yellow
Dimensions (L x W x H)	21 cm (length)
Package Contents	4 chain binders + user manual
Main Function	Tightening and loosening chains for cargo securing
Intended Use	Securing goods on hard objects
Mechanism	Ratchet with handle, hook, ratchet wheel
Maintenance and Cleaning	Clean and dry after each use. Store in a dry and ventilated place.
Inspections	Before and after each use: check for cracks, deformations, hook opening, screw play.
Safety	Do not exceed the WLL. Do not use if the chain is twisted or knotted. Keep hands away from the chain during tightening.
Manufacturer	Shanghai Muxin Muye Youxiangongsi, Shuangcheng Lu 803 Nong 11 Hao 1602A-1609 Shi, Baoshanqu, Shanghai 200000, China
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, ESTWOOD NSW 2122
Importer (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Frequently Asked Questions - 1/4-5/16B Vevor

What is the maximum load this binder can support?

The Working Load Limit (WLL) is 2600 lb (approx. 1179 kg). The breaking force is 13200 lb (approx. 5987 kg). Never exceed the WLL.

What type of chain is this binder compatible with?

It is designed for chains of 1/4 to 5/16 inches in diameter.

How to use the ratchet chain binder?

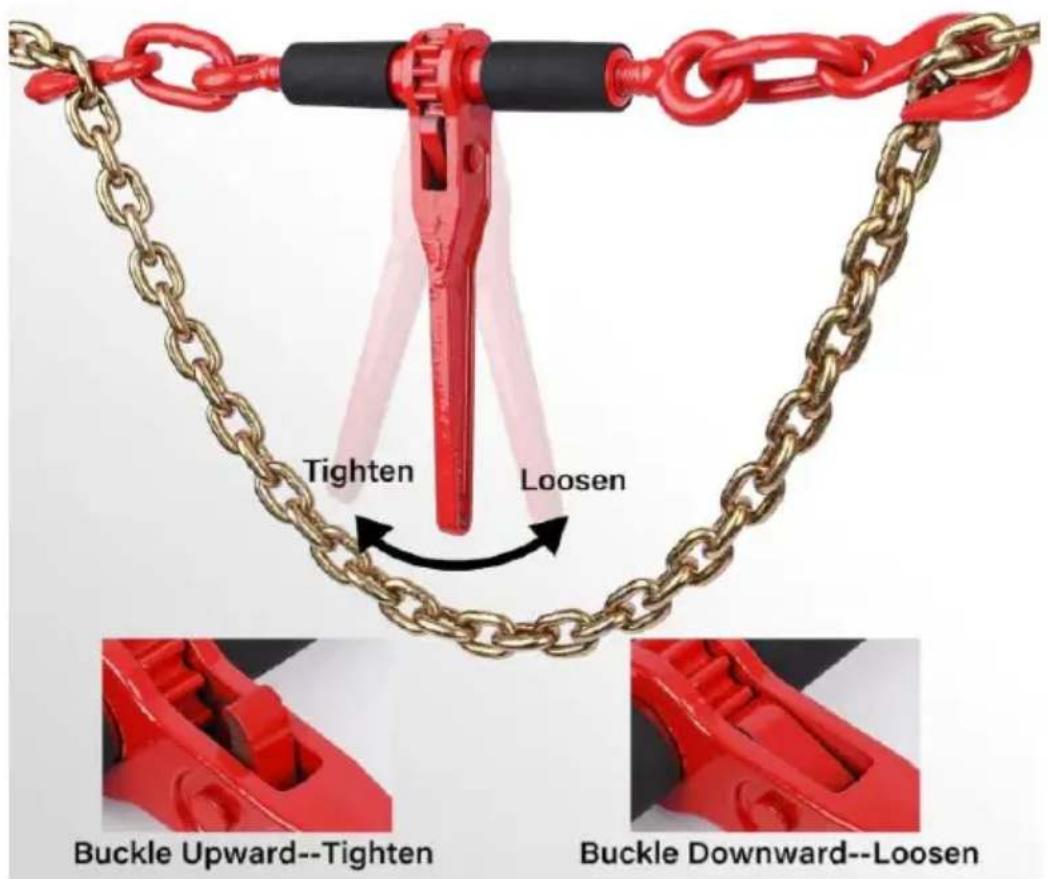

Attach the hook to the chain by placing the chain at the bottom of the hook. To tighten, tilt the handle upward (tightening position). To loosen, tilt it downward. Ensure the chain is straight and not twisted.

What to do if the binder seems stuck or parts are stiff?

Before use, check that the screw rod and hook are free. If knots or twists are present, smooth them out. Never use the binder if a part is deformed or cracked.

How to maintain the binder after use?

Clean and dry it after each use. Store it in a dry and ventilated place to prevent corrosion.

What inspections should be performed before each use?

Check: 1) Is the screw loose and flexible? 2) Is the main body deformed? 3) Is the hook opening widening? 4) Is the gear deformed? 5) Are there any cracks on all parts.

Can I use the binder if the chain is twisted?

No, do not use the product if the chain is twisted or knotted. Straighten it first. A twisted chain can cause sudden breakage and serious injury.

What does the package of model 1/4-5/16B contain?

The package contains 4 ratchet chain binders and a user manual.

Where can I find technical support or warranty?

You can contact technical support and obtain the electronic warranty certificate at www.vevor.com/support.

What are the important safety precautions?

Read the manual before use. Do not exceed the WLL. Do not place hands under the chain during tightening. Do not knot the chain. After use, store the binder in a dry place.

USER MANUAL 1/4-5/16B Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

RATCHET CHAIN BINDERS

Model: 1/4-5/16A

1/4-5/16B

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RATCHET CHAIN

BINDERS

Model: 1/4-5/16A

1/4-5/16B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury. Carefully read instructions and procedures for safe operations.
2. The Ratchet Chain Binder must be used flexibly, and it is strictly prohibited to use it compulsorily when individual connections are inflexible.

INSPECTIONS:

1. Before each use

Each time the ratchet style load binder is used, a visual inspection should be carried out to determine whether there are abnormal conditions such as cracking, bending, deformation, etc.

2. After each use

After each use, if the tightening of the ratchet style load binder is abnormal, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of The Ratchet Style Load Binder

• According to the size of the binder, it should be used with the matching chain.
• When connecting the binder hook with the chain, hang the chain at the bottom of the hook.
• Do not knot the chain when using the binder.
• When using the binder, make sure that the binder is straight without folding and twisting.
• Due to the shipping (handling) or transportation, the binder may have knots at the connection between the ring and the hook or the screw rod may be tightened. Please smooth them before use.
• Make sure that the chain is straight without folding and twisting. If the chain has knots, please smooth the chain before use. Do not use this product directly when the chain is twisted. ● The goods are bundled on hard or relatively hard objects. When

tightening the binder, please do not stretch your hand under the chain or avoid other objects that may affect personal safety.

- When using the binder, please confirm whether the goods can be fixed with the chain and whether the hardness of the chain will damage your goods.

Save This Manual

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	1/4-5/16A	1/4-5/16B
Adaptive chain	1/4-5/16inch
Working Load Limi	2600Lbs
BreakingStrength Limit	13200lbs
Adjustable lengthrange	E=45-52cm
Material	Alloy Steel
Color	Yellow

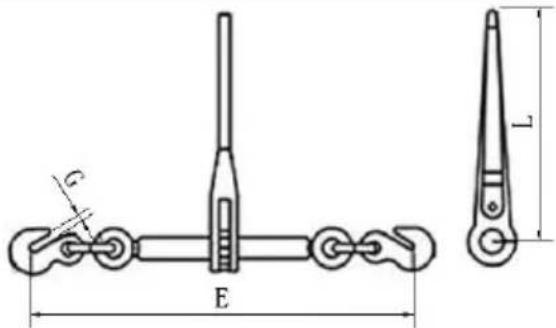

Argument	L=21cm; E=45-52cm; G=10mm
Package Content	Ratchet chain binder*2+User Manual*1	Ratchet chain binder*4+User Manual*1

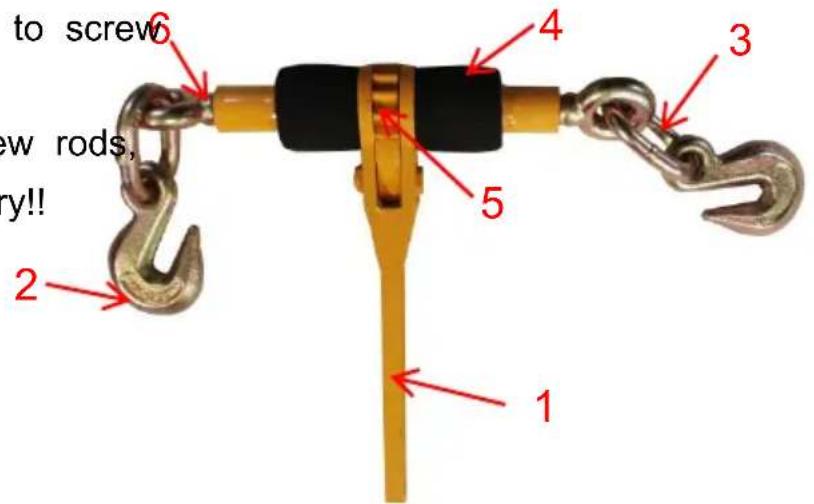

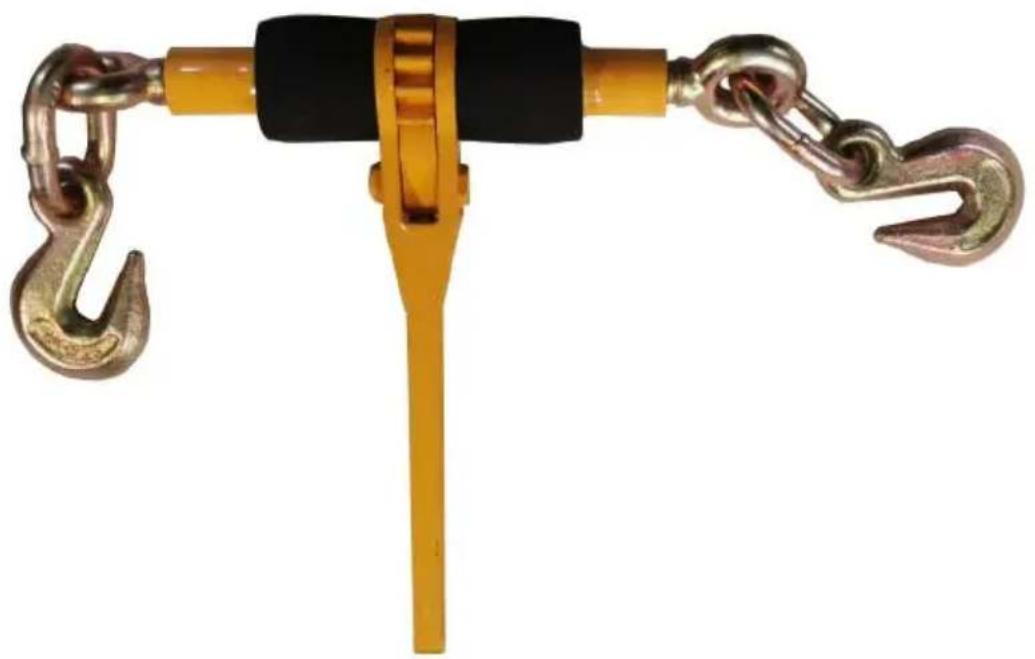

STRUCTURE DIAGRAM

Warning: Make sure to screw in >3cm!

Beware of falling screw rods, which can cause injury!!

1. Handle 2. Hook 3. Hanging ring 4. Rubber sleeve 5. Ratchet wheel 6. Screw rod

INSTRUCTIONS

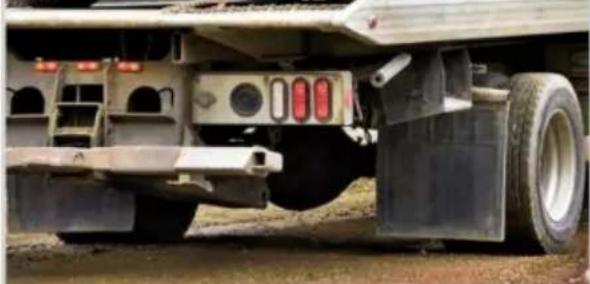

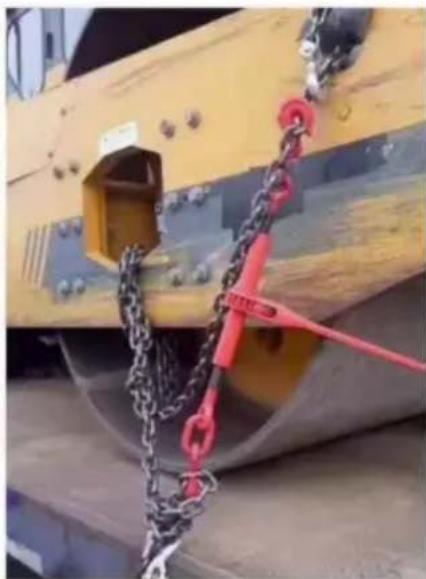

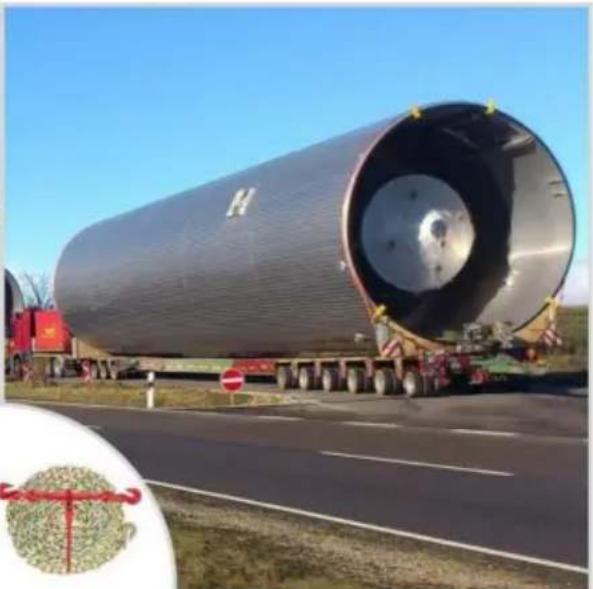

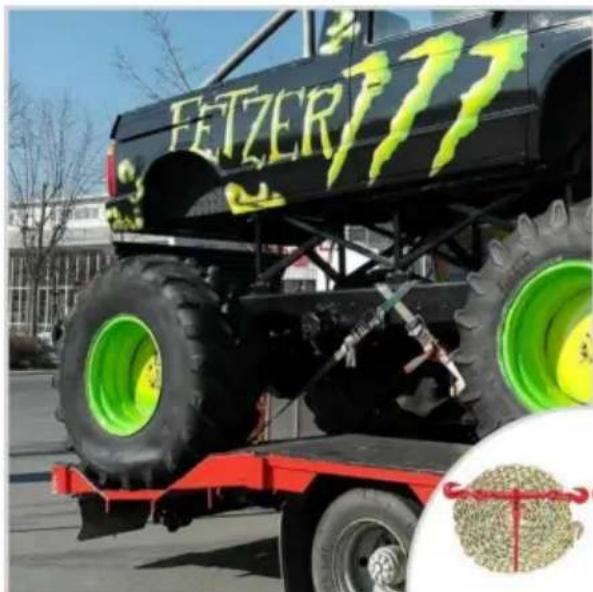

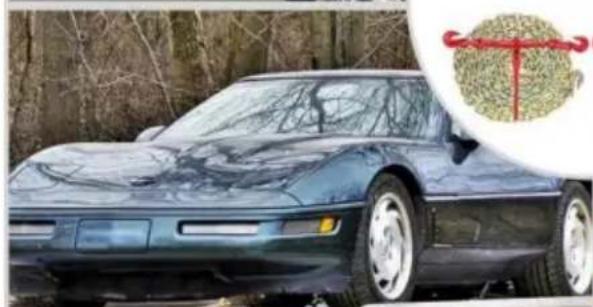

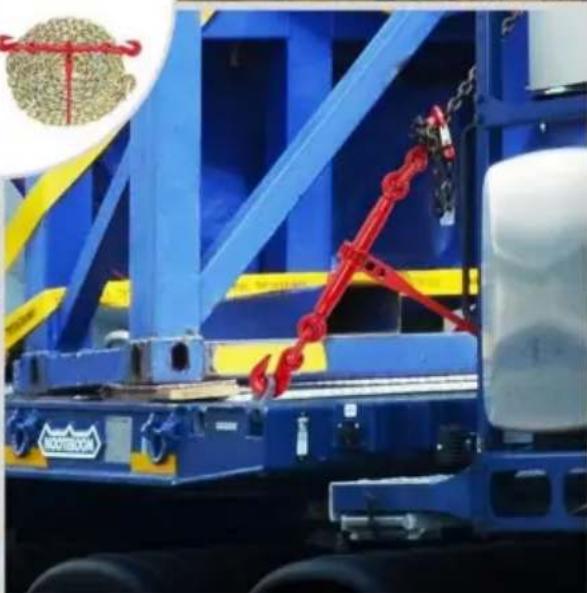

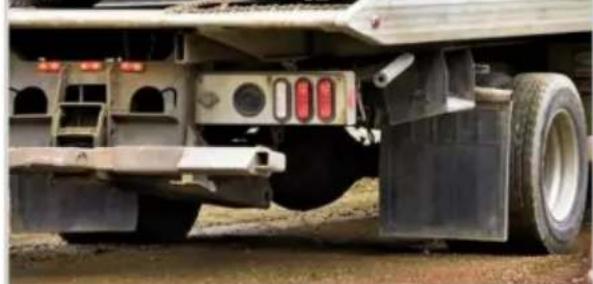

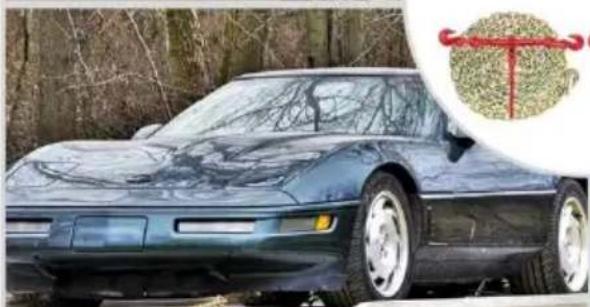

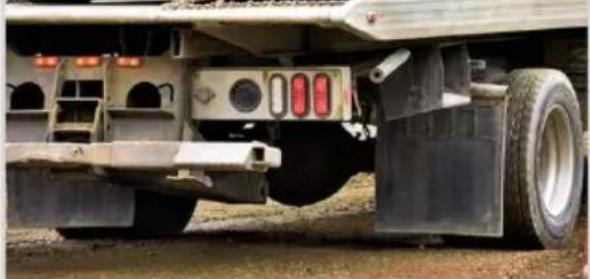

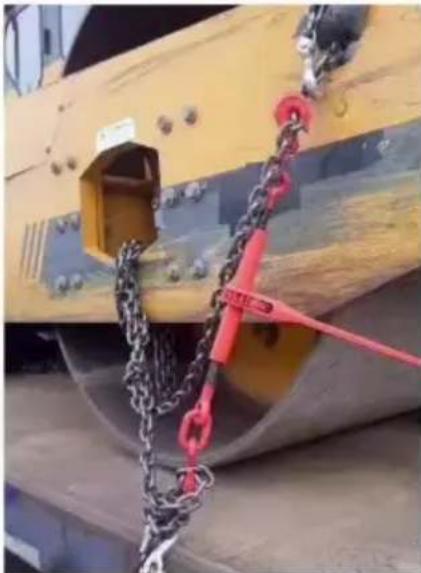

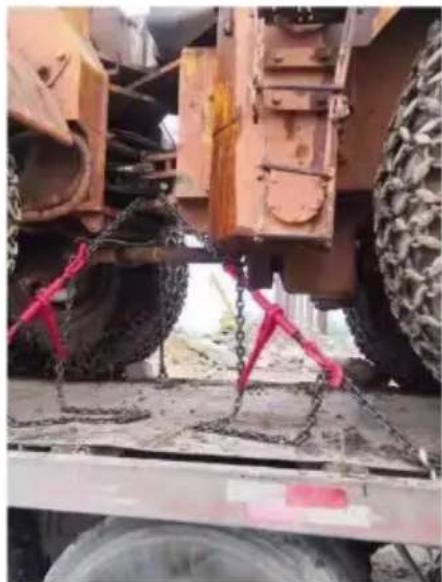

This product is often used with chain. The following examples illustrate. (The image is for explanation only, please match your purchase.)

MAINTENANCE

• Do not exceed WLL (working load limit).
• After use, please clean and dry the product and store it in a dry, ventilated place.

WARNING:

Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use it when it is damaged.

1. Please check the overall condition of the binder before each use.

Is the screw loose or flexible?

Is the main body deformed?

Does the opening of the hook widen?

Is the gear deformed?

Are there cracks in all parts?

1. Before each use, thoroughly test whether the binder works properly before actual use. If the binder doesn't work properly, please follow the inspection instructions to see if the problem occurs.
2. To prevent serious injury, be careful when troubleshooting the faulty binder. Solve all problems before use. If the solution provided in the troubleshooting guide cannot solve the problem, please ask a qualified

- 5 - technician to check the binder before use.

After the binder is repaired, twist the puller back and forth to see if it can retract freely.

Make sure that the binder is safe enough to continue to use it. We hope that the binder can bring you convenience at work.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
