Product Type	Portable Evaporative Air Cooler
Brand	Vevor
Model	YH-F02
Supply Voltage	5 V (USB Type-C)
Power	9 W
Water Tank Capacity	0.7 L
Number of Fan Speeds	3 (1st, 2nd, 3rd)
Spray Modes	High speed, low speed, stop
Ambient Lighting	RGB LED with 10 modes + gradient
Timer	1 to 7 hours + scheduled shutdown
Power Cable	USB Type-C, use a phone charger
Package Contents	Cooler, manual, USB cable, cleaning brush
Safety Features	Automatic shutdown and alarm when water is low
Use with Ice Cubes	Yes, enhances cooling
Cleaning	Clean the atomization plate regularly with the brush; descale with citric acid if necessary
Drainage	Removable water tank and absorbent cotton for draining
Material	ABS plastic, electronic components
Product Type	Evaporative Air Cooler

Frequently Asked Questions - YH-F02 Vevor

How to turn the device on and off?

Press the power button once to turn on, and again to turn off. By default, the fan speed is set to the first speed at startup.

What is the water tank capacity?

The tank can hold up to 0.7 liter of water. Do not exceed the indicated maximum level.

Can ice cubes be used with this cooler?

Yes, you can add ice cubes to the water tank to enhance cooling. Be careful not to exceed the maximum water level and not to place ice cubes above the atomizer.

How to clean the device?

Use the provided brush to clean the atomization plate. For limescale, you can soak the plate in a citric acid solution. Wipe the exterior with a soft, damp cloth.

What to do if spraying does not work?

Check that there is enough water in the tank. If the indicator light flashes, there is a water shortage. Clean the atomization plate if limescale has formed.

How does the LED lighting work?

Press the lighting button multiple times to change colors: gradient, dark green, green, light green, light blue, blue, red, orange, white, then off. The gradient is active by default.

How to set the timer?

Press the timer button multiple times to select a duration from 1 to 7 hours, or to disable the timer (scheduled shutdown). The modes cycle through.

How to drain residual water?

After use, remove the water tank and absorbent cotton, then pour out the water in the indicated direction. Use a cloth to absorb remaining water.

What are the important safety precautions?

Do not let children use the device. Do not use it near a heat source. Unplug it before cleaning. The device automatically turns off when water is low.

What type of power supply is needed?

The device operates on 5 V DC via a USB Type-C cable. Use a standard phone charger (not included) to power it.

USER MANUAL YH-F02 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PORTABLE EVAPORATIVE COOLER

MODEL: YH-F02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: YH-F02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you as there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before

operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property. Avoid children using the product. And this product is not a toy. Do not let children play.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

SETUP PRECAUTIONS

To ensure safe use and avoid injury and property damage to you or others, please make sure to follow the following safety precautions. This product does not consider the following situations:

The use of equipment by unattended children and individuals with disabilities;

The situation of children playing with equipment;

This product is not suitable for individuals with physical or mental deficiencies and a lack of necessary experience and knowledge (unless

used under the supervision of someone responsible for their safety). SAVE THESE INSTRUCTIONS

SPECIFICATION

Model	YH-F02
Voltage	DC5V(TYPE-C)
Power	9W
Tank capacity	0.7L

PACKAGE LIST

No.	Name	Picture	QTY	Note
1	Product		1
2	Manual		1
4	TYPE-C data cable		1
5	Brush		1

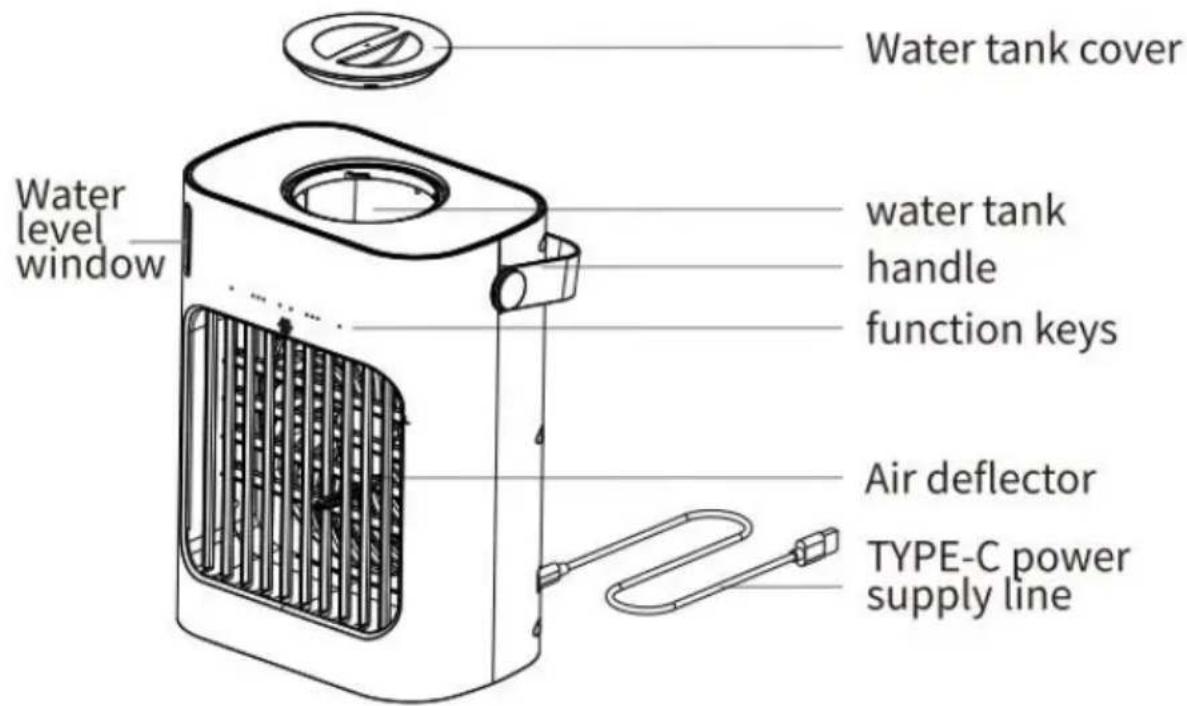

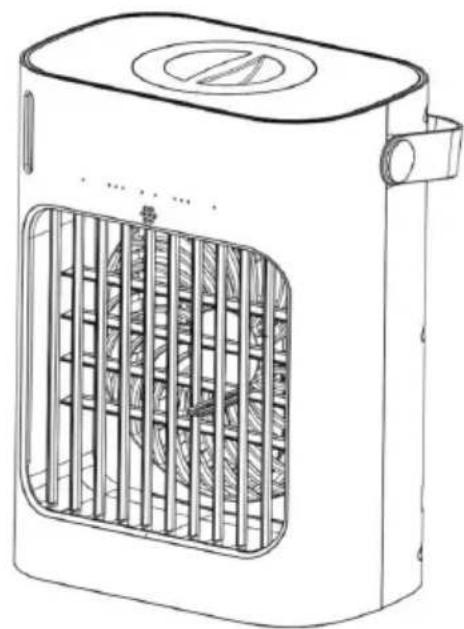

PRODUCT DIAGRAM

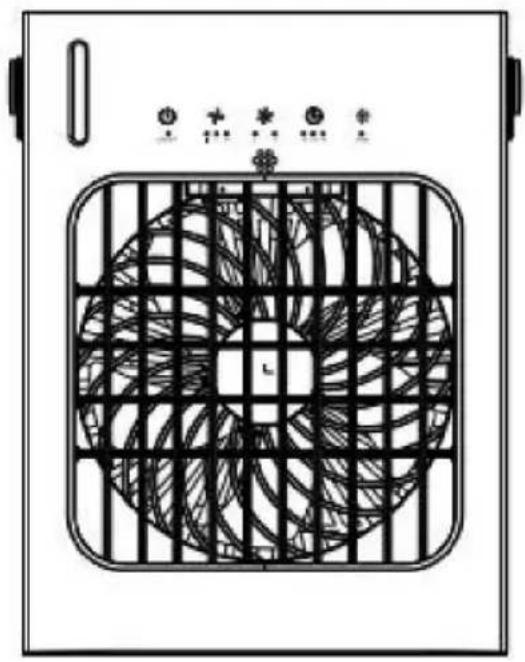

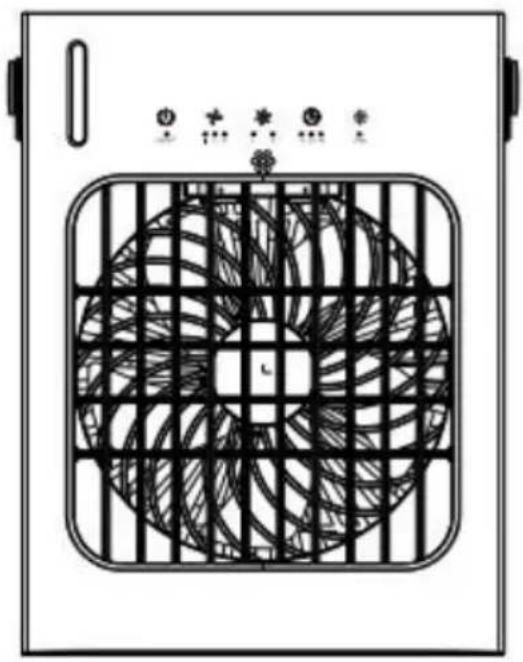

PANEL FUNCTION DIAGRAM

	Power button
	Wind speed key
	Mist volume key
	Time setting key
	Light key

USAGE STEPS

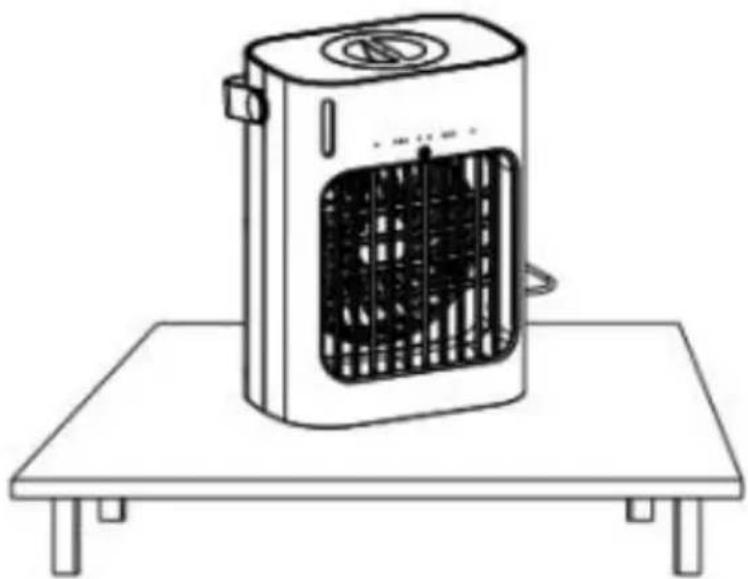

①Put the cooling fan on the flat desk, and open the lid counterclockwise.

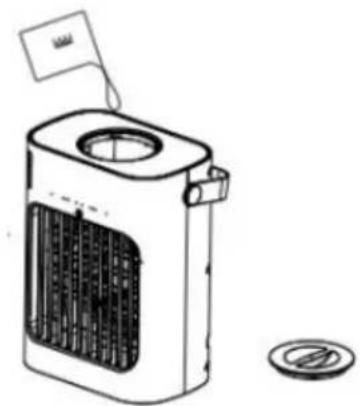

② Add 700ml water into the water tank.

ATTENTION:

• Suggest adding purified water for
• Aromatherapy essential oils and other substances are prohibited from being placed in the water tank

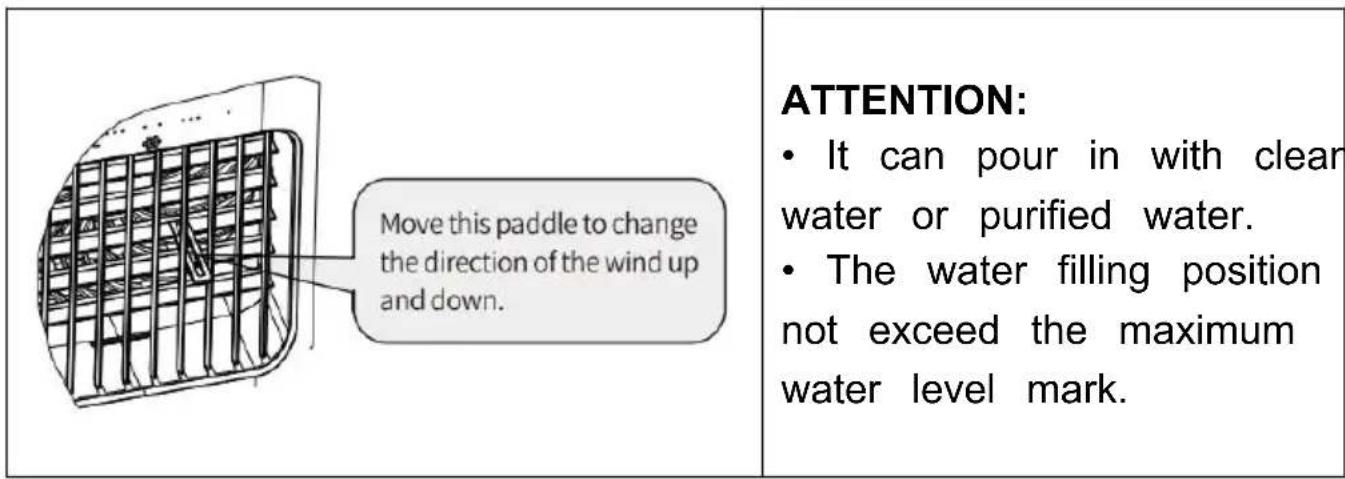

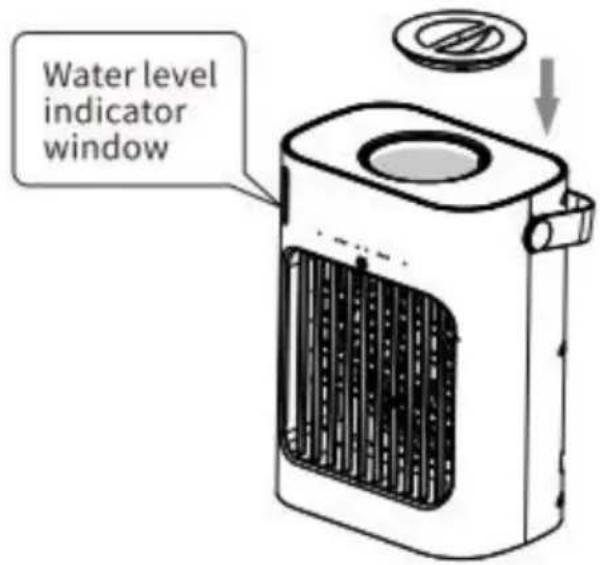

③ Pay attention to the maximum water level that cannot be exceeded when adding water. Install the lid and tighten it clockwise.

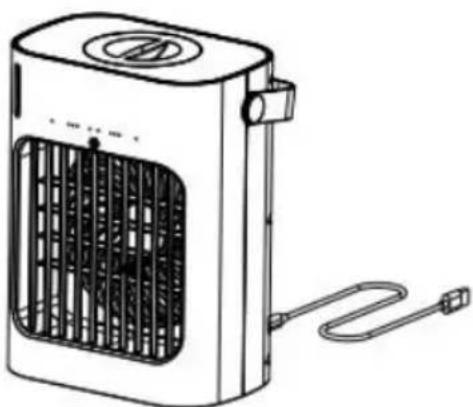

④ Plug in the power cord and press the power button to start work. Use a mobile phone charger to power up.

OPERATION STEPS

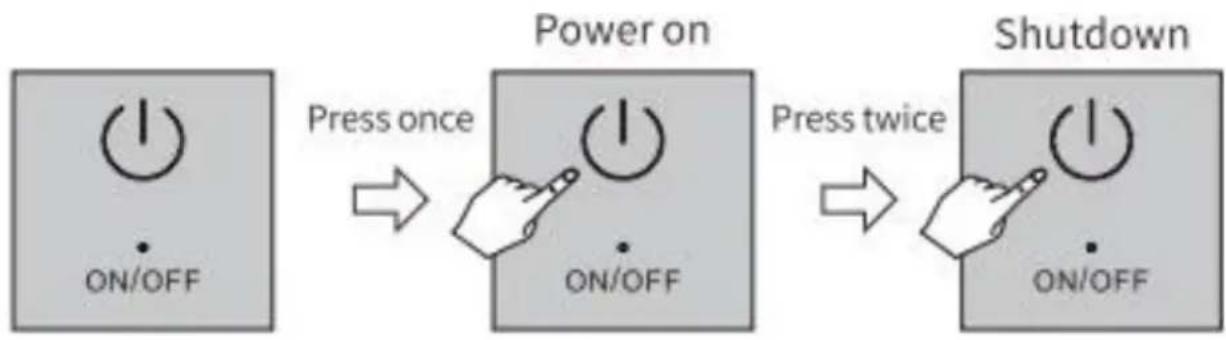

1. Press the power button once to turn on, and then press it again to... The default wind speed is set to work when starting up.

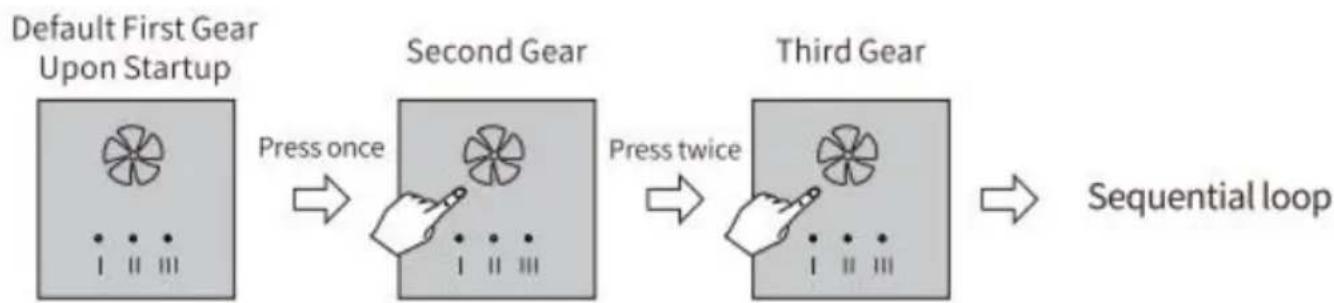

1. Press the wind speed button repeatedly to switch between 1st gear, 2nd gear, and 3rd gear for wind speed, cycling in sequence, and defaulting to turning on.

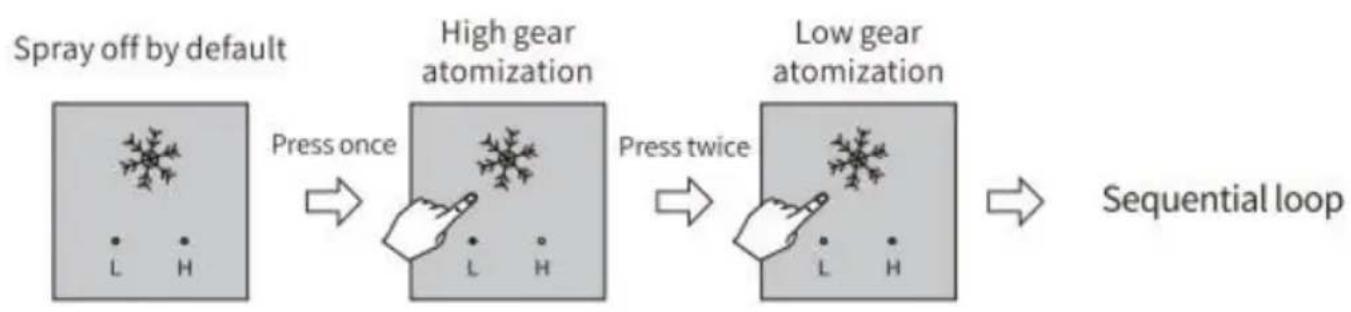

3. Cyclically press the wind speed key to switch the three modes of I gear of atomization - low gear of atomization - stop spray in turn, and cycle. When starting, spray is off by default.

When there is a shortage of water in the atomization chamber, the "H" indicator lights flash simultaneously, and enter standby mode after seconds.

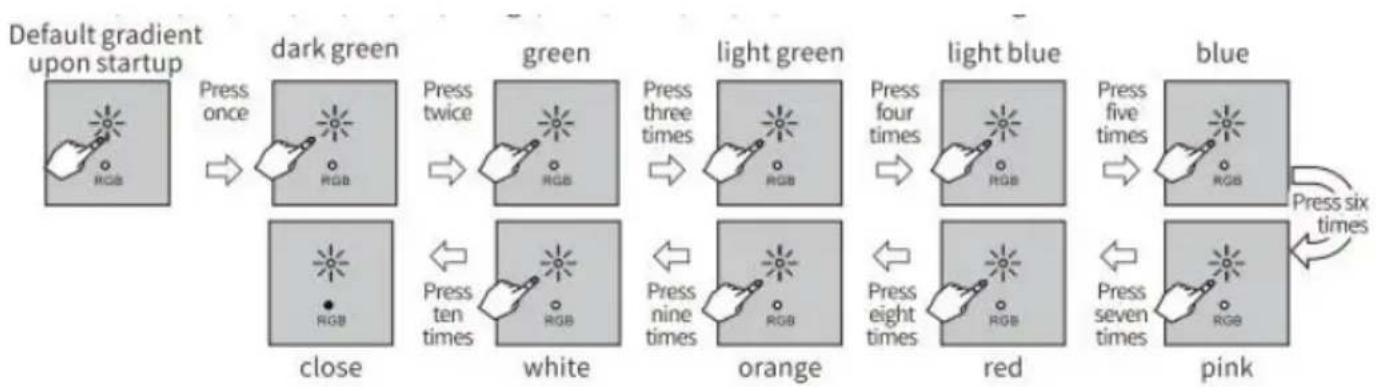

1. Press the light button repeatedly to switch between RGB ambient light colors. The color control sequence is: 1 (gradient) - 2 (dark green) - 3 (green) - 4 (light green) - 5 (light blue) - 6 (blue) - 7 (blue) - 8 (red) - 9 (orange) - 10 (white) - 0 (off). The default RGB gradient is turned on.

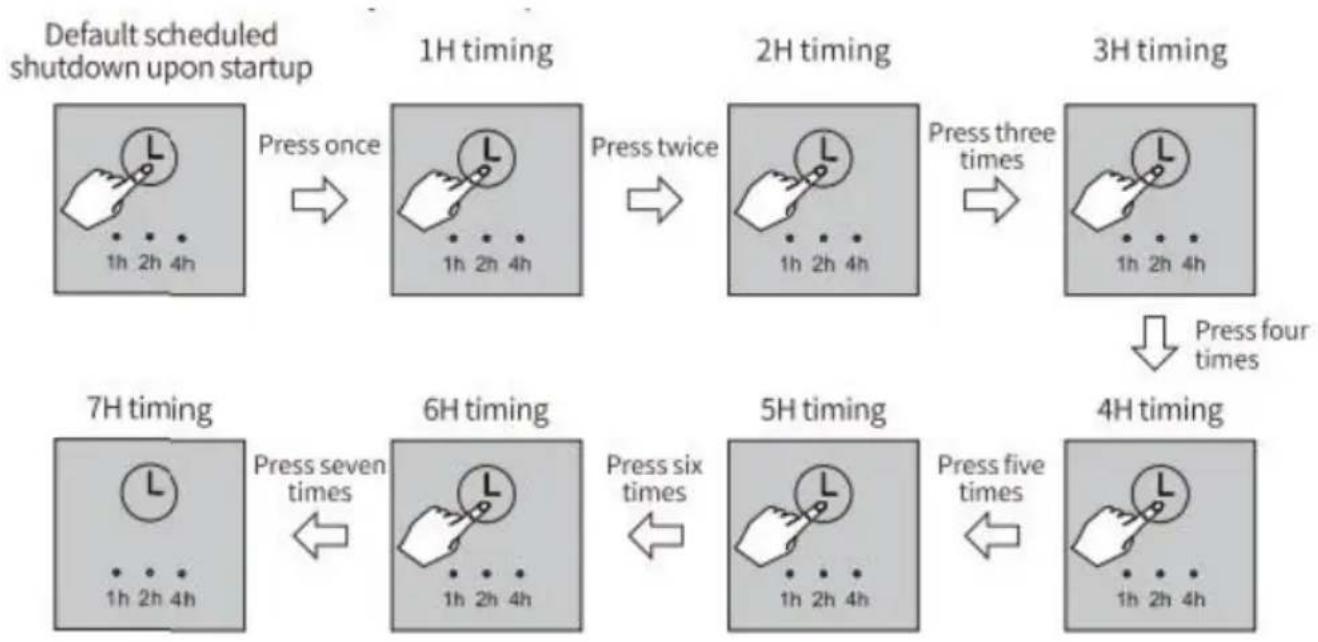

1. Press the timer button repeatedly to switch between eight modes: 1H - 2H - 3H - 4H - 5H - 6H - 7H - timed off. Cycle in sequence, and the default timed off mode is turned on.

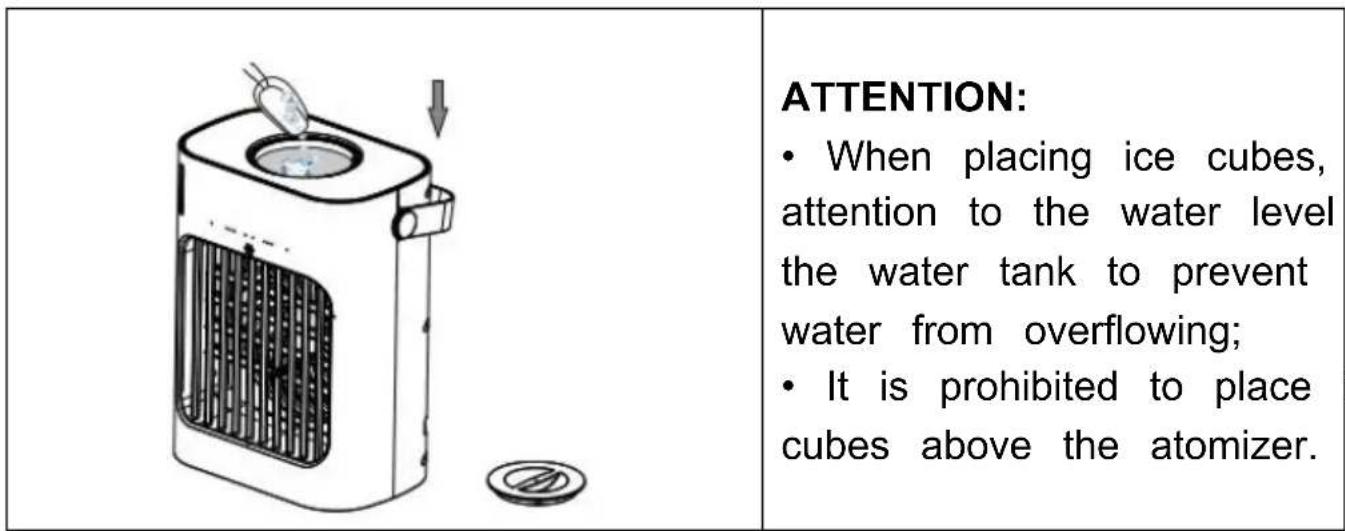

1. When the temperature is high, use a humidified cooling fan to add the water tank, which can lower the atomization temperature and blow cold air.

CLEANING/MAINTENANCE

1. During the use of components, regular cleaning and maintenance are required to maintain the machine in its optimal working condition.

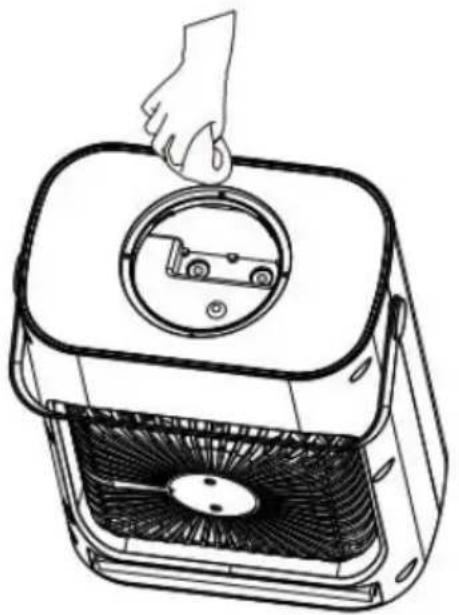

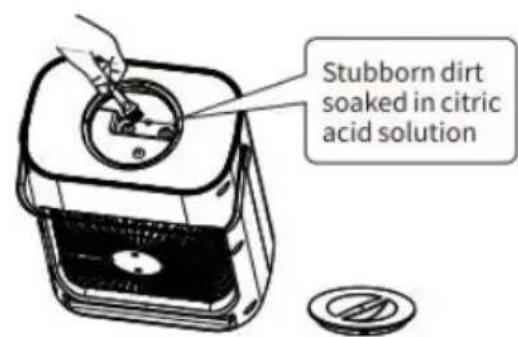

(1) After using the water tank, it is easy to produce scale, which affects the

atomization effect. Before each use, it is necessary to clean the atomization plate with a brush. Stubborn dirt can be soaked in citric solution before cleaning.

ATTENTION:

• Do not use sharp or hard tools to touch the surface of the machine.
• Do not use detergent casually for cleaning; it is better to use clean water.

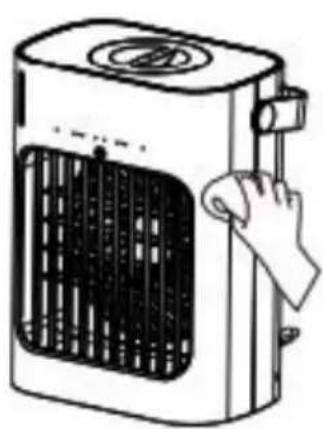

(2) The external surface and internal dirt of the entire machine can be cleaned with a soft and damp cloth, and then wiped dry to remove water stains.

ATTENTION:

• Do not use a cloth with chemical solvents, gasoline, kerosene, or polishing powder to wipe the surface.
• When cleaning, it is important to avoid water ingress into the body to prevent internal electrical components from becoming damaged and causing malfunctions.
• It is recommended to clean the water and atomization tank when using for more than three days.

DRAINAGE INSTRUCTION

(1) After long-term use, it is necessary to clean the water in the water storage box and the water on the absorbent sponge.

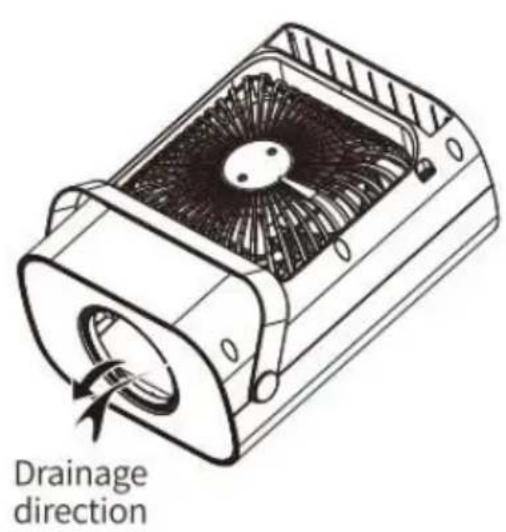

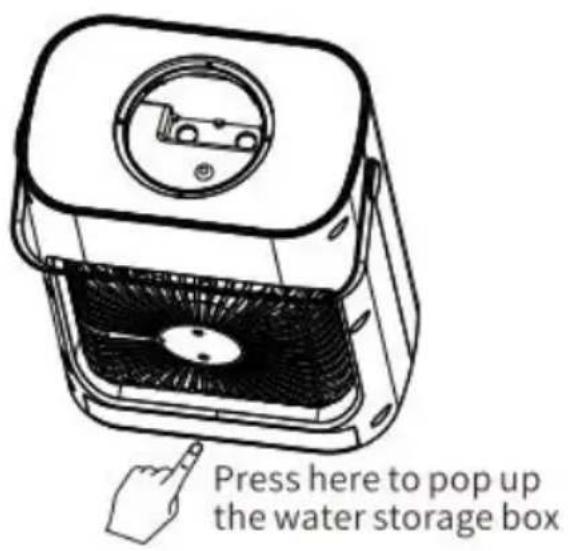

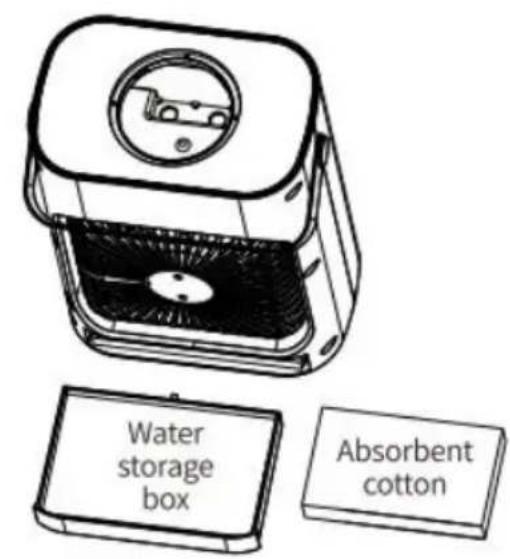

② Take out the water storage box and absorbent cotton, and pour out water in the direction shown in the diagram.

ATTENTION:

To avoid water overflowing from the water storage box when pouring water, it is necessary to remove the water storage box and absorbent cotton before proceeding with the pouring.

③ Use a soft cloth to absorb the water from the water tank.

TROUBLESHOOTING

If your humidifier is not working properly, please perform the following checks before requesting after-sales service.

Fault phenomenon	Cause analysis	Troubleshooting
The power on indicator light does not light	The power plug is no properly plugged in	Plug in the power co and connect the pow
Water shortage light flashing alarm	There is too much scale in the water ta	Cleaning water tank
No spray when starting	There is scale on the atomization plate	Clean the atomization plate with a brush
Low wind speed	Not reaching maximur gear	Switch to 3rd gear operation
