USER MANUAL SM-5319 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HOT AIR STYLER

MODEL: SM-5319

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: SM-5319

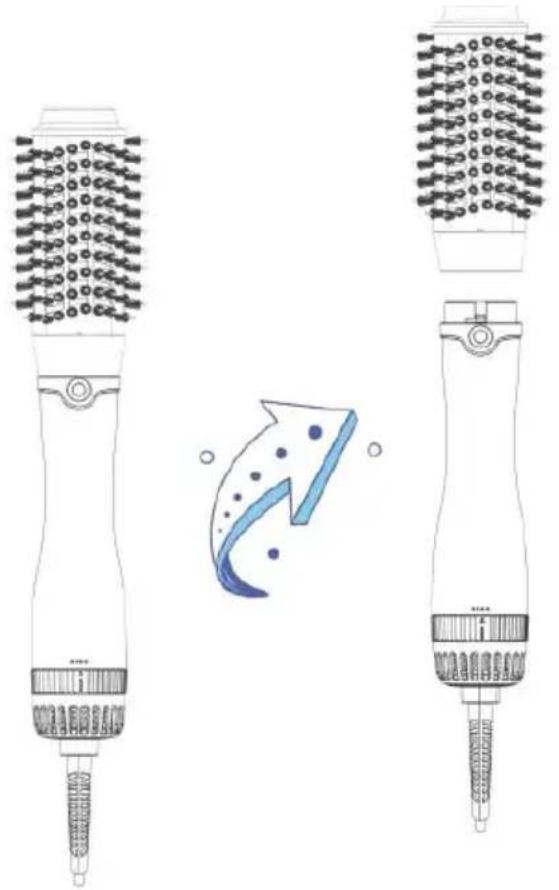

Technical line drawing of a hairdryer with two designs and a magnified inset showing particle flow (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user m The appearance of the product shall be subject to the product you re Please forgive us that we won't inform you again if there are any te or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, especially when children are present, basic precautions should always be observed, including the following

READ ALL INSTRUCTIONS BEFORE USING

KEEP AWAY FROM WATER

DANGER

As with most electrical appliances, electrical parts are electrically live even with switch is off.

To avoid the risk of death by electric shock:

Always unplug this appliance from the electrical outlet immediately after using

▶ Do not use while bathing or in the shower.
▶ Do not place or shore this appliance where it can befallen or be pulled tub or sink.
▶ Do not place or drop into water or other liquid.
▶ Do not reach for an appliance that has been fallen into water. Unplug it immediately.

Unplug this appliance before clean in git.

WARNING

To avoid the risk of burns, fire, electric shock or injury:

▶An appliance should never be left unattended when it is plugged in.
▶ Close supervision is necessary when this appliance is used by, on, or near children or individuals with certain disabilities or special needs
▶ Use this appliance only for its intended use as described in this manual.
▶ Never operate this appliance if it has a damaged cord or plug if it is not properly, f it has been dropped or damaged, or if it has been dropped into
▶ Keep the cord away from the heated surfaces. do not wrap the cord around appliance.

▶ Never use while sleeping.

▶ Do not use outdoors or operate where aerosol(spray)products are being u or where oxygen is being administered.

▶ Do not use an extension cord.

This appliance is hot when in use. do not let eyes or bare skin touch her surfaces.

▶ Do not place the heated unit directly on any surface while it is hot or

▶ Always store this appliance and cord in a moisture-free area.

▶ Do not store it intemperaturesexceeding140°F(60°C).

▶ Do not plug or unplug this appliance when your hands are wet.

Feature

The hot air comb can be regarded as a salon hair dryer and styling comb (warm airbrush, straight hair comb, hair comb, curling brush, massage comb). suitable for dry and wet hair and also it can freely style hair to make hair straight.

For all hair types: long, short, thick, damaged, dyed or extensions. It can be as a hair dryer and comb for curly hair and straight hair.

Safe to Use: FCC, CE, RoHS, ETL, PSE, certification. It can heat up fast as save more time with 1200W power

▶ Voltage: AC 120V/ 220V\~240V, 50/60Hz.
▶ Power: 1200W.
▶ New design heating wire whose heating temperature is 45^ C- 100^ C
▶ Three heat and speed settings to meet hair drying and styling flexibly.
▶ Removable brush head design for convenient carry.
▶ Hand diameter is more comfortable, slimmer and more ergonomic.
▶ Improved noise reduction by optimising the structure of the housing, motor and hole arrangement. Enjoy the moment of use.
▶ Heat distribution with 360^ ventilation holes to dry faster and smoothen you easilier.
▶2m 360 degree swivel cord and plug that can be configured according to countries.

How To Use

▶ Prior to plugging in check the voltage on the rating label to ensure it corresponds to your local voltage.
▶ Your brush is equipped with three heat settings-AIR, LOW and HIGH. as general guide, use the HIGH speed setting for rough drying for thicker hair, the LOW setting for finer hair and more precise control when styling. The AIR setting can be used at the end to set the style.
▶ Start at the back of the head when drying your hair and work forward.
▶ DO not concentrate the airflow on any one area for an extended period of time.
▶ USE CAUTION: Start with AIR setting first to test the right temperature for your scalp.

NOTE: During the first few minutes of initial use you may notice smoke and a slight odor. This is normal and will quickly disappear.

STEPS OF REPLACING THE COMB Installation

Diagram showing two mechanical components with gear symbols and directional arrows, no readable text or labels present.

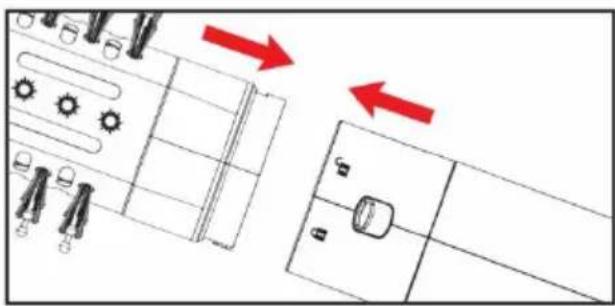

Step1: Insert by matching the card slot of brush head and handle

Diagram showing a mechanical or electrical component with labeled parts and a red arrow indicating direction or flow.

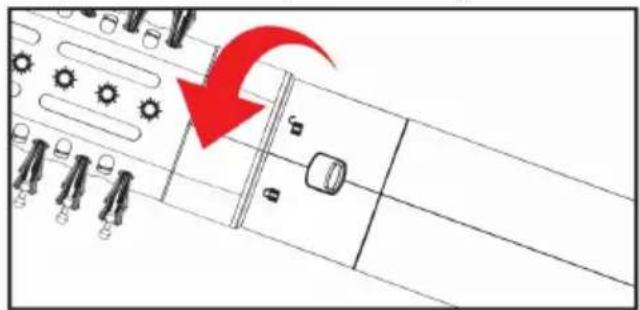

Step2: Twist left with some effort till you hear the "click" sound

Disassembly

Line drawing of a mechanical component with no visible text or symbols

Step 1: Press and hold the button, slide it towards the handle

Diagram showing a device panel with labeled buttons and a red arrow indicating rotation or change, alongside a separate layout panel.

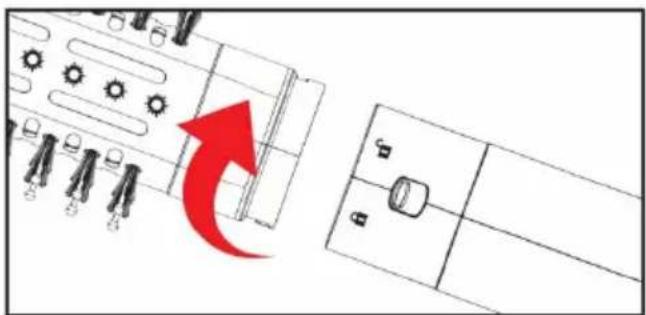

Step2: Twist right to remove the brush head

Maintenance And Care

▶ Always unplug and allow to cool prior to cleaning.

▶Periodically inspect the air intake/filter screen on the back of the brush and remove debris that may have accumulated.
▶ Build up may reduce air flow and damage the brush.
▶ Never use the following chemicals to clean the product: thinner, gasoline alcohols, or any other flammable chemicals.
▶ Do not wrap the cord around the appliance: this may cause cord worn.
▶ Use as oft dry cloth to clean.

Caution

Never allow the power cord to be pulled, twisted, or severely bent. never wrap cord tightly around the appliance. damage will occur at the high flex point of into the appliance, causing it to rupture and short circuit. Inspect the cord frequently. stop using immediately if damage is visible or if unit stops or open intermittently.

Storage

When not in use, your iron is easy to store. Allow appliance to cool, then sin store out of reach of children in a safe, dry location. Do not jerk or strain plug connections do not wrap the power cable around the appliance.

Warranty Policy Instructions

Allow the Products are manufactured on the basis of the highest standards a will provide you with superior performance when used in accordance with the instructions in this manual.

As our products are 1-year replacement and 1-year warranty, if any problems please feel free contact us, we will reply you at the first time.

Product specification parameters

Brand	VEVOR	Rated voltage	220-240V~	120V~
Model	SM-5319	Rated frequency	50/60Hz	60Hz
/	/	Rated power	1200W	1200W

Intertek

Compliant with North American security certification.

Comply with the European security certification.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/1

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union.

This applies to the product and all accessories marked with this syr

Products marked as such may not be discarded with normal domest

waste, but must be taken to a collection point for recycling electrical and electronic devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.

responsible for compliance could void the user's authority to operate the product

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These

limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: Jiangxi Shengming Electronic Technology Co., Ltd

Address: Building 2, Block F1-03, Ganzhou Electronic Information Industry Science and Technology City, Longnan Economic and Technological Development Zone, Longnan City, GANZHOU CITY, Jiangxi Province.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion Hou London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.
