USER MANUAL LS MINI Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MASSAGE GUN

LS MINI

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

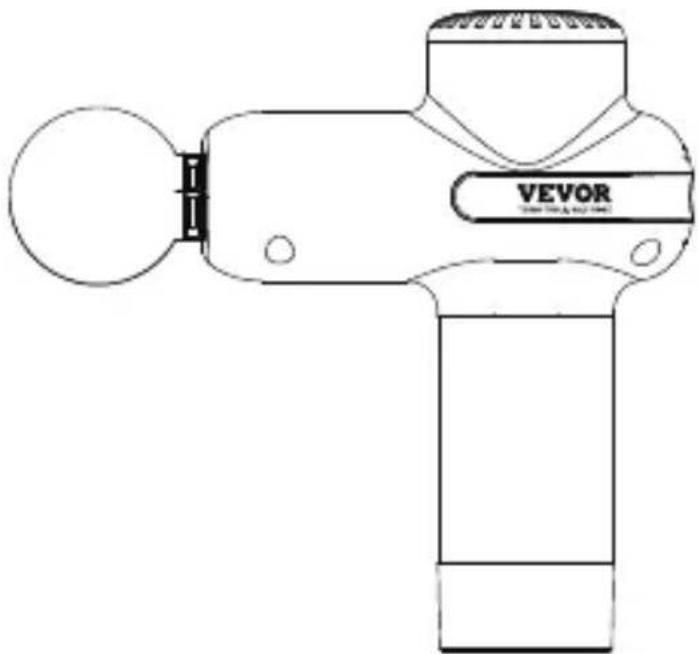

Line drawing of a VEVOR handheld pressure relief device (no text or symbols on body)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feelfree to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Thank you for choosing our booster massage gun. Before using it, please read this manual carefully to ensure proper operation and keep this manual for future reference.

Main functions:

Relieving muscle soreness, stimulating the circulation of blood, relieving stiffness of cervical vertebra, and improving muscle recovery.

PRECAUTIONS

To avoid harm, fault, electric shock, fire, death and other equipment damage, please read the instructions and warnings carefully.

PROHIBITION

1. Minors are forbidden to use this product. It is not a toy.
2. Forbid to put this product into water. If it falls into water accidentally, please send it for inspection in time.
3. Forbid to put this product near or into the fire.
4. Forbid to use it on head, neck, heart or genital.
5. Forbid to use it on bones. Use it on soft tissues only when not feeling pain or discomfort.
6. Forbid to use non-original charger to charge the product, otherwise it may cause a fire.
7. Forbid to drop the product intentionally.
8. Forbid to remove the screws or try to disassemble the product.
9. The product is not an alternative or complement of medical treatment. If you are feeling pain, undergoing medical treatment or using any other medical devices, please consult your doctor before using this product.
10. Forbid to put fingers, hair or other body parts near to the back of the massage heads in case of the squashing.

DISCLAIMER

If you have any of the following situations, or any health-related problems, please consult your doctor before using this product.

1. Pregnancy, diabetes, mental disorder, retinal damage and other complications.
2. Pacemaker usage, recent surgery, epilepsy, migraine, lumbar disc protrusion, and spondylolisthesis.
3. Recent joint replacement surgery, Intrauterine contraceptive device placing surgery, metal parts implantation, or other concerns about your own body.

Ongoing research on the effect of vibration training toward specific medical diseases may reduce the number of contraindications. Practical experience shows that, in many cases, vibration-training-combined treatment is also an effective medical guidance. However, it must be done with doctor advice.

I.PRODUCT INTRODUCTION

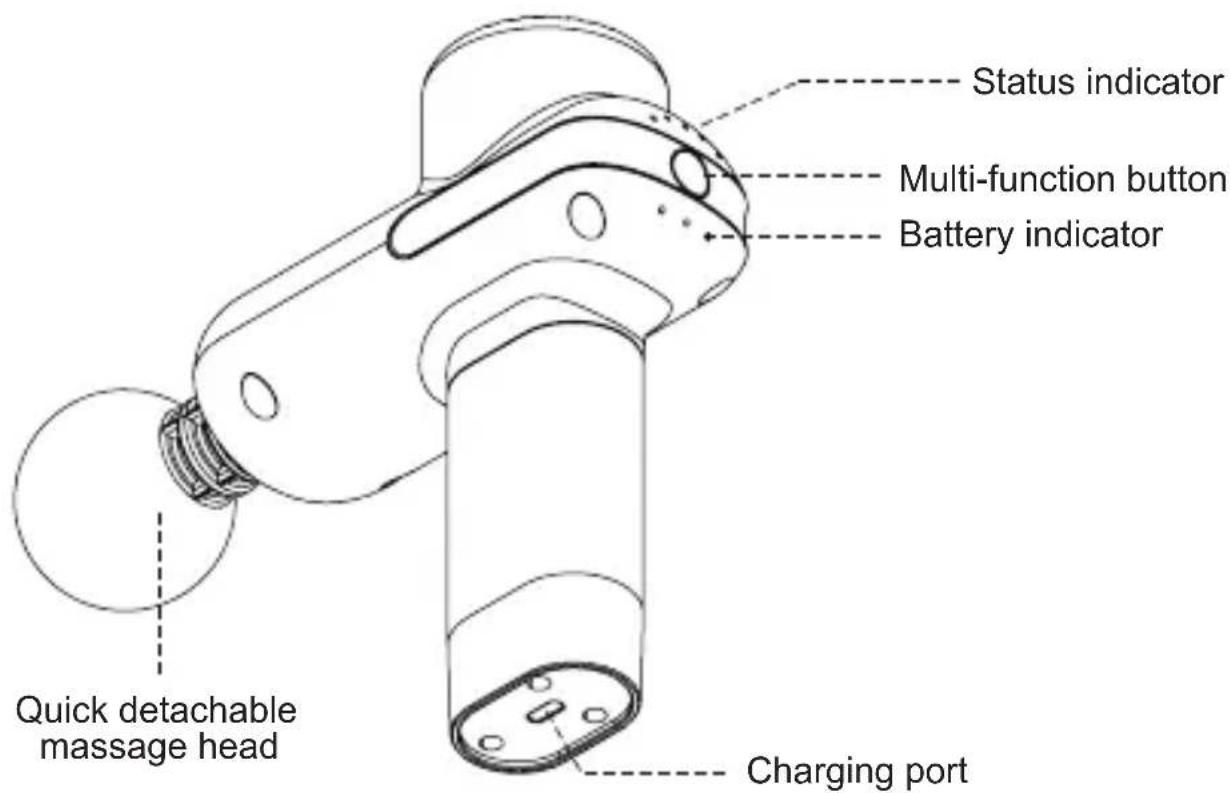

Status indicator Multi-function button Battery indicator Quick detachable massage head Charging port

MASSAGE HEADS

Spinal head For spine massage. Strong intensity.

Round head For whole body muscle massage and relaxation.

Flat head For large muscle group massage and relaxation.

Bullet head For pain point relaxation. Strong intensity.

II.INSTRUCTION FOR USE

OPERATION

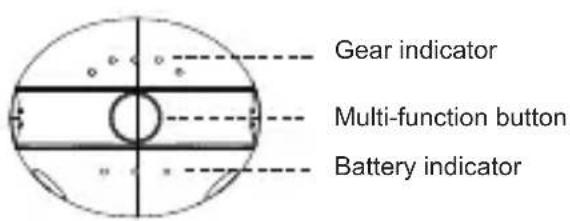

Gear indicator Multi-function button Battery indicator

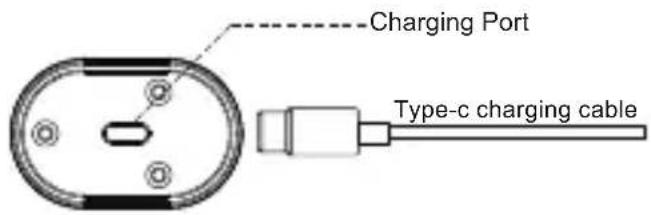

Charging Port Type-c charging cable

a. Short press the multi-function button to turn on, the indicator light shows the current power.

b. Short press the multi-function button, the machine starts to work, the indicator shows the current gear, each time you press, the vibration intensity increases by one gear.

c. When the machine is in fifth gear, press the multi-function button to shut down.

CHARGING

The charging port is on the top of the massage gun.

a. Please fully charge the battery for the first use.

b. Turn it off when charging.

c. Connect the power supply. Status indicators will flash in turn and it shows that the machine is charging.

d. When charging, the battery indicator lights up and flashes. Fully charged, the three lights are always on.

e. Do not move the machine when it is charging.

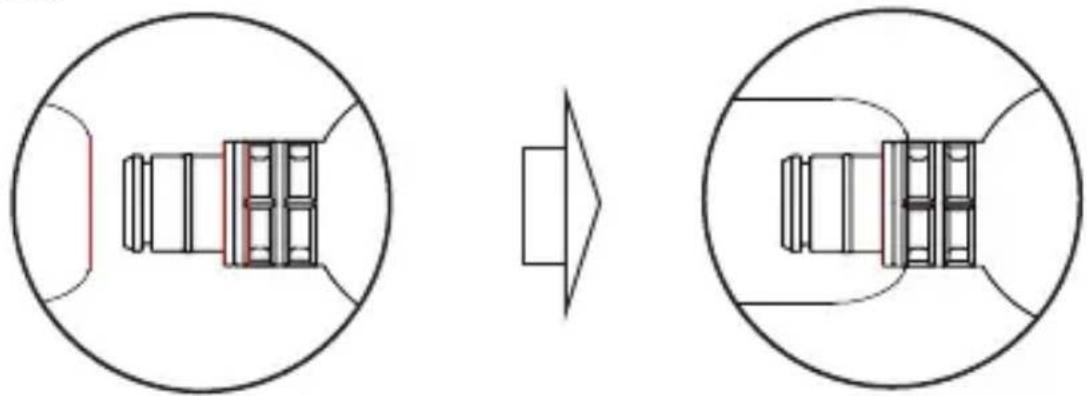

REPLACE THE MASSAGE HEAD

With the machine turned off, slowly insert the massage head into the barrel. As shown in the figure, the red line position of the massage head can be aligned with the red line position of the machine.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

III. SPECIFICATIONS

Product name: Massage Gun	Service temperature: 0-40°C
Type: LS MINI	Stroke: 8mm
Rated input: Type-c	Battery capacity: 2500mAh
Rated input: 5V---2A

IV.FAQ

UNABLE TO POWER ON

a. Low temperature:

Keeping the massage gun below 0^ C for a long time will reduce the activity of battery and prevent normal functioning. The product cannot work normally while being power on.

Solutions: Lay the product for two hours at temperature above 0^ , or raise the machine temperature fast with a hair-drier.

b. Low battery:

When the battery is low, or user does not charge it for a long time, the battery will enter the lowbattery protection mode. The product will not work normally at this time when you start it again.

Solutions: Turn it off with charger connected. Make sure it is fully charged, and it can run normally.

TROUBLESHOOTING
Slight abnormal noise during use	Slight noise is a normal phenomenon in the period of new machine. If the noise gets louder after a period of use, please send it for inspection.
Battery does not charge	Replace the battery please, for the aging or poor contact of battery.

V.MAINTENANCE

a. When you do not use the product for a long time, turn it off and hold electricity while safe-keeping it. Store it in a safe, cool and dry place.

b. Charge the product every half a year if you do not use it for a long time. Holding electricity prevents battery damage due to stains.

c. Please choose neutral detergent and soft cloth for daily maintenance. Do not use engine oil, organic solvents or other chemicals for cleaning.

d. Please turn off the power after using the product, or before cleaning the product.

e. The product should be well fixed during transportation. Avoid violent vibration, collision, rolling and falling.

VI.ENVIRONMENTAL PROTECTION

Do not discard this product with general household waste at the end of its service life. Put this product in the recycle bin designated by the government or send this product back to the manufacturer's after-sales service center. The service center staff will recycle it in an environmental-friendly manner.

a. Name and content of harmful substances in the product

Part name	Poisonous and harmful substances and elements
	Pb	Hg	Cd	Cr(VI)	PBB	PBDE
shell	○○○○○○
circuit board	×○○○○○
metallic parts	×○○○○○
cable		○○○○○○
This form is based on the rules of SJ/T 11364.O: The content of harmful substances in all parts meet the limited requirements of GB/T 26572.X: The content of harmful substances in at least one part exceeds the limitation of GB/T 26572.

b. Environmental protection use period

The time limit of environmental pollution, serious damage to people and property, or the leakage of toxic and harmful substances, is 10 years in normal use as described in this manual.

This sign indicates that the environmental protection period of this product is 10 years in normal use. Some components may also have environmental protection period signs. The specific period of environmental protection for each component shall be subject to its own sign.

VII.WARRANTY

The warranty period of this product is 12 months, and the authority is not transferable. From the date of purchase, you enjoy free warranty within the warranty period with valid documents (Wear due to appearance and mechanical operation is not covered by the warranty).

Disclaimer:

1. Accidental damage, improper use or transportation;
2. Improper maintenance;
3. Operation without following the manual instructions;
4. Unable to provide formal purchase certificate;

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

BATTERY DISPOSAL

Li-Ion

To minimize hazards to health and the environment at the end of this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable collection facility where it will be sent in order to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycling and safe disposal of these in your area.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the

party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: SUZHOU PINOTEC CO., LTD.

Address: ROOM C705, NO.1 GUANTANG ROAD, XIANGCHENG DISTRICT, SUZHOU City, JIANGSU PROVINC, CHINA.

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld pressure relief tool (no text or symbols on the device itself)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

. CARACTÉRISTIQUES

IMPOSSIBLE DE MISE SOUS TENSION

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld pressure relief tool (no text or symbols on the device itself)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

www.vevor.com/support

Machine Translated by Google

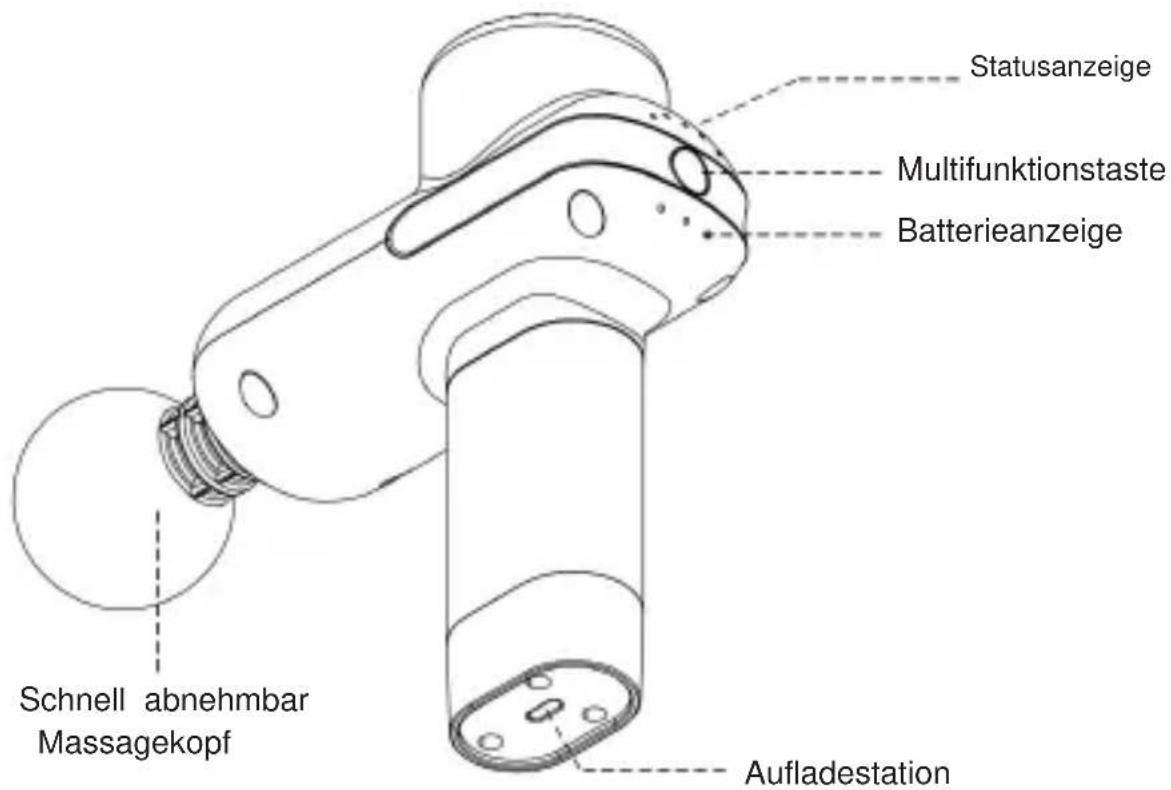

ÿ.PRODUKTEINFÜHRUNG

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

ÿ. SPEZIFIKATIONEN

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Büro 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld pressure relief tool (no text or symbols on the device itself)

HO BISOGNO DI AIUTO? CONTATTACI!

www.vevor.com/support

Machine Translated by Google

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

ÿ. SPECIFICHE

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Francoforte sul Meno.

C/O YH Consulting Limited Ufficio 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld pressure relief tool (no text or symbols on the device itself)

www.vevor.com/support

Pure technical diagram of a circular mechanical part with centerlines and dashed lines indicating hidden edges (no text or symbols)

Indicador de marcha

Botón multifunción

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

. ESPECIFICACIONES

1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

C/O YH Consulting Limited Oficina 147, Centurion House,

London Road, Staines upon Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld pressure relief tool (no text or symbols on the device itself)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

www.vevor.com/support

Pure technical diagram of a circular mechanical part with centerlines and mounting holes (no text or symbols)

Wskaźnik biegu

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

. SPECYFIKACJE

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

YH CONSULTING SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIA.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

MASSAGEPISTOOL

LS MINI

Line drawing of a VEVOR handheld pressure relief tool (no text or symbols on the device itself)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

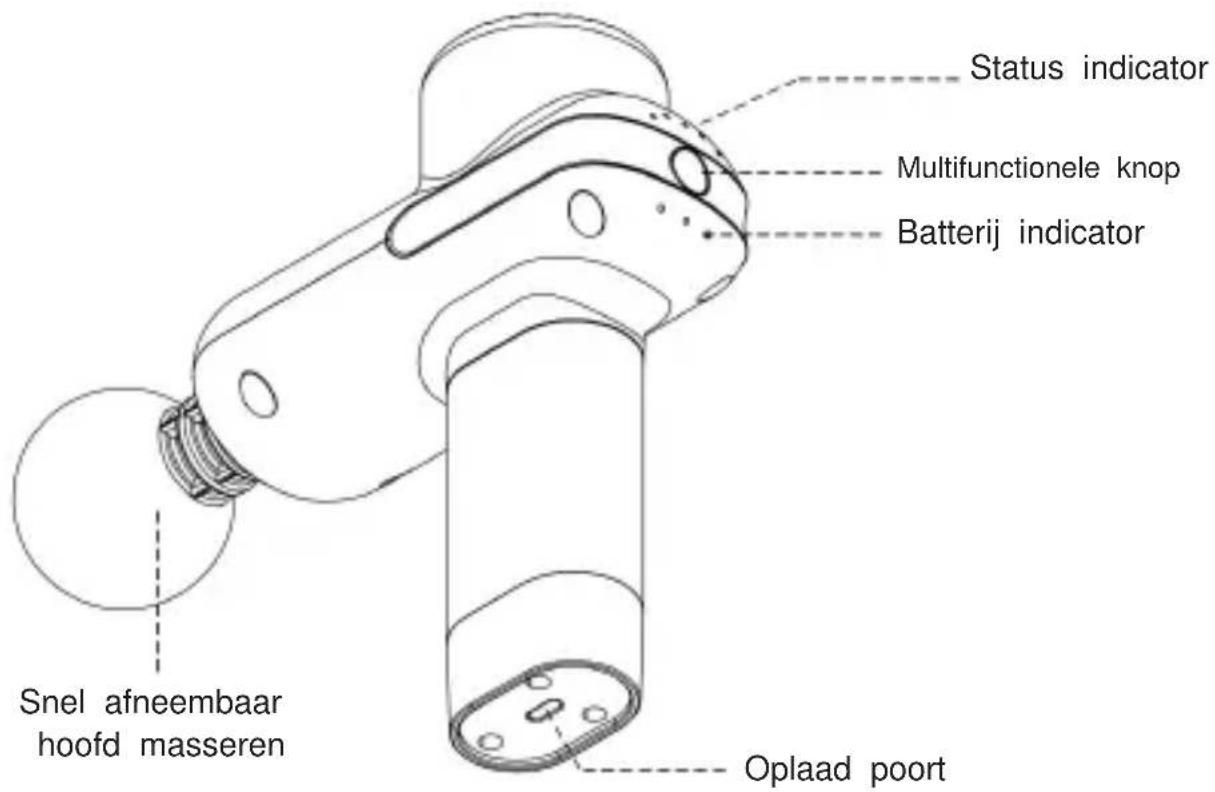

ÿ.PRODUCTINTRODUCTIE

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

ÿ. SPECIFICATIES

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Kantoor 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a VEVOR handheld pressure relief tool (no text or symbols on the device itself)

BEHÖVS HJÄLP? KONTAKTA OSS!

www.vevor.com/support

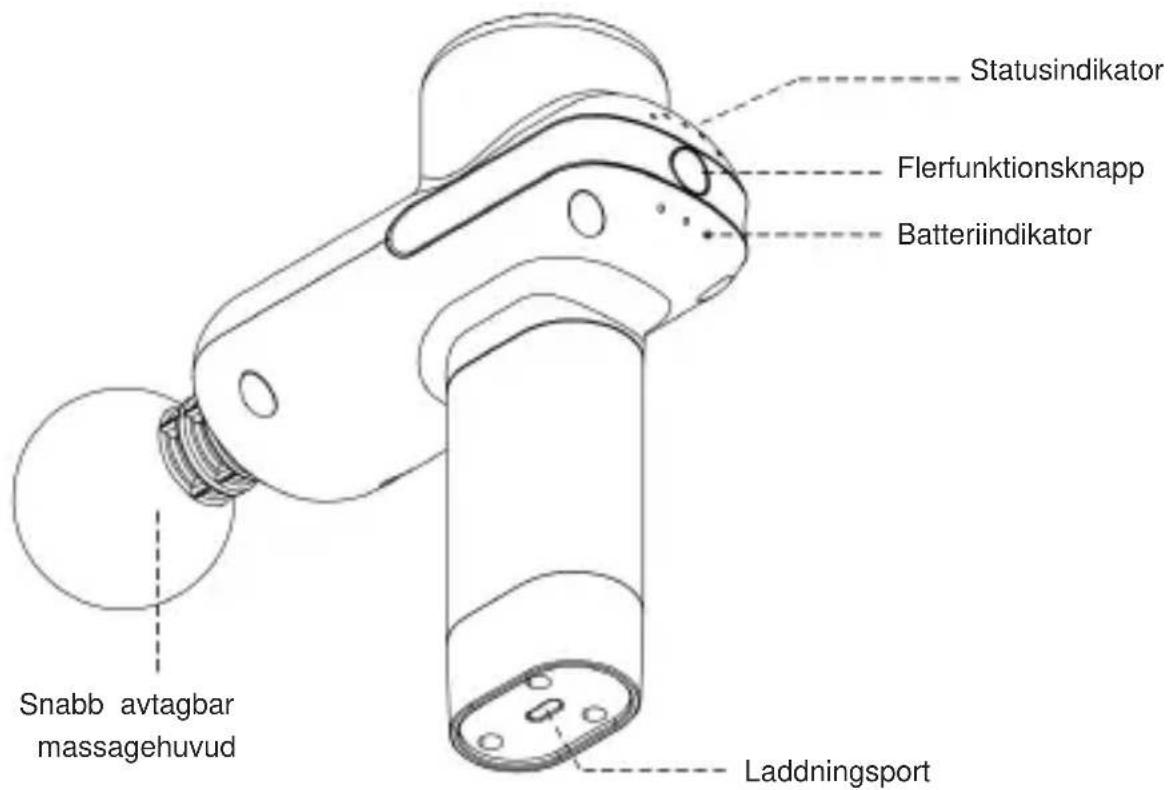

ÿ.PRODUKTINTRODUKTION

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

ÿ. SPECIFIKATIONER

Adress: ROOM C705, NO.1 GUANTANG ROAD, XIANGCHENG DISTRICT, SUZHOU City, JIANGSU PROVINC, KINA.

Importerad till AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE
